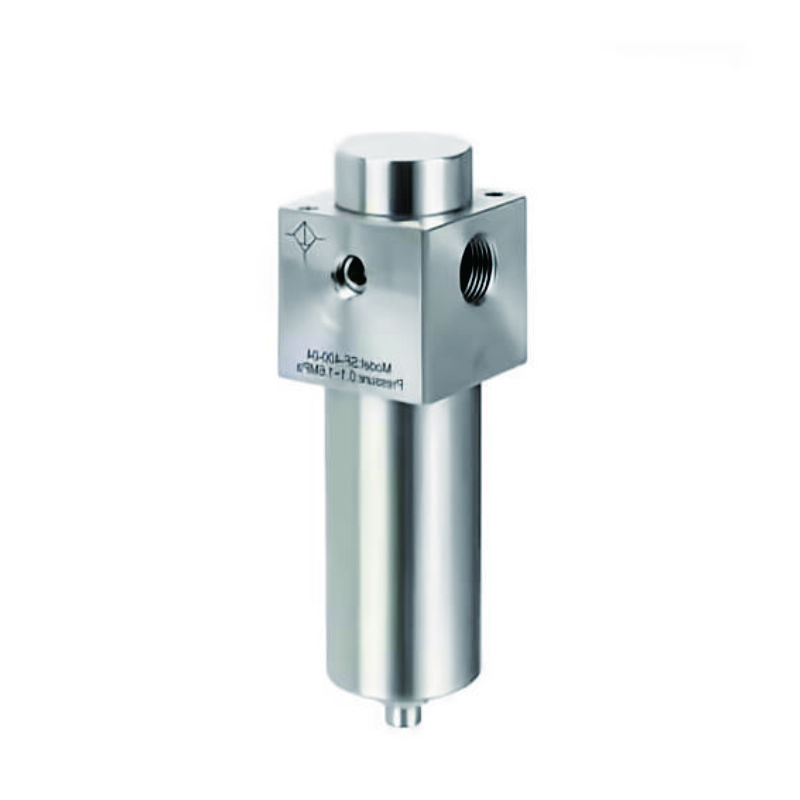

superior protection for demanding pneumatic systems. Constructed from corrosion-resistant SS316, these filters reliably remove particulates and contaminants from air/gas streams at high pressures (e.g., up to 6000 psi). Essential for oil & gas, chemical processing, and analytical instrumentation to ensure system integrity and clean air supply.
| Type-Name | Air Filter | ||||
| Model | SF200 | SF400 | SF400 | SF600 | SF600 |
| Port Size(G) | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Max Flow Rate(L/Min) | 1900 | 2450 | 3030 | 9600 | 9600 |
| Filter Cup Capacity | 105cc | 110cc | 110cc | 110cc | 110cc |
| Grade of Filtration | 5μm,40μm | ||||
| Working Medium | Air | ||||
| Pressure Regulating Range | 0.15~2MPa | ||||
| Pressure Resistance | 6MPa(870Psi) | ||||
| Operating Temperature Range | -40~100℃ | ||||
| Drain Type | Differential pressure drain(Drain below 0.05MPa) | ||||
| Material | SUS316 stainless steel | ||||
| Accessories | Mounting bracket,screw x2 | ||||
| Weight | 1240g | 1630g | 1600g | 3900g | 3800g |
