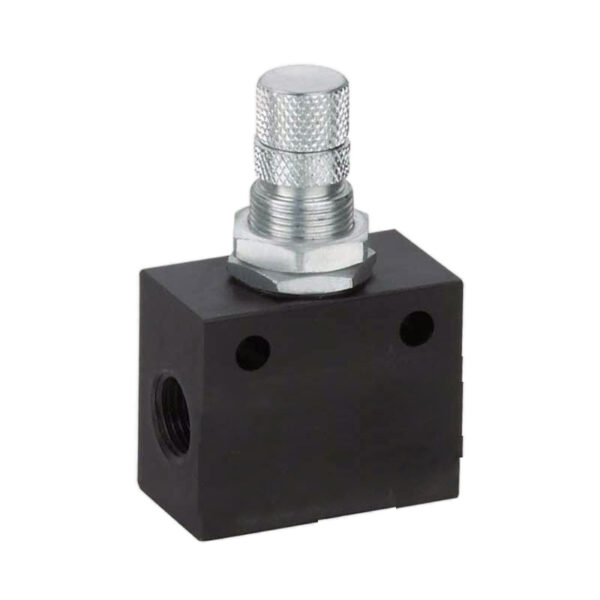

achieve precise speed regulation for your pneumatic actuators. These compact one-way throttle valves (e.g., G1/8″-G1/2″) offer sensitive adjustment of airflow, ensuring smooth and accurate cylinder movement. Ideal for optimizing cycle times and performance in diverse industrial automation. Durable aluminum alloy construction.
| Model | ASC-06 | ASC-08 | ASC-10 | ASC-15 |
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ |
| Working Medium | Air | |||
| Working-pressure Range | 0~0.95MPa | |||
| Operating Temperature Range | 0~60℃ | |||
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| ASC-06 | 22 | 32 | G1/8 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-08 | 26 | 36 | G1/4 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-10 | 28 | 40 | G3/8 | 25 | 30 | 4.3 | 52.7 | 59.5 | M6×0.5 | M12×0.75 | 13 | 22 |
| ASC-15 | 28 | 40 | G1/2 | 30 | 35 | 4.3 | 58.7 | 65.5 | M6×0.5 | M12×0.75 | 13.5 | 26 |
| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| ASC-06 | 22 | 32 | G1/8 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-08 | 26 | 36 | G1/4 | 22 | 27 | 4.3 | 49.7 | 56.5 | M6×0.5 | M12×0.75 | 12 | 18 |
| ASC-10 | 28 | 40 | G3/8 | 25 | 30 | 4.3 | 52.7 | 59.5 | M6×0.5 | M12×0.75 | 13 | 22 |
| ASC-15 | 28 | 40 | G1/2 | 30 | 35 | 4.3 | 58.7 | 65.5 | M6×0.5 | M12×0.75 | 13.5 | 26 |
