ensure reliable one-way airflow in your compressed air systems. These compact aluminum alloy valves (G1/8″-G2″ ports) prevent backflow, protecting equipment and maintaining system integrity. Ideal for various industrial applications requiring dependable non-return functionality, operating effectively up to ~0.95 MPa. Easy to install for efficient flow control.

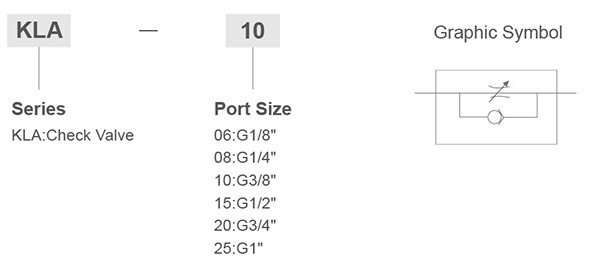

| Model | KLA-06 | KLA-08 | KLA-10 | KLA-15 | |
| Working Medium | Air | ||||
| Port Size | G1/8″ | G1/4″ | G3/8″ | G1/2″ | |
| Working-pressure Range | 0.5~0.95 Kgf/cm2 | ||||
| Ensured Pressure Resistance | 15.0 Kgf/cm2 | ||||
| Operating Temperature Range | -5~60 | ||||
| Body of Material | AluminumAlloy Lyl2 | ||||
| Standard Rated Flow(L/min | Check Valve | 200 | 450 | 1250 | 1650 |
| One-way Valve | 400 | 800 | 1500 | 2000 | |

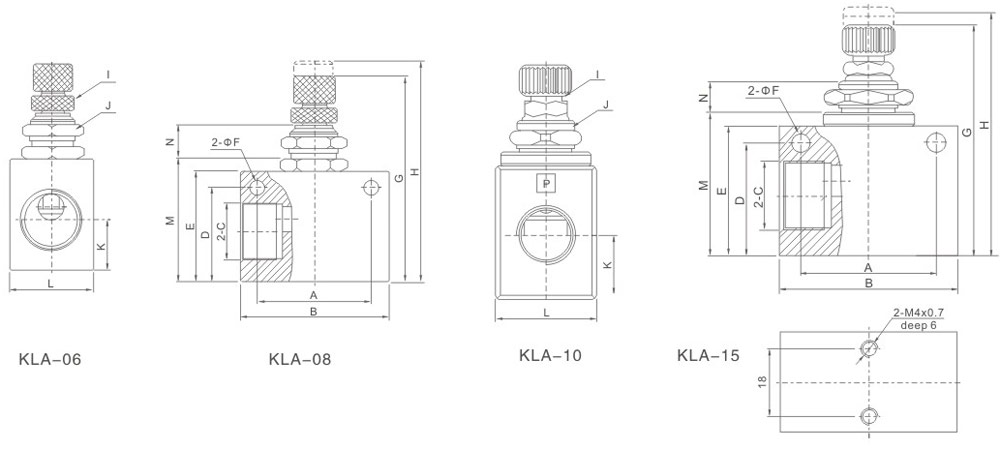

| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| KLA-06 | 22 | 32 | PT1/8 | 18 | 23 | 4.3 | 46.8 | 52.3 | M6×0.5 | M12×0.75 | 10 | 18 | 26 | 8.6 |
| KLA-08 | 26 | 36 | PT1/4 | 23 | 27 | 4.3 | 50.8 | 56.3 | M6×0.5 | M12×0.75 | 13.5 | 18 | 30 | 8.6 |
| KLA-10 | 35 | 50 | G3/8 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
| KLA-15 | 35 | 50 | G1/2 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| KLA-06 | 22 | 32 | PT1/8 | 18 | 23 | 4.3 | 46.8 | 52.3 | M6×0.5 | M12×0.75 | 10 | 18 | 26 | 8.6 |
| KLA-08 | 26 | 36 | PT1/4 | 23 | 27 | 4.3 | 50.8 | 56.3 | M6×0.5 | M12×0.75 | 13.5 | 18 | 30 | 8.6 |
| KLA-10 | 35 | 50 | G3/8 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
| KLA-15 | 35 | 50 | G1/2 | 32 | 37 | 5.3 | 65 | 74 | M8×0.75 | M16×1 | 17.5 | 28 | 40.5 | 10.2 |
