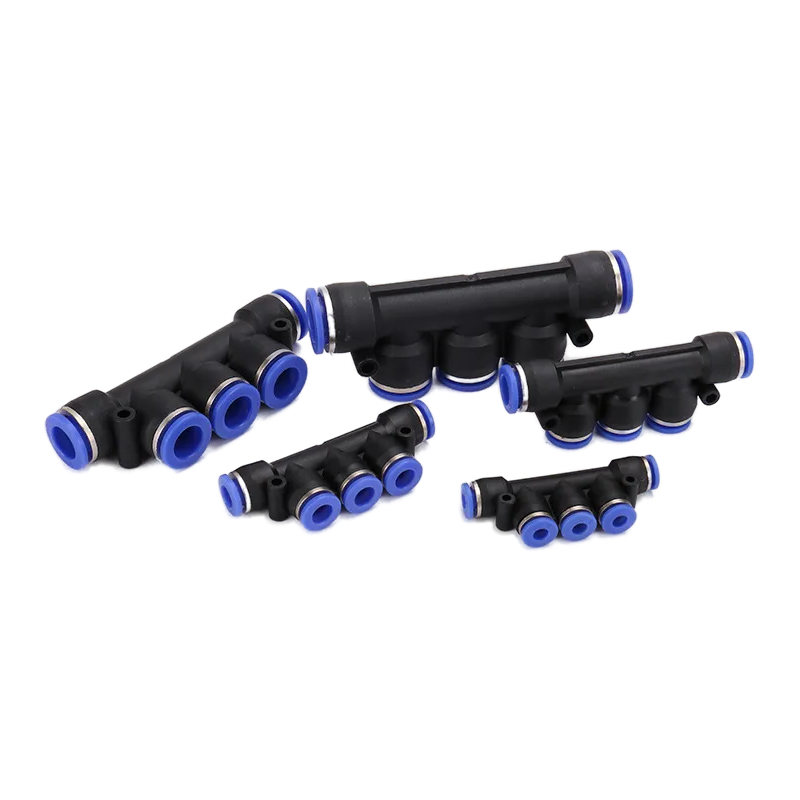

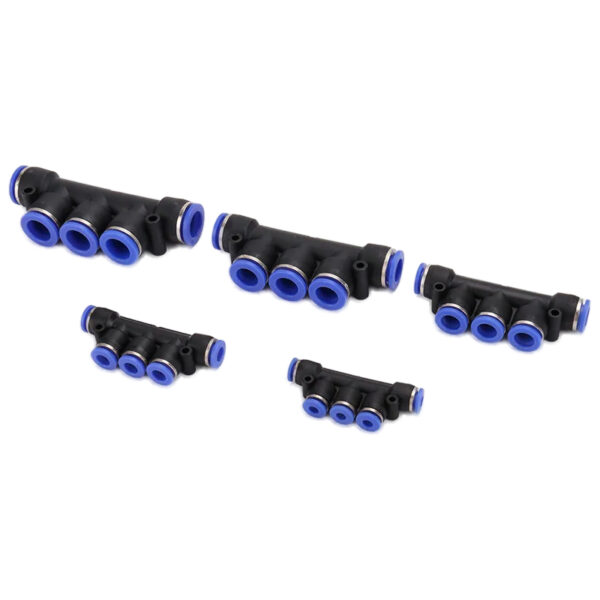

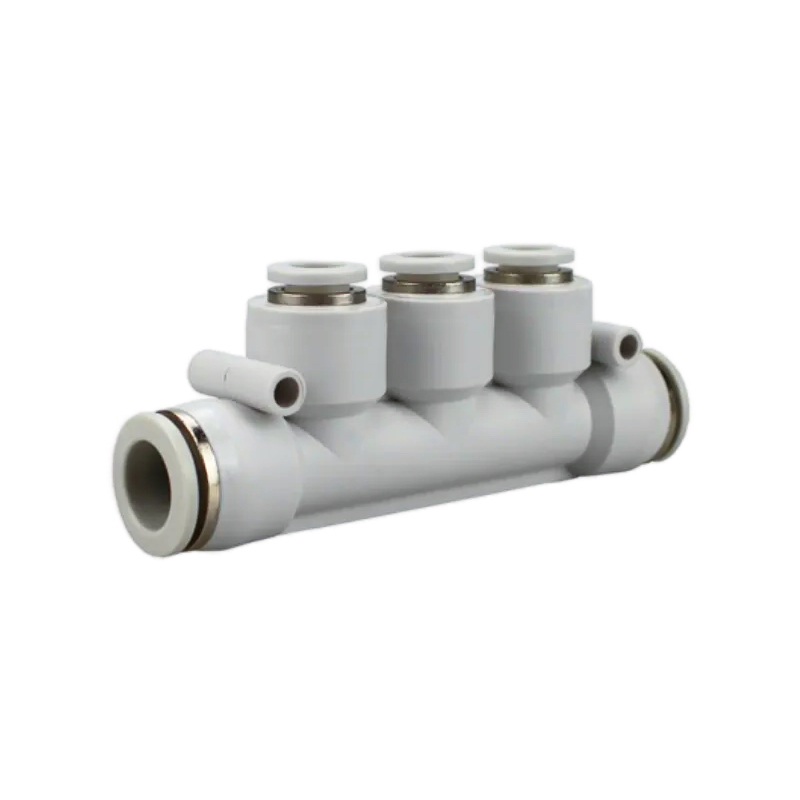

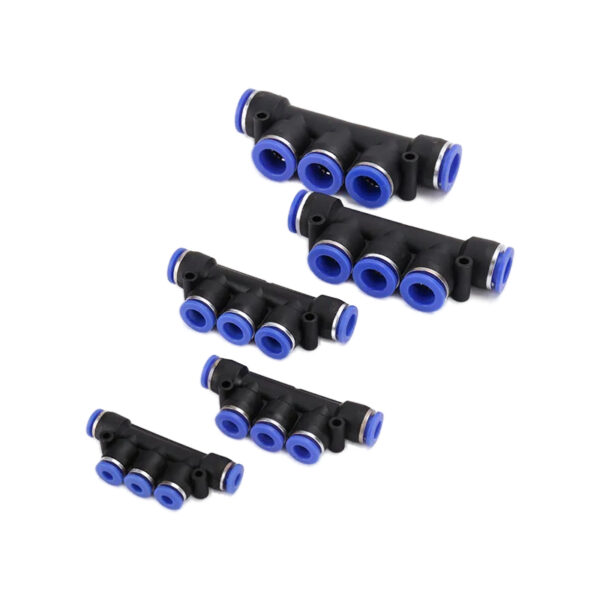

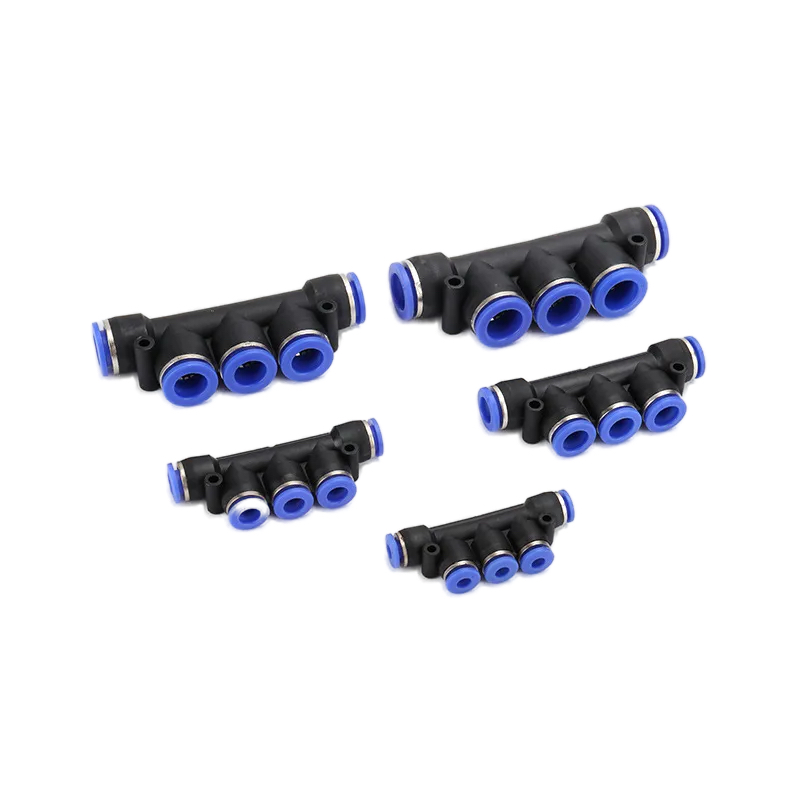

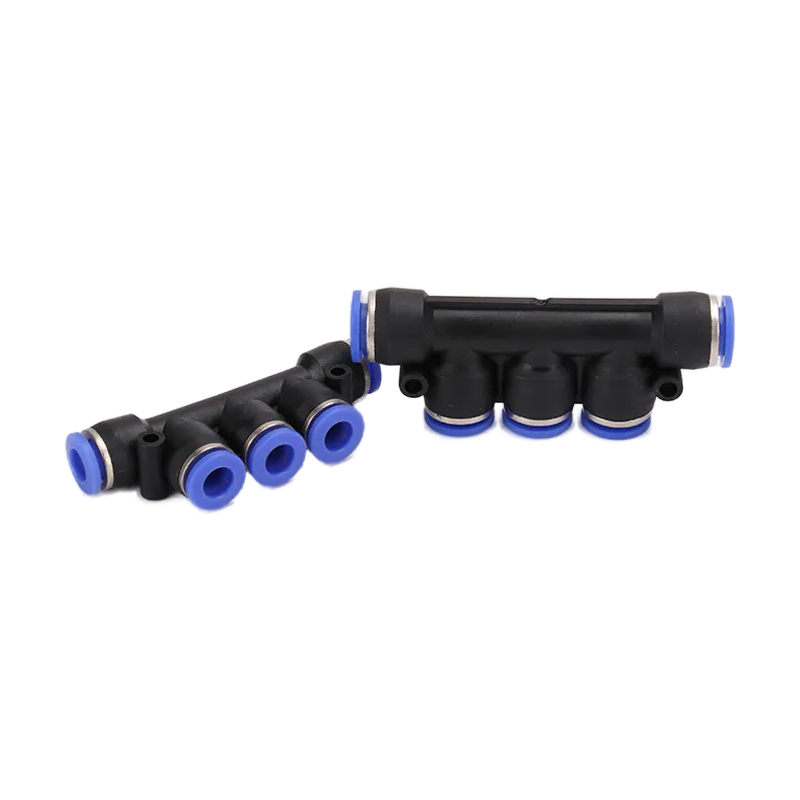

PK Series Pneumatic Multi-Port Distributors simplify air line branching. These push-in manifolds provide quick one-touch connections for multiple PU/Nylon tubes (e.g., 4-12mm OD) from a single source. Ideal for organizing complex pneumatic circuits, saving space, and ensuring efficient airflow distribution in automated machinery and industrial applications. Durable aluminum alloy body.
| Parameter | Specification |
|---|---|
| Fluid | Air |
| Max. Pressure | 1.32Mpa (13.5kgf/cm²) |
| Normal Pressure Range | 0~0.9Mpa (0~9.2kgf/cm²) |
| Low Pressure Range | -99.99~0Mpa (-750~0mmHg) |
| Operating Temperature | 0°C ~ 60°C |
| Tube Outer Diameters | 4mm, 6mm, 8mm, 10mm, 12mm |

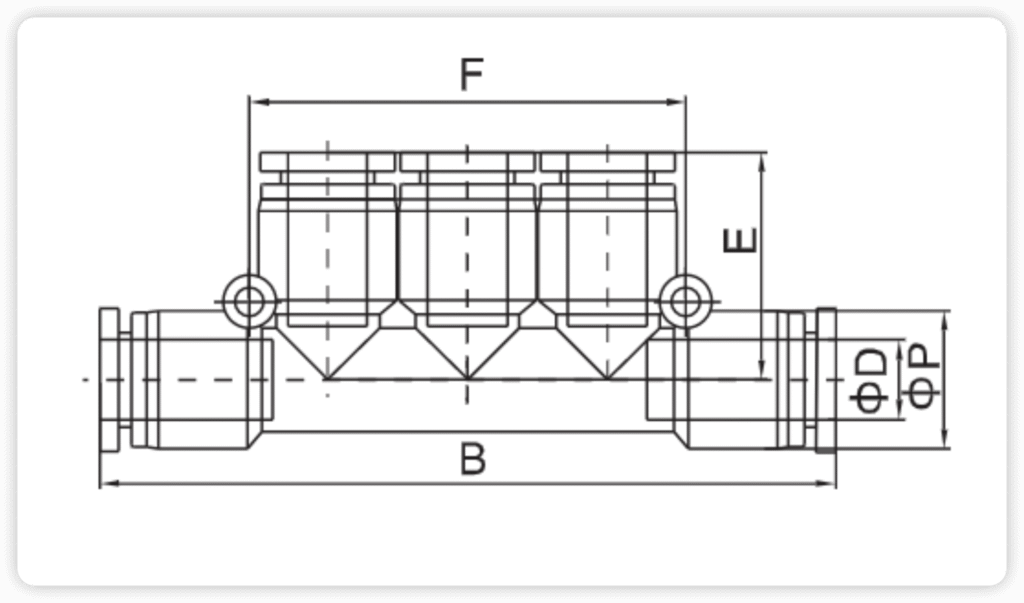

| Model | ΦD | B | ΦP | E | F |
| PK04 | 4 | 57 | 13.4 | 19 | 35.8 |
| PK06 | 6 | 64 | 15 | 20.2 | 42.8 |
| PK08 | 8 | 80.6 | 18.8 | 23.8 | 49.6 |
| PK10 | 10 | 96 | 21 | 29 | 59.6 |
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
| Model | ΦD | B | ΦP | E | F |
| PK04 | 4 | 57 | 13.4 | 19 | 35.8 |
| PK06 | 6 | 64 | 15 | 20.2 | 42.8 |
| PK08 | 8 | 80.6 | 18.8 | 23.8 | 49.6 |
| PK10 | 10 | 96 | 21 | 29 | 59.6 |
For detailed sizing information, installation guidelines, or to place an order, please contact our customer support team.
