Akustik Gürültü Pnömatik Sistem Performansınızı Nasıl Etkiler?

Have you ever walked onto your factory floor and been hit by that unmistakable hiss of pneumatic systems? That noise isn’t just an annoyance—it represents wasted energy, potential regulatory issues, and a warning sign of inefficient operation.

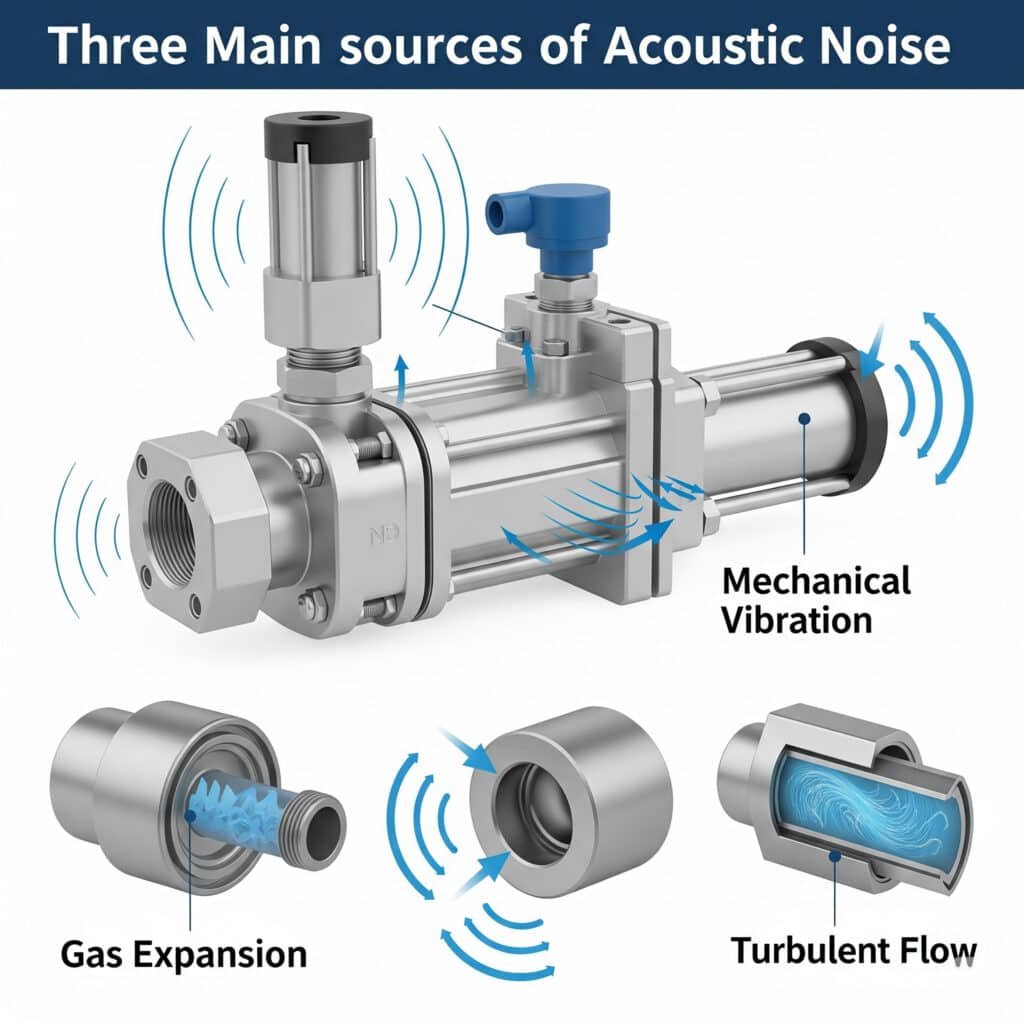

Pnömatik sistemlerdeki akustik gürültü üç ana mekanizma aracılığıyla üretilir: basınç salınımları sırasında gaz genleşmesi, bileşenlerin mekanik titreşimi ve boru ve bağlantı parçalarında türbülanslı akış. Bu mekanizmaların anlaşılması, mühendislerin işyeri güvenliğini iyileştiren, enerji verimliliğini artıran ve ekipman ömrünü uzatan hedefli gürültü azaltma stratejileri uygulamasına olanak tanır.

Last month, I visited a pharmaceutical manufacturing facility in New Jersey where excessive noise from their çubuksuz si̇li̇ndi̇rler was causing regulatory concerns. Their team had tried generic solutions without success. By analyzing the specific noise generation mechanisms, we reduced their system noise by 14 dBA—taking it from a regulatory risk to well within compliance. Let me show you how we did it.

İçindekiler

• Gas Expansion Sound Level: What Formula Predicts Pneumatic Exhaust Noise?
• Mechanical Vibration Spectrum: How Can Frequency Analysis Identify Noise Sources?
• Muffler Insertion Loss: What Calculations Drive Effective Silencer Design?
• Sonuç
• FAQs About Pneumatic System Noise

Gas Expansion Sound Level: What Formula Predicts Pneumatic Exhaust Noise?

The sudden expansion of compressed air during valve operation or cylinder exhaust creates one of the most significant noise sources in pneumatic systems. Understanding the mathematical relationship between system parameters and noise output is essential for effective mitigation.

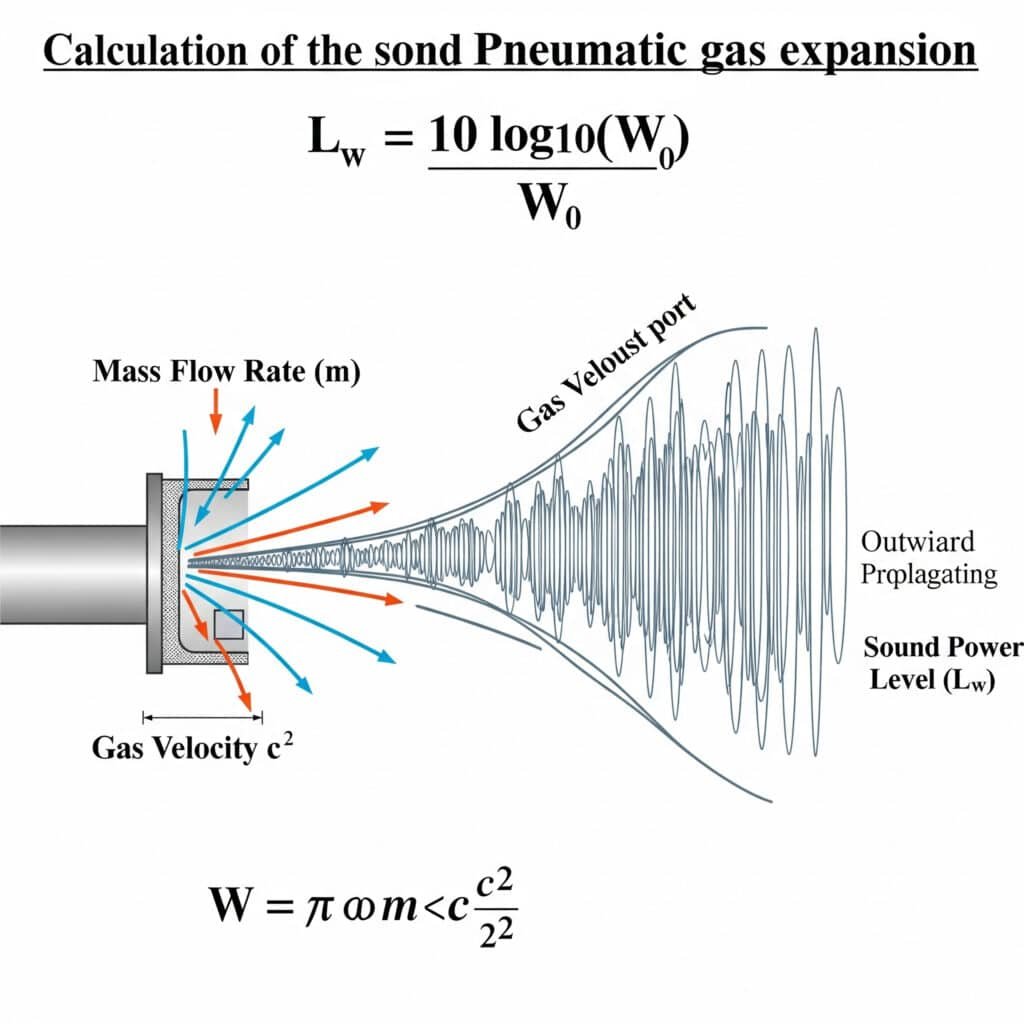

The sound power level from gas expansion can be calculated using the formula: Lw = 10 log₁₀(W/W₀), where W is the acoustic power in watts and W₀ is the reference power (10⁻¹² watts). For pneumatic systems, W can be estimated as W = η × m × (c²/2), where η is the acoustic efficiency, m is the mass flow rate, and c is the gas velocity.

I remember troubleshooting a packaging line in Illinois where the noise levels exceeded 95 dBA—well above OSHA limits¹. The maintenance team had been focusing on mechanical sources, but our analysis revealed that 70% of the noise came from exhaust ports. By applying the gas expansion formula, we identified that their operating pressure was 2.2 bar higher than needed, creating excessive exhaust noise. This simple pressure adjustment reduced noise by 8 dBA without affecting performance.

Fundamental Gas Expansion Noise Equations

Let’s break down the key formulas for predicting expansion noise:

Sound Power Calculation

The acoustic power generated by expanding gas can be calculated as:

W = η × m × (c²/2)

Nerede?

• W = Acoustic power (watts)
• η = Acoustic efficiency (typically 0.001-0.01 for pneumatic exhausts)
• m = Mass flow rate (kg/s)
• c = Gas velocity at exhaust (m/s)

The sound power level in decibels is then:

Lw = 10 log₁₀(W/W₀)

Where W₀ is the reference power of 10⁻¹² watts.

Mass Flow Rate Determination

The mass flow rate through an orifice can be calculated as:

m = Cd × A × p₁ × √(2γ/(γ-1) × (RT₁) × [(p₂/p₁)^(2/γ) – (p₂/p₁)^((γ+1)/γ)])

Nerede?

• Cd = Discharge coefficient (typically 0.6-0.8)
• A = Orifice area (m²)
• p₁ = Upstream absolute pressure (Pa)
• p₂ = Downstream absolute pressure (Pa)
• γ = Özgül ısı oranı (hava için 1,4)
• R = Gas constant for air (287 J/kg·K)
• T₁ = Upstream temperature (K)

For choked flow (common in pneumatic exhausts), this simplifies to:

m = Cd × A × p₁ × √(γ/(RT₁)) × (2/(γ+1))^((γ+1)/(2(γ-1)))

Factors Affecting Gas Expansion Noise

Practical Noise Prediction Example

For a typical rodless cylinder with:

• Operating pressure: 6 bar (600,000 Pa)
• Exhaust port diameter: 4mm (area = 1.26 × 10⁻⁵ m²)
• Discharge coefficient: 0.7
• Acoustic efficiency: 0.005

The mass flow rate during exhaust would be approximately:
m = 0.7 × 1.26 × 10⁻⁵ × 600,000 × 0.0404 = 0.0214 kg/s

Assuming an exhaust velocity of 343 m/s (sonic velocity), the acoustic power would be:
W = 0.005 × 0.0214 × (343²/2) = 6.29 watts

The resulting sound power level:
Lw = 10 log₁₀(6.29/10⁻¹²) = 128 dB

This high sound power level explains why unsilenced pneumatic exhausts are such significant noise sources in industrial environments.

Mechanical Vibration Spectrum: How Can Frequency Analysis Identify Noise Sources?

Mechanical vibrations in pneumatic components generate distinctive noise signatures that can be analyzed to pinpoint specific problems. Frequency spectrum analysis provides the key to identifying and addressing these mechanical noise sources.

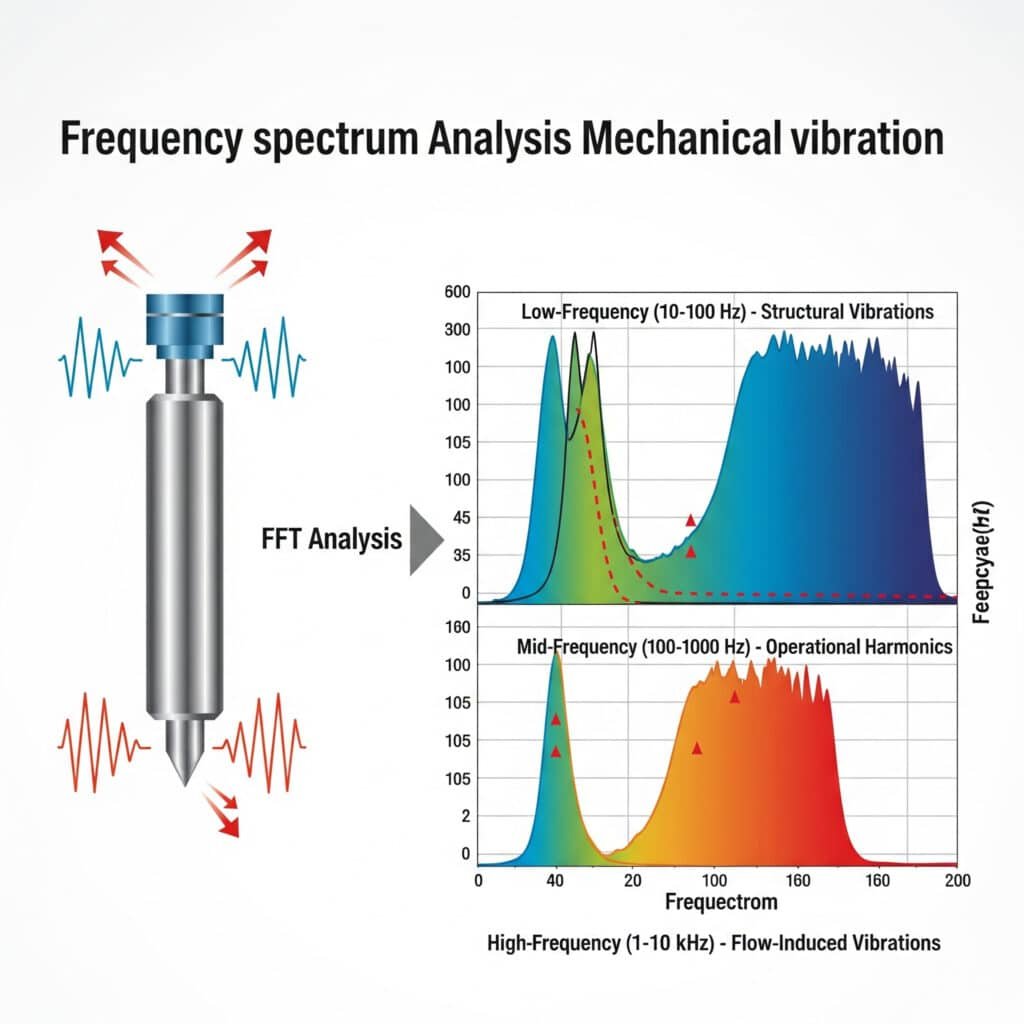

Mechanical vibration in pneumatic systems produces noise with characteristic frequency spectra that can be analyzed using Fast Fourier Transform (FFT)² techniques. Key frequency ranges include low-frequency structural vibrations (10-100 Hz), mid-frequency operational harmonics (100-1000 Hz), and high-frequency flow-induced vibrations (1-10 kHz), each requiring different mitigation approaches.

During a consultation at an automotive parts manufacturer in Michigan, their maintenance team was struggling with excessive noise from a rodless cylinder transfer system. Conventional troubleshooting had failed to identify the source. Our vibration spectrum analysis revealed a distinct peak at 237 Hz—exactly matching the cylinder’s internal sealing band resonance. By modifying the mounting system to dampen this specific frequency, we reduced noise by 11 dBA without any production interruption.

Frequency Spectrum Analysis Methodology

Effective vibration analysis follows a systematic approach:

1. Measurement Setup: Using accelerometers and acoustic microphones
2. Data Acquisition: Capturing time-domain vibration signals
3. FFT Analysis: Converting to frequency domain
4. Spectral Mapping: Identifying characteristic frequencies
5. Source Attribution: Matching frequencies to specific components

Characteristic Frequency Ranges in Pneumatic Systems

Vibration Transmission Paths

Noise from mechanical vibrations follows multiple paths:

Structure-Borne Transmission

Vibrations travel through solid components:

1. Component vibrates due to internal forces
2. Vibration transfers through mounting points
3. Connected structures amplify and radiate sound
4. Large surfaces act as efficient sound radiators

Airborne Transmission

Direct radiation of sound from vibrating surfaces:

1. Surface vibration displaces air
2. Displacement creates pressure waves
3. Waves propagate through air
4. Size of radiating surface determines efficiency

Case Study: Rodless Cylinder Vibration Analysis

For a magnetic rodless cylinder exhibiting excessive noise:

The combined mitigation strategies reduced overall noise by 14 dBA, with the most significant improvement coming from addressing the 237 Hz resonance.

Advanced Vibration Analysis Techniques

Beyond basic FFT analysis, several advanced techniques provide deeper insights:

Order Analysis

Particularly useful for variable-speed systems:

• Tracks frequencies that scale with operational speed
• Separates speed-dependent from fixed-frequency components
• Identifies issues related to specific motion phases

Operational Deflection Shape (ODS) Analysis

Maps vibration patterns across the entire system:

• Multiple measurement points create vibration “map”
• Reveals how structures move during operation
• Identifies optimal locations for damping treatments

Modal Analysis

Determines natural frequencies and mode shapes:

• Identifies resonant frequencies before operation
• Predicts potential problem frequencies
• Guides structural modifications to avoid resonance

Muffler Insertion Loss: What Calculations Drive Effective Silencer Design?

Mufflers and silencers are critical for reducing pneumatic system noise, but their design must be based on sound engineering calculations to ensure effectiveness without compromising system performance.

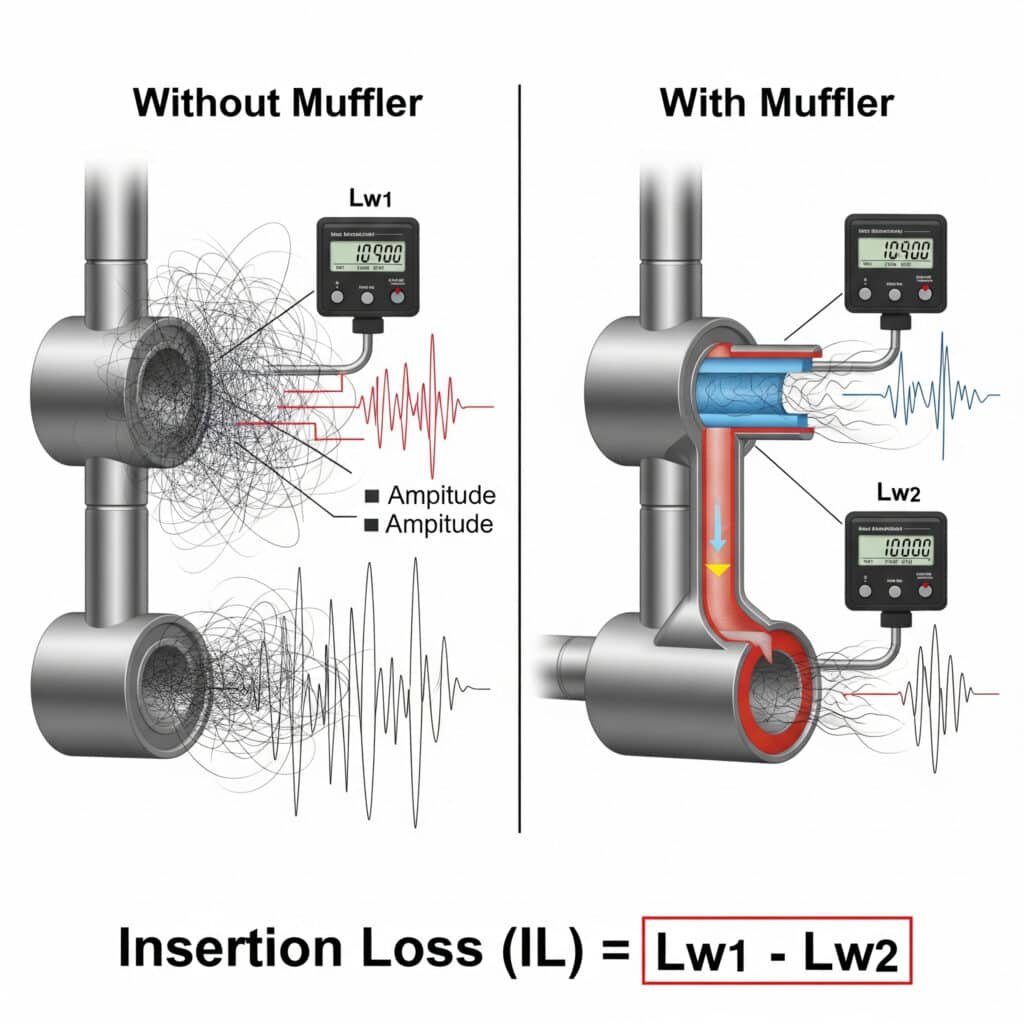

Susturucu insertion loss³ (IL) quantifies noise reduction effectiveness and can be calculated as IL = Lw₁ – Lw₂, where Lw₁ is the sound power level without the muffler and Lw₂ is the level with the muffler installed. For pneumatic systems, effective mufflers typically achieve 15-30 dB insertion loss across the critical 500 Hz to 4 kHz frequency range while maintaining acceptable backpressure.

I recently helped a medical device manufacturer in Massachusetts solve a challenging noise problem with their precision rodless cylinder system. Their initial attempt at using off-the-shelf mufflers reduced noise but created excessive backpressure that affected cycle times. By calculating the required insertion loss across specific frequency bands and designing a custom multi-chamber muffler, we achieved 24 dB noise reduction with minimal performance impact. The result was a system that met both their noise and precision requirements.

Muffler Insertion Loss Fundamentals

The core equation for insertion loss is:

IL = Lw₁ – Lw₂

Nerede?

• IL = Insertion loss (dB)
• Lw₁ = Sound power level without muffler (dB)
• Lw₂ = Sound power level with muffler (dB)

For frequency-specific analysis, this becomes:

IL(f) = Lw₁(f) – Lw₂(f)

Where f indicates the specific frequency band being analyzed.

Muffler Design Parameters and Their Effects

Theoretical Models for Insertion Loss Prediction

Several models can predict insertion loss for different muffler types:

Expansion Chamber Model

For simple expansion chambers:

IL = 10 log₁₀[1 + 0.25(m-1/m)² sin²(kL)]

Nerede?

• m = Area ratio (chamber area / pipe area)
• k = Wave number (2πf/c, where f is frequency and c is sound speed)
• L = Chamber length

Dissipative Muffler Model

For mufflers with sound-absorbing materials:

IL = 8.68α(L/d)

Nerede?

• α = Absorption coefficient of material
• L = Length of lined section
• d = Diameter of flow path

Reactive Muffler Model (Helmholtz Rezonatör⁴)

For resonator-type mufflers:

IL = 10 log₁₀[1 + (ρc/2S)² × (V/L’c²) × ω²/((ω₀² – ω²)² + (Rω/ρc)²)]

Nerede?

• ρ = Air density
• c = Ses hızı
• S = Neck cross-sectional area
• V = Cavity volume
• L’ = Effective neck length
• ω = Angular frequency
• ω₀ = Resonance frequency
• R = Acoustic resistance

Practical Muffler Selection Process

To select or design an appropriate muffler:

1. Measure Noise Spectrum: Determine frequency content of noise
2. Calculate Required IL: Determine necessary reduction by frequency
3. Assess Flow Requirements: Calculate maximum allowable backpressure
4. Select Muffler Type:
      – Reactive (expansion chambers) for low frequencies
      – Dissipative (absorptive) for high frequencies
      – Combination for broadband noise
5. Performansı Doğrulayın: Test insertion loss and backpressure

Backpressure Considerations

Excessive backpressure can significantly impact system performance:

Backpressure Calculation

Backpressure can be estimated as:

ΔP = ρ(Q/Cd×A)²/2

Nerede?

• ΔP = Pressure drop (Pa)
• ρ = Air density (kg/m³)
• Q = Flow rate (m³/s)
• Cd = Discharge coefficient
• A = Effective flow area (m²)

Performance Impact Assessment

For a rodless cylinder with:

• Bore diameter: 40mm
• Stroke: 500mm
• Cycle time: 2 seconds
• Operating pressure: 6 bar

Each 0.1 bar of backpressure would:

• Reduce force output by approximately 1.7%
• Increase cycle time by approximately 2.3%
• Increase energy consumption by approximately 1.5%

Case Study: Custom Muffler Design

For a precision rodless cylinder application with strict noise requirements:

The custom muffler design provided superior noise reduction while maintaining acceptable system performance, with a return on investment period of less than 6 months when considering productivity improvements.

Sonuç

Understanding acoustic noise generation mechanisms—gas expansion sound levels, mechanical vibration spectra, and muffler insertion loss calculations—provides the foundation for effective noise control in pneumatic systems. By applying these principles, you can create quieter, more efficient, and more reliable pneumatic systems while ensuring regulatory compliance and improving workplace conditions.
