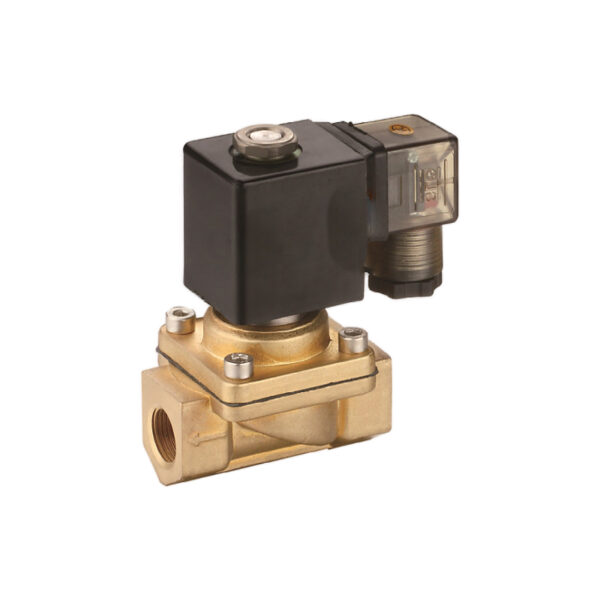

PU225 serie pilot gestuurde 2/2 weg magneetventiel (geleidings type)

reliable 2/2 way normally closed control for air, water, and light oil. These guided piston/diaphragm valves ensure stable operation, ideal for higher flow applications. Brass body construction (G3/8″-G2″ ports) with NBR, VITON, or EPDM seal options for broad media compatibility. A robust choice for industrial fluid control.

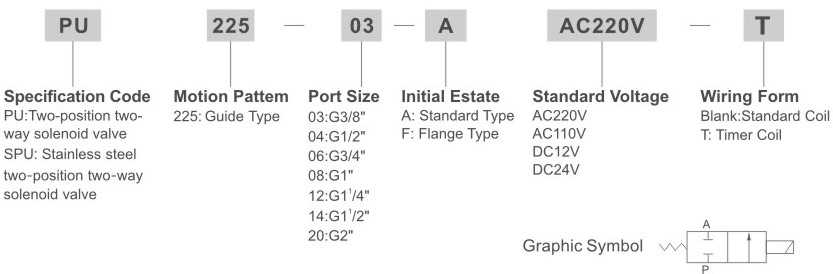

Technische Parameter

Model	PU225-03A	PU225-04A	PU225-06A	PU225-08A	PU225-12A	PU225-14A	PU225-20A
Model	SPU225-03A	SPU225-04A	SPU225-06A	SPU225-08A	SPU225-12A	SPU225-14A	PU225-20A
Werkend Medium	Air.Water.Oil
Bewegingspatroon	Type gids
Type	Normaal Type sluiten
Opening van Debiet (mm)	13	13	25	25	38	38	50
CV-waarde	4.50	4.50	12.00	12.00	22.00	30.00	48.00
Havengrootte	G3/8″	G1/2″	G3/4″	G1″	G1/4″	G1/2″	G2″
Werking Viscositeit vloeistof	50 CST(Below)
Werkdruk	0.05~1.0MPa
Max. Drukweerstand	1,5MPa
Bedrijfstemperatuurbereik	-5~+80℃
Materiaal van lichaam	Brass or steel

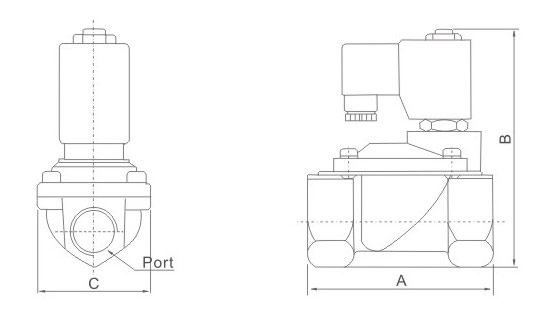

Maattekening

Model	Boring	A	B	C
PU225-03A	G3/8″	66.5	106.5	48.0
SPU225-03A
PU225-04A	G1/2″	66.5	106.5	48.0
SPU225-04A
PU225-06A	G3/4″	72.0	113.0	58.0
SPU225-06A
PU225-08A	G1″	96.0	121.0	70.0
SPU225-08A
PU225-12A	G1/4″	128.0	145.5	96.0
SPU225-12A
PU225-14A	G1/2″	128.0	145.5	96.0
SPU225-14A
PU225-20A	G2″	161.0	160.5	112.0

Download Centrum

PU225-Series-Pilot-Operated-22-Way-Solenoid-Valve-Guide-Type.pdf

Maattekening

Model	Boring	A	B	C
PU225-03A	G3/8″	66.5	106.5	48.0
SPU225-03A
PU225-04A	G1/2″	66.5	106.5	48.0
SPU225-04A
PU225-06A	G3/4″	72.0	113.0	58.0
SPU225-06A
PU225-08A	G1″	96.0	121.0	70.0
SPU225-08A
PU225-12A	G1/4″	128.0	145.5	96.0
SPU225-12A
PU225-14A	G1/2″	128.0	145.5	96.0
SPU225-14A
PU225-20A	G2″	161.0	160.5	112.0
