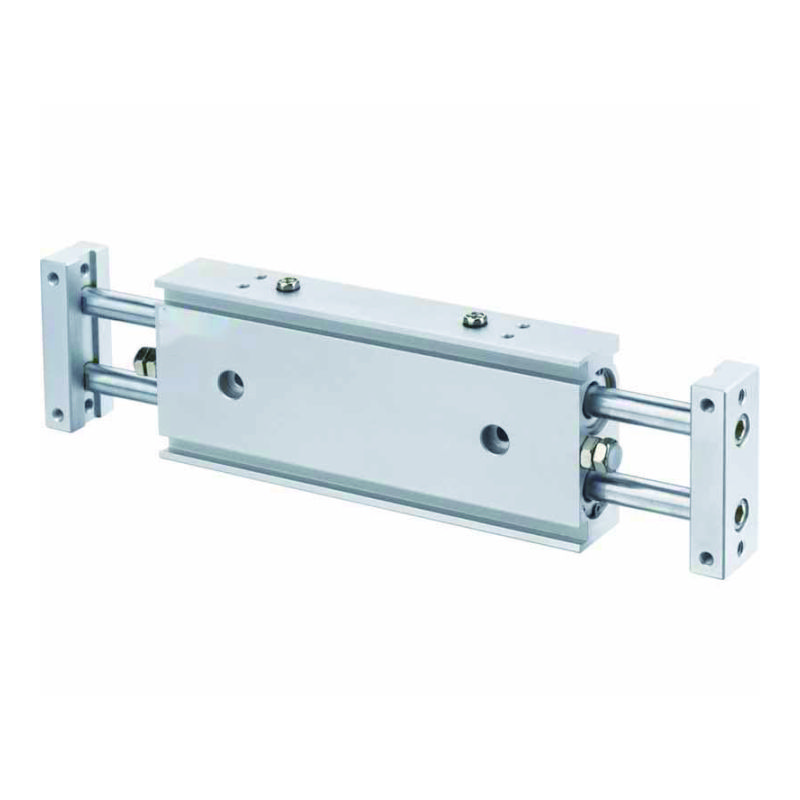

precision guided motion with a robust dual-rod design. These compact units offer high rigidity, excellent non-rotation accuracy, and enhanced resistance to side loads. Ideal for pick & place, positioning, and light material handling. Options for sensors and shock absorption enable versatile, reliable automation solutions.
| Bohrung(mm) | 10 | 16 | 20 | 25 | 32 |
| Arbeitsmedium | Doppelte Wirkung | ||||
| Bewegungsmuster | Luft | ||||
| Betriebstemperaturbereich | 5﹣＋60℃ | ||||
| Working pressure(MPa) | 0.1-1.0 | ||||
| Guaranteed pressure(MPa) | 1.5 | ||||
| Speed range(mm/s) | 50-200 | ||||
| Cushion type | Beide Enden Puffer | ||||
| Oil supply | Nicht erforderlich | ||||
| Non-ritating accuracy | ±0.05° | ±0.03° | |||
| Hafengröße | M5×0.8 | G1/8″ | |||
