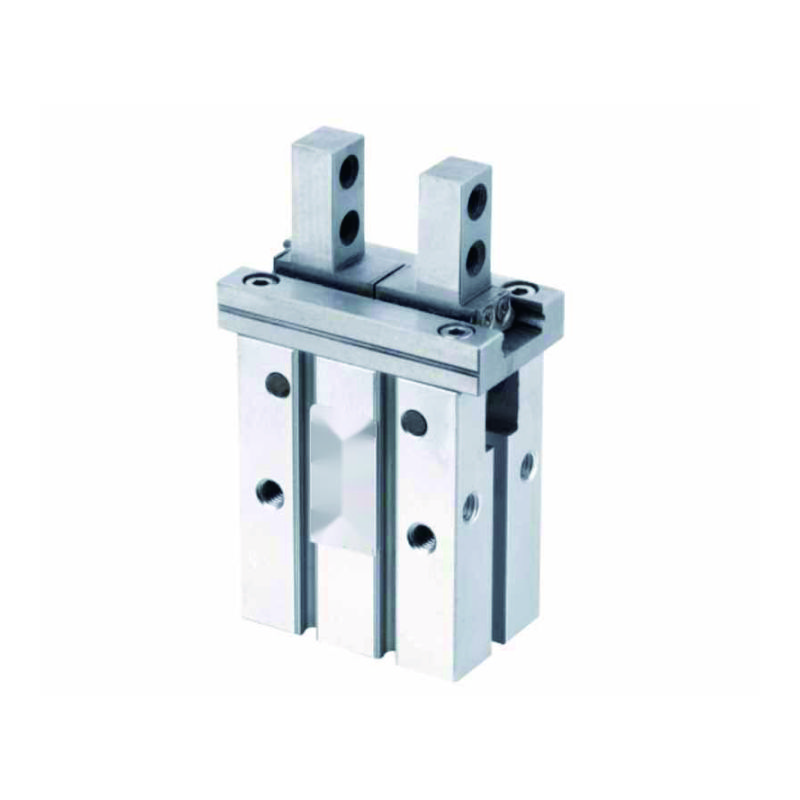

Pneumatischer Winkelgreifer der Serie XHZ

compact and reliable for versatile part handling and orientation. Featuring a wide opening angle (often up to 180°), these grippers securely grasp diverse objects. Ideal for pick & place operations, machine tending, and automated assembly lines. Robust construction ensures durable performance in industrial environments. Often sensor-ready for easy integration.

Technische Parameter

Bohrung(mm)		6	10	16	20	25	32	40
Arbeitsmedium		Air(to be fltered by 40 µm flter element)
Betrieb Druck	Double-Action	0.15～0.7	0.2～0.7	0.1～0.7			0.1～0.7
	Single-action	0.3～0.7	0.35～0.7	0.25～0.7			0.25～0.7
Ambient fluid temperature		-10～60℃
Repeatability(mm)		±0.01					±0.02
The highest frequency of use		180(XHZL Series 120)(c.p.m)					60(c.p.m)
Schmierung		Nicht erforderlich
Art der Aktion		Double acting-Single acting
Auto switch(optional)		Solid state auto switch
Hafengröße		M3x0,5		M5x0,8

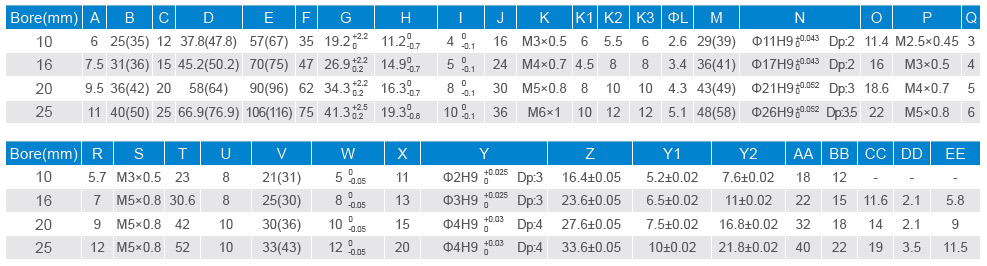

Maßzeichnung

Modell	Gripping force N				Opening/Closing (both sides)mm
	RMS each finger gripping force
	Doble-acting		Einfachwirkend	Einfachwirkend
	Exteranl	Internal	Exteranl	Internal
XHZ-6_□	3.3	6.1	1.9	3.7	4
XHZ-10_□	11	17	7.1	13	4
XHZ-16_□	34	45	27	38	6
XHZ-20_□	42	66	33	57	10
XHZ-25_□	65	104	45	83	14
XHZ-32_□	158	193	131	161	22
XHZ-40_□	254	318	217	267	30
Modell	Gripping force N				Opening/Closing (both sides)mm
	RMS each finger gripping force
	Doble-acting		Einfachwirkend	Einfachwirkend
	Exteranl	Internal	Exteranl	Internal
XHZL-10_□	11	17	7.1	13	8
XHZL-16_□	34	45	27	38	12
XHZL-20_□	42	66	33	57	18
XHZL-25_□	65	104	50	85	22
_□_{=Express D}_{=Doble-acting S=Single acting(normally closed) C=Single acting(normally open)}
