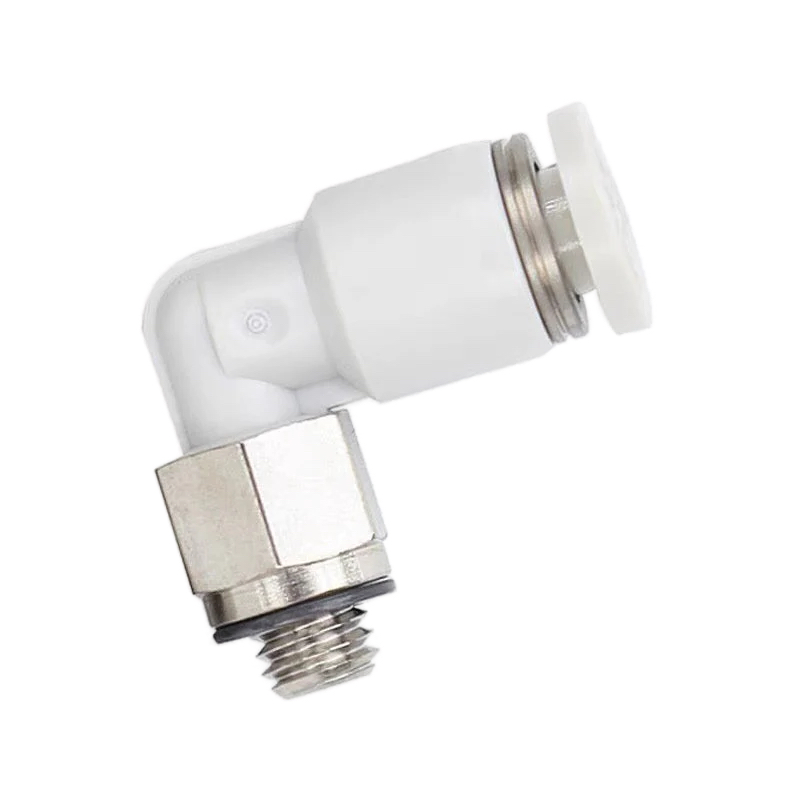

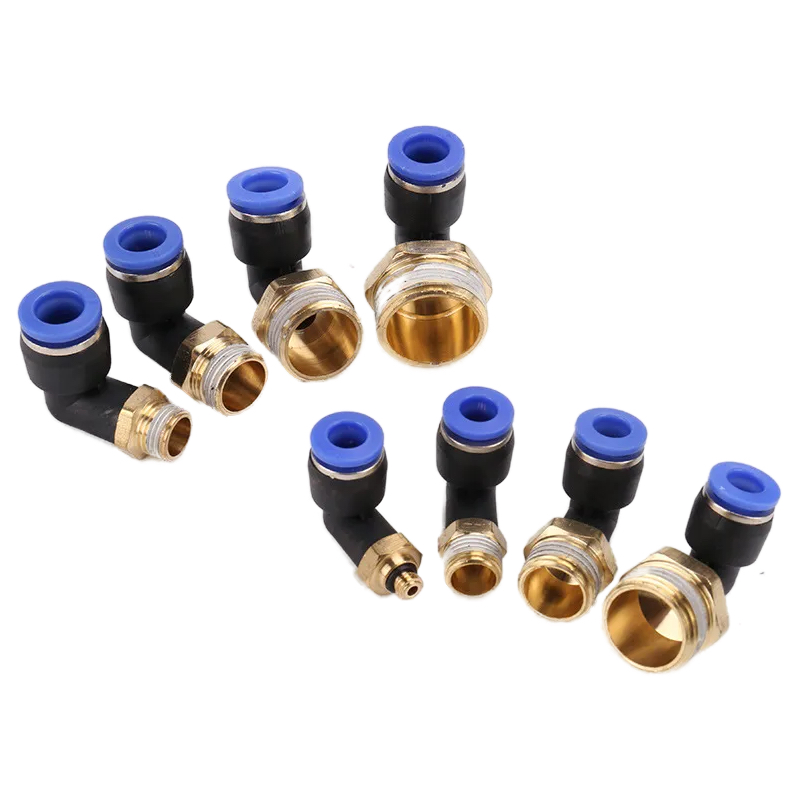

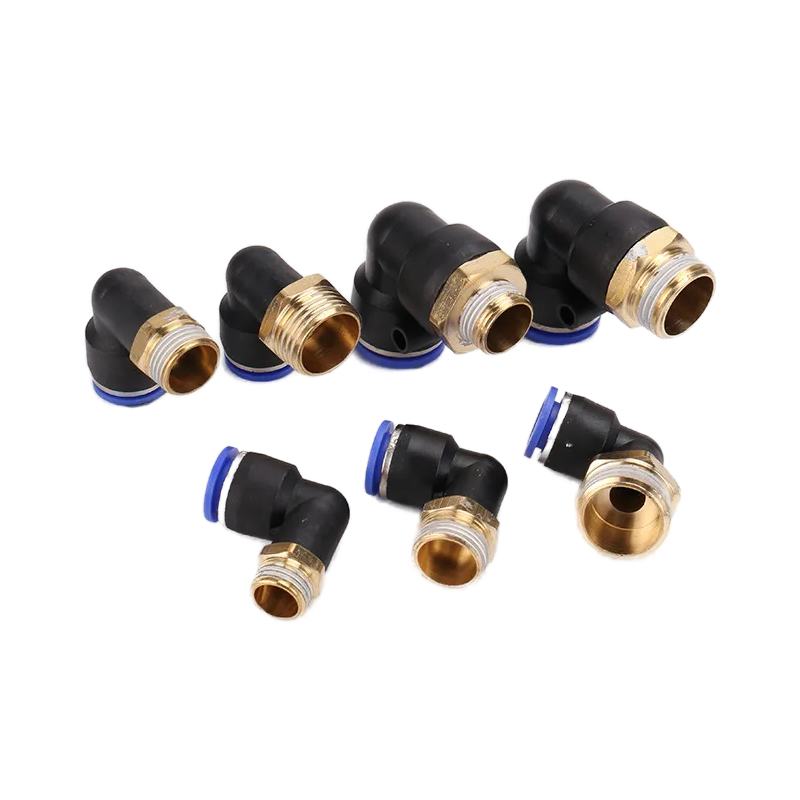

PL Series Pneumatic Male Elbow fittings: enable quick, 90-degree one-touch tube connections to threaded ports. These L-shaped push-in connectors securely join PU/Nylon tubing (e.g., 4-16mm OD) with various male thread options (M5-1/2″ NPT/BSPT/G). Ideal for routing air lines in tight spaces within diverse industrial automation and pneumatic circuits.
| Parameter | Spezifikation |
|---|---|
| Flüssigkeit | Luft |
| Max. Druck | 1,32Mpa (13,5kgf/cm²) |
| Normaler Druckbereich | 0~0.9Mpa (0~9.2kgf/cm²) |
| Niederdruckbereich | -99,99~0Mpa (-750~0mmHg) |
| Betriebstemperatur | 0°C ~ 60°C |
| Anwendbares Rohr | PU/Nylon-Schlauch |
| Gewindegrößen | 1/8″, 1/4″, 3/8″, 1/2″ |
| Material des Gehäuses | Messing mit Vernickelung |
| Modell | ΦD | E | B | ΦP | A | R | H |
| PL04-M5 | 4 | 18 | 22.2 | 11 | 4 | M5 | 10 |
| PL04-01 | 18 | 24.8 | 11 | 7 | R1/8 | 10 | |
| PL04-02 | 18 | 28.8 | 11 | 9.5 | R1/4 | 14 | |
| PL06-M5 | 6 | 19 | 22.5 | 13.4 | 4 | M5 | 12 |
| PL06-01 | 19 | 25.2 | 13.4 | 7 | R1/8 | 12 | |
| PL06-02 | 19 | 28.2 | 13.4 | 9.5 | R1/4 | 14 | |
| PL06-03 | 19 | 29.2 | 13.4 | 10 | R3/8 | 17 | |
| PL06-04 | 19 | 33.7 | 13.4 | 10 | R3/8 | 21 | |
| PL08-01 | 8 | 23 | 28.5 | 15 | 7 | R1/8 | 14 |
| PL08-02 | 23 | 32 | 15 | 9.5 | R1/4 | 14 | |
| PL08-03 | 23 | 33 | 15 | 10 | R3/8 | 17 | |
| PL08-04 | 23 | 36 | 15 | 13 | R1/2 | 21 | |
| PL10-01 | 10 | 27.5 | 33.3 | 18.8 | 7 | R1/8 | 17 |
| PL10-02 | 27.5 | 36.3 | 18.8 | 9.5 | R1/4 | 17 | |
| PL10-03 | 27.5 | 36.8 | 18.8 | 10 | R3/8 | 17 | |
| PL10-04 | 27.5 | 40.5 | 18.8 | 13 | R1/2 | 21 | |
| PL12-01 | 12 | 29.5 | 36.5 | 21 | 7 | R1/8 | 19 |
| PL12-02 | 29.5 | 38.5 | 21 | 9.5 | R1/4 | 19 | |
| PL12-03 | 29.5 | 39 | 21 | 10 | R3/8 | 19 | |
| PL12-04 | 29.5 | 44 | 21 | 13 | R1/2 | 21 | |
| PL16-02 | 16 | 31.5 | 41 | 26 | 9.5 | R1/4 | 24 |
| PL16-03 | 31.5 | 42 | 26 | 10 | R3/8 | 24 | |
| PL16-04 | 31.5 | 45 | 26 | 13 | R1/2 | 24 |
Für detaillierte Größeninformationen, Installationsrichtlinien oder um eine Bestellung aufzugeben, wenden Sie sich bitte an unser Kundensupport-Team.
| Modell | ΦD | E | B | ΦP | A | R | H |
| PL04-M5 | 4 | 18 | 22.2 | 11 | 4 | M5 | 10 |
| PL04-01 | 18 | 24.8 | 11 | 7 | R1/8 | 10 | |
| PL04-02 | 18 | 28.8 | 11 | 9.5 | R1/4 | 14 | |
| PL06-M5 | 6 | 19 | 22.5 | 13.4 | 4 | M5 | 12 |
| PL06-01 | 19 | 25.2 | 13.4 | 7 | R1/8 | 12 | |
| PL06-02 | 19 | 28.2 | 13.4 | 9.5 | R1/4 | 14 | |
| PL06-03 | 19 | 29.2 | 13.4 | 10 | R3/8 | 17 | |
| PL06-04 | 19 | 33.7 | 13.4 | 10 | R3/8 | 21 | |
| PL08-01 | 8 | 23 | 28.5 | 15 | 7 | R1/8 | 14 |
| PL08-02 | 23 | 32 | 15 | 9.5 | R1/4 | 14 | |
| PL08-03 | 23 | 33 | 15 | 10 | R3/8 | 17 | |
| PL08-04 | 23 | 36 | 15 | 13 | R1/2 | 21 | |
| PL10-01 | 10 | 27.5 | 33.3 | 18.8 | 7 | R1/8 | 17 |
| PL10-02 | 27.5 | 36.3 | 18.8 | 9.5 | R1/4 | 17 | |
| PL10-03 | 27.5 | 36.8 | 18.8 | 10 | R3/8 | 17 | |
| PL10-04 | 27.5 | 40.5 | 18.8 | 13 | R1/2 | 21 | |
| PL12-01 | 12 | 29.5 | 36.5 | 21 | 7 | R1/8 | 19 |
| PL12-02 | 29.5 | 38.5 | 21 | 9.5 | R1/4 | 19 | |
| PL12-03 | 29.5 | 39 | 21 | 10 | R3/8 | 19 | |
| PL12-04 | 29.5 | 44 | 21 | 13 | R1/2 | 21 | |
| PL16-02 | 16 | 31.5 | 41 | 26 | 9.5 | R1/4 | 24 |
| PL16-03 | 31.5 | 42 | 26 | 10 | R3/8 | 24 | |
| PL16-04 | 31.5 | 45 | 26 | 13 | R1/2 | 24 |
Für detaillierte Größeninformationen, Installationsrichtlinien oder um eine Bestellung aufzugeben, wenden Sie sich bitte an unser Kundensupport-Team.
