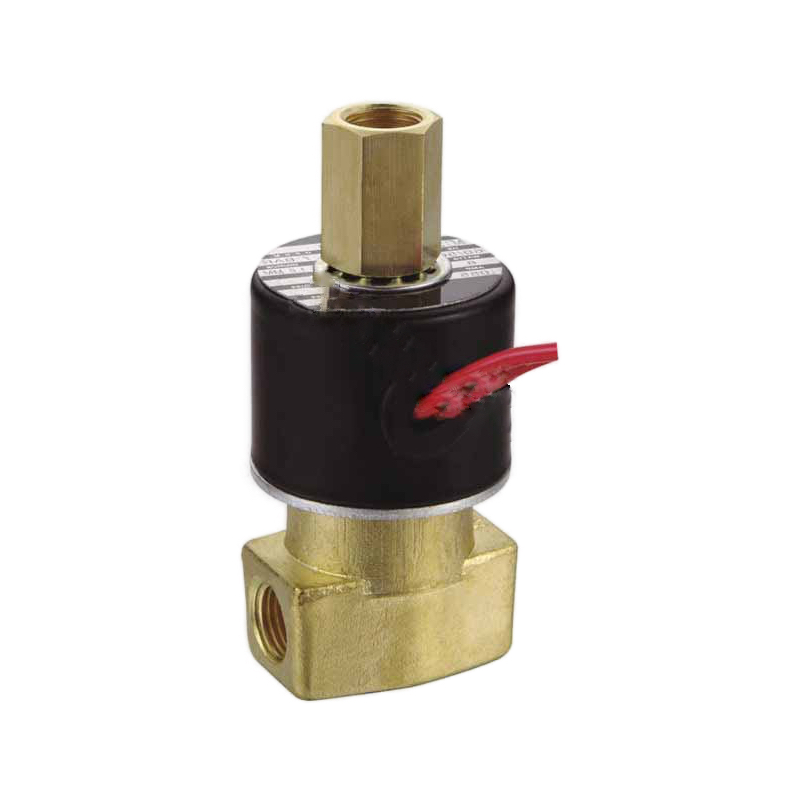

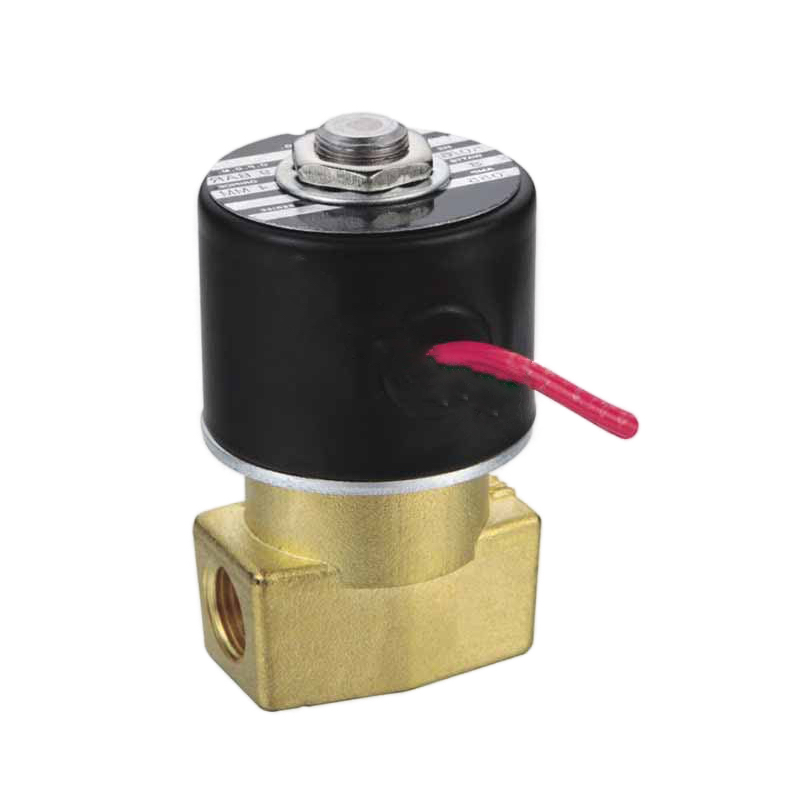

compact and versatile for reliable control of air, water, and oil. These direct-acting valves (often 2/2 or 3/2 way) offer quick response for diverse automation tasks. Featuring G1/8″ & G1/4″ ports and NBR/VITON seal options, they ensure dependable performance in various general-purpose industrial applications.
| Modell | XC22-06 | XC22-08 | XC23-06 | XC23-08 | ||
| Arbeitsmedium | Luft, Wasser, Öl | Luft | ||||
| Öffnung der Durchflussmenge (mm) | 1.6 | 2.4 | 3.2 | 4.0 | 1.6 | |
| CV-Wert | 0.10 | 0.21 | 0.33 | 0.43 | 0.1 | |
| Port Größe | G1/8″ | G1/4″ | G1/8″ | G1/4″ | ||
| Working-pressure Range | 0～1.5 | 0～1.0 | 0～0.7 | 0～0.5 | 0～0.9 | |
| Spannungsbereich | ±10% | |||||
| Material of oil seal | NBR or VITON | |||||
