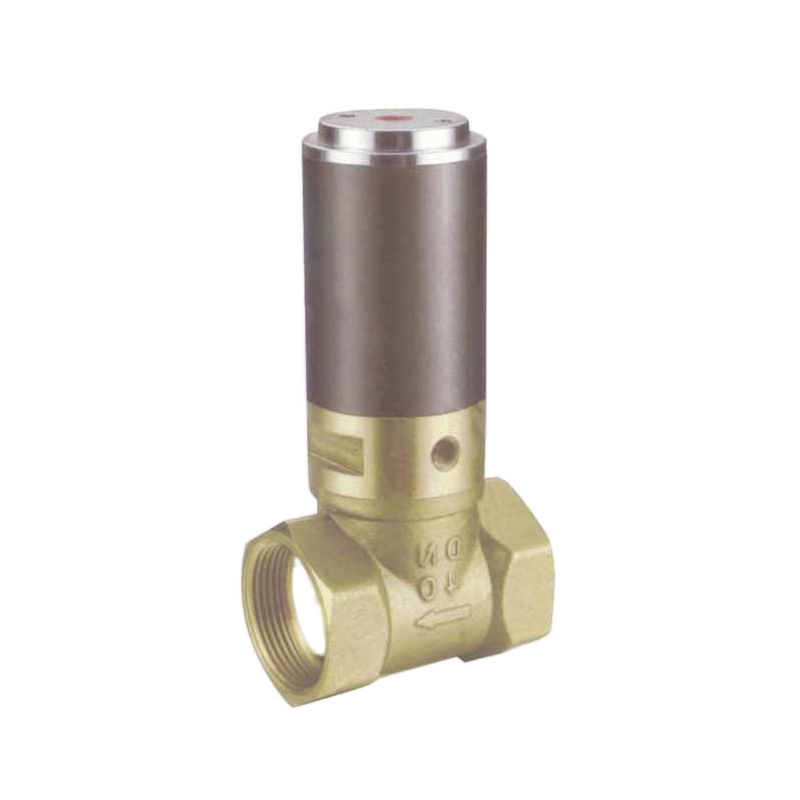

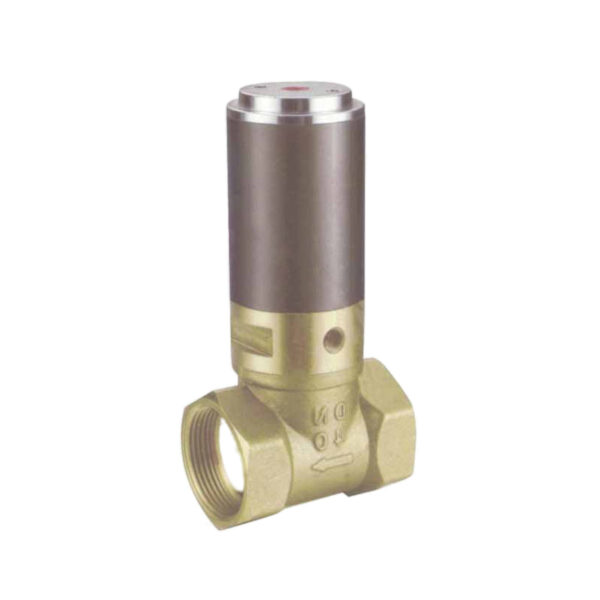

robust 2/2-way control for demanding media like steam, water, oil, and gases. These right-angle, pneumatically actuated valves offer high flow rates, excellent durability (SS304/316 body, PTFE seals), and high temperature/pressure resistance. Ideal for industrial process control and heavy-duty applications.
| Modell | Blende | Medium | Working pressure | Temp range | Kv value(m3/k) |
| XQ22HD-15 | 15mm | Compress Air Water Oil | 0.2～0.6MPa | ‐5～60℃(High temperture)‐5～150℃ | 4 |
| XQ22HD-20 | 20mm | 5 | |||
| XQ22HD-25 | 25mm | 10 | |||
| XQ22HD-32 | 32mm | 25 | |||
| XQ22HD-40 | 40mm | 25 | |||
| XQ22HD-50 | 50mm | 40 |

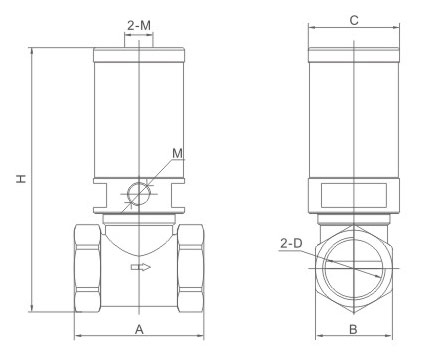

| Modell | A | B | C | D | H | M |
| XQ22HD-15 | 47 | 26 | 31 | G1/2″ | 96 | G1/8″ |
| XQ22HD-20 | 54 | 33 | 31 | G3/4″ | 102 | G1/8″ |
| XQ22HD-25 | 66 | 34 | 38 | G1″ | 115 | G1/8″ |
| XQ22HD-32 | 77 | 48 | 46 | G1-1/4″ | 143 | G1/8″ |
| XQ22HD-40 | 86 | 54 | 56 | G1-1/2″ | 160 | G1/8″ |
| XQ22HD-50 | 116 | 67 | 69 | G2″ | 182 | G1/8″ |
| Modell | A | B | C | D | H | M |
| XQ22HD-15 | 47 | 26 | 31 | G1/2″ | 96 | G1/8″ |
| XQ22HD-20 | 54 | 33 | 31 | G3/4″ | 102 | G1/8″ |
| XQ22HD-25 | 66 | 34 | 38 | G1″ | 115 | G1/8″ |
| XQ22HD-32 | 77 | 48 | 46 | G1-1/4″ | 143 | G1/8″ |
| XQ22HD-40 | 86 | 54 | 56 | G1-1/2″ | 160 | G1/8″ |
| XQ22HD-50 | 116 | 67 | 69 | G2″ | 182 | G1/8″ |
