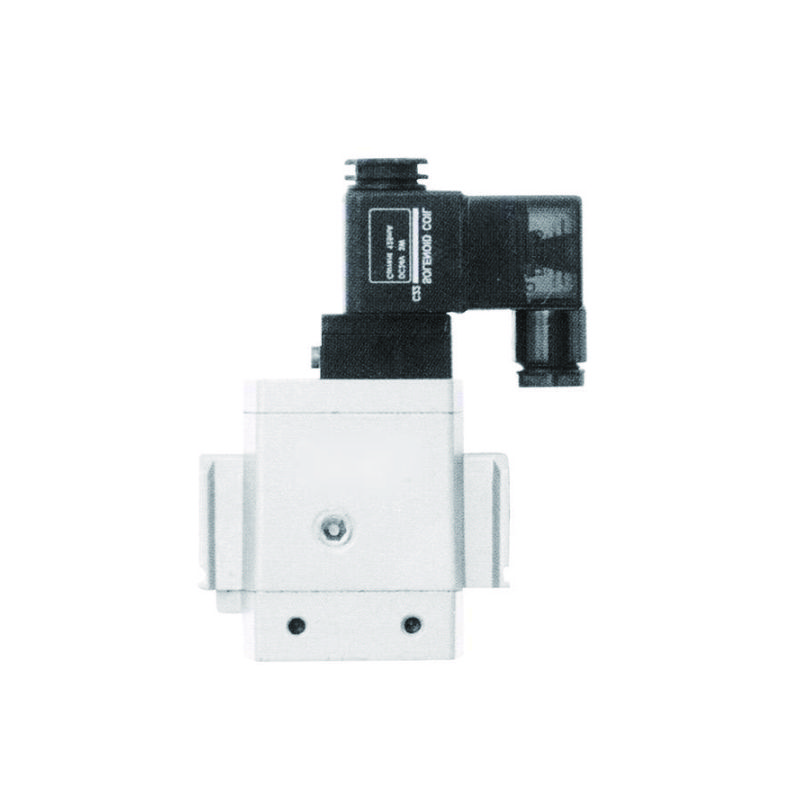

ensure safe, controlled machine start-ups by gradually increasing downstream air pressure. This prevents sudden actuator movement and equipment shock, enhancing operational safety and protecting your pneumatic systems. Offers reliable, often adjustable, ramp-up for smooth initial equipment operation. Essential for modern automation.
| Modell | AV2000-02 | AV3000-03 | AV4000-04 | AV5000-06 | AV5000-10 | |
| Port Größe | G1/4″ | G3/8″ | G1/2″ | G3/4″ | G1″ | |
| Effektive Querschnittsfläche (mm²) | 1(P)-2(A) | 20 | 37 | 61 | 113 | 122 |
| 2(A)-3(R) | 24 | 49 | 76 | 132 | 141 | |
| Applicable Pressure Range | 0.3~1.0MPa | |||||
| Umgebungs- und Flüssigkeitstemperatur | 0~60℃ | |||||
| Coil voltage rating | DC24V、12V、 AC220、 110V | |||||
| Allow voltage fluctuation | Rated voltage-15%~+10% | |||||
| Coil insulation class | B level or the same level | |||||
| DC/Consumed power DC | 3W | |||||
| AC/Apparent power AC | Start:5.6VA Keep:3.4VA | |||||
| Port size of cap for pnuematic version | G1/8 | |||||
| Lowest pressure for pneumatic version | 0,2MPa | |||||
