ensure vital LOTO (Lockout/Tagout) protection for air-powered systems. These manually operated 3-port valves shut off upstream air supply and rapidly vent downstream residual pressure. Featuring a secure lockout mechanism for maintenance safety, they prevent accidental machine start-ups. Essential for OSHA compliance and worker protection.

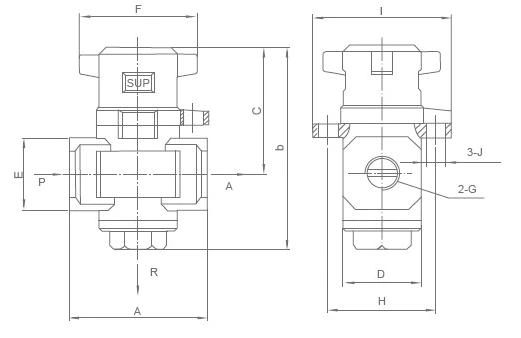

| Modell | G | Vent size | A | B | C | D | E | F | H | I | J |
| VHS2000-01 | G1/8 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| VHS2000-02 | G14 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| VHS3000-02 | G14 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| VHS3000-03 | G3/8 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| VHS4000-03 | G3/8 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| VHS4000-04 | G1/2 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| VHS5000-06 | G3/4 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
| VHS5000-10 | G1 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
| Modell | G | Vent size | A | B | C | D | E | F | H | I | J |
| VHS2000-01 | G1/8 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| VHS2000-02 | G14 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| VHS3000-02 | G14 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| VHS3000-03 | G3/8 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| VHS4000-03 | G3/8 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| VHS4000-04 | G1/2 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| VHS5000-06 | G3/4 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
| VHS5000-10 | G1 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
