Pneumatic Air Filters • Product specifications

Pneumatic Air Filters: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

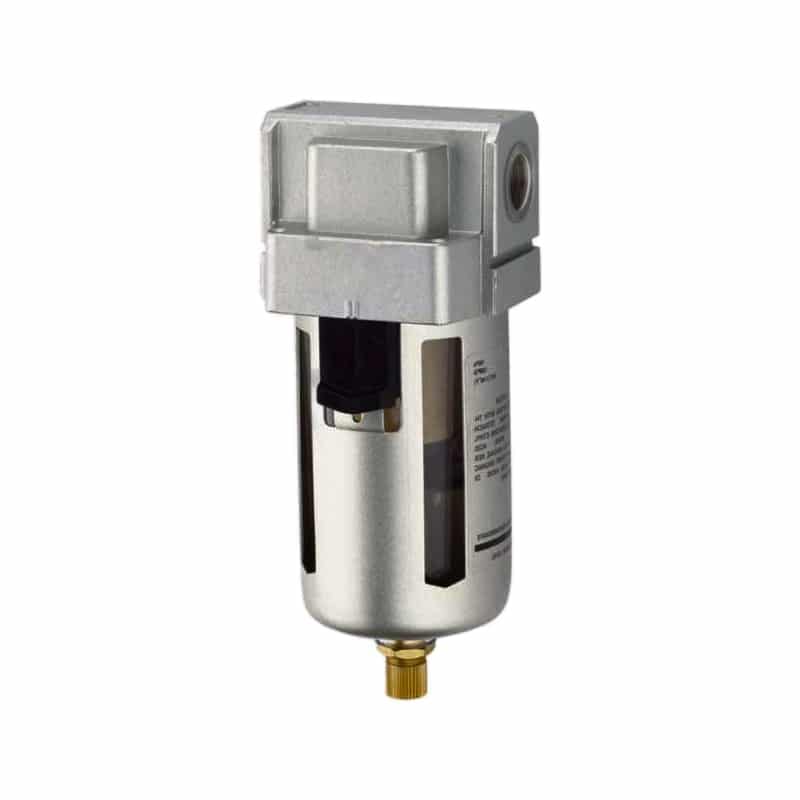

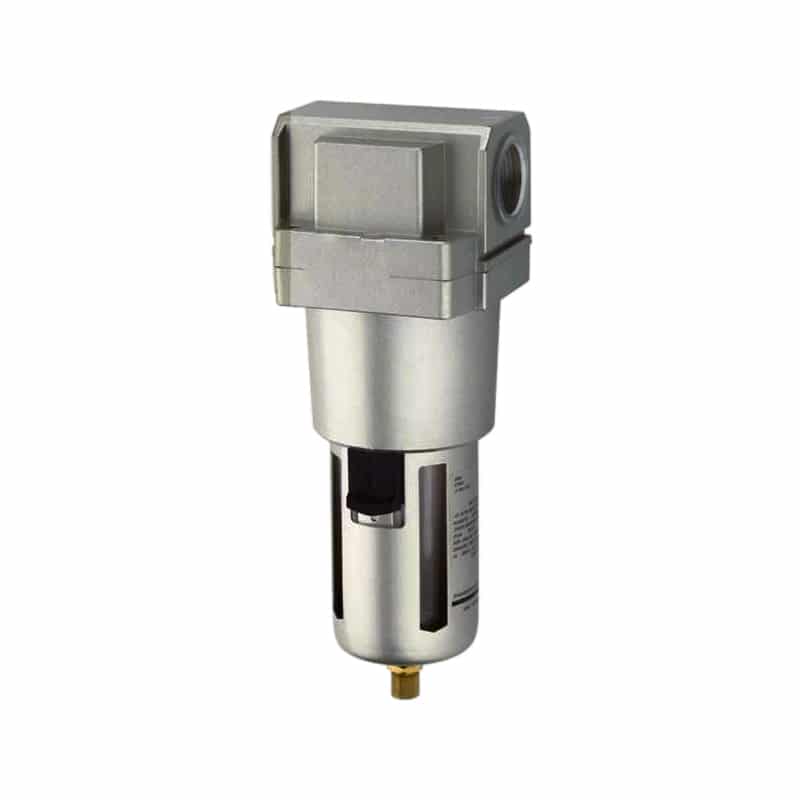

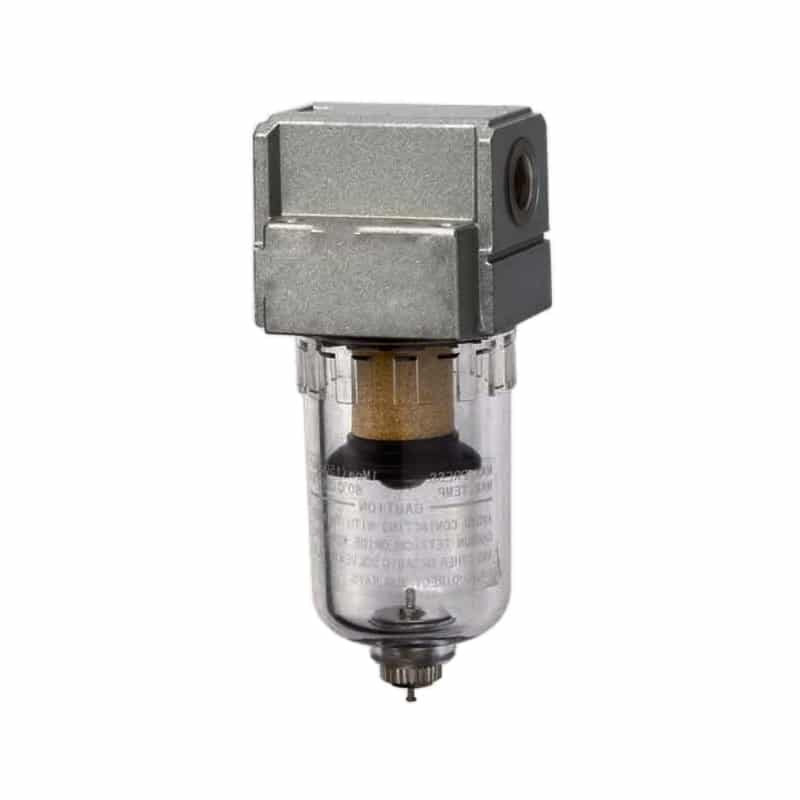

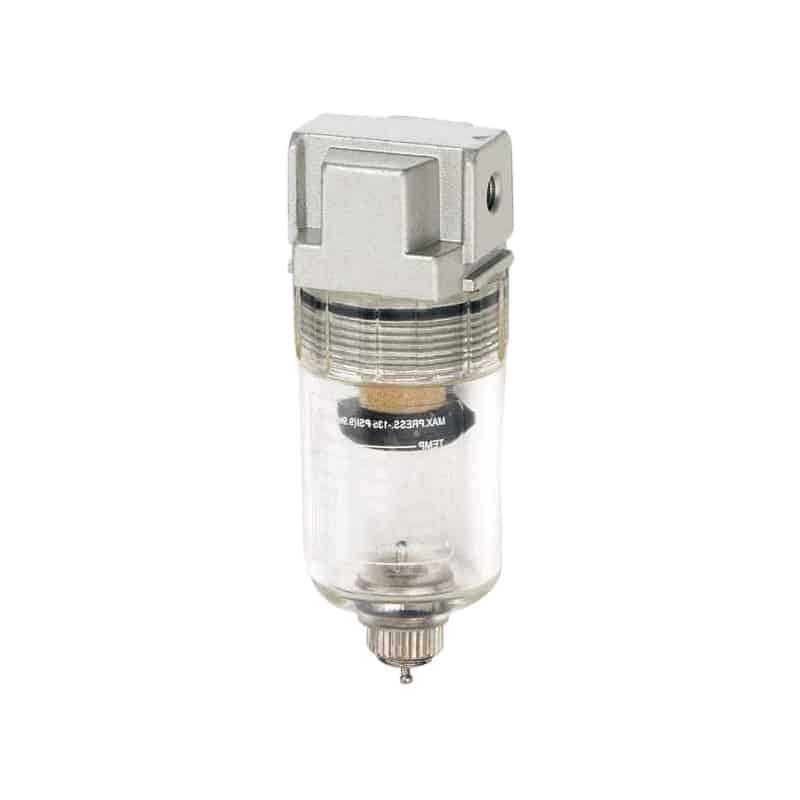

xaf 1000 5000 series pneumatic air filter xa xac line product view 1

Order Symbol

Series 01

Series: XAF 1000-5000 Series Pneumatic Air Filter (XA/XAC Line)
Model: XAF1000-M5 | XAF2000-01 | XAF2000-02 | XAF3000-02 | XAF3000-03 | XAF4000-03 | XAF4000-04 | XAF4000-06 | XAF5000-06 | XAF5000-10

Key Specs

Selection focus

Model: XAF1000-M5 | XAF2000-01 | XAF2000-02 | XAF3000-02 | XAF3000-03 | XAF4000-03 | XAF4000-04 | XAF4000-06 | XAF5000-06 | XAF5000-10
Rated Flow: 110-7000 L/min
Highest Working Pressure: 1.0 MPa
Filter Precision: 25 μm
Operating temperature Range: 5-60 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Filtration, drain, and bowl specifications

16 rows

Model	XAF1000-M5	XAF2000-01	XAF2000-02	XAF3000-02	XAF3000-03	XAF4000-03	XAF4000-04	XAF4000-06	XAF5000-06	XAF5000-10
Series code	XA	XA	XA	XA	XA	XA	XA	XA	XA	XA
function code	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)
body size code	1000	2000	2000	3000	3000	4000	4000	4000	5000	5000
Port size code	M5	01	02	02	03	03	04	06	06	10
Port size	M5x0.8	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Rated flow	110	750	750	1500	1500	4000	4000	6000	7000	7000
Filtration grade	25 μm
Max. working pressure	1.0 MPa
proof pressure	1.5 MPa
Operating temperature range	5-60 °C
Bowl material	Polycarbonate
Protective cover	Not available			Available
drain type	Differential drain			Differential or Automatic drain
Ordering drain code	Blank: Manual drain only	Blank: Manual drain; D: auto drain option
Ordering Metal Cup code	Not available	U: iron cup; L: aluminum cup option

Additional table

Port size and Mounting dimensions

7 rows

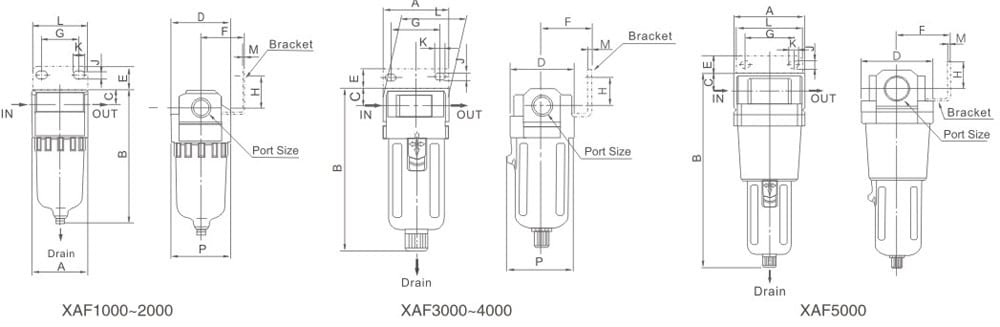

XAF-1000-5000 mounting dimension reference drawing for XAF 1000-5000 Series Pneumatic Air Filter (XA/XAC Line)

Model	Port size (G)	A	B	C	D	E	F	G	H	J	K	L	M	P
XAF1000	M5	25	66	7	25	-	-	-	-	-	-	-	-	26.5
XAF2000	G1/8″-G1/4″	40	97.5	11	40	17	30	27	22	5.4	8.4	40	2.3	40
XAF3000	G1/4″-G3/8″	53	132.5	14	53	16	41	40	23	6.5	8	53	2.3	56
XAF4000	G3/8″-1/2″	70	168.5	18	70	17	50	54	26	8.5	10.5	70	2.3	73
XAF4000-06	G3-4″	75	172.5	20	70	14	50	54	25	8.5	10.5	70	2.3	73
XAF5000	G3/4″-G1″	90	247.5	24	90	23	66.5	66	35	11	13	90	3.2	90

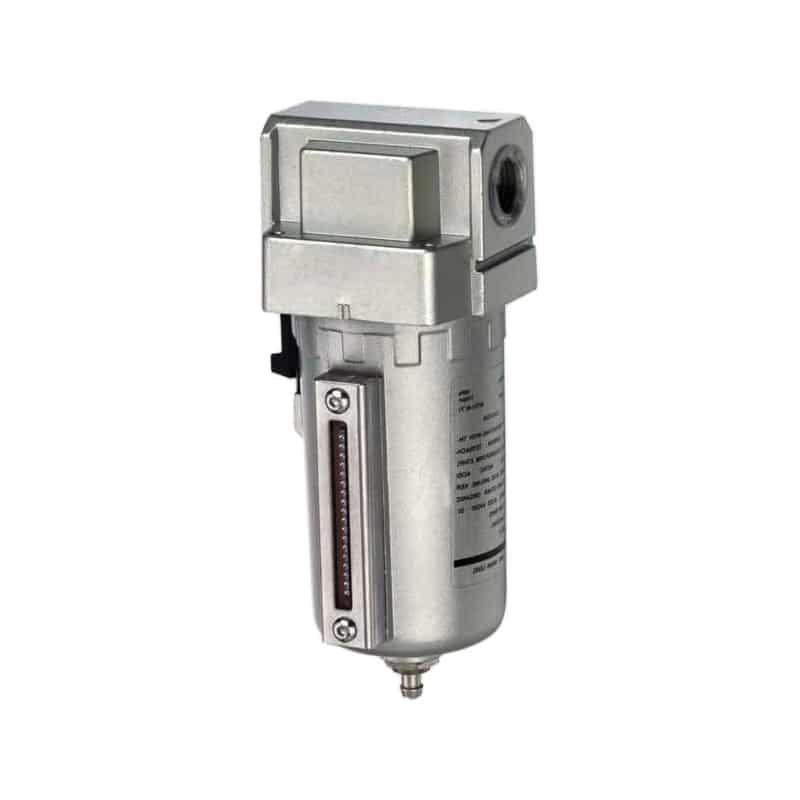

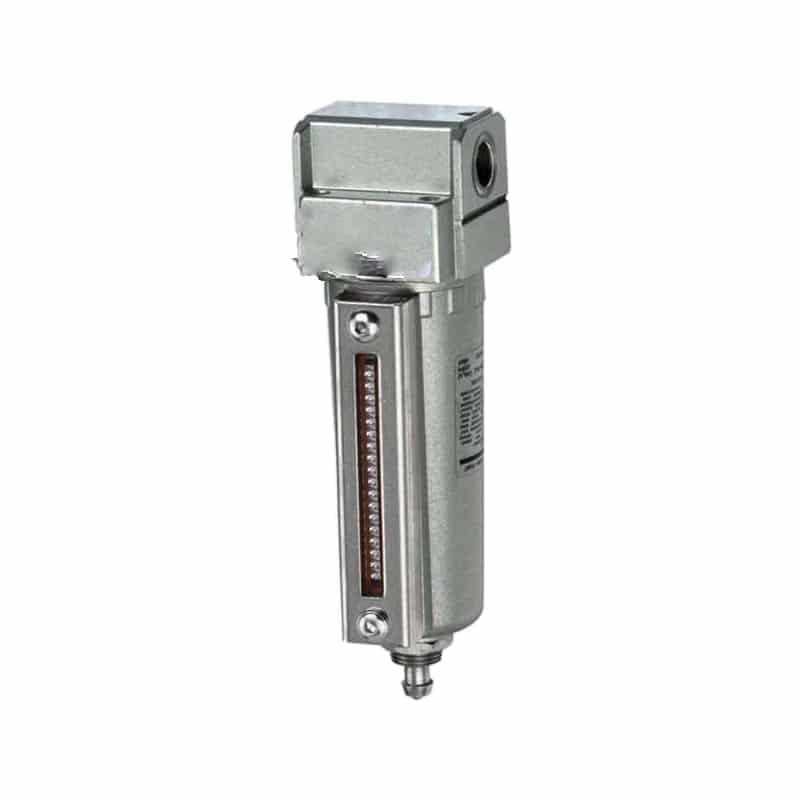

xmaf series metal cup pneumatic air filter xma line product view 1

Order Symbol

Series 04

Series: XMAF Series Metal Cup Pneumatic Air Filter (XMA Line)
Model: XMAF2000-01 | XMAF2000-02 | XMAF3000-02 | XMAF3000-03 | XMAF4000-03 | XMAF4000-04 | XMAF4000-06 | XMAF5000-06 | XMAF5000-10

Key Specs

Selection focus

Model: XMAF2000-01 | XMAF2000-02 | XMAF3000-02 | XMAF3000-03 | XMAF4000-03 | XMAF4000-04 | XMAF4000-06 | XMAF5000-06 | XMAF5000-10
Rated Flow (L/min): 750-7000 L/min
Proof Pressure: 1.5 MPa (15 kgf/cm²)
Filter Precision: 25 μm / 5 μm / 50 μm
Operating temperature Range: 5-60 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Filtration, drain, and bowl specifications

15 rows

Model	XMAF2000-01	XMAF2000-02	XMAF3000-02	XMAF3000-03	XMAF4000-03	XMAF4000-04	XMAF4000-06	XMAF5000-06	XMAF5000-10
Series code	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA
function code	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)	F (filter)
Specification code	2000	2000	3000	3000	4000	4000	4000	5000	5000
Port size code	01	02	02	03	03	04	06	06	10
Port size (G)	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
proof pressure	1.5 MPa (15 kgf/cm²)
Max. working pressure	1.0 MPa (10 kgf/cm²)
Operating temperature range	5-60 °C
Filtration grade	25 μm / 5 μm / 50 μm
Bowl material	Aluminum die casting
Rated flow (L/min)	750	750	1500	1500	4000	4000	6000	7000	7000
Bowl Capacity	15	15	20	20	45	45	45	130	130
drain type	Manual drain		Manual or auto drain
Ordering drain code	Blank: Manual drain only		Blank: Manual drain; D: auto drain option

Additional table

Port size and Mounting dimensions

6 rows

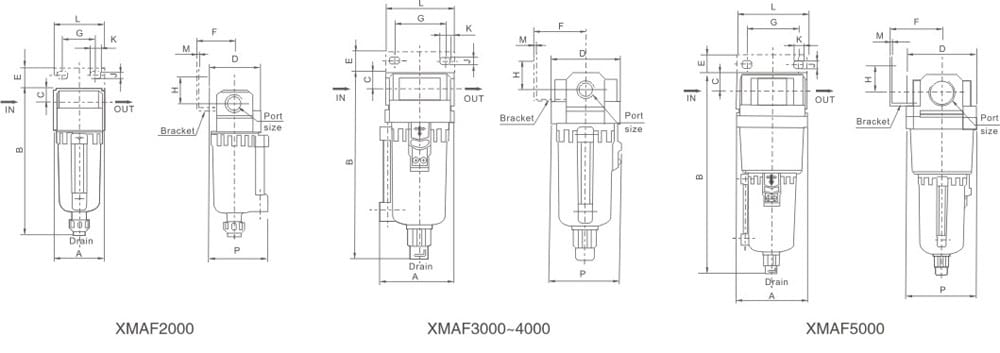

XMAF Series Metal Cup Pneumatic Air Filter (XMA Line) dimension reference drawing

Model	Port size (G)	A	B	C	D	F	G	H	J	K	L	M	P
XMAF2000	G1/8″-G1/4″	40	119.5	11	40	17	27	22	5.4	8.4	40	2.3	46
XMAF3000	G1/4″-G3/8″	57.5	154	14	53	16	40	23	6.5	8	53	2.3	55
XMAF4000	G1/2″	74	184	18	70	17	54	26	8.5	10.5	70	2.3	72.5
XMAF4000-06	G3/4″	76.5	188	20	70	14	54	25	8.5	10.5	70	2.3	72.5
XMAF5000	G3/4″-G1″	90	263	24	90	23	66	35	11	13	70	3.2	90

Product image

Order Symbol

Series 07

Series: SF Series SS316 High Pressure Pneumatic Filter
Model: SF200-02 | SF400-03 | SF400-04 | SF600-06 | SF600-10
body size Code: 200, 400, 600

Key Specs

Selection focus

Model: SF200-02 | SF400-03 | SF400-04 | SF600-06 | SF600-10
Body Size Code: 200, 400, 600
Max. Flow Rate (L/min): 1900-9600 L/min
Pressure Code: Blank: 0-16 kg/cm²; H: 5-40 kg/cm²
Filter Cup Capacity: 105 cc / 110 cc

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Filtration, drain, and bowl specifications

22 rows

Model	SF200-02	SF400-03	SF400-04	SF600-06	SF600-10
Series code	SF	SF	SF	SF	SF
Type	Air Filter
body size code	200	400	400	600	600
body size / base port	1/4	3/8, 1/2	3/8, 1/2	3/4, 1	3/4, 1
Joint pipe bore code	02	03	04	06	10
Port size (G)	G1/4	G3/8	G1/2	G3/4	G1
thread code	Blank: G; N: NPT; R: RC
Max. flow rate (L/min)	1900	2450	3030	9600	9600
Filter cup capacity	105 cc	110 cc	110 cc	110 cc	110 cc
Filtration grade code	Blank: 5 μm; U: 40 μm
Working medium	Air
Pressure regulating range	0.15-2 MPa
Pressure option code	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²
proof pressure	6 MPa (870 psi)
Operating temperature code	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C
Operating temperature range	-40-100 °C
drain option code	Blank: semi-auto drain; M: Manual drain; D: Automatic drain
drain type	Differential pressure drain (drain below 0.05 MPa)
Material	SUS316 stainless steel
Accessories	Mounting bracket, screw x2
Weight	1240 g	1630 g	1600 g	3900 g	3800 g

Additional table

SF series dimension drawings

4 rows

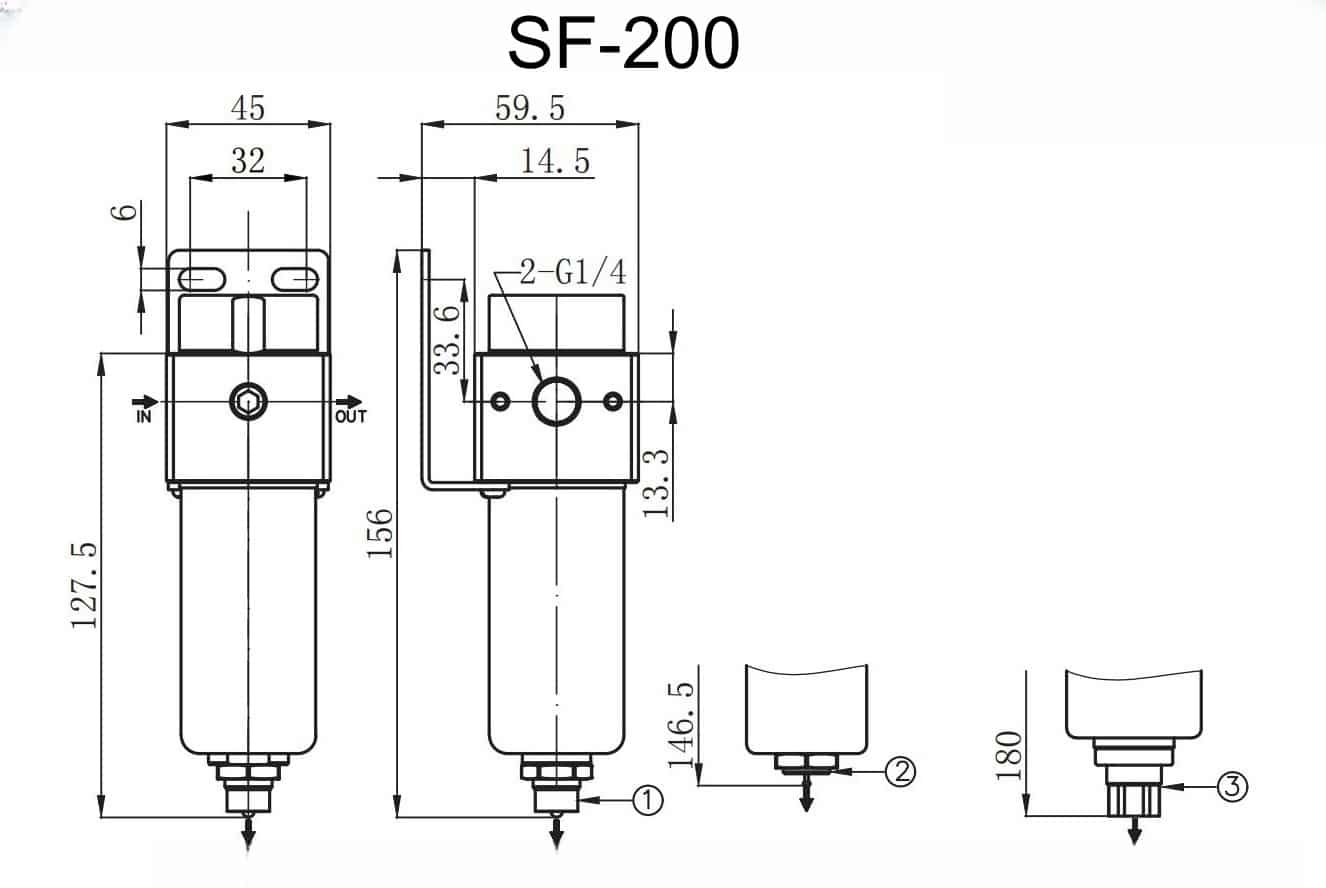

SF-200 SS316 high pressure pneumatic filter dimension drawing

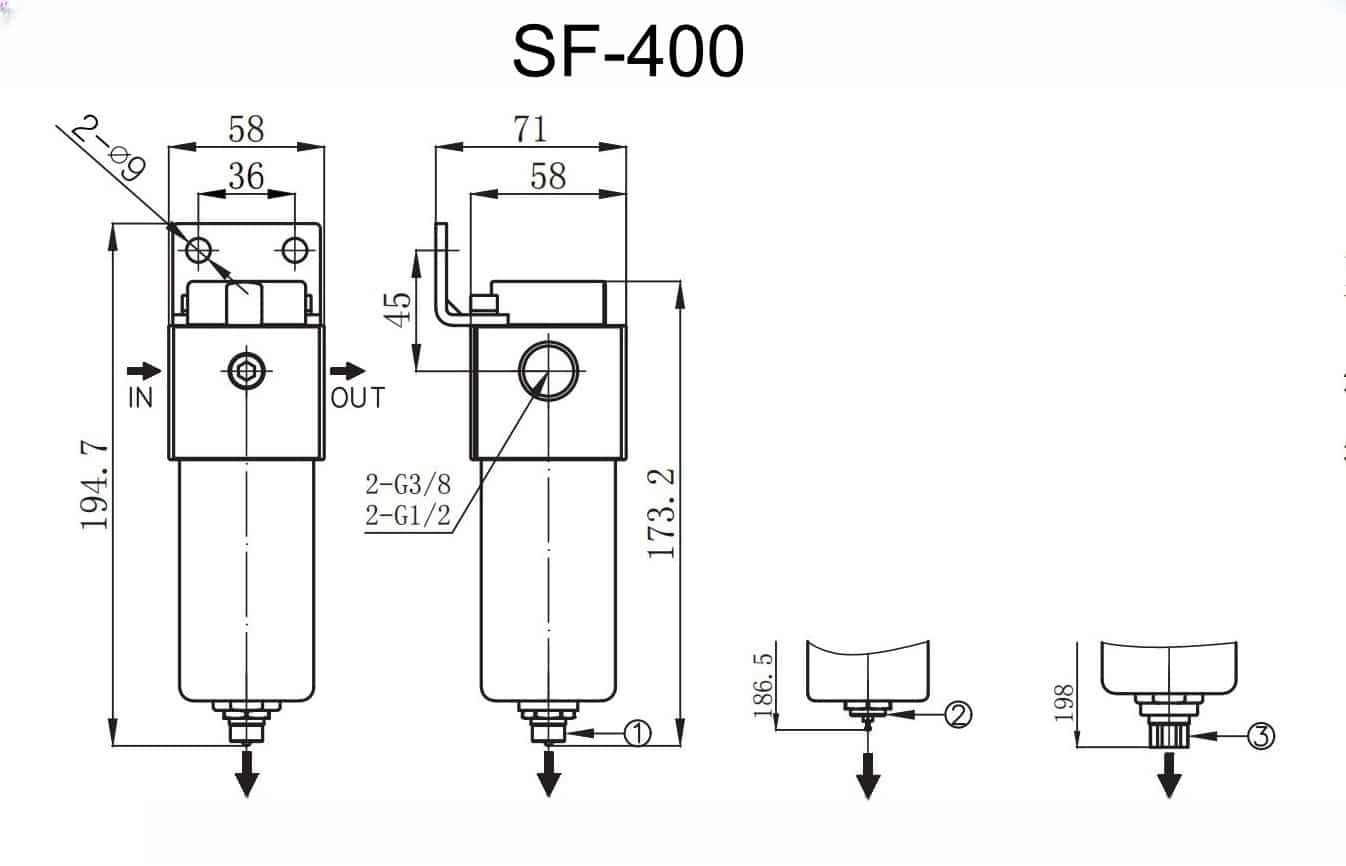

SF-400 SS316 high pressure pneumatic filter dimension drawing

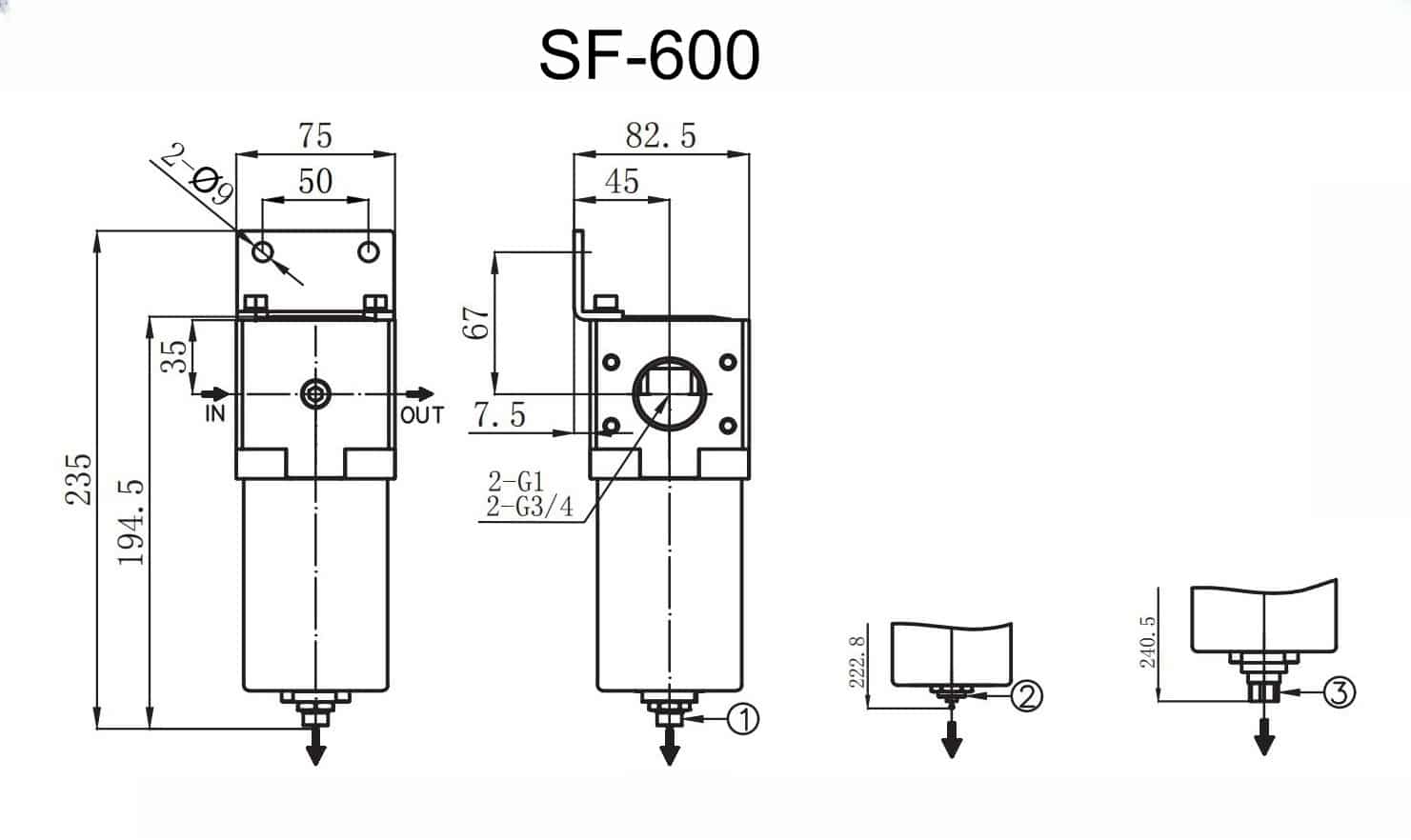

SF-600 SS316 high pressure pneumatic filter dimension drawing

body size	Models covered	Port callouts shown	drawing notes
SF-200	SF200-02	2-G1/4	dimension drawing for SF200 body with G1/4 port
SF-400	SF400-03 \| SF400-04	2-G3/8 \| 2-G1/2	dimension drawing for SF400 body with G3/8 or G1/2 port
SF-600	SF600-06 \| SF600-10	2-G3/4 \| 2-G1	dimension drawing for SF600 body with G3/4 or G1 port
