Mechanical valve category

Mechanical Button Control Valves

Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.

View product specificationsBuild a valve RFQ
Button signalsReview function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.Cam contactPneumatic logic

Category buying guide

Mechanical valves depend on the actuator that touches them.

Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.

Pneumatic valve categories
01Solenoid Valves02Air Control Valves03Manual Control Valves04Mechanical Valves05Flow Control Valves06Fluid Solenoid Valves07Foot Operated Valves
Mechanical Button Control Valves • Product specifications

Mechanical Button Control Valves: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

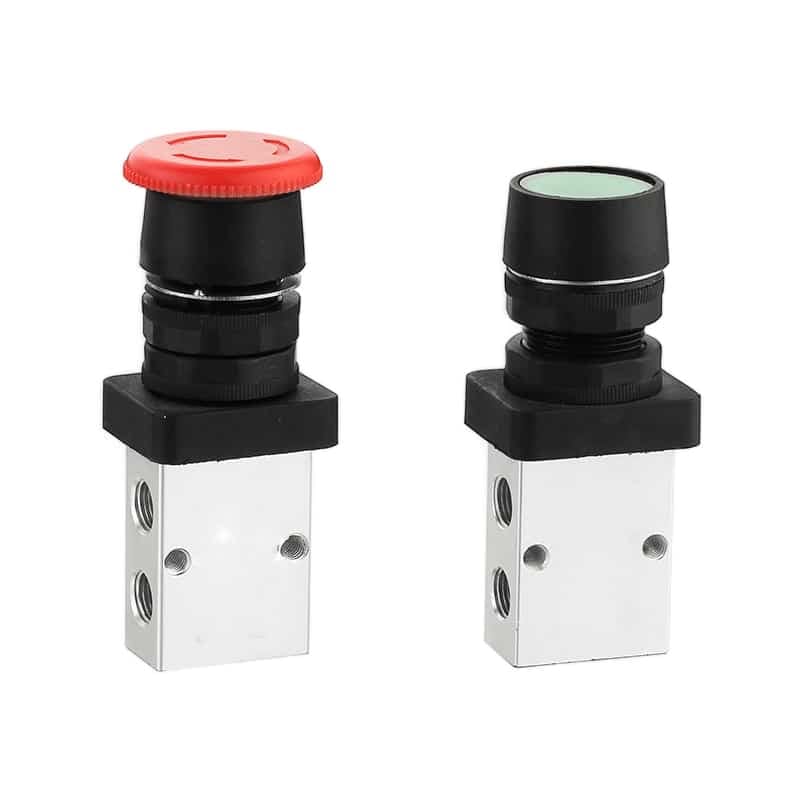

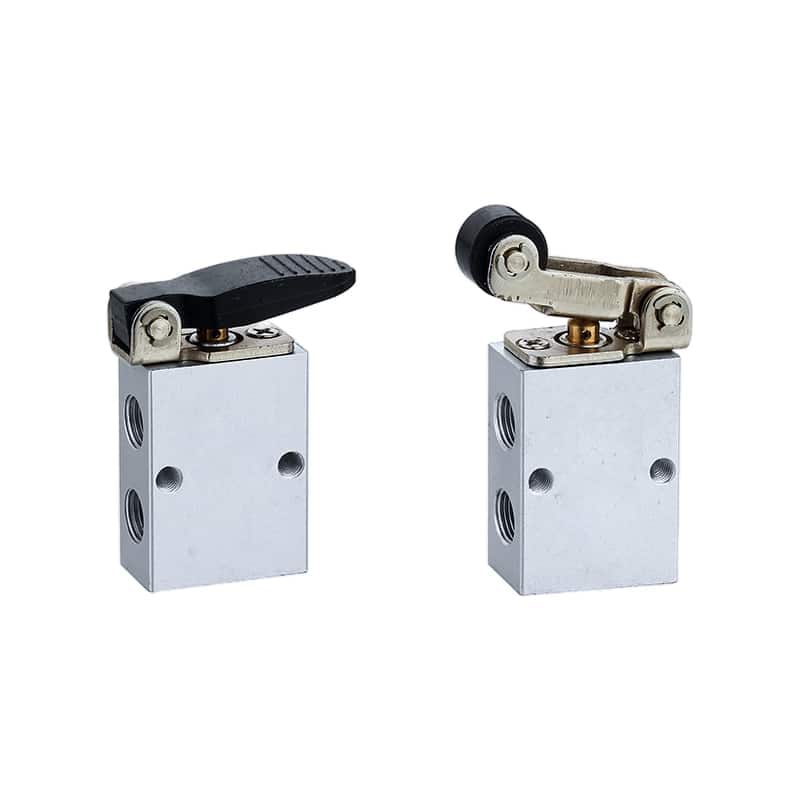

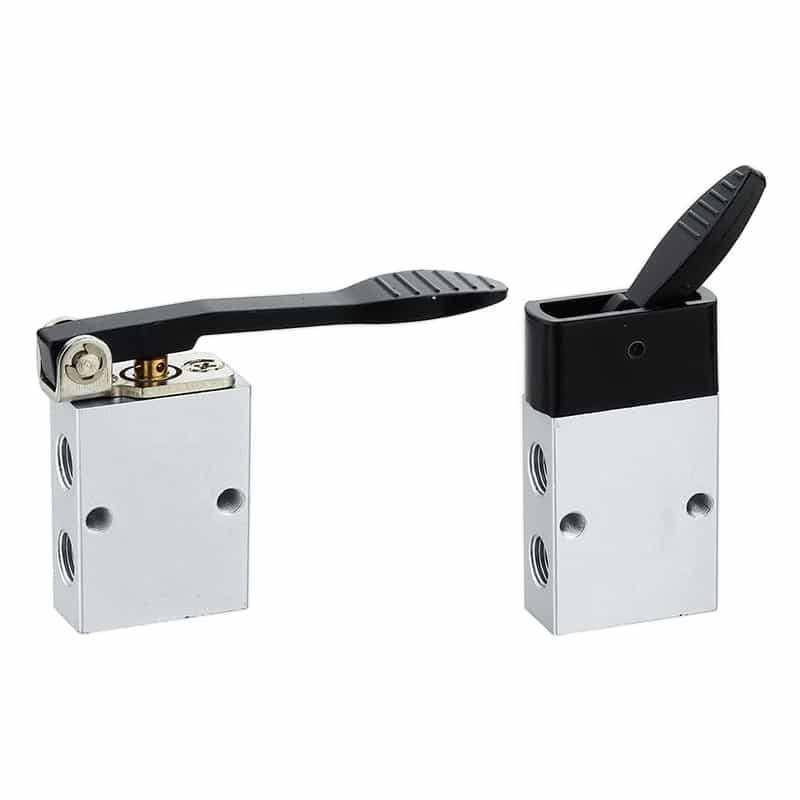

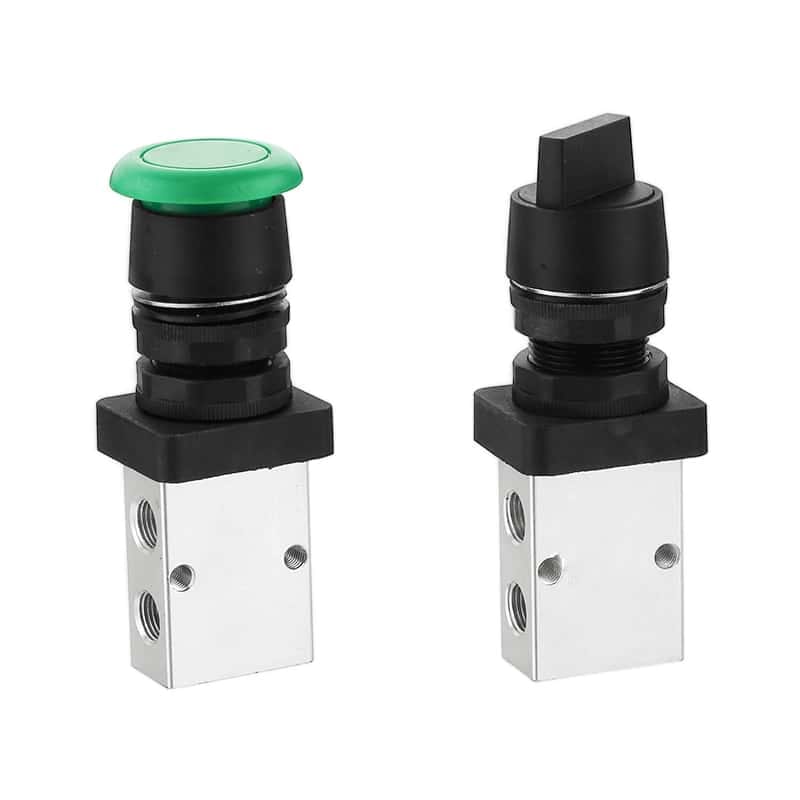

s3 series pneumatic mechanical control valve product view 1

Order Symbol

Series 01
Series
S3 Series Pneumatic Mechanical Control Valve
Model
S3B, S3C, S3D, S3V, S3R, S3L, S3Y, S3PM
Valve function
two-position three-way mechanical valve

Key Specs

Selection focus
  • Model: S3B, S3C, S3D, S3V, S3R, S3L, S3Y, S3PM
  • Valve function: two-position three-way mechanical valve
  • Working medium: Filtered 40 μm air
  • Working pressure: 0-0.8 MPa
  • Port options: 05: M5; 06: PT1/8″; 08: PT1/4″

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the valve label, old model code, or installed photo.
  • function: Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.
  • Medium / pressure: Share working medium, pressure range, and temperature.
  • Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
  • Port / thread: Send port size, thread standard, and tube or pipe connection.
Selection snapshot

operator code, port, and flow specifications

12 rows
ModelS3BS3CS3DS3VS3RS3LS3YS3PMS3PPS3PFS3PLS3HS
Button/operator typenormal buttonlong handleshort handlevertical rollerroller leverone-way roller leverRocker actuatorlarge round buttonconvex buttonflat buttonpark rotation buttonselector knob
Base valve functiontwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valvetwo-position three-way mechanical valve
Port options05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″05: M5; 06: PT1/8″; 08: PT1/4″
Button color options-------Red / green / blackRed / green / blackRed / green / blackRed onlyRed / green / black
Working mediumFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm airFiltered 40 μm air
Motion patternExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action controlExternal direct-action control
Effective sectional area05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)05: 2.4 mm² (Cv=0.45); 08: 12.0 mm² (Cv=0.67)
Working pressure0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa0-0.8 MPa
proof pressure1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa
Working temperature-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C-20-70 °C
Body materialAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloy

Same-group comparison

Mechanical Button Control Valves series comparison

Compare related product series by function, size, pressure, and RFQ details.

5 related series
SeriesOrifice sizefunctionMediumPressure rangeVoltage coilPort thread
S3 Button/Roller Mechanical Valve-B normal; C long handle; D short handle; V vertical roller; R roller lever; L one-way roller lever; Y rocker; PM large round button; PP convex button; PF flat button; PL park rotation button; HS selector knobFiltered 40 μm air0-0.8 MPa-05: M5; 06: PT1/8″; 08: PT1/4″

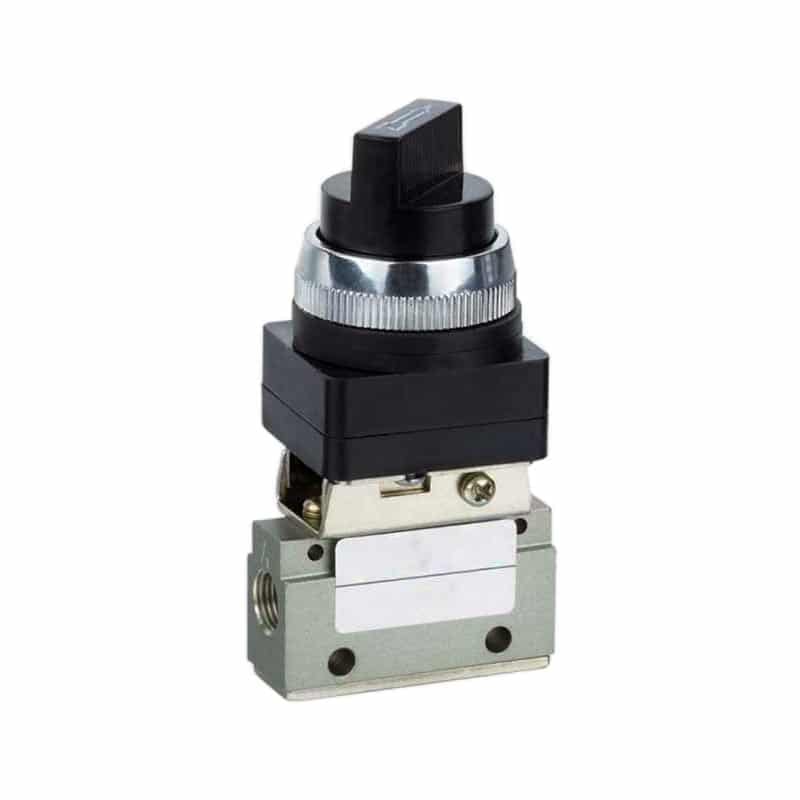

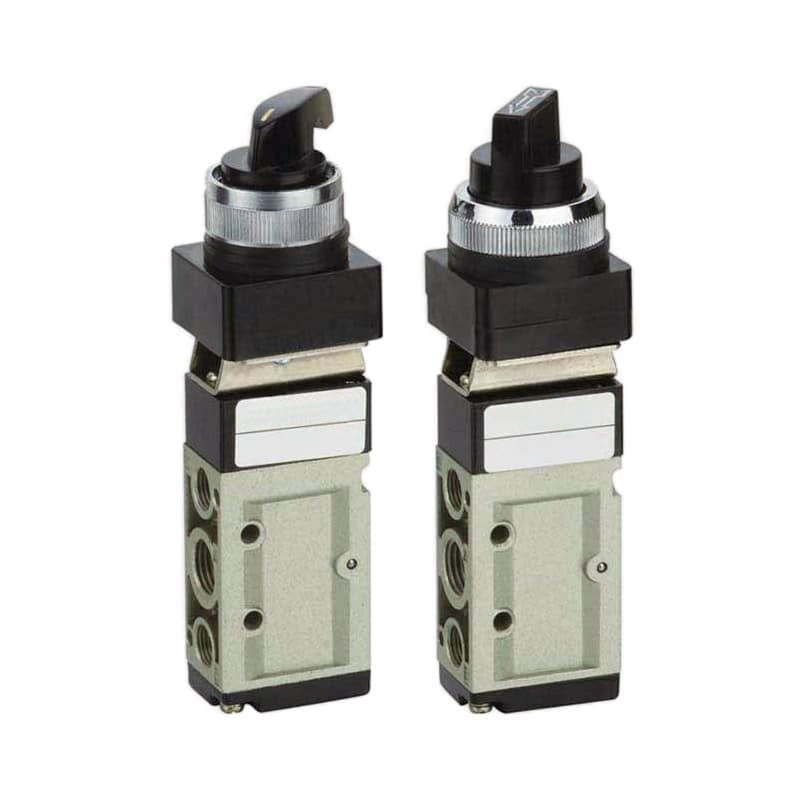

MOV Knob/Roller Mechanical ValveG1/8″01 selector knob; 02 roller type; 03 lock button; 04 convex round buttonAir0-0.8 MPa-G1/8″

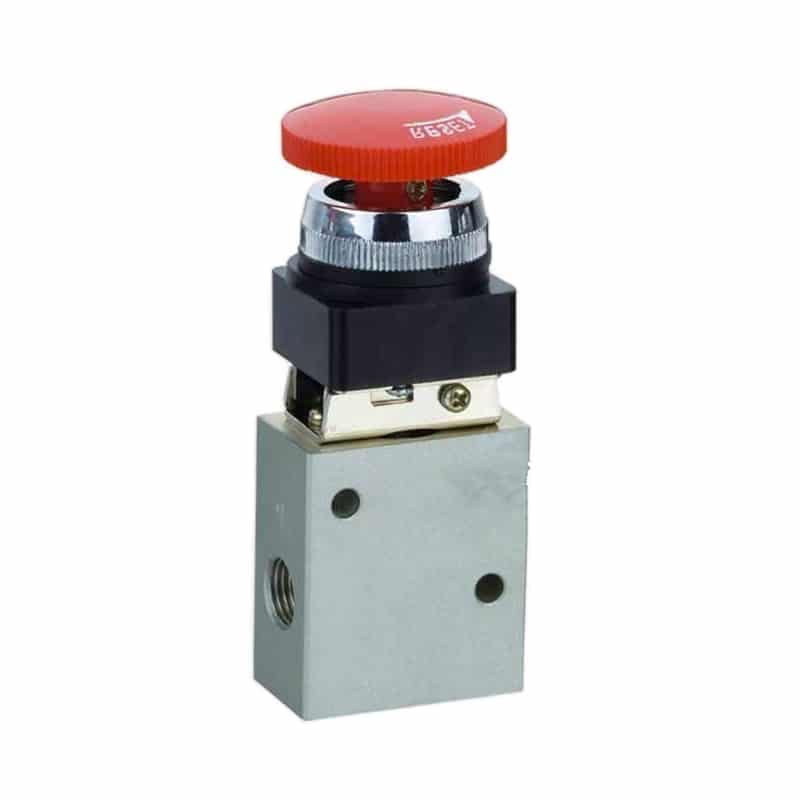

JM Stop-Type Mechanical ValveG1/4″05 selector knob; 06 lock button; 06A flat round button; 07 roller type40 micron filtered air0-0.8 MPa-G1/4″

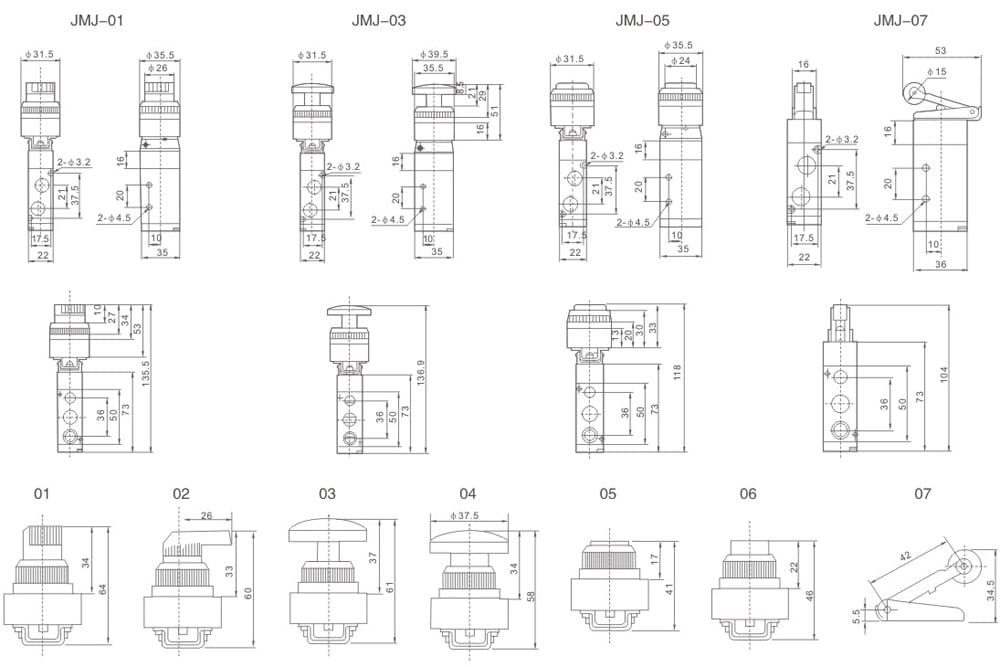

JMJ G1/4 Button Mechanical ValveG1/4″01 selector knob; 02 strengthened knob; 03 lock button; 04 large round button; 05 flat round button; 06 convex round button; 07 roller typeAir0-1 MPa-G1/4″

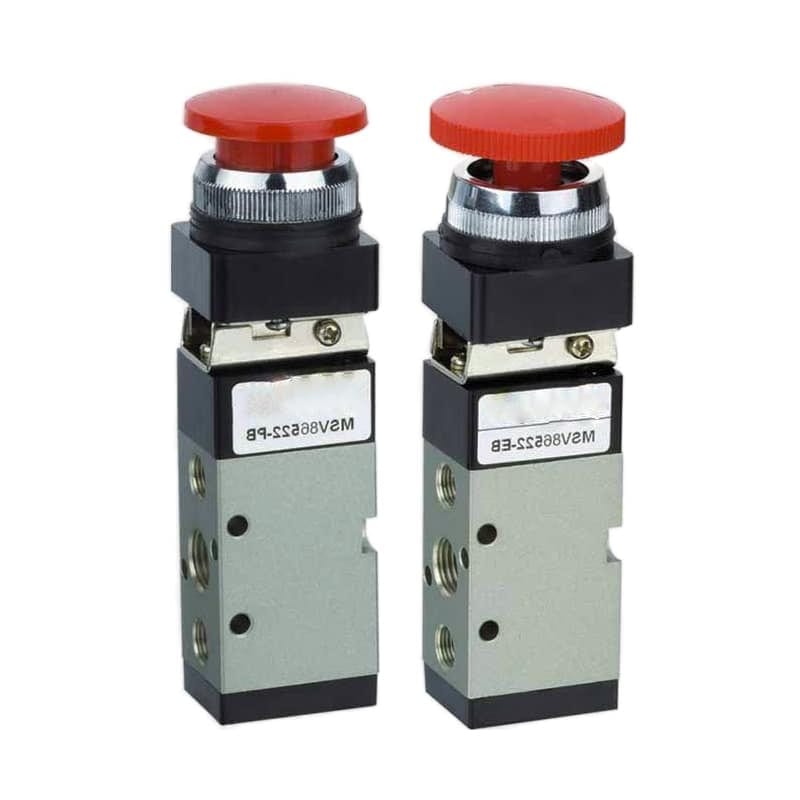

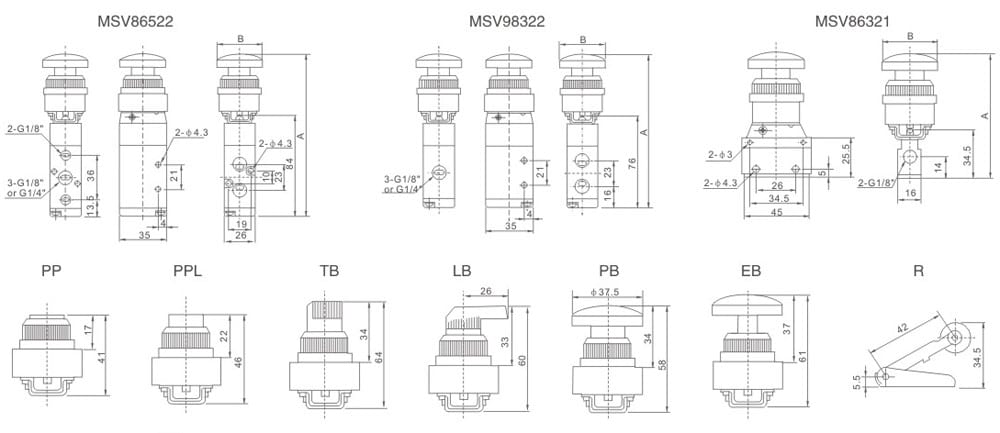

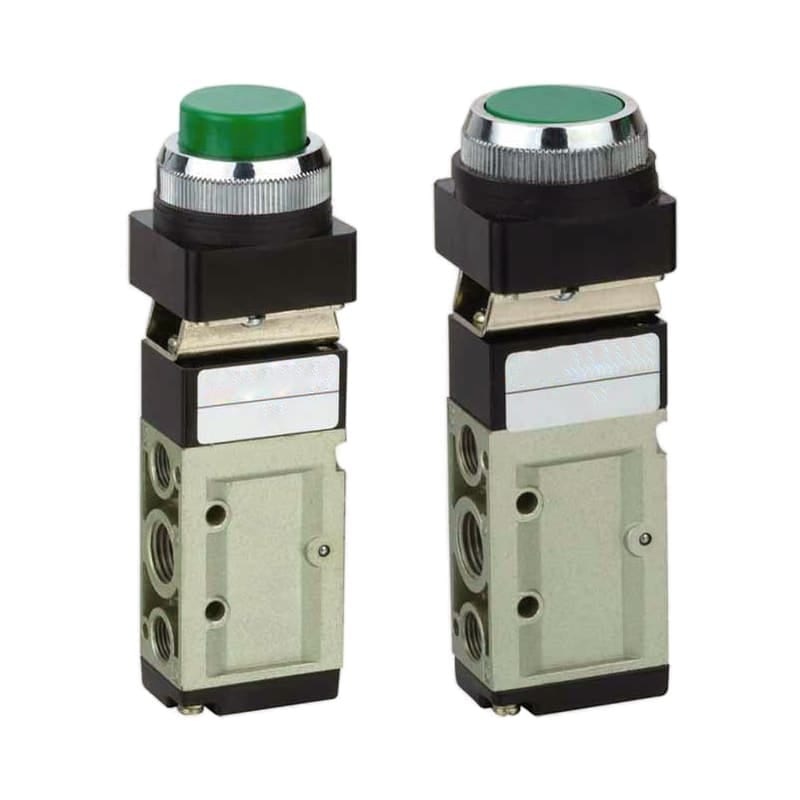

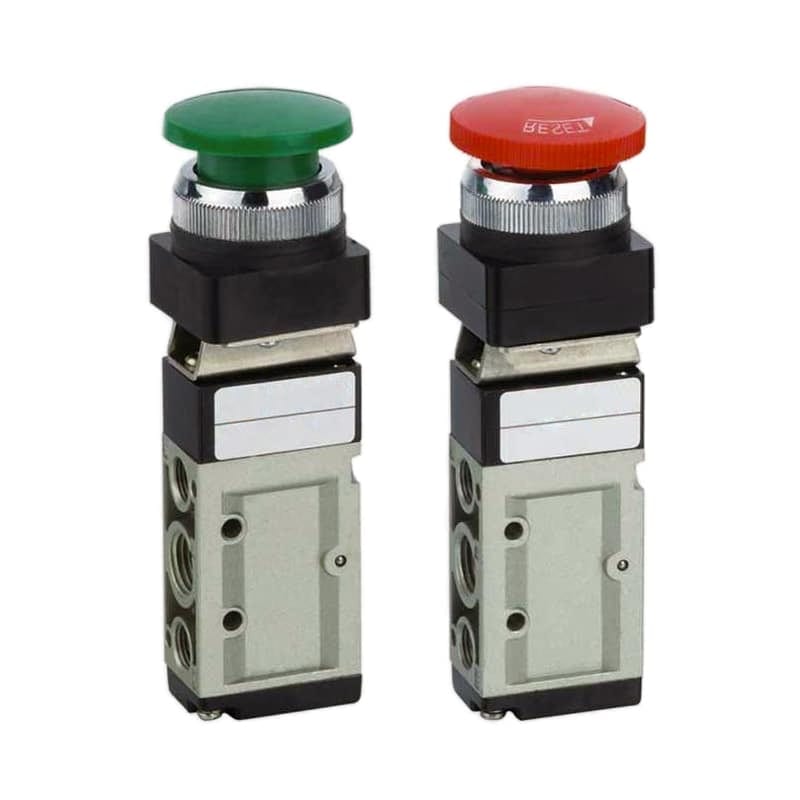

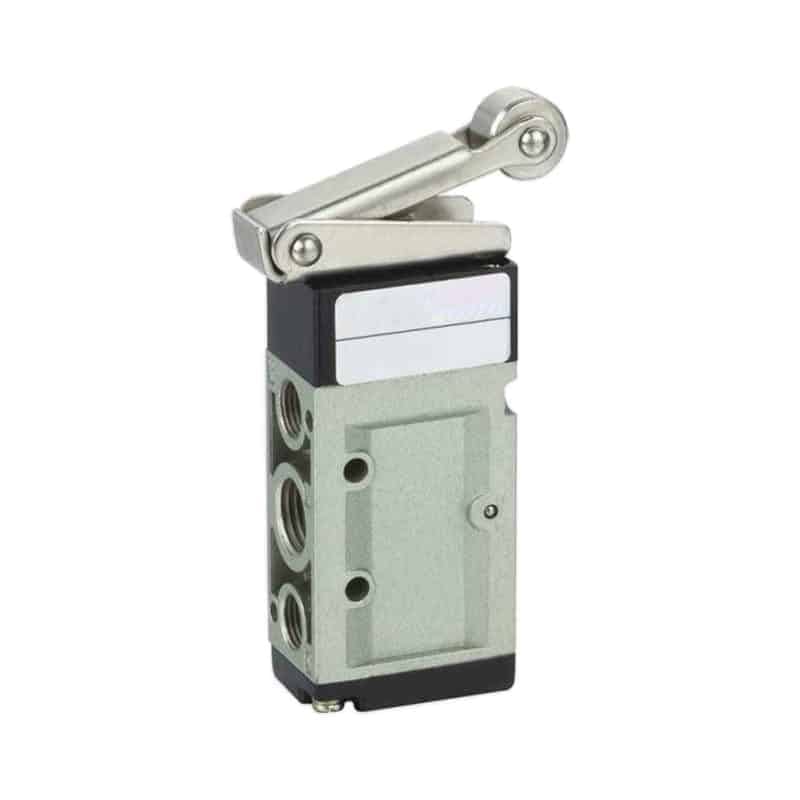

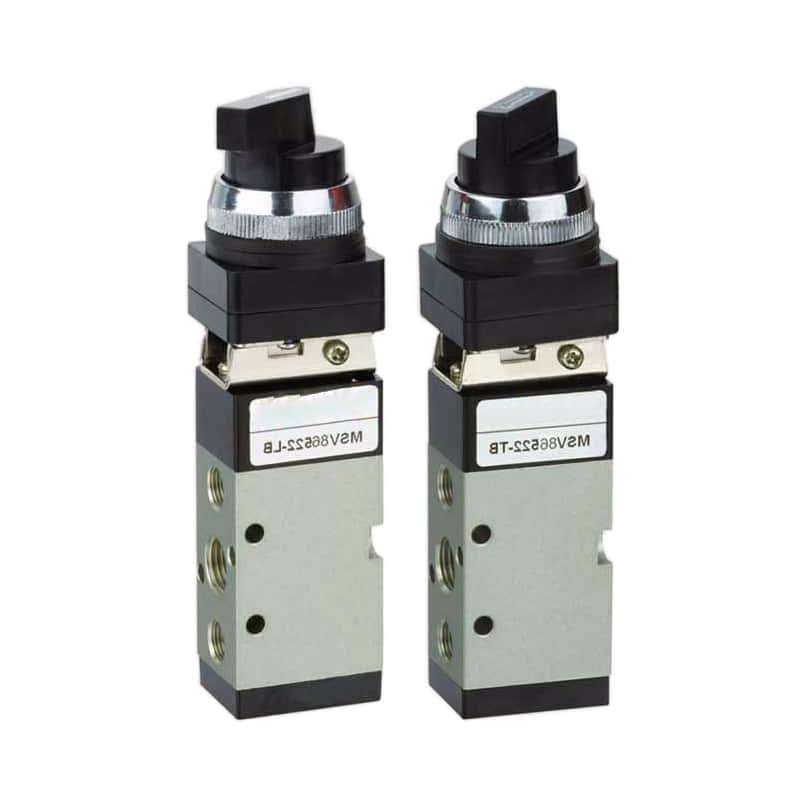

MSV Modular operator Mechanical Valve1: G1/8″, 2: G1/4″32: two-position three-way, 52: two-position five-way40 micron filtered air0-0.8 MPa-1: G1/8″, 2: G1/4″

Choose by valve task

Start with the control job the valve must do.

Pick the closest use case, then confirm valve function, port size, coil voltage, pressure, medium, mounting, and connector details before RFQ.

Scenario 01

Trigger an air signal from machine movement.

Roller or plunger valves can detect a moving machine element without electrical wiring.

Recommended option

Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.

  • Actuator style
  • Contact direction
  • Return type
  • Mounting

Common valve uses

Where pneumatic control components are installed.

S3 Series Pneumatic Mechanical Control Valve product image
Valve use 01

Cam and roller limit signals

Mechanical valves generate an air signal when a slide, cam, fixture plate, or moving machine part reaches a defined position.

  • Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.
  • Confirm contact direction
  • Check return style

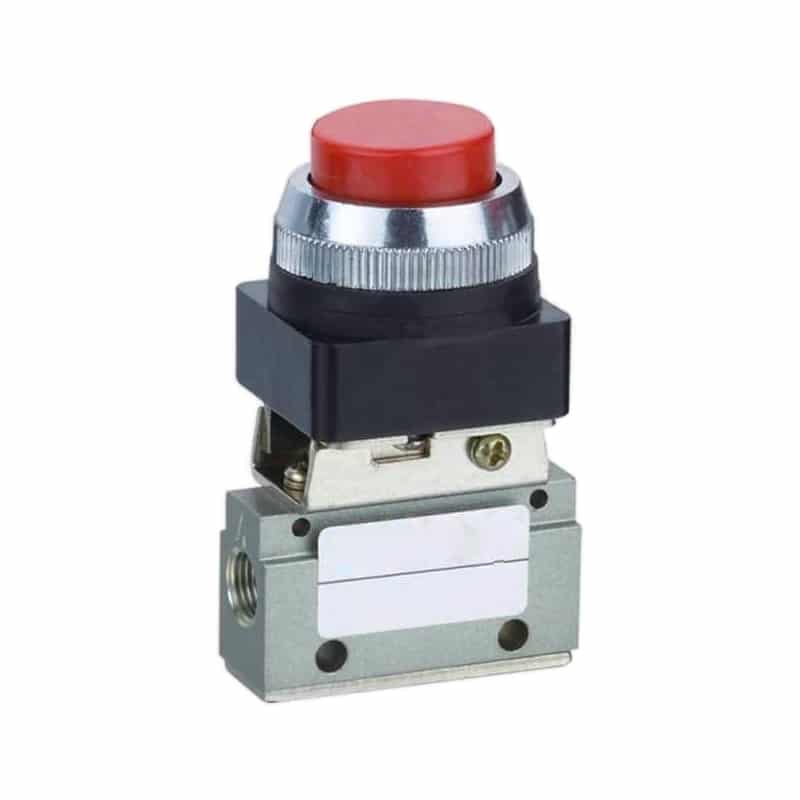

MOV Series Pneumatic Mechanical Control Valve product image
Valve use 02

Pneumatic push-button stations

Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.

  • Confirm button style
  • Check panel thickness
  • Match port function

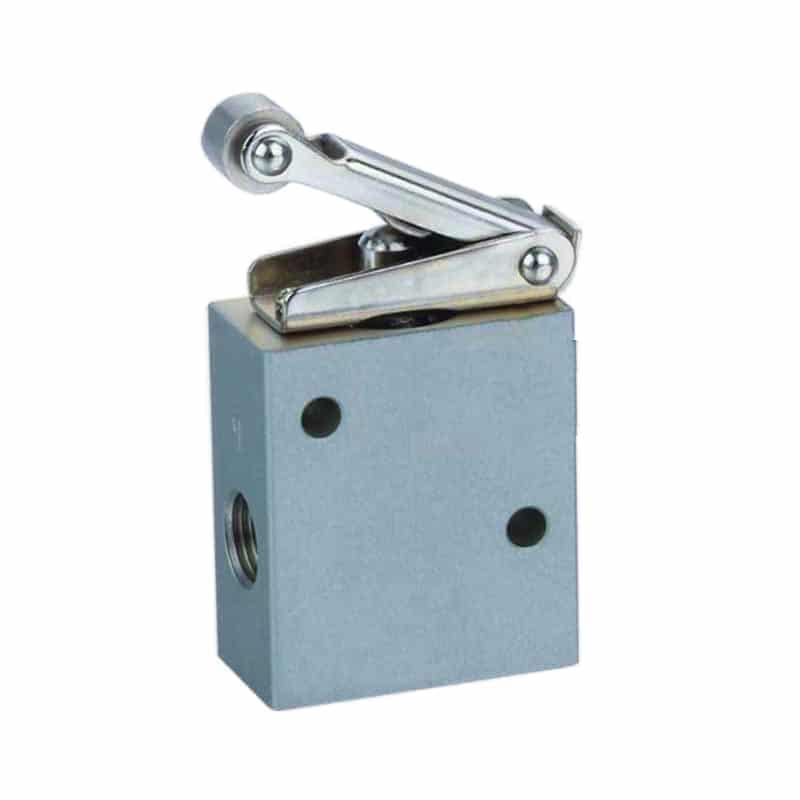

JM Series G1/4″ 3/2 Way Pneumatic Mechanical Valve product image
Valve use 03

Fixture presence checks

Plunger and roller valves can confirm a part, nest, or slide position before allowing the next pneumatic motion in a simple air-logic sequence.

  • Review contact force
  • Protect the actuator head
  • Keep tubing clear of movement

Valve and flow tools

Check flow, Cv, velocity, and unit conversion before choosing valves.

Use these calculations when a pneumatic valve decision depends on flow capacity, pressure loss, port size, or catalog unit conversion.

Open Valves & flow tools
01Valves & flow

Cv Flow Calculator

Estimate valve Cv before selecting a solenoid, manual, or control valve.

Calculation modeCv valueFlow rateOpen calculator02Valves & flow

Air Orifice Flow Calculator

Review approximate air flow through an orifice or restriction point.

Orifice diameterUpstream pressureDownstream pressureOpen calculator03Valves & flow

Air Velocity Calculator

Check air velocity so port, tube, and valve choices stay practical.

Free-air flowFlow unitInternal diameterOpen calculator04Unit conversion

Cv / Kv Converter

Convert Cv and Kv values when comparing international datasheets.

Coefficient valueSource coefficientOpen calculator

Request category support

Send the details that make this Mechanical Button Control Valves inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Model code or installed product photo
  • Port size, thread standard, and tube size
  • Working medium, pressure, and temperature
  • Review function, size, pressure, mounting, and inquiry data for Mechanical Button Control Valves.
Solenoid ValvesAir Control ValvesManual Control ValvesFlow Control Valves

Mechanical Button Control Valves RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Mechanical Button Control ValvesWhat is the difference between a mechanical valve and a manual valve?

A manual valve is operated intentionally by a person. A mechanical valve is usually triggered by machine contact, a cam, roller, plunger, or push mechanism.

02Mechanical Button Control ValvesWhat photos help identify a mechanical valve?

Send the label, actuator head, port side, mounting face, and full installed position so Bepto Pneumatic can compare the correct style.
