Air line routing / air blow tools

Pneumatic Air Blow Guns

Compare AR-TS, A001, A003, A005, A021, A007, A015, A006, A010, A098, A018, A009, and A012 pneumatic air blow guns by body style, nozzle length, inlet thread, working pressure, product photo, and dimension reference.

View product specificationsCompare air blow gun models

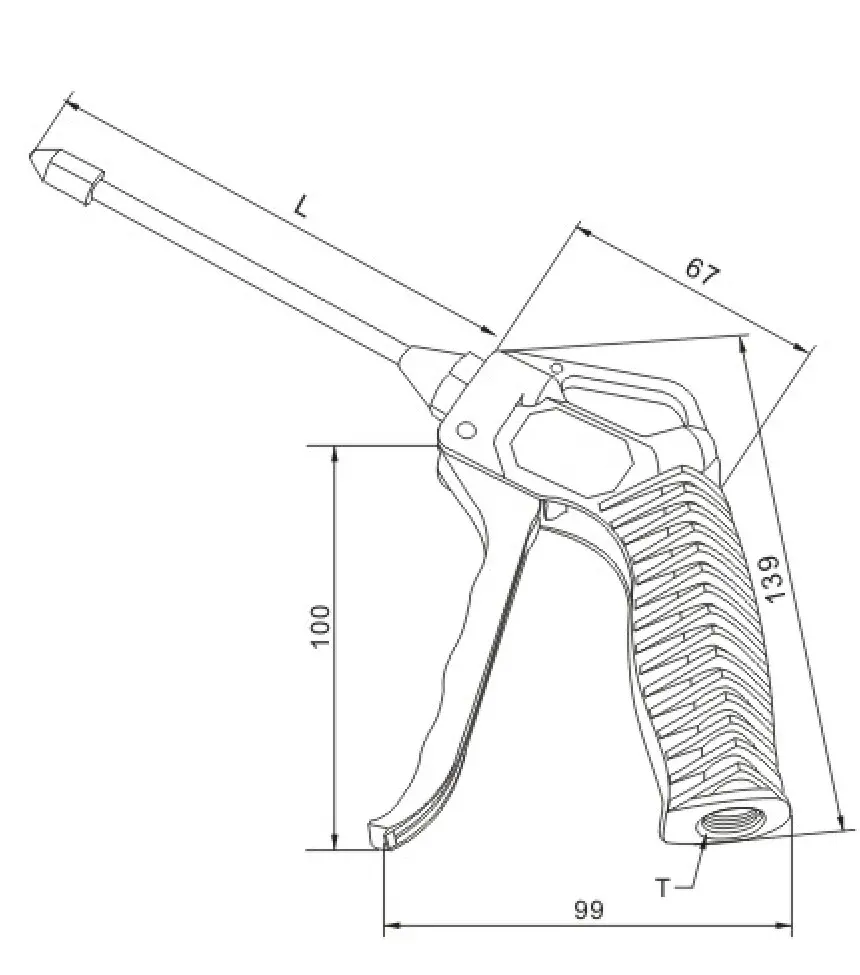

Model-by-model comparisonMatched model photoDimension referenceNozzle review

Category buying guide

Choose air blow guns by visible body style, nozzle route, inlet thread, and working pressure.

Air blow guns look similar in a long gallery, so model code, photo, body style, nozzle length, inlet thread, working pressure, and dimension reference should be reviewed together before quotation.

Tubing and accessory categories
01Polyurethane and Recoil Tubing02PA Nylon Tubing03Air Blow Guns
Pneumatic Air Blow Guns • Product specifications

Pneumatic Air Blow Guns: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

AR-TS Series plastic air blow gun

Order Symbol

Series 01
Series
AR-TS Plastic Air Gun
Body Material
Plastic body / alumina barrel
Muzzle size (L)
110 mm / 270 mm
Working Pressure
0-10.0 kgf/cm²

Key Specs

Selection focus
  • Body Material: Plastic body / alumina barrel
  • Muzzle Size (L): 110 mm / 270 mm
  • Working Pressure: 0-10.0 kgf/cm²
  • Body Color: Red
  • Connection: 1/4 PT route

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Tube / gun route: Confirm PU, UC recoil, PA6, PA12, or air blow gun requirement.
  • Size / length: Share tube OD and ID, coil length, working length, or nozzle/barrel length.
  • Material / color: Confirm PU, PA6, PA12, standard color, custom color, or marking need.
  • Working air: Share pressure, temperature, medium, vacuum need, and air quality.
  • Connection: Send matching fitting size, inlet thread, quick connector, and quantity.
Selection snapshot

AR-TS air blow gun selection details

11 rows
Selection ItemAvailable Data
ModelAR-TS Plastic Air Gun
CategoryStandard economical
Muzzle size (L)110 mm / 270 mm
Working Pressure0-10.0 kgf/cm²
Body MaterialPlastic body / alumina barrel
Body ColorRed
Connection1/4 PT route
Key FeaturesPolyurethane protective cover on the barrel
Operating Temp-10 °C to 50 °C (Standard)
Primary UseGeneral workstation cleaning

Same-group comparison

Pneumatic Air Blow Guns series comparison

Compare related product series by function, size, pressure, and RFQ details.

13 related series
SeriesNozzle lengthPressure rangeBody materialBody colorConnectionKey feature
AR-TS Economy Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic body / alumina barrelRed1/4 PT routePolyurethane protective cover on the barrel
A001 Stainless Barrel Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic body / stainless steel barrelYellow / orange1/4 PT routestainless steel barrel prevents deformation
A003 Copper Inlet Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic body / stainless steel barrelGreenCopper 1/4 PT inletCopper metal 1/4 PT thread for longer life
A005 Multi-Nozzle Plastic Air GunStandard / small / long / large0-10.0 kgf/cm²Plastic body / stainless steel nozzle setGreen1/4 PT routeVersatile nozzle options for precise air control
A021 High-Volume Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic body / stainless steel barrelBlue1/4 PT routeLarge diameter blower for heavy dust removal
A007 Ergonomic Plastic Air Gun20 mm / 130 mm / 300 mm0-10.0 kgf/cm²Plastic body / stainless steel barrelBlack body / red trigger1/4 PT routeBlack body with red trigger and high portability
A015 Long-Reach Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic body / Copper inletBlueCopper 1/4 PT inletIdeal for narrow spaces and high reach areas
A006 Scale-Grip Plastic Air Gun110 mm / 270 mm0-10.0 kgf/cm²Plastic bodyGreen1/4 PT routeUnique fish scale grip with integrated trigger
A010 Glossy Aluminum Metal Air Gun16 mm / 100 mm0-8.0 kgf/cm²Aluminum alloy bodySilver1/4 PT routeHigh gloss surface treatment for long-term shine
A098 Flow-Control Metal Air Gun16 mm / 22 mm / 100 mm0-8.0 kgf/cm²Aluminum alloy bodyBlack / silver1/4 PT routeAdjustable muzzle for air flow speed control
A018 Heavy-Duty Metal Air Gun22 mm to 300 mm0-8.0 kgf/cm²Aluminum alloy bodyBlack / silver1/4 PT routeProfessional series with multiple nozzle options
A009 Energy-Saving Plastic Air Gun20 mm to 300 mm0-8.0 kgf/cm²Plastic bodyBlack1/4 PT routeUser-friendly design with integrated handle and trigger
A012 Compact Aluminum Metal Air Gun117 mm0-10.0 kgf/cm²Aluminum bodySilver1/4 PT routeSmall size for high portability and easy connection

Choose by air-line job

Start with how the compressed-air line is routed.

Pick the closest tubing or air blow use case, then confirm material, tube OD/ID, length, color, pressure, bend radius, or nozzle details before RFQ.

Scenario 01

Pick a standard air blow gun for workstation debris removal.

Confirm body material, pressure range, nozzle style, and quantity.

Recommended option

AR-TS, A007, or compact metal route depending on station durability needs.

  • Body style
  • Pressure
  • Nozzle
  • Quantity

Common air-line uses

Where tubing and air blow products are used.

AR-TS Series plastic air blow gun
Air-line use 01

Workstation cleaning

Air blow guns remove chips, dust, and light debris where controlled handheld air is needed.

  • Confirm pressure
  • Match nozzle length
  • Check inlet thread
A001 Series stainless barrel air blow gun
Air-line use 02

Drying and blow-off points

Long-nozzle and adjustable air blow guns support drying, clearing, and controlled blow-off tasks near fixtures or guarded areas.

  • Review flow need
  • Choose barrel route
  • Confirm distance
A003 Series copper inlet air blow gun
Air-line use 03

Shared workstation air-gun stations

Standardizing one or two air blow gun body styles keeps operator stations consistent across assembly, cleaning, and packaging areas.

  • Confirm body style
  • Match nozzle length
  • Share quantity by station

Air blow calculation tools

Estimate nozzle air use and blow force before selecting air blow guns.

Use these tools when nozzle size, shop-air pressure, compressor capacity, and energy cost affect the air blow gun choice.

Open Compressed air tools
01Compressed air

Air Nozzle Consumption Calculator

Estimate air consumption from nozzle diameter and supply pressure.

Nozzle diameterSupply pressureNozzle countOpen calculator02Valves & flow

Air Blow Force Calculator

Approximate blow force for cleaning, drying, or part-ejection tasks.

Nozzle diameterSupply pressureNozzle countOpen calculator03Compressed air

Compressor CFM Calculator

Check whether compressor capacity supports the expected air-blow demand.

Receiver volumeStart pressureEnd pressureOpen calculator04Compressed air

Compressed Air Energy Cost Calculator

Estimate energy cost when air blow guns run frequently.

Average flowDuty cycleAnnual hoursOpen calculator

Request category support

Send the details that make this Pneumatic Air Blow Guns inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Model code or photo
  • Body style
  • Nozzle or barrel length
  • Inlet thread
  • Working pressure and quantity
Polyurethane and Recoil TubingPA Nylon TubingAll Tubing and Accessories

Pneumatic Air Blow Guns RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Pneumatic Air Blow GunsWhat information helps Bepto Pneumatic quote pneumatic air blow guns?

Tube outside diameter, inside diameter when known, material, color, pressure range, temperature range, quantity, and the matching connection details are the most useful starting points.

02Pneumatic Air Blow GunsWhy are tubing products grouped separately?

PU and recoil tubing, nylon tubing, and air blow guns use different selection details. Separate product groups make size, material, pressure, color, nozzle, and RFQ details easier to compare.

03Pneumatic Air Blow GunsCan Bepto Pneumatic review a replacement from photos?

Yes. Send photos of the tube, coil, air gun, markings, inlet thread, or installed workstation, plus a simple measurement when available.
