Rodless Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Rodless Pneumatic Cylinders.

View product specifications Build a rodless cylinder RFQ

Long-stroke travelCompact installationGuided carriage optionsReplacement review

Category buying guide

Use rodless geometry when travel length drives the machine layout.

Rodless cylinder selection should balance space saving, long-stroke movement, mechanical or magnetic coupling, load guidance, cushioning, and sensor options.

Pneumatic cylinder categories

01Rodless Cylinders 02Standard Cylinders 03Mini Cylinders 04Thin and Compact Cylinders 05Slide Table Cylinders 06Compact Guide Cylinders 07Pneumatic Grippers 08Double Rod Cylinders 09Rotary Actuators 10Cylinder Accessories 11Other Cylinders

Rodless Pneumatic Cylinders • Product specifications

Rodless Pneumatic Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

osp p series the original modular rodless cylinder product view 1

Order Symbol

Series 01

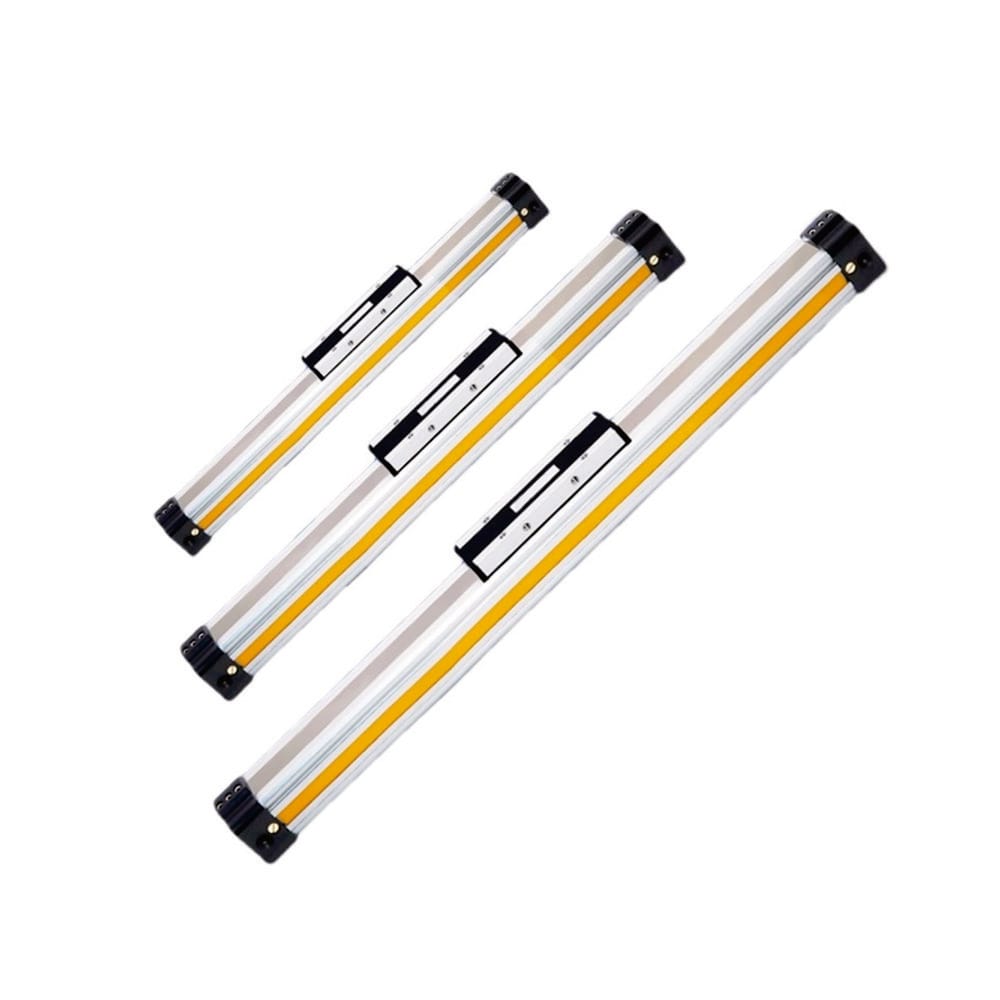

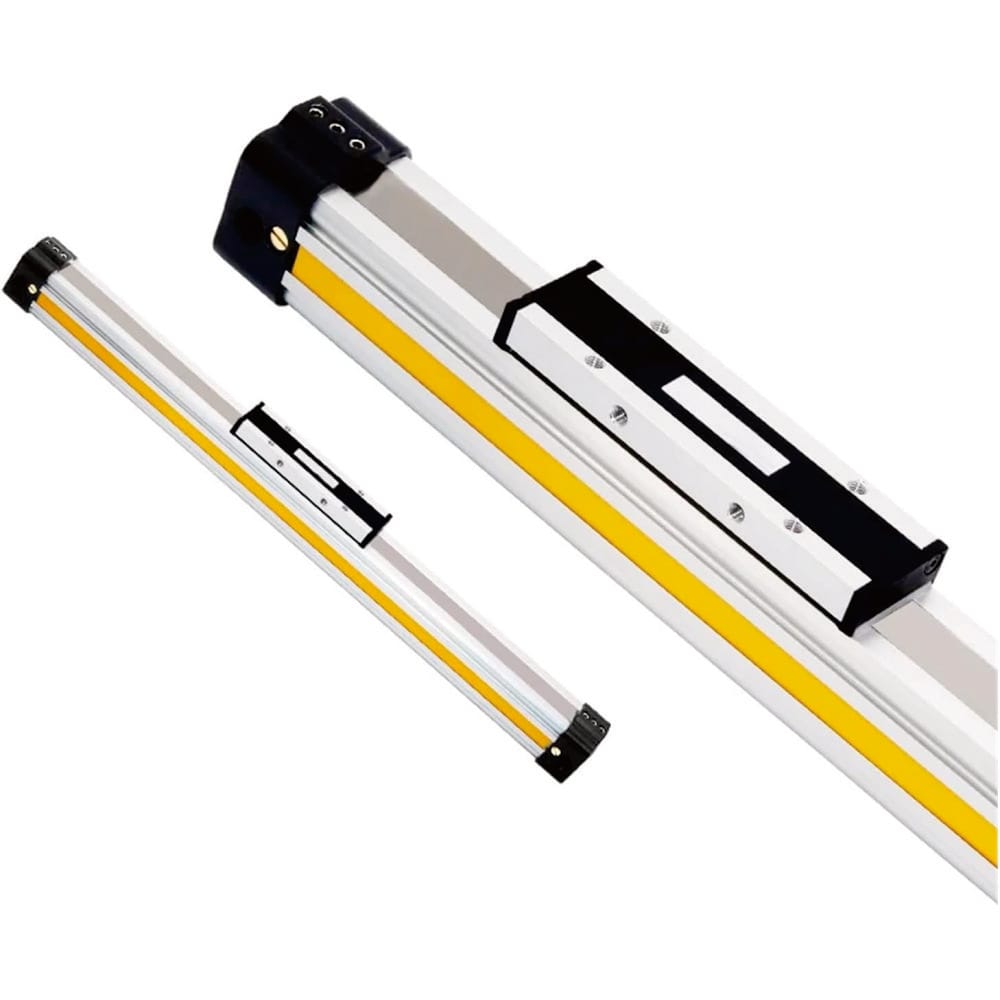

Series: OSP-P Series The Original Modular Rodless Cylinder

Key Specs

Selection focus

Bore Sizes: Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80 mm
Maximum Stroke Length: Standard Up to several meters; Long stroke Version (Ø50-80 mm) Up to 41, 000 mm (41m) .
Slow Speed Version: Specially formulated grease lubrication for smooth, uniform travel from 0.005 to 0.2 m/s.
Maximum Action Force: Up to 3, 450 N .
Review function, size, pressure, mounting, and inquiry data for Rodless Pneumatic Cylinders. Pneumatic

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

Guide load and moment ratings

19 rows

Parameter	Value
Review function, size, pressure, mounting, and inquiry data for OSP-P Series The Original Modular Rodless Cylinder.	Pneumatic
Sealing Principle	Mechanical, with stainless steel outer and inner sealing bands for ultra-low friction.
Bore Sizes	Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80 mm
Max.imum Stroke Length	Standard Up to several meters; Long stroke Version (Ø50-80 mm) Up to 41, 000 mm (41m) .
Max.imum Action force	Up to 3, 450 N .
Velocity range	0.005 m/s (Slow Speed Version) Up to 30 m/s (High Speed Version).
Operating Lifetime	Up to 8, 000 km .
Standard Operating temperature	-10 °C to +80°C.
Extended temperature options	Low temperature Version (down to -40 °C), High temperature Version (Up to +120 °C with Viton® seals).
Cushioning	Special cushioning system for cycle time optimization; adjustable pneumatic cushioning is standard.
Guidance systems	Fully modular with a wide range of attachable or integrated options (see "Comprehensive Guide options" below).
Braking systems	Optional active or passive dynamic braking available.
Long stroke Version	For extremely long strokes Up to Max. 41m (Bore sizes Ø50 - 80 mm).
Clean Room Cylinders	For use in clean room applications, certified with the IPA-Certificate (to DIN EN ISO 14644-1). Emissions can be led away (Bore sizes Ø16 - 32 mm).
ATEX Version	For use in potentially explosive atmospheres (Equipment Group II, Category 2 GD), conforming to ATEX 94/9/EG for Pneumatic Components.
stainless steel Version	For use in constantly damp or wet environments. All screws are A2 quality stainless steel.
Slow Speed Version	Specially formulated grease lubrication for smooth, uniform travel from 0.005 to 0.2 m/s.
High Speed Version	Capable of speeds Up to 30 m/s (Bore sizes Ø25 - 32 mm, consult technical department).

Order Symbol

Series 02

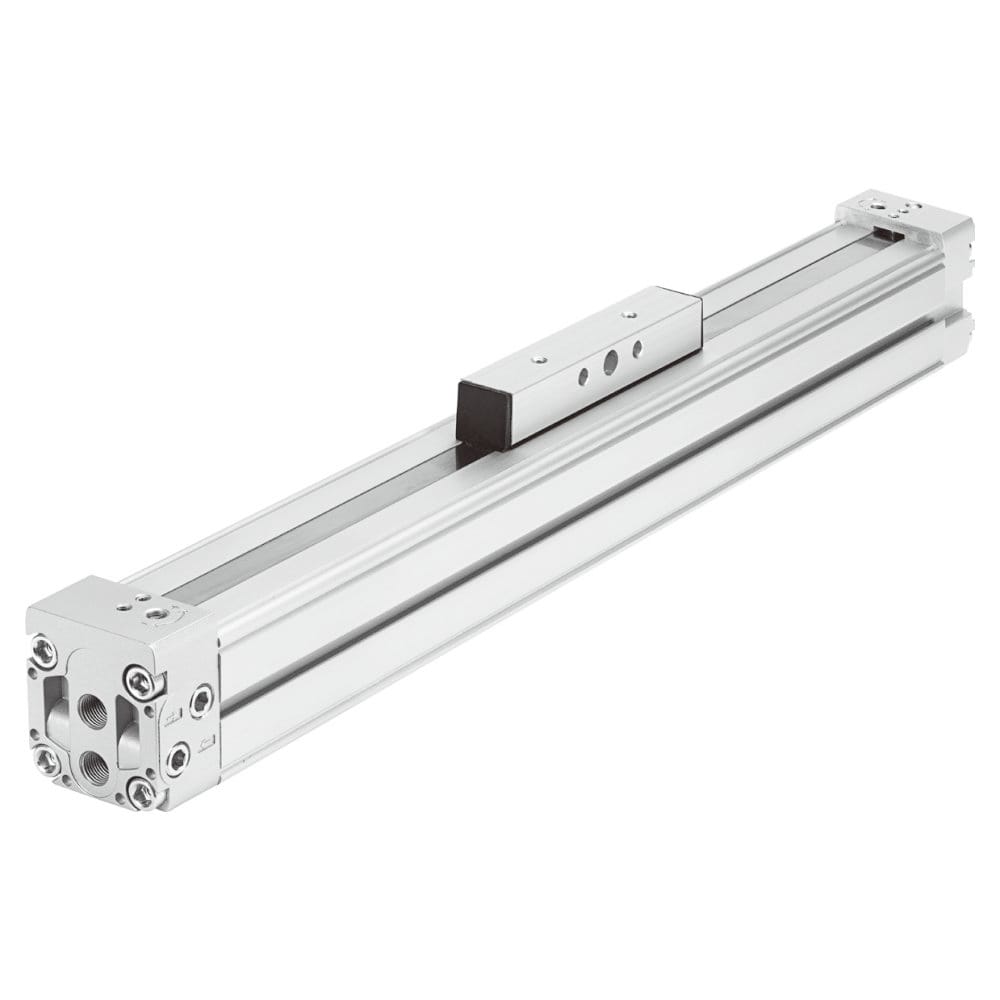

Series: DGC Series Rodless Cylinder

Key Specs

Selection focus

Piston diameter: DGC-K 18-80 mm; DGC-G, DGC-KF, and DGC-FA 8-63 mm; DGC-GF 18-63 mm; DGC-HD 18, 25, and 40 mm
Stroke length: 1-8500 mm for standard guide variants; 10-5000 mm for DGC-HD
Guide variants: Compact, basic, plain-bearing, recirculating ball bearing, heavy-duty, and guide-axis versions
Selection note: Use DGC-K for narrow compact drives, DGC-KF for precise mounting, and DGC-HD for larger loads

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

DGC theoretical force and guide characteristics

39 rows

Piston Ø [mm]	Theoretical force at 0.6 MPa (6 bar, 87 psi) [N]	Guide characteristics
		Fy [N]	Fz [N]	Mx [Nm]	My [Nm]	Mz [Nm]
Compact design DGC-K
18	153	-	120	0.8	11	1
25	295	-	330	1.2	20	3
32	483	-	480	1.9	40	5
40	754	-	800	3.8	60	8
50	1178	-	1200	6	120	15
63	1870	-	1600	5.7	150	24
80	3016	-	2500	30.6	400	100
Basic design DGC-G
8	30	150	150	0.5	2	2
12	68	300	300	1.3	5	5
18	153	70	340	1.9	12	4
25	295	180	540	4	20	5
32	483	250	800	9	40	12
40	754	370	1100	12	60	25
50	1178	480	1600	20	150	37
63	1870	650	2000	26	150	48
Plain-bearing guide DGC-GF
18	153	440	540	3.4	20	8.5
25	295	640	1300	8.5	40	20
32	483	900	1900	15	70	33
40	754	1380	2000	28	110	54
50	1178	1500	2870	54	270	103
63	1870	2300	4460	96	450	187
Recirculating ball bearing guide DGC-KF
8	30	300	300	1.7	4.5	4.5
12	68	650	650	3.5	10	10
18	153	1850	1850	16	51	51
25	295	3050	3050	36	97	97
32	483	3310	3310	54	150	150
40	754	6890	6890	144	380	380
50	1178	6890	6890	144	634	634
63	1870	15200	15200	529	1157	1157
Heavy-duty guide DGC-HD
18	153	3650	3650	140	275	275
25	295	5600	5600	300	500	500
40	754	13000	13000	900	1450	1450

Additional table

DGC guide variant image map

7 rows

Variant	Source image	Piston Ø range	Guide / construction	Selection notes
DGC-K	Compact design DGC-K	18-80 mm	Compact drive without external guide	Stroke lengths 1-8500 mm; 30% narrower than DGC-G; low moving dead weight; symmetrical design
DGC-G	Basic design DGC-G	8-63 mm	Basic guide	Stroke lengths 1-8500 mm; guide backlash 0.2 mm; for small loads; average torque-load behavior
DGC-GF	Plain-bearing guide DGC-GF	18-63 mm	Plain-bearing guide	Stroke lengths 1-8500 mm; guide backlash 0.05 mm; for small and medium loads
DGC-KF	Recirculating ball bearing guide DGC-KF	8-63 mm	Recirculating ball bearing guide	Stroke lengths 1-8500 mm; guide backlash 0 mm; precise stainless-steel slide interface for medium and larger loads
DGC-HD	Heavy-duty guide DGC-HD	18, 25, 40 mm	Heavy-duty guide	Stroke lengths 10-5000 mm; guide backlash 0 mm; for large loads and strong torque-load behavior
DGC-FA	Guide axis DGC-FA	8-63 mm	Guide axis without drive	Without drive; stroke lengths 1-8500 mm; precision guide for DGC-KF twin-guide or machine-component use

MY1B basic mechanical joint rodless cylinder product view

Order Symbol

Series 03

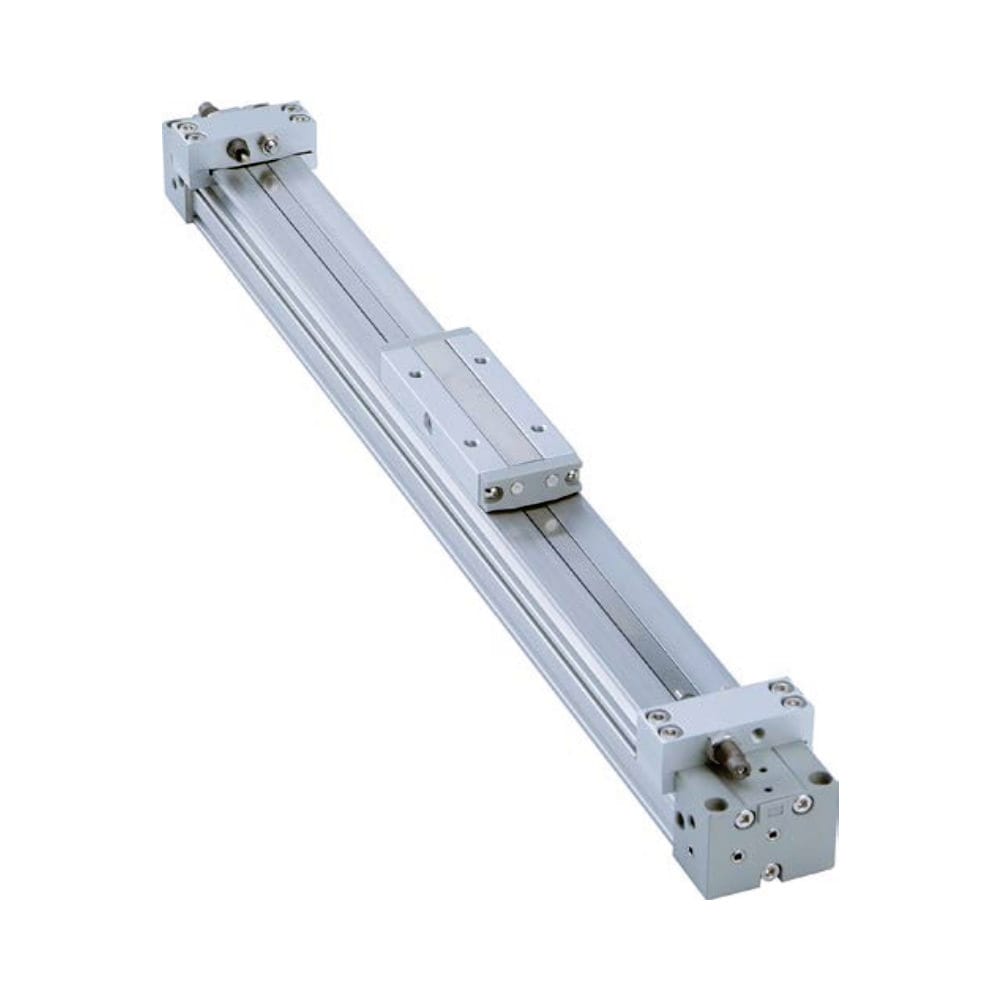

Series: MY Series Mechanical Joint Rodless Cylinders
Port / thread: M5x0.8 on small bores; Rc / NPT / G 1/8, 1/4, 3/8 and larger by bore family

Key Specs

Selection focus

Port / thread: M5x0.8 on small bores; Rc / NPT / G 1/8, 1/4, 3/8 and larger by bore family
Bore range: MY1 family: Ø10-Ø100; MY2 family: Ø16, Ø25, Ø40; MY3 family: Ø16-Ø63 depending variant
Pressure range: MY1 typically 0.1-0.8 MPa; MY3M 0.15-0.7 MPa for Ø16-40 and 0.2-0.7 MPa for Ø63
Motion / acting: Mechanical Joint Rodless cylinder, Double acting
Speed range: MY1 about 100-1000 mm/s, Up to 1500 mm/s with shock absorber options; MY3M 80-1000 mm/s, Up to 1500 mm/s with stroke adjustment / external shock absorber

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

MY Series Variant Map

12 rows

Family	Variant	Source image	Guide / construction	Bore sizes (mm)	Primary Selection use

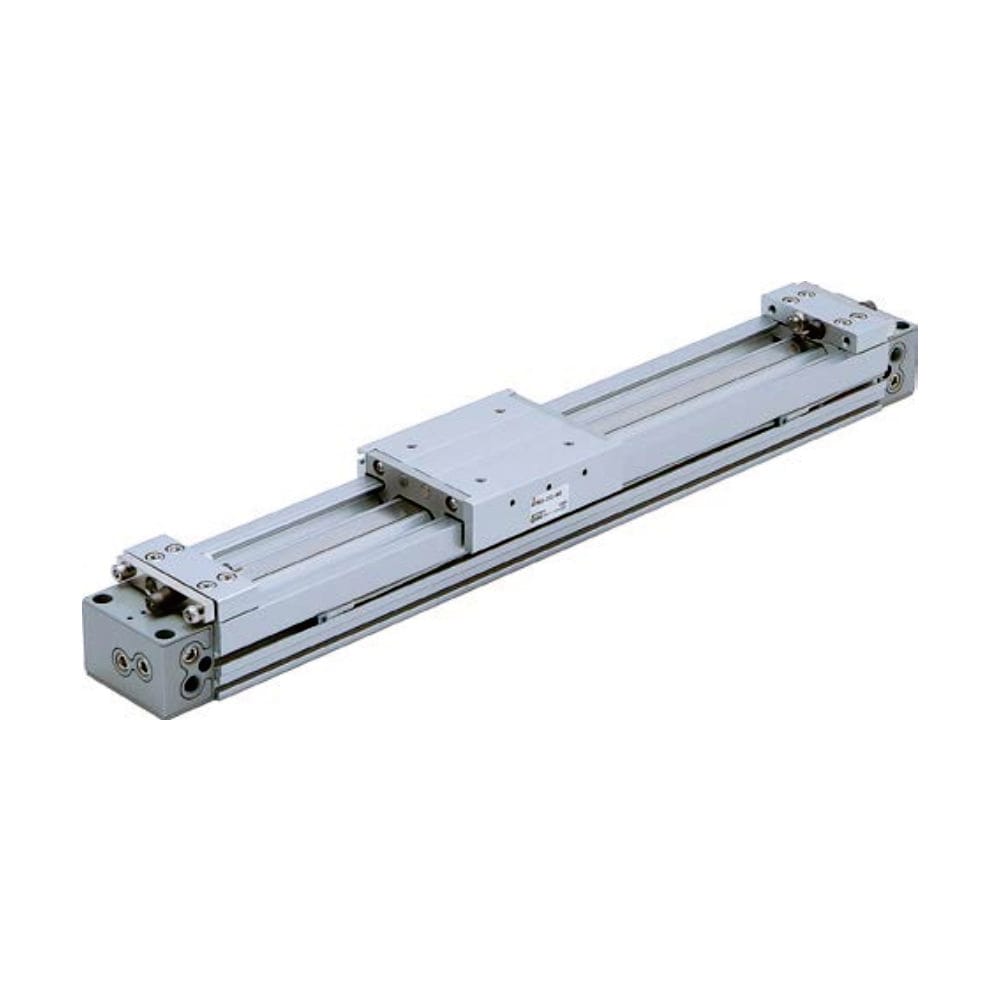

MY1	MY1B	MY1B product image	Basic mechanical joint	10, 16, 20, 25, 32, 40, 50, 63, 80, 100	External guide or compact axis
MY1	MY1M	MY1M product image	Slide bearing guide	16, 20, 25, 32, 40, 50, 63	Direct workpiece mounting with moderate guidance
MY1	MY1C	MY1C guide-family image	Cam follower guide	16, 20, 25, 32, 40, 50, 63	Higher guide accuracy around +/-0.05 mm

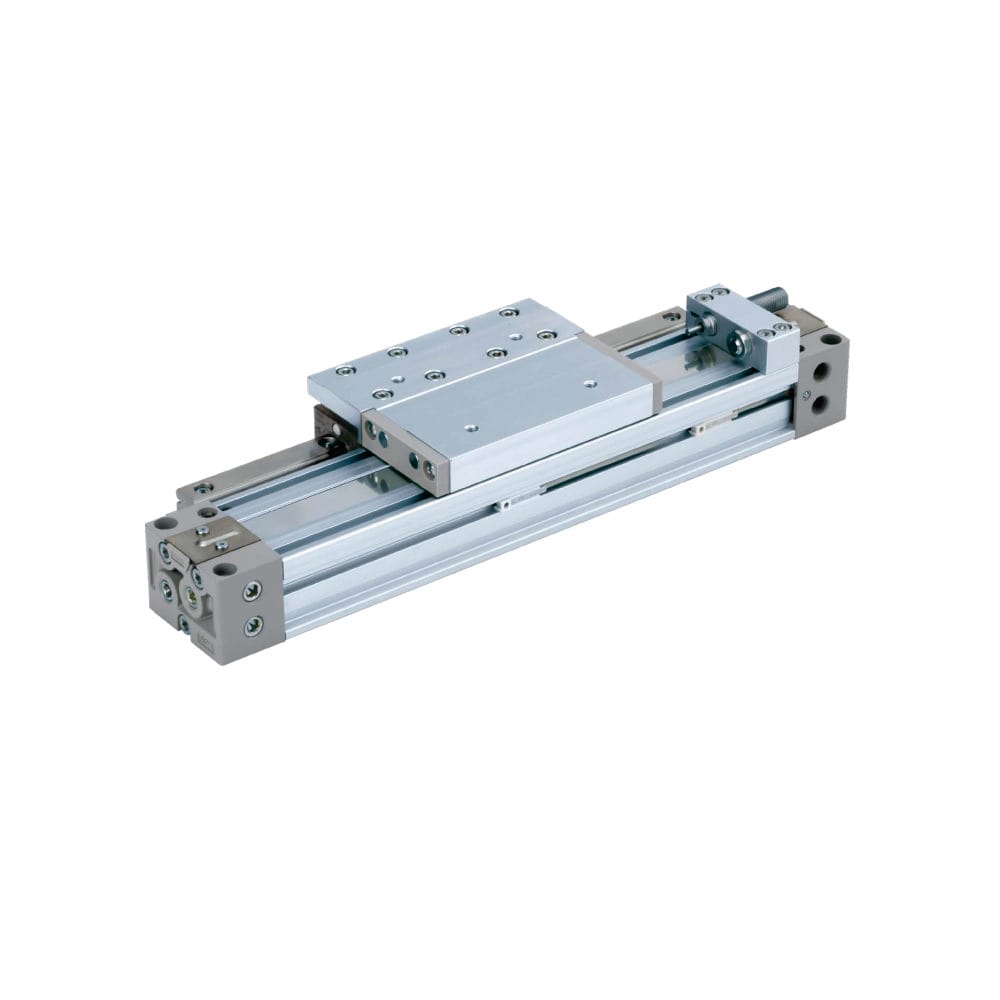

MY1	MY1H	MY1H product image	Linear guide	10, 16, 20, 25, 32, 40	Precision linear guide table
MY1	MY1HT	MY1HT guide-family image	High-rigidity linear guide	50, 63	Higher moment / load applications
MY2	MY2C	MY2C guide-family image	Cam follower low-profile guide	16, 25, 40	Low-profile long-stroke build, Up to 5000 mm

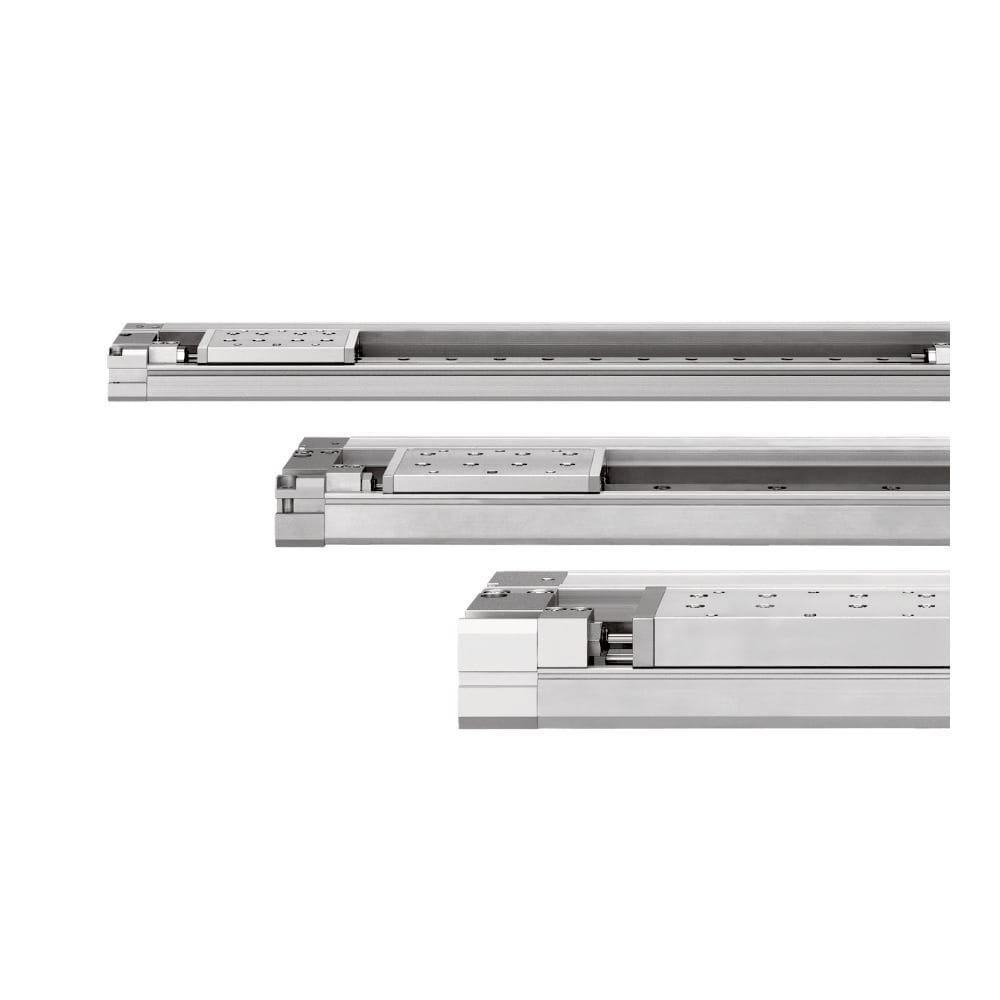

MY2	MY2H	MY2H product image	Single-axis linear guide	16, 25, 40	Low-profile precision guided transfer
MY2	MY2HT	MY2HT product image	Double-axis linear guide	16, 25, 40	Highest rigidity in the MY2 family

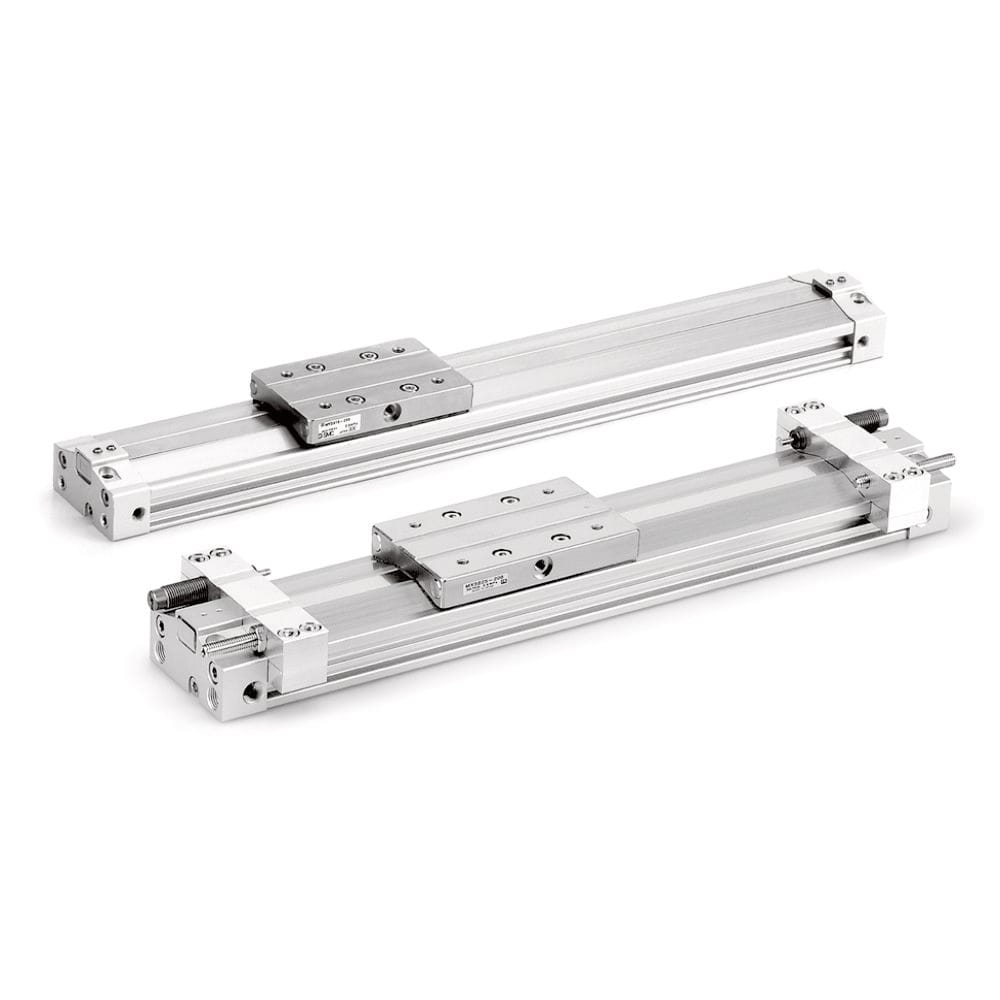

MY3	MY3A	MY3A product image	Basic short type, rubber bumper	16, 20, 25, 32, 40, 50, 63	Shorter body with external guide
MY3	MY3B	MY3B product image	Basic standard type, air cushion	16, 20, 25, 32, 40, 50, 63	Compact basic air-cushioned axis
MY3	MY3M	MY3M product image	Slide bearing guide, air cushion	16, 25, 40, 63	Compact guided direct-load axis

Additional table

PDF Extracted Selection Ranges

7 rows

Parameter	MY1	MY2	MY3
Acting	Double acting	Double acting	Double acting
operating pressure	typically 0.1-0.8 MPa; MY1M small bores may start at 0.2 MPa	Use by model / bore; selection data centers on load factor and cushion range	MY3M: 0.15-0.7 MPa for Ø16-40; 0.2-0.7 MPa for Ø63
Speed	100-1000 mm/s typical; Up to 1500 mm/s with L/H units	Cushion charts Up to 1500-2000 mm/s depending load and guide	80-1000 mm/s typical; 80-1500 mm/s with L/H / external shock options
Stroke	Standard Up to 2000 mm; Long stroke 3000-5000 mm by bore	MY2C Up to 5000 mm; MY2H / MY2HT Up to 1500 mm, Ø16 Up to 1000 mm	Standard to 2000 mm; Long stroke Up to 3000 mm by bore
Ports	M thread on small bores, Rc / NPT / G on larger bores	M5x0.8, 1/8, 1/4 by bore	M5x0.8, 1/8, 1/4, 3/8 by bore
Guide selection	MY1B external guide; MY1M +/-0.12 mm; MY1C / MY1H / MY1HT around +/-0.05 mm or better	MY2C cam follower, MY2H single-axis linear guide, MY2HT double-axis linear guide	MY3A / MY3B with external guide; MY3M direct-load slide bearing guide

Additional table

MY2 Max.imum Allowable Moment / load (PDF)

4 rows

Model	Bore (mm)	M1 (N·m)	M2 (N·m)	M3 (N·m)	m1 (kg)	m2 (kg)	m3 (kg)
MY2H	16 / 25 / 40	5 / 13 / 45	4 / 14 / 33	3.5 / 10 / 28	18 / 35 / 68	16 / 35 / 66	14 / 30 / 57
MY2C	16 / 25 / 40	7 / 28 / 60	6 / 26 / 50	7 / 26 / 60	15 / 32 / 62	13 / 30 / 62	13 / 30 / 62
MY2HT	16 / 25 / 40	46 / 100 / 200	55 / 120 / 220	46 / 100 / 200	20 / 38 / 80	18 / 35 / 80	18 / 35 / 80

Additional table

MY3M Core Specification Extract (PDF)

7 rows

Parameter	MY3M Ø16	MY3M Ø25	MY3M Ø40	MY3M Ø63
operating pressure	0.15-0.7 MPa	0.15-0.7 MPa	0.15-0.7 MPa	0.2-0.7 MPa
proof pressure	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa
temperature	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Cushion	Air cushion	Air cushion	Air cushion	Air cushion
Port size	M5x0.8	1/8	1/4	3/8
piston speed	80-1000 mm/s; 80-1500 mm/s with L/H or external shock absorber	80-1000 mm/s; 80-1500 mm/s with L/H or external shock absorber	80-1000 mm/s; 80-1500 mm/s with L/H or external shock absorber	80-1000 mm/s; 80-1500 mm/s with L/H or external shock absorber

Order Symbol

Series 04

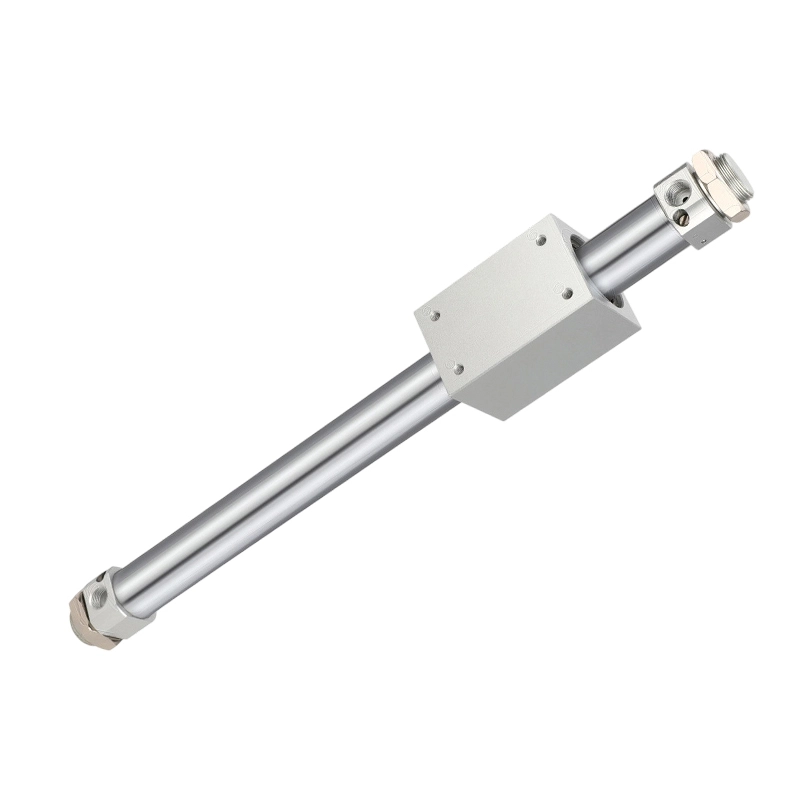

Series: RMS Series Rodless Magnetic Cylinder
Model: RMS rodless magnetic cylinder; RMSF and RMSP variants
Mounting type: Blank non-bracket; LB type; FA type; RMSF40 has no FA mounting accessories
Port / thread: Ø10 M5x0.8; Ø16-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices

Key Specs

Selection focus

Model: RMS rodless magnetic cylinder; RMSF and RMSP variants
Mounting type: Blank non-bracket; LB type; FA type; RMSF40 has no FA mounting accessories
Port / thread: Ø10 M5x0.8; Ø16-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices
Bore range: Basic Ø10, Ø16, Ø20, Ø25, Ø32, Ø40; P Ø16, Ø20, Ø32; F Ø16, Ø20, Ø25, Ø32, Ø40
Stroke tolerance: 0-250 mm +1.0; 251-1000 mm +1.5; 1001+ mm +2.0 where applicable

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

RMS Standard Stroke Table

7 rows

Series	Acting	Bore (mm)	Port size	Standard stroke (mm)	Max. standard (mm)
RMS / RMSF / RMSP	Double acting	10	M5x0.8	50 100 150 200 250 300	1000
RMS / RMSF / RMSP	Double acting	16	1/8	50 100 150 200 250 300 350 400 450 500	1500
RMS / RMSF / RMSP	Double acting	20	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000	2000
RMS / RMSF	Double acting	25	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000	2500
RMS / RMSF / RMSP	Double acting	32	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000	3000
RMS / RMSF	Double acting	40	1/4	50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000	3000

Additional table

RMS Key Selection Points

4 rows

Selection item	Value
Best use	Mainstream long-stroke rodless magnetic cylinder where external guidance is acceptable
Stop-in-middle note	Keep operating pressure at or below 0.55 MPa and provide buffer when stopping at both ends
Quote checks	Bore, stroke, bracket type, port thread, safe holding force, and stop requirement

RMTL Series ball bearing guided rodless magnetic cylinder

Order Symbol

Series 07

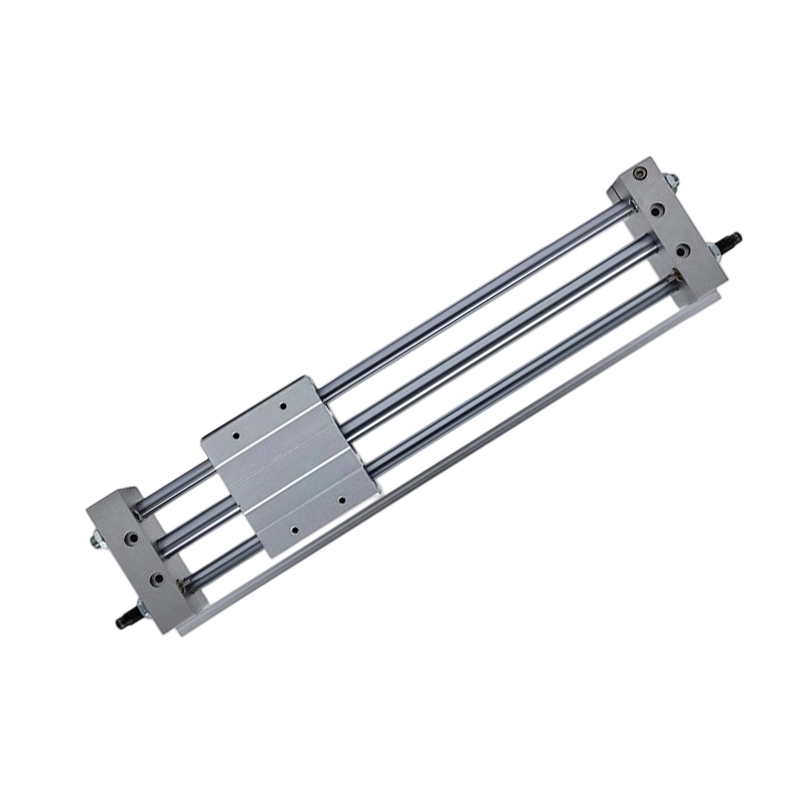

Series: RMTL Series Ball Bearing Guided Rodless Magnetic Cylinder
Model: RMTL Guided Rodless / magnetic coupled / ball bearing
Port / thread: Ø10-Ø16 M5x0.8; Ø20-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices

Key Specs

Selection focus

Model: RMTL Guided Rodless / magnetic coupled / ball bearing
Port / thread: Ø10-Ø16 M5x0.8; Ø20-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices
Bore range: Ø10, Ø16, Ø20, Ø25, Ø32, Ø40
Stroke tolerance: 0-250 mm +1.0; 251-1000 mm +1.5; 1001+ mm +2.0 where applicable
Pressure range: 0.2-0.7 MPa

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

RMTL Standard Stroke Table

7 rows

Series	Acting	Bore (mm)	Port size	Standard stroke (mm)	Max. standard (mm)
RMTL ball bearing	Double acting	10	M5x0.8	50 100 150 200 250 300	500
RMTL ball bearing	Double acting	16	M5x0.8	50 100 150 200 250 300 350 400 450 500	750
RMTL ball bearing	Double acting	20	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800	1000
RMTL ball bearing	Double acting	25	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800	1500
RMTL ball bearing	Double acting	32	1/8	50 100 150 200 250 300 350 400 450 500 600 700 750 800	1500
RMTL ball bearing	Double acting	40	1/4	50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000	1500

Additional table

RMTL Selection Focus

4 rows

Selection item	Value
Best use	Ball-bearing Guided Rodless motion with smoother travel under frequent cycles
Compare against RMT	Choose RMTL when smoother guide behavior is preferred under higher loads and moments
Quote checks	Bore, stroke, port/thread, safe holding force, shock absorber option, and side-load condition

Same-group comparison

Rodless Pneumatic Cylinders series comparison

Compare related product series by function, size, pressure, and RFQ details.

7 related series

Series	Bore / size	Motion	Pressure range	Stroke / angle	Speed / repeatability	Port thread
OSP-P Modular Rodless	Ø10, Ø16, Ø25, Ø32, Ø40, Ø50, Ø63, Ø80 mm	Modular Rodless	Confirm by model	Standard Up to several meters; Long stroke Version (Ø50-80 mm) Up to 41, 000 mm (41m) .	0.005 m/s (Slow Speed Version) Up to 30 m/s (High Speed Version).	Confirm by interface
DGC Rodless Cylinder	Confirm by model	Rodless Cylinder	Confirm by model	1-8500 mm for standard guide variants; 10-5000 mm for DGC-HD	Confirm by model	Confirm by interface
MY Mechanical Joint Rodless	MY1 family: Ø10-Ø100; MY2 family: Ø16, Ø25, Ø40; MY3 family: Ø16-Ø63 depending variant	Mechanical Joint Rodless cylinder, Double acting	MY1 typically 0.1-0.8 MPa; MY3M 0.15-0.7 MPa for Ø16-40 and 0.2-0.7 MPa for Ø63	Confirm by model	MY1 about 100-1000 mm/s, Up to 1500 mm/s with shock absorber options; MY3M 80-1000 mm/s, Up to 1500 mm/s with stroke adjustment / external shock absorber	M5x0.8 on small bores; Rc / NPT / G 1/8, 1/4, 3/8 and larger by bore family
RMS Magnetic Rodless	Basic Ø10, Ø16, Ø20, Ø25, Ø32, Ø40; P Ø16, Ø20, Ø32; F Ø16, Ø20, Ø25, Ø32, Ø40	Double acting; Air filtered by 40 μm element	Ø10: 0.2-0.7 MPa; Ø16-Ø40: 0.15-0.7 MPa	0-250 mm +1.0; 251-1000 mm +1.5; 1001+ mm +2.0 where applicable	50-400 mm/s	Ø10 M5x0.8; Ø16-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices

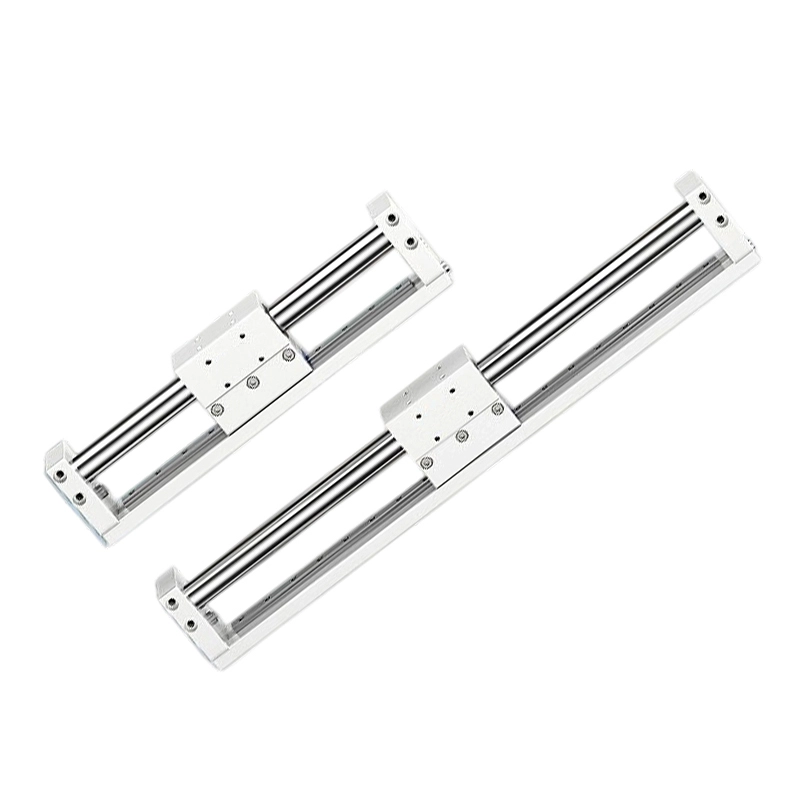

RMH Guided Rodless	Ø10, Ø16, Ø20, Ø25	Double acting; Air filtered by 40 μm element	0.2-0.7 MPa	0-250 mm +1.0; 251-800 mm +1.5	50-400 mm/s	Ø10-Ø16 M5x0.8; Ø20-Ø25 1/8; PT, G, or NPT thread choices

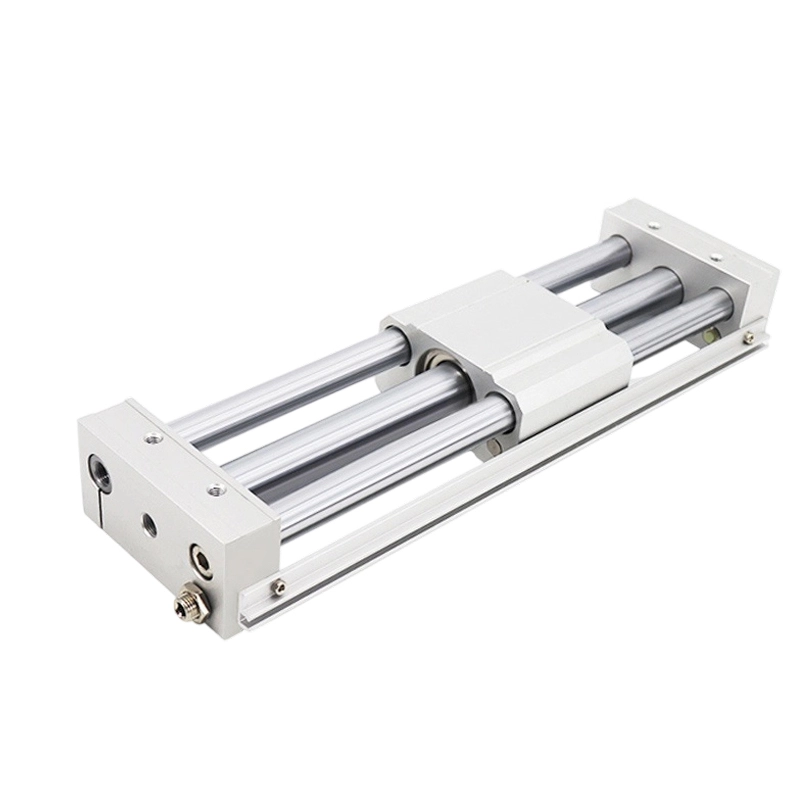

RMT Guided Rodless	Ø16, Ø20, Ø25, Ø32, Ø40	Double acting; Air filtered by 40 μm element	Ø16: 0.2-0.7 MPa; Ø20-Ø40: 0.25-0.7 MPa	0-250 mm +1.0; 251-1000 mm +1.5; 1001+ mm +2.0 where applicable	50-400 mm/s	Ø16 M5x0.8; Ø20-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices
RMTL Ball Bearing Rodless	Ø10, Ø16, Ø20, Ø25, Ø32, Ø40	Double acting; Air filtered by 40 μm element	0.2-0.7 MPa	0-250 mm +1.0; 251-1000 mm +1.5; 1001+ mm +2.0 where applicable	50-500 mm/s	Ø10-Ø16 M5x0.8; Ø20-Ø32 1/8; Ø40 1/4; PT, G, or NPT thread choices

Choose by motion job

Start with the motion the actuator must make.

Pick the closest actuator use case, then confirm bore, stroke, load, mounting, pressure, speed, and space constraints before RFQ.

Scenario 01

Move parts across a wide machine span.

Choose a rodless cylinder when a standard rod cylinder would become too long after extension or create rod sag risk.

Recommended option

Mechanically coupled rodless cylinder with stroke, load, speed, and cushion review.

Effective stroke
Moving mass
Horizontal or vertical mount
End-stop energy

Common actuator uses

Where pneumatic actuators do the machine work.

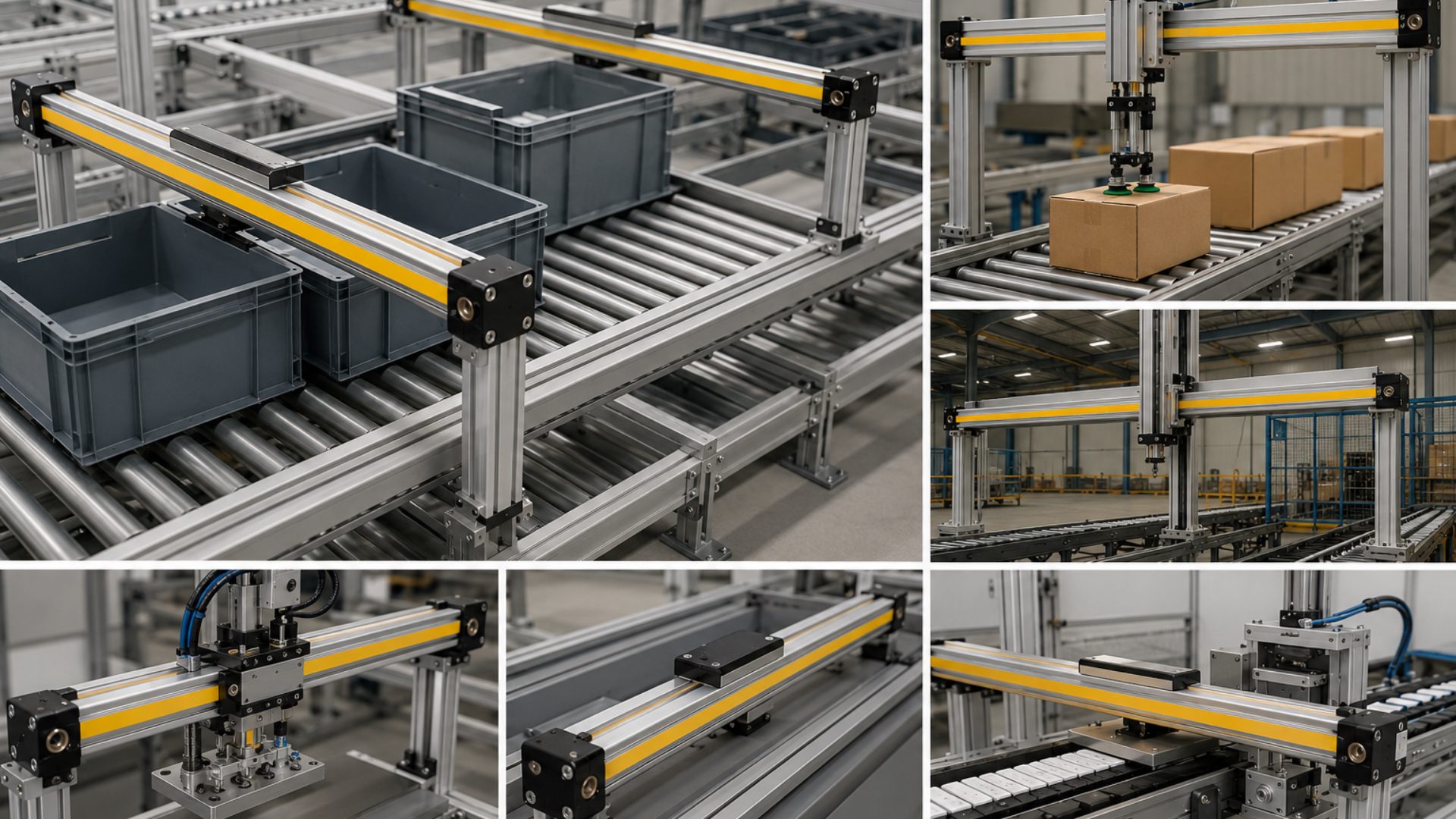

Rodless pneumatic cylinder transfer axis for material handling automation

Actuator use 01

Material handling and transfer axes

Long-stroke carriage motion supports lane transfer, sorting, loading, and gantry movements without the footprint of an extended rod.

Confirm moving mass
Review guide support
Set cushion expectations

Actuator use 02

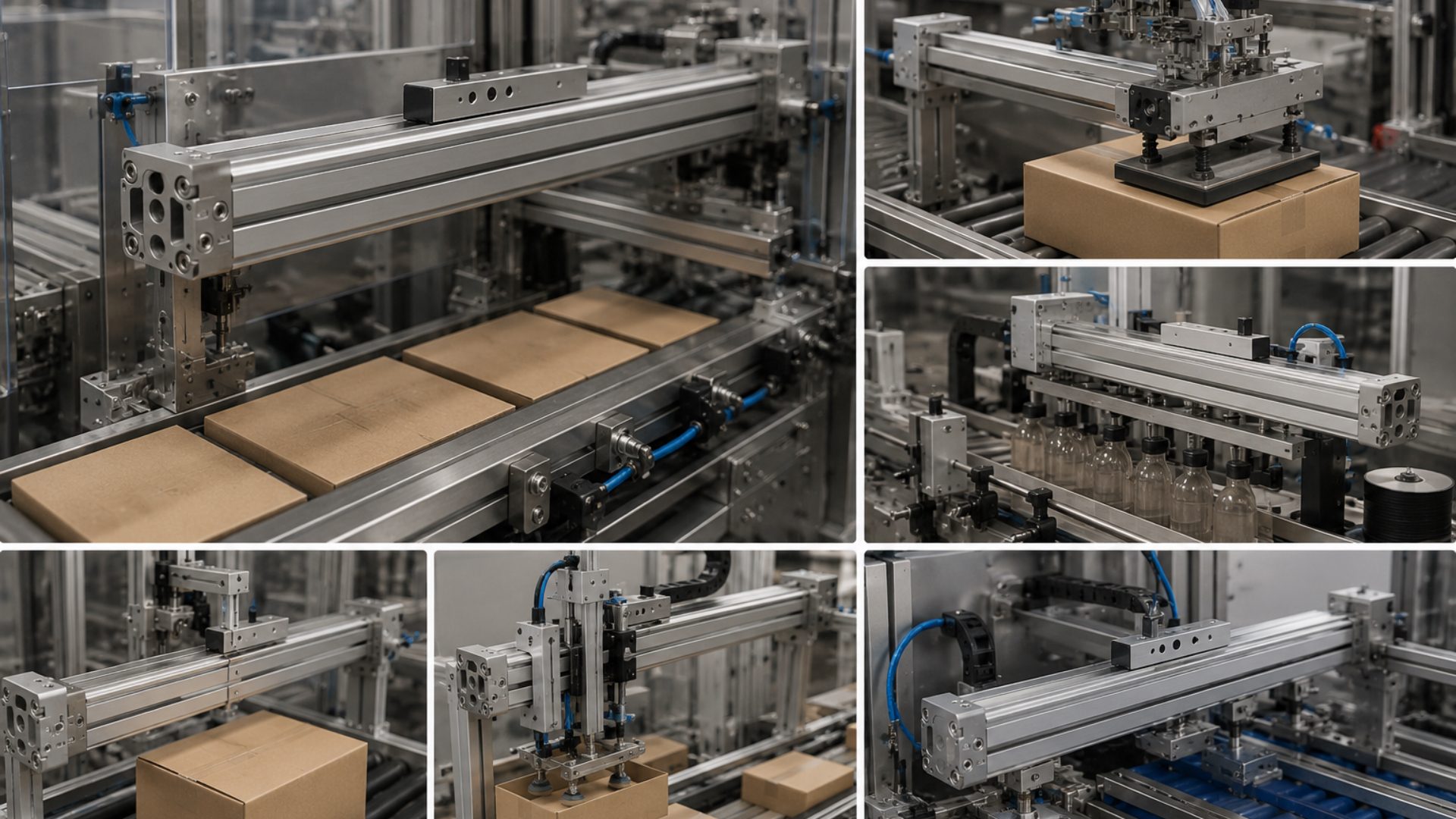

Packaging and carton machinery

Review function, size, pressure, mounting, and inquiry data for Rodless Pneumatic Cylinders.

Share cycle speed
Check stroke length
Confirm dust and washdown exposure

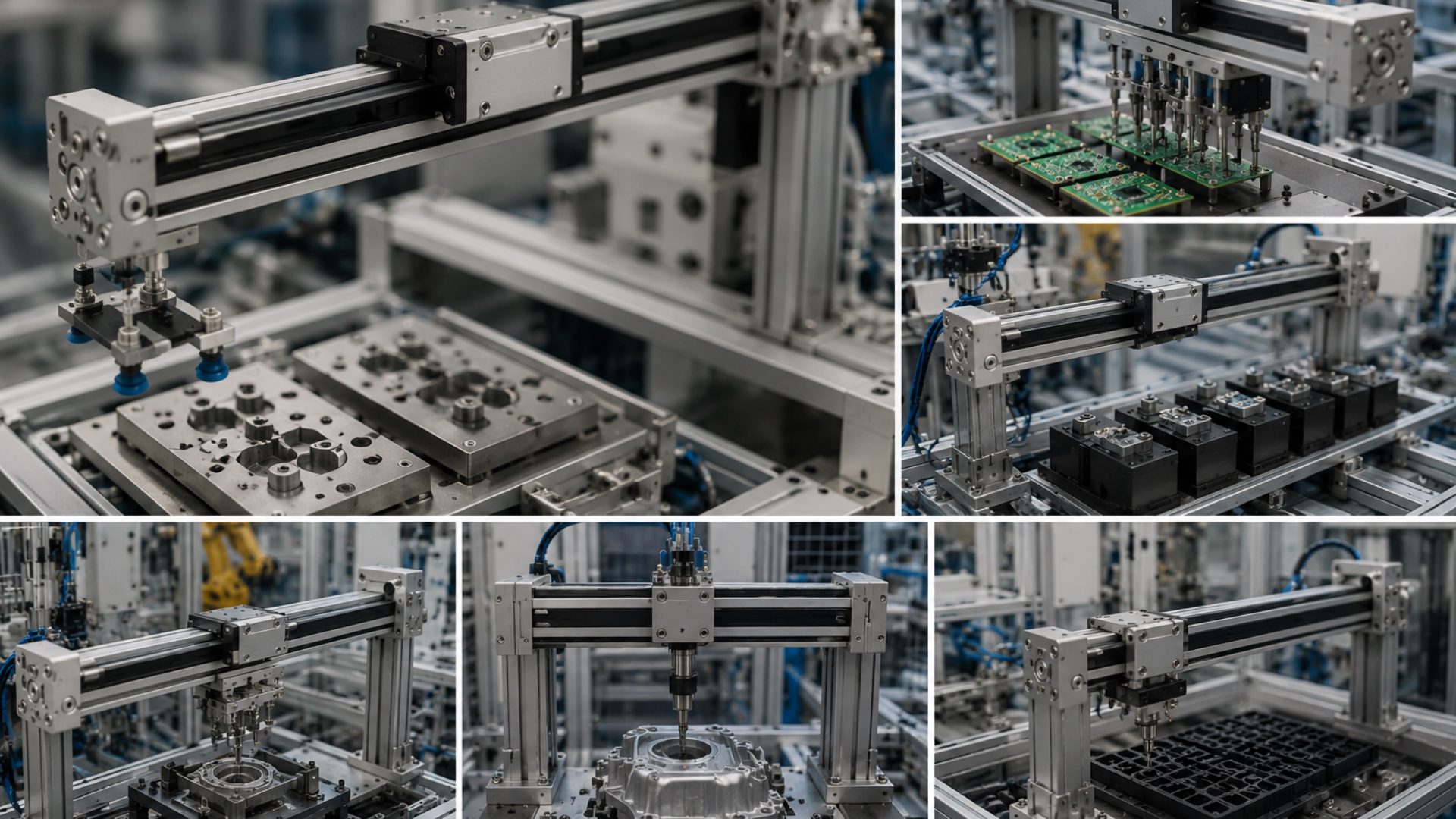

Rodless pneumatic cylinder automated assembly and test station

Actuator use 03

Automated assembly and test stations

Guided rodless axes can move fixtures, test heads, or tooling between positions while keeping the actuator footprint controlled.

Review repeatability need
Confirm sensor positions
Send fixture drawings

Cylinder sizing tools

Calculate force, bore, air use, and flow before narrowing the cylinder.

Connect actuator selection with practical calculations for load, pressure, bore, stroke speed, and compressed-air demand.

Open Cylinder sizing tools

01Cylinder sizing

Cylinder Force Calculator

Check push and pull force before choosing bore, pressure, and safety factor.

Bore diameterRod diameterWorking pressureOpen calculator 02Cylinder sizing

Cylinder Bore Size Calculator

Convert a known load into a practical starting bore size.

Sizing input modeRequired load or moving massTravel orientationOpen calculator 03Cylinder sizing

Air Consumption Calculator

Estimate cylinder air demand before reviewing compressor capacity.

Bore diameterRod diameterStroke lengthOpen calculator 04Cylinder sizing

Cylinder Flow Requirement Calculator

Match valve and line flow to the target stroke speed.

Bore diameterRod diameterStroke lengthOpen calculator

Request category support

Send the details that make this Rodless Pneumatic Cylinders inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Stroke and bore
Moving load and guide style
Mounting direction and speed
Existing model number, drawing, or photos

Category FAQ

Common questions before sending an inquiry.

01Rodless Pneumatic CylindersWhen should I choose a rodless cylinder instead of a standard cylinder?

Use a rodless cylinder when the required stroke is long and the machine cannot reserve space for an extended piston rod. It is also useful when rod bending or guarding becomes a concern.

02Rodless Pneumatic CylindersWhat details are most important for a rodless cylinder RFQ?

Stroke, bore or force target, moving load, mounting direction, guide requirement, speed, cushion need, and any existing model code are the most useful starting details.

03Rodless Pneumatic CylindersCan Bepto Pneumatic review DGC, OSP-P, MY1, or MY2 replacement requests?

Yes. Bepto Pneumatic can review old rodless cylinder model codes, photos, drawings, mounting dimensions, and application notes to support replacement or alternative selection.

Rodless Pneumatic Cylinders

Use rodless geometry when travel length drives the machine layout.

Rodless Pneumatic Cylinders: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

Guide load and moment ratings

Order Symbol

Key Specs

Quote Checklist

DGC theoretical force and guide characteristics

DGC guide variant image map

Order Symbol

Key Specs

Quote Checklist

MY Series Variant Map

PDF Extracted Selection Ranges

MY2 Max.imum Allowable Moment / load (PDF)

MY3M Core Specification Extract (PDF)

Order Symbol

Key Specs

Quote Checklist

RMS Standard Stroke Table

RMS Key Selection Points

Order Symbol

Key Specs

Quote Checklist

RMH Standard Stroke Table

RMH Selection Focus

Order Symbol

Key Specs

Quote Checklist

RMT Standard Stroke Table

RMT Selection Focus

Order Symbol

Key Specs

Quote Checklist

RMTL Standard Stroke Table

RMTL Selection Focus

Rodless Pneumatic Cylinders series comparison

Start with the motion the actuator must make.

Move parts across a wide machine span.

Carry an offset load on the carriage.

Match an old rodless cylinder model.

Where pneumatic actuators do the machine work.

Material handling and transfer axes

Packaging and carton machinery

Automated assembly and test stations

Calculate force, bore, air use, and flow before narrowing the cylinder.

Cylinder Force Calculator

Cylinder Bore Size Calculator

Air Consumption Calculator

Cylinder Flow Requirement Calculator

Send the details that make this Rodless Pneumatic Cylinders inquiry review-ready.

Rodless Pneumatic Cylinders RFQ details

Common questions before sending an inquiry.
