Pneumatic Solenoid Valves • Product specifications

Pneumatic Solenoid Valves: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Order Symbol

Series 01

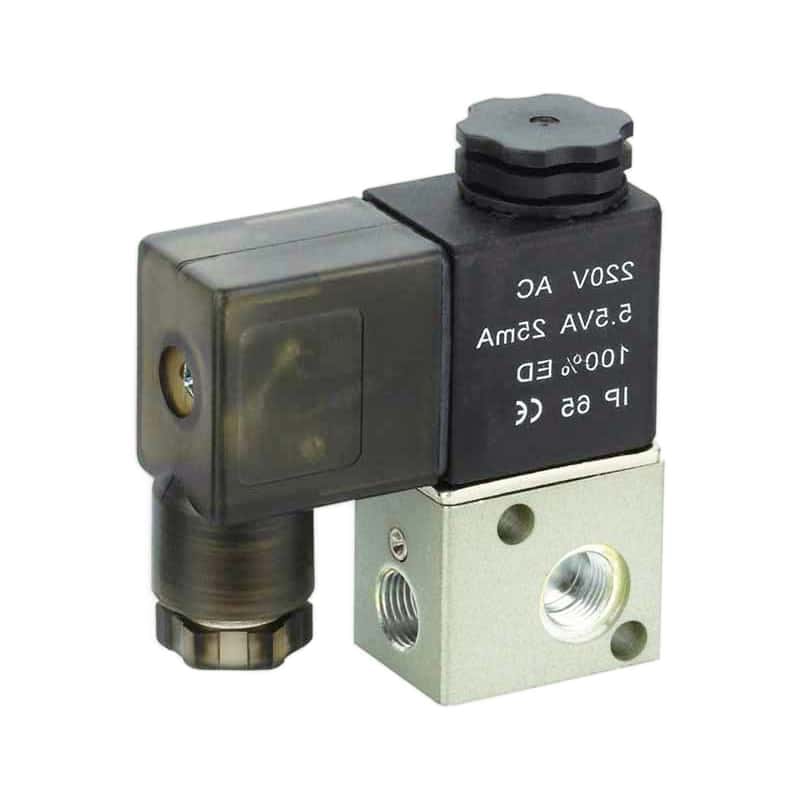

Series: 3V1 Series 3/2 Way Pneumatic solenoid valve

Key Specs

Selection focus

Port sizes: M5: M5x0.8; 06: G1/8
Specification code: 3V two-position three-way solenoid valve
Series code: 1: 100 Series compact body
Connection / wiring: Blank pipe connection or B plate connection; blank standard connector, G lead wire, L lighting connector

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

3V1 Series model-code and operating specifications

24 rows

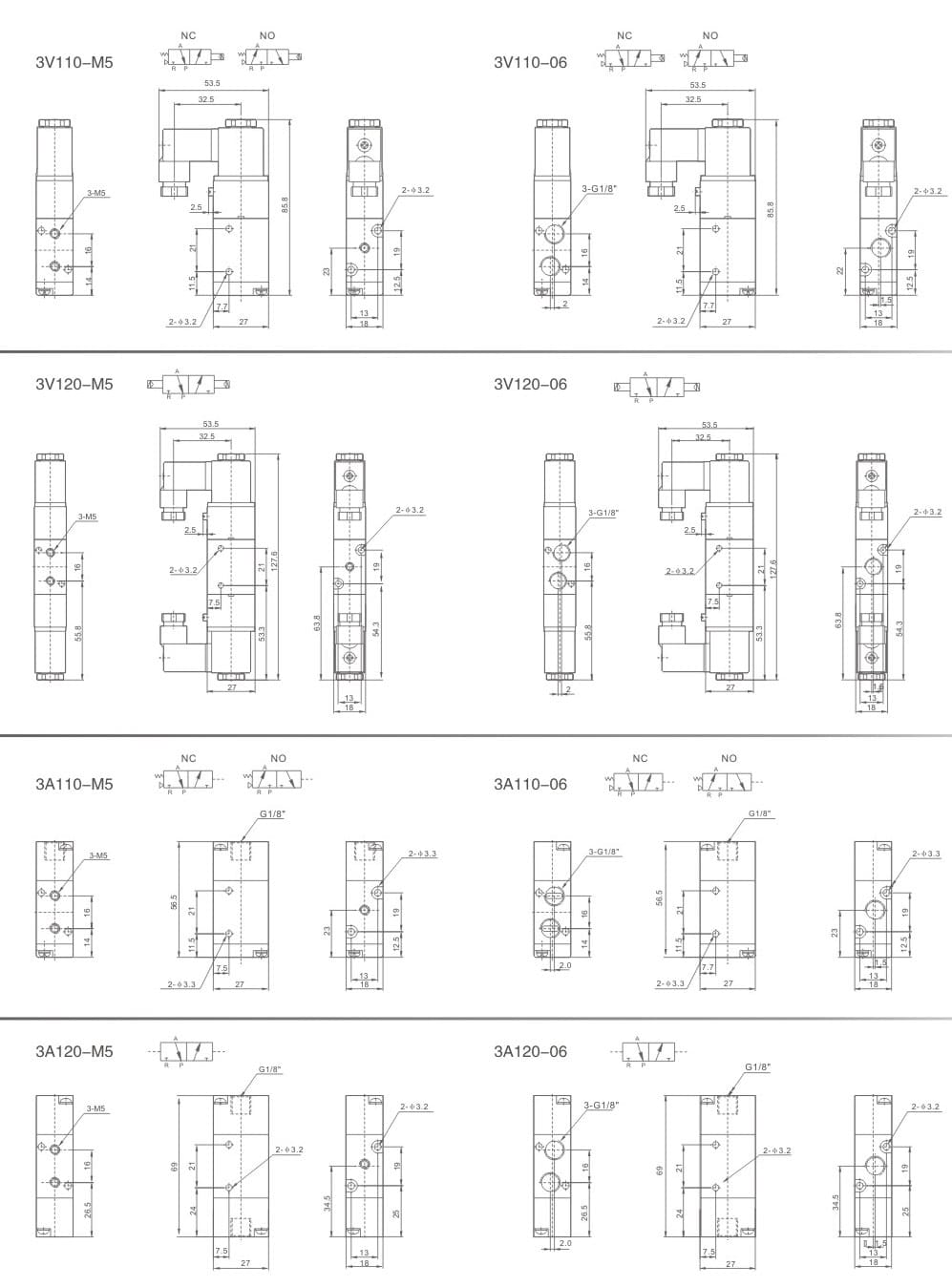

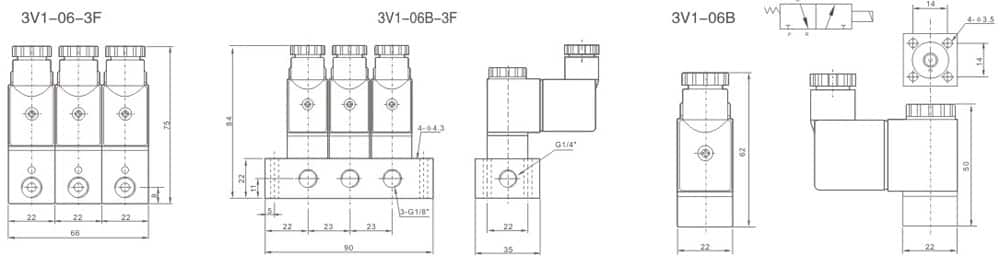

3V1 Series 3/2 Way Pneumatic Solenoid Valve dimension reference drawing

Model	3V1-M5	3V1-06
Model code meaning	3V two-position three-way solenoid, 100 Series body, M5x0.8 port	3V two-position three-way solenoid, 100 Series body, G1/8 port
Specification code	3V: two-position three-way solenoid valve	3V: two-position three-way solenoid valve
Series code	1: 100 Series compact body	1: 100 Series compact body
Port size code	M5: M5x0.8	06: G1/8
Connecting type	Blank: pipe connection type; B: plate connection type	Blank: pipe connection type; B: plate connection type
Standard voltage	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)
Wiring form	Blank: standard connector; G: lead wire type; L: lighting connector	Blank: standard connector; G: lead wire type; L: lighting connector
Working medium	40 Micron Filtered Air	40 Micron Filtered Air
Motion pattern	Direct drive type	Direct drive type
Joint pipe bore	M5	G1/8
Ambient temperature	-10 to +60 °C	-10 to +60 °C
Gas temperature	5-60 °C	5-60 °C
air outlet diameter	1.0 mm	1.0 mm
Lubrication	Not necessary	Not necessary
Working pressure	0-0.8 MPa	0-0.8 MPa
Max. proof pressure	1.2 MPa	1.2 MPa
Power consumption	AC: 4.5VA; DC: 3.0W	AC: 4.5VA; DC: 3.0W
Protection class	IP65	IP65
Material of body	Aluminum alloy	Aluminum alloy
Highest action frequency	10 cycles/sec	10 cycles/sec
Insulation	F Class	F Class
Voltage range	±10%	±10%
Shortest excitation time	0.05 Second	0.05 Second

vf vz series pneumatic directional control solenoid valves product view 1

Order Symbol

Series 02

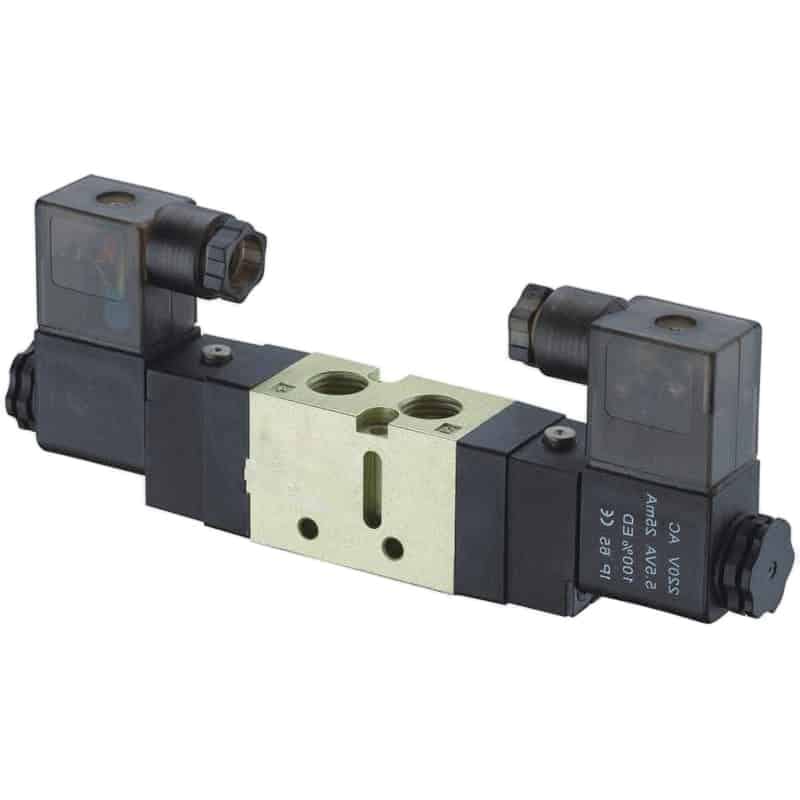

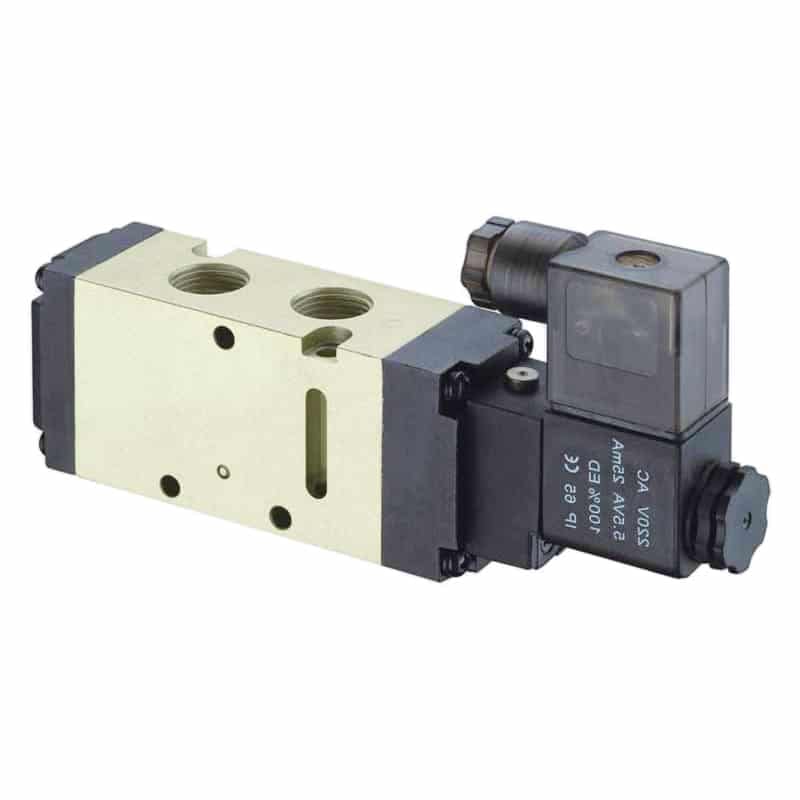

Series: VF / VZ Series Pneumatic Directional Control solenoid Valves

Key Specs

Selection focus

Coil and places: 1 single-head double-position, 2 double-head double-position, 3/4/5 double-head three-position center options
Series codes: VF3 Series, VF5 Series, VZ5 Series
Order numbers: VF3: 30, VF5: 20, VZ5: 20
Wiring forms: blank standard connector, LD lighting connector, W lead wire

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

VF/VZ Series model-code and operating specifications

19 rows

Model	VF3130	VF3230	VF33(4/5)30	VF5120	VF5220	VF53(4/5)20	VZ5120	VZ5220	VZ53(3/4/5)20
Model code meaning	VF3130: VF3 series, 1 single-head double-position, order 30	VF3230: VF3 series, 2 double-head double-position, order 30	VF33/34/3530: VF3 series, 3/4/5 double-head three-position center options, order 30	VF5120: VF5 series, 1 single-head double-position, order 20	VF5220: VF5 series, 2 double-head double-position, order 20	VF53/54/5520: VF5 series, 3/4/5 double-head three-position center options, order 20	VZ5120: VZ5 series, 1 single-head double-position, order 20	VZ5220: VZ5 series, 2 double-head double-position, order 20	VZ53/54/5520: VZ5 series, 3/4/5 double-head three-position center options, order 20
Series code	VF3 Series	VF3 Series	VF3 Series	VF5 Series	VF5 Series	VF5 Series	VZ5 Series	VZ5 Series	VZ5 Series
Coil and places	1: single-head double-position	2: double-head double-position	3/4/5: double-head three-position close / exhaust / pressure type	1: single-head double-position	2: double-head double-position	3/4/5: double-head three-position close / exhaust / pressure type	1: single-head double-position	2: double-head double-position	3/4/5: double-head three-position close / exhaust / pressure type
Order No.	30	30	30	20	20	20	20	20	20
Position and way	two-position five-way	two-position five-way	three-position five-way	two-position five-way	two-position five-way	three-position five-way	two-position five-way	two-position five-way	three-position five-way
Effective sectional area	16 mm² (Cv=0.89)	16 mm² (Cv=0.89)	12 mm² (Cv=0.67)	25 mm² (Cv=1.40)	18 mm² (Cv=1.00)	12 mm² (Cv=0.67)	9 mm² (Cv=0.50)	9 mm² (Cv=0.50)	9 mm² (Cv=0.50)
Working medium	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air
Motion pattern	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type
Working pressure	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa
Max. proof pressure	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa
Operating temperature	5-50 °C	5-50 °C	5-50 °C	5-50 °C	5-50 °C	5-50 °C	5-50 °C	5-50 °C	5-50 °C
Voltage options	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)
Voltage range	±10%	±10%	±10%	±10%	±10%	±10%	±10%	±10%	±10%
Power consumption	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W	AC: 4.5VA; DC: 3W
Insulation / Protection class	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65
Wiring form	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire
Highest action frequency	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec
Shortest excitation time	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second

Additional table

VF/VZ Series mounting dimension drawing

2 rows

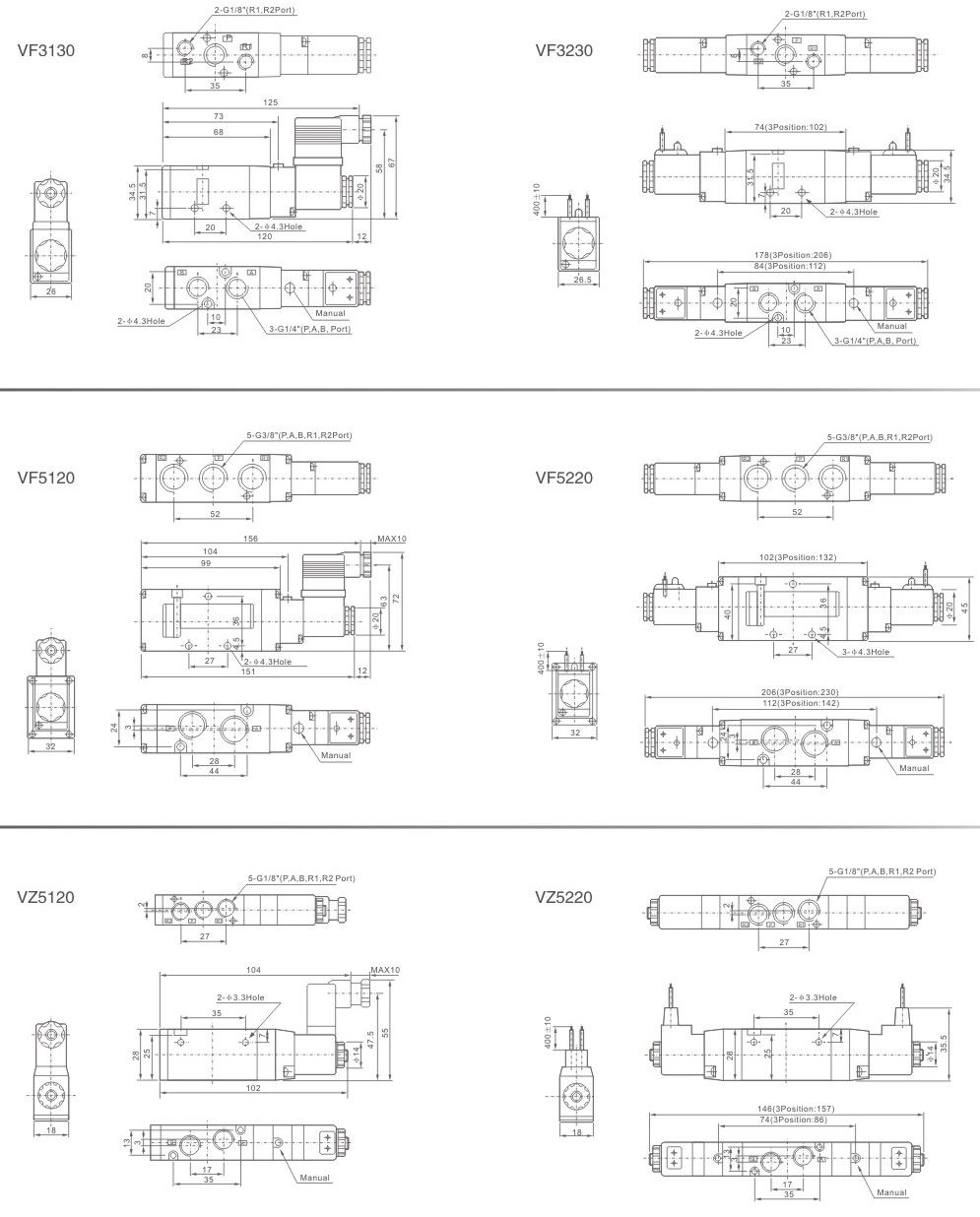

VF and VZ directional control solenoid valve mounting dimension drawing

drawing group	Covered models
VF/VZ dimensions	VF3130, VF3230, VF5120, VF5220, VZ5120, and VZ5220 mounting drawings

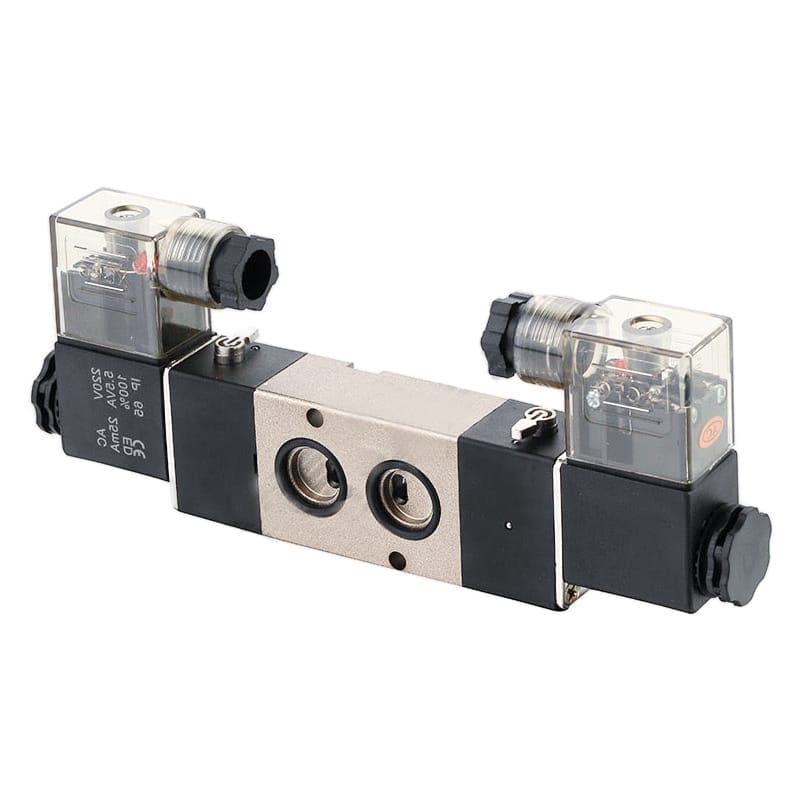

4m series plate type pneumatic solenoid valve product view 1

Order Symbol

Series 03

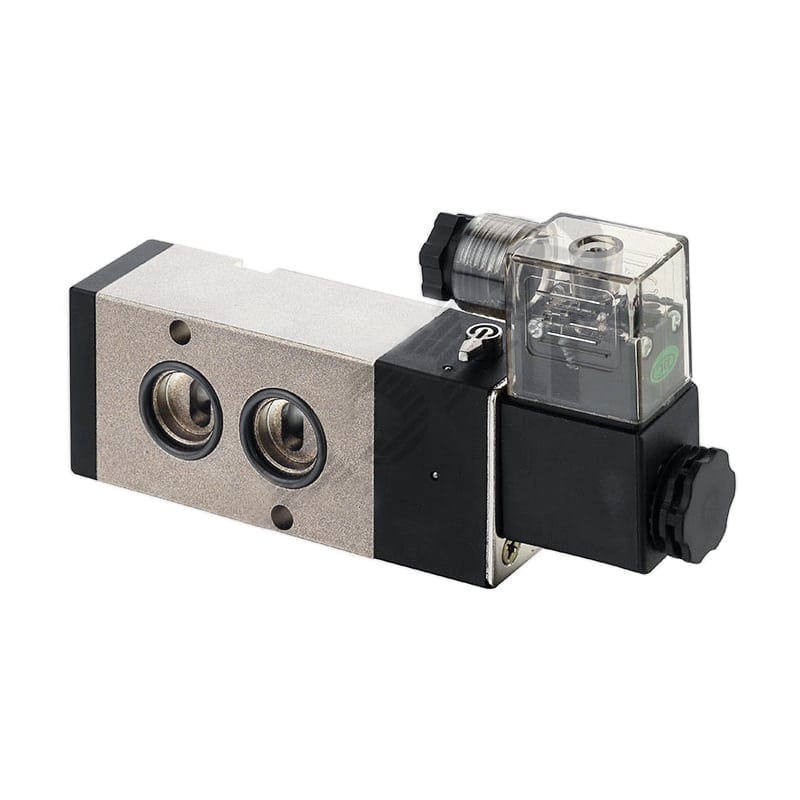

Series: 4M Series plate type Pneumatic solenoid valve

Key Specs

Selection focus

Coil and places: 10 single-head double-position; 20 double-head double-position
Port sizes: 06: G1/8, 08: G1/4, 10: G3/8
Specification code: 4M two-position five-way plate type valve
Body sizes: 2: 1/8 and 1/4 valve body; 3: 1/4 and 3/8 valve body

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

4M Series model-code and operating specifications

21 rows

Model	4M210-06	4M220-06	4M210-08	4M220-08	4M310-08	4M320-08	4M310-10	4M320-10
Model code meaning	4M plate type, body size 2, 10 single-head, G1/8 port	4M plate type, body size 2, 20 double-head, G1/8 port	4M plate type, body size 2, 10 single-head, G1/4 port	4M plate type, body size 2, 20 double-head, G1/4 port	4M plate type, body size 3, 10 single-head, G1/4 port	4M plate type, body size 3, 20 double-head, G1/4 port	4M plate type, body size 3, 10 single-head, G3/8 port	4M plate type, body size 3, 20 double-head, G3/8 port
body size code	2: 1/8 and 1/4 valve body	2: 1/8 and 1/4 valve body	2: 1/8 and 1/4 valve body	2: 1/8 and 1/4 valve body	3: 1/4 and 3/8 valve body	3: 1/4 and 3/8 valve body	3: 1/4 and 3/8 valve body	3: 1/4 and 3/8 valve body
Coil and places	10: single-head double-position	20: double-head double-position	10: single-head double-position	20: double-head double-position	10: single-head double-position	20: double-head double-position	10: single-head double-position	20: double-head double-position
Port size code	06: G1/8	06: G1/8	08: G1/4	08: G1/4	08: G1/4	08: G1/4	10: G3/8	10: G3/8
Position and way	two-position three-way	two-position three-way	two-position three-way	two-position three-way	two-position three-way	two-position three-way	two-position three-way	two-position three-way
Effective sectional area	14 mm² (Cv=0.78)	16 mm² (Cv=0.89)	25 mm² (Cv=1.39)	25 mm² (Cv=1.39)	30 mm² (Cv=1.67)	30 mm² (Cv=1.67)	30 mm² (Cv=1.67)	30 mm² (Cv=1.67)
Port connection	air inlet=exhaust=G1/8	air inlet=exhaust=G1/8	air inlet=G1/4; exhaust=G1/8	air inlet=G1/4; exhaust=G1/8	air inlet=G1/4; exhaust=G1/4	air inlet=G1/4; exhaust=G1/4	air inlet=G3/8; exhaust=G1/4	air inlet=G3/8; exhaust=G1/4
Working medium	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air	40 Micron Filtered Air
Motion pattern	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type	Inner guide type
Lubrication	Not necessary	Not necessary	Not necessary	Not necessary	Not necessary	Not necessary	Not necessary	Not necessary
Working pressure	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa
Max. proof pressure	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa	1.2 MPa
Operating temperature	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Voltage options	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)
Voltage range	-15% to +10%	-15% to +10%	-15% to +10%	-15% to +10%	-15% to +10%	-15% to +10%	-15% to +10%	-15% to +10%
Power consumption	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W	AC380V: 2.5VA; AC220V: 2.0VA; AC110V: 2.5VA; AC24V: 3.5VA; DC24V: 3.0W; DC12V: 2.5W
Insulation / Protection class	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65	F Class / IP65
Wiring form	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire	blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire
Highest action frequency	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec	5 cycles/sec
Shortest excitation time	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second	0.05 Second

Additional table

4M Series plate-type mounting dimension drawing

2 rows

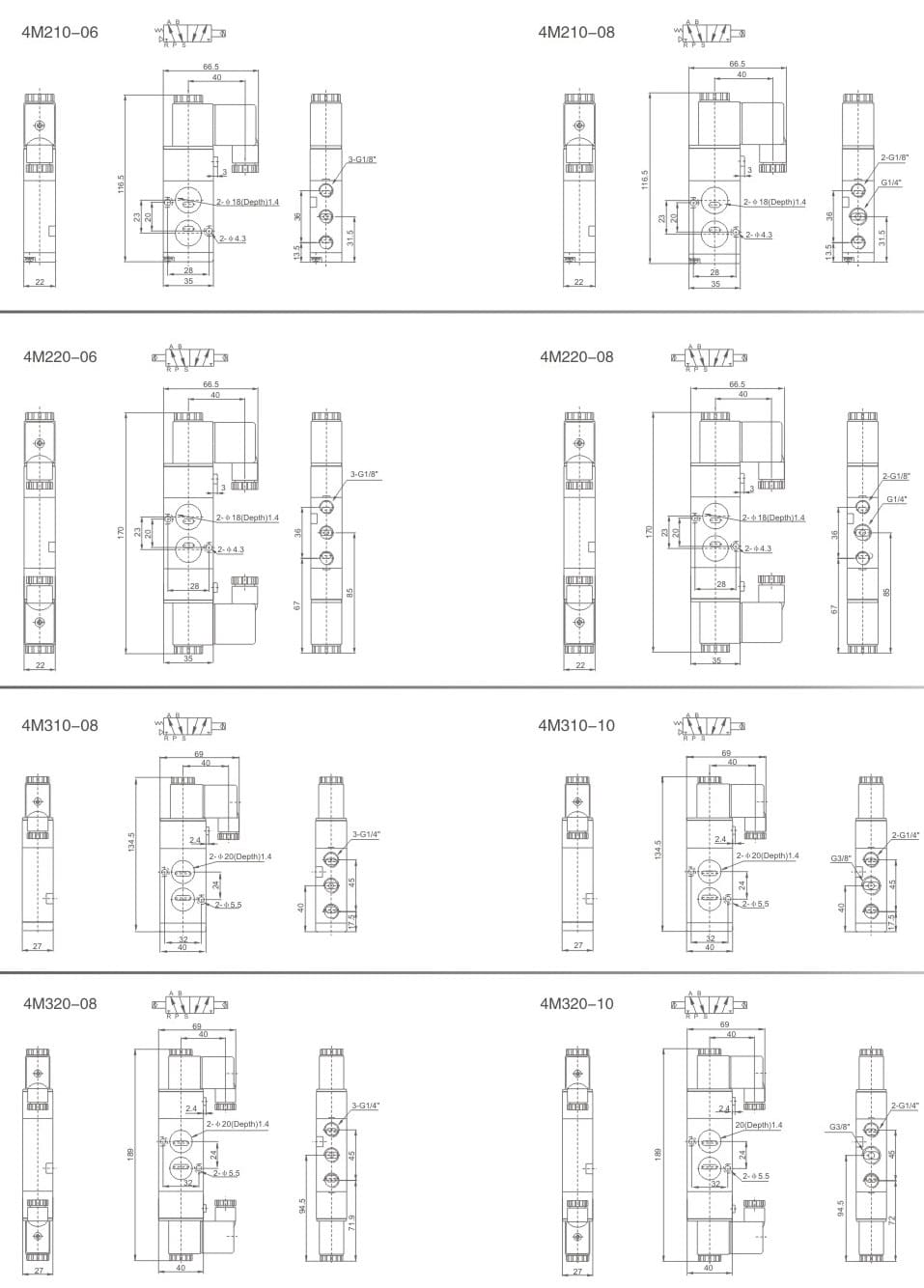

4M Series plate-type solenoid valve mounting dimension drawing

drawing group	Covered models
4M plate-type dimensions	4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, and 4M320-10

400 series pneumatic control valves solenoid air piloted product view 1

Order Symbol

Series 04

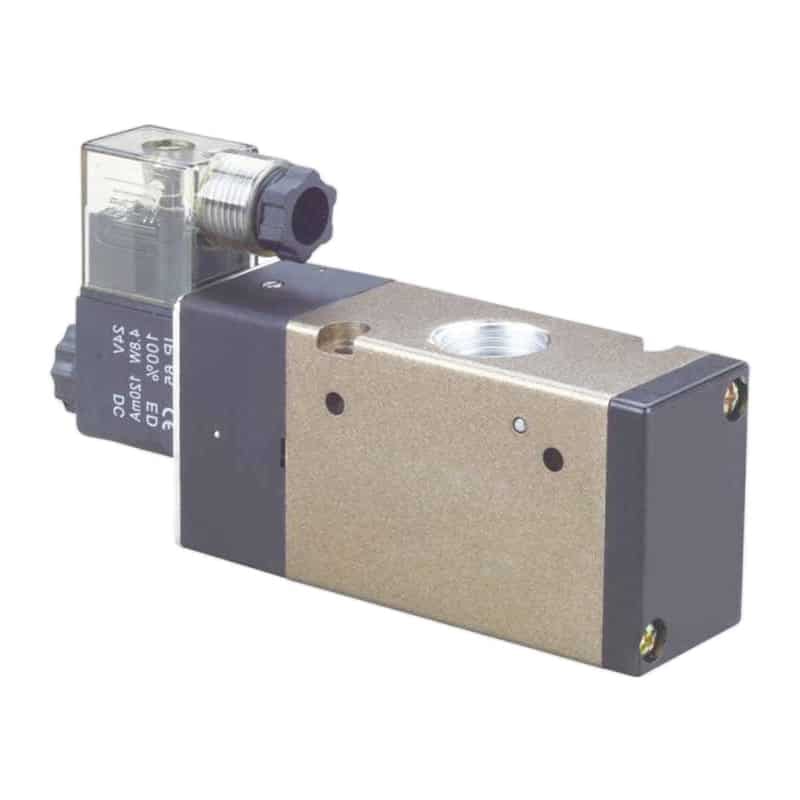

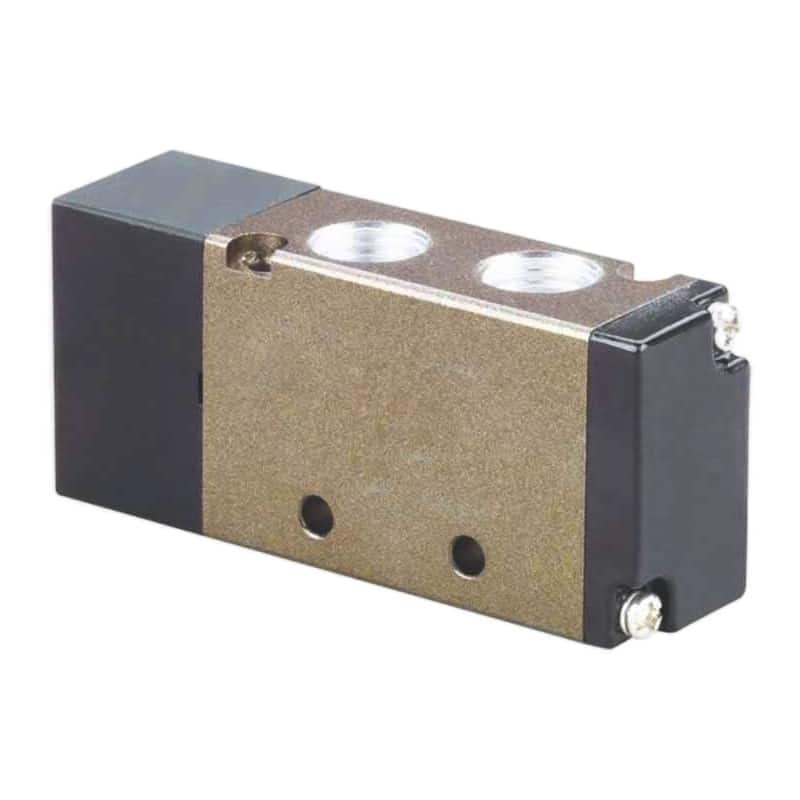

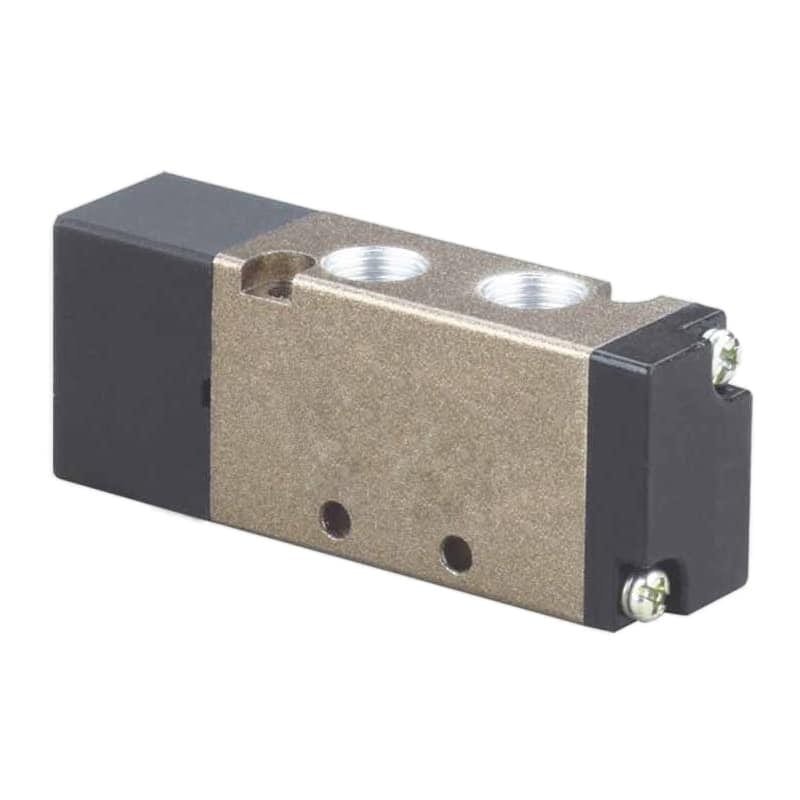

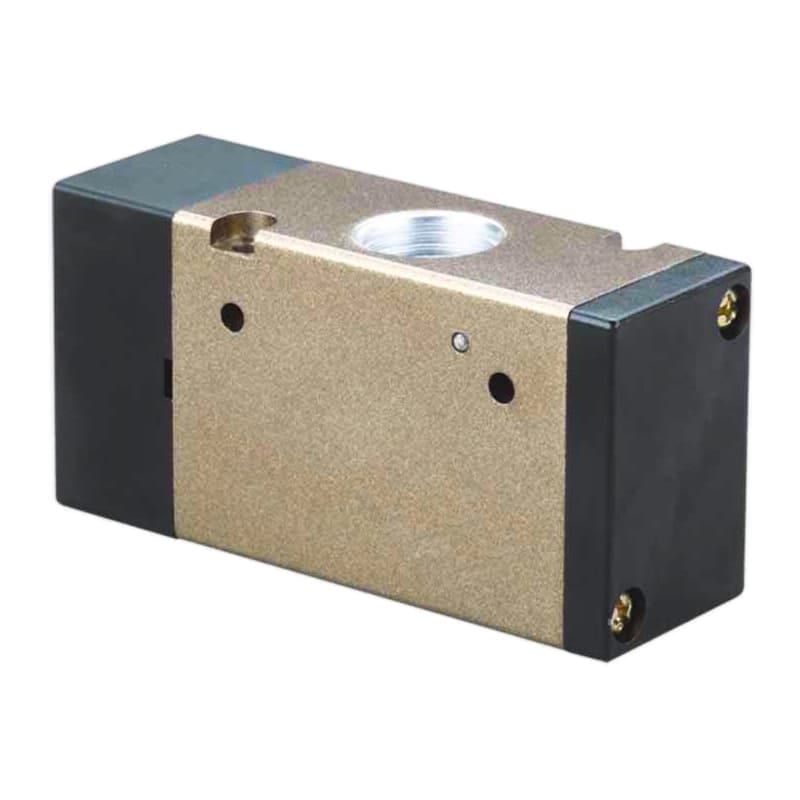

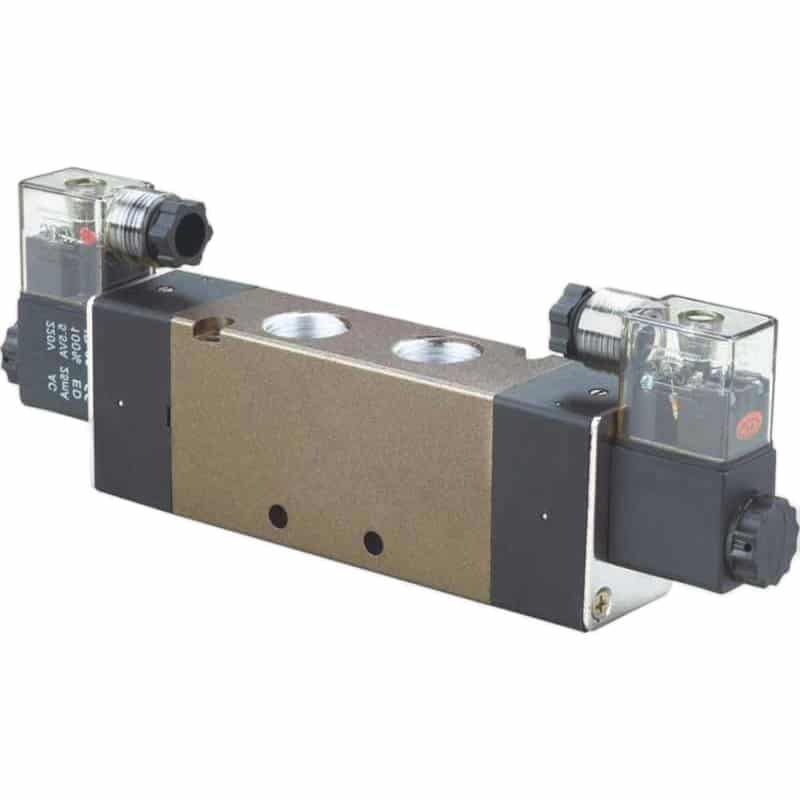

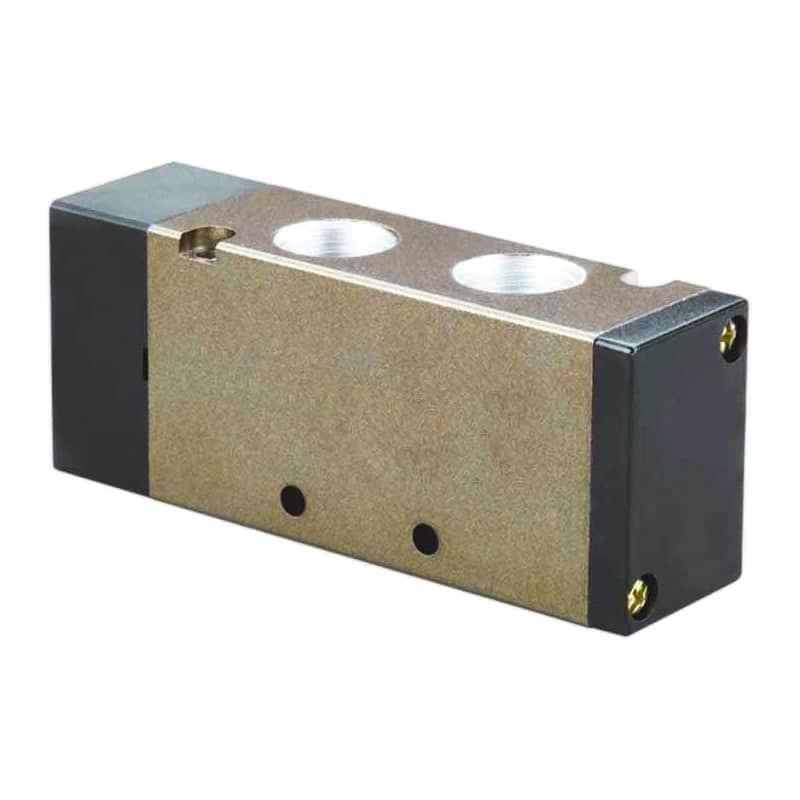

Series: 400 Series Pneumatic Control Valves (solenoid / Air Piloted)
Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.: 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way

Key Specs

Selection focus

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves. 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way
Coil / pilot positions: 10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options
Port size: 15: G1/2
Series code: 400 Series

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

400 Series model-code and operating specifications

20 rows

Model

4V410-15

4V420-15

4V430C-15

4V430E-15

4V430P-15

4A410-15

4A420-15

4A430C-15

4A430E-15

4A430P-15

3V410-15

3V420-15

3A410-15

3A420-15

Model code meaning

4V solenoid, 400 body, 10 single-head, G1/2 port

4V solenoid, 400 body, 20 double-head, G1/2 port

4V solenoid, 400 body, 30C three-position closed center, G1/2 port

4V solenoid, 400 body, 30E three-position exhaust center, G1/2 port

4V solenoid, 400 body, 30P three-position pressure center, G1/2 port

4A air-piloted, 400 body, 10 single-pilot, G1/2 port

4A air-piloted, 400 body, 20 double-pilot, G1/2 port

4A air-piloted, 400 body, 30C three-position closed center, G1/2 port

4A air-piloted, 400 body, 30E three-position exhaust center, G1/2 port

4A air-piloted, 400 body, 30P three-position pressure center, G1/2 port

3V solenoid, 400 body, 10 single-head, G1/2 port

3V solenoid, 400 body, 20 double-head, G1/2 port

3A air-piloted, 400 body, 10 single-pilot, G1/2 port

3A air-piloted, 400 body, 20 double-pilot, G1/2 port

Specification family

4V: two/three-position five-way solenoid valve

4A: two/three-position five-way pneumatic control valve

3V: two-position three-way solenoid valve

3A: two-position three-way pneumatic control valve

Coil / pilot code

10: single-head double-position

20: double-head double-position

30C: double-head three-position close type

30E: double-head three-position exhaust type

30P: double-head three-position pressure type

10: single-pilot double-position

20: double-pilot double-position

30C: double-pilot three-position close type

30E: double-pilot three-position exhaust type

30P: double-pilot three-position pressure type

10: single-head double-position

20: double-head double-position

10: single-pilot double-position

20: double-pilot double-position

Port connection / initial state

Five-way valve, G1/2 ports

NC/NO two-position three-way options, G1/2 port

two-position three-way, G1/2 port

NC/NO two-position three-way options, G1/2 port

two-position three-way, G1/2 port

Position and way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position three-way

Effective sectional area

50 mm² (Cv=2.79)

30 mm² (Cv=1.68)

50 mm² (Cv=2.79)

30 mm² (Cv=1.68)

50 mm² (Cv=2.79)

Joint pipe bore

air inlet=air outlet=exhaust=G1/2

Working medium

40 Micron Filtered Air

Motion pattern

Inner guide type

Working pressure

0.15-0.8 MPa

Max. proof pressure

1.2 MPa

Operating temperature

5-50 °C

Voltage options

DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)

Voltage range

±10%

Power consumption

AC: 4.5VA; DC: 3W

Insulation / Protection class

F Class / IP65

Wiring form

blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire

Highest action frequency

5 cycles/sec

Shortest excitation time

0.05 Second

Additional table

400 Series complete mounting dimension drawing

2 rows

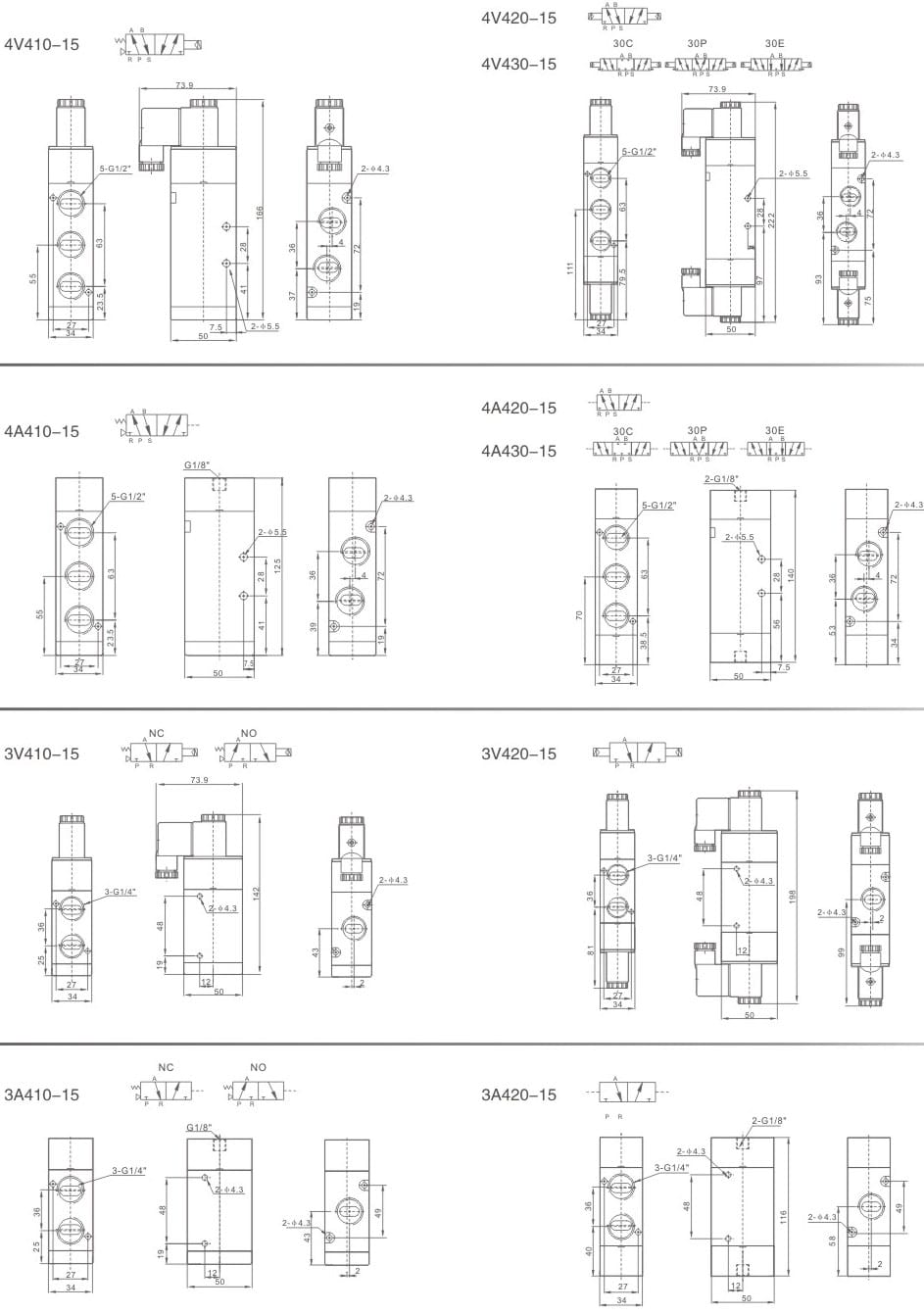

400 Series 4V 4A 3V and 3A mounting dimension drawing

drawing group	Covered models
400 Series dimensions	4V410/420/430, 4A410/420/430, 3V410/420, and 3A410/420 models

Additional table

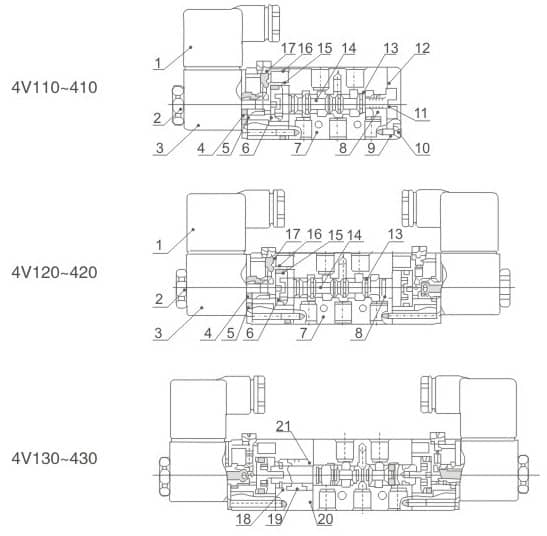

400 Series 4V solenoid structure and parts

4 rows

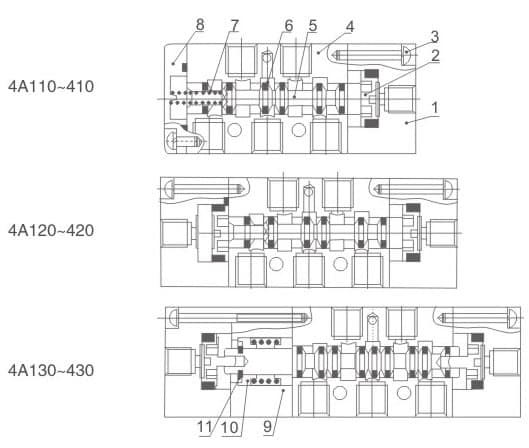

400 Series Pneumatic Control Valves (Solenoid & Air Piloted) numbered parts and material reference drawing

Designation

Connector

Active Armature

Body

Screw

O-Ring

Spring

Nut

Steel Part

Wearing

Spring

Spool

Side Cover

Coil

Piston

End Cap

Seal ring

O-Ring

Spring Seat

Additional table

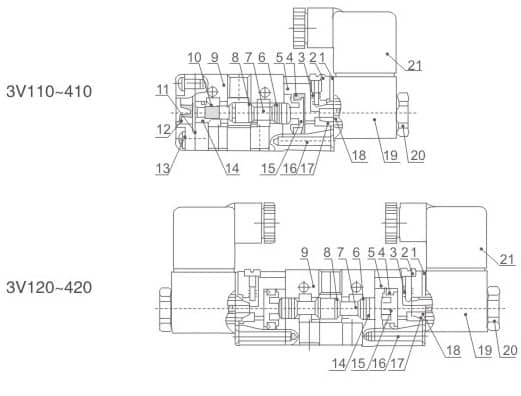

400 Series 3V solenoid structure and parts

4 rows

Designation

Washer

O-Ring

Spool

Spring

Screw

Coil

Body

O-Ring

Seal

Wearing

O-Ring

Nut

Spring

O-Ring

Body

End Cap

Piston

Active Armature

Connector

Additional table

400 Series 4A air-piloted structure and parts

4 rows

NO	Designation	NO	Designation	NO	Designation	NO	Designation
1	Air control cover	4	valve body	7	Spring	10	Spring Seat
2	Piston	5	Spool	8	Rear cover	11	C-type buckle
3	Screw	6	O-Ring	9	Back seat

Additional table

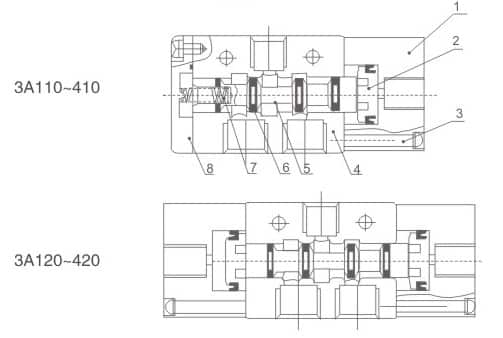

400 Series 3A air-piloted structure and parts

4 rows

NO	Designation	NO	Designation	NO	Designation
1	Air control cover	4	valve body	7	Spring
2	Piston	5	Spool	8	Rear cover
3	Screw	6	O-Ring

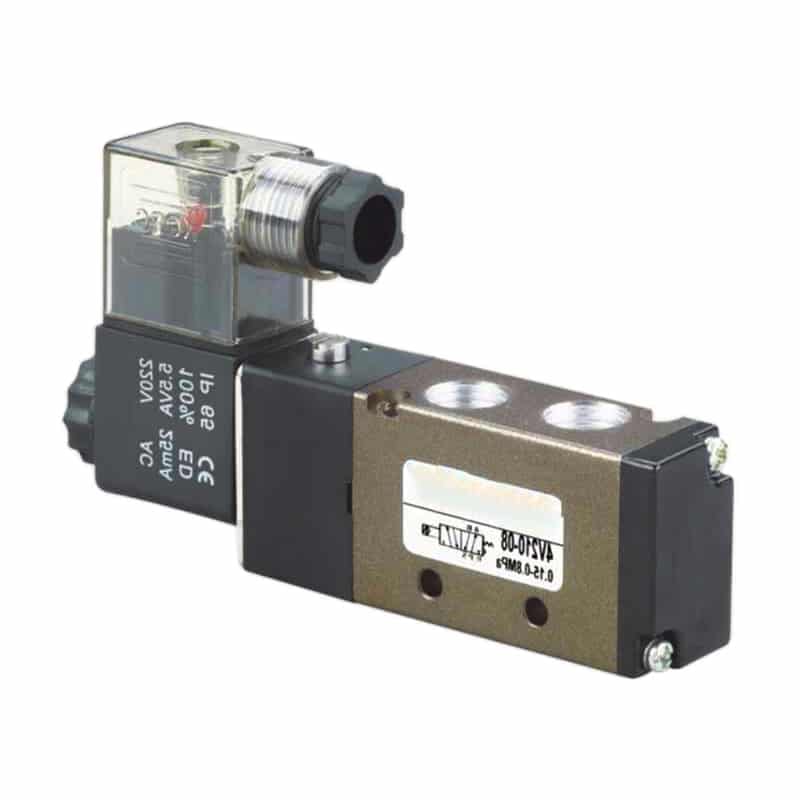

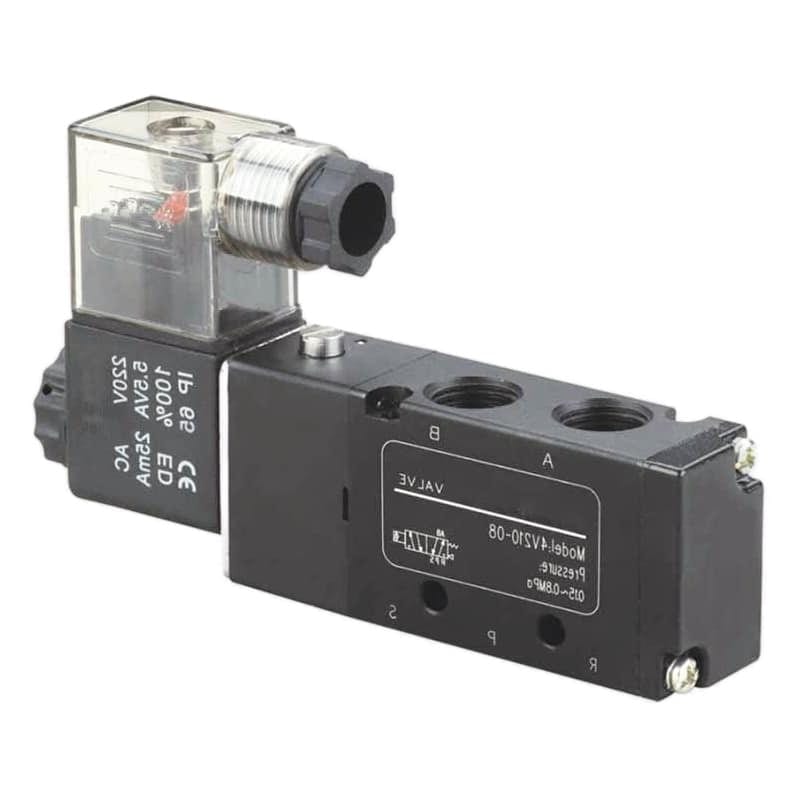

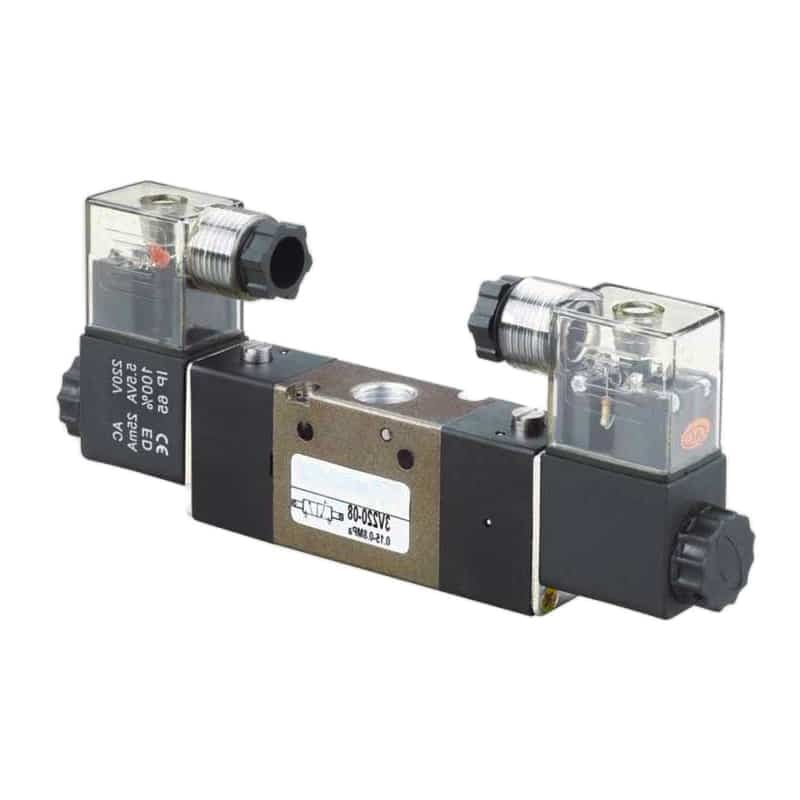

200 series pneumatic directional control valves 3v 4v solenoid 3a 4a air actuated product view 1

Order Symbol

Series 05

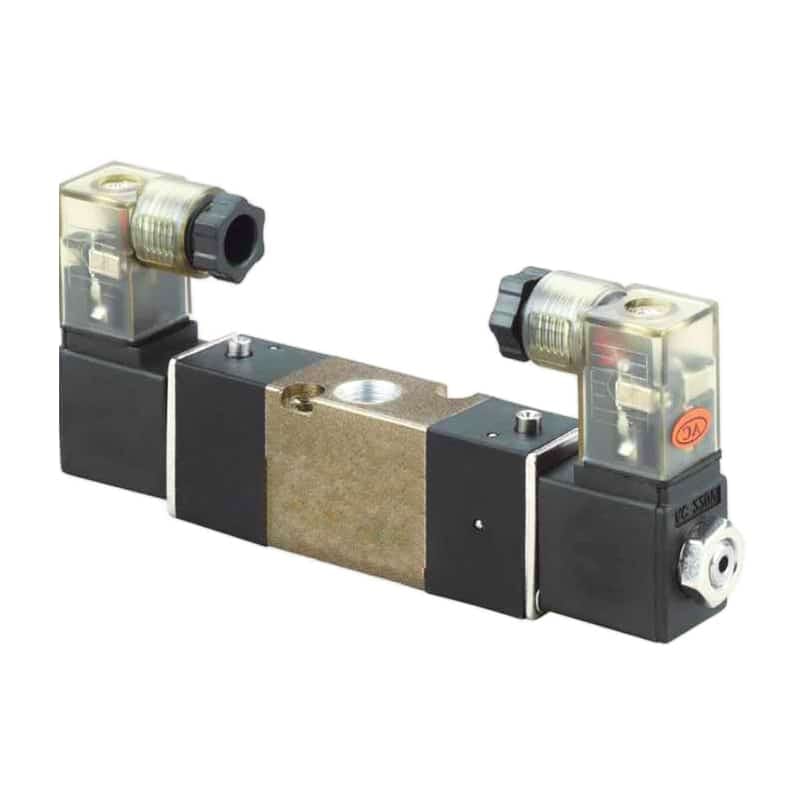

Series: 200 Series Pneumatic Directional Control Valves (3V/4V solenoid / 3A/4A Air Actuated)
Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.: 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way

Key Specs

Selection focus

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves. 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way
Coil / pilot positions: 10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options
Port sizes: G1/8 and G1/4
Series code: 200 Series

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

200 Series model-code and operating specifications

20 rows

Model

4V210-06

4V220-06

4V230C-06

4V230E-06

4V230P-06

4V210-08

4V220-08

4V230C-08

4V230E-08

4V230P-08

4A210-06

4A220-06

4A230C-06

4A230E-06

4A230P-06

4A210-08

4A220-08

4A230C-08

4A230E-08

4A230P-08

3V210-06

3V220-06

3A210-06

3A220-06

3V210-08

3V220-08

3A210-08

3A220-08

Model code meaning

4V solenoid, 200 body, 10 single-head, G1/8 port

4V solenoid, 200 body, 20 double-head, G1/8 port

4V solenoid, 200 body, 30C three-position closed center, G1/8 port

4V solenoid, 200 body, 30E three-position exhaust center, G1/8 port

4V solenoid, 200 body, 30P three-position pressure center, G1/8 port

4V solenoid, 200 body, 10 single-head, G1/4 port

4V solenoid, 200 body, 20 double-head, G1/4 port

4V solenoid, 200 body, 30C three-position closed center, G1/4 port

4V solenoid, 200 body, 30E three-position exhaust center, G1/4 port

4V solenoid, 200 body, 30P three-position pressure center, G1/4 port

4A air-piloted, 200 body, 10 single-pilot, G1/8 port

4A air-piloted, 200 body, 20 double-pilot, G1/8 port

4A air-piloted, 200 body, 30C three-position closed center, G1/8 port

4A air-piloted, 200 body, 30E three-position exhaust center, G1/8 port

4A air-piloted, 200 body, 30P three-position pressure center, G1/8 port

4A air-piloted, 200 body, 10 single-pilot, G1/4 port

4A air-piloted, 200 body, 20 double-pilot, G1/4 port

4A air-piloted, 200 body, 30C three-position closed center, G1/4 port

4A air-piloted, 200 body, 30E three-position exhaust center, G1/4 port

4A air-piloted, 200 body, 30P three-position pressure center, G1/4 port

3V solenoid, 200 body, 10 single-head, G1/8 port

3V solenoid, 200 body, 20 double-head, G1/8 port

3A air-piloted, 200 body, 10 single-pilot, G1/8 port

3A air-piloted, 200 body, 20 double-pilot, G1/8 port

3V solenoid, 200 body, 10 single-head, G1/4 port

3V solenoid, 200 body, 20 double-head, G1/4 port

3A air-piloted, 200 body, 10 single-pilot, G1/4 port

3A air-piloted, 200 body, 20 double-pilot, G1/4 port

Specification family

4V: two/three-position five-way solenoid valve

4A: two/three-position five-way pneumatic control valve

3V: two-position three-way solenoid valve

3A: two-position three-way pneumatic control valve

3V: two-position three-way solenoid valve

3A: two-position three-way pneumatic control valve

Port size code

06: G1/8

08: G1/4

06: G1/8

08: G1/4

06: G1/8

08: G1/4

Coil / pilot code

10: single-head double-position

20: double-head double-position

30C: double-head three-position close type

30E: double-head three-position exhaust type

30P: double-head three-position pressure type

10: single-head double-position

20: double-head double-position

30C: double-head three-position close type

30E: double-head three-position exhaust type

30P: double-head three-position pressure type

10: single-pilot double-position

20: double-pilot double-position

30C: double-pilot three-position close type

30E: double-pilot three-position exhaust type

30P: double-pilot three-position pressure type

10: single-pilot double-position

20: double-pilot double-position

30C: double-pilot three-position close type

30E: double-pilot three-position exhaust type

30P: double-pilot three-position pressure type

10: single-head double-position

20: double-head double-position

10: single-pilot double-position

20: double-pilot double-position

10: single-head double-position

20: double-head double-position

10: single-pilot double-position

20: double-pilot double-position

Position and way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position three-way

Effective sectional area

14 mm² (Cv=0.78)

12 mm² (Cv=0.67)

16 mm² (Cv=0.89)

12 mm² (Cv=0.67)

14 mm² (Cv=0.78)

12 mm² (Cv=0.67)

16 mm² (Cv=0.89)

12 mm² (Cv=0.67)

14 mm² (Cv=0.78)

16 mm² (Cv=0.89)

Joint pipe bore

air inlet=air outlet=exhaust=G1/8

air inlet=G1/4; air outlet/exhaust=G1/8

air inlet=air outlet=exhaust=G1/8

air inlet=G1/4; air outlet/exhaust=G1/8

3-port G1/8

3-port G1/4

Working medium

40 Micron Filtered Air

Motion pattern

Inner guide type

Working pressure

0.15-0.8 MPa

Max. proof pressure

1.2 MPa

Operating temperature

5-50 °C

Voltage options

DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)

Voltage range

±10%

Power consumption

AC: 2.5VA; DC: 2.5W

Insulation / Protection class

F Class / IP65

Wiring form

blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire

Highest action frequency

5 cycles/sec

Shortest excitation time

0.05 Second

Additional table

200 Series complete mounting dimension drawings

4 rows

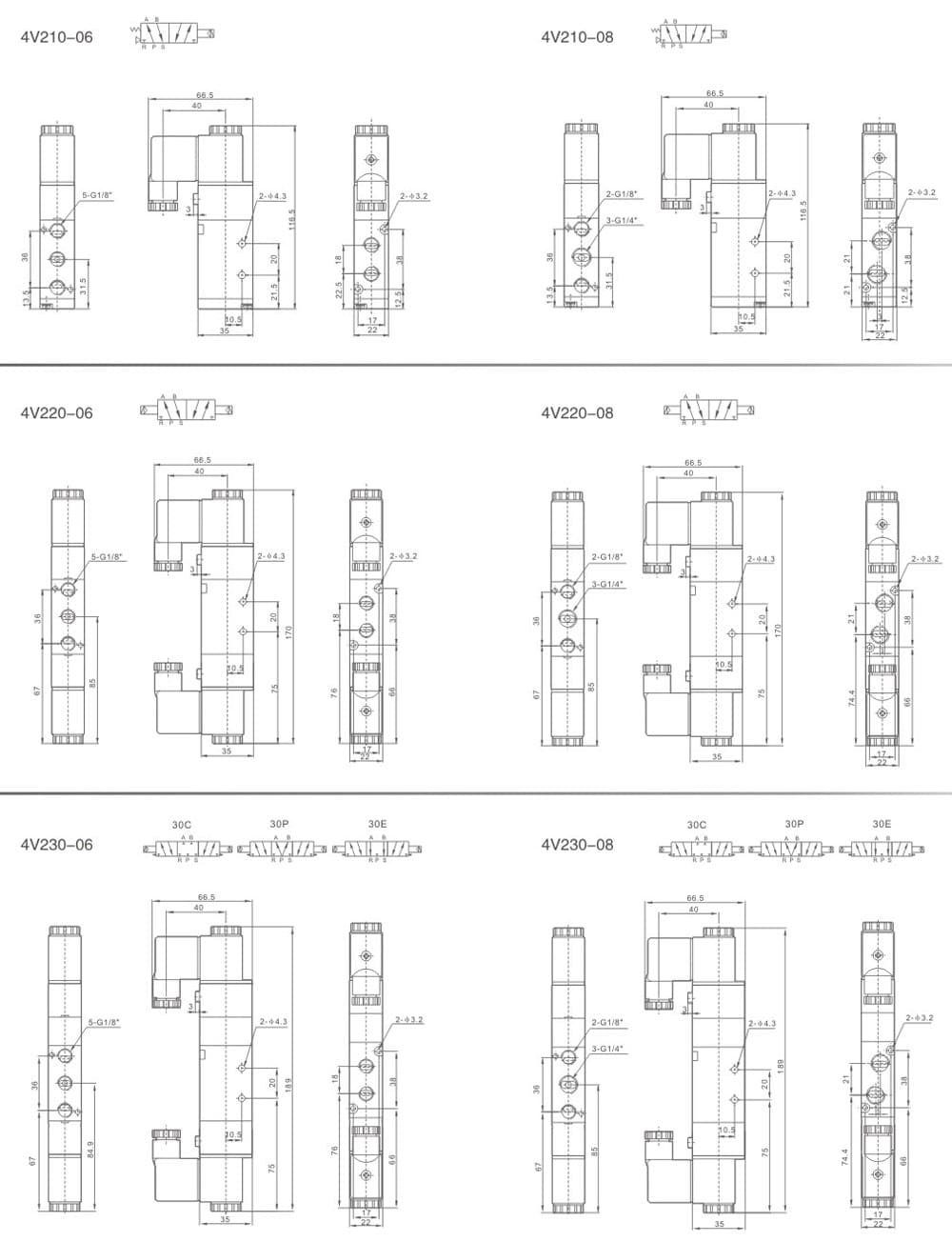

200 Series 4V solenoid valve mounting dimension drawing

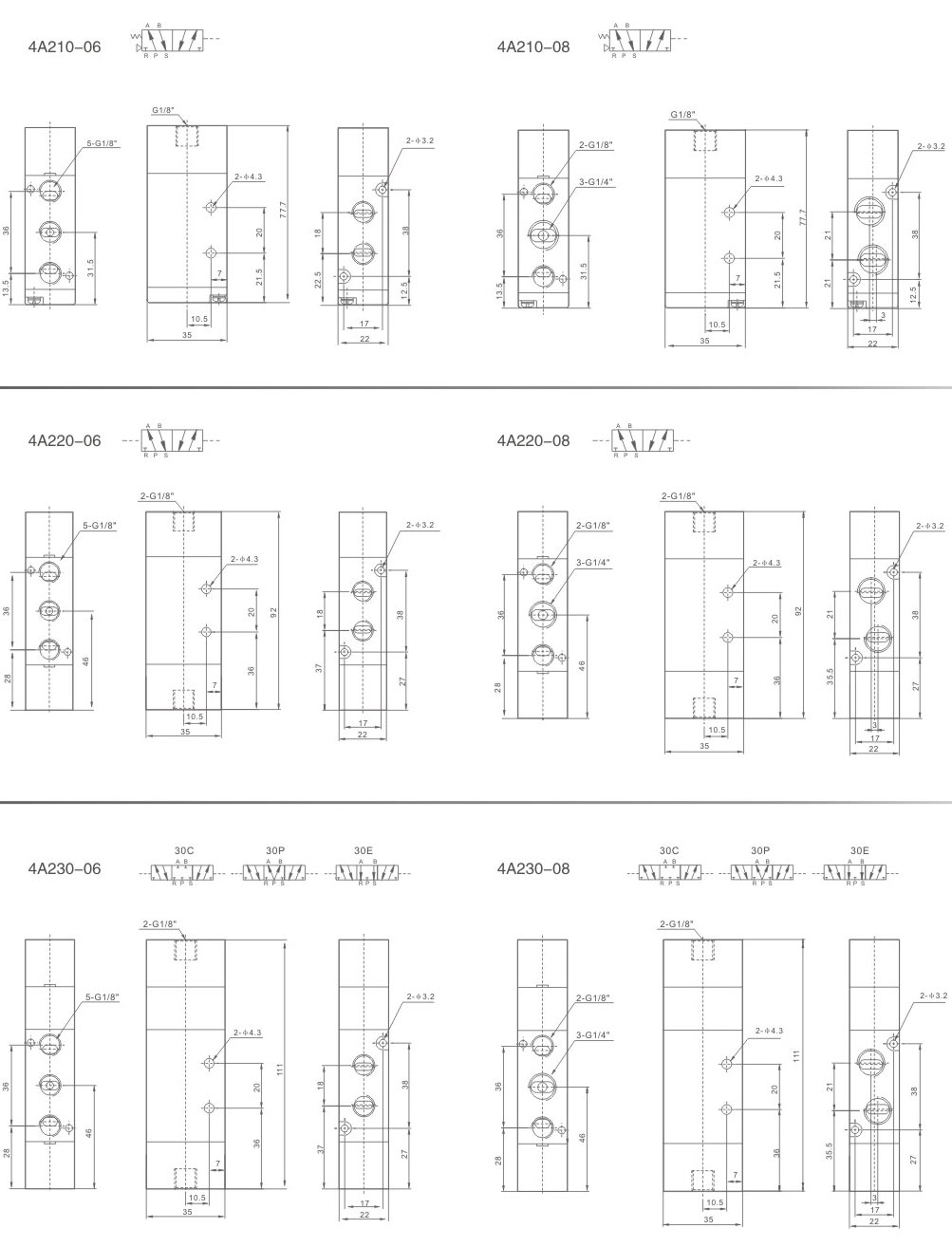

200 Series 4A air-piloted valve mounting dimension drawing

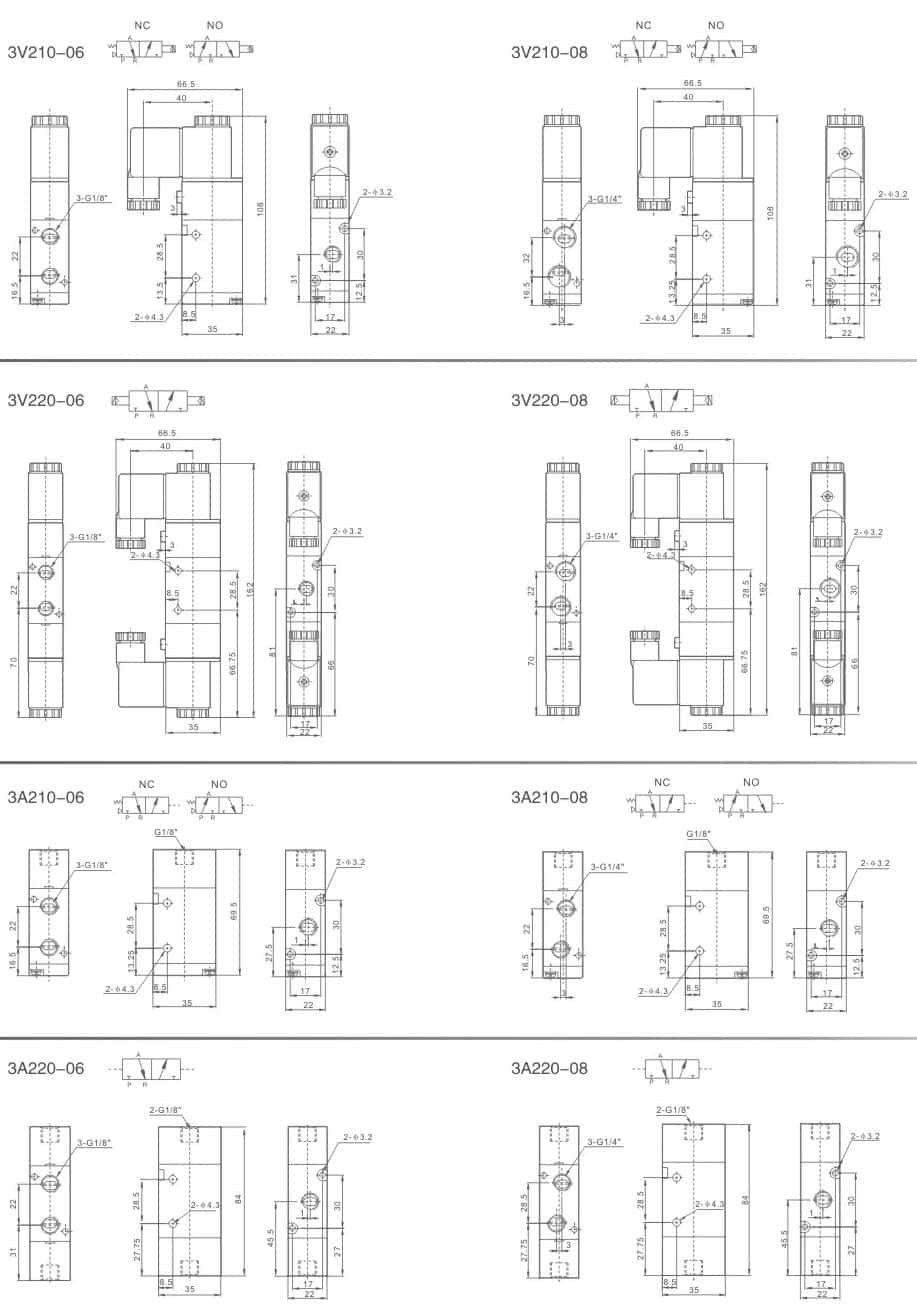

200 Series 3V and 3A valve mounting dimension drawing

drawing group	Covered models
4V solenoid dimensions	4V210, 4V220, and 4V230 models in 06 / 08 Port sizes
4A air-piloted dimensions	4A210, 4A220, and 4A230 models in 06 / 08 Port sizes
3V / 3A three-way dimensions	3V210, 3V220, 3A210, and 3A220 models in 06 / 08 Port sizes

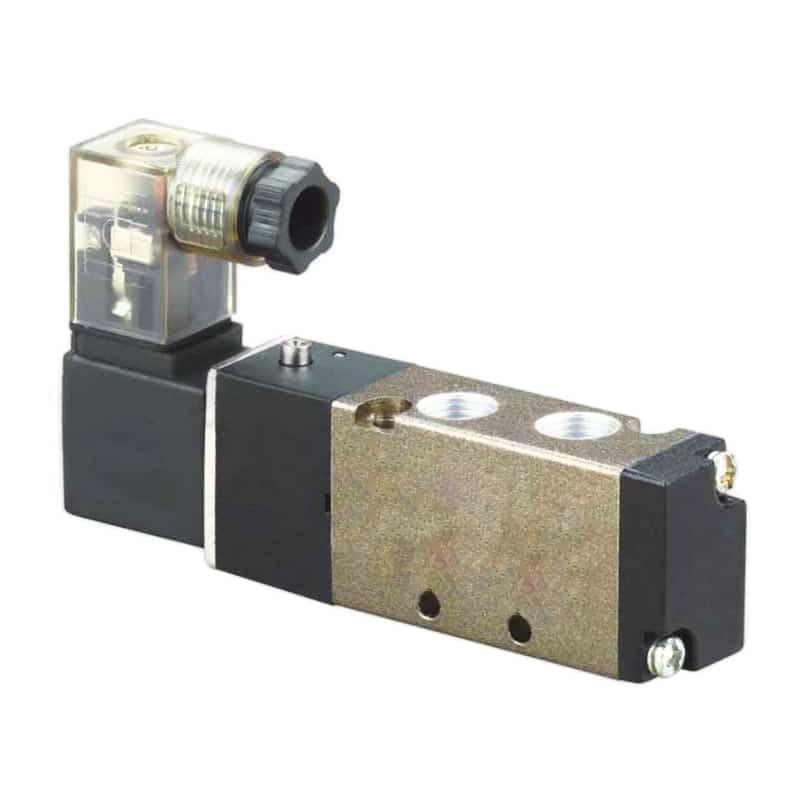

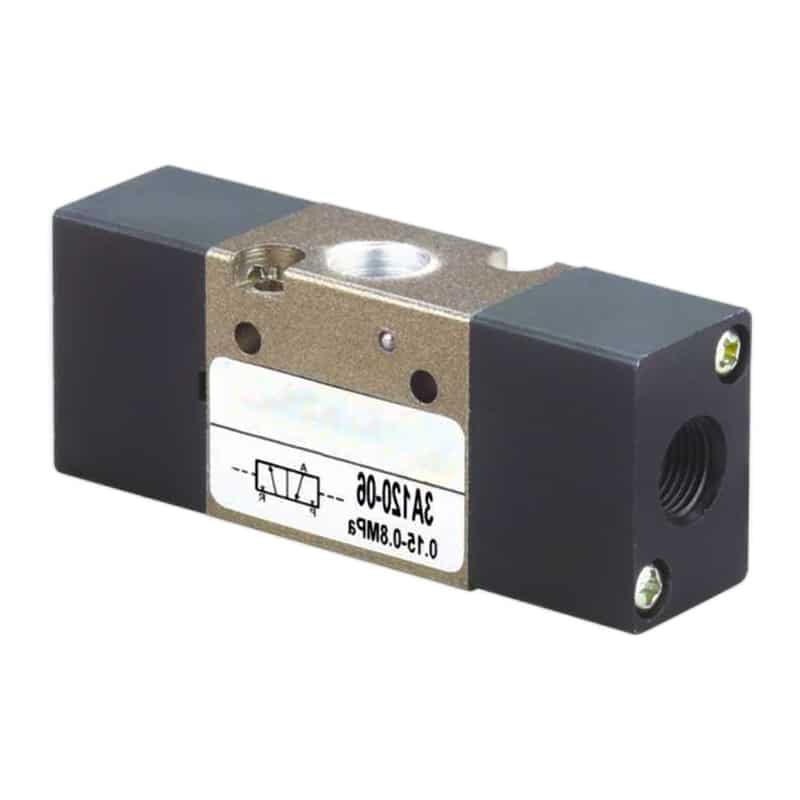

100 series pneumatic directional control valves 3v 4v solenoid 3a 4a air actuated product view 1

Order Symbol

Series 06

Series: 100 Series Pneumatic Directional Control Valves (3V/4V solenoid / 3A/4A Air Actuated)
Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.: 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way

Key Specs

Selection focus

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves. 4V solenoid five-way, 4A air-piloted five-way, 3V solenoid three-way, 3A air-piloted three-way
Coil / pilot positions: 10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options
Port sizes: M5x0.8 and G1/8
Series code: 100 Series

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

100 Series model-code and operating specifications

20 rows

Model

4V110-M5

4V120-M5

4V130C-M5

4V130E-M5

4V130P-M5

4V110-06

4V120-06

4V130C-06

4V130E-06

4V130P-06

4A110-M5

4A120-M5

4A130C-M5

4A130E-M5

4A130P-M5

4A110-06

4A120-06

4A130C-06

4A130E-06

4A130P-06

3V110-M5

3V120-M5

3A110-M5

3A120-M5

3V110-06

3V120-06

3A110-06

3A120-06

Model code meaning

4V solenoid, 100 body, 10 single-head, M5 port

4V solenoid, 100 body, 20 double-head, M5 port

4V solenoid, 100 body, 30C three-position closed center, M5 port

4V solenoid, 100 body, 30E three-position exhaust center, M5 port

4V solenoid, 100 body, 30P three-position pressure center, M5 port

4V solenoid, 100 body, 10 single-head, G1/8 port

4V solenoid, 100 body, 20 double-head, G1/8 port

4V solenoid, 100 body, 30C three-position closed center, G1/8 port

4V solenoid, 100 body, 30E three-position exhaust center, G1/8 port

4V solenoid, 100 body, 30P three-position pressure center, G1/8 port

4A air-piloted, 100 body, 10 single-pilot, M5 port

4A air-piloted, 100 body, 20 double-pilot, M5 port

4A air-piloted, 100 body, 30C three-position closed center, M5 port

4A air-piloted, 100 body, 30E three-position exhaust center, M5 port

4A air-piloted, 100 body, 30P three-position pressure center, M5 port

4A air-piloted, 100 body, 10 single-pilot, G1/8 port

4A air-piloted, 100 body, 20 double-pilot, G1/8 port

4A air-piloted, 100 body, 30C three-position closed center, G1/8 port

4A air-piloted, 100 body, 30E three-position exhaust center, G1/8 port

4A air-piloted, 100 body, 30P three-position pressure center, G1/8 port

3V solenoid, 100 body, 10 single-head, M5 port

3V solenoid, 100 body, 20 double-head, M5 port

3A air-piloted, 100 body, 10 single-pilot, M5 port

3A air-piloted, 100 body, 20 double-pilot, M5 port

3V solenoid, 100 body, 10 single-head, G1/8 port

3V solenoid, 100 body, 20 double-head, G1/8 port

3A air-piloted, 100 body, 10 single-pilot, G1/8 port

3A air-piloted, 100 body, 20 double-pilot, G1/8 port

Specification family

4V: two/three-position five-way solenoid valve

4A: two/three-position five-way pneumatic control valve

3V: two-position three-way solenoid valve

3A: two-position three-way pneumatic control valve

3V: two-position three-way solenoid valve

3A: two-position three-way pneumatic control valve

Port size code

M5: M5x0.8

06: G1/8

M5: M5x0.8

06: G1/8

M5: M5x0.8

06: G1/8

Coil / pilot code

10: single-head double-position

20: double-head double-position

30C: double-head three-position close type

30E: double-head three-position exhaust type

30P: double-head three-position pressure type

10: single-head double-position

20: double-head double-position

30C: double-head three-position close type

30E: double-head three-position exhaust type

30P: double-head three-position pressure type

10: single-pilot double-position

20: double-pilot double-position

30C: double-pilot three-position close type

30E: double-pilot three-position exhaust type

30P: double-pilot three-position pressure type

10: single-pilot double-position

20: double-pilot double-position

30C: double-pilot three-position close type

30E: double-pilot three-position exhaust type

30P: double-pilot three-position pressure type

10: single-head double-position

20: double-head double-position

10: single-pilot double-position

20: double-pilot double-position

10: single-head double-position

20: double-head double-position

10: single-pilot double-position

20: double-pilot double-position

Position and way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position five-way

three-position five-way

two-position three-way

Effective sectional area

10 mm² (Cv=0.56)

7 mm² (Cv=0.40)

12 mm² (Cv=0.67)

9 mm² (Cv=0.50)

10 mm² (Cv=0.56)

7 mm² (Cv=0.40)

12 mm² (Cv=0.67)

9 mm² (Cv=0.50)

10 mm² (Cv=0.56)

12 mm² (Cv=0.67)

Joint pipe bore

air inlet=air outlet=exhaust=M5x0.8

air inlet=air outlet=exhaust=G1/8

air inlet=air outlet=exhaust=M5x0.8

air inlet=air outlet=exhaust=G1/8

3-port M5

3-port G1/8

Working medium

40 Micron Filtered Air

Motion pattern

Inner guide type

Working pressure

0.15-0.8 MPa

Max. proof pressure

1.2 MPa

Operating temperature

5-50 °C

Voltage options

DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)

Voltage range

±10%

Power consumption

AC: 2.5VA; DC: 2.5W

Insulation / Protection class

F Class / IP65

Wiring form

blank standard connector; LD brown lighting connector; LD1 white lighting connector; W lead wire

Highest action frequency

5 cycles/sec

Shortest excitation time

0.05 Second

Additional table

100 Series 4V solenoid structure and parts

4 rows

100 Series Pneumatic Directional Control Valves (3V/4V Solenoid & 3A/4A Air Actuated) numbered parts and material reference drawing

Designation

Connector

Active Armature

Body

Screw

O-Ring

Spring

Nut

Steel Part

Wearing

Spring

Spool

Side Cover

Coil

Piston

End Cap

Seal ring

O-Ring

Spring Seat

Additional table

100 Series 4A air-piloted structure and parts

4 rows

NO	Designation	NO	Designation	NO	Designation	NO	Designation
1	Air control cover	4	valve body	7	Spring	10	Spring Seat
2	Piston	5	Spool	8	Rear cover	11	C-type buckle
3	Screw	6	O-Ring	9	Back seat

Additional table

100 Series 3V solenoid structure and parts

4 rows

Designation

Washer

O-Ring

Spool

Spring

Screw

Coil

Body

O-Ring

Seal

Wearing

O-Ring

Nut

Spring

O-Ring

Body

End Cap

Piston

Active Armature

Connector

Additional table

100 Series 3A air-piloted structure and parts

4 rows

NO	Designation	NO	Designation	NO	Designation
1	Air control cover	4	valve body	7	Spring
2	Piston	5	Spool	8	Rear cover
3	Screw	6	O-Ring

Additional table

100 Series complete mounting dimension drawings

4 rows

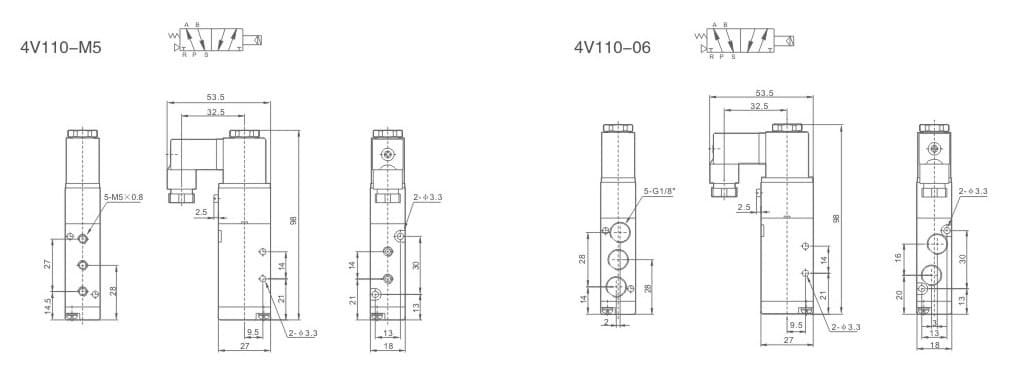

100 Series 4V110 mounting dimension drawing

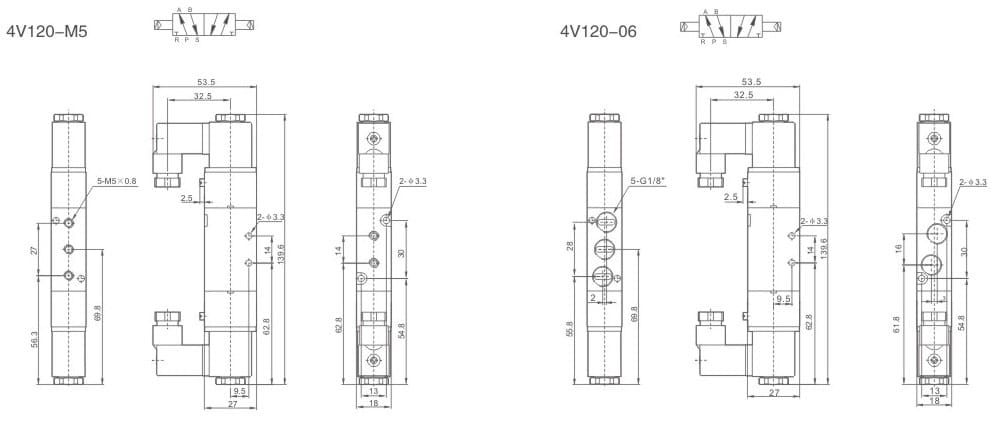

100 Series 4V120 mounting dimension drawing

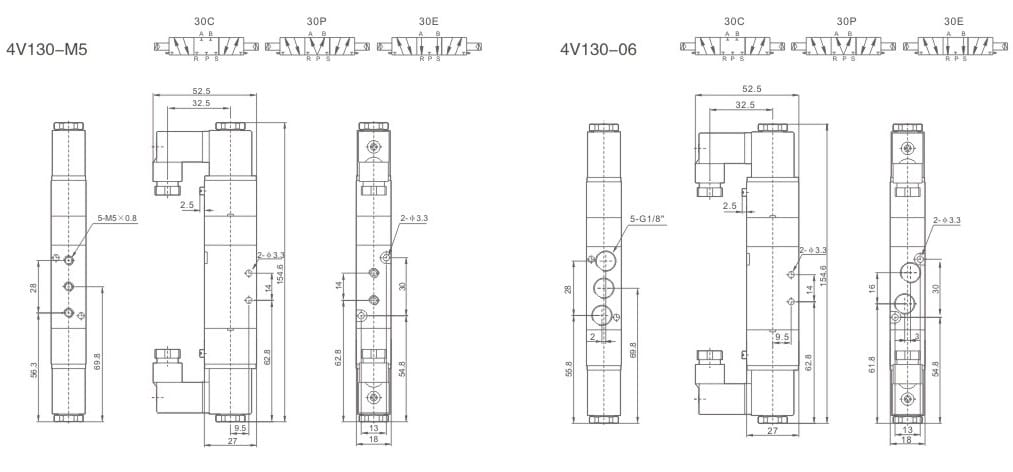

100 Series 4V130 mounting dimension drawing

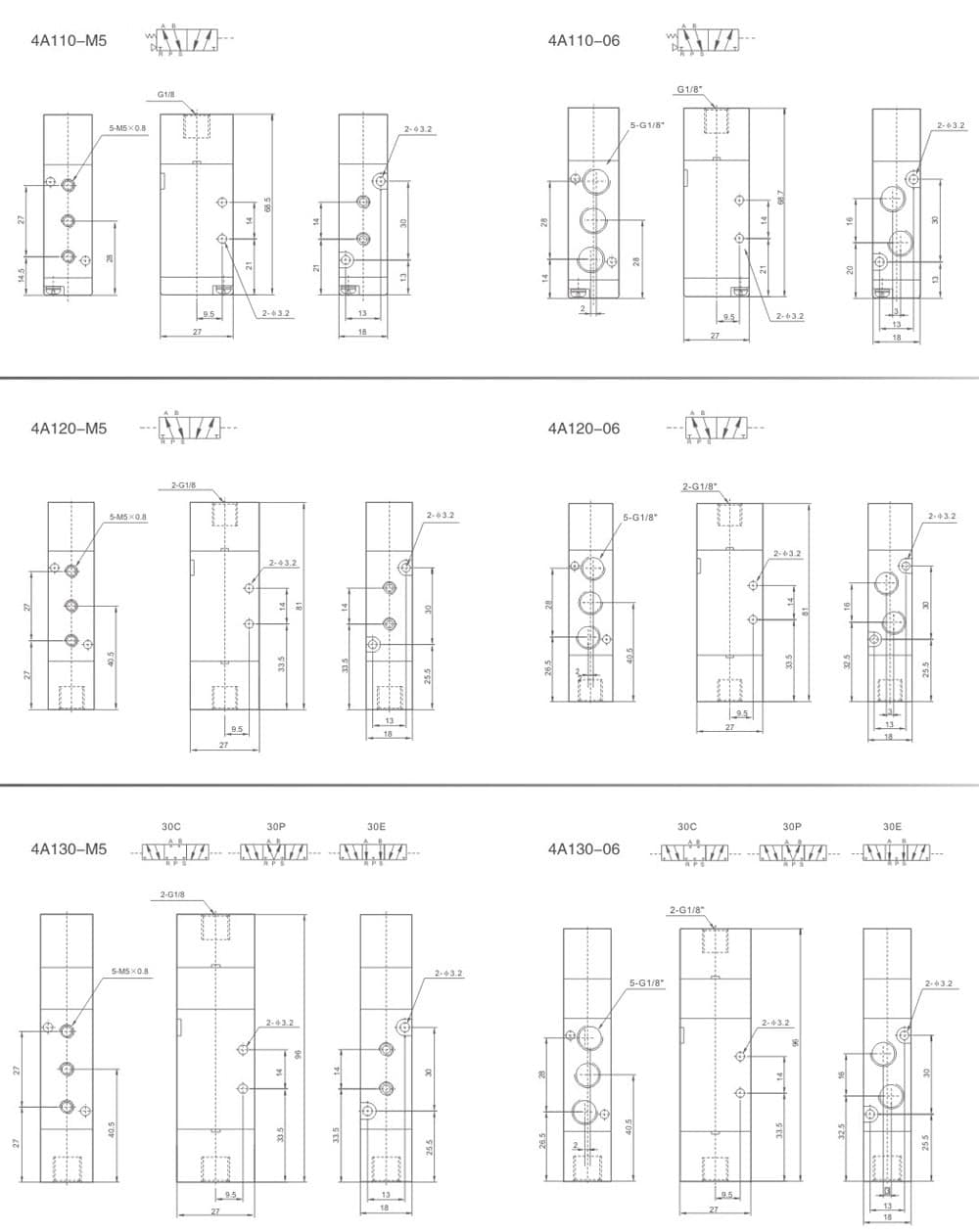

100 Series 4A mounting dimension drawing

100 Series 3V and 3A mounting dimension drawing

drawing group	Covered models
4V solenoid dimensions	4V110, 4V120, and 4V130 M5 / 06 models
4A air-piloted dimensions	4A110, 4A120, and 4A130 M5 / 06 models
3V / 3A three-way dimensions	3V110, 3V120, 3A110, and 3A120 M5 / 06 models

Same-group comparison

Pneumatic Solenoid Valves series comparison

Compare related product series by function, size, pressure, and RFQ details.

6 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread
3V1 Compact 3/2 Solenoid Valve	M5: M5x0.8; 06: G1/8	Blank: pipe connection type; B: plate connection type	40 Micron Filtered Air	0-0.8 MPa	DC12V, DC24V, AC24V, AC110V, AC220V, AC380V (AC 50Hz/60Hz)	M5: M5x0.8; 06: G1/8
VF/VZ 5-Way Solenoid Valve	-	two-position five-way \| three-position five-way	40 Micron Filtered Air	0.15-0.8 MPa	1 single-head double-position, 2 double-head double-position, 3/4/5 double-head three-position center options	Confirm by interface
4M Plate-Type Solenoid Valve	2: 1/8 and 1/4 valve body; 3: 1/4 and 3/8 valve body	solenoid valve	40 Micron Filtered Air	0.15-0.8 MPa	10 single-head double-position; 20 double-head double-position	06: G1/8, 08: G1/4, 10: G3/8
400 High-Flow Directional Valve	15: G1/2	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	40 Micron Filtered Air	0.15-0.8 MPa	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	15: G1/2
200 Mid-Size Directional Valve	G1/8 and G1/4	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	40 Micron Filtered Air	0.15-0.8 MPa	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	G1/8 and G1/4
100 Compact Directional Valve	M5x0.8 and G1/8	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	40 Micron Filtered Air	0.15-0.8 MPa	10 single-head double-position, 20 double-head double-position, 30C/30E/30P three-position center options	M5x0.8 and G1/8

Choose by valve task

Start with the control job the valve must do.

Pick the closest use case, then confirm valve function, port size, coil voltage, pressure, medium, mounting, and connector details before RFQ.

Scenario 01

Switch actuator extension and retraction from a PLC signal.

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.

Recommended option

Pneumatic solenoid valve with matching function, coil, pressure, and port thread.

Valve function
Coil voltage
Port size
Mounting style

Common valve uses

Where pneumatic control components are installed.

3V1 Series 3/2 Way Pneumatic Solenoid Valve product image

Valve use 01

PLC-controlled cylinder motion

Use 3/2, 5/2, or 5/3 solenoid valves to extend, retract, hold, or exhaust cylinders, grippers, clamps, and rotary actuators from electrical outputs.

Confirm valve function
Match coil voltage and connector
Choose individual or manifold mounting

VF & VZ Series Pneumatic Directional Control Solenoid Valves product image

Valve use 02

Valve islands for multi-actuator machines

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.

Count valve stations
Confirm common supply port
Plan wiring and spare positions

4M Series Plate Type Pneumatic Solenoid Valve product image

Valve use 03

Compact pneumatic control panels

Use compact directional valve series where a machine cabinet needs clear port labels, coil access, and repeatable service without changing the actuator circuit.

Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.
Confirm port thread
Keep coils and connectors accessible

Valve and flow tools

Check flow, Cv, velocity, and unit conversion before choosing valves.

Use these calculations when a pneumatic valve decision depends on flow capacity, pressure loss, port size, or catalog unit conversion.

Open Valves & flow tools

01Valves & flow

Cv Flow Calculator

Estimate valve Cv before selecting a solenoid, manual, or control valve.

Calculation modeCv valueFlow rateOpen calculator 02Valves & flow

Air Orifice Flow Calculator

Review approximate air flow through an orifice or restriction point.

Orifice diameterUpstream pressureDownstream pressureOpen calculator 03Valves & flow

Air Velocity Calculator

Check air velocity so port, tube, and valve choices stay practical.

Free-air flowFlow unitInternal diameterOpen calculator 04Unit conversion

Cv / Kv Converter

Convert Cv and Kv values when comparing international datasheets.

Coefficient valueSource coefficientOpen calculator

Request category support

Send the details that make this Pneumatic Solenoid Valves inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and tube size
Working medium, pressure, and temperature
Review function, size, pressure, mounting, and inquiry data for Pneumatic Solenoid Valves.

Category FAQ

Common questions before sending an inquiry.

01Pneumatic Solenoid ValvesWhat does 5/2 mean on a pneumatic solenoid valve?

It means the valve has five ports and two positions. It is commonly used to control double-acting cylinders.

02Pneumatic Solenoid ValvesWhat should I send for a replacement solenoid valve?

Send valve function, port size, coil voltage, connector type, old model number, body photos, coil photos, and any manifold information.

Pneumatic Solenoid Valves

Start solenoid valve selection from function and coil voltage.

Pneumatic Solenoid Valves: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

3V1 Series model-code and operating specifications

Order Symbol

Key Specs

Quote Checklist

VF/VZ Series model-code and operating specifications

VF/VZ Series mounting dimension drawing

Order Symbol

Key Specs

Quote Checklist

4M Series model-code and operating specifications

4M Series plate-type mounting dimension drawing

Order Symbol

Key Specs

Quote Checklist

400 Series model-code and operating specifications

400 Series complete mounting dimension drawing

400 Series 4V solenoid structure and parts

400 Series 3V solenoid structure and parts

400 Series 4A air-piloted structure and parts

400 Series 3A air-piloted structure and parts

Order Symbol

Key Specs

Quote Checklist

200 Series model-code and operating specifications

200 Series complete mounting dimension drawings

Order Symbol

Key Specs

Quote Checklist

100 Series model-code and operating specifications

100 Series 4V solenoid structure and parts

100 Series 4A air-piloted structure and parts

100 Series 3V solenoid structure and parts

100 Series 3A air-piloted structure and parts

100 Series complete mounting dimension drawings

Pneumatic Solenoid Valves series comparison

Start with the control job the valve must do.

Switch actuator extension and retraction from a PLC signal.

Group several pneumatic outputs in a control panel.

Match an old directional valve from photos and labels.

Where pneumatic control components are installed.

PLC-controlled cylinder motion

Valve islands for multi-actuator machines

Compact pneumatic control panels

Check flow, Cv, velocity, and unit conversion before choosing valves.

Cv Flow Calculator

Air Orifice Flow Calculator

Air Velocity Calculator

Cv / Kv Converter

Send the details that make this Pneumatic Solenoid Valves inquiry review-ready.

Pneumatic Solenoid Valves RFQ details

Common questions before sending an inquiry.
