Pneumatic fittings / hose barb connection

Hose Barb Pneumatic Fittings

Review function, size, pressure, mounting, and inquiry data for Hose Barb Pneumatic Fittings.

View product specificationsCompare hose barb data
Soft hose connectionClamp-secured routingBrass body routeHose ID first

Category buying guide

Start hose barb selection from hose inside diameter and media.

Review function, size, pressure, mounting, and inquiry data for Hose Barb Pneumatic Fittings.

Pneumatic fitting categories
01Push-In Fittings02Flow-Control Fittings03Hose Barb Fittings04Pneumatic Mufflers05Metal and Stainless Fittings
Hose Barb Pneumatic Fittings • Product specifications

Hose Barb Pneumatic Fittings: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Visual catalog

Identify models by body style.

Filter the catalog by body style, then use the model badge on each photo for RFQ matching.

Bepto Pneumatic BTPC series machined brass male straight hose barb fittingBTPC

BTPC - Male Straight Barb

Category: Straight

View Data
Bepto Pneumatic BTPCF series machined brass female straight hose barb fittingBTPCF

BTPCF - Female Straight Barb

Category: Straight

View Data
Bepto Pneumatic BTPE series machined brass hose barb tee fittingBTPE

BTPE - Barb Tee

Category: Tee/Y/Cross

View Data

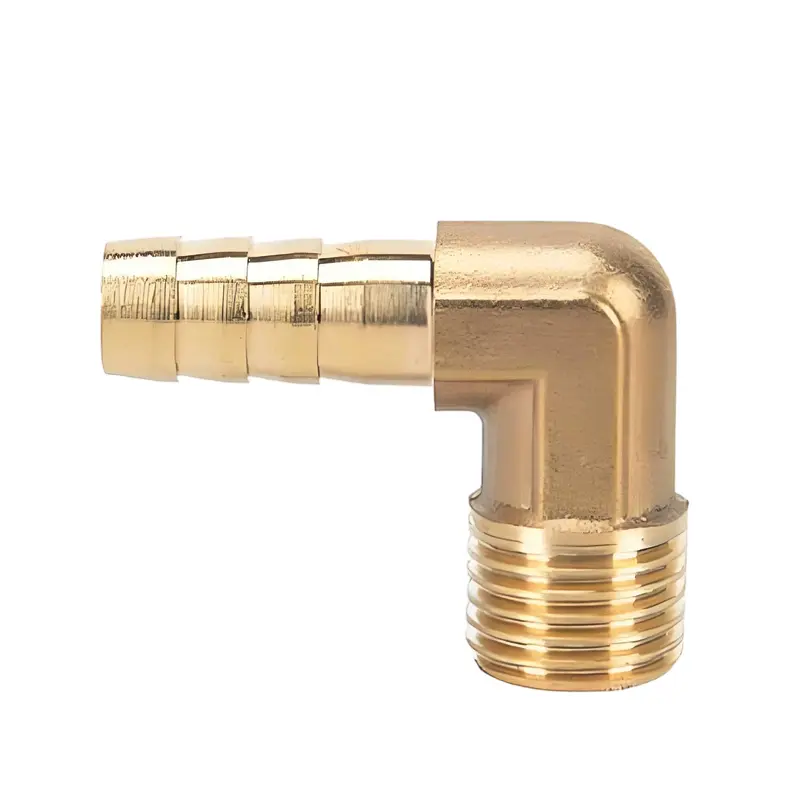

Bepto Pneumatic BTPL series machined brass male elbow hose barb fittingBTPL

BTPL - Male Elbow Barb

Category: Elbow

View Data
Bepto Pneumatic BTPM series machined brass long straight hose barb fittingBTPM

BTPM - Male Straight (Long)

Category: Straight

View Data
Bepto Pneumatic BTPU series machined brass union straight hose barb fittingBTPU

BTPU - Union Straight Barb

Category: Straight

View Data

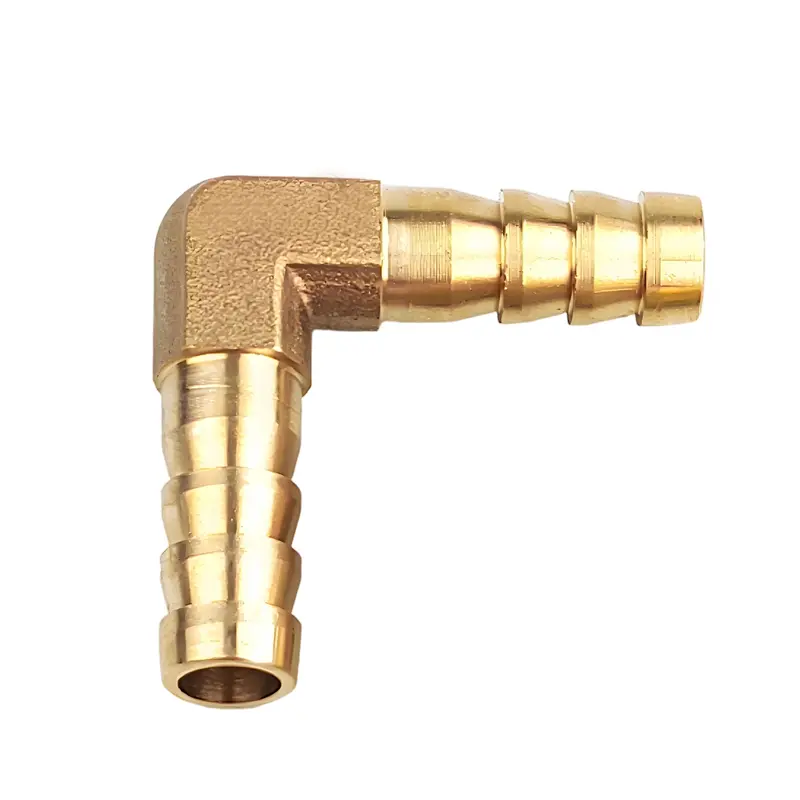

Bepto Pneumatic BTPV series machined brass union elbow hose barb fittingBTPV

BTPV - Union Elbow Barb

Category: Elbow

View Data
Bepto Pneumatic BTPY series machined brass hose barb Y connectorBTPY

BTPY - Barb Y Connector

Category: Tee/Y/Cross

View Data
Bepto Pneumatic BTPZA series machined brass hose barb cross connectorBTPZA

BTPZA - Barb Cross Connector

Category: Tee/Y/Cross

View Data
Selection snapshot

BTP hose barb photo catalog

10 rows
SeriesBody styleConnection cueSelection note
BTPCMale straight barbHose barb to male threadConfirm Hose I.D.. and male thread standard
BTPCFFemale straight barbHose barb to female threadConfirm Hose I.D.. and female port thread
BTPEBarb teeThree-way hose branchConfirm all branch Hose I.D.. values
BTPLMale elbow barbRight-angle hose barb to male threadConfirm elbow direction and installed clearance
BTPMLong straight barbExtended straight hose barb bodyConfirm shank length and clamp position
BTPUUnion straight barbHose-to-hose inline unionConfirm both Hose I.D.. values
BTPVUnion elbow barbHose-to-hose right-angle unionConfirm bend direction and clamp access
BTPYBarb Y connectorTwo-branch hose splitConfirm branch angle and Hose I.D..
BTPZABarb cross connectorFour-way hose branchConfirm branch layout and service clearance
Additional table

Hose barb selection specifications

9 rows
ParameterSpecification
Hose I.D.. (inner diameter)4 mm to 25 mm (3/16 in to 1 in)
thread optionsBSPT (R), BSPP (G), NPT, Metric
Compatible hoseRubber, PVC, silicone, braided, and soft hose
Max. pressureUp to 2.0 MPa for typical hose assemblies; depends on hose and clamp
temperature-20 to 100 °C
Fluid compatibilityAir, Water, Oil, and inert gas
Material standardMachined Brass CW614N / CW617N
Finish optionsNatural Brass or nickel-plated finish
Additional table

Hose barb application and installation notes

8 rows
application or ruleRecommended detail for RFQ
Mold cooling systemsConfirm media, temperature fluctuation, Hose I.D.., thread, and finish
Maintenance and repair hoseConfirm straight, elbow, union, tee, Y, or cross body style from photos
General air toolsConfirm air pressure, Hose I.D.., flow demand, and clamp type
Low-pressure fluid linesConfirm water, oil, coolant, or inert gas compatibility
Clamp requirementUse worm-gear clamps or O-clips on pressurized hose, especially above 2 bar
Sizing ruleBarb outside diameter should match the hose inside diameter
thread sealingUse thread sealant on R/NPT tapered threads; check O-ring sealing for G threads

Choose by connection job

Start with how the air line connects.

Pick the closest fitting use case, then confirm tube OD, thread, body shape, material, pressure, and installation clearance before RFQ.

Scenario 01

Connect rubber, PVC, or braided hose to a pneumatic port.

Confirm hose ID and thread before selecting the barb body.

Recommended option

Machined brass hose barb fitting review.

  • Hose ID
  • Thread
  • Clamp type
  • Media

Common fitting uses

Where pneumatic fittings solve connection details.

Bepto Pneumatic BTPC series machined brass male straight hose barb fitting
Fitting use 01

Shop-air hose circuits

Use hose barb fittings for clamp-secured rubber, PVC, or braided hose on auxiliary shop-air equipment and workstation supply lines.

  • Confirm hose ID
  • Check clamp access
  • Review pressure
Brass hose barb fitting for water or coolant line
Fitting use 02

Water or coolant lines

Barb fittings can support non-air media when material compatibility and temperature are confirmed.

  • Confirm media
  • Check temperature
  • Review material
Clamp-access hose barb branch fitting
Fitting use 03

Clamp-access hose branches

Use barb elbows, tees, and threaded bodies where hose branches must remain reachable for clamp tightening or hose replacement.

  • Measure hose ID
  • Measure thread
  • Confirm body angle

Connection flow tools

Calculate tube ID, air velocity, and pressure drop before selecting fittings.

Use these tools when fitting selection depends on tube outside diameter, thread, line velocity, pressure loss, or flow-unit communication.

Open Valves & flow tools
01Valves & flow

Tube ID Calculator

Estimate tube inner diameter for the connection and flow requirement.

Free-air flowFlow unitWorking pressureOpen calculator02Valves & flow

Air Velocity Calculator

Check whether tube size keeps air velocity in a practical range.

Free-air flowFlow unitInternal diameterOpen calculator03Valves & flow

Pressure Drop Calculator

Compare expected pressure loss through tubing and connection runs.

FlowPipe lengthEquivalent fitting lengthOpen calculator04Unit conversion

Flow Converter

Convert flow units before sending fitting or tubing RFQ details.

Flow valueSource flow unitOpen calculator

Request category support

Send the details that make this Hose Barb Pneumatic Fittings inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Hose inside diameter
  • Thread type and size
  • Hose/media material
  • Clamp and pressure requirement
Push-In FittingsFlow-Control FittingsPneumatic MufflersMetal and Stainless FittingsAll Pneumatic Fittings

Hose Barb Pneumatic Fittings RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Hose Barb Pneumatic FittingsWhat information helps Bepto Pneumatic quote hose barb pneumatic fittings?

Tube outside diameter or hose size, thread standard, body shape, pressure range, material preference, installed environment, and quantity are the most useful starting details.

02Hose Barb Pneumatic FittingsCan Bepto Pneumatic match an existing fitting from photos?

Yes. Send photos from the tube side, thread side, and installed position, plus a tube or thread measurement if available.

03Hose Barb Pneumatic FittingsWhy are fitting products grouped separately?

Each fitting function has different selection details. Grouping push-in, flow-control, metal, hose barb, and muffler products separately makes tube size, thread, pressure, material, and RFQ details easier to compare.
