Pneumatic Filter Regulators

Filter regulators combine air filtration and pressure setting in one compact unit.

View product specificationsBuild an FRL RFQ
Filter + regulateCompact FR stationGauge optionsHigh-pressure options

Category buying guide

Select filter regulators when cleanliness and pressure setting are both needed.

Filter regulators are a compact route for machines that need moisture/particle removal and stable output pressure without a separate lubricator.

Air preparation categories
01Air Filters02Lubricators03Filter Lubricators04FRL Units05Pressure Regulators06Filter Regulators
Pneumatic Filter Regulators • Product specifications

Pneumatic Filter Regulators: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

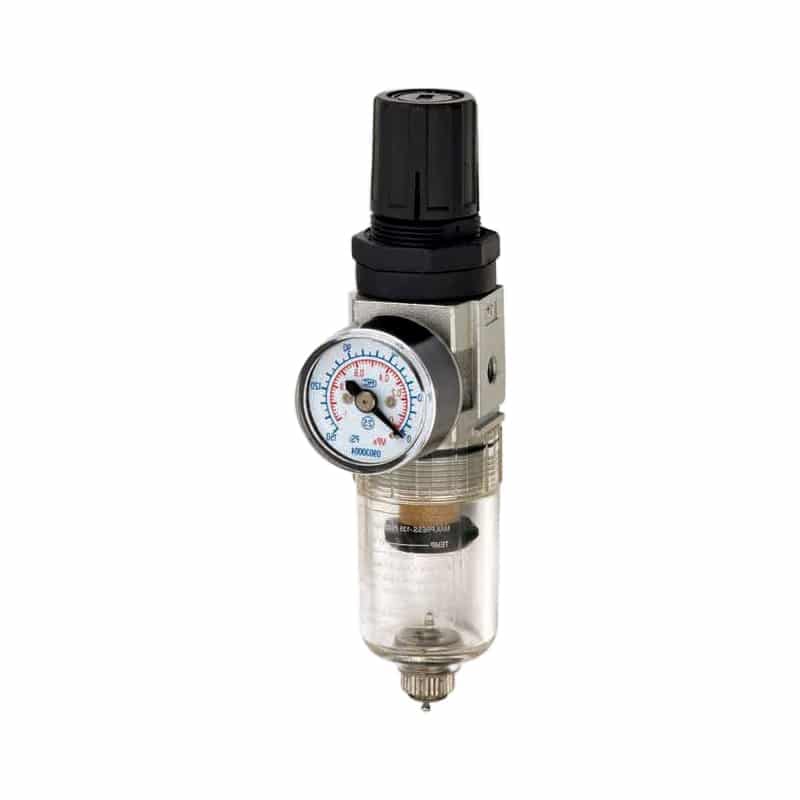

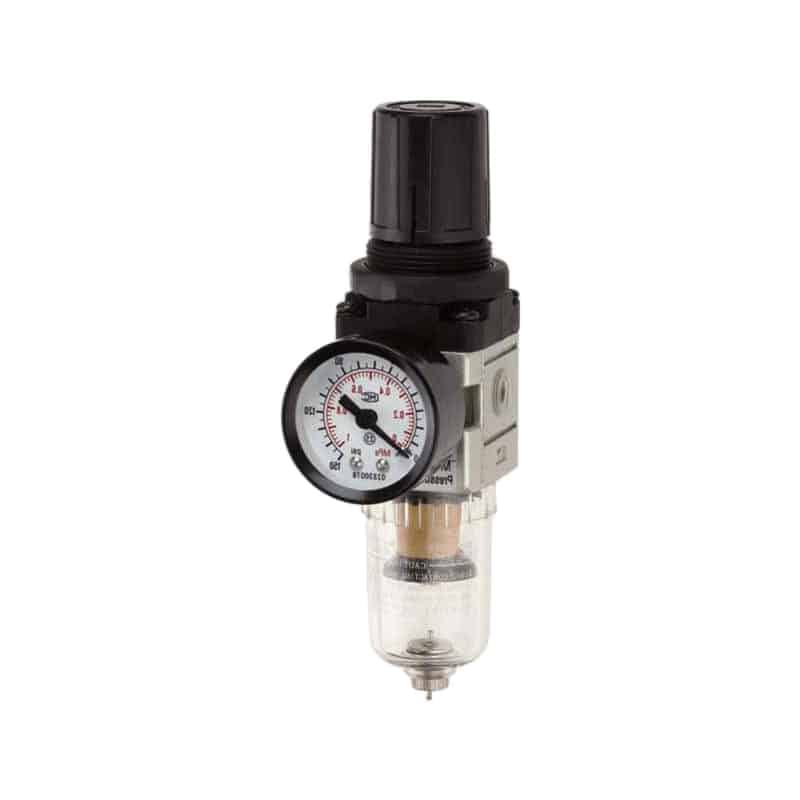

xaw 1000 5000 series pneumatic filter regulator unit fr unit product view 1

Order Symbol

Series 01
Series
XAW 1000-5000 Series Pneumatic Filter Regulator Unit (FR Unit)
Model range
XAW1000-M5 to XAW5000-10
Port size code
M5: M5x0.8; 01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1

Key Specs

Selection focus
  • Model range: XAW1000-M5 to XAW5000-10
  • Port size code: M5: M5x0.8; 01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1
  • Rated flow: 100-5000 L/min
  • Metal cup code: U: iron cup; L: aluminum cup for 2000 size and above
  • Drain code: Blank: Manual drain; D: Automatic drain for 2000 size and above

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the old label, installed photo, or preferred product series.
  • Line size: Confirm port size, thread standard, and required flow.
  • Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
  • Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
  • Application: Tell us compressor line, machine position, environment, and quantity.
Selection snapshot

Model code, port, drain, and bowl specifications

22 rows
ModelXAW1000-M5XAW2000-01XAW2000-02XAW3000-02XAW3000-03XAW4000-03XAW4000-04XAW4000-06XAW5000-06XAW5000-10
Series codeXAXAXAXAXAXAXAXAXAXA
function codeW (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)W (filter and Regulator)
Specification code1000200020003000300040004000400050005000
Port size codeM5010202030304060610
Port sizeM5x0.8G1/8G1/4G1/4G3/8G3/8G1/2G3/4G3/4G1
Rated flow (L/min)1005505502000200040004000450050005000
Filtration grade25 μm25 μm25 μm25 μm25 μm25 μm25 μm25 μm25 μm25 μm
Max. working pressure1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa1.0 MPa
proof pressure1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa1.5 MPa
Operating temperature range5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C5-60 °C
Adjustable pressure range0.05-0.7 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa0.05-0.85 MPa
Bowl materialPolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonatePolycarbonate
Protective coverNot availableAvailableAvailableAvailableAvailableAvailableAvailableAvailableAvailableAvailable
drain type codeBlank: Manual drain onlyBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drainBlank: manual; D: auto drain
Manual drain order codeXAW1000-M5XAW2000-01XAW2000-02XAW3000-02XAW3000-03XAW4000-03XAW4000-04XAW4000-06XAW5000-06XAW5000-10
Auto drain order codeNot availableXAW2000-01DXAW2000-02DXAW3000-02DXAW3000-03DXAW4000-03DXAW4000-04DXAW4000-06DXAW5000-06DXAW5000-10D
Metal Cup option codeNot availableU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cupU: iron cup; L: aluminum cup
Iron cup order codeNot availableXAW2000-01UXAW2000-02UXAW3000-02UXAW3000-03UXAW4000-03UXAW4000-04UXAW4000-06UXAW5000-06UXAW5000-10U
Aluminum cup order codeNot availableXAW2000-01LXAW2000-02LXAW3000-02LXAW3000-03LXAW4000-03LXAW4000-04LXAW4000-06LXAW5000-06LXAW5000-10L
Valve typeWith overflowWith overflowWith overflowWith overflowWith overflowWith overflowWith overflowWith overflowWith overflowWith overflow
Graphic symbolFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gaugeFilter and Regulator with pressure gauge
Additional table

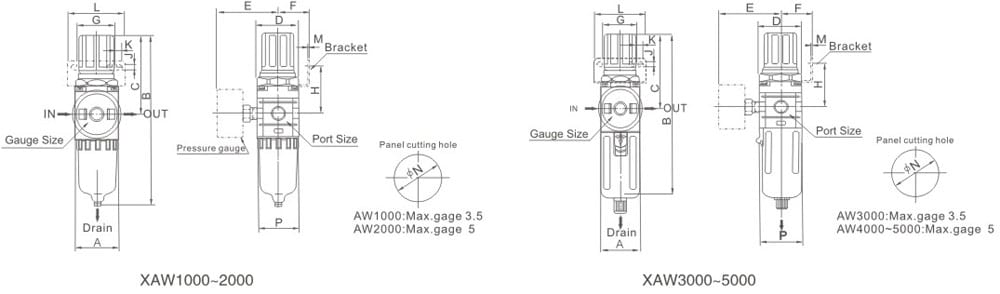

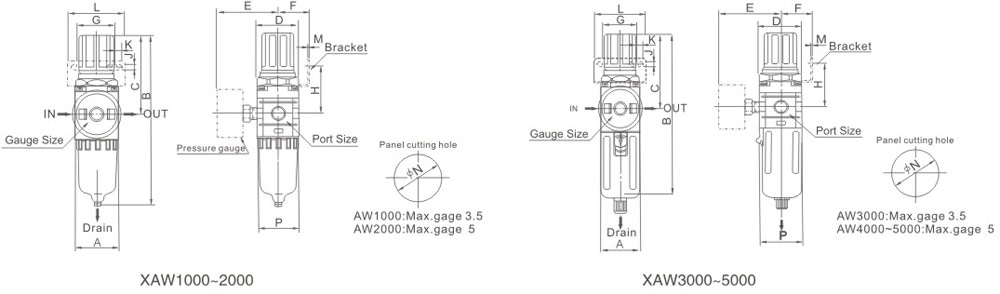

Port size and Mounting dimensions

7 rows
ModelPort size (G)ABCDEFGHJKLMNP
XAW1000M525109.550.525262528304.56.540220.528
XAW2000G1/8″-G1/4″40164.5784056.8303443.55.415.4552.333.540
XAW3000G1/4″-G3/8″5321192.55360.83940466.58532.342.556
XAW4000G3/8″-1/2″702621127070.549.25453.58.510.5702.352.573
XAW4000-06G3-4″752671147070.549.25455.58.510.5702.352.573
XAW5000G3/4″-G1″903381169075.549.554628.510.5702.352.590

Same-group comparison

Pneumatic Filter Regulators series comparison

Compare related product series by function, size, pressure, and RFQ details.

6 related series
SeriesPort sizefunctionFlow rangePressure rangeFiltration and drainBowl material
XAW 1000-5000 Filter RegulatorM5: M5x0.8; 01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1Filter Regulator100-5000 L/min-25 μm; Manual drainPolycarbonate

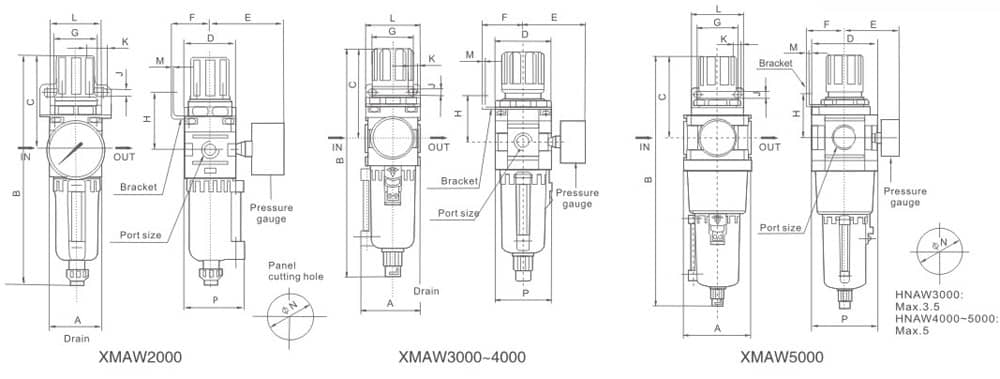

XMA Metal Cup Filter Regulator01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1Metal Cup Filter Regulator550-5500 L/min-25 μm / 5 μm / 50 μm; Manual drainAluminum die-cast body
AFR & BFR Filter Regulator1500: G1/8; 2000: G1/4; 3000: G3/8; 4000: G1/2Filter Regulator--Manual drainAluminum die-cast body

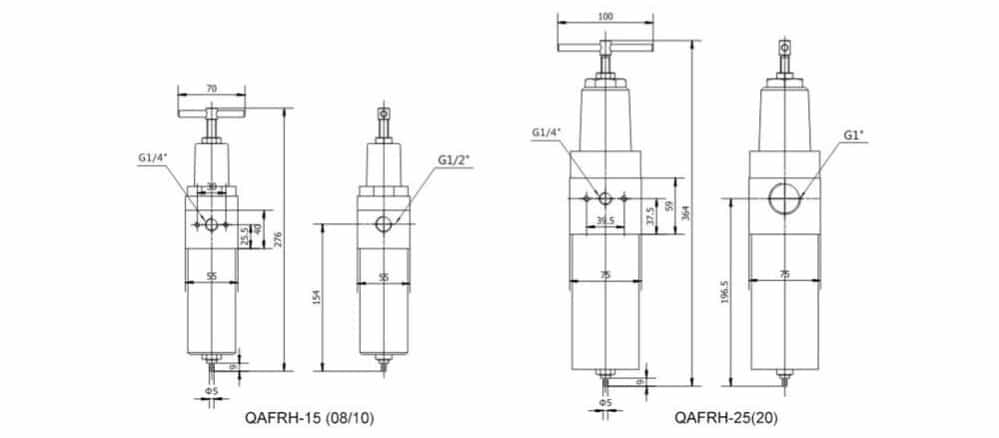

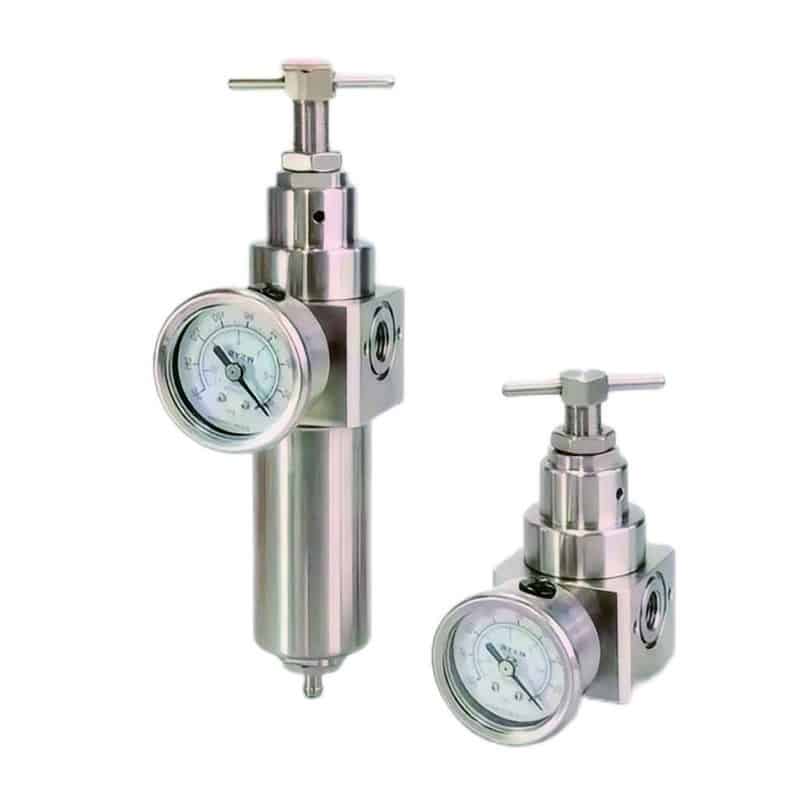

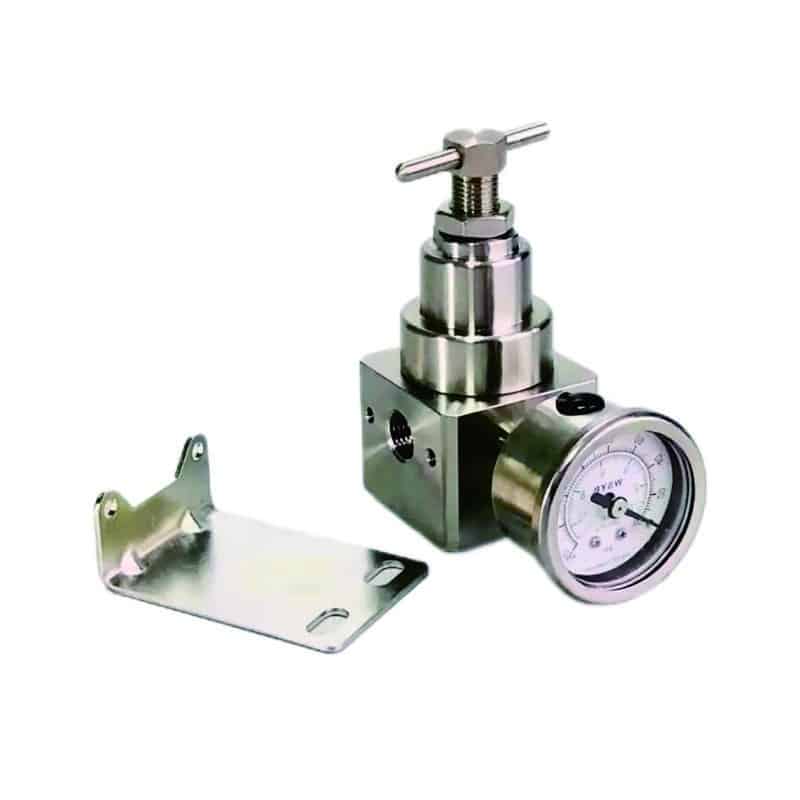

QFRH High Pressure Filter Regulator8: G1/4; 10: G3/8; 15: G1/2; 20: G3/4; 25: G1High Pressure Filter Regulator----

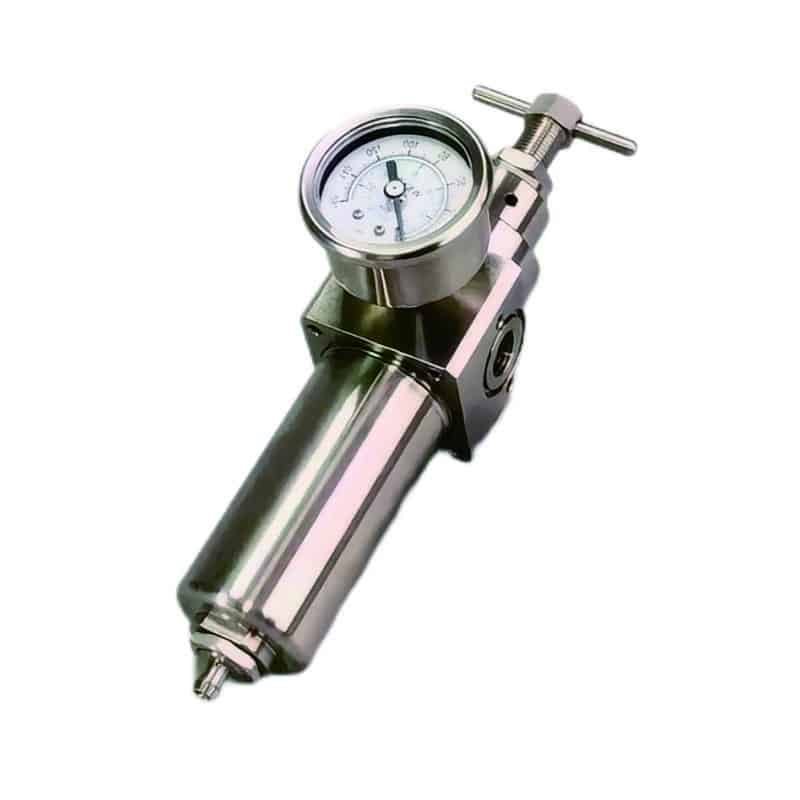

QFRH Stainless Filter RegulatorG1/4, G3/8, G1/2, G3/4, G1Stainless Filter Regulator-0.15-3.5 MPa--

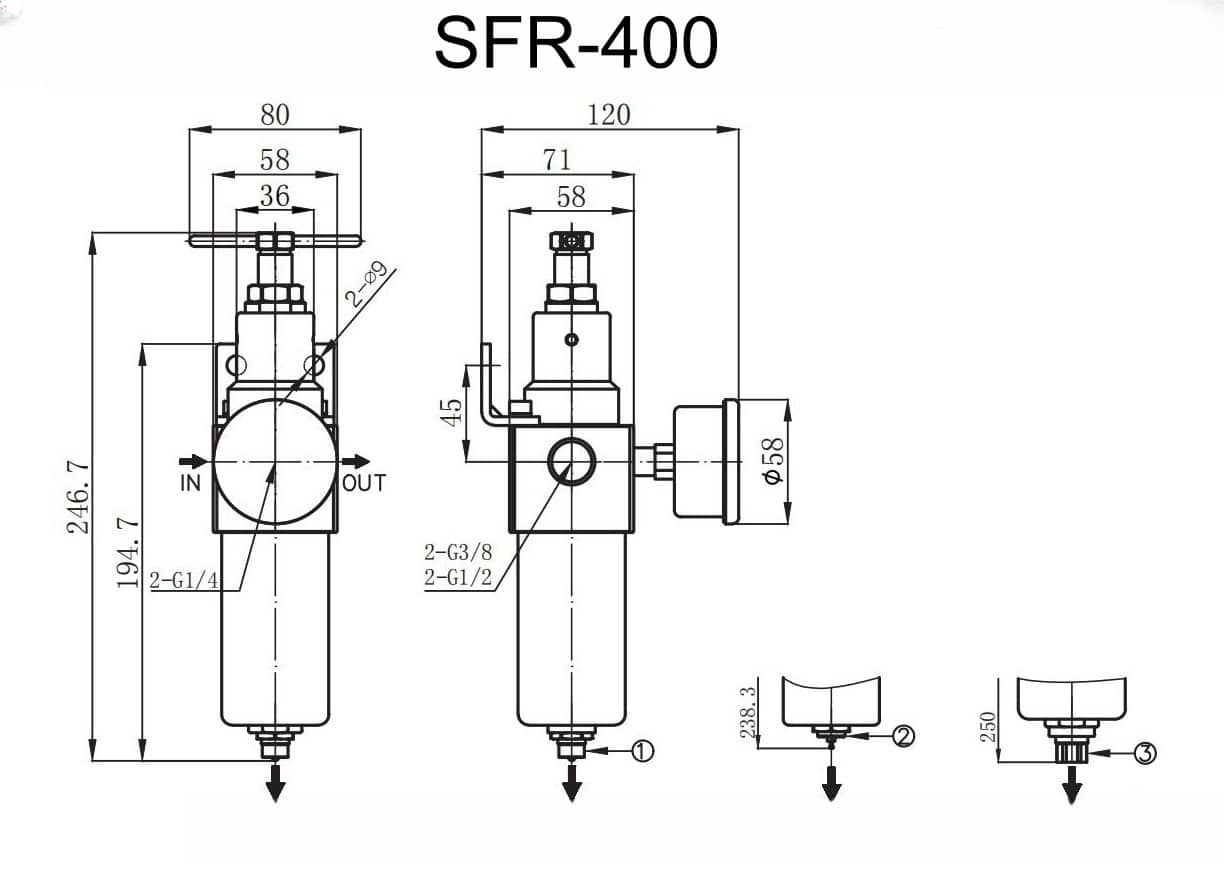

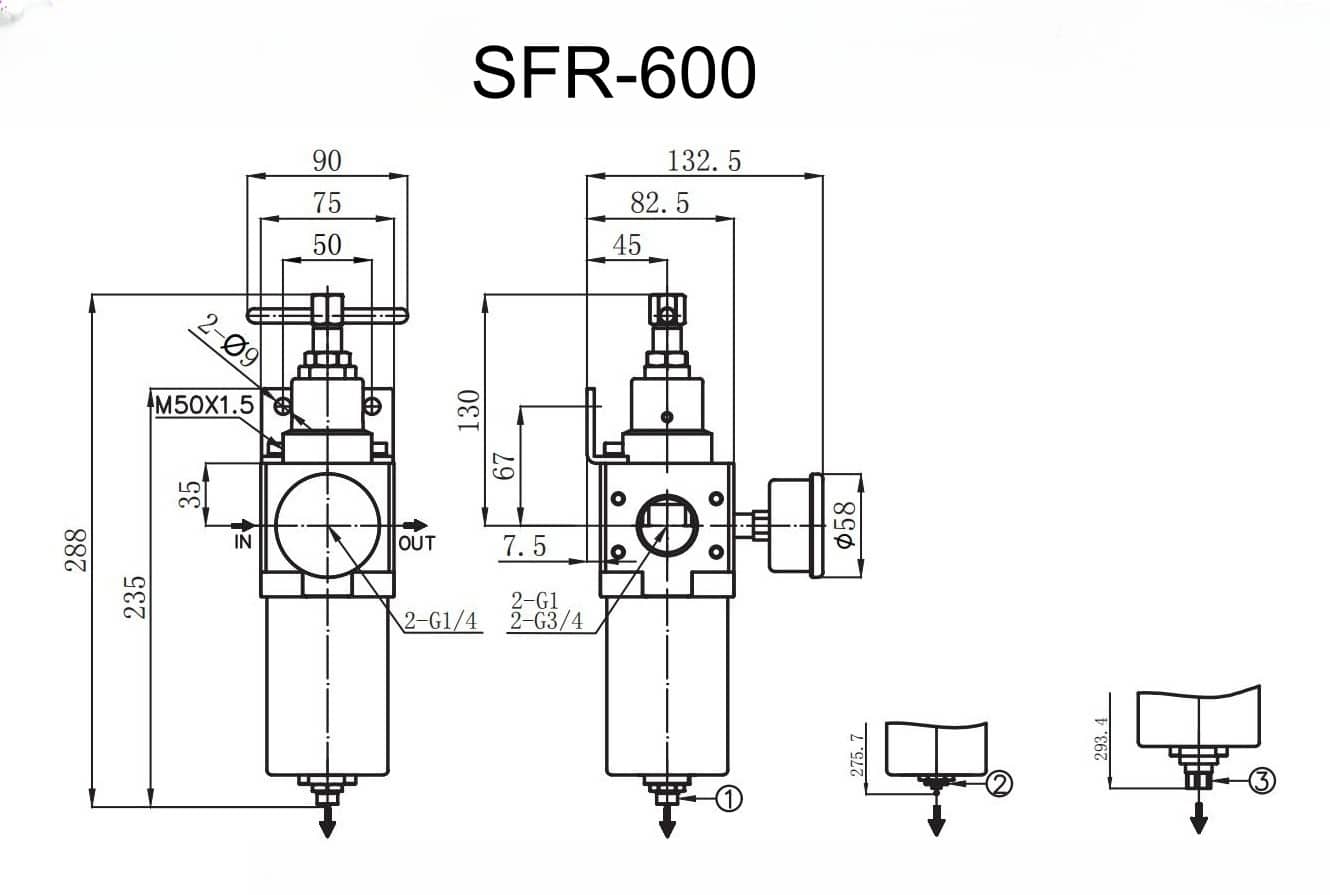

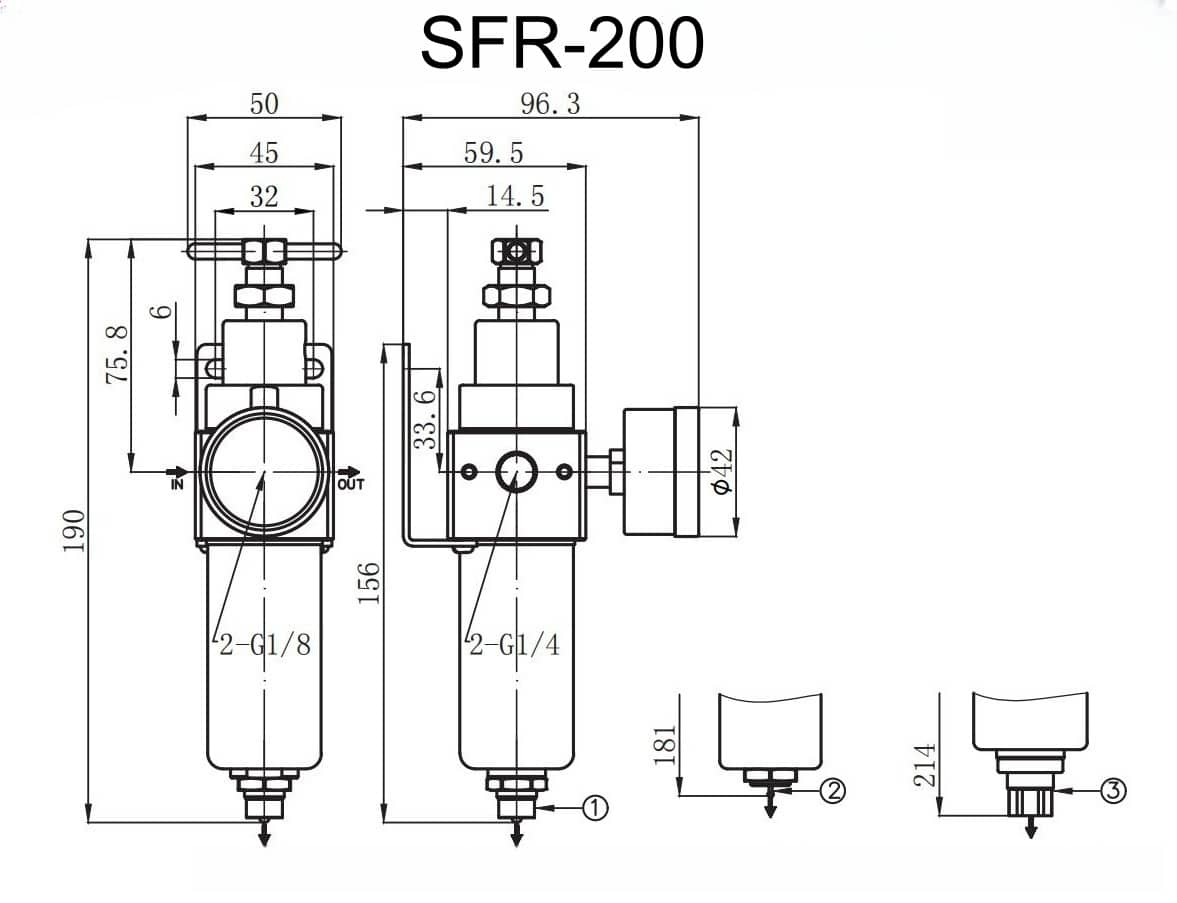

SFR Stainless Filter RegulatorG1/4, G3/8, G1/2, G3/4, G1Stainless Filter Regulator1850-8000 L/min0.15-2 MPaBlank: 5 μm; U: 40 μm; Automatic condensate drainSUS316 stainless steel

Choose by air-preparation job

Start with the air quality or pressure job.

Pick the closest FRL use case, then confirm port size, flow, pressure range, filtration, drain, bowl, gauge, and service access before RFQ.

Scenario 01

Combine filtration and pressure control in one assembly.

FR units save space when lubrication is not needed at the station.

Recommended option

Filter regulator matched by port, flow, pressure adjustment range, and drain style.

  • Output pressure
  • Rated flow
  • Drain function
  • Gauge

Common FRL uses

Where air preparation units protect the pneumatic line.

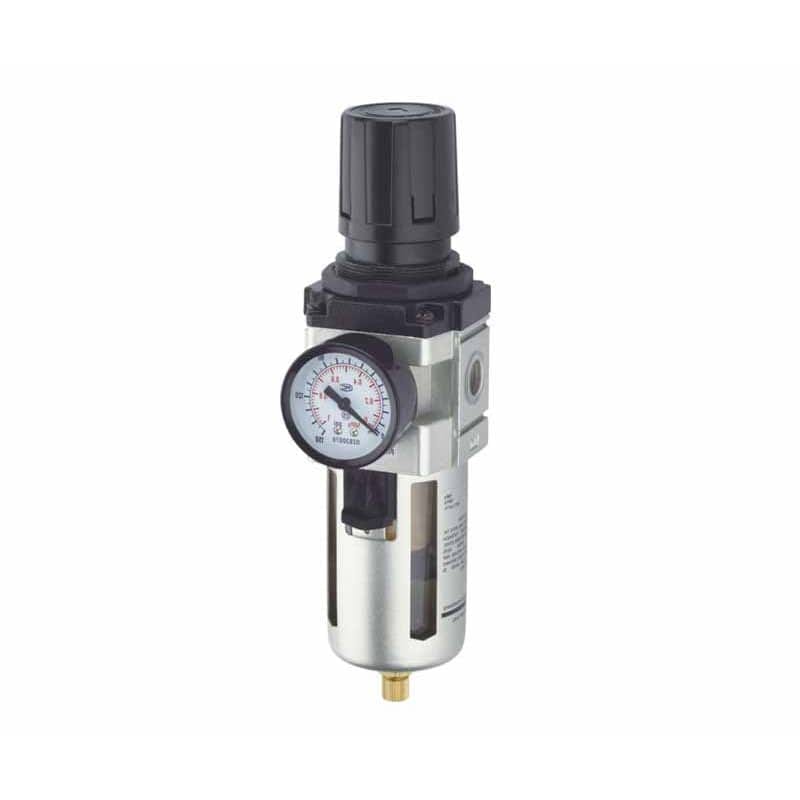

XAW 1000-5000 Series Pneumatic Filter Regulator Unit (FR Unit) product image
FRL use 01

Machine branch pressure stations

Use filter regulators where a machine branch needs clean air and a stable outlet pressure before feeding solenoid valves, cylinders, or grippers.

  • Confirm inlet and outlet pressure
  • Check rated flow
  • Keep gauge visible

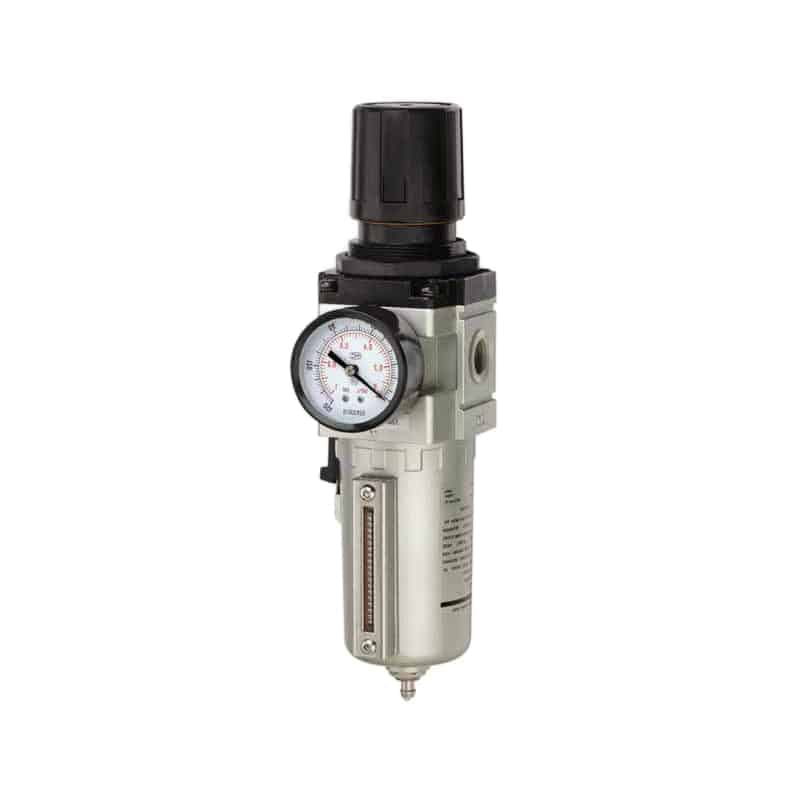

XMA Series XMAW Metal Cup Pneumatic Filter Regulator (FR Unit) product image
FRL use 02

Dry valve and cylinder circuits

Use filter regulators when downstream components need filtration and pressure control but the machine should not add oil mist to the air line.

  • Confirm dry-air policy
  • Choose filtration grade
  • Select drain and bowl material

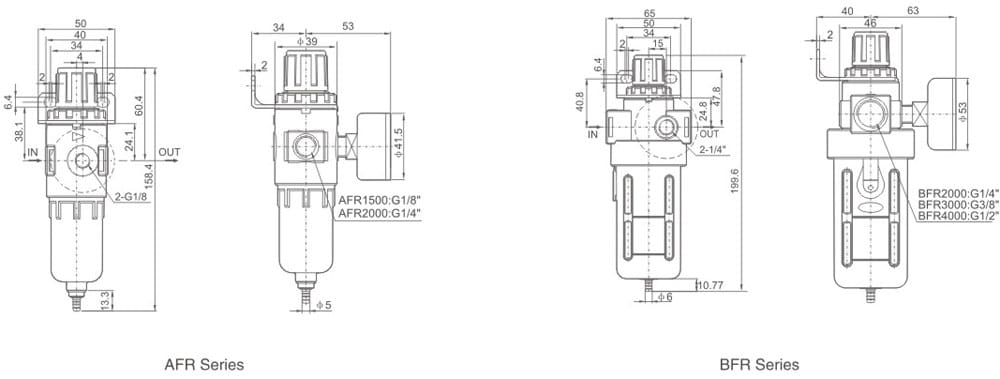

AFR & BFR Series Pneumatic Filter Regulator Units product image
FRL use 03

Metal-cup or stainless stations

Use metal-cup, high-pressure, or stainless filter regulators where transparent bowls are unsuitable because of pressure, impact, washdown, or corrosion.

  • Check cup material
  • Confirm pressure rating
  • Review environment

Compressed-air tools

Review pressure stability and air capacity before selecting FRL units.

Pair filters, regulators, lubricators, and complete FRL units with pressure-drop, compressor, receiver, and pressure-unit checks.

Open Compressed air tools
01Valves & flow

Pressure Drop Calculator

Estimate pressure loss across air lines before sizing FRL components.

FlowPipe lengthEquivalent fitting lengthOpen calculator02Compressed air

Compressor CFM Calculator

Check compressor capacity against expected pneumatic demand.

Receiver volumeStart pressureEnd pressureOpen calculator03Compressed air

Air Receiver Tank Sizing Calculator

Review receiver volume when pressure stability matters.

Demand flowCompressor support flowDurationOpen calculator04Unit conversion

Pressure Converter

Convert pressure units for FRL, regulator, and filter specifications.

Pressure valueSource pressure unitOpen calculator

Request category support

Send the details that make this Pneumatic Filter Regulators inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Model code or installed product photo
  • Port size, thread standard, and rated flow
  • Pressure range, filtration grade, and drain type
  • Bowl material, bracket, gauge, and environment requirements
Air FiltersLubricatorsFilter LubricatorsFRL Units

Pneumatic Filter Regulators RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Pneumatic Filter RegulatorsWhat details should I send for a filter regulator?

Send port size, rated flow, inlet and outlet pressure range, filtration grade, drain type, bowl material, gauge/bracket needs, and photos if replacing an old unit.

02Pneumatic Filter RegulatorsWhen is a filter regulator better than separate filter and regulator units?

Use a filter regulator when space is limited and the circuit needs filtration plus pressure setting but does not need a separate lubricator at that location.
