Pneumatic Pressure Regulators

Pressure regulators set and stabilize working pressure for pneumatic machines.

View product specifications Build an FRL RFQ

Pressure settingHigh-flow optionsPrecision regulationStainless options

Category buying guide

Choose pressure regulators by outlet pressure stability and flow demand.

Regulators protect downstream components and stabilize machine behavior.

Air preparation categories

01Air Filters 02Lubricators 03Filter Lubricators 04FRL Units 05Pressure Regulators 06Filter Regulators

Pneumatic Pressure Regulators • Product specifications

Pneumatic Pressure Regulators: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Product image

Order Symbol

Series 01

Series: XAR 8000-9000 Series High-Flow Pneumatic Pressure Regulator
Model range: XAR8000-14 | XAR9000-20
body size code: 8000, 9000

Key Specs

Selection focus

Model range: XAR8000-14 | XAR9000-20
Body size code: 8000, 9000
Rated flow (L/min): 18000, 22000
Max. working pressure: 1.0 MPa
Operating temperature range: 5-60 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, flow, port, and pressure specifications

14 rows

Model	XAR8000-14	XAR9000-20
Series code	XA	XA
function code	R (Regulator)	R (Regulator)
body size code	8000	9000
Port size code	14	20
Standard order code	XAR8000-14	XAR9000-20
Rated flow (L/min)	18000	22000
Port size (G)	G1½	G2
Max. working pressure	1.0 MPa	1.0 MPa
proof pressure	1.5 MPa	1.5 MPa
Operating temperature range	5-60 °C	5-60 °C
Adjustable pressure range	0.05-0.85 MPa	0.05-0.85 MPa
Valve type	With Overflow	With Overflow
Pressure gauge size	1/4	1/4

Additional table

Port size and Mounting dimensions

5 rows

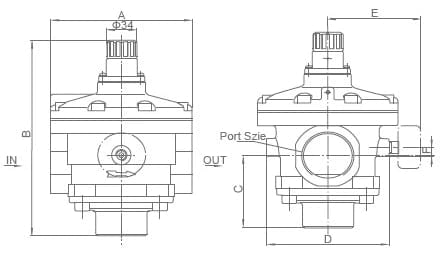

XAR 8000-9000 mounting dimension reference drawing

dimension group	Model	Port size (G)	A	B	C	D
Port and bore	XAR8000	1½	Φ126	216	-	-
Port and bore	XAR9000	2	Φ160	242	-	-
Overall mounting	XAR8000	-	75	110	90.5	5
Overall mounting	XAR9000	-	90	140	105.5	10

Additional table

Internal structure and material reference

10 rows

XAR 8000-9000 internal structure and numbered parts reference

No.	Name	Material
1	valve body	Aluminum die casting
2	Bonnet	Aluminum die casting
3	Film	Rubber
4	Valve Core	Brass, Rubber
5	Spring	stainless steel
6	O-ring	Rubber
7	Hand Wheel	Enhance nylon
8	O-ring	Rubber
9	Film	Rubber

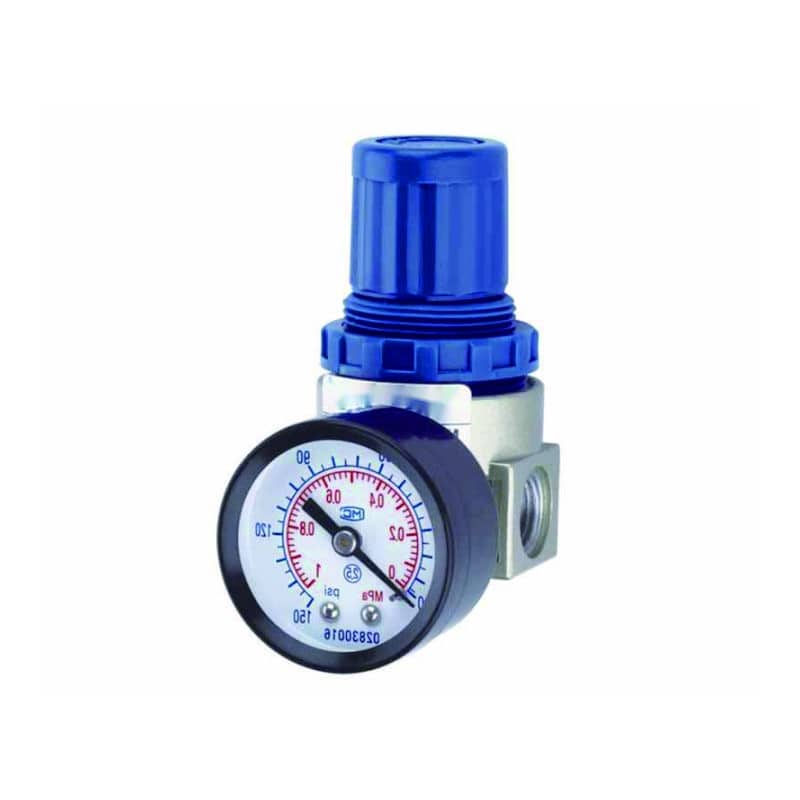

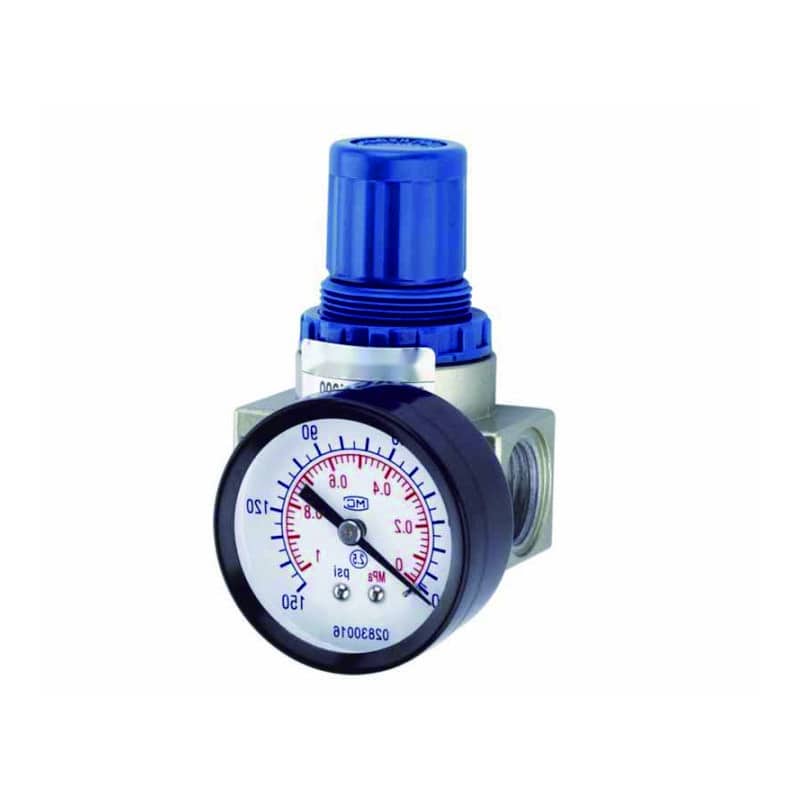

ar br series pneumatic pressure regulators product view 1

Order Symbol

Series 04

Series: AR / BR Series Pneumatic Pressure Regulators
Model range: AR1500, AR2000, BR2000, BR3000, BR4000
Port size code: 1500: G1/8, 2000: G1/4, 3000: G3/8, 4000: G1/2

Key Specs

Selection focus

Model range: AR1500, AR2000, BR2000, BR3000, BR4000
Port size code: 1500: G1/8, 2000: G1/4, 3000: G3/8, 4000: G1/2
Adjustable pressure range: 0.05-0.85 MPa
Operating temperature range: 5-60 °C
Series code: AR: small size; BR: middle size

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, port, and pressure adjustment specifications

12 rows

Model	AR1500	AR2000	BR2000	BR3000	BR4000
Series code	AR	AR	BR	BR	BR
Series size	Small size	Small size	Middle size	Middle size	Middle size
Port size code	1500	2000	2000	3000	4000
Port size (G)	G1/8	G1/4	G1/4	G3/8	G1/2
Operating fluid	Air	Air	Air	Air	Air
Adjustable pressure range	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa
Max. adjustable pressure	0.95 MPa	0.95 MPa	0.95 MPa	0.95 MPa	0.95 MPa
proof pressure	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Weight	0.20 kg	0.20 kg	0.23 kg	0.23 kg	0.23 kg
Body material	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming

Additional table

AR/BR series dimension drawing

3 rows

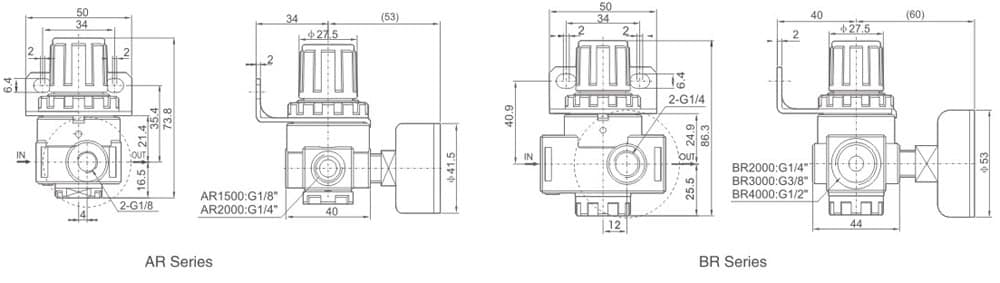

AR and BR series pneumatic pressure regulator dimension drawing

Body family	Models covered	Port callouts shown	drawing notes
AR Series	AR1500 \| AR2000	2-G1/8 \| 2-G1/4	Small-size Pressure Regulator dimension drawing
BR Series	BR2000 \| BR3000 \| BR4000	2-G1/4 \| 2-G3/8 \| 2-G1/2	Middle-size Pressure Regulator dimension drawing

Product image

Order Symbol

Series 06

Series: IR Series Precision Pneumatic Regulator
Model range: PIR1000-01 | PIR1010-01 | PIR1020-01 | PIR2000-02 | PIR2010-02 | PIR2020-02 | PIR3000-03/04 | PIR3010-03/04 | PIR3020-03/04
valve body size code: 10, 20, 30

Key Specs

Selection focus

Model range: PIR1000-01 | PIR1010-01 | PIR1020-01 | PIR2000-02 | PIR2010-02 | PIR2020-02 | PIR3000-03/04 | PIR3010-03/04 | PIR3020-03/04
Valve body size code: 10, 20, 30
Pressure range code: 00: 0.005-0.2 MPa; 10: 0.05-0.4 MPa; 20: 0.01-0.8 MPa
Port size code: 01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2
Order examples: PIR-2010-02 | PIR-3020-04

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code and pressure adjustment specifications

14 rows

Specification	PIR1000-01	PIR1010-01	PIR1020-01	PIR2000-02	PIR2010-02	PIR2020-02	PIR3000-03/04	PIR3010-03/04	PIR3020-03/04
Series code	PIR	PIR	PIR	PIR	PIR	PIR	PIR	PIR	PIR
valve body size code	10	10	10	20	20	20	30	30	30
Pressure range code	00	10	20	00	10	20	00	10	20
Pressure range (MPa)	0.005-0.2	0.05-0.4	0.01-0.8	0.005-0.2	0.05-0.4	0.01-0.8	0.005-0.2	0.05-0.4	0.01-0.8
Port size code	01	01	01	02	02	02	03 or 04	03 or 04	03 or 04
Port size (G)	G1/8	G1/8	G1/8	G1/4	G1/4	G1/4	G3/8 or G1/2	G3/8 or G1/2	G3/8 or G1/2
Air consumption	Max. 3.5 L/min	Max. 3.5 L/min	Max. 3.5 L/min	Max. 3.1 L/min	Max. 3.1 L/min	Max. 3.1 L/min	Max. 9.5 L/min; outlet Max. 2 L/min	Max. 9.5 L/min; outlet Max. 2 L/min	Max. 9.5 L/min; outlet Max. 2 L/min
Min.imum pressure	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa	Setting pressure + 0.05 MPa
Max.imum pressure	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Sensitivity	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span	Within 0.2% of full span
Repeatability	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span	Within ±0.5% of full span
Ambient and fluid temperature	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing	-5-60 °C, No freezing
Pressure gauge port	G1/8	G1/8	G1/8	G1/8	G1/8	G1/8	G1/8	G1/8	G1/8

Additional table

Overall Mounting dimensions

10 rows

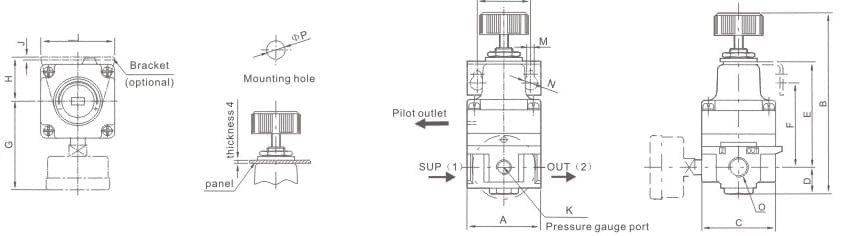

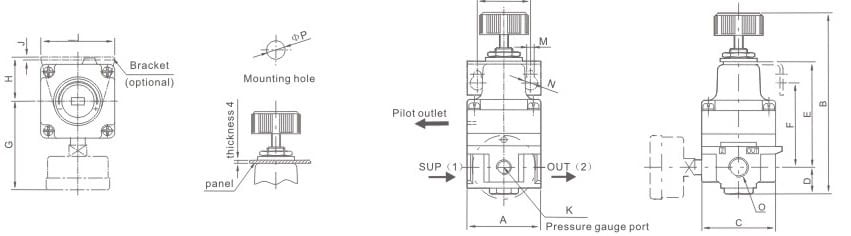

IR precision pneumatic regulator overall mounting dimension drawing

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P
PIR1000-01	35	90	35	10	51	44	43	25	42	2	G1/8	28	4.5	Φ8.5	G1/8	Φ10.5
PIR1010-01	35	90	35	10	51	44	43	25	42	2	G1/8	28	4.5	Φ8.5	G1/8	Φ10.5
PIR1020-01	35	90	35	10	51	44	43	25	42	2	G1/8	28	4.5	Φ8.5	G1/8	Φ10.5
PIR2000-02	50	123	50	18	71	63	60	30	50	2	G1/8	36	5.5	Φ9.5	G1/8	Φ12.5
PIR2010-02	50	123	50	18	71	63	60	30	50	2	G1/8	36	5.5	Φ9.5	G1/8	Φ12.5
PIR2020-02	50	123	50	18	71	63	60	30	50	2	G1/8	36	5.5	Φ9.5	G1/8	Φ12.5
PIR3000-03/04	66	148	66	22	76	76	68	48	82	2.3	G1/8	60	9	Φ15.5	G3/8 or G1/2	Φ12.5
PIR3010-03/04	66	148	66	22	76	76	68	48	82	2.3	G1/8	60	9	Φ15.5	G3/8 or G1/2	Φ12.5
PIR3020-03/04	66	148	66	22	76	76	68	48	82	2.3	G1/8	60	9	Φ15.5	G3/8 or G1/2	Φ12.5

Product image

Order Symbol

Series 07

Series: SR Series SS316 High Pressure Pneumatic Regulator
Model range: SR200-02 | SR400-03 | SR400-04 | SR600-06 | SR600-10
body size code: 200: 1/4, 400: 3/8, 1/2, 600: 3/4, 1

Key Specs

Selection focus

Model range: SR200-02 | SR400-03 | SR400-04 | SR600-06 | SR600-10
Body size code: 200: 1/4, 400: 3/8, 1/2, 600: 3/4, 1
Pressure code: Blank: 0-16 kg/cm²; H: 0-40 kg/cm²
Operating temperature code: Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C
Thread code: Blank: G, N: NPT, R: RC

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, flow, port, and pressure specifications

18 rows

Type	Air Regulator	Air Regulator	Air Regulator	Air Regulator	Air Regulator
Model	SR200-02	SR400-03	SR400-04	SR600-06	SR600-10
Series code	SR	SR	SR	SR	SR
body size code	200	400	400	600	600
Joint pipe bore code	02	03	04	06	10
Port size (G)	G1/4	G3/8	G1/2	G3/4	G1
thread code	Blank: G; N: NPT; R: RC	Blank: G; N: NPT; R: RC	Blank: G; N: NPT; R: RC	Blank: G; N: NPT; R: RC	Blank: G; N: NPT; R: RC
Pressure option code	Blank: 0-16 kg/cm²; H: 0-40 kg/cm²	Blank: 0-16 kg/cm²; H: 0-40 kg/cm²	Blank: 0-16 kg/cm²; H: 0-40 kg/cm²	Blank: 0-16 kg/cm²; H: 0-40 kg/cm²	Blank: 0-16 kg/cm²; H: 0-40 kg/cm²
temperature option code	Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C	Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C	Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C	Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C	Blank: -5-100 °C; LT: -40-100 °C; H: -60-100 °C
Max. flow rate (L/min)	1850	2250	2520	9000	9400
Regulator construction	Piston	Piston	Piston	Piston	Piston
Working medium	Air	Air	Air	Air	Air
Pressure regulating range	0.15-2 MPa	0.15-2 MPa	0.15-2 MPa	0.15-2 MPa	0.15-2 MPa
proof pressure	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)
Operating temperature range	-40-100 °C	-40-100 °C	-40-100 °C	-40-100 °C	-40-100 °C
Material	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel
Accessories	Pressure gauge, mounting bracket, screw x2	Pressure gauge, mounting bracket, screw x2	Pressure gauge, mounting bracket, screw x2	Pressure gauge, mounting bracket, screw x2	Pressure gauge, mounting bracket, screw x2
Weight	1150 g	1350 g	1300 g	3300 g	3200 g

Additional table

SR series dimension drawings

4 rows

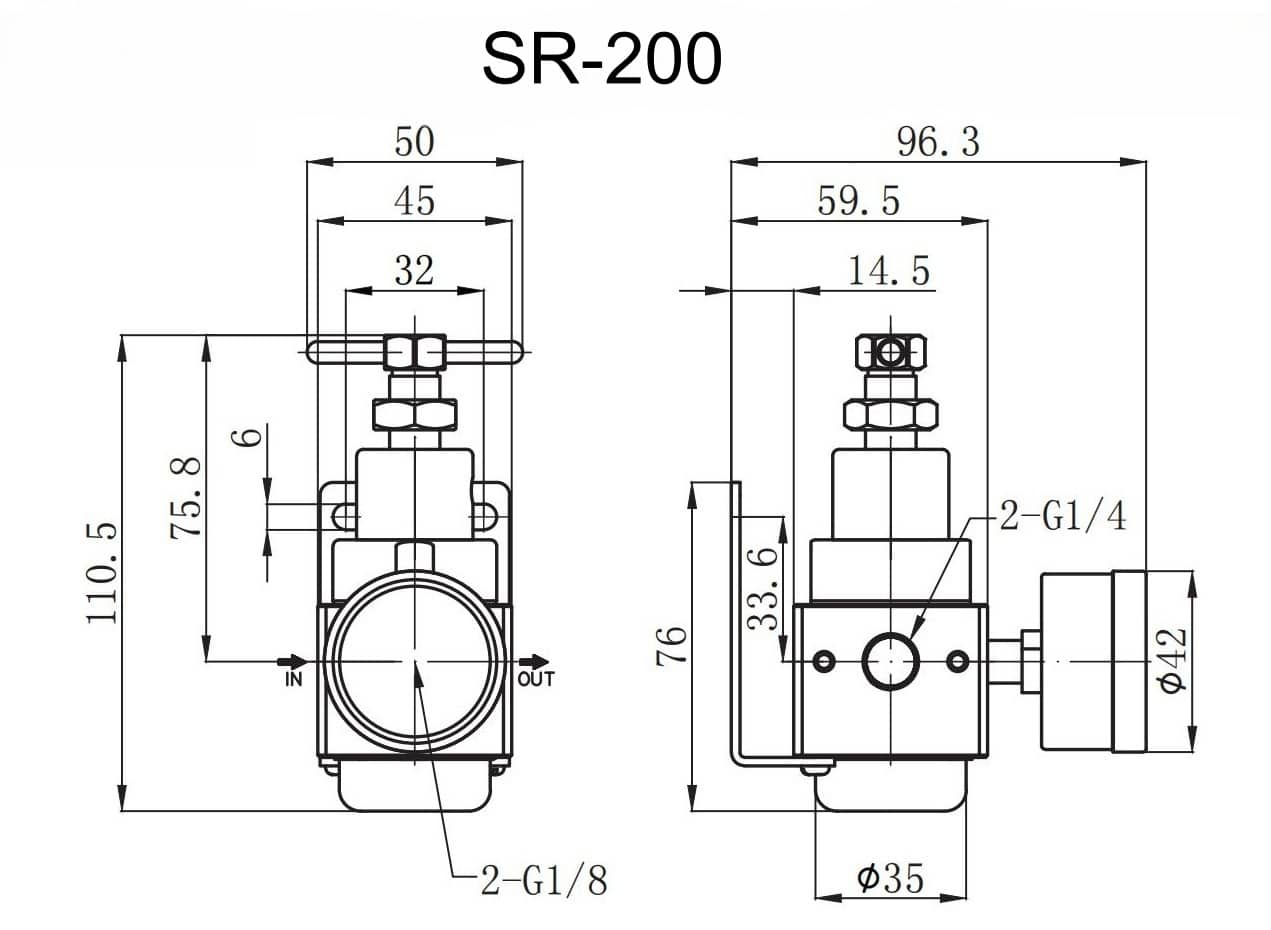

SR-200 SS316 high pressure pneumatic regulator dimension drawing

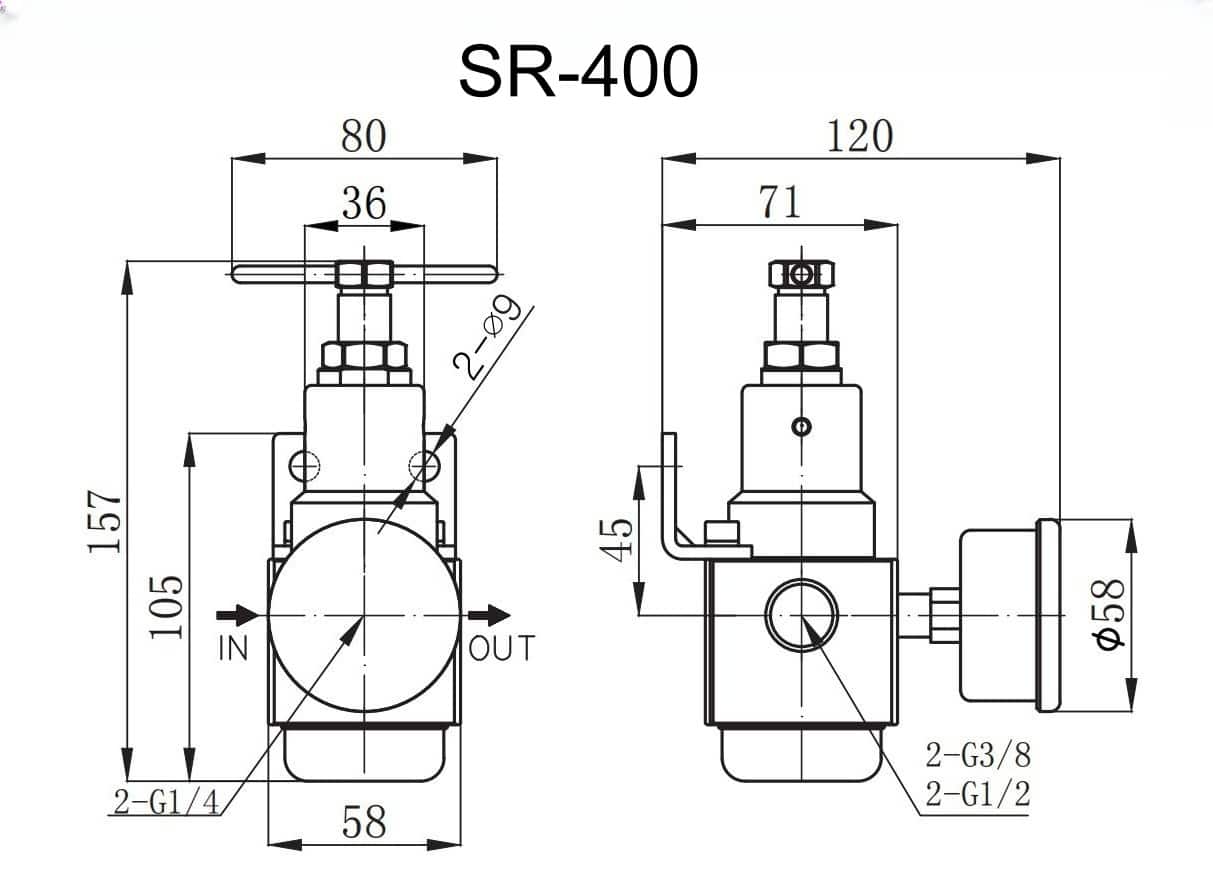

SR-400 SS316 high pressure pneumatic regulator dimension drawing

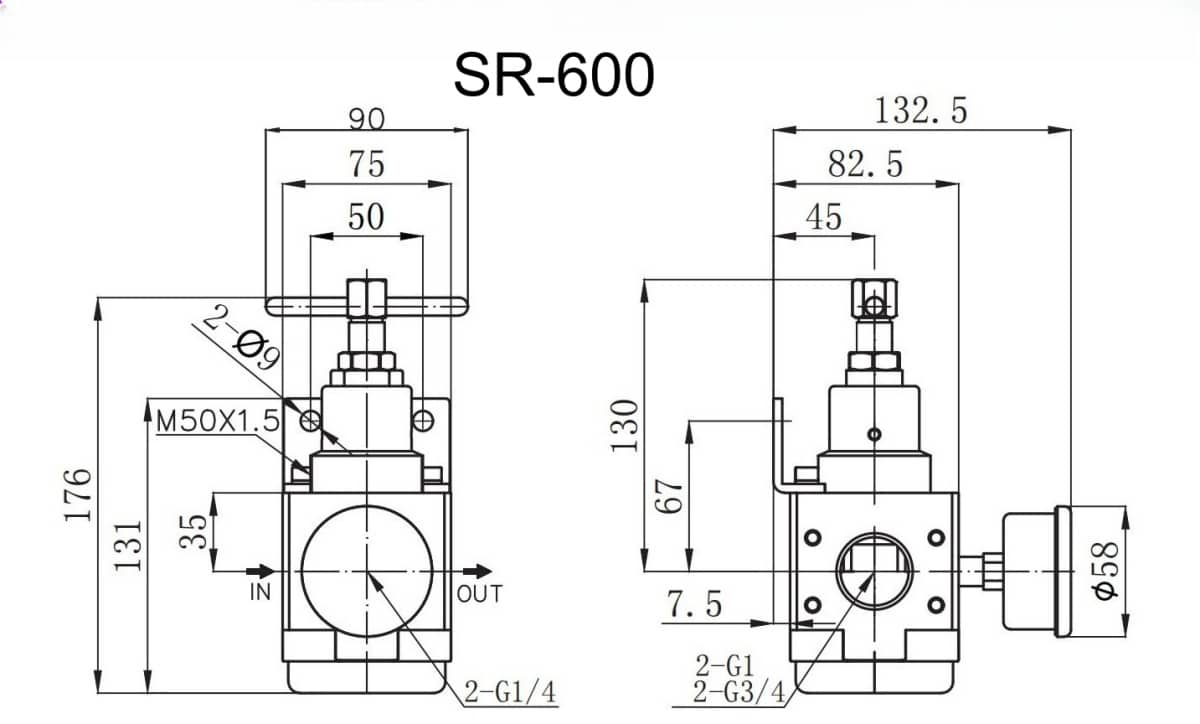

SR-600 SS316 high pressure pneumatic regulator dimension drawing

body size	Models covered	Port callouts shown	drawing notes
SR-200	SR200-02	2-G1/4	dimension drawing for SR200 body
SR-400	SR400-03 \| SR400-04	2-G3/8 \| 2-G1/2	dimension drawing for SR400 body
SR-600	SR600-06 \| SR600-10	2-G3/4 \| 2-G1	dimension drawing for SR600 body

Same-group comparison

Pneumatic Pressure Regulators series comparison

Compare related product series by function, size, pressure, and RFQ details.

7 related series

Series	Port size	function	Flow range	Pressure range	Filtration and drain	Bowl material
XAR 8000-9000 High-Flow Pressure Regulator	14: G1½, 20: G2	Pressure Regulator	18000, 22000	-	-	-
XGR Modular Pressure Regulator	01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2	Pressure Regulator	-	-	-	-
XGFR Modular Filter Regulator	01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2	Filter Regulator	-	-	-	-
AR/BR Standard Pressure Regulator	1500: G1/8, 2000: G1/4, 3000: G3/8, 4000: G1/2	Pressure Regulator	-	-	-	Aluminum die-cast body
QTYH High-Pressure Regulator	8: G1/4, 10: G3/8, 15: G1/2, 20: G3/4, 25: G1	High Pressure Regulator	-	-	-	-
IR Precision Pressure Regulator	01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2	Precision Regulator	-	-	-	-
SR SS316 High-Pressure Regulator	G1/4, G3/8, G1/2, G3/4, G1	Stainless Pressure Regulator	1850-9400 L/min	0.15-2 MPa	-	SUS316 stainless steel

Choose by air-preparation job

Start with the air quality or pressure job.

Pick the closest FRL use case, then confirm port size, flow, pressure range, filtration, drain, bowl, gauge, and service access before RFQ.

Scenario 01

Set stable working pressure for a pneumatic machine branch.

Confirm inlet pressure, outlet target, and flow demand before selecting regulator size.

Recommended option

Pressure regulator matched by adjustment range, port size, flow, and gauge requirement.

Inlet pressure
Outlet target
Rated flow
Port size

Common FRL uses

Where air preparation units protect the pneumatic line.

XAR 8000-9000 Series High-Flow Pneumatic Pressure Regulator product image

FRL use 01

Cylinder force and clamp control

Use pressure regulators to set actuator force for clamps, presses, stoppers, and fixture motions where pressure directly affects holding or pushing force.

Confirm outlet target
Check flow demand
Keep the gauge readable

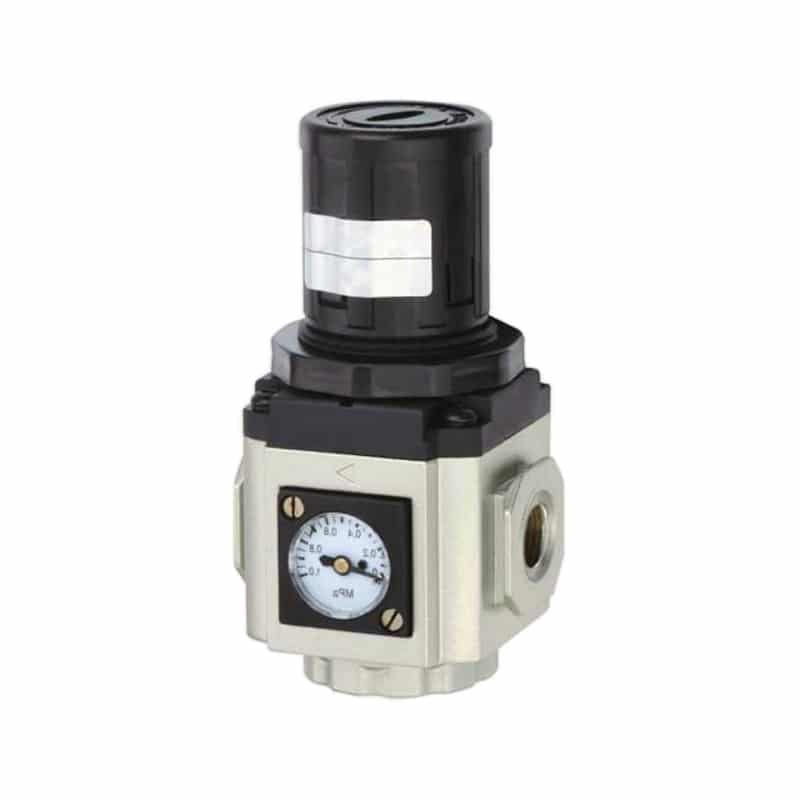

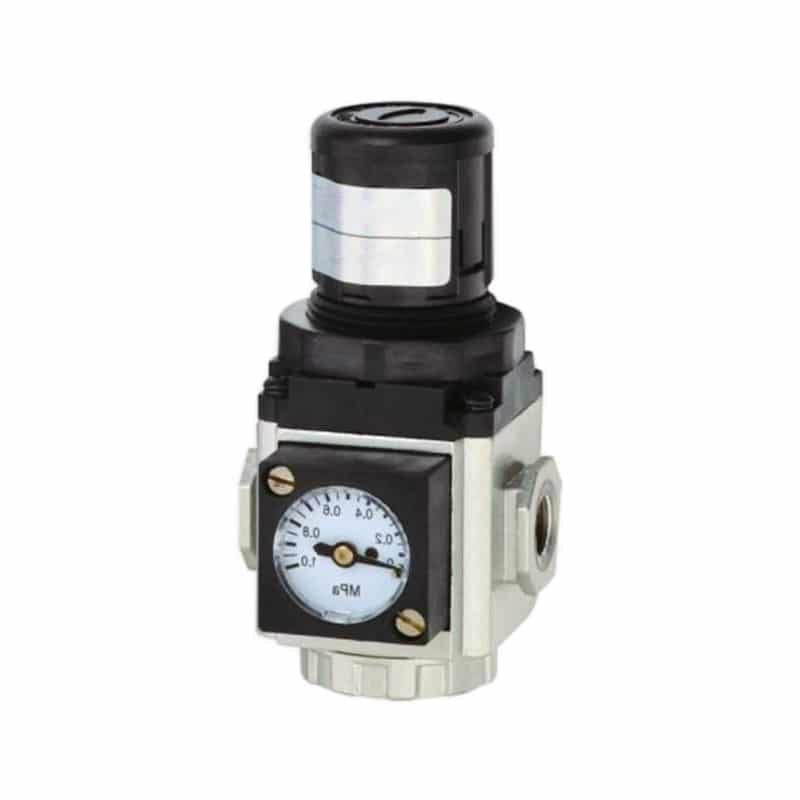

XGR Series Pneumatic Pressure Regulator (XG Line) product image

FRL use 02

Blow-off and air-tool pressure branches

Use regulators to limit branch pressure for air blow guns, nozzles, tools, or operator workstations so the air point runs within the required range.

Set pressure range
Match port size
Review downstream demand

XGFR Series Pneumatic Filter Regulator Unit (XG Line) product image

FRL use 03

Precision test or inspection points

Use precision regulators where inspection, leak-test, gripping, or sensitive pneumatic functions need tighter outlet-pressure stability than a standard regulator.

Define pressure tolerance
Check response need
Protect adjustment access

Compressed-air tools

Review pressure stability and air capacity before selecting FRL units.

Pair filters, regulators, lubricators, and complete FRL units with pressure-drop, compressor, receiver, and pressure-unit checks.

Open Compressed air tools

01Valves & flow

Pressure Drop Calculator

Estimate pressure loss across air lines before sizing FRL components.

FlowPipe lengthEquivalent fitting lengthOpen calculator 02Compressed air

Compressor CFM Calculator

Check compressor capacity against expected pneumatic demand.

Receiver volumeStart pressureEnd pressureOpen calculator 03Compressed air

Air Receiver Tank Sizing Calculator

Review receiver volume when pressure stability matters.

Demand flowCompressor support flowDurationOpen calculator 04Unit conversion

Pressure Converter

Convert pressure units for FRL, regulator, and filter specifications.

Pressure valueSource pressure unitOpen calculator

Request category support

Send the details that make this Pneumatic Pressure Regulators inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and rated flow
Pressure range, filtration grade, and drain type
Bowl material, bracket, gauge, and environment requirements

Category FAQ

Common questions before sending an inquiry.

01Pneumatic Pressure RegulatorsWhat should I send for a pressure regulator quote?

Send inlet pressure, outlet pressure target, flow requirement, port size, gauge/bracket needs, material preference, environment, and old model photos if replacing a unit.

02Pneumatic Pressure RegulatorsWhen is a precision regulator needed?

Use a precision regulator when the application needs tighter outlet-pressure stability than a standard line regulator can provide.
