Pneumatic cylinders / general linear force

Standard Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Standard Pneumatic Cylinders.

View product specificationsBuild a standard cylinder RFQ
General automationISO-style replacementAdjustable cushioningMounting accessories

Category buying guide

Start standard cylinder selection from force, stroke, and mounting.

Standard air cylinder selection should balance required force, bore, stroke, mounting style, rod end, port thread, cushioning, magnetic piston needs, and replacement dimensions for OEM, MRO, and distributor inquiries.

Pneumatic cylinder categories
01Rodless Cylinders02Standard Cylinders03Mini Cylinders04Thin and Compact Cylinders05Slide Table Cylinders06Compact Guide Cylinders07Pneumatic Grippers08Double Rod Cylinders09Rotary Actuators10Cylinder Accessories11Other Cylinders
Standard Pneumatic Cylinders • Product specifications

Standard Pneumatic Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

MB Series ISO15552 Tie-Rod Pneumatic Cylinder

Order Symbol

Series 01
Series

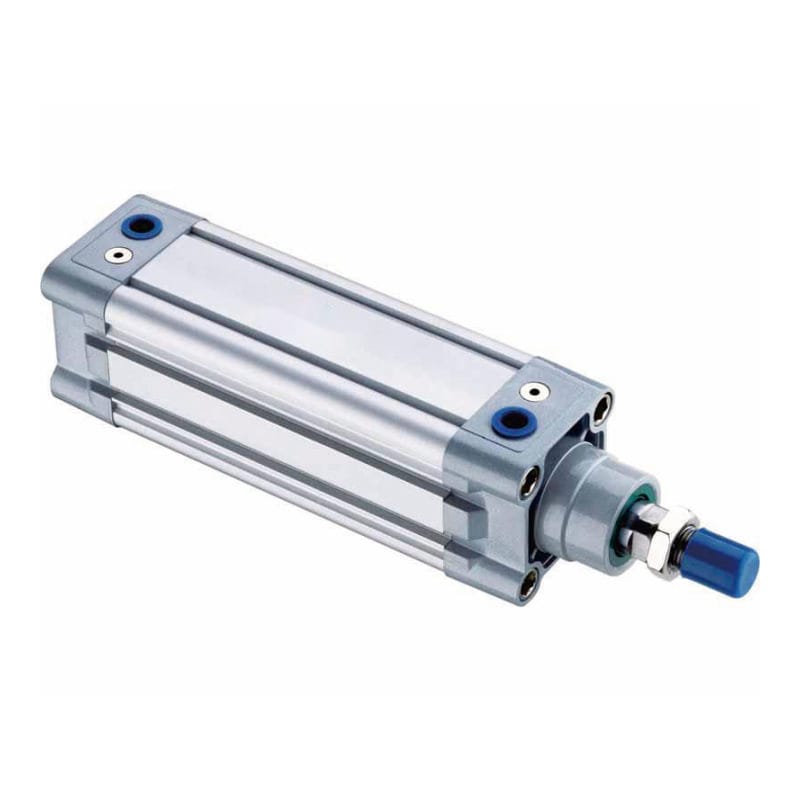

MB Series ISO15552 Tie-Rod Pneumatic Cylinder
Port thread
G1/8, G1/4, G3/8, and G1/2 by bore

Key Specs

Selection focus
  • Port thread: G1/8, G1/4, G3/8, and G1/2 by bore
  • Cylinder diameter: 32, 40, 50, 63, 80, 100 mm
  • Pressure range: 0.05-1.0 MPa operating pressure; 1.5 MPa proof pressure
  • Working medium: Air
  • Action type: Double acting

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
  • Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
  • Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
  • Working air: Confirm pressure range, air quality, cushion, and duty cycle.
  • Application: Send drawings, installation space, quantity, and target delivery timing.
Selection snapshot

Bore, stroke, and pressure specifications

11 rows
Cylinder diameter3240506380100
Working mediumAirAirAirAirAirAir
Action typeDouble actingDouble actingDouble actingDouble actingDouble actingDouble acting
proof pressure15.3 kgf/cm² (1.5 MPa)15.3 kgf/cm² (1.5 MPa)15.3 kgf/cm² (1.5 MPa)15.3 kgf/cm² (1.5 MPa)15.3 kgf/cm² (1.5 MPa)15.3 kgf/cm² (1.5 MPa)
Max. pressure10.2 kgf/cm² (1.0 MPa)10.2 kgf/cm² (1.0 MPa)10.2 kgf/cm² (1.0 MPa)10.2 kgf/cm² (1.0 MPa)10.2 kgf/cm² (1.0 MPa)10.2 kgf/cm² (1.0 MPa)
Min. pressure0.5 kgf/cm² (0.05 MPa)0.5 kgf/cm² (0.05 MPa)0.5 kgf/cm² (0.05 MPa)0.5 kgf/cm² (0.05 MPa)0.5 kgf/cm² (0.05 MPa)0.5 kgf/cm² (0.05 MPa)
Environment and fluid temp-10 to +60 C-10 to +60 C-10 to +60 C-10 to +60 C-10 to +60 C-10 to +60 C
Piston velocity50-1000 mm/s50-1000 mm/s50-1000 mm/s50-1000 mm/s50-1000 mm/s50-1000 mm/s
BufferingAir bufferingAir bufferingAir bufferingAir bufferingAir bufferingAir buffering
Stroke tolerance0-250 +1.0; 251-1000 +1.4; 1001-1500 +1.80-250 +1.0; 251-1000 +1.4; 1001-1500 +1.80-250 +1.0; 251-1000 +1.4; 1001-1500 +1.80-250 +1.0; 251-1000 +1.4; 1001-1500 +1.80-250 +1.0; 251-1000 +1.4; 1001-1500 +1.80-250 +1.0; 251-1000 +1.4; 1001-1500 +1.8
Rc (PT) joint sizeG1/8"G1/4"G1/4"G3/8"G3/8"G1/2"
Additional table

Standard stroke selection table

7 rows
Bore (mm)Standard stroke
3225, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500
4025, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500
5025, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600
6325, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600
8025, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750
10025, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 750
Additional table

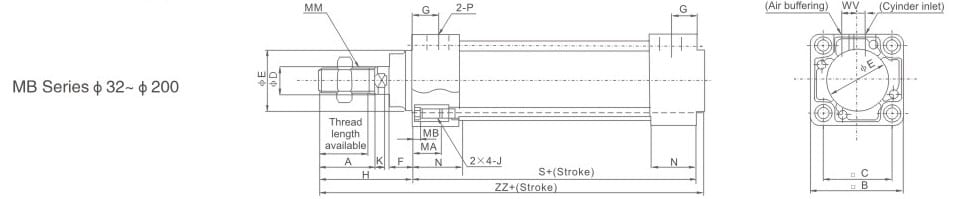

MB overall Mounting dimensions

7 rows
DiameterStroke rangethread length availableABCDEFGMAMBJKMMNPSVWHZZ
3250019.5224632.512301313164M6x1.06M10x1.25271/88446.547135
405002730523816351314164M6x1.06M14x1.5271/4844951139
5060032356546.520401415.5165M8x1.257M18x1.531.51/494510.558156
6360032357556.520451416.5165M8x1.257M18x1.531.53/89491258156
807503740957225452019165M10x1.510M22x1.5383/811411.51472190
10075037401148930552019165M10x1.510M26x1.5381/2114171572190
Additional table

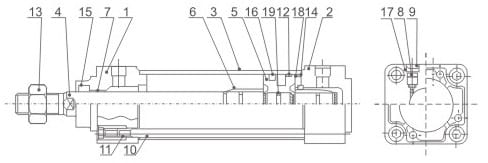

MB internal structure parts list

6 rows
No.DesignationNo.DesignationNo.Designation
1front cover6Buffer ring11Tie rod nut
2Back cover7Bearing12Wear ring
3Barrel8Cushion screw13Piston rod nut
4Piston rod9Cushion seal14Buffer seal ring
5Piston10Tie rod15Piston O-ring

Same-group comparison

Standard Pneumatic Cylinders series comparison

Compare related product series by function, size, pressure, and RFQ details.

5 related series
SeriesBore / sizeMotionPressure rangeStroke / angleSpeed / repeatabilityPort thread
MB Tie-Rod Cylinder32, 40, 50, 63, 80, 100 mmDouble acting0.05-1.0 MPa operating pressure; 1.5 MPa proof pressure0-250 +1.0; 251-1000 +1.4; 1001-1500 +1.850-1000 mm/sG1/8, G1/4, G3/8, and G1/2 by bore

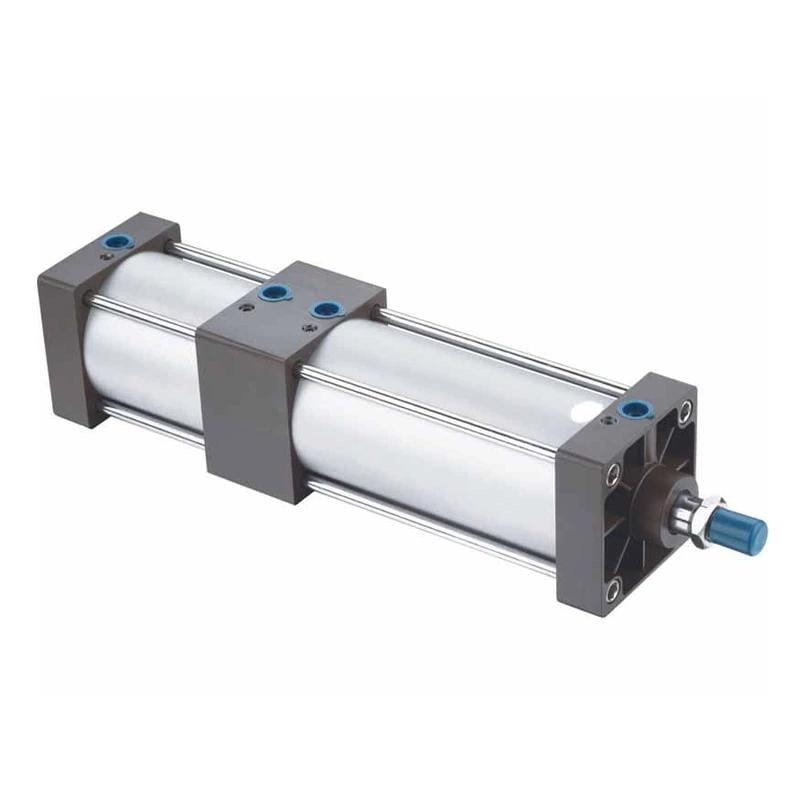

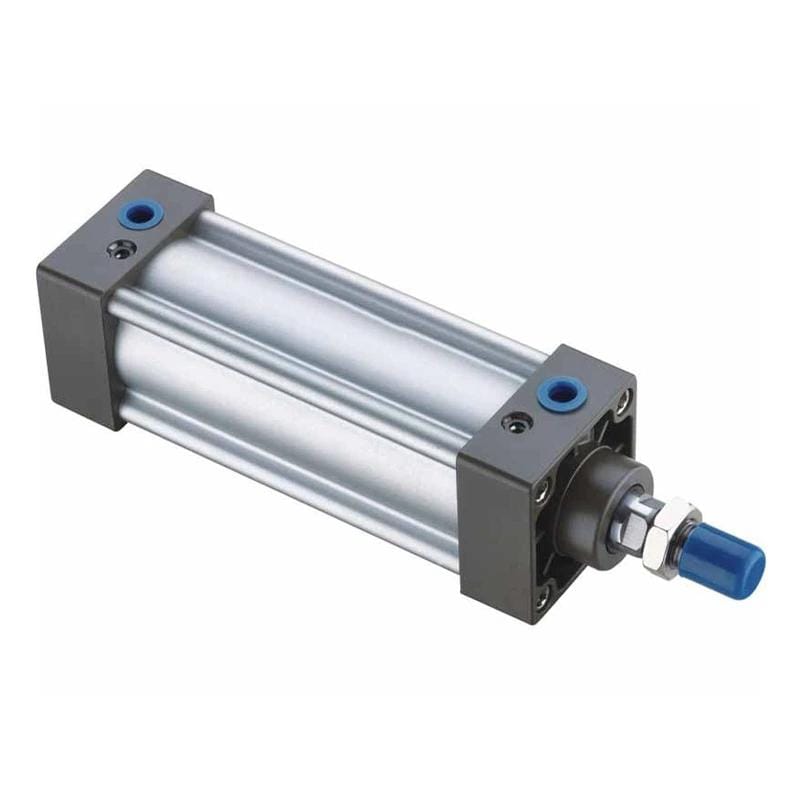

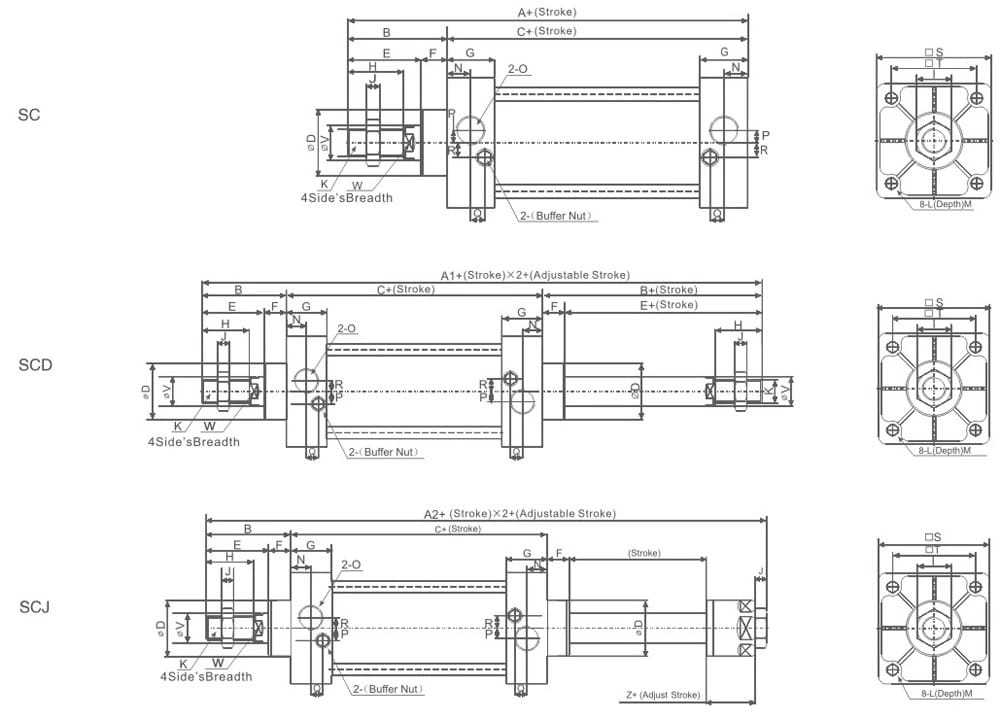

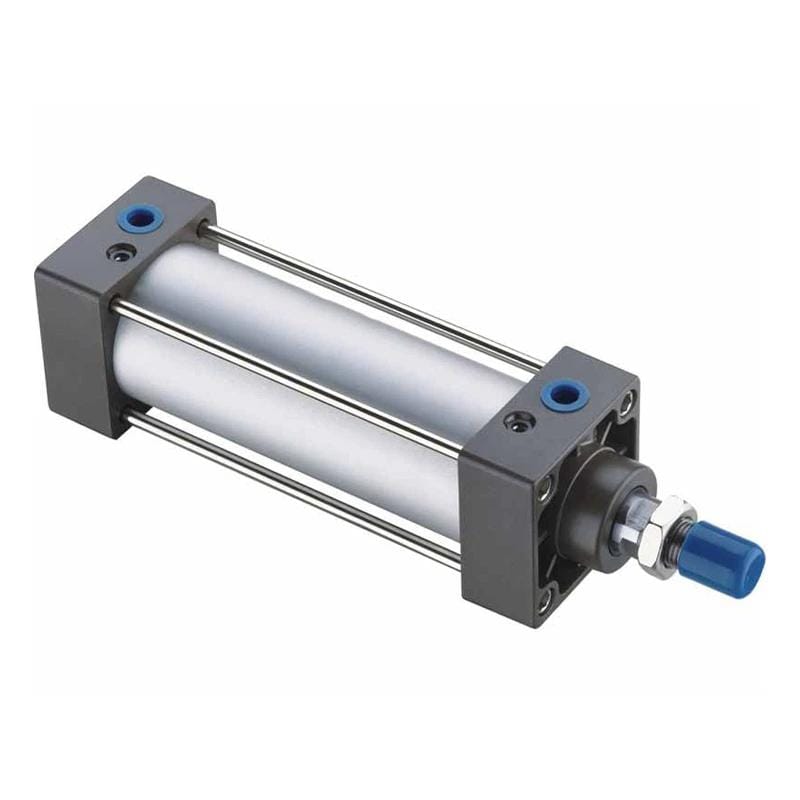

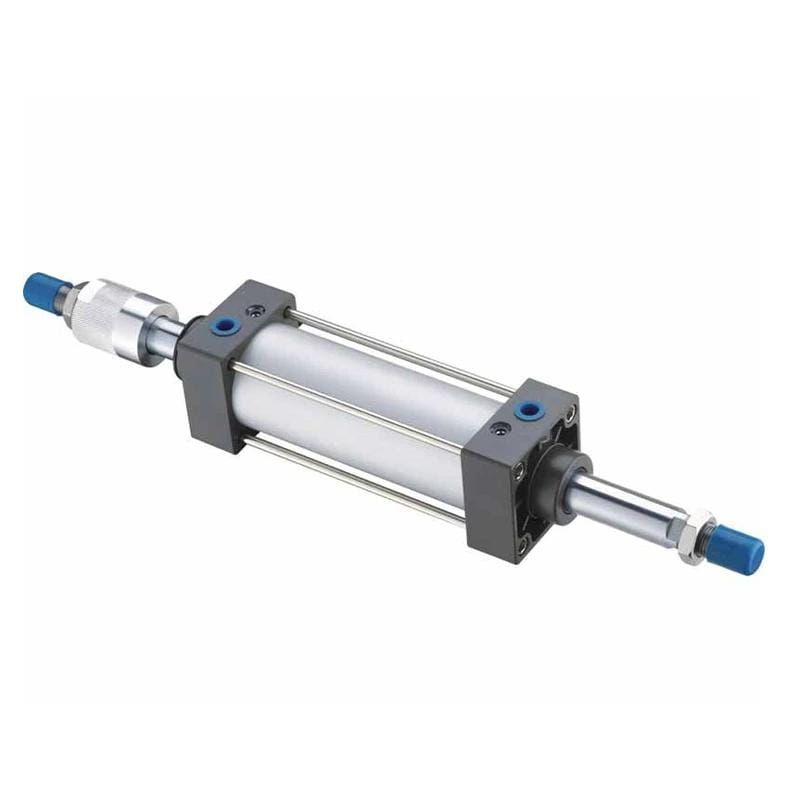

SCSU Tie-Rod Cylinder32, 40, 50, 63, 80, 100, 125, 160, 200Double-action1.35 MPa24, 3230-800 mm/sG1/8", G1/4", G3/8", G1/2", G3/4"

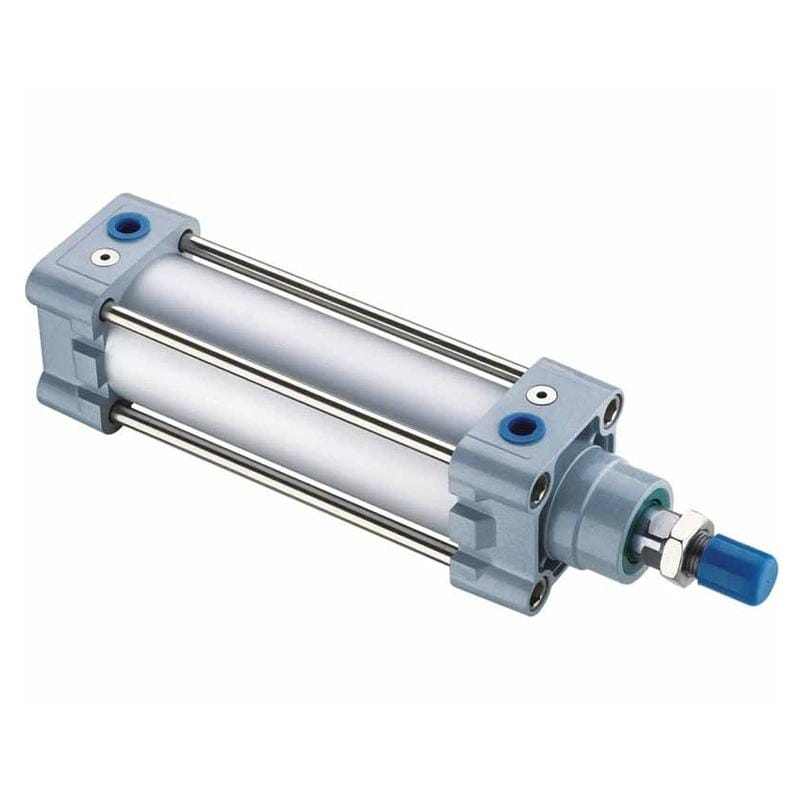

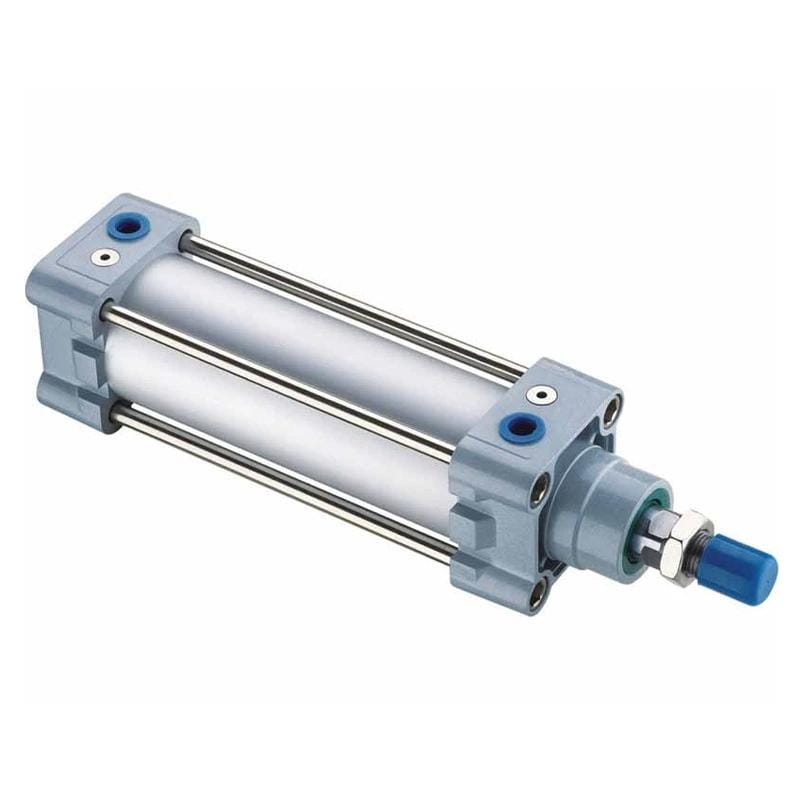

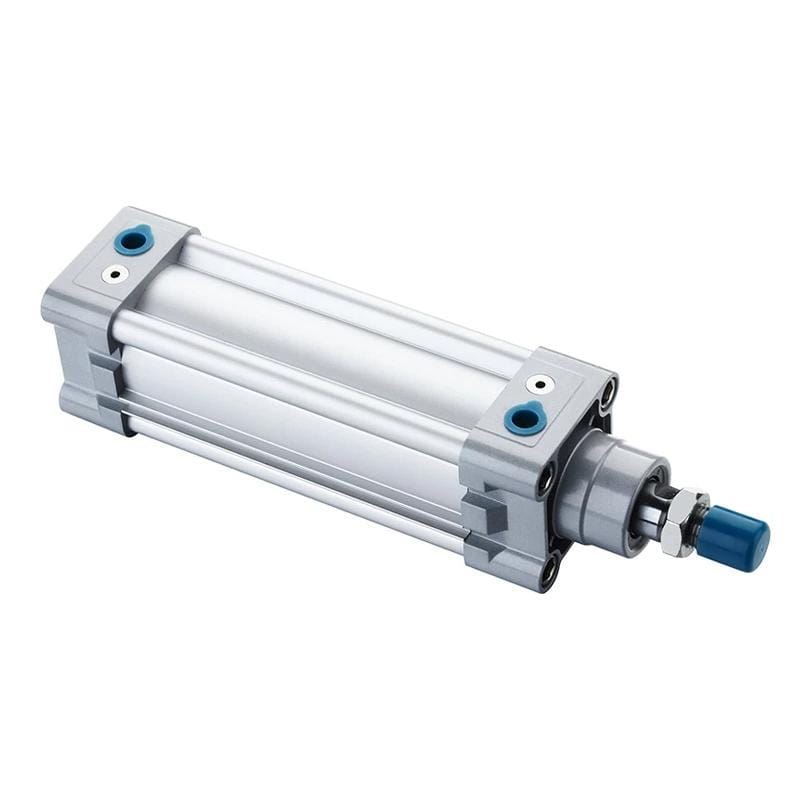

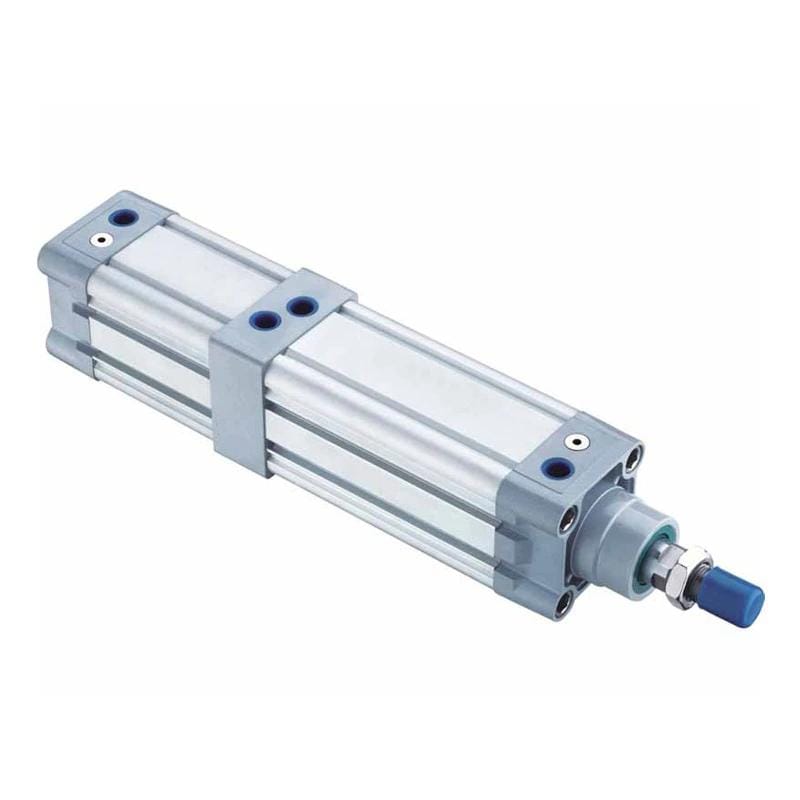

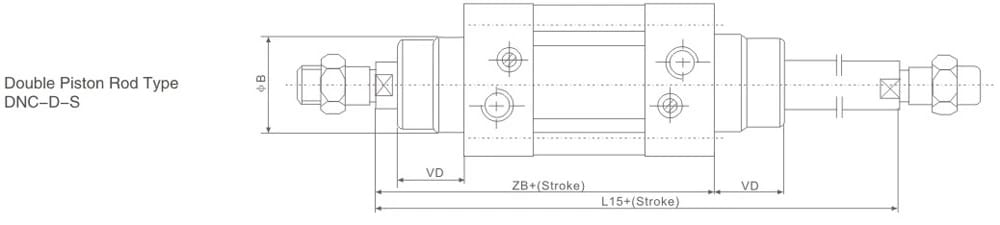

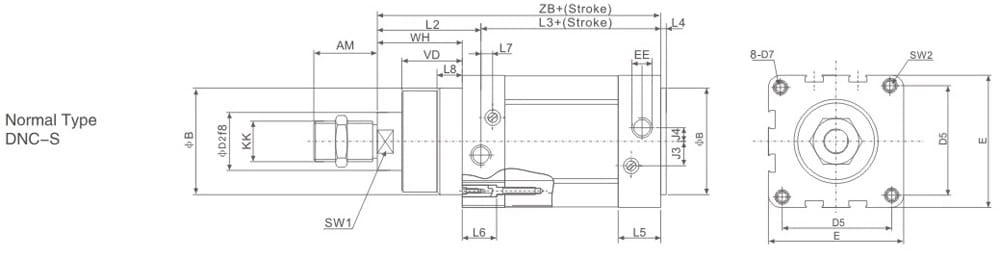

DNC ISO Cylinder32, 40, 50, 63, 80, 100, 125Fitered Air1.5 MPaConfirm by model50-800 mm/sG1/8", G1/4", G3/8", G1/2"

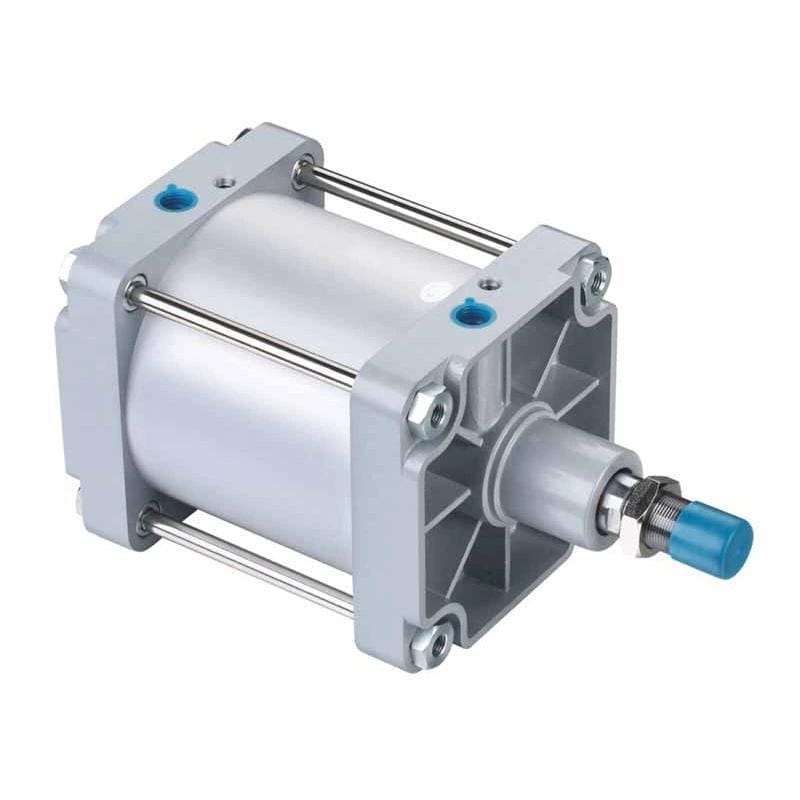

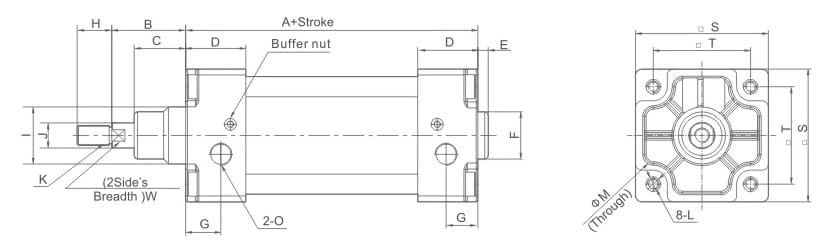

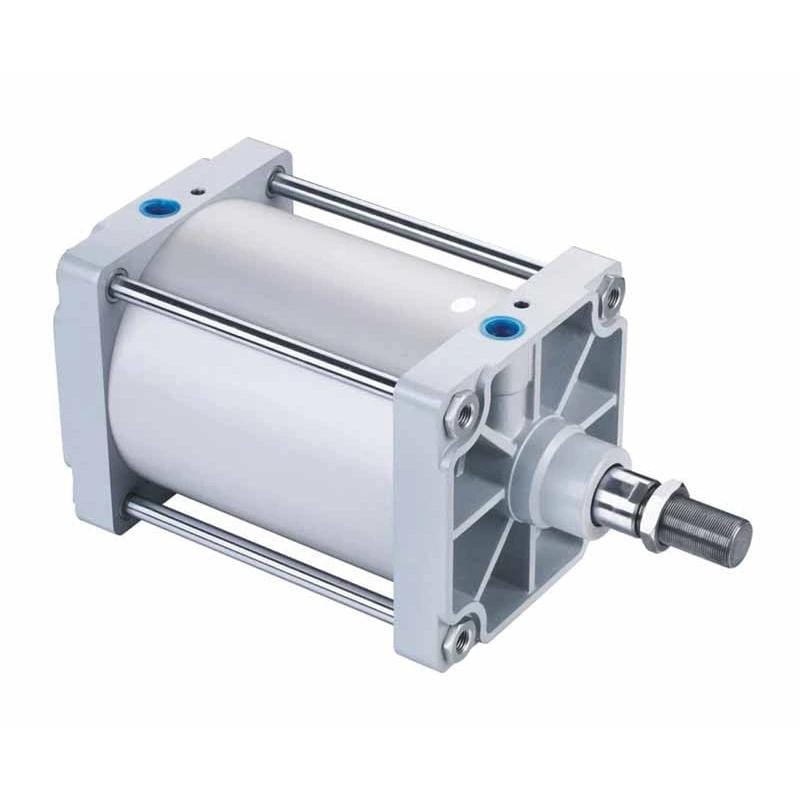

DNG ISO Cylinder160, 200, 250, 320Double-action0.1-1.0 MPaConfirm by model50-500 mm/sG3/4", G1"

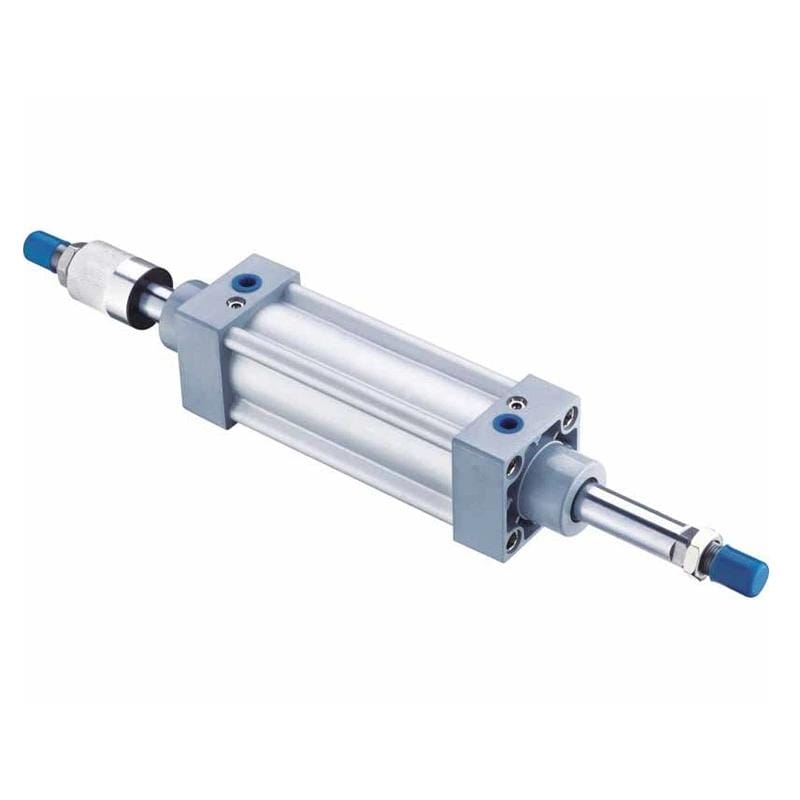

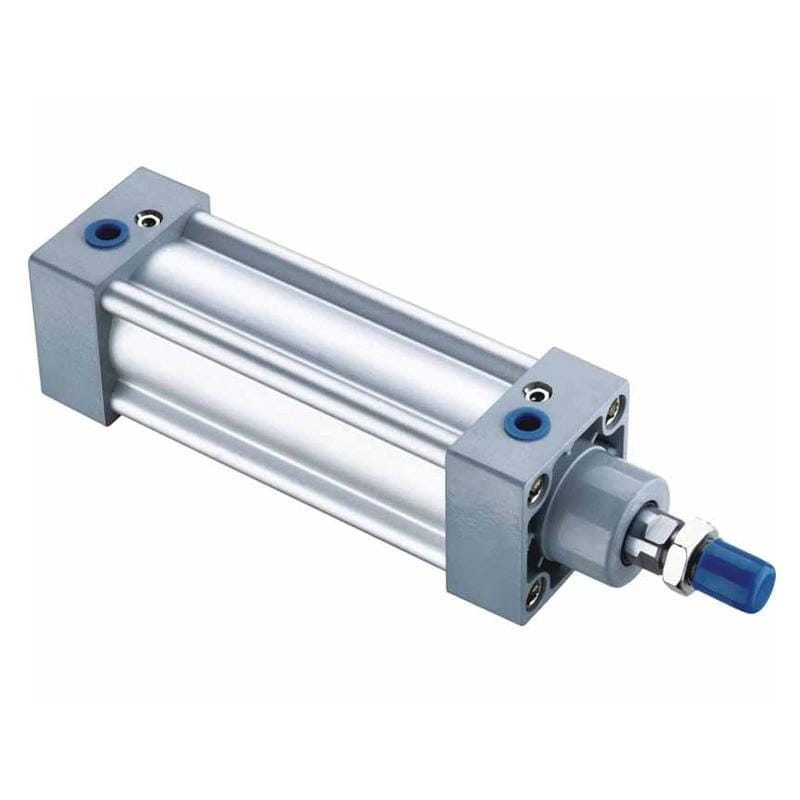

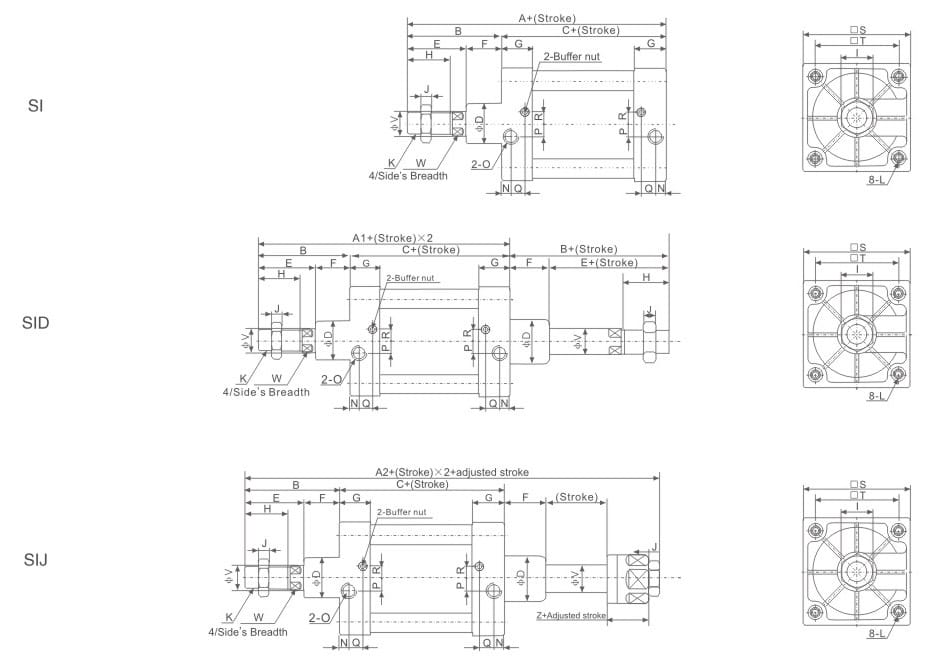

SI ISO Cylinder32, 40, 50, 63, 80, 100, 125, 160, 200Double-action0.1-0.9 MPa24, 3250-800 mm/sG1/8", G1/4", G3/8", G1/2", G3/4"

Choose by motion job

Start with the motion the actuator must make.

Pick the closest actuator use case, then confirm bore, stroke, load, mounting, pressure, speed, and space constraints before RFQ.

Scenario 01

Specify a reliable cylinder for common linear motion.

Standard cylinders fit many push, pull, lift, stop, and clamp stations when side load is controlled.

Recommended option

Standard double-acting cylinder with bore, stroke, mount, and cushion review.

  • Required force
  • Stroke length
  • Mounting style
  • Cycle speed

Common actuator uses

Where pneumatic actuators do the machine work.

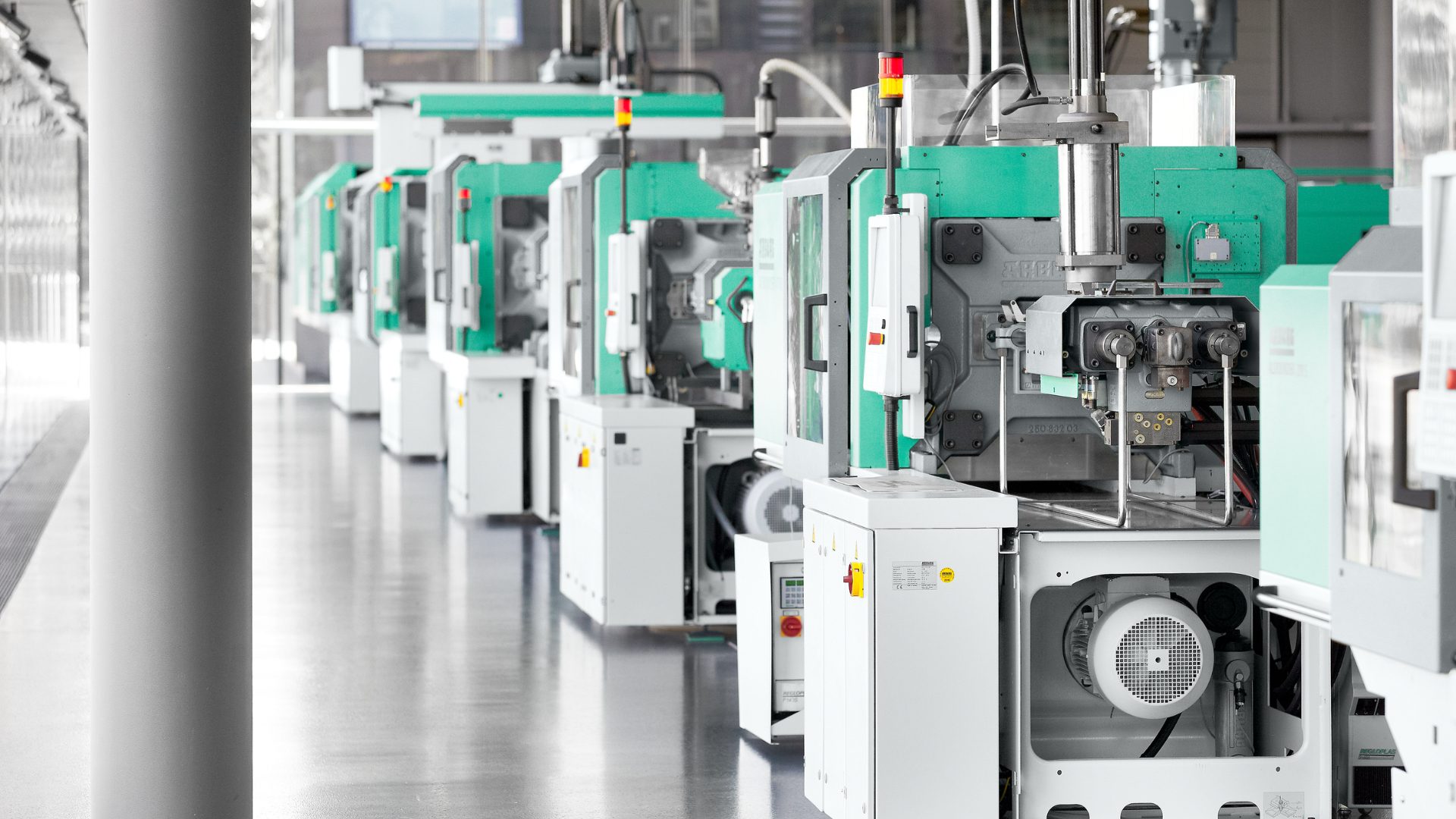

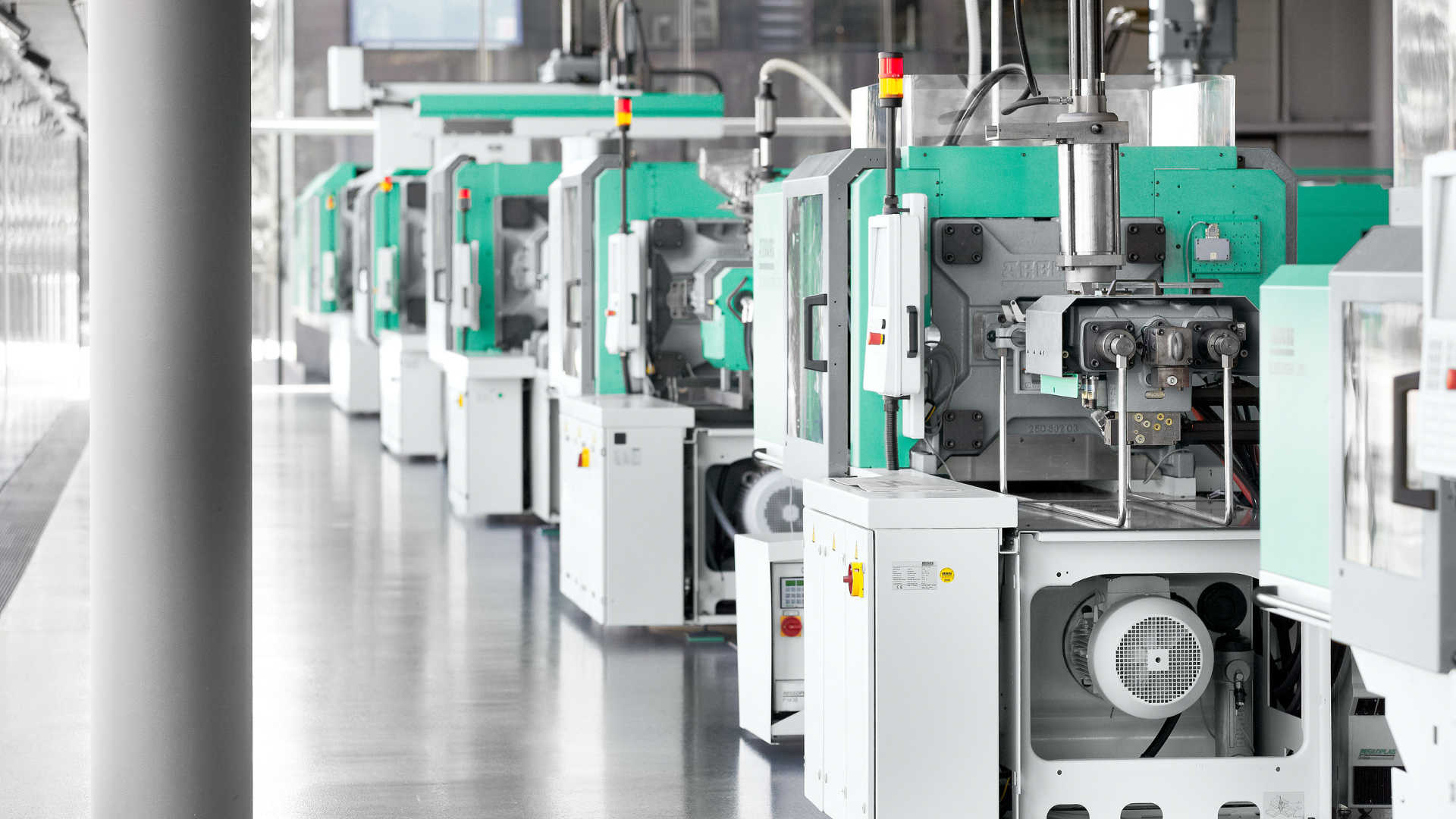

Standard pneumatic cylinder installed in an automated production line
Actuator use 01

Automated production lines

Review function, size, pressure, mounting, and inquiry data for Standard Pneumatic Cylinders.

  • Confirm force margin
  • Review cushion need
  • Keep air supply clean

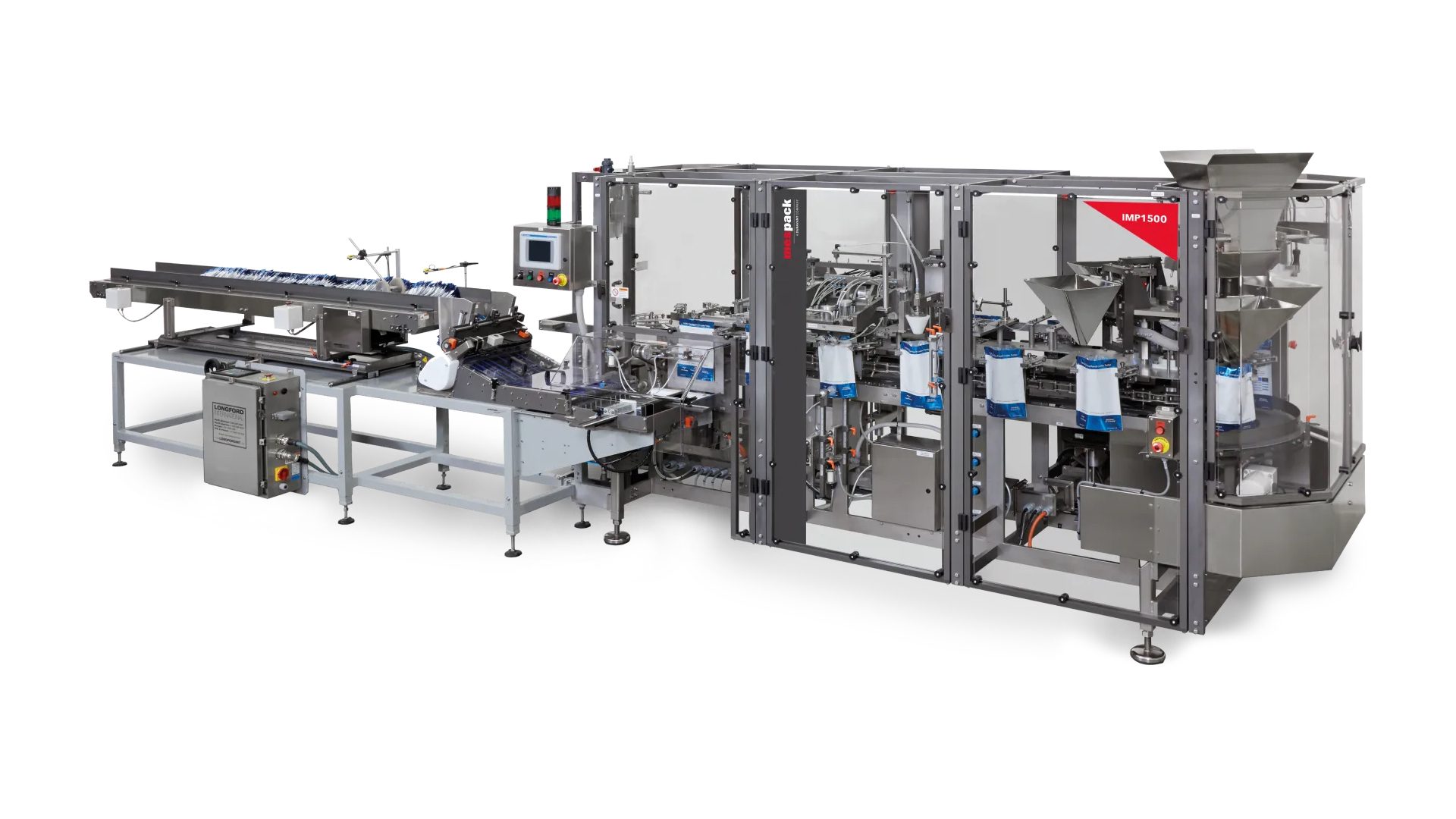

Standard pneumatic cylinder application for packaging printing and handling machinery
Actuator use 02

Packaging, printing, and handling machinery

Review function, size, pressure, mounting, and inquiry data for Standard Pneumatic Cylinders.

  • Check speed target
  • Confirm mounting bracket
  • Review cycle rate

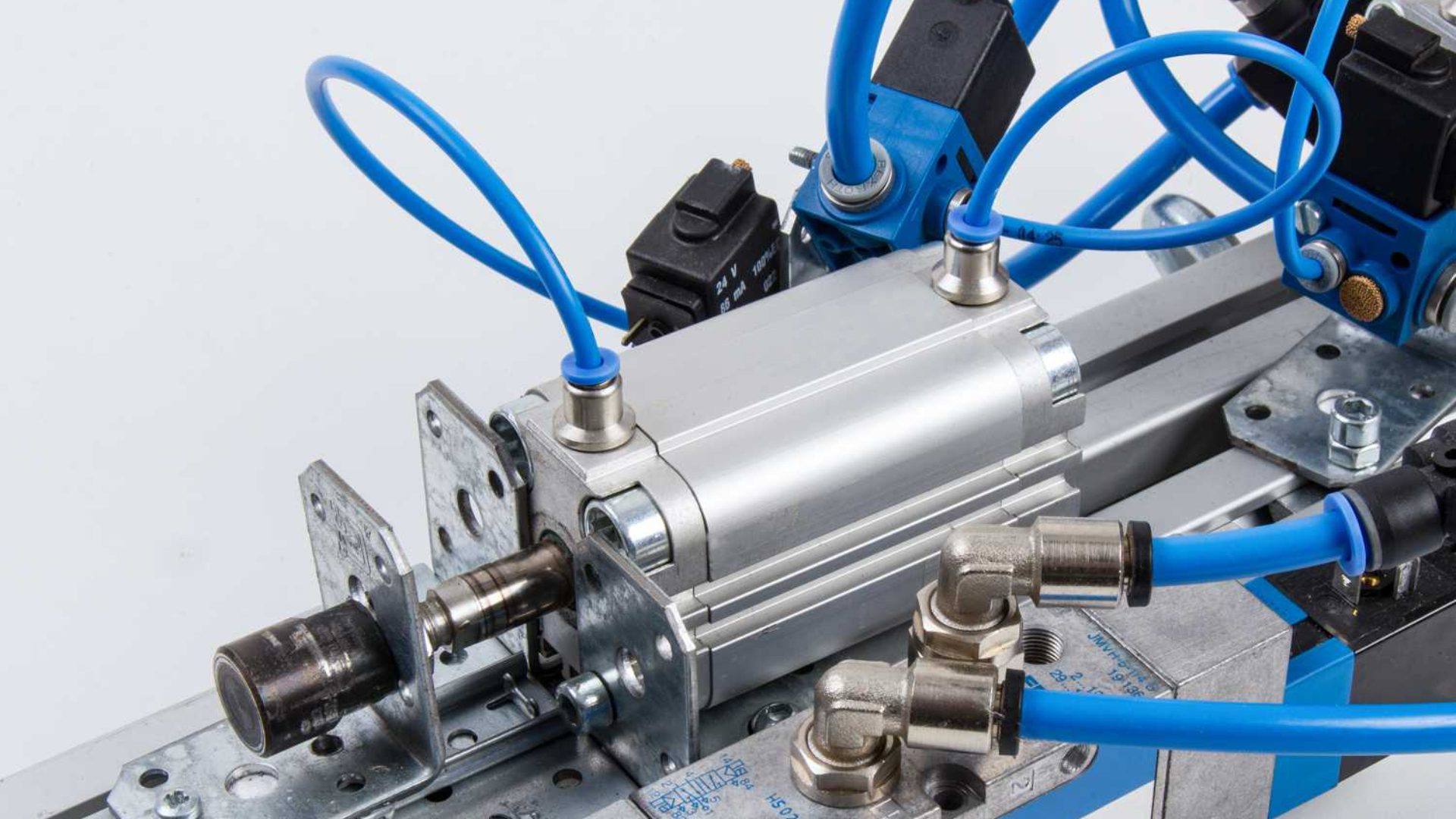

Standard pneumatic cylinder application for machine tools and fixtures
Actuator use 03

Machine tools and fixtures

Review function, size, pressure, mounting, and inquiry data for Standard Pneumatic Cylinders.

  • Send fixture photos
  • Confirm rod end
  • Review side-load risk

Cylinder sizing tools

Calculate load, bore, buckling, and cushion energy before selecting a cylinder.

Use these calculators when a linear cylinder decision depends on force margin, rod stability, stroke speed, and end-of-stroke energy.

Open Cylinder sizing tools
01Cylinder sizing

Cylinder Force Calculator

Check push and pull force before choosing bore, pressure, and safety factor.

Bore diameterRod diameterWorking pressureOpen calculator02Cylinder sizing

Cylinder Bore Size Calculator

Convert a known load into a practical starting bore size.

Sizing input modeRequired load or moving massTravel orientationOpen calculator03Cylinder sizing

Cylinder Rod Buckling Calculator

Check long-stroke rod stability before confirming bore and mounting.

Rod diameterUnsupported lengthEnd condition factorOpen calculator04Cylinder sizing

Cylinder Cushion Energy Calculator

Review cushion energy when speed, mass, and stroke-end impact matter.

Moving massImpact velocityDrive forceOpen calculator

Request category support

Send the details that make this Standard Pneumatic Cylinders inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Bore, stroke, and action type
  • Mounting style and rod end
  • Port thread, cushion, and sensor need
  • Old model number or drawing
Rodless CylindersMini CylindersThin and Compact CylindersSlide Table Cylinders

Standard Pneumatic Cylinders RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Standard Pneumatic CylindersHow do I choose the bore size for a standard pneumatic cylinder?

Start from the required load force and available air pressure, then add a practical safety margin. Bepto Pneumatic can help review bore size when you send load, pressure, and motion details.

02Standard Pneumatic CylindersWhat information helps replace an old standard cylinder?

Send the old model code, photos, bore, stroke, overall length, mounting style, rod end, port thread, cushion type, and sensor requirement.

03Standard Pneumatic CylindersReview function, size, pressure, mounting, and inquiry data for Standard Pneumatic Cylinders.

Many standard cylinders can be specified with magnetic pistons and matching switches. Include the control voltage and sensor output type when requesting a quote.
