Pneumatic Slide Cylinders

Review function, size, pressure, mounting, and inquiry data for Pneumatic Slide Cylinders.

View product specifications Build a slide cylinder RFQ

Slide table guidanceShort-stroke precisionMoment load reviewSensor mounting

Category buying guide

Use slide cylinders when guided short-stroke positioning matters.

Pneumatic slide cylinder selection should compare bore, stroke, guide type, allowable load, moment load, motion parallelism, cushioning, sensor mounting, maintenance access, and table dimensions.

Pneumatic cylinder categories

01Rodless Cylinders 02Standard Cylinders 03Mini Cylinders 04Thin and Compact Cylinders 05Slide Table Cylinders 06Compact Guide Cylinders 07Pneumatic Grippers 08Double Rod Cylinders 09Rotary Actuators 10Cylinder Accessories 11Other Cylinders

Pneumatic Slide Cylinders • Product specifications

Pneumatic Slide Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Order Symbol

Series 01

Series: MXQ Series Pneumatic Slide Table

Key Specs

Selection focus

Bore size: 6×2 (equivalent Ø8), 8×2 (equivalent Ø11), 12×2 (equivalent Ø17), 16×2 (equivalent Ø22), 20×2 (equivalent Ø28), 25×2 (equivalent Ø35)
Operating pressure: 0.15-0.7 MPa
Piston speed: 50-500 mm/s; adjuster / metal stopper option 50-200 mm/s
Cushion: Rubber buffer standard; shock absorber or metal stopper adjuster options
Port size: M3×0.5, M3×0.8, Rc1/8

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

Bore, pressure, cushion, and port specifications

11 rows

Bore (mm)	6×2 (equivalent Ø8)	8×2 (equivalent Ø11)	12×2 (equivalent Ø17)	16×2 (equivalent Ø22)	20×2 (equivalent Ø28)	25×2 (equivalent Ø35)
Working medium	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element
Action	Double acting	Double acting	Double acting	Double acting	Double acting	Double acting
Min. operating pressure	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa
Max. operating pressure	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa
Ambient and fluid temperature	-10 to +70 °C, not frozen	-10 to +70 °C, not frozen	-10 to +70 °C, not frozen	-10 to +70 °C, not frozen	-10 to +70 °C, not frozen	-10 to +70 °C, not frozen
piston speed	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s
Cushion	Rubber buffer standard; shock absorber or metal stopper adjuster options	Rubber buffer standard; shock absorber or metal stopper adjuster options	Rubber buffer standard; shock absorber or metal stopper adjuster options	Rubber buffer standard; shock absorber or metal stopper adjuster options	Rubber buffer standard; shock absorber or metal stopper adjuster options	Rubber buffer standard; shock absorber or metal stopper adjuster options
Stroke length tolerance	No need	No need	No need	No need	No need	No need
Lubrication	Non-lube	Non-lube	Non-lube	Non-lube	Non-lube	Non-lube
Piping port size	M3×0.5	M3×0.8	M3×0.8	Rc1/8	Rc1/8	Rc1/8

MXS Series Compact Slide Cylinder - Dual-Rod Air Cylinder for Precision Automation

Order Symbol

Series 04

Series: MXS Series Compact Slide Cylinder - Dual-Rod Air Cylinder

Key Specs

Selection focus

Bore size: 6×2 (equivalent φ8), 8×2 (equivalent φ11), 12×2 (equivalent φ17), 16×2 (equivalent φ22), 20×2 (equivalent φ28), 25×2 (equivalent φ35)
Operating pressure: 0.15-0.7 MPa
Piston speed: 50-500 mm/s
Port size: M3×0.5, M5×0.8, Rc1/8
Working medium: Air, filtered by 40 μm filter element

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

Bore, pressure, buffering, and port specifications

10 rows

Bore (mm)	6×2 (equivalent φ8)	8×2 (equivalent φ11)	12×2 (equivalent φ17)	16×2 (equivalent φ22)	20×2 (equivalent φ28)	25×2 (equivalent φ35)
Working medium	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element	Air, filtered by 40 μm filter element
Action way	Double acting	Double acting	Double acting	Double acting	Double acting	Double acting
Max. operating pressure	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa
Min. operating pressure	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa	0.15 MPa
Environment and fluid temperature	-10 to +60 °C	-10 to +60 °C	-10 to +60 °C	-10 to +60 °C	-10 to +60 °C	-10 to +60 °C
piston speed	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s
Buffering	Rubber buffer standard	Rubber buffer standard	Rubber buffer standard	Rubber buffer standard	Rubber buffer standard	Rubber buffer standard
Lubrication	Non-lube	Non-lube	Non-lube	Non-lube	Non-lube	Non-lube
Port size	M3×0.5	M5×0.8	M5×0.8	Rc1/8	Rc1/8	Rc1/8

Same-group comparison

Pneumatic Slide Cylinders series comparison

Compare related product series by function, size, pressure, and RFQ details.

4 related series

Series	Bore / size	Motion	Pressure range	Stroke / angle	Speed / repeatability	Port thread
MXQ Slide Table	6×2 (equivalent Ø8), 8×2 (equivalent Ø11), 12×2 (equivalent Ø17), 16×2 (equivalent Ø22), 20×2 (equivalent Ø28), 25×2 (equivalent Ø35)	Double acting	0.15-0.7 MPa	No need	50-500 mm/s; adjuster / metal stopper option 50-200 mm/s	M3×0.5, M3×0.8, Rc1/8

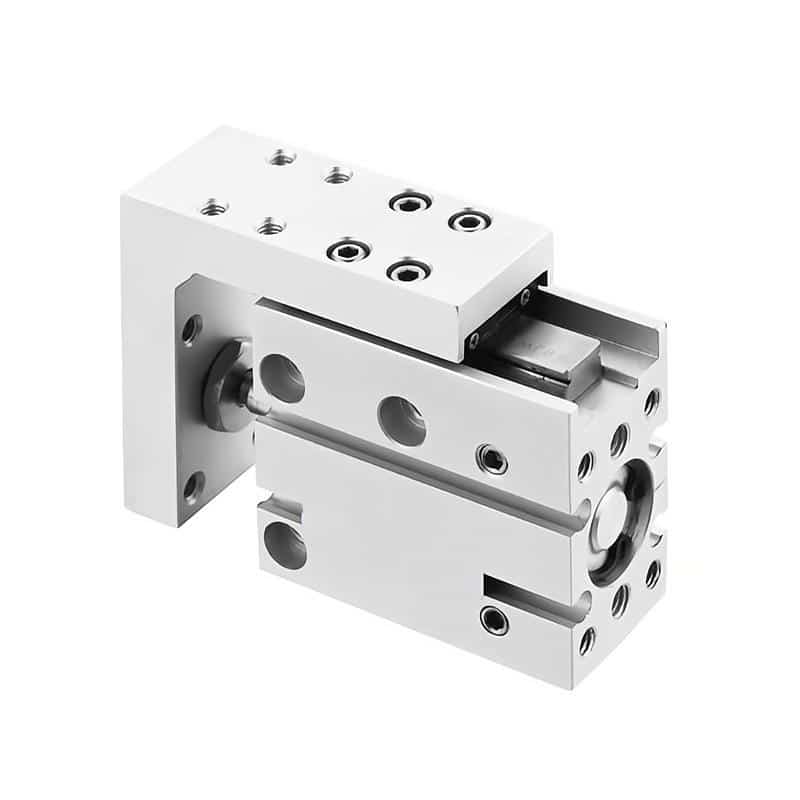

MXH Slide Table	6, 10, 16, 20 mm	Double acting	0.15 MPa for bore 6; 0.06 MPa for bores 10 and 16; 0.05 MPa for bore 20; Max. 0.7 MPa	+1.0 / 0 mm	50-500 mm/s	M5×0.8
CXSW Slide Cylinder	10, 16, 20, 25, 32 mm	Double-action	0.1-1.0 MPa	Confirm by model	50-200 mm/s	M5×0.8, G1/8
MXS Slide Cylinder	6×2 (equivalent φ8), 8×2 (equivalent φ11), 12×2 (equivalent φ17), 16×2 (equivalent φ22), 20×2 (equivalent φ28), 25×2 (equivalent φ35)	Double acting	0.15-0.7 MPa	Confirm by model	50-500 mm/s	M3×0.5, M5×0.8, Rc1/8

Choose by motion job

Start with the motion the actuator must make.

Pick the closest actuator use case, then confirm bore, stroke, load, mounting, pressure, speed, and space constraints before RFQ.

Scenario 01

Move a probe, fixture, or nest accurately.

Review function, size, pressure, mounting, and inquiry data for Pneumatic Slide Cylinders.

Recommended option

Ball-guide or precision slide table with repeatability and straightness review.

Repeatability
Load direction
Mounting flatness
Air quality

Common actuator uses

Where pneumatic actuators do the machine work.

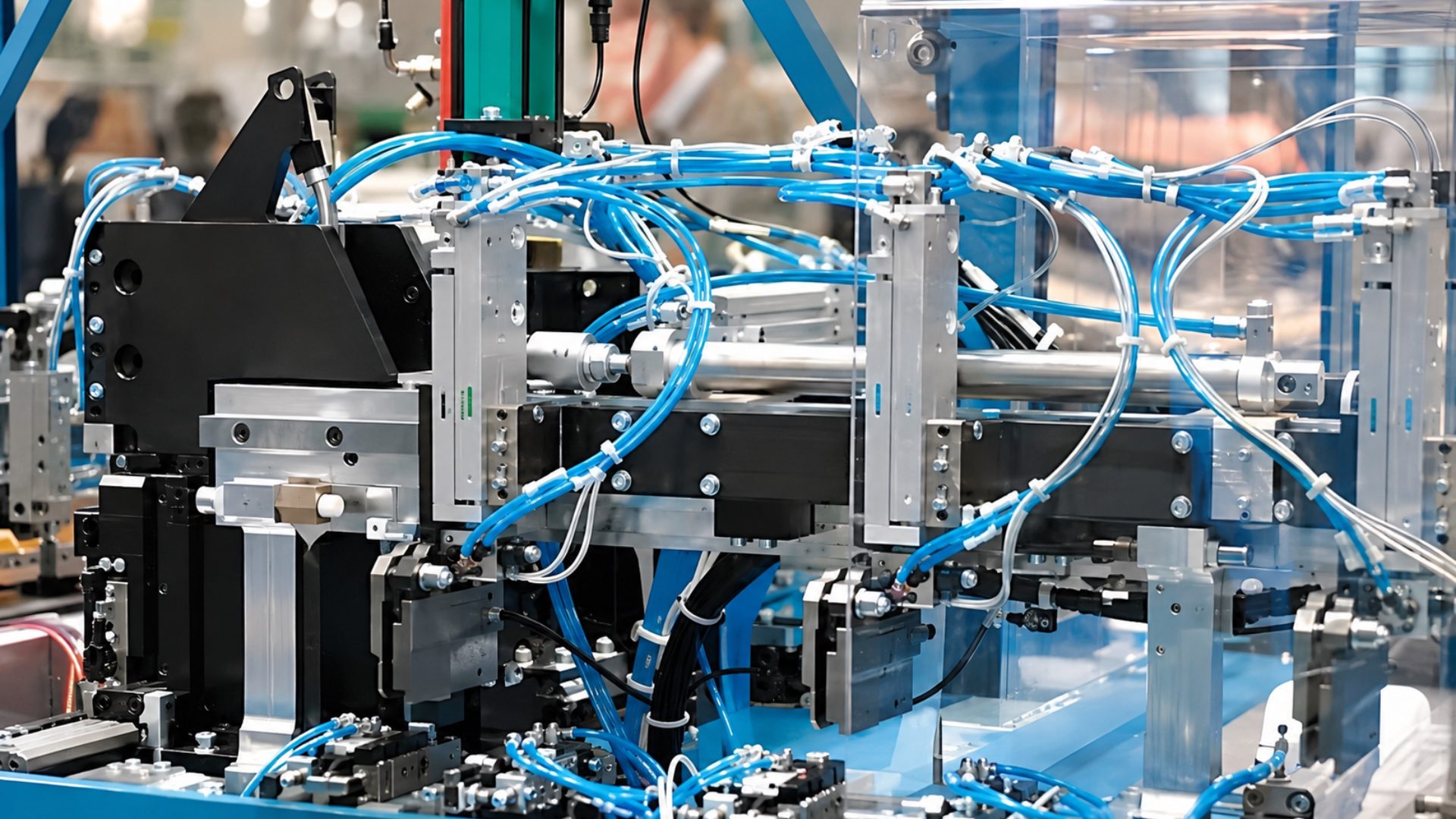

Pneumatic slide cylinder precision assembly operation application

Actuator use 01

Precision assembly operations

Review function, size, pressure, mounting, and inquiry data for Pneumatic Slide Cylinders.

Review straightness
Confirm load center
Check guide type

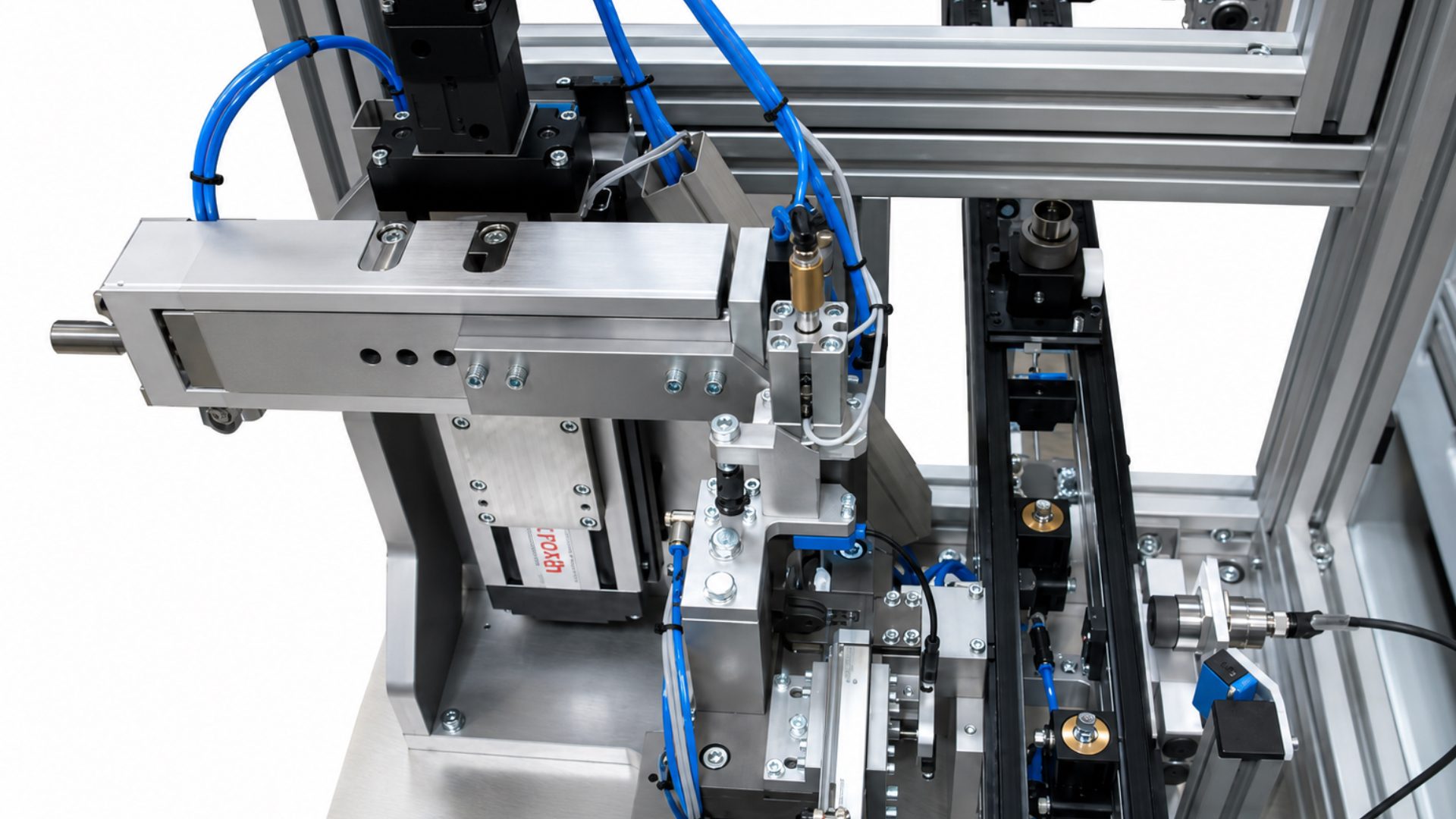

Pneumatic slide cylinder pick and place system application

Actuator use 02

Pick and place systems

Slide tables carry grippers or suction cups for short transfer motions in confined spaces.

Check tool weight
Review moment
Confirm speed

Actuator use 03

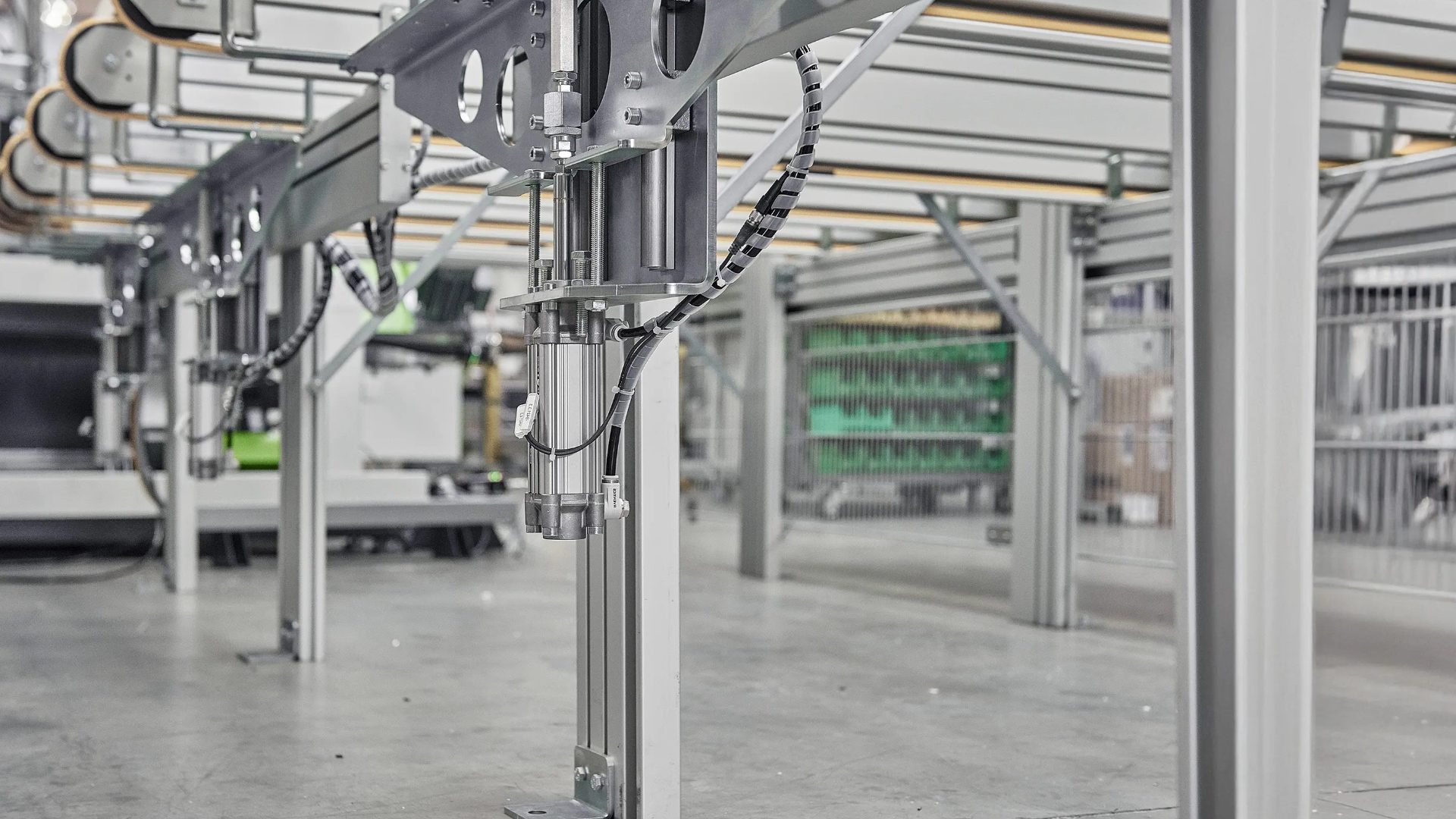

Inspection and measurement equipment

Guided slides drive probes, sensors, lenses, and gauges for controlled short movement.

Confirm repeatability
Review contamination
Set sensor positions

Cylinder sizing tools

Calculate load, bore, buckling, and cushion energy before selecting a cylinder.

Use these calculators when a linear cylinder decision depends on force margin, rod stability, stroke speed, and end-of-stroke energy.

Open Cylinder sizing tools

01Cylinder sizing

Cylinder Force Calculator

Check push and pull force before choosing bore, pressure, and safety factor.

Bore diameterRod diameterWorking pressureOpen calculator 02Cylinder sizing

Cylinder Bore Size Calculator

Convert a known load into a practical starting bore size.

Sizing input modeRequired load or moving massTravel orientationOpen calculator 03Cylinder sizing

Cylinder Rod Buckling Calculator

Check long-stroke rod stability before confirming bore and mounting.

Rod diameterUnsupported lengthEnd condition factorOpen calculator 04Cylinder sizing

Cylinder Cushion Energy Calculator

Review cushion energy when speed, mass, and stroke-end impact matter.

Moving massImpact velocityDrive forceOpen calculator

Request category support

Send the details that make this Pneumatic Slide Cylinders inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Load weight, overhang, and stroke
Guide type and table size
Moment load and precision target
Port, cushion, and sensor requirements

Category FAQ

Common questions before sending an inquiry.

01Pneumatic Slide CylindersWhen should I use a slide cylinder instead of a compact cylinder?

Use a slide cylinder when the load needs guided table movement, anti-rotation support, or better moment-load handling than a basic compact cylinder provides.

02Pneumatic Slide CylindersWhat is the key selection detail for a pneumatic slide?

The key detail is not just bore and stroke. Load weight, center of gravity, overhang, guide type, and allowable moment are equally important.

03Pneumatic Slide CylindersCan slide cylinders be used with grippers?

Yes. They are often used with pneumatic grippers or suction cups, but the tool weight and overhang must be checked.
