01 / Flexible PU route

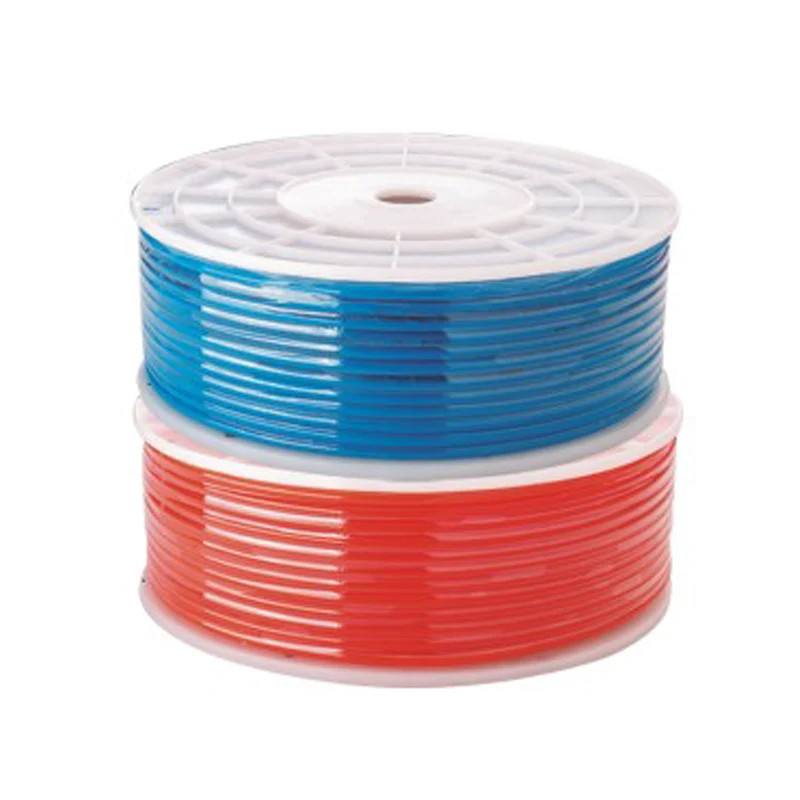

Polyurethane Tubing and Recoil Lines
- Start with
- OD, ID, color
- Includes
- PU + UC recoil
- RFQ note
- Confirm coil or working length
Air line routing category
Pneumatic Tubing and Air Line Accessories
Tubing defines the air path between FRL units, valves, actuators, fittings, and workstations.
PU and recoil tubingPA nylon tubingAir blow gunsRFQ-ready details
Product category selector
Choose a tubing and accessories product family.
Pick one product category, then compare specifications or send RFQ.
Current categoryPneumatic Tubing and Air Line AccessoriesSelect a subcategory, then compare product series, specification tables, selection details, and RFQ checklist.
Category buying guide
Tubing and air line accessories deserve the same selection discipline as valves and cylinders.
Pneumatic tubing looks simple, but it affects pressure drop, routing quality, installation time, maintenance visibility, and fitting compatibility.
Before RFQ
Keep the selection grounded in working details.
- Tube OD and ID
- Material and color
- Coil length or working length
- Pressure, temperature, and matching fittings
Series comparison
Select the air line product group before comparing specifications.
The most useful tubing inquiry includes outside diameter, inside diameter when known, material, color, coil length, working pressure, temperature range, bend radius, and matching fittings.
02 / Stable pressure route

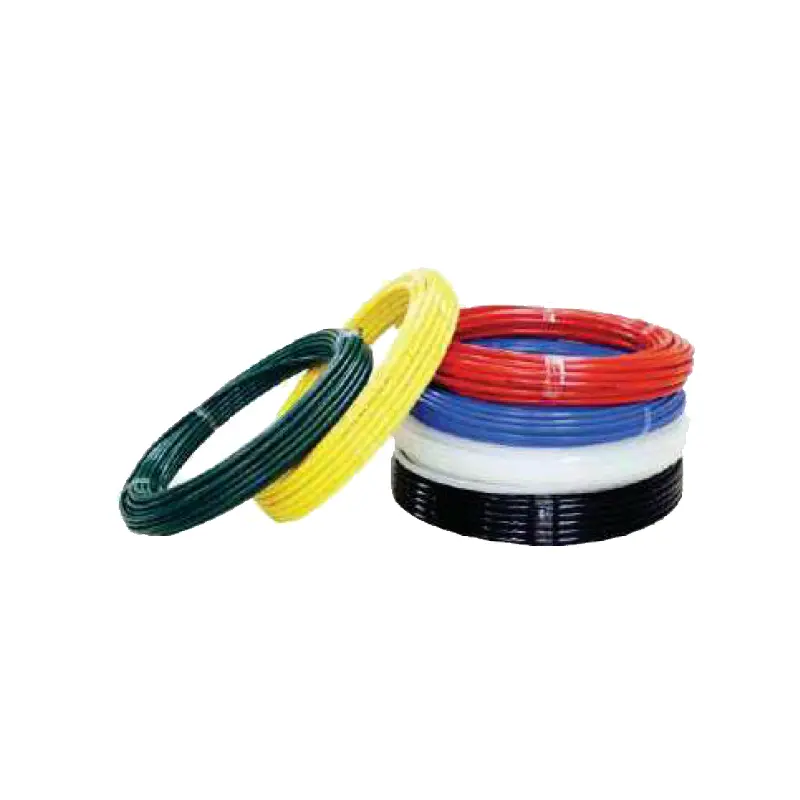

PA Nylon Pneumatic Tubing
- Start with
- OD, ID, pressure
- Includes
- PA6 + PA12
- RFQ note
- Check bend radius
03 / Model-by-model route

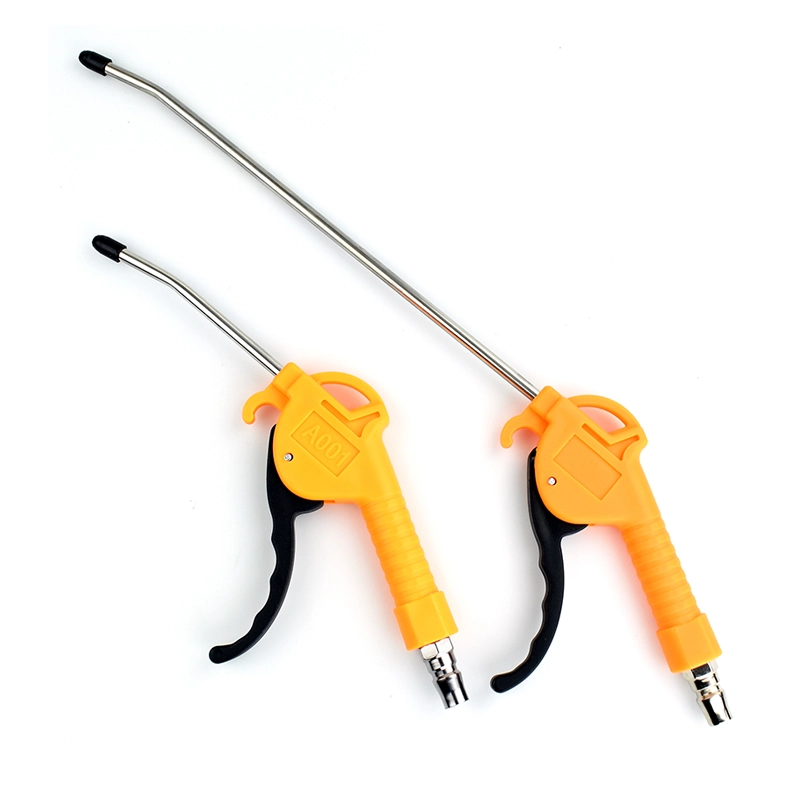

Pneumatic Air Blow Guns
- Start with
- Model photo
- Includes
- 13 photographed models
- RFQ note
- Confirm nozzle and inlet
Choose by air-line job
Start with how the compressed-air line is routed.
Pick the closest tubing or air blow use case, then confirm material, tube OD/ID, length, color, pressure, bend radius, or nozzle details before RFQ.
Route multiple air lines cleanly in a cabinet.
Review function, size, pressure, mounting, and inquiry data for Pneumatic Tubing and Air Line Accessories.
Recommended option
PU tubing with confirmed OD, ID, color, coil length, and matching connector family.
- Tube color
- Tube OD
- Bend radius
- Fitting family
Supply air to a tool or moving work area.
Recoil tube can keep the air line available without leaving loose hose across the operator station.
Recommended option
UC recoil polyurethane tubing with working length, retracted length, connector ends, and pressure rating.
- Working length
- Retracted length
- Connector ends
- Air tool demand
Use nylon tubing where stability and pressure margin matter.
PA6 and PA12 tubing help when a circuit needs a stiffer line, higher pressure margin, or colder environment review.
Recommended option
PA6 or PA12 nylon tubing selected by OD/ID, pressure, temperature, bend radius, and color.
- PA material
- Pressure
- temperature
- Bend radius
Match the air blow gun to the cleaning task.
Air blow gun selection depends on body material, inlet thread, nozzle style, barrel length, and whether airflow needs adjustment.
Recommended option
AD Series air blow gun route with nozzle, inlet, pressure, and workstation details confirmed.
- Nozzle length
- Inlet thread
- Air pressure
- Cleaning distance
Common air-line uses
Where tubing and air blow products are used.
Air-line use 01
Automation cabinets and manifolds
PU and nylon tubing carry compressed air from FRL units and valve manifolds to cylinders, grippers, ejectors, blow-off points, and sensors.
- Color-code by function
- Use clean tube cuts
- Keep service loops controlled
Air-line use 02
Air tool and workstation supply
Recoil polyurethane tubing and air blow guns support flexible working areas where operators need clean movement and controlled compressed-air output.
- Confirm connector ends
- Check retracted and extended length
- Review nozzle and pressure rating
Air-line use 03
High-pressure or cold-area lines
PA6 and PA12 nylon tubing help when machine lines need stronger dimensional stability, higher pressure margin, or cold-area flexibility.
- Select PA6 or PA12
- Check pressure by tube size
- Review temperature derating
Tubing calculation tools
Connect tubing selection with volume, ID, velocity, and pressure-drop checks.
Use the tools before choosing PU tubing, nylon tubing, recoil lines, or air-line accessories for a pneumatic circuit.
Open Valves & flow tools01Compressed air
Tube Volume Calculator
Estimate tube volume from length and diameter before air-demand review.
Tube internal diameterTube lengthWorking pressureOpen calculator02Valves & flowTube ID Calculator
Translate tube OD and wall thickness into usable internal diameter.
Free-air flowFlow unitWorking pressureOpen calculator03Valves & flowAir Velocity Calculator
Check line velocity for PU tubing, nylon tubing, and routed air lines.
Free-air flowFlow unitInternal diameterOpen calculator04Valves & flowPressure Drop Calculator
Estimate pressure drop across long tubing runs or compact panels.
FlowPipe lengthEquivalent fitting lengthOpen calculatorRequest category support
Send the details that make this Pneumatic Tubing and Air Line Accessories inquiry review-ready.
Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.
- Tube OD and ID
- Material and color
- Coil length or working length
- Pressure, temperature, and matching fittings
- Air blow gun nozzle, inlet, and cleaning task
