Pneumatic Lubricators

Review function, size, pressure, mounting, and inquiry data for Pneumatic Lubricators.

View product specifications Build an FRL RFQ

Oil mist supportFlow and pressure reviewBowl capacityHigh-pressure options

Category buying guide

Lubricators should only be used where downstream components require oil mist.

Lubrication can help specific pneumatic devices, but it is not universal.

Air preparation categories

01Air Filters 02Lubricators 03Filter Lubricators 04FRL Units 05Pressure Regulators 06Filter Regulators

Pneumatic Lubricators • Product specifications

Pneumatic Lubricators: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

xgl series pneumatic air line lubricator xg line product view 1

Order Symbol

Series 01

Series: XGL Series Pneumatic Air Line Lubricator (XG Line)
Model range: XGL2-01 | XGL2-02 | XGL3-02 | XGL3-03 | XGL3-04
Port size code: 01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2

Key Specs

Selection focus

Model range: XGL2-01 | XGL2-02 | XGL3-02 | XGL3-03 | XGL3-04
Port size code: 01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2
Thread type code: Blank: BSP, NPT: NPT, PT: PT
Series code: XGL2 / XGL3: Lubricator

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, port, and thread specifications

9 rows

Model	XGL2-01	XGL2-02	XGL3-02	XGL3-03	XGL3-04
Series / body code	XGL2	XGL2	XGL3	XGL3	XGL3
function	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator
Port size code	01	02	02	03	04
Port size	G1/8	G1/4	G1/4	G3/8	G1/2
thread type code	Blank: BSP; NPT: NPT; PT: PT	Blank: BSP; NPT: NPT; PT: PT	Blank: BSP; NPT: NPT; PT: PT	Blank: BSP; NPT: NPT; PT: PT	Blank: BSP; NPT: NPT; PT: PT
BSP thread order code	XGL2-01	XGL2-02	XGL3-02	XGL3-03	XGL3-04
NPT thread option	XGL2-01 + NPT	XGL2-02 + NPT	XGL3-02 + NPT	XGL3-03 + NPT	XGL3-04 + NPT
PT thread option	XGL2-01 + PT	XGL2-02 + PT	XGL3-02 + PT	XGL3-03 + PT	XGL3-04 + PT

xmal series metal cup pneumatic air line lubricator xma line product view 1

Order Symbol

Series 02

Series: XMAL Series Metal Cup Pneumatic Air Line Lubricator (XMA Line)
Model range: XMAL2000-01 to XMAL5000-10
Port size code: 01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2, 06: G3/4, 10: G1

Key Specs

Selection focus

Model range: XMAL2000-01 to XMAL5000-10
Port size code: 01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2, 06: G3/4, 10: G1
Specification code: 2000, 3000, 4000, 5000
function code: L: Lubricator

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, flow, port, and pressure specifications

16 rows

Model	XMAL2000-01	XMAL2000-02	XMAL3000-02	XMAL3000-03	XMAL4000-03	XMAL4000-04	XMAL4000-06	XMAL5000-06	XMAL5000-10
Series code	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA
function code	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)	L (Lubricator)
Specification code	2000	2000	3000	3000	4000	4000	4000	5000	5000
Port size code	01	02	02	03	03	04	06	06	10
Port size (G)	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Graphic symbol	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator	Lubricator
proof pressure	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)
Max. working pressure	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Recommended oil	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32
Bowl material	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting
Min.imum oil drop flow (L/min)	15	15	30	40	40	50	50	190	190
Rated flow (L/min)	800	800	1700	1700	5000	5000	6300	7000	7000
Bowl capacity	25	25	50	50	130	130	130	130	130
Standard order code	XMAL2000-01	XMAL2000-02	XMAL3000-02	XMAL3000-03	XMAL4000-03	XMAL4000-04	XMAL4000-06	XMAL5000-06	XMAL5000-10

Additional table

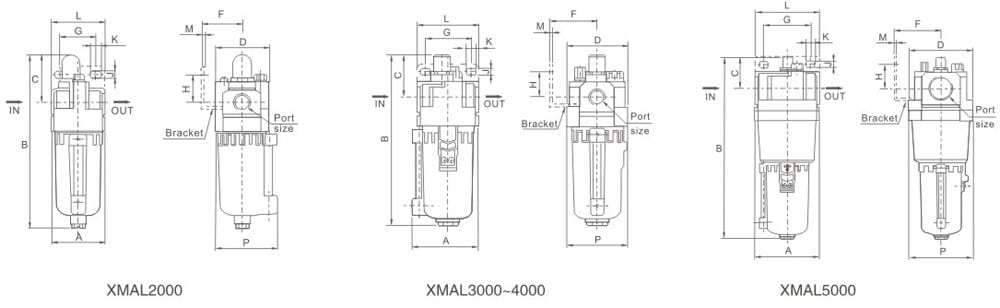

Port size and Mounting dimensions

6 rows

XMAL Series Metal Cup Pneumatic Air Line Lubricator (XMA Line) dimension reference drawing

Model	Port size (G)	A	B	C	D	F	G	H	J	K	L	M	P
XMAL2000	G1/8″-G1/4″	40	137	39	50	30	27	22	5.4	8.4	40	2.3	46
XMAL3000	G1/4″-G3/8″	57.5	154.5	39	53	41	40	23	6.5	8	53	2.3	55
XMAL4000	G1/2″	74	185.5	41	70	50	54	26	8.5	10.5	70	2.3	72.5
XMAL4000-06	G3/4″	76.5	185.5	39	70	50	54	25	8.5	10.5	70	2.3	72.5
XMAL5000	G3/4″-G1″	90	262.5	45	90	66.5	66	35	11	13	90	3.2	90

Order Symbol

Series 04

Series: SL Series SS316 High Pressure Pneumatic Lubricator
Model range: SL200-02 | SL400-03 | SL400-04 | SL600-06 | SL600-10
body size code: 200: G1/4, 400: G3/8 or G1/2, 600: G3/4 or G1

Key Specs

Selection focus

Model range: SL200-02 | SL400-03 | SL400-04 | SL600-06 | SL600-10
Body size code: 200: G1/4, 400: G3/8 or G1/2, 600: G3/4 or G1
Pressure code: Blank: 0-16 kg/cm²; H: 5-40 kg/cm²
Thread code: Blank: G, N: NPT
Order code: SL series + body size code + Joint pipe bore code + thread / pressure / temperature options

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

ordering code, port, pressure, and flow specifications

20 rows

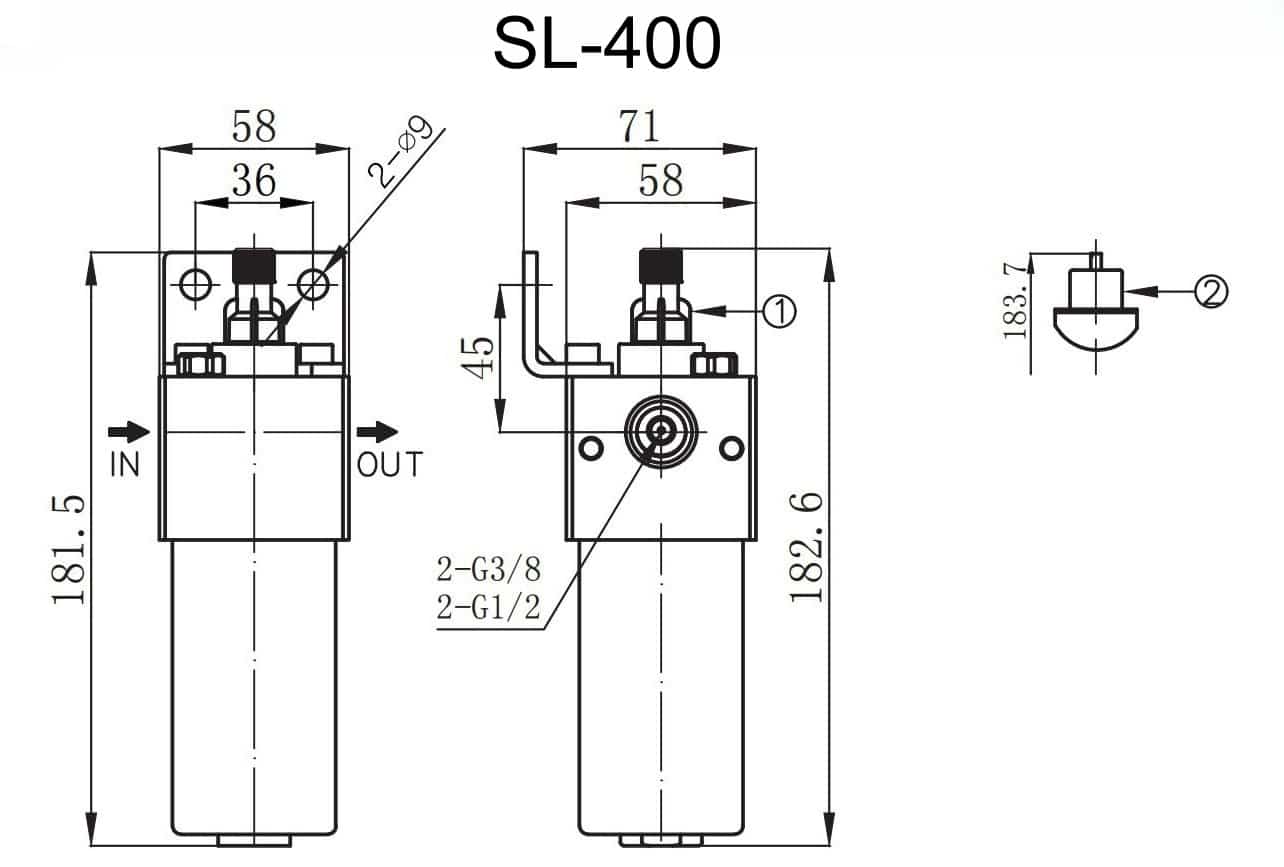

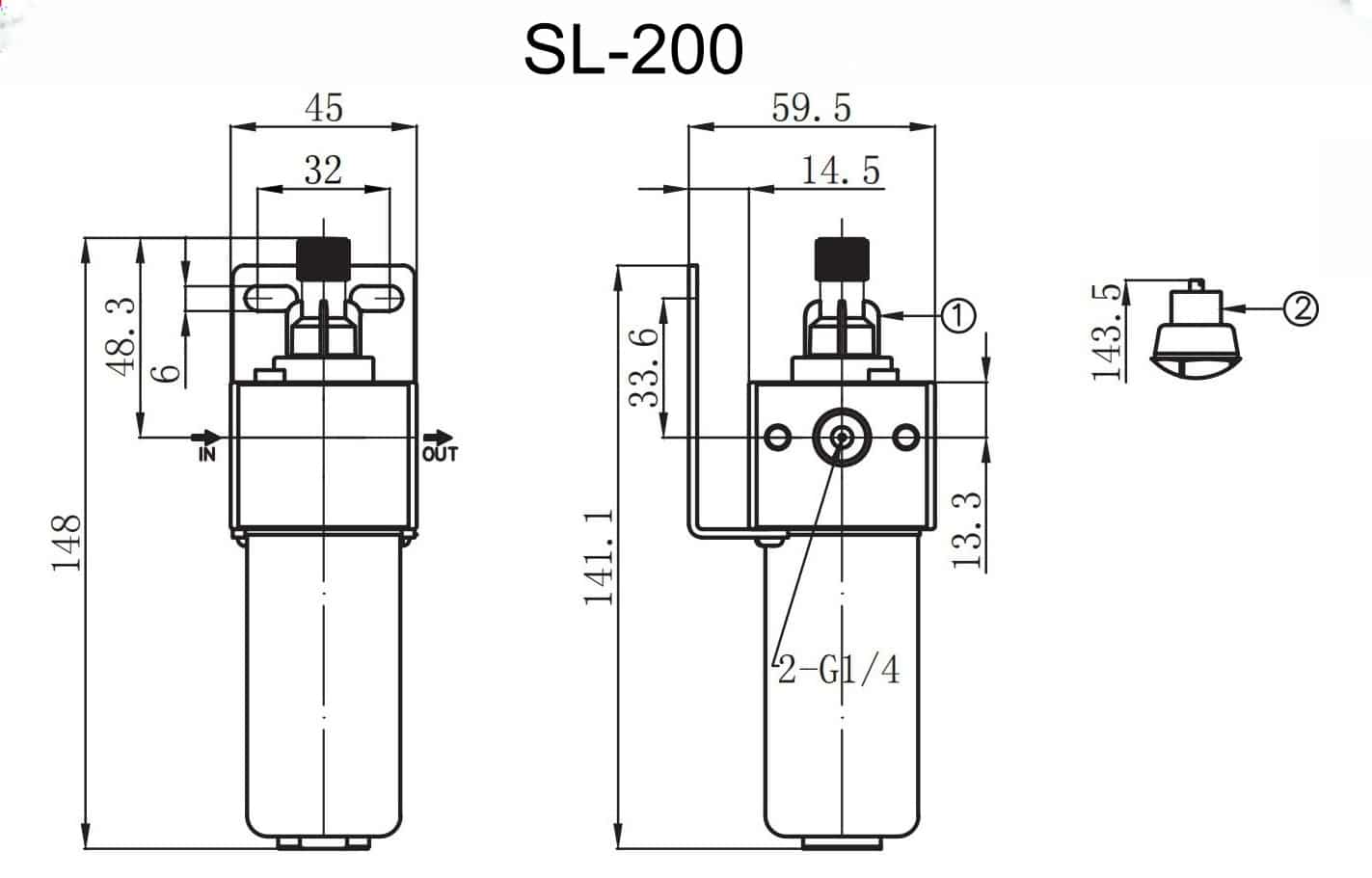

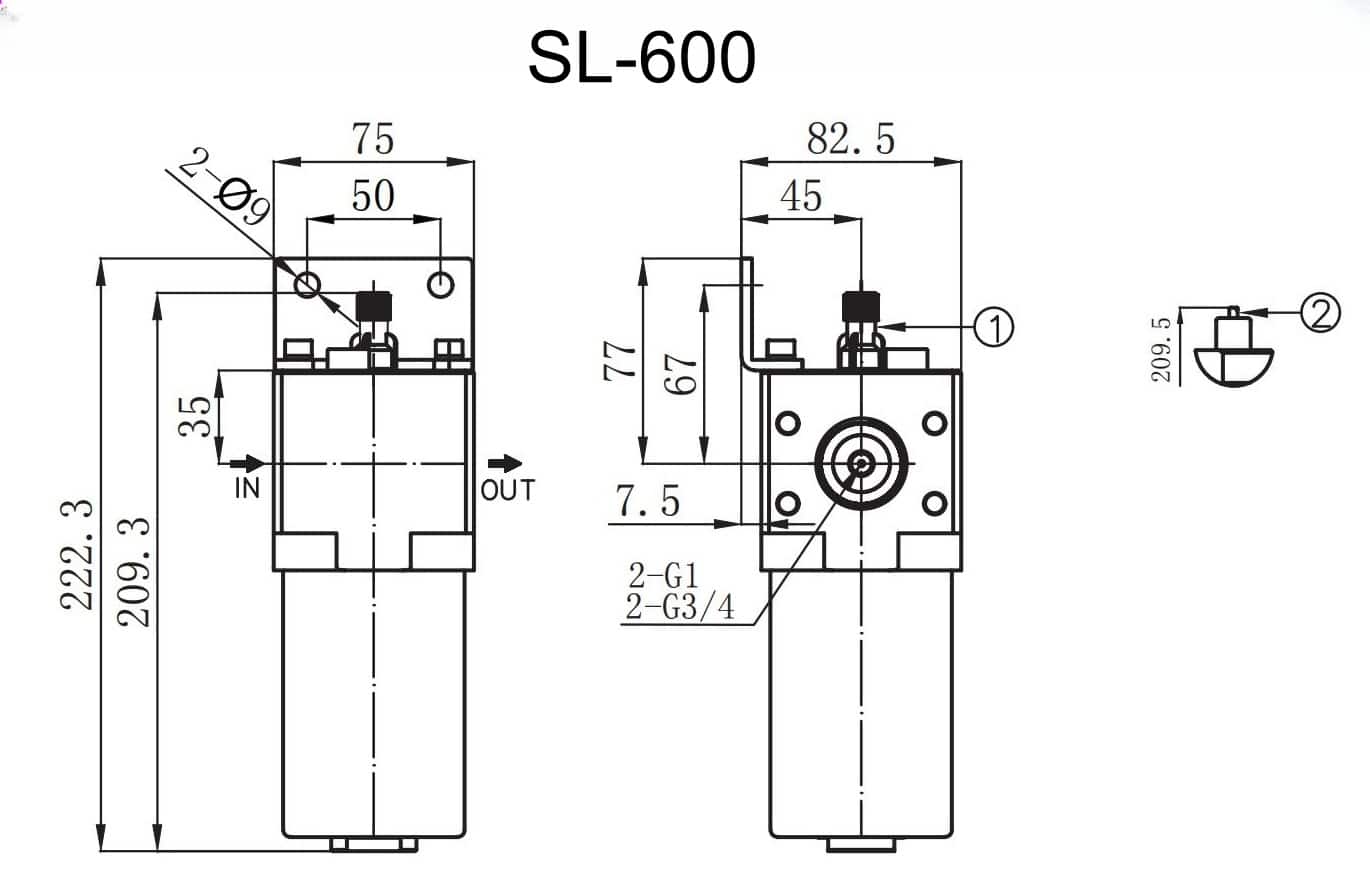

SL Series SS316 High Pressure Pneumatic Lubricator flow and pressure curve reference chart

Model	SL200-02	SL400-03	SL400-04	SL600-06	SL600-10
Type	Air oil Lubricator	Air oil Lubricator	Air oil Lubricator	Air oil Lubricator	Air oil Lubricator
Series code	SL	SL	SL	SL	SL
body size code	200	400	400	600	600
Joint pipe bore code	02	03	04	06	10
Port size (G)	G1/4	G3/8	G1/2	G3/4	G1
thread code	Blank: G; N: NPT	Blank: G; N: NPT	Blank: G; N: NPT	Blank: G; N: NPT	Blank: G; N: NPT
G-thread order code	SL200-02	SL400-03	SL400-04	SL600-06	SL600-10
NPT thread option	SL200-02-N	SL400-03-N	SL400-04-N	SL600-06-N	SL600-10-N
Pressure code	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²	Blank: 0-16 kg/cm²; H: 5-40 kg/cm²
temperature code	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C	Blank: -5-100 °C; LT1: -40-55 °C; LT2: -60-100 °C
Max. flow rate (L/min)	2500	2525	4100	13200	13200
Lubricator cup capacity	125 cc	130 cc	130 cc	200 cc	200 cc
Working medium	Air	Air	Air	Air	Air
Pressure regulating range	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa	0.15-0.8 MPa
proof pressure	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)	6 MPa (870 psi)
Operating temperature range	-40-100 °C	-40-100 °C	-40-100 °C	-40-100 °C	-40-100 °C
Material	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel	SUS316 stainless steel
Accessories	Mounting bracket, screw x2	Mounting bracket, screw x2	Mounting bracket, screw x2	Mounting bracket, screw x2	Mounting bracket, screw x2
Weight	1150 g	1700 g	1680 g	3300 g	3270 g

Same-group comparison

Pneumatic Lubricators series comparison

Compare related product series by function, size, pressure, and RFQ details.

4 related series

Series	Port size	function	Flow range	Pressure range	Filtration and drain	Bowl material
XGL XG-Line Lubricator	01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2	Lubricator	-	-	-	-
XMAL Metal-Cup Lubricator	01: G1/8, 02: G1/4, 03: G3/8, 04: G1/2, 06: G3/4, 10: G1	Metal Cup Lubricator	800-7000 L/min	-	-	Aluminum die-cast body
AL/BL Standard Lubricator	1500: G1/8, 2000: G1/4, 3000: G3/8, 4000: G1/2	Lubricator	-	-	-	Aluminum die-cast body
SL SS316 High-Pressure Lubricator	G1/4, G3/8, G1/2, G3/4, G1	Stainless Lubricator	2500-13200 L/min	0.15-0.8 MPa	-	SUS316 stainless steel

Choose by air-preparation job

Start with the air quality or pressure job.

Pick the closest FRL use case, then confirm port size, flow, pressure range, filtration, drain, bowl, gauge, and service access before RFQ.

Scenario 01

Support pneumatic devices that require oil mist.

Confirm downstream component requirements before adding lubrication.

Recommended option

Air-line lubricator matched by flow, pressure, port size, and oil capacity.

Oil requirement
Flow
Port size
Adjustment access

Common FRL uses

Where air preparation units protect the pneumatic line.

XGL Series Pneumatic Air Line Lubricator (XG Line) product image

FRL use 01

Oil-mist pneumatic tool lines

Review function, size, pressure, mounting, and inquiry data for Pneumatic Lubricators.

Confirm oil requirement
Check flow demand
Keep oil fill accessible

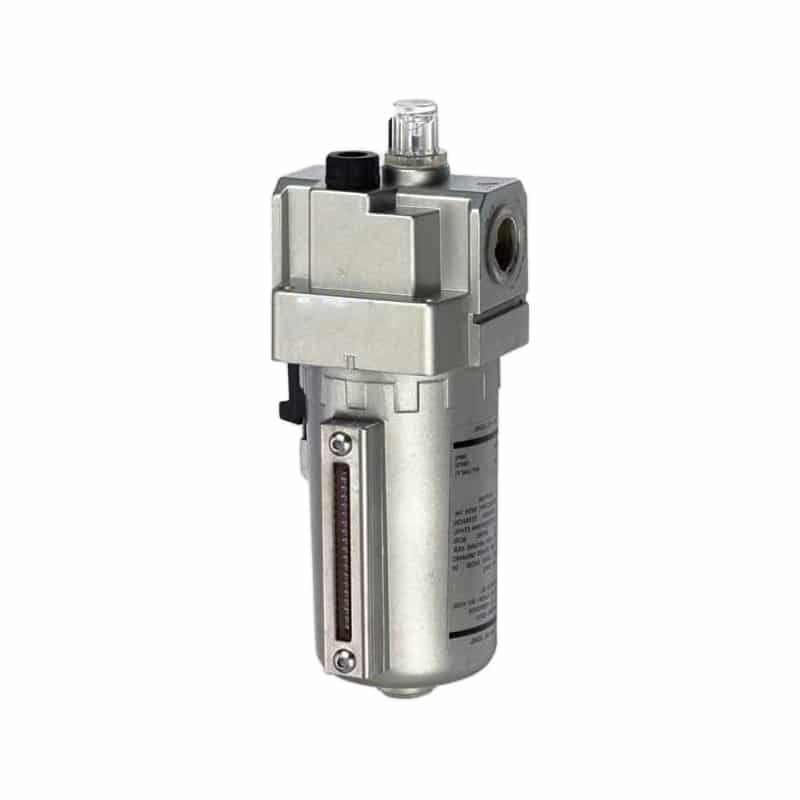

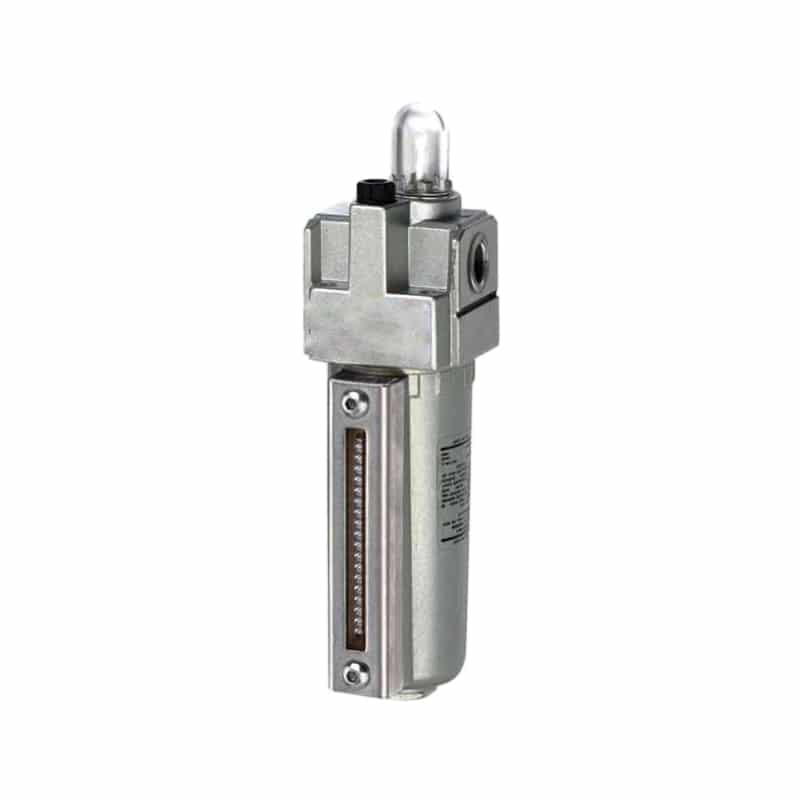

XMAL Series Metal Cup Pneumatic Air Line Lubricator (XMA Line) product image

FRL use 02

Lubricated cylinder and valve branches

Review function, size, pressure, mounting, and inquiry data for Pneumatic Lubricators.

Verify component requirement
Check downstream process
Adjust oil feed rate

AL & BL Series Pneumatic Airline Lubricators product image

FRL use 03

High-pressure or stainless lubrication points

Use high-pressure or stainless lubricator series where the lubrication point must handle tougher pressure, material, or environment requirements.

Confirm pressure class
Check body material
Review oil compatibility

Compressed-air tools

Review pressure stability and air capacity before selecting FRL units.

Pair filters, regulators, lubricators, and complete FRL units with pressure-drop, compressor, receiver, and pressure-unit checks.

Open Compressed air tools

01Valves & flow

Pressure Drop Calculator

Estimate pressure loss across air lines before sizing FRL components.

FlowPipe lengthEquivalent fitting lengthOpen calculator 02Compressed air

Compressor CFM Calculator

Check compressor capacity against expected pneumatic demand.

Receiver volumeStart pressureEnd pressureOpen calculator 03Compressed air

Air Receiver Tank Sizing Calculator

Review receiver volume when pressure stability matters.

Demand flowCompressor support flowDurationOpen calculator 04Unit conversion

Pressure Converter

Convert pressure units for FRL, regulator, and filter specifications.

Pressure valueSource pressure unitOpen calculator

Request category support

Send the details that make this Pneumatic Lubricators inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and rated flow
Pressure range, filtration grade, and drain type
Bowl material, bracket, gauge, and environment requirements

Category FAQ

Common questions before sending an inquiry.

01Pneumatic LubricatorsShould every pneumatic system use a lubricator?

No. Many modern systems use dry air. Add a lubricator only when downstream components or the application require oil mist.

02Pneumatic LubricatorsWhat details are important for a lubricator quote?

Send port size, rated flow, pressure range, oil capacity or bowl style, adjustment access, existing model photos, and downstream component requirements.

Model	AL1500	AL2000	BL2000	BL3000	BL4000
Series code	AL	AL	BL	BL	BL
Series size	Small size	Small size	Middle size	Middle size	Middle size
Port size code	1500	2000	2000	3000	4000
Port size (G)	G1/8	G1/4	G1/4	G3/8	G1/2
Operating fluid	Air	Air	Air	Air	Air
proof pressure	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Suggested lube	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil
Oil feed cup capacity	25 cc	25 cc	90 cc	90 cc	90 cc
Weight	0.17 kg	0.17 kg	0.25 kg	0.25 kg	0.25 kg
Body material	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming
Container cup	PE	PE	PE	PE	PE
Protective cup cover	-	-	Iron	Iron	Iron
Standard order code	AL1500	AL2000	BL2000	BL3000	BL4000

Pneumatic Lubricators

Lubricators should only be used where downstream components require oil mist.

Pneumatic Lubricators: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

ordering code, port, and thread specifications

Order Symbol

Key Specs

Quote Checklist

ordering code, flow, port, and pressure specifications

Port size and Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

ordering code, port, and lubrication specifications

Order Symbol

Key Specs

Quote Checklist

ordering code, port, pressure, and flow specifications

Pneumatic Lubricators series comparison

Start with the air quality or pressure job.

Support pneumatic devices that require oil mist.

Match a bowl or lubricator family without changing pipework.

Add lubrication in a higher-pressure or stainless environment.

Where air preparation units protect the pneumatic line.

Oil-mist pneumatic tool lines

Lubricated cylinder and valve branches

High-pressure or stainless lubrication points

Review pressure stability and air capacity before selecting FRL units.

Pressure Drop Calculator

Compressor CFM Calculator

Air Receiver Tank Sizing Calculator

Pressure Converter

Send the details that make this Pneumatic Lubricators inquiry review-ready.

Pneumatic Lubricators RFQ details

Common questions before sending an inquiry.
