Pneumatic valve categories

01Solenoid Valves 02Air Control Valves 03Manual Control Valves 04Mechanical Valves 05Flow Control Valves 06Fluid Solenoid Valves 07Foot Operated Valves

Fluid Solenoid Valves • Product specifications

Fluid Solenoid Valves: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Order Symbol

Series 01

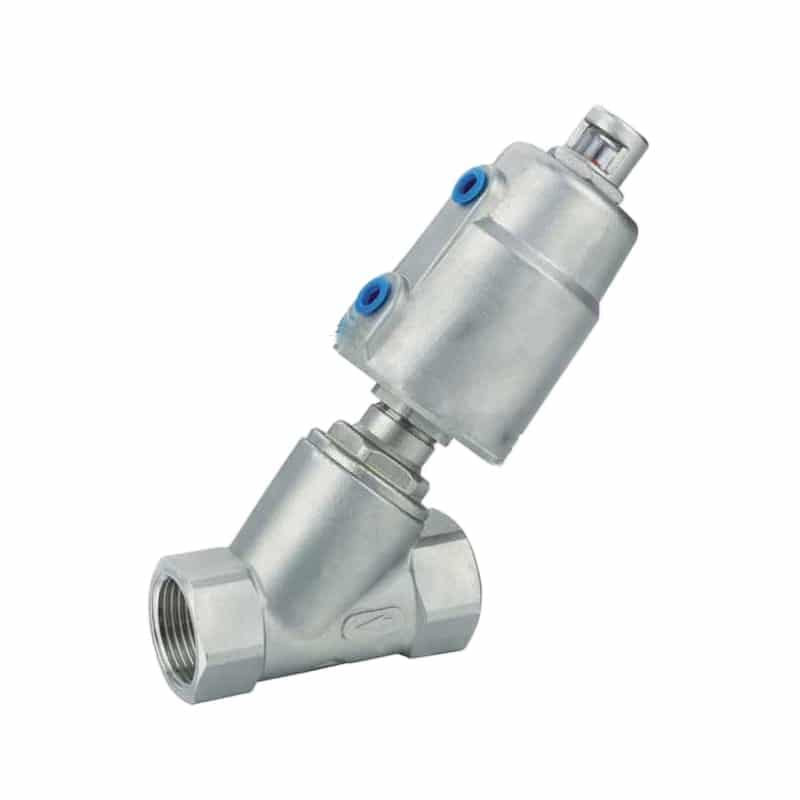

Series: XQ22HD Series stainless steel Pneumatic Angle Seat Valve (Right Angle)
Model: Medium, temp range, Kv value (m³/k)

Key Specs

Selection focus

XQ22HD-15: 15 mm, compressed air, Water, Oil, 0.2-0.6 MPa, -5-60 °C / high temperature -5-150 °C
XQ22HD-20: 20 mm, compressed air, Water, Oil, 0.2-0.6 MPa, -5-60 °C / high temperature -5-150 °C
XQ22HD-25: 25 mm, compressed air, Water, Oil, 0.2-0.6 MPa, -5-60 °C / high temperature -5-150 °C
XQ22HD-32: 32 mm, compressed air, Water, Oil, 0.2-0.6 MPa, -5-60 °C / high temperature -5-150 °C
XQ22HD-40: 40 mm, compressed air, Water, Oil, 0.2-0.6 MPa, -5-60 °C / high temperature -5-150 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Flow path and orifice specifications

7 rows

Model	Orifice	medium	Working pressure	Temp range	Kv value (m³/k)
XQ22HD-15	15 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	4
XQ22HD-20	20 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	5
XQ22HD-25	25 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	10
XQ22HD-32	32 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	25
XQ22HD-40	40 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	25
XQ22HD-50	50 mm	compressed air, Water, Oil	0.2-0.6 MPa	-5-60 °C / high temperature -5-150 °C	40

Additional table

Overall Mounting dimensions

7 rows

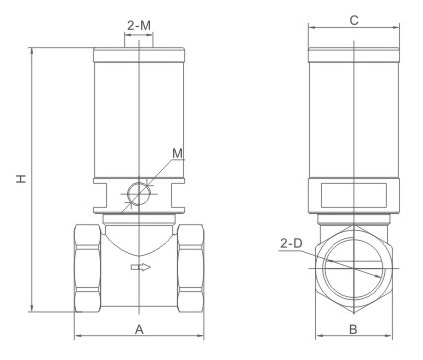

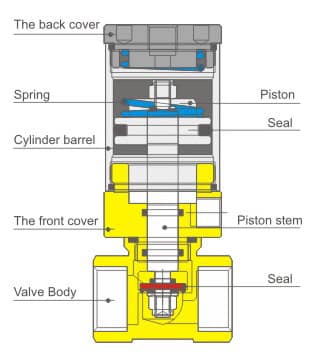

XQ22HD Series Stainless Steel Pneumatic Angle Seat Valve (Right Angle) dimension reference drawing

Model	A	B	C	D	H	M
XQ22HD-15	47	26	31	G1/2″	96	G1/8″
XQ22HD-20	54	33	31	G3/4″	102	G1/8″
XQ22HD-25	66	34	38	G1″	115	G1/8″
XQ22HD-32	77	48	46	G1-1/4″	143	G1/8″
XQ22HD-40	86	54	56	G1-1/2″	160	G1/8″
XQ22HD-50	116	67	69	G2″	182	G1/8″

Order Symbol

Series 02

Series: XC Series stainless steel Pneumatically Actuated Angle Seat Valve
Model: XC10-50SC/SO/DC/DF

Key Specs

Selection focus

Model: XC10-50SC/SO/DC/DF
Applicable medium: Water, liquid, neutral gas, water steam, Slight corrosive gas and liquid
Controlling pressure range: 0.3-1M
Port size: DN10-DN50
temperature range: PTFE: -10 to +180 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Valve function and port specifications

16 rows

Model	XC10-50SC/SO/DC/DF
Port size	DN10-DN50
thread	G3/8 G2″
Welded	DIN11850 2 DIN11850 3 ISO2037
Valve bodv	CF8M
Actuator	CF8
Seat seals	PTFE
Stem seals	PTFE/FKM
Piston seals	FKM/NBR
Applicable medium	Water, liquid, neutral gas, water steam, Slight corrosive gas and liquid
temperature range	PTFE: -10 to +180 °C
Ambient temperature	-10 °C to +60 °C
Viscasity	Max.600mm²/s
Installation	Any position
Controlling medium	Air or neutral gas
Controlling pressure range	0.3-1M

Additional table

Overall Mounting dimensions

13 rows

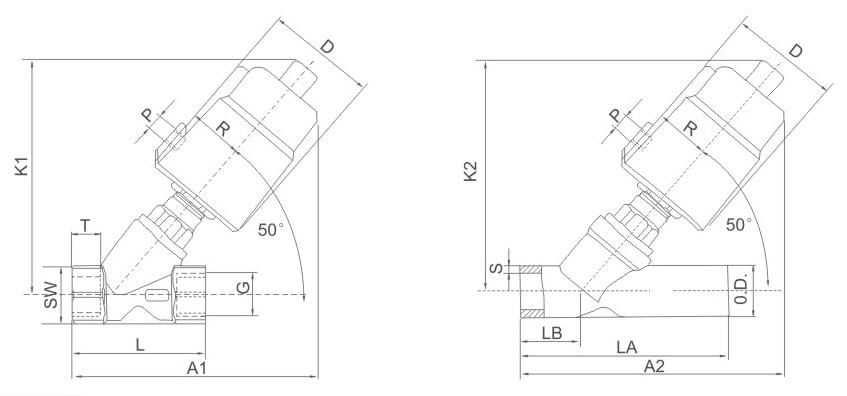

XC Series Stainless Steel Pneumatically Actuated Angle Seat Valve dimension reference drawing

Specification	Actuator (mm)	D	R	P	thread						Welded
					G	K1	A1	L	T	SW	0.D.	K2	A2	LA	LB	S
DN10	40	53	28	G1/8”	G3/8”	105	144	65	12	25	/	/	/	/	/	/
DN15	50	56	35	G1/8”	G1/2”	142	182	76	14	28	21	115	142	100	18	3
DN20	50	56	35	G1/8”	G3/4”	152	189	92	16	32	27	131	170	117	30	3
DN25	63	56	43	G1/8”	G1”	155	207	103	21	39	34	138	175	130	30	3
DN25	63	70	43	G1/8”	G1”	176	217	103	21	39	34	166	200	130	30	3
DN32	63	70	43	G1/8”	G1”-1/4”	177	222	112	19	49	42	172	207	145	30	3
DN40	63	70	43	G1/8”	G1”-1/2”	182	225	129	21	56	48	174	207	160	30	4
DN50	63	70	43	G1/8”	G2”	196	249	143	27	68	60	193	227	190	30	4
DN50	90	94	56	G1/4”	G2”	206	268	143	27	68	60	202	235	190	30	4
DN65	90	94	56	G1/4”	G2”-1/2”	215	290	186	28	84	76	209	255	230	40	5
DN80	125	135	73	G1/4”	G3”	295	335	218	34	101	/	/	/	/	/	/

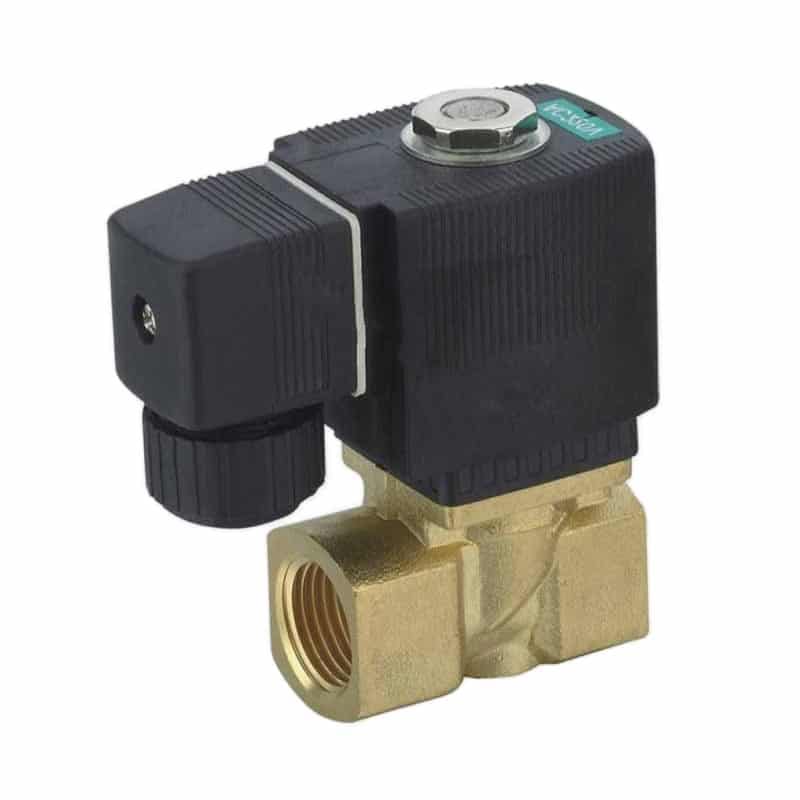

xc6213 series diaphragm solenoid valve 2 2 way nc brass body product view 1

Order Symbol

Series 09

Series: XC6213 Series Diaphragm solenoid valve (2/2 Way NC, Brass Body)
Model: XC6213-02 | XC6213-03 | XC6213-04 | XC6213-04 | XC6213-06 | XC6213-06 | XC6213-08

Key Specs

Selection focus

Model: XC6213-02 | XC6213-03 | XC6213-04 | XC6213-04 | XC6213-06 | XC6213-06 | XC6213-08
Medium temperature: -10-+90
Working Pressure(MPa): 0.03-1.0
Power Consumptin: AC (VA): 14
Port Size: G1/4″, G3/8″, G1/2″, G3/4″, G1″

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

11 rows

Model	XC6213-02	XC6213-03	XC6213-04	XC6213-04	XC6213-06	XC6213-06	XC6213-08
Inside nominal diameter (mm)	10	14	25	25	25	25	25
Port size	G1/4″	G3/8″	G1/2″	G1/2″	G3/4″	G3/4″	G1″
Working Pressure (MPa)	0.03-1.0	0.03-1.0	0.03-1.0	0.03-1.0	0.03-1.0	0.03-1.0	0.03-1.0
Environment temperature	-10-+55	-10-+55	-10-+55	-10-+55	-10-+55	-10-+55	-10-+55
medium temperature	-10-+90	-10-+90	-10-+90	-10-+90	-10-+90	-10-+90	-10-+90
Kv value (m³/h)	2	3.6	8.3	8.3	11	11	11
Power Consumption AC (VA)	14	14	14	14	14	14	14
Power Consumption DC (W)	8	8	8	8	8	8	8
Change Frequency (Hz)	≥1	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5	≥0.5
Power Voltage	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V	AC: 50Hz24V, 36V, 110V, 220V, DC: 24V, 12V

Additional table

Overall Mounting dimensions

8 rows

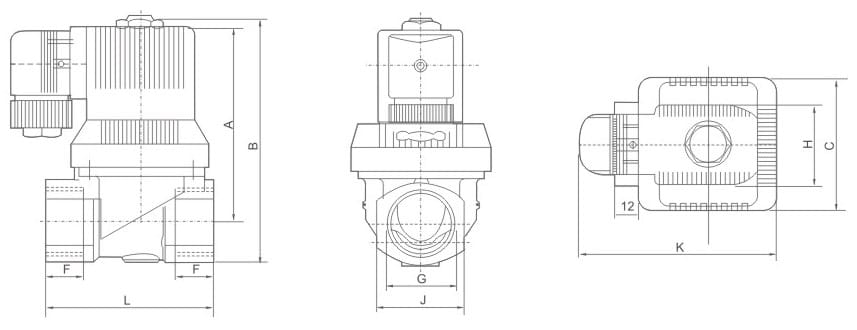

XC6213 mounting dimension reference drawing for XC6213 Series Diaphragm Solenoid Valve (2/2 Way NC, Brass Body)

Model	G	C	F	L	J	A	B	H	K
XC6213-02	G1/4″	38	14	50	26	71	85	35	71
XC6213-03	G3/8″	38	14	50	26	71	85	35	71
XC6213-04	G1/2″	38	14	50	26	71	85	35	71
XC6213-04	G1/2″	45	16	58	31	82	96	35	80
XC6213-06	G3/4″	45	16	58	31	82	96	35	80
XC6213-06	G3/4″	65	18	82	41	96	117	35	90
XC6213-08	G1	65	18	82	41	96	117	35	90

Order Symbol

Series 14

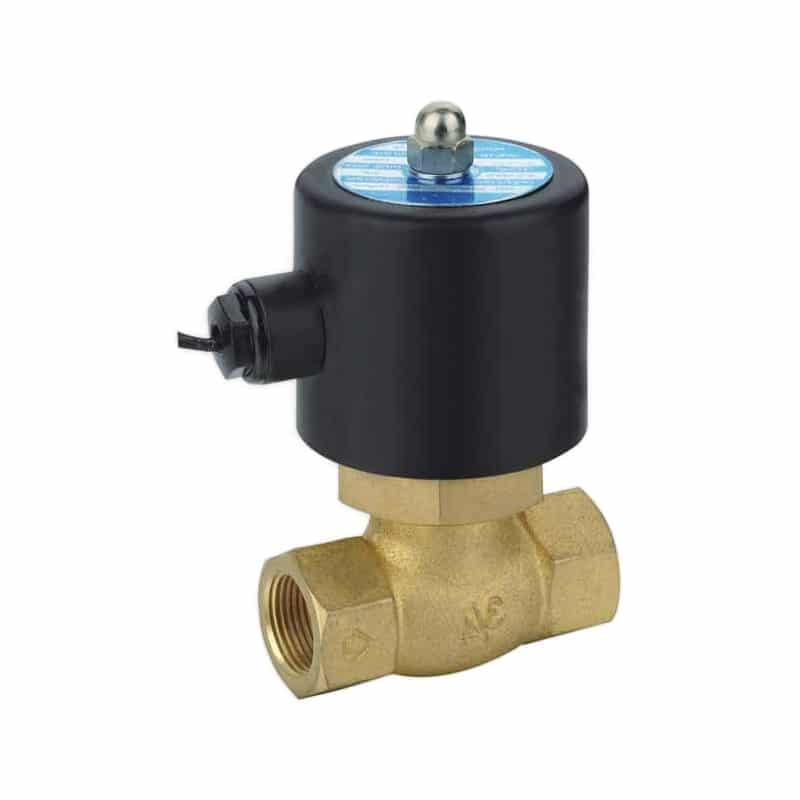

Series: 2L (US) Series High temperature Steam solenoid valve (2/2 Way NC)
Model: 2L170-10, 2L170-15, 2L170-20, 2L200-25, 2L300-35, 2L300-40, 2L500-50
Operation Fluid Viscosity: 20 CST (Below)

Key Specs

Selection focus

Model: 2L170-10, 2L170-15, 2L170-20, 2L200-25, 2L300-35, 2L300-40, 2L500-50
Operation Fluid Viscosity: 20 CST (Below)
Working Medium: Air, Water, Steam
Working-pressure: Air, Water, Steam: 0.1～1.5 MPa
Aperture of Flow Rate(mm): 17-50 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Guide load and moment ratings

14 rows

Model	2L170-10	2L170-15	2L170-20	2L200-25	2L300-35	2L300-40	2L500-50
Working medium	Air, Water, Steam	Air, Water, Steam	Air, Water, Steam	Air, Water, Steam	Air, Water, Steam	Air, Water, Steam	Air, Water, Steam
Motion Pattern	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type
Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type
Aperture of flow rate (mm)	17	17	17	22	30	30	50
CV Value	4.8	4.8	4.8	12	20	20	48
Port size	G3/8″	G1/2″	G3/4″	G1″	G11/4″	G11/2″	G2″
Operation Fluid Viscosity	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)
Working-pressure	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa	Air, Water, Steam: 0.1～1.5 MPa
Max. proof pressure	2.25 MPa	2.25 MPa	2.25 MPa	2.25 MPa	2.25 MPa	2.25 MPa	2.25 MPa
Operating temperature range	‐5～+180 °C	‐5～+180 °C	‐5～+180 °C	‐5～+180 °C	‐5～+180 °C	‐5～+180 °C	‐5～+180 °C
Voltage range	±10%	±10%	±10%	±10%	±10%	±10%	±10%
Material of Body	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Material of Oil Seal	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE

Additional table

Overall Mounting dimensions

8 rows

2L(US) Series High temperature Steam Solenoid Valve (2/2 Way NC) dimension reference drawing

Model	A	B	C	D	K
2L170-10	125	38	146	76	G3/8″
2L170-15	125	42	146	81	G1/2″
2L170-20	125	47	146	84	G3/4″
2L200-25	136	54	162	91.5	G1″
2L300-35	148	76	185	111	G11/4″
2L300-40	148	76	185	111	G11/2″
2L500-50	176	88	223	164	G2″

Additional table

Numbered parts and materials

22 rows

2L(US) Series High temperature Steam Solenoid Valve (2/2 Way NC) numbered parts and material reference drawing

NO	Name
1	Body Of Value
2	Assembly Of Piston
3	Springiness Spacer
4	Wear Strip
5	Spring
6	Nut
7	O-ring
8	Assembly Of Iron Core
9	Magnetic Plate
10	Gasket
11	Bush
12	Assembly Of Iron Core
13	Assembly Of Coil
14	Bush
15	Gasket
16	Magnetic Plate
17	Cord-locks
18	Iron Cover
19	Name Plate
20	Gasket
21	Head Cover Nut

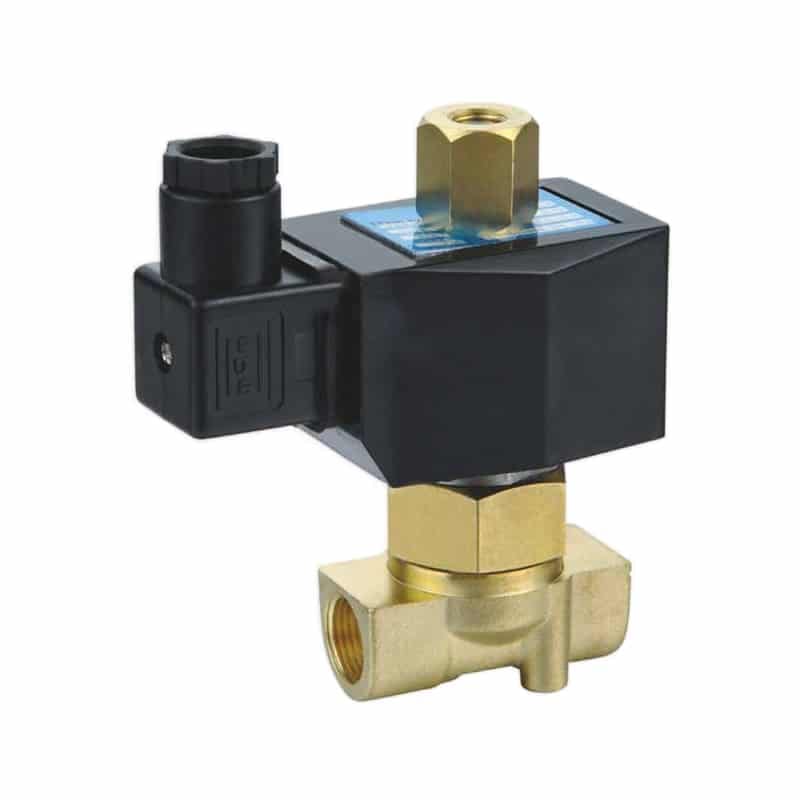

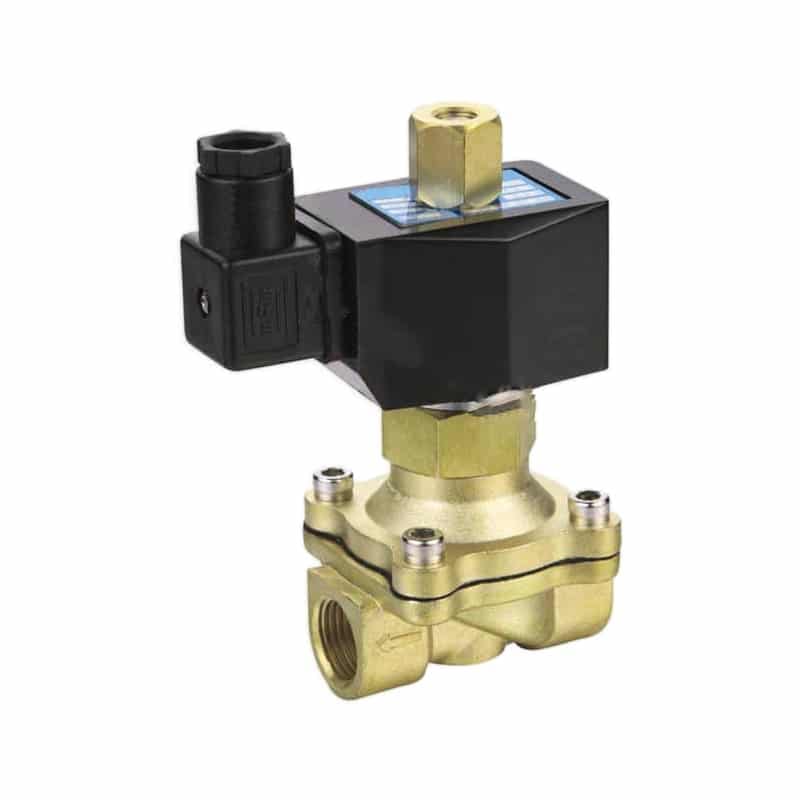

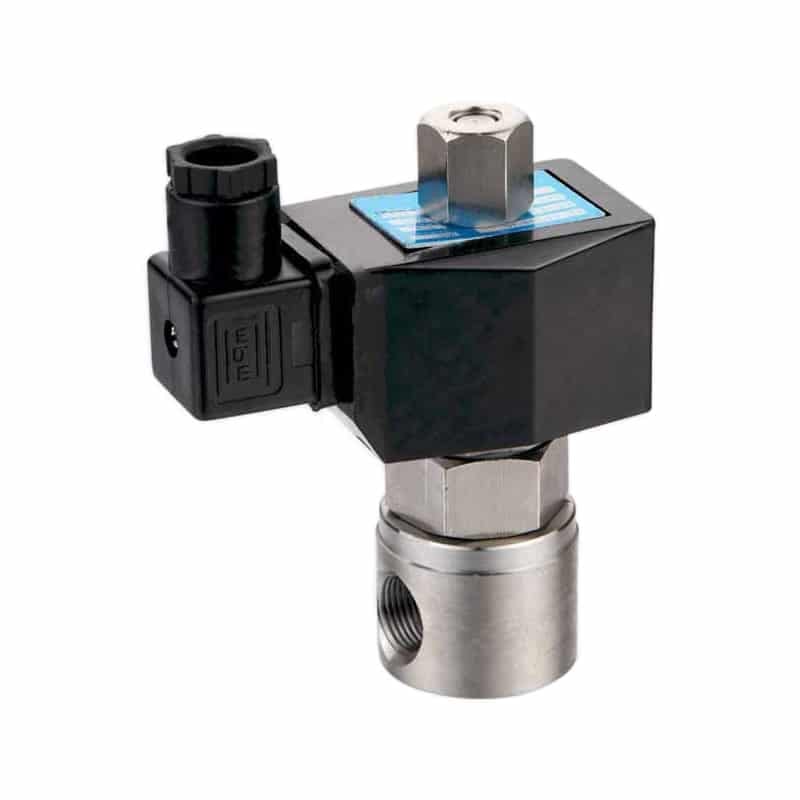

normally open solenoid valves brass 2w stainless steel 2s series product view 1

Order Symbol

Series 15

Series: normally open solenoid Valves - Brass (2W) / stainless steel (2S) Series
Model: 2W/2S (040-10NO), 2W/2S (160-10NO), 2W/2S (160-15NO), 2W/2S (200-20NO), 2W/2S (250-25NO)
Operation Fluid Viscosity: 20 CST (Below)

Key Specs

Selection focus

Model: 2W/2S (040-10NO), 2W/2S (160-10NO), 2W/2S (160-15NO), 2W/2S (200-20NO), 2W/2S (250-25NO)
Operation Fluid Viscosity: 20 CST (Below)
Working Medium: Air, Water, Oil, gas
Working-pressure: Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa
Aperture of Flow Rate(mm): 4-25 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

14 rows

Model	2W/2S (040-10NO)	2W/2S (160-10NO)	2W/2S (160-15NO)	2W/2S (200-20NO)	2W/2S (250-25NO)
Working medium	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas
Motion Pattern	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type
Type	normal Open Type	normal Open Type	normal Open Type	normal Open Type	normal Open Type
Aperture of flow rate (mm)	4	16	16	20	25
CV Value	0.6	4.8	4.8	7.6	12
Port size	G3/8″	G3/8″	G1/2″	G3/4″	G1″
Operation Fluid Viscosity	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)
Working-pressure	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa
Max. proof pressure	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa
Operating temperature range	‐5～+80 °C	‐5～+80 °C	‐5～+80 °C	‐5～+80 °C	‐5～+80 °C
Voltage range	±10%	±10%	±10%	±10%	±10%
Material of Body	2W: Brass; 2S: stainless steel	2W: Brass; 2S: stainless steel	2W: Brass; 2S: stainless steel	2W: Brass; 2S: stainless steel	2W: Brass; 2S: stainless steel
Material of Oil Seal	NBR, EPDM, or VITON	NBR, EPDM, or VITON	NBR, EPDM, or VITON	NBR, EPDM, or VITON	NBR, EPDM, or VITON

Additional table

Overall Mounting dimensions

6 rows

Normally Open Solenoid Valves - Brass (2W) & Stainless Steel (2S) Series dimension reference drawing

Model	L	H	D
2W040-10NO	53	105	54
2W160-10NO	69	116	62
2W160-15NO	69	116	62
2W200-20NO	73	127	62
2W250-25NO	99	135	62

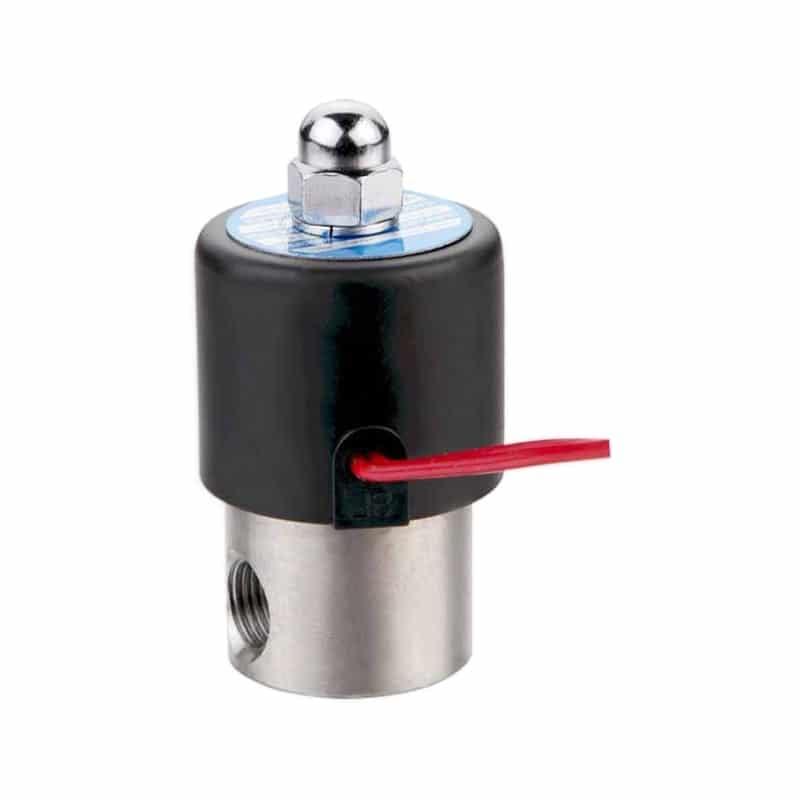

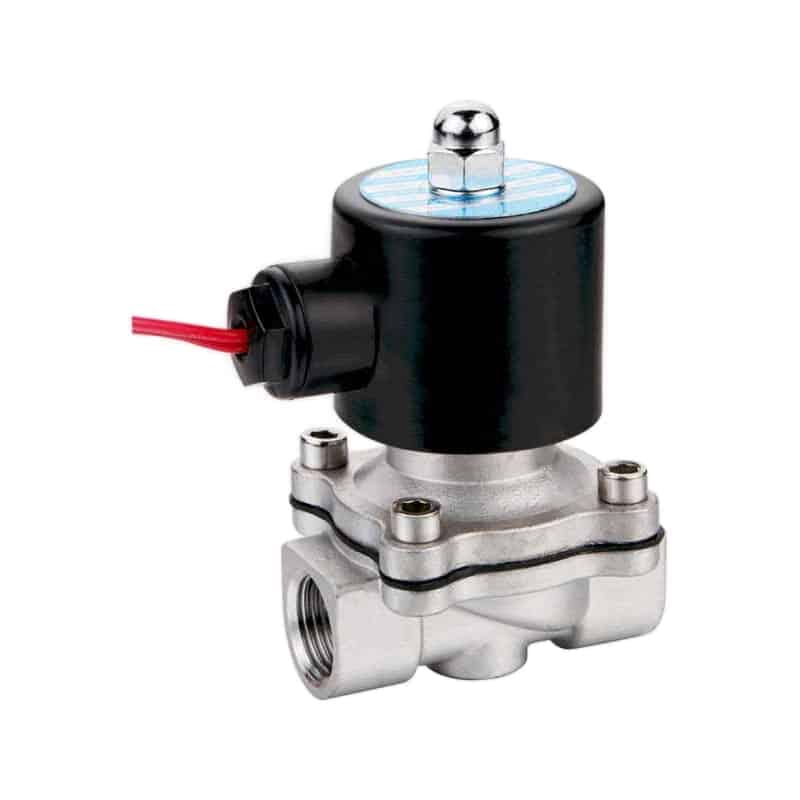

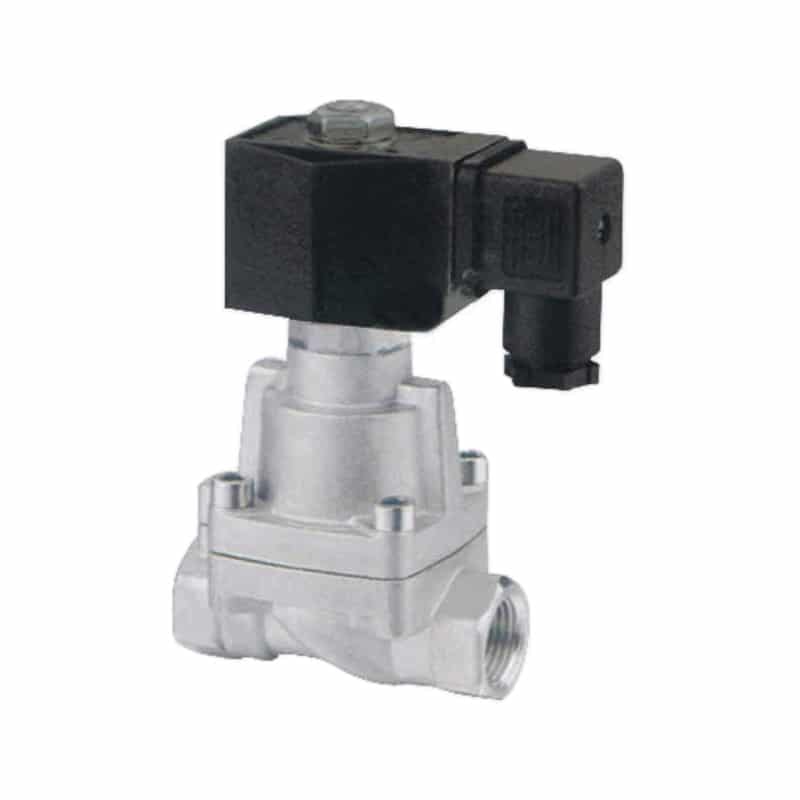

2s series stainless steel 2 2 way solenoid valve normally closed product view 1

Order Symbol

Series 16

Series: 2S Series stainless steel 2/2 Way solenoid valve (normally closed)
Model: 2S025-06(08), 2S040-10, 2S016-10(15), 2S200-20, 2S250-25, 2S350-35(40), 2S500-50
Operation Fluid Viscosity: 20 CST (Below)

Key Specs

Selection focus

Model: 2S025-06(08), 2S040-10, 2S016-10(15), 2S200-20, 2S250-25, 2S350-35(40), 2S500-50
Operation Fluid Viscosity: 20 CST (Below)
Working Medium: Air, Water, Oil, gas
Working-pressure MPa: Air：0-0.7 MPa; Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa
Aperture of Flow Rate(mm): 2.5-50 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

14 rows

Model	2S025-06(08)	2S040-10	2S016-10(15)	2S200-20	2S250-25	2S350-35(40)	2S500-50
Working medium	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas
Motion Pattern	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type
Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type
Aperture of flow rate (mm)	2.5	5	16	20	35	40	50
CV Value	0.23	0.60	4.8	7.6	24	29	48
Joint pipe bore	1/8″ 1/4″	3/8″	3/8″ 1/2″	3/4″	1″	1/2″ 1/4″	2″
Operation Fluid Viscosity	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)
Working-pressure MPa	Air：0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa
Max. proof pressure MPa	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Operating temperature °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C
Voltage range	±10%	±10%	±10%	±10%	±10%	±10%	±10%
Material of Body	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel	stainless steel
Material of Oil Seal	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON

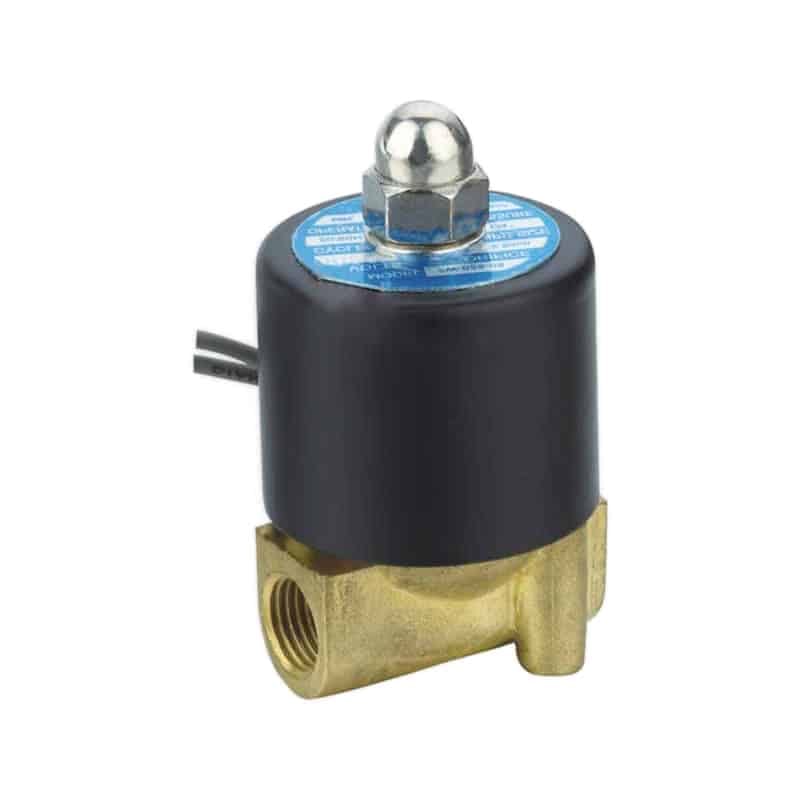

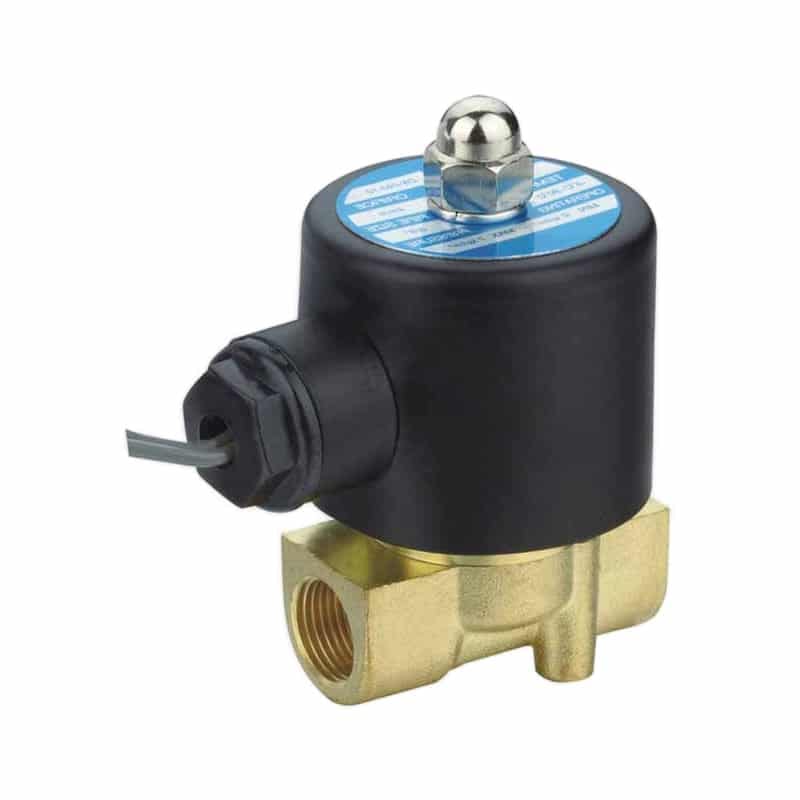

2wud series small orifice direct acting solenoid valve 2 2 way nc product view 1

Order Symbol

Series 17

Series: 2W (UD) Series Small orifice direct acting solenoid valve (2/2 Way NC)
Model: 2W025-06, 2W025-08, 2W040-10, 2WH012-06, 2WH012-08, 2WH020-10
Operation Fluid Viscosity: 20 CST (Below)

Key Specs

Selection focus

Model: 2W025-06, 2W025-08, 2W040-10, 2WH012-06, 2WH012-08, 2WH020-10
Operation Fluid Viscosity: 20 CST (Below)
Working Medium: Air, Water, Oil, gas
Working-pressure MPa: Air, Water, Oil, gas: 0-0.7; Air, Water, Oil: 0-2.0
Aperture of Flow Rate(mm): 1.2-4 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

14 rows

Model	2W025-06	2W025-08	2W040-10	2WH012-06	2WH012-08	2WH020-10
Working medium	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas	Air, Water, Oil, gas
Motion Pattern	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type	Direct Drive Type
Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type
Aperture of flow rate (mm)	2.5	4	1.2	2	2	2
CV Value	0.23	0.60	0.05	0.15	0.15	0.15
Joint pipe bore	1/8″	1/4″	3/8″	1/8″	1/4″	3/8″
Operation Fluid Viscosity	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)	20 CST (Below)
Working-pressure MPa	Air, Water, Oil, gas: 0-0.7	Air, Water, Oil, gas: 0-0.7	Air, Water, Oil, gas: 0-0.7	Air, Water, Oil: 0-2.0	Air, Water, Oil: 0-2.0	Air, Water, Oil: 0-2.0
Max. proof pressure MPa	1.0	1.0	1.0	3.5	3.5	3.5
Operating temperature °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C	-5-80 °C
Voltage range	±10%	±10%	±10%	±10%	±10%	±10%
Material of Body	Brass	Brass	Brass	Brass	Brass	Brass
Material of Oil Seal	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON	NBR, EPDM or VITON

Additional table

Overall Mounting dimensions

7 rows

2W(UD) Series Small Orifice Direct Acting Solenoid Valve (2/2 Way NC) dimension reference drawing

Symbol/Model	A	B	C	D	K (PT)
2W025-06	66	30.3	75	41.5	1/8″
2W025-08	66	30.3	75	41.5	1/4″
2W040-10	74	32.3	85.5	53	3/8″
2WH012-06	66	30.3	75	40.5	1/8″
2WH012-08	66	30.3	75	40.5	1/4″
2WH020-10	74	32.3	85.5	53	3/8″

Additional table

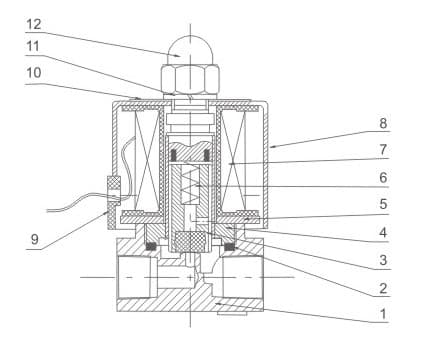

Numbered parts and materials

13 rows

2W(UD) Series Small Orifice Direct Acting Solenoid Valve (2/2 Way NC) numbered parts and material reference drawing

NO	Name
1	Body Of Valve
2	O-ring
3	Assembly Of Iron Core
4	Assembly Of Iron Core
5	Magnetic Plate
6	Spring
7	Assembly Of Coil
8	Iron Cover
9	Cord-locks
10	Name Plate
11	Gasket
12	Head Cover Nut

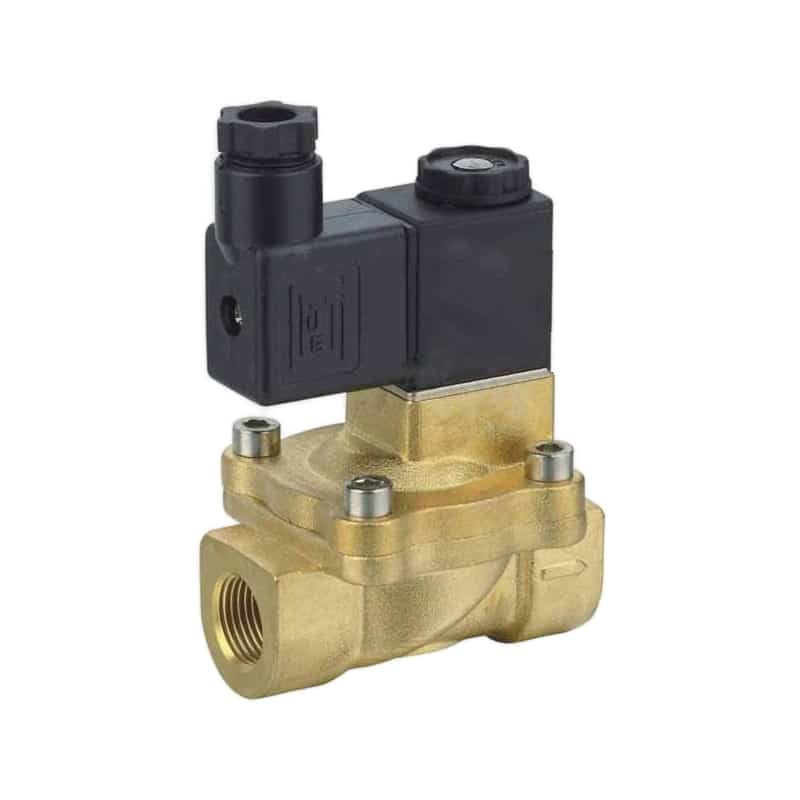

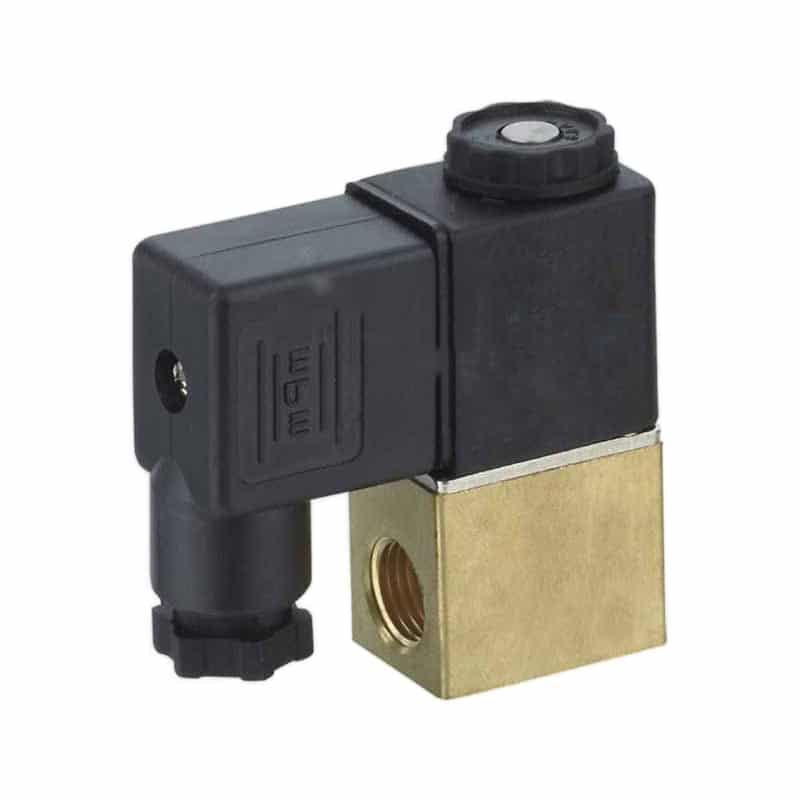

2v series direct acting 2 2 way pneumatic solenoid valve normally closed product view 1

Order Symbol

Series 19

Series: 2V Series direct acting 2/2 Way Pneumatic solenoid valve (normally closed)
Model: 2V025-06, 2V130-10, 2V130-15, 2V250-20, 2V250-25
Operation Fluid Viscosity: 20 CST (Below)

Key Specs

Selection focus

Model: 2V025-06, 2V130-10, 2V130-15, 2V250-20, 2V250-25
Operation Fluid Viscosity: 20 CST (Below)
Morking Medium: Air, Water, Oil
Working-pressure: Air, Water, Oil 0-0.8 MPa, Air, Water, Oil 0.05-0.7 MPa
Aperture of Flow Rate(mm): 2.5-25 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Guide load and moment ratings

18 rows

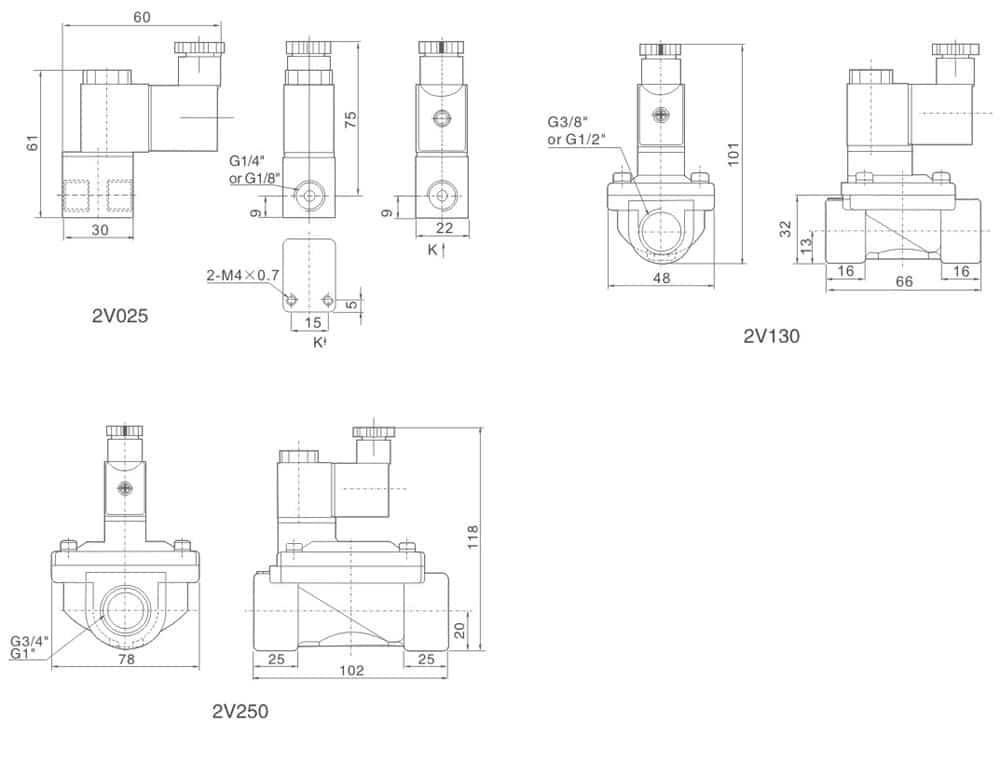

2V Series Direct Acting 2/2 Way Pneumatic Solenoid Valve (Normally Closed) dimension reference drawing

Model	2V025-06	2V025-06	2V130-10	2V130-15	2V250-20	2V250-25
Morking medium	Air, Water, Oil
Motion Pattem	Direct Drive Type		Guide Type
Type	normal Close Type
Aperture of flow rate (mm)	2.5		13		25
Cv value	0.23		6.2		23
Port size	G1/8″	G1/4″	G3/8″	G1/2″	G3/4″	G1″
Operation Fluid Viscosity	20 CST (Below)
Working-pressure	Air, Water, Oil 0-0.8 MPa			Air, Water, Oil 0.05-0.7 MPa
Max.proof pressure	12 kgf/cm²			10.5 kgf/cm²
Operating temperature range	-10-+80 °C
Voltage range	±10%
Protect Class	IP65
Power Consumption	AC: 7VA860Hz DC: 6W
Insulation	F Class
Material of Body	Aluminum or Brass			Brass
Material of Oil Seal	NBR or VITON			NBR or VITON
Shortest Excitation Time	0.05 Second

Additional table

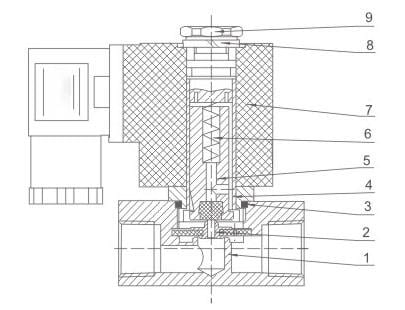

Numbered parts and materials

9 rows

2V Series Direct Acting 2/2 Way Pneumatic Solenoid Valve (Normally Closed) numbered parts and material reference drawing

No	Name
1	Body Of Valve
2	Spring
3	Assembly Of Iron Core
4	Assembly Of Iron Core
5	Cruciform Slot Screw
6	Platen
7	Coil
8	Nut

Additional table

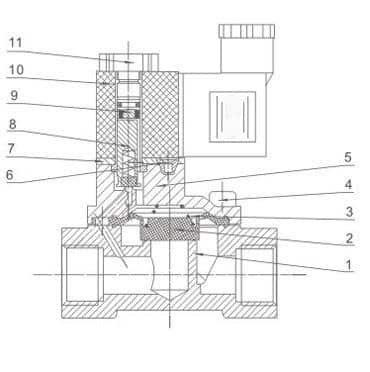

Numbered parts and materials

12 rows

No	Name
1	Body Of Valve
2	Diaphragm
3	Spring
4	Socket Hexagon Screws
5	Cover board
6	Cruciform Slot Screw
7	Platen
8	Assembly Of Iron Core
9	Assembly Of Iron Core
10	Coil
11	Nut

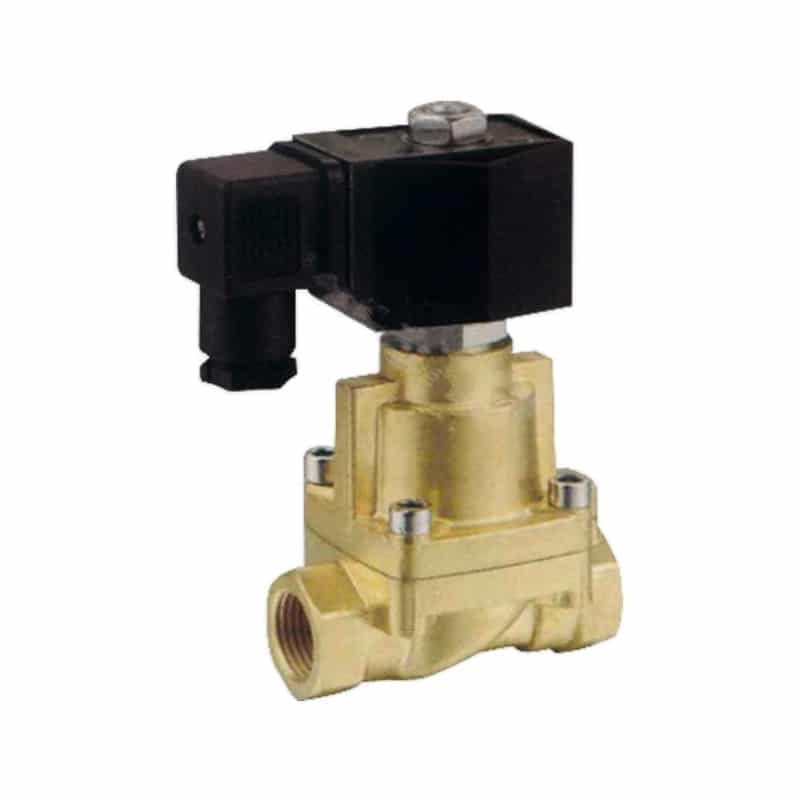

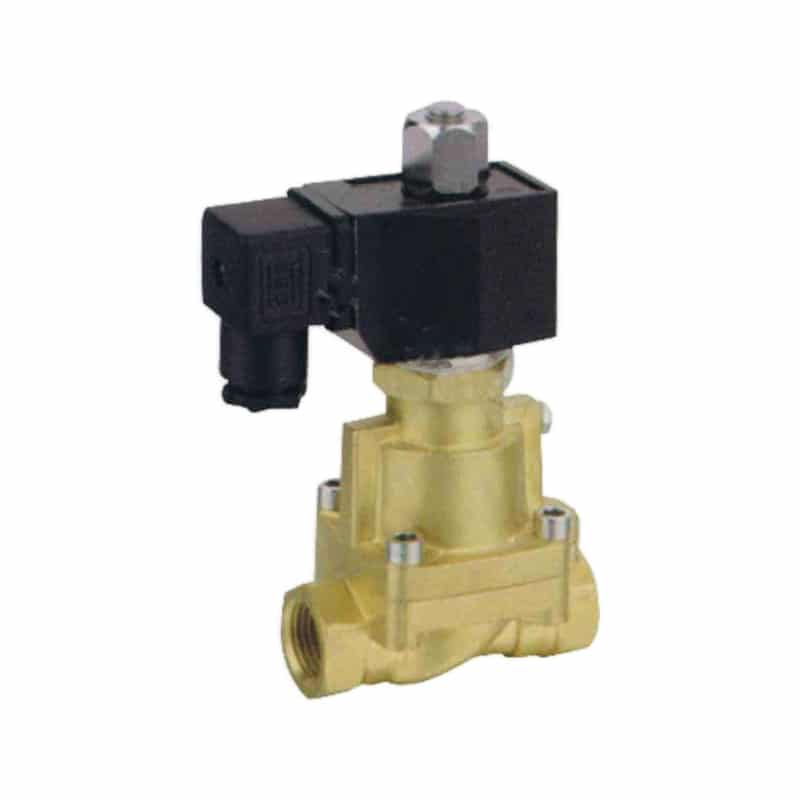

thp series normally open 2 2 way solenoid valve product view 1

Order Symbol

Series 20

Series: THP Series normally open 2/2 Way solenoid valve

Key Specs

Selection focus

Air、Gas: Water、 Hot water、 Liquid, Light oil ≤20CST, Steam, AC 220
Min. pressure: Max. working pressure, VA, W
Port Size (G): Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

21 rows

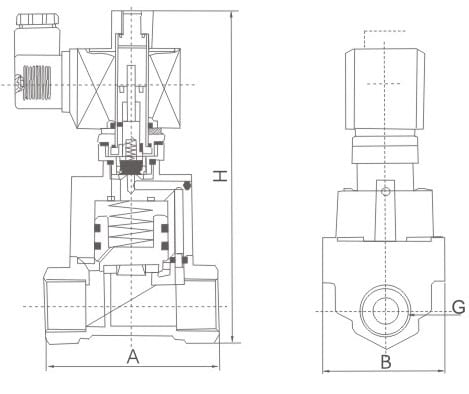

THP Series Normally Open 2/2 Way Solenoid Valve dimension reference drawing

Port size (G)	Orifice (mm)	CV value	Min. pressure (Bar)	Max. pressure Air/Gas (Bar)	Max. pressure Water/Hot water/Liquid (Bar)	Max. pressure Light oil <=20CST (Bar)	Max. pressure Steam (Bar)	Max. temperature (°C)	Power AC (VA)	Power DC (W)	Brass model	stainless steel model	Overall dimensions (A x B x H mm)
3/8″	15	4.5	0.5	8	8	8	8	130	33	32	THP10T-15LH	THP10T-15LS2H	75×52×147
3/8″	15	4.5	0.5	8	8	8	8	130	33	32	THP10T-15LHF	THP10T-15LS2HF	75×52×147
1/2″	15	4.5	0.5	8	8	8	8	130	33	32	THP-15TH	THP-15TS2H	75×52×147
1/2″	15	4.5	0.5	8	8	8	8	130	33	32	THP-15THF	THP-15TS2HF	75×52×147
3/4″	20	9.0	0.5	8	8	8	8	130	33	32	THP-20TH	THP-20TS2H	85×60×159
3/4″	20	9.0	0.5	8	8	8	8	130	33	32	THP-20THF	THP-20TS2HF	85×60×159
1″	25	13	0.5	8	8	8	8	130	33	32	THP-25TH	THP-25TS2H	100×70×166
1″	25	13	0.5	8	8	8	8	130	33	32	THP-25THF	THP-25TS2HF	100×70×166
1-1/4″	35	26	0.5	6	6	6	6	130	33	32	THP-35TH	THP-35TS2H	120×90×186
1-1/4″	35	26	0.5	6	6	6	6	130	33	32	THP-35THF	THP-35TS2HF	120×90×186
1-1/2″	35	26	0.5	6	6	6	6	130	33	32	THP40T-35LH	THP40T-35LS2H	120×90×186
1-1/2″	35	26	0.5	6	6	6	6	130	33	32	THP40T-35LHF	THP40T-35LS2HF	120×90×186
1″ Flange	25	25	0.5	8	8	8	8	130	33	32	-	THP-25FE2TS2H	134×110×200
1″ Flange	25	13	0.5	8	8	8	8	130	33	32	-	THP-25FE2TS2HF	134×110×200
1-1/4″ Flange	35	26	0.5	6	6	6	6	130	33	32	-	THP-35FE2TS2H	160×134×215
1-1/4″ Flange	35	26	0.5	6	6	6	6	130	33	32	-	THP-35FE2TS2HF	160×134×215
1-1/2″ Flange	40	26	0.5	6	6	6	6	130	33	32	-	THP-40FE2TS2H	160×145×200
1-1/2″ Flange	40	26	0.6	6	6	6	6	130	33	32	-	THP-40FE2TS2HF	160×145×200

thp series normally closed 2 2 way solenoid valve product view 1

Order Symbol

Series 21

Series: THP Series normally closed 2/2 Way solenoid valve

Key Specs

Selection focus

Air、Gas: Water、 Hot water、 Liquid, Light oil ≤20CST, Steam, VA
Min. pressure: Max. working pressure
Port Size (G): Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

34 rows

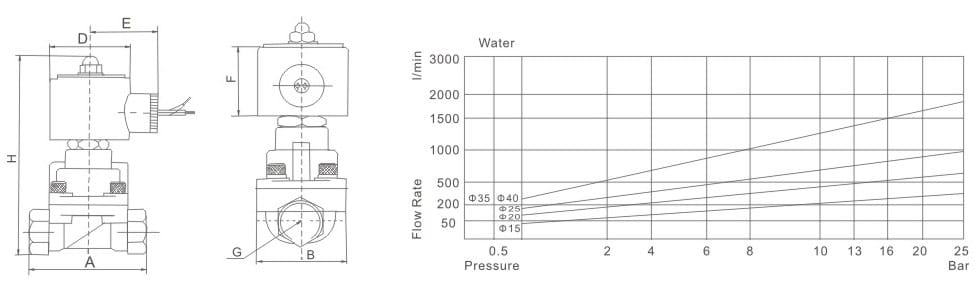

THP Series Normally Closed 2/2 Way Solenoid Valve dimension reference drawing

Port size (G)	Orifice (mm)	CV value	Min. pressure (Bar)	Max. pressure Air/Gas (Bar)	Max. pressure Water/Hot water/Liquid (Bar)	Max. pressure Light oil <=20CST (Bar)	Max. pressure Steam (Bar)	Max. temperature AC (°C)	Max. temperature DC (°C)	Power AC (VA)	Power DC (W)	AC model code	DC model code	Brass model	stainless steel model	Overall dimensions (A x B x H mm)
G1/8″	2.5	0.23	0	8	8	8	8	6	6	10	180	22	13	THP06T-2.5L	-	48×25×85.5
G1/8″	2.5	0.23	0	13	13	13	13	7	7	10	110	22	13	THP06V-2.5L	-	48×25×85.5
G1/8″	4.5	0.6	0	7	4	7	4	4	4	7	165	22	13	THP06T-4.5L	-	58×25×85.5
G1/8″	4.5	0.6	0	7	4	7	4	4	4	7	110	22	13	THP06V-4.5L	-	58×25×85.5
G1/4″	2.5	0.23	0	7	4	7	4	4	4	10	180	22	13	THP08T2-2.5L	-	48×25×85.5
G1/4″	2.5	0.23	0	13	13	13	4	7	7	10	110	22	13	THP08V-2.5L	-	48×25×85.5
G1/4″	4.5	0.6	0	7	4	7	4	4	4	7	165	22	13	THP08T-4.5L	-	58×25×85.5
G1/4″	4.5	0.6	0	7	4	7	4	4	4	7	110	22	13	THP08V-4.5L	-	58×25×85.5
G3/8″	15	4.5	0.5	25	20	25	20	20	20	110	33	32	THP10T-15L	THP10T-15LS2	75×52×129
G3/8″	15	4.5	0.5	25	20	25	20	20	20	10	185	30	25	THP10T-15LF	THP10T-15LS2F	75×52×129
G1/2″	15	4.5	0.5	25	20	25	20	20	20	110	33	32	THP-15T	THP-15TS2	75×52×129
G1/2″	15	4.5	0.5	25	20	25	20	20	20	10	185	30	25	THP-15TF	THP-15TS2F	75×52×129
G3/4″	20	9.0	0.5	25	20	25	20	20	20	110	33	32	THP-20T	THP-20TS2	85×60×141
G3/4″	20	9.0	0.5	25	20	25	20	20	20	10	185	30	25	THP-20TF	THP-20TS2F	85×60×141
G1″	25	13	0.5	25	20	25	20	20	20	110	33	32	THP-25T	THP-25TS2	100×70×148
G1″	25	13	0.5	25	20	25	20	20	20	10	185	30	25	THP-25TF	THP-25TS2F	100×70×148
G1-1/4″	35	26	0.5	25	20	25	20	20	20	10	110	33	32	THP-35T	THP-35TS2	120×90×168
G1-1/4″	35	26	0.5	25	20	25	20	20	20	185	30	25	THP-35TF	THP-35TS2F	120×90×168
G1-1/2″	35	26	0.5	25	20	25	20	20	20	10	110	33	32	THP40T-35L	THP40T-35LS2	120×90×168
G1-1/2″	35	26	0.5	25	20	25	20	20	20	185	30	25	THP40T-35LF	THP40T-35LS2F	120×90×168
G2″	50	48	0.5	25	20	25	20	20	20	110	33	32	-	THP-50TS2	150×110×190
G2″	50	48	0.5	25	20	25	20	20	20	10	185	30	25	-	THP-50TS2F	150×110×190
G1″ Flange	25	13	0.5	25	20	25	20	20	20	110	33	32	-	THPPFT-25LS2	134×110×185
G1″ Flange	25	13	0.5	25	20	25	20	20	20	10	185	30	25	-	THPFT-25LS2F	134×110×185
G1-1/4″ Flange	35	26	0.5	25	20	25	20	20	20	110	33	32	-	THPFT-35LS2	160×135×200
G1-1/4″ Flange	35	26	0.5	25	20	25	20	20	20	10	185	30	25	-	THPFT-35LS2F	160×135×200
G1-1/2″ Flange	35	26	0.5	25	20	25	20	20	20	110	33	32	-	THPFT-40LS2	160×145×205
G1-1/2″ Flange	35	26	0.5	25	20	25	20	20	20	10	185	30	25	-	THPFT-40LS2F	160×145×205
G2″ Flange	50	45	0.5	25	20	25	20	20	20	10	110	33	32	-	THPFT-50LS2	200×155×250
G2″ Flange	50	45	0.5	25	20	25	20	20	20	185	30	25	-	THPFT-50LS2F	200×155×250

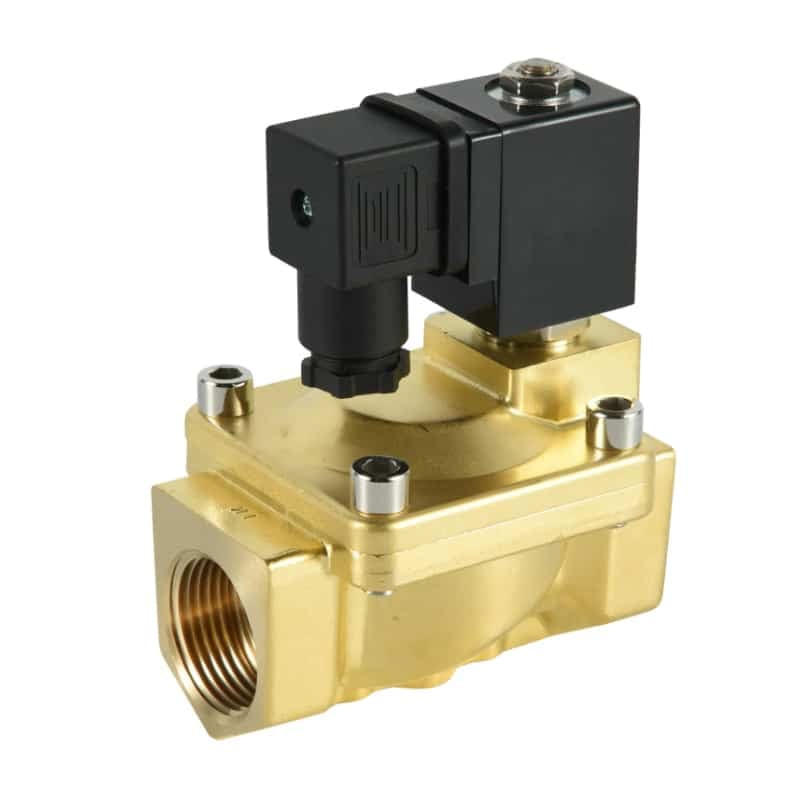

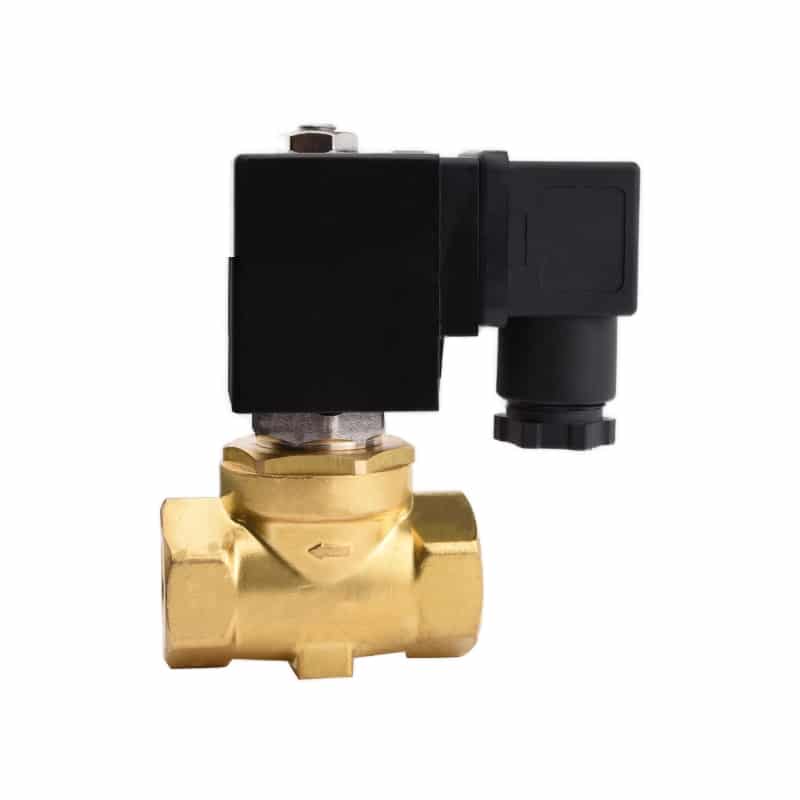

slp series 2 2 way solenoid valves normally closed open product view 1

Order Symbol

Series 22

Series: SLP Series 2/2 Way solenoid Valves (normally closed/Open)

Key Specs

Selection focus

Air、Gas: Water、Hot water、Liquid, Light oil ≤20CST, AC 220, DC 24V
Min. pressure: Max. working pressure, VA, W
Port Size (G): Orifice (mm), CV Value, pressure difference (Bar), Max. temperature (°C), Power, Model 220VAC 5C/60Hz

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Coil and electrical specifications

15 rows

Port size (G)	Orifice (mm)	CV value	Min. pressure (Bar)	Max. pressure Air/Gas (Bar)	Max. pressure Water/Hot water/Liquid (Bar)	Max. pressure Light oil <=20CST (Bar)	Max. temperature (°C)	Power AC (VA)	Power DC (W)	Brass model	stainless steel model
1/8″	1	0.04	0	30	30	25	80	22	13	SLP06E2-1LH	SLP06E2-1LS1H
1/8″	1	0.04	0	30	30	-	130	22	13	SLP06EE2-1LH	SLP06EE2-1LS1H
1/8″	1	0.04	0	30	30	25	120	22	13	SLP06VE2-1LH	SLP06VE2-1LS1H
1/8″	1.5	0.09	0	20	20	15	80	22	13	SLP06E2-1.5LH	SLP06E2-1.5LS1H
1/8″	1.5	0.09	0	20	20	-	130	22	13	SLP06EE2-1.5LH	SLP06EE2-1.5LS1H
1/8″	1.5	0.09	0	20	20	15	120	22	13	SLP06VE2-1.5LH	SLP06VE2-1.5LS1H
1/8″	2.5	0.2	0	15	15	12	80	22	13	SLP06E2-2.5LH	SLP06E2-2.5LS1H
1/8″	2.5	0.2	0	15	15	-	130	22	13	SLP06EE2-2.5LH	SLP06EE2-2.5LS1H
1/8″	2.5	0.2	0	15	15	12	120	22	13	SLP06VE2-2.5LH	SLP06VE2-2.5LS1H
1/8″	3	0.25	0	12	12	10	80	22	13	SLP06E2-3LH	SLP06E2-3LS1H
1/8″	3	0.25	0	12	12	-	130	22	13	SLP06EE2-3LH	SLP06EE2-3LS1H
1/8″	3	0.25	0	12	12	10	120	22	13	SLP06VE2-3LH	SLP06VE2-3LS1H

Additional table

Coil and electrical specifications

48 rows

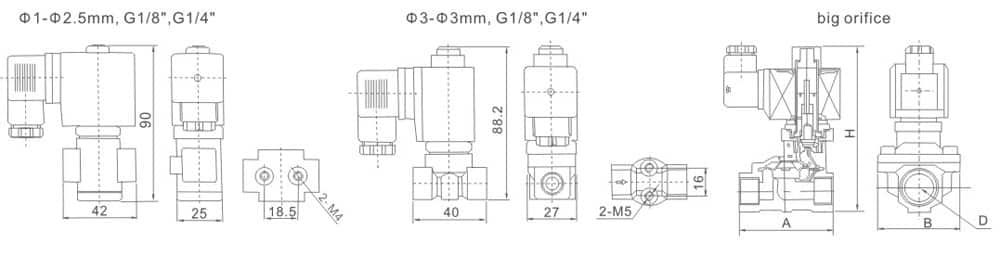

SLP Series 2/2 Way Solenoid Valves (Normally Closed/Open) dimension drawing for port and overall dimensions

Port size (G)	Orifice (mm)	CV value	Min. pressure (Bar)	Max. pressure Air/Gas (Bar)	Max. pressure Water/Hot water/Liquid (Bar)	Max. pressure Light oil <=20CST (Bar)	Max. temperature (°C)	Power AC (VA)	Power DC (W)	Brass model	stainless steel model	Overall dimensions (A x B x H mm)
1/4″	1	0.04	0	30	30	25	80	22	13	SLP08E2-1LH	SLP08E2-1LS1H
1/4″	1	0.04	0	30	30	-	130	22	13	SLP08EE2-1LH	SLP08EE2-1LS1H
1/4″	1	0.04	0	30	30	25	120	22	13	SLP08VE2-1LH	SLP08VE2-1LS1H
1/4″	1.5	0.09	0	20	20	15	80	22	13	SLP08E2-1.5LH	SLP08E2-1.5LS1H
1/4″	1.5	0.09	0	20	20	-	130	22	13	SLP08EE2-1.5LH	SLP08EE2-1.5LS1H
1/4″	1.5	0.09	0	20	20	15	120	22	13	SLP08VE2-1.5LH	SLP08VE2-1.5LS1H
1/4″	2.5	0.2	0	15	15	12	80	22	13	SLP08E2-2.5LH	SLP08E2-2.5LS1H
1/4″	2.5	0.2	0	15	15	-	130	22	13	SLP08EE2-2.5LH	SLP08EE2-2.5LS1H
1/4″	2.5	0.2	0	15	15	12	120	22	13	SLP08VE2-2.5LH	SLP08VE2-2.5LS1H
1/4″	3	0.25	0	12	12	10	80	22	13	SLP08E2-3LH	SLP08E2-3LS1H
1/4″	3	0.25	0	12	12	-	130	22	13	SLP08EE2-3LH	SLP08EE2-3LS1H
1/4″	3	0.25	0	12	12	10	120	22	13	SLP08VE2-3LH	SLP08VE2-3LS1H
3/8″	13	4.5	0.5	8	8	7	80	33	32	SLP10E2-13LH	SLP10E2-13LS1H	66×48×124
3/8″	13	4.5	0.5	8	8	120	33	32	SLP10EE2-13LH	SLP10EE2-13LS1H	66×48×124
3/8″	13	4.5	0.5	8	8	7	120	33	32	SLP10VE2-13LH	SLP10VE2-13LS1H	66×48×124
1/2″	13	4.5	0.5	8	8	7	80	33	32	SLP15E2-13LH	SLP15E2-13LS1H	66×48×124
1/2″	13	4.5	0.5	8	8	120	33	32	SLP15EE2-13LH	SLP15EE2-13LS1H	66×48×124
1/2″	13	4.5	0.5	8	8	7	120	33	32	SLP15VE2-13LH	SLP15VE2-13LS1H	66×48×124
3/4″	20	7.6	0.5	8	8	7	80	33	32	SLP-20E2H	SLP-20E2S1H	75×58×130
3/4″	20	7.6	0.5	8	8	120	33	32	SLP-20EE2H	SLP-20EE2S1H	75×58×130
3/4″	20	7.6	0.5	8	8	7	120	33	32	SLP-20VE2H	SLP-20VE2S1H	75×58×130
1″	25	12	0.5	8	8	7	80	33	32	SLP-25E2H	SLP-25E2S1H	96×70×143
1″	25	12	0.5	8	8	120	33	32	SLP-25EE2H	SLP-25EE2S1H	96×70×143
1″	25	12	0.5	8	8	7	120	33	32	SLP-25VE2H	SLP-25VE2S1H	96×70×143
1-1/4″	35	22	0.5	8	8	7	80	33	32	SLP-35E2H	SLP-35E2S1H	131×96×158
1-1/4″	35	22	0.5	8	8	120	33	32	SLP-35EE2H	SLP-35EE2S1H	131×96×158
1-1/4″	35	22	0.5	8	8	7	120	33	32	SLP-35VE2H	SLP-35VE2S1H	131×96×158
1-1/2″	40	30	0.5	8	8	7	80	33	32	SLP-40E2H	SLP-40E2S1H	131×96×158
1-1/2″	40	30	0.5	8	8	120	33	32	SLP-40EE2H	SLP-40EE2S1H	131×96×158
1-1/2″	40	30	0.5	8	8	7	120	33	32	SLP-40VE2H	SLP-40VE2S1H	131×96×158
2″	50	48	0.5	8	8	7	80	33	32	SLP-50E2H	SLP-50E2S1H	165×120×179
2″	50	48	0.5	8	8	120	33	32	SLP-50EE2H	SLP-50EE2S1H	165×120×179
2″	50	48	0.5	8	8	7	120	33	32	SLP-50VE2H	SLP-50VE2S1H	165×120×179
Flange conn-ection	25	12	0.5	8	8	7	80	33	32	SLPFE2-25LS1H	134×110×172
Flange conn-ection	25	12	0.5	8	8	120	33	32	SLPFEE2-25LS1H	134×110×172
Flange conn-ection	25	12	0.5	8	8	7	120	33	32	SLPFVE2-25LS1H	134×110×172
Flange conn-ection	35	22	0.5	8	8	7	80	33	32	SLPFE2-35LS1H	160×135×187
Flange conn-ection	35	22	0.5	8	8	120	33	32	SLPFEE2-35LS1H	160×135×187
Flange conn-ection	35	22	0.5	8	8	7	120	33	32	SLPFVE2-35LS1H	160×135×187
Flange conn-ection	40	30	0.5	8	8	7	80	33	32	SLPFE2-40LS1H	160×145×192
Flange conn-ection	40	30	0.5	8	8	120	33	32	SLPFEE2-40LS1H	160×145×192
Flange conn-ection	40	30	0.5	8	8	7	120	33	32	SLPFVE2-40LS1H	160×145×192
Flange conn-ection	50	48	0.5	8	8	7	80	33	32	SLPFE2-50LS1H	200×160×219
Flange conn-ection	50	48	0.5	8	8	120	33	32	SLPFEE2-50LS1H	200×160×219
Flange conn-ection	50	48	0.5	8	8	7	120	33	32	SLPFVE2-50LS1H	200×160×219

Order Symbol

Series 24

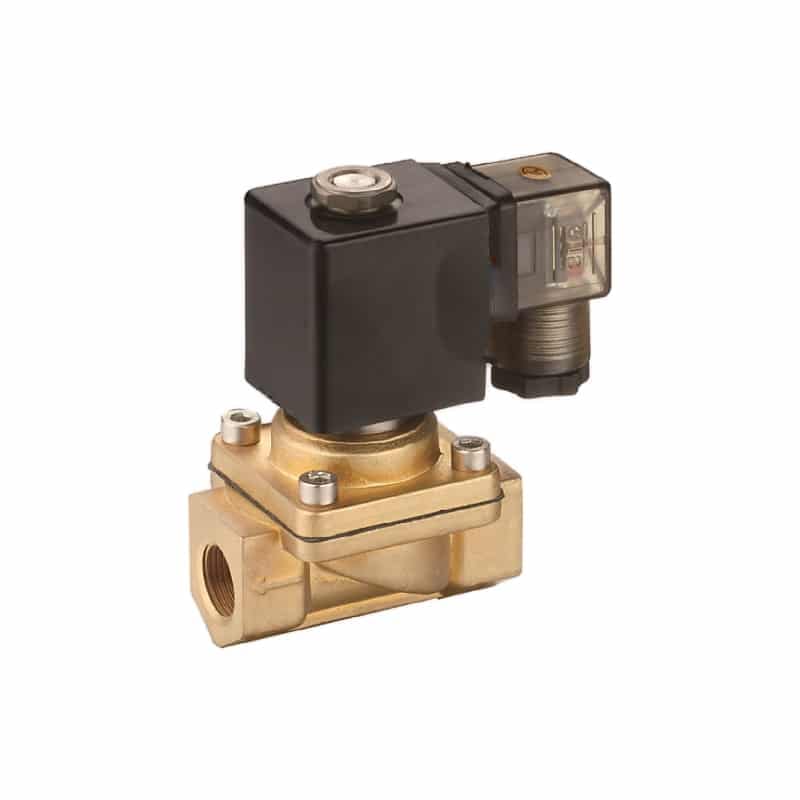

Series: PU225 Series Pilot Operated 2/2 Way solenoid valve (Guide Type)
Model: PU225-03A | PU225-04A | PU225-06A | PU225-08A | PU225-12A | PU225-14A | PU225-20A
Operation Fluid Viscosity: 50 CST (Below)

Key Specs

Selection focus

Model: PU225-03A | PU225-04A | PU225-06A | PU225-08A | PU225-12A | PU225-14A | PU225-20A
Operation Fluid Viscosity: 50 CST (Below)
Working Medium: Air.Water.Oil
Working-Pressure: 0.05-1.0 MPa
Aperture of Flow Rate(mm): 13-50 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Guide load and moment ratings

12 rows

Model	PU225-03A	PU225-04A	PU225-06A	PU225-08A	PU225-12A	PU225-14A	PU225-20A
Working medium	Air.Water.Oil	Air.Water.Oil	Air.Water.Oil	Air.Water.Oil	Air.Water.Oil	Air.Water.Oil	Air.Water.Oil
Motion Pattern	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type	Guide Type
Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type
Aperture of flow rate (mm)	13	13	25	25	38	38	50
CV Value	4.50	4.50	12.00	12.00	22.00	30.00	48.00
Port size	G3/8″	G1/2″	G3/4″	G1″	G1/4″	G1/2″	G2″
Operation Fluid Viscosity	50 CST (Below)	50 CST (Below)	50 CST (Below)	50 CST (Below)	50 CST (Below)	50 CST (Below)	50 CST (Below)
Working-Pressure	0.05-1.0 MPa	0.05-1.0 MPa	0.05-1.0 MPa	0.05-1.0 MPa	0.05-1.0 MPa	0.05-1.0 MPa	0.05-1.0 MPa
Max. proof pressure	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa
Operating temperature range	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C
Material of Body	Brass or steel	Brass or steel	Brass or steel	Brass or steel	Brass or steel	Brass or steel	Brass or steel

Additional table

Overall Mounting dimensions

8 rows

PU225 mounting dimension reference drawing for PU225 Series Pilot Operated 2/2 Way Solenoid Valve (Guide Type)

Model	Bore	A	B	C
PU225-03A / SPU225-03A	G3/8″	66.5	106.5	48.0
PU225-04A / SPU225-04A	G1/2″	66.5	106.5	48.0
PU225-06A / SPU225-06A	G3/4″	72.0	113.0	58.0
PU225-08A / SPU225-08A	G1″	96.0	121.0	70.0
PU225-12A / SPU225-12A	G1/4″	128.0	145.5	96.0
PU225-14A / SPU225-14A	G1/2″	128.0	145.5	96.0
PU225-20A	G2″	161.0	160.5	112.0

Order Symbol

Series 25

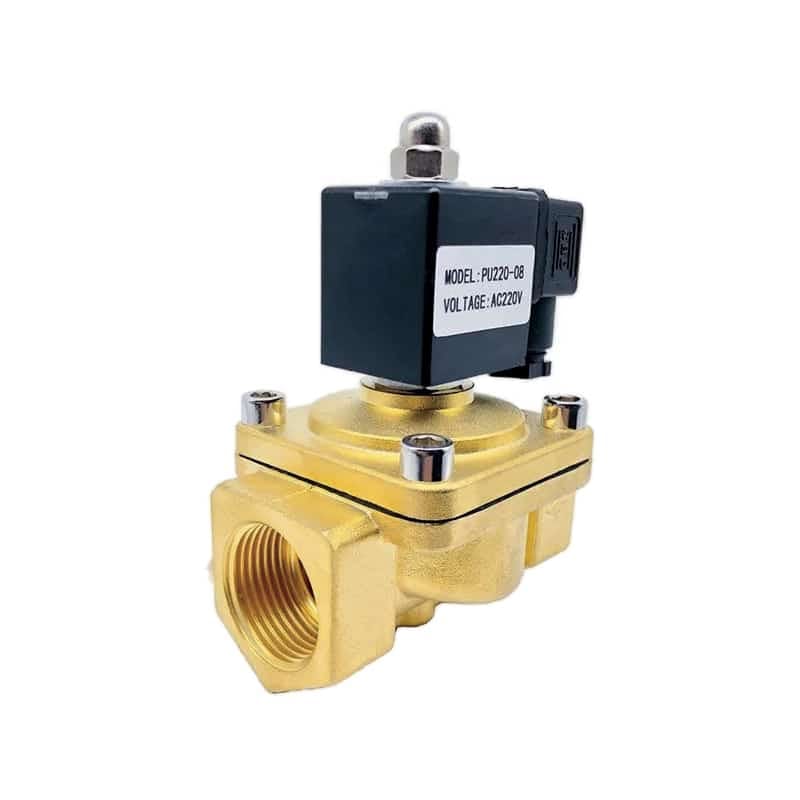

Series: PU220 Series direct acting 2/2 Way solenoid valve (Air, Water, Oil)
Model: PU220-01AR | PU220-02AR | PU220-03AR | PU220-03A | PU220-04AR | PU220-04A | PU220-06A | PU220-08A
Operation Fluid Viscosity: 50 CST

Key Specs

Selection focus

Model: PU220-01AR | PU220-02AR | PU220-03AR | PU220-03A | PU220-04AR | PU220-04A | PU220-06A | PU220-08A
Operation Fluid Viscosity: 50 CST
Working Medium: Air, Water, Oil
Working-pressure MPa: 0-0.7 MPa
Aperture of Flow Rate(mm): 1.5-25 L/min

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Guide load and moment ratings

11 rows

Model	PU220-01AR	PU220-02AR	PU220-03AR	PU220-03A	PU220-04AR	PU220-04A	PU220-06A	PU220-08A
Working medium	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil	Air, Water, Oil
Motion Pattern	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type	220: Direct Drive Type / 225: Guide Type
Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type	normal Close Type
Aperture of flow rate (mm)	1.5	2.3	8	13	8	13	20	25
CV Value	0.10	0.18	1.00	4.00	0.10	4.00	8.60	11.00
Joint pipe bore	G1/8″	G1/4″	G3/8″	G3/8″	G1/2″	G1/2″	G3/4″	G1″
Operation Fluid Viscosity	50 CST	50 CST	50 CST	50 CST	50 CST	50 CST	50 CST	50 CST
Working-pressure MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa	0-0.7 MPa
Max. proof pressure	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa	1.05 MPa
Operating temperature °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C	-5-+80 °C

Additional table

Overall Mounting dimensions

7 rows

PU220 mounting dimension reference drawing for PU220 Series Direct Acting 2/2 Way Solenoid Valve (Air, Water, Oil)

Model	Bore	A	B	C
PU220-01	G1/8″	22	72	22
PU220-02	G1/4″	35	75.5	25.4
PU220-03	G3/8″	55	79.5	30
PU220-04	G1/2″	66.5	101	48
PU220-06	G3/4＂	71	107	48
PU220-08	G1＂	96	120	70

Additional table

Numbered parts and materials

10 rows

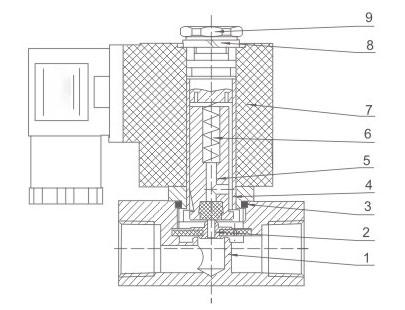

PU220 Series Direct Acting 2/2 Way Solenoid Valve (Air, Water, Oil) numbered parts and material reference drawing

NO	Name
1	Body Of Value
2	Assembly of Diaphragm
3	O-ring
4	Assembly Of Iron Core
5	Assembly Of Iron Core
6	Spring
7	Coil
8	Gasket
9	Nut

Same-group comparison

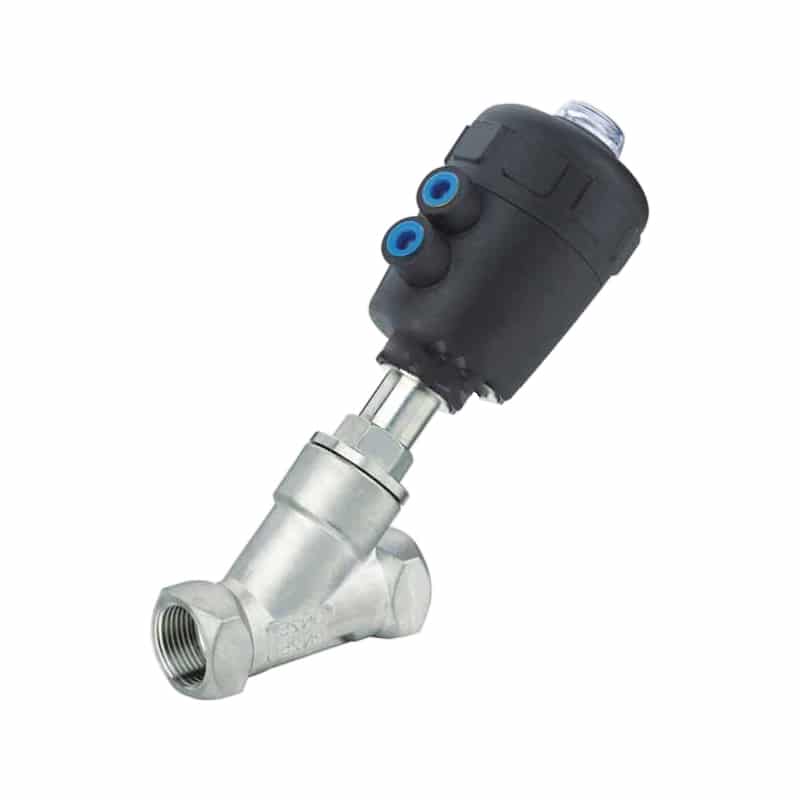

Angle seat valve comparison

Compare pneumatically actuated angle-seat valve series with similar body, medium, and mounting decisions.

3 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread
XQ22HD Right-angle Angle Seat Valve	15 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm	Angle Seat Valve	compressed air, Water, Oil	0.2-0.6 MPa	-	Confirm by interface
XC Stainless Angle Seat Valve	-	G3/8 G2″, DIN11850 2 DIN11850 3 ISO2037, CF8M, CF8, PTFE, Water, liquid, neutral gas, water steam, Slight corrosive gas and liquid, PTFE: -10 to +180 °C	Water, liquid, neutral gas, water steam, Slight corrosive gas and liquid	0.3-1M	-	Confirm by interface

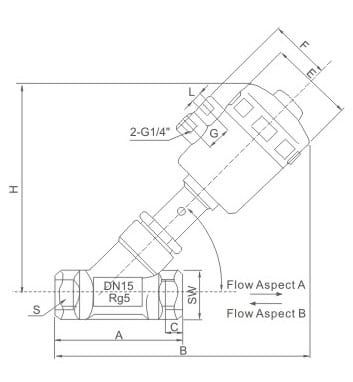

XCP Plastic Angle Seat Valve	15, 20, 25, 32, 40, 50	Angle Seat Valve	-10-+180 °C	0-1.6, 0-1.1, 0-1.5, 0-1.25, 0-1.0	-	G1/2″, G3/4″, G1″, G1-1/4″, G1-1/2″, G2″

Same-group comparison

Pulse and drain valve comparison

Compare compressed-air pulse and timed-drain series separately from ordinary media solenoid valves.

4 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread

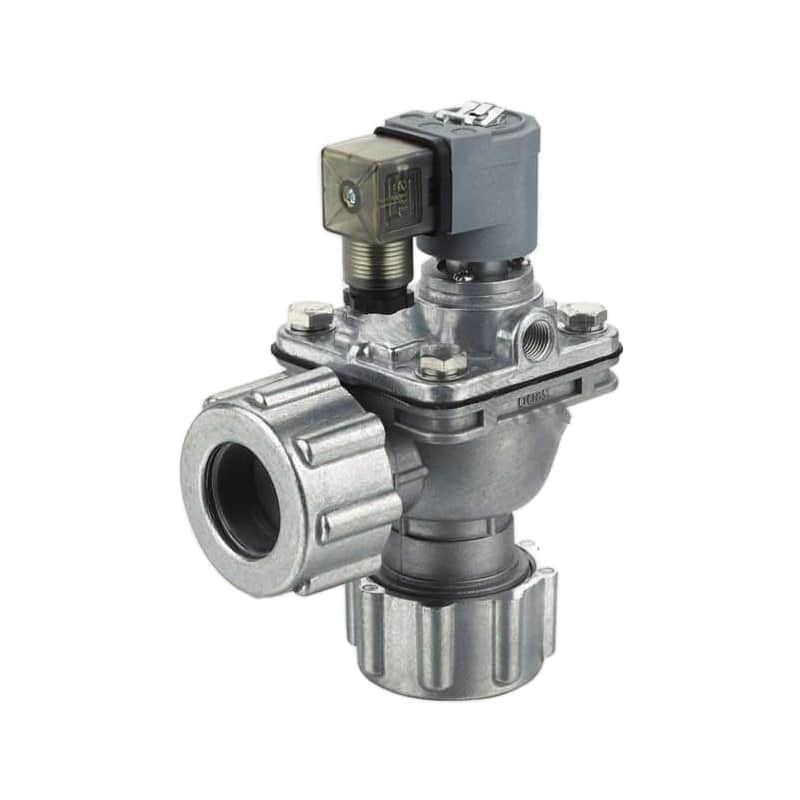

XMF Insert Pipe Pulse Valve	φ25, φ45	Pulse Valve	Clean Air	0.3-0.8 MPa	-	G1″, G1-1/2″

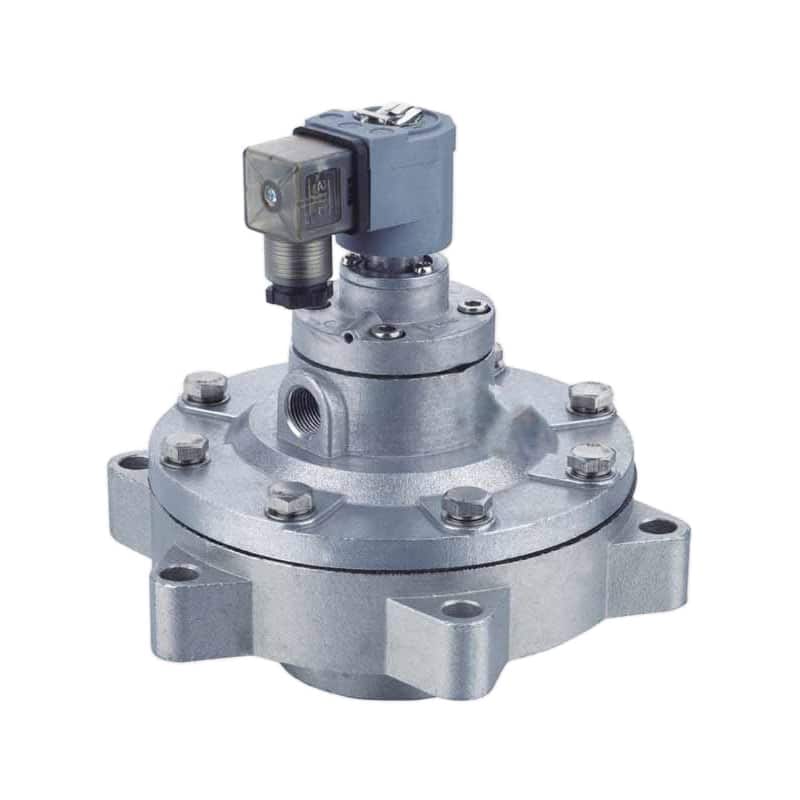

XMFY In-line Pulse Valve	φ50, φ62, φ76	Pulse Valve	Clean Air	0.3-0.8 MPa	-	G2″, G2″-1/2″, G3″

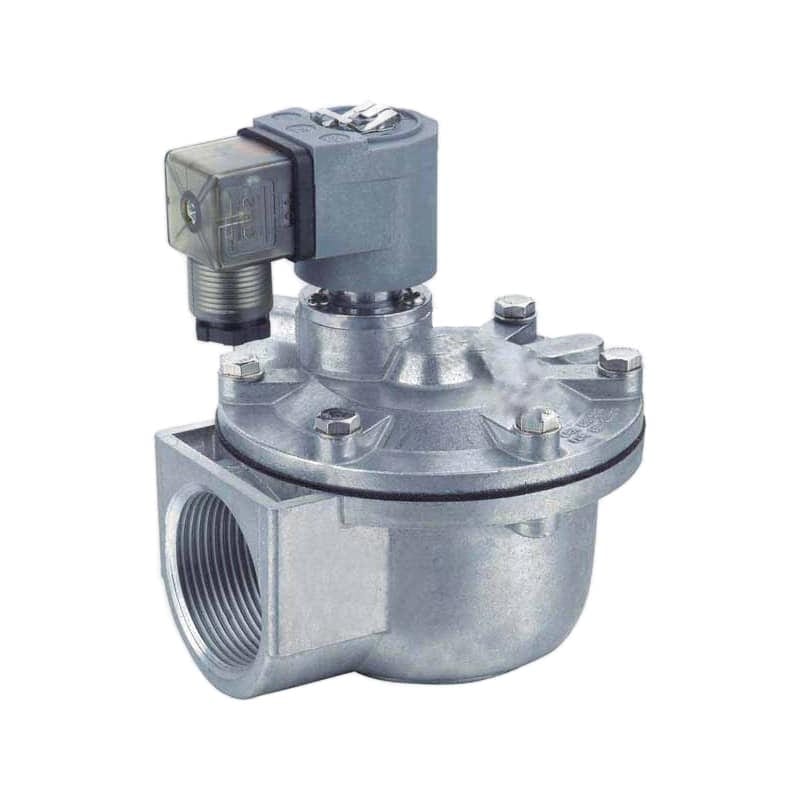

XMFZ Right-angle Pulse Valve	φ20, φ25, φ35, φ40, φ50, φ62, φ76, φ100	Pulse Valve	Clean Air	0.3-0.8 MPa	-	G3/4″, G1″, G1 1/2″, G2″, G3″, φ100

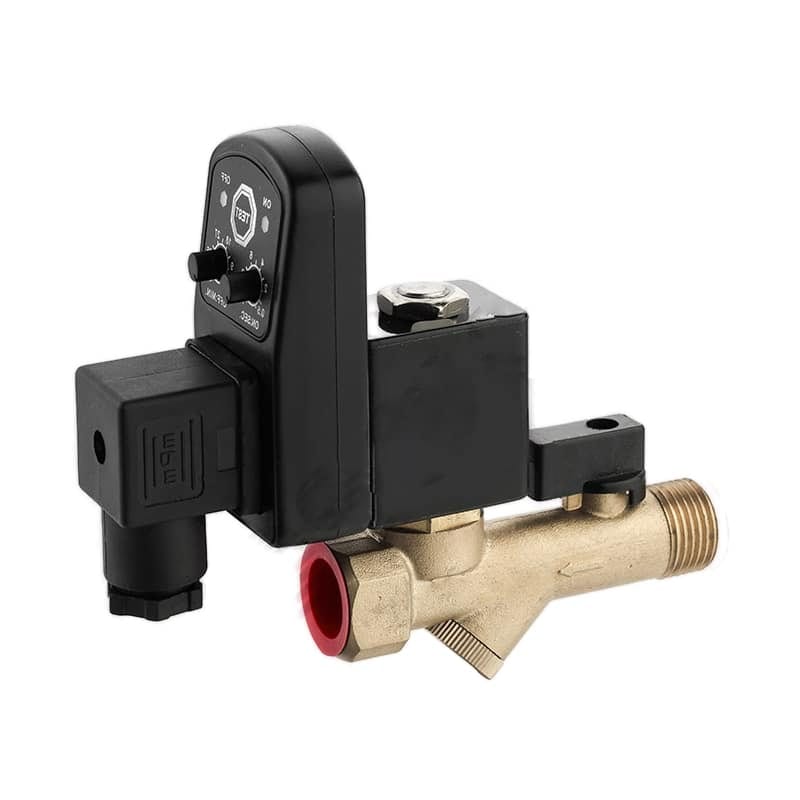

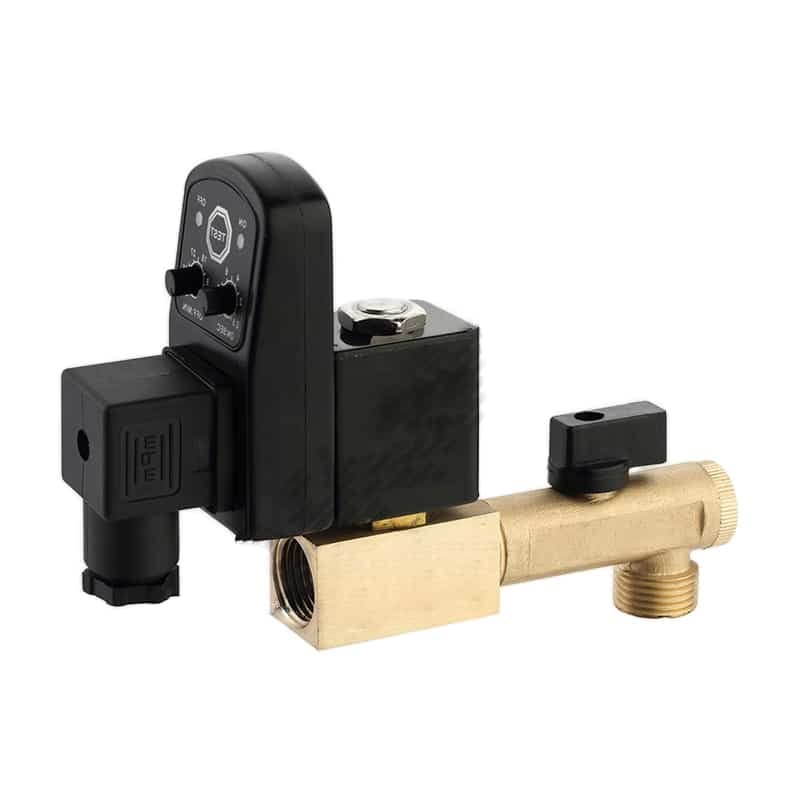

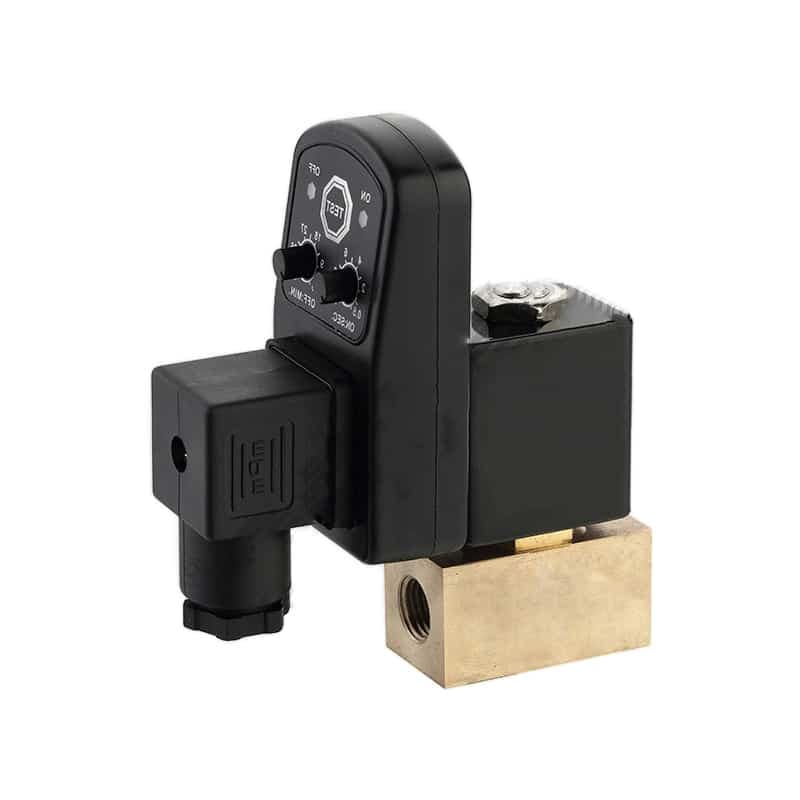

XPT Timed Drain Valve	-	Auto drain	-	1.6 MPa、4.0 MPa、8.0 MPa	AC220V、AC110V、DC24V	Confirm by interface

Same-group comparison

General fluid solenoid valve comparison

Compare utility 2/2-way solenoid valves for water, air, oil, steam, pressure, and port-size decisions.

7 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread

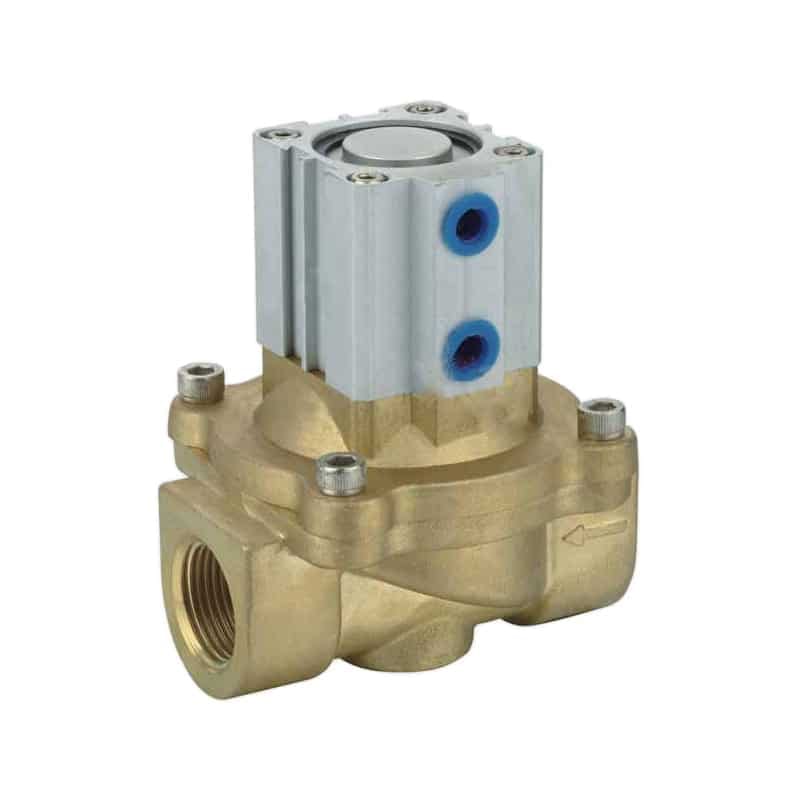

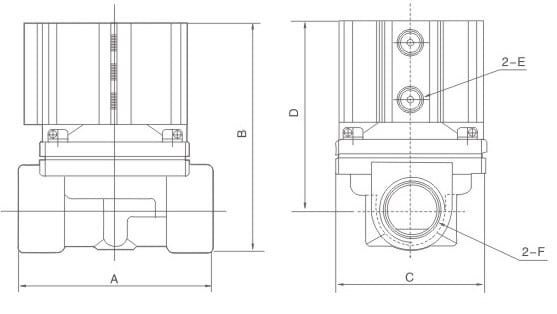

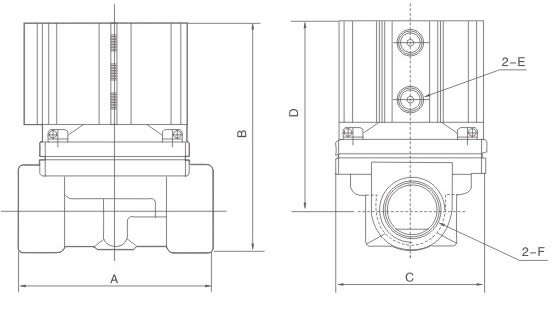

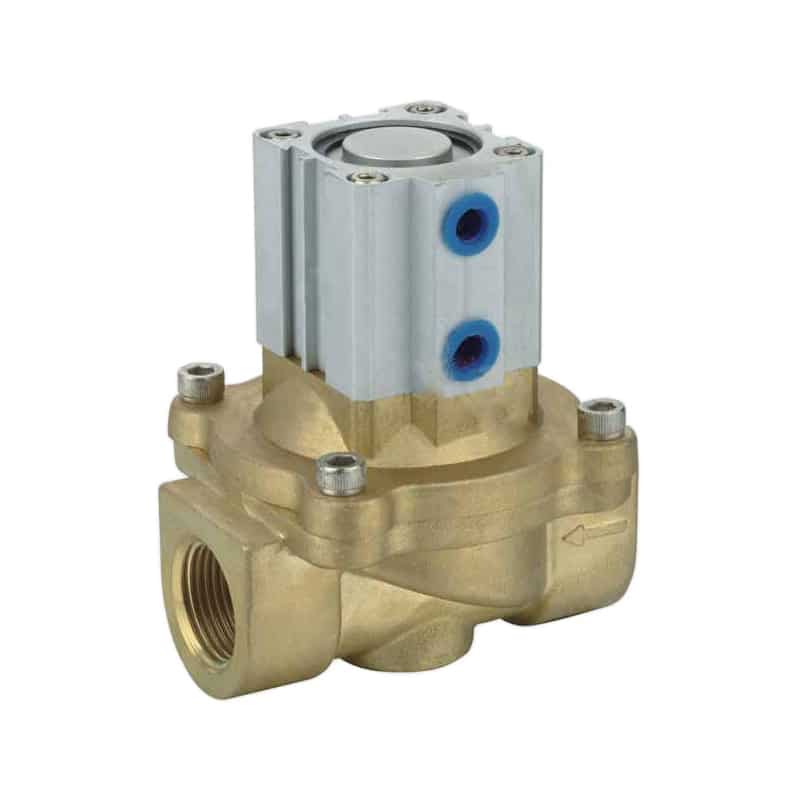

2Q Air-control Solenoid Valve	-	Direct Drive Type	Air, Water, Oil, gas	0-0.7 MPa	-	Confirm by interface
XC6213 Diaphragm Solenoid Valve	G1/4″, G3/8″, G1/2″, G3/4″, G1″	solenoid valve	-10-+90	0.03-1.0	AC (VA): 14	G1/4″, G3/8″, G1/2″, G3/4″, G1″

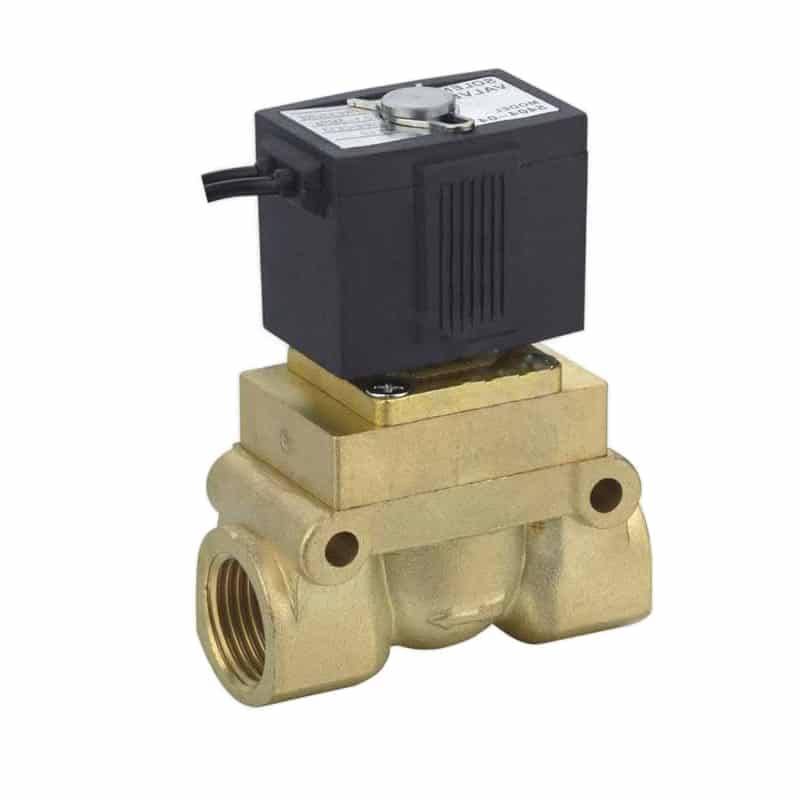

XC5404 High-pressure Solenoid Valve	-	Guide Type	Air, Water, Oil, gas	Gas: 1-50, Liquid: 1-50, Gas: 1-40, Liquid: 01-25, Gas: 1-40, Liquid: 1-25	±10%	G1/2″, G3/4″, G1″

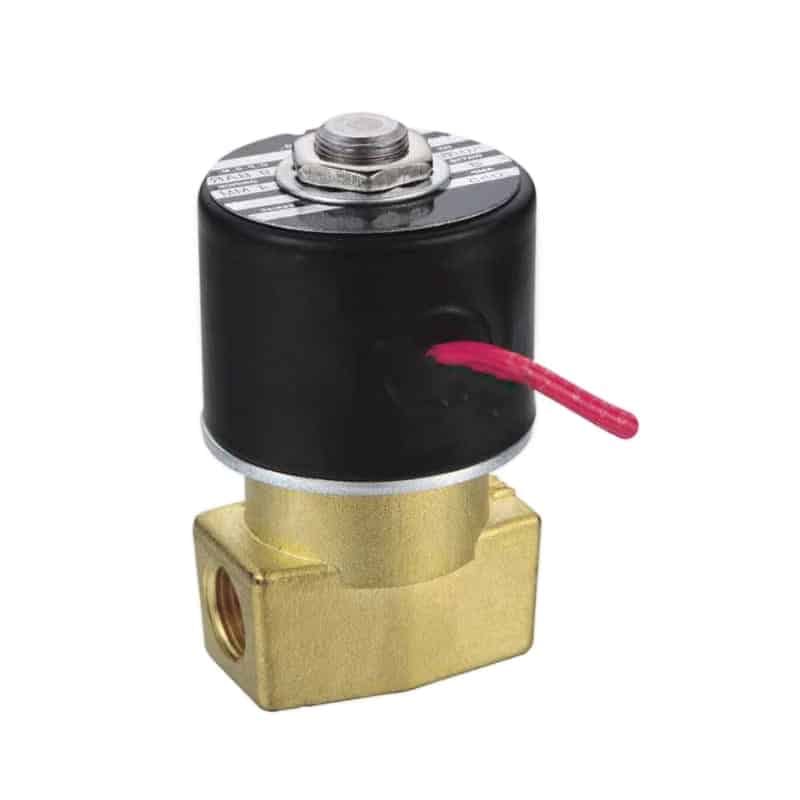

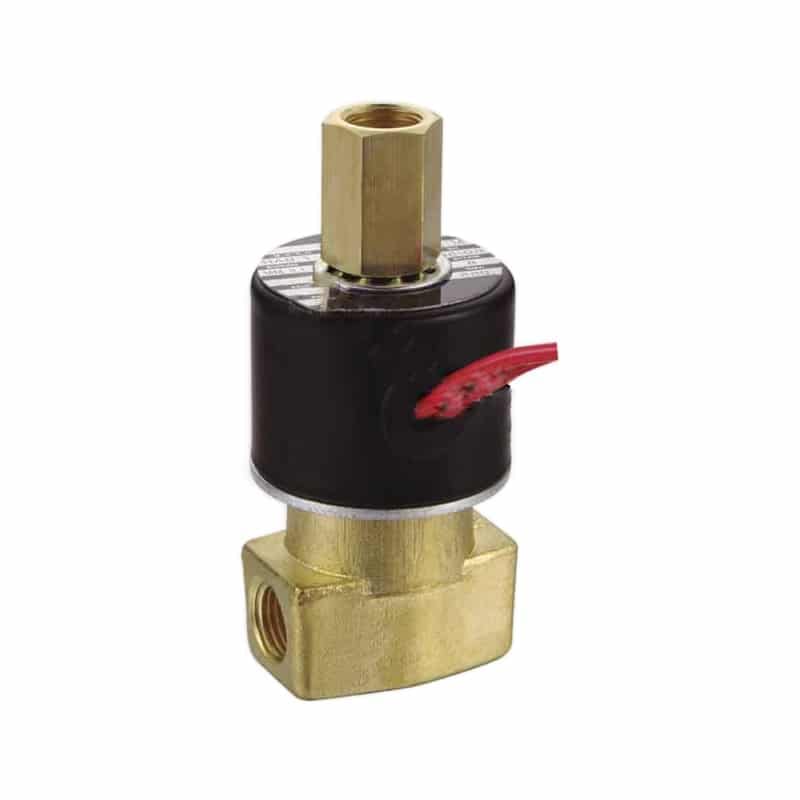

XC22/23 General Pneumatic Solenoid Valve	G1/8″, G1/4″	solenoid valve	Air, Water, Oil, Air	0～1.5, 0～1.0, 0～0.7, 0～0.5	±10%	G1/8″, G1/4″

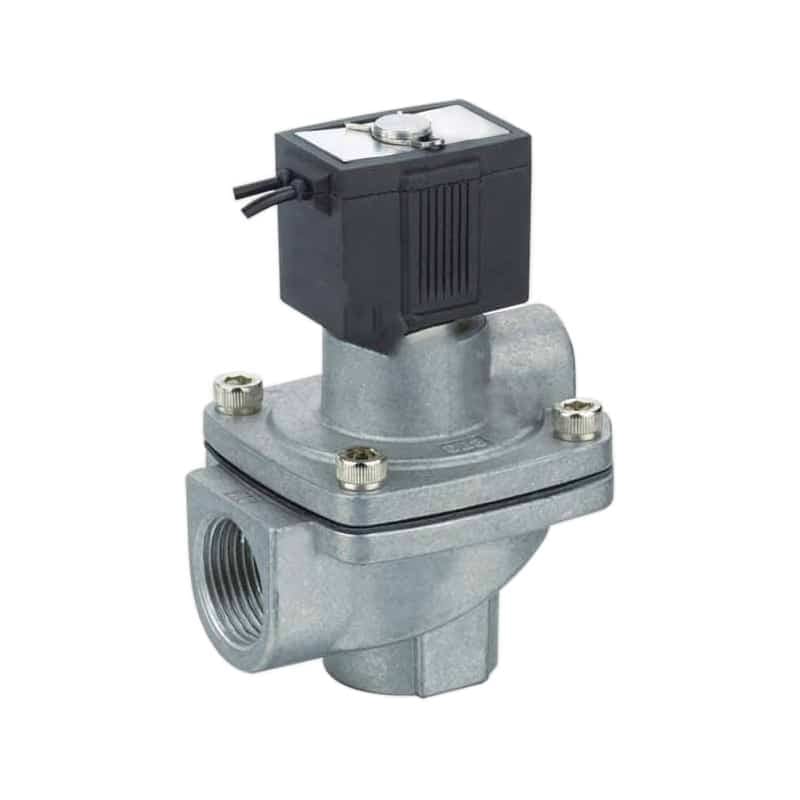

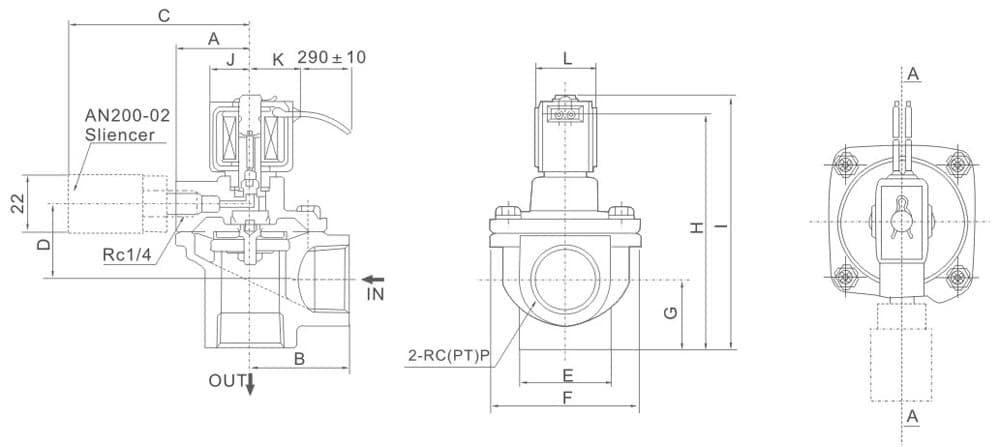

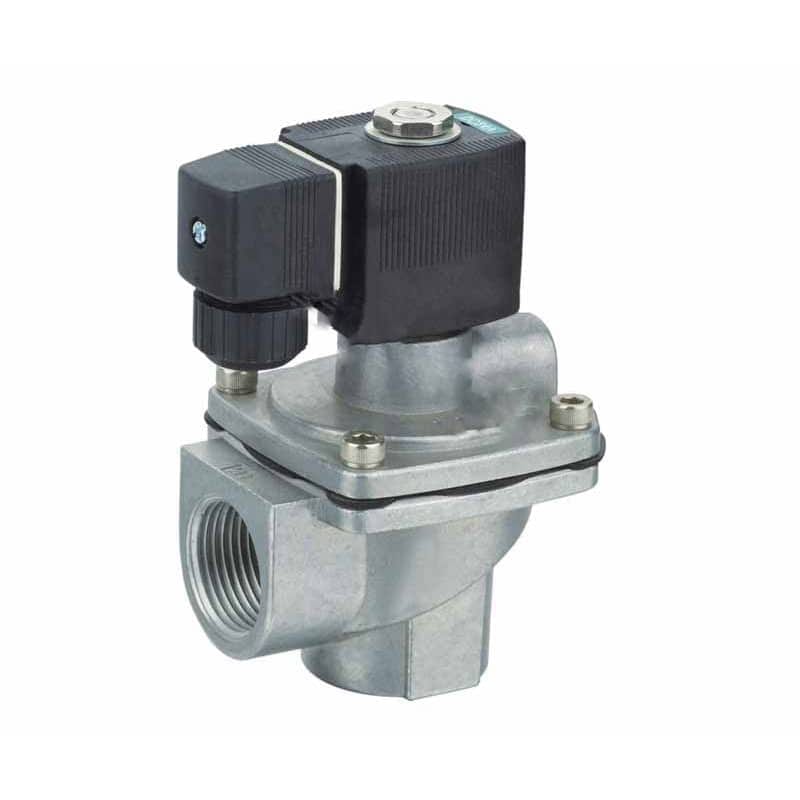

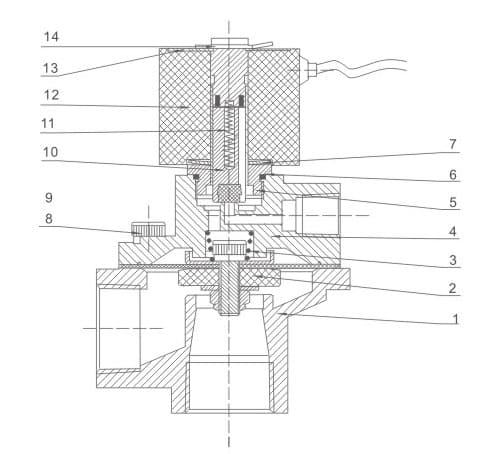

VXF Large-port Pilot Solenoid Valve	G3/4″, G1″, G11/2″	solenoid valve	-	1.0 MPa	Body of Value, Assembly Of Diaphragm, Pull Spring, Value Cover, Assembly Of Iron Core, O-ring, Spring, Gasket, Socket Hexagon Screws, Assenbly Of Iron Core	G3/4″, G1″, G11/2″

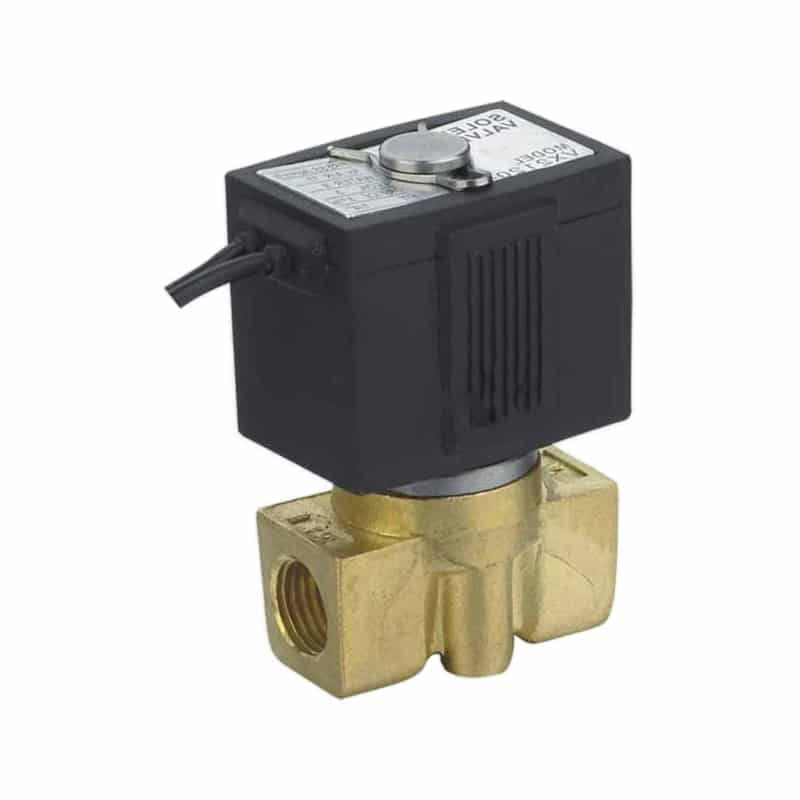

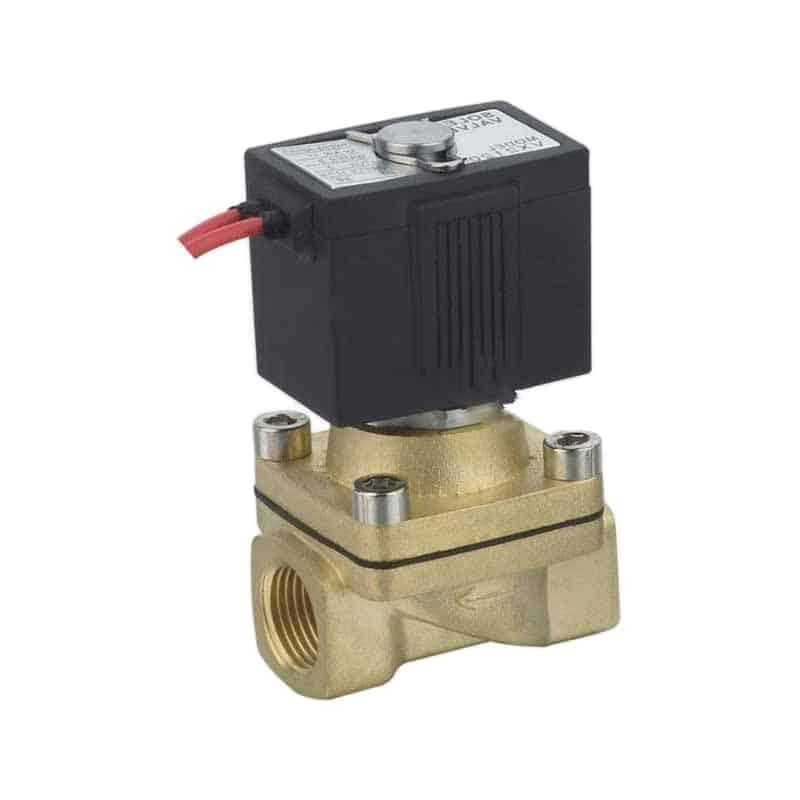

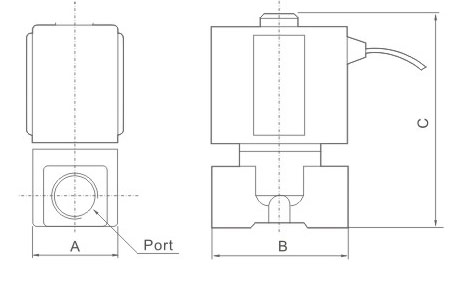

VX General NC Solenoid Valve	-	Direct Drive Type	Air, Water, Steam	0-1.0 MPa	-	Confirm by interface

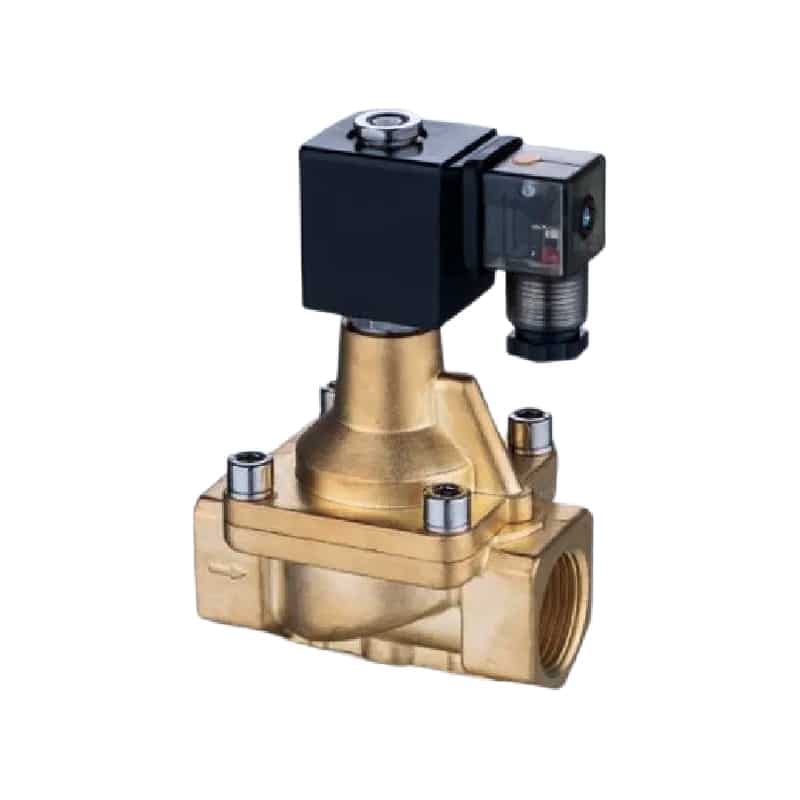

2L(US) Steam Solenoid Valve	G3/8″, G1/2″, G3/4″, G1″, G11/4″, G11/2″, G2″	Guide Type	Air, Water, Steam	Air, Water, Steam: 0.1～1.5 MPa	±10%	G3/8″, G1/2″, G3/4″, G1″, G11/4″, G11/2″, G2″

Same-group comparison

Compact and direct-acting solenoid comparison

Compare small-body and direct-acting solenoid valves by normal state, body material, port, and coil details.

5 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread
NO 2W/2S Normally-open Solenoid Valve	G3/8″, G1/2″, G3/4″, G1″	Direct Drive Type	Air, Water, Oil, gas	Water: 0～0.5 MPa Air: 0～0.7 MPa Oil: 0～0.5 MPa Gas: 0～0.7 MPa	±10%	G3/8″, G1/2″, G3/4″, G1″
2S Stainless NC Solenoid Valve	-	Direct Drive Type	Air, Water, Oil, gas	Air：0-0.7 MPa, Water：0-0.5 MPa; Air：0-0.7 MPa; Oil：0-0.5 MPa; Gas: 0-0.7 MPa	±10%	Confirm by interface
2W(UD) Small-orifice Solenoid Valve	-	Direct Drive Type	Air, Water, Oil, gas	Air, Water, Oil, gas: 0-0.7, Air, Water, Oil: 0-2.0	±10%	Confirm by interface

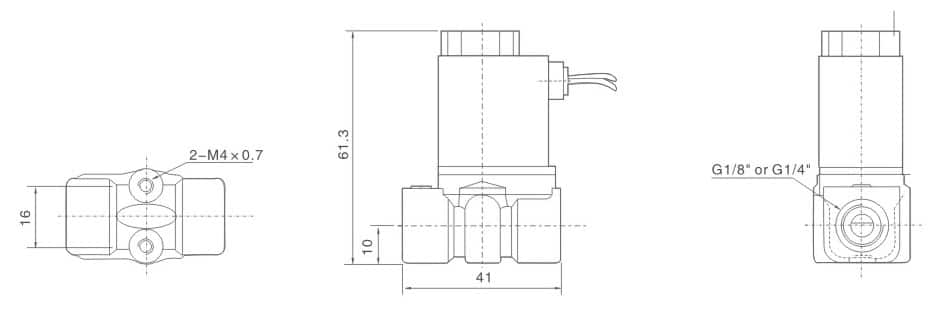

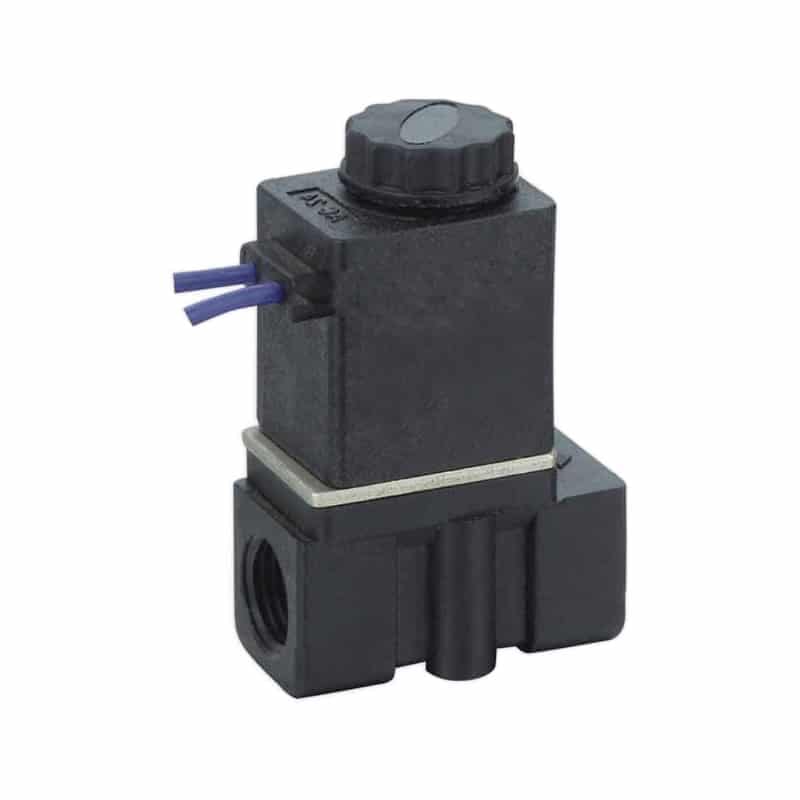

2P Plastic-body Solenoid Valve	-	Direct Drive Type	Air, Water, Oil, gas	0-0.7 MPa	±10%	Confirm by interface
2V Pneumatic Solenoid Valve	G1/8″, G1/4″, G3/8″, G1/2″, G3/4″, G1″	normal Close Type	Air, Water, Oil	Air, Water, Oil 0-0.8 MPa, Air, Water, Oil 0.05-0.7 MPa	±10%	G1/8″, G1/4″, G3/8″, G1/2″, G3/4″, G1″

Same-group comparison

THP, SLP, and PU valve comparison

Compare the remaining media valve families with closer pressure, seal, model-code, and port-thread requirements.

6 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread
THP Normally Open	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension	solenoid valve	Water、 Hot water、 Liquid, Light oil ≤20CST, Steam, AC 220, DC 24V, Brass, stainless steel 304, Length×Width×Height A×b×h (mm)	Max. working pressure, VA, W	DC 24V, 8, 6	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension
THP Normally Closed	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension	solenoid valve	Water、 Hot water、 Liquid, Light oil ≤20CST, Steam, VA, W, Brass, stainless steel, Length×Width×Height A×B×H (mm)	Max. working pressure	W, DC, 8, 13, 7, 4, 20, 25	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature, Power, Model 220VAC 50/60Hz, Overall dimension
SLP NC/NO Solenoid Valve	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature (°C), Power, Model 220VAC 5C/60Hz	solenoid valve	Water、Hot water、Liquid, Light oil ≤20CST, AC 220, DC 24V, Brass, stainless steel	Max. working pressure, VA, W	Brass, 30, 25, 15, 12, 10	Orifice (mm), CV Value, pressure difference (Bar), Max. temperature (°C), Power, Model 220VAC 5C/60Hz
PU225 Steam Solenoid Valve	G3/8″, G1/2″, G3/4″, G1″	Guide Type	Air.Water.Oil	0.05-1.0 MPa	-	G3/8″, G1/2″, G3/4″, G1″
PU225 Pilot Solenoid Valve	G3/8″, G1/2″, G3/4″, G1″, G1/4″, G2″	Guide Type	Air.Water.Oil	0.05-1.0 MPa	-	G3/8″, G1/2″, G3/4″, G1″, G1/4″, G2″
PU220 Direct-acting Solenoid Valve	-	220: Direct Drive Type / 225: Guide Type	Air, Water, Oil	0-0.7 MPa	Body Of Value, Assembly of Diaphragm, O-ring, Assembly Of Iron Core, Spring, Gasket, Nut	Confirm by interface

Choose by valve task

Start with the control job the valve must do.

Pick the closest use case, then confirm valve function, port size, coil voltage, pressure, medium, mounting, and connector details before RFQ.

Scenario 01

Control water, air, oil, or steam in a machine utility line.

Confirm the medium, pressure, and temperature before comparing body material or seal material.

Recommended option

Fluid solenoid valve with matching body, seal, port, voltage, and normal state.

Medium
temperature
Pressure
Body and seal material

Common valve uses

Where pneumatic control components are installed.

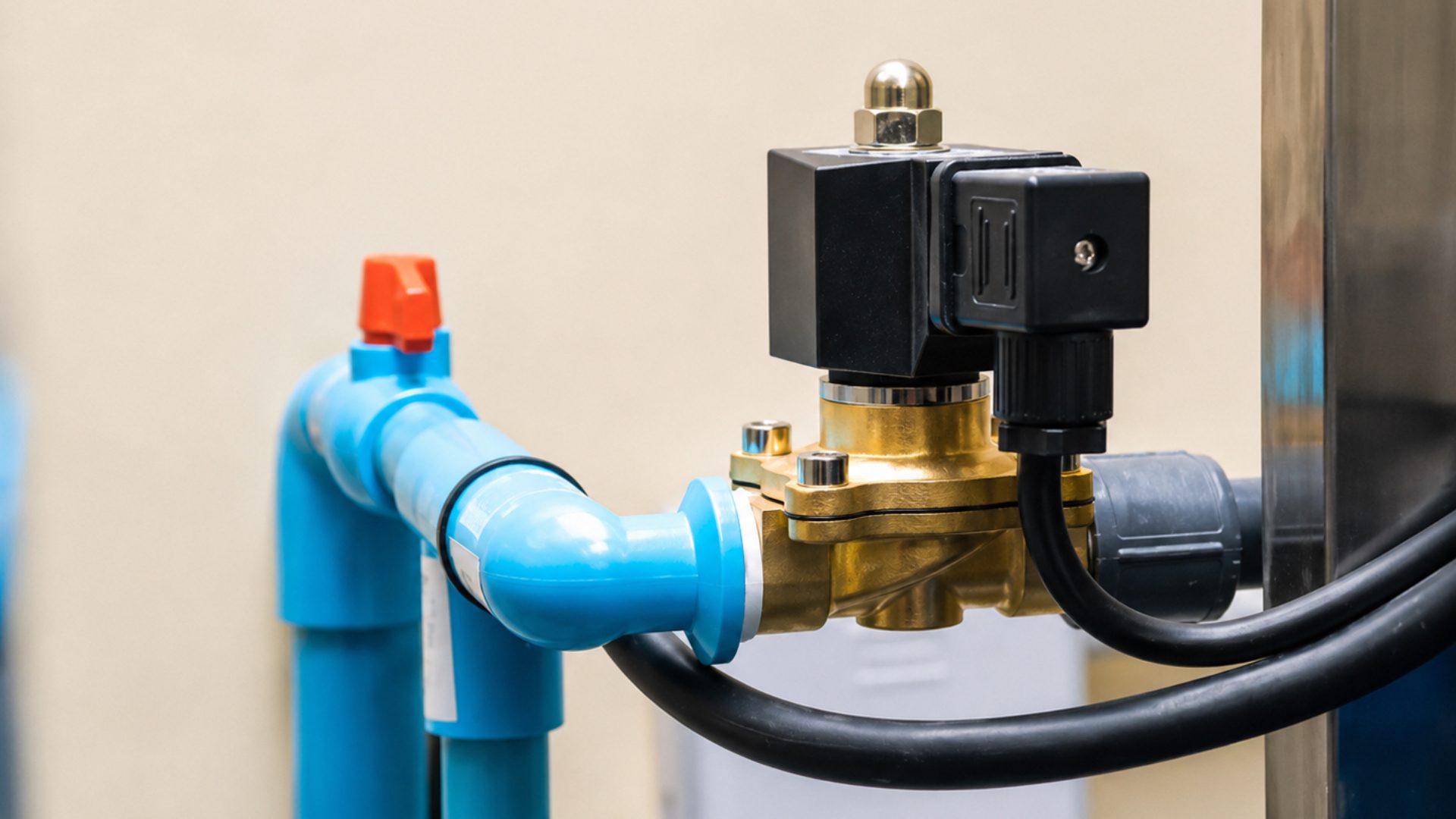

Fluid solenoid valve installed in a utility media line

Valve use 01

Water, air, oil, or coolant shutoff

Use fluid solenoid valves to open or close non-pneumatic utility lines where medium, pressure, temperature, port size, and seal material decide the valve.

Confirm medium and temperature
Match port and coil voltage
Check body and seal material

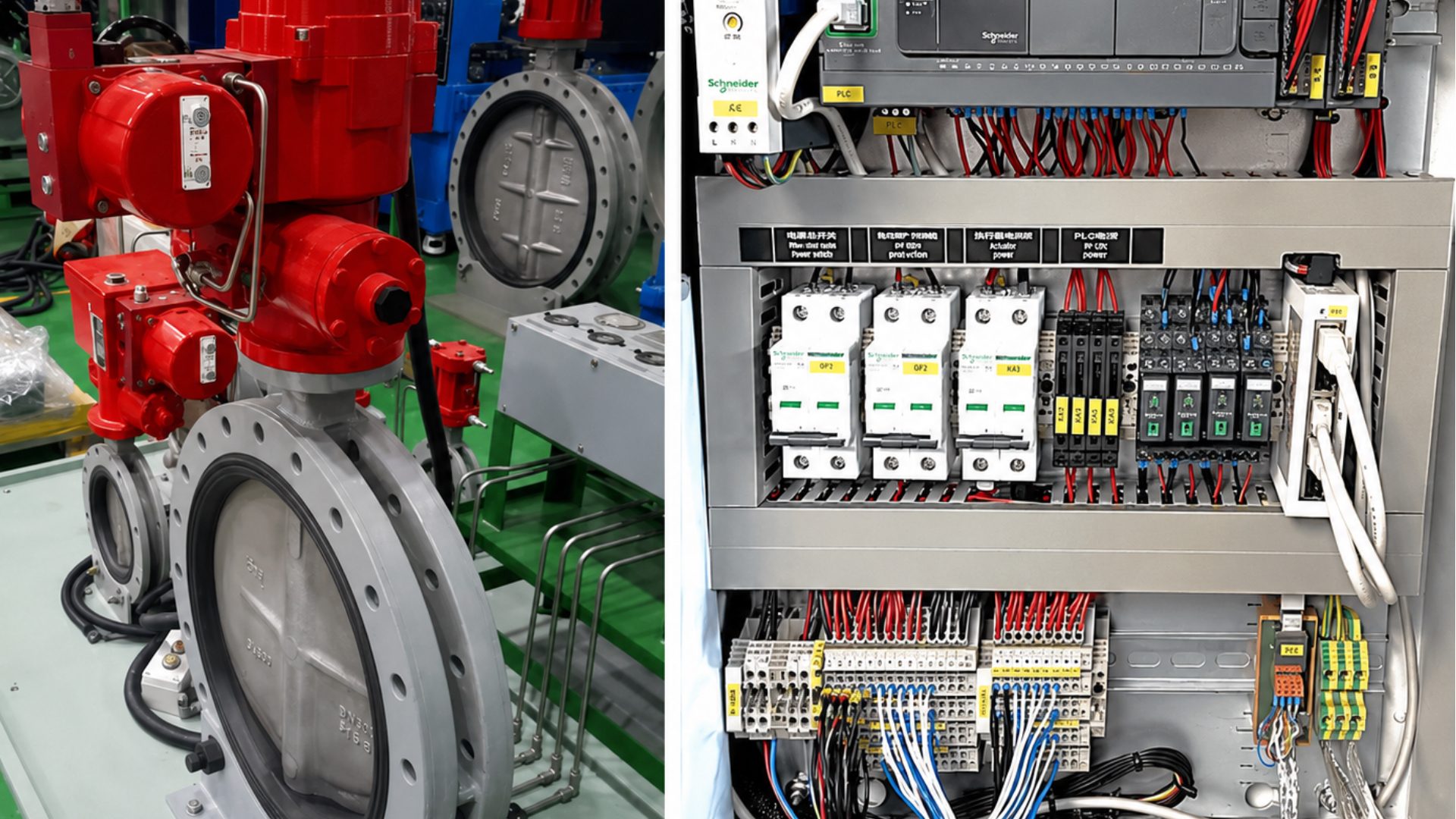

Machine control panel and valve actuator wiring for fluid solenoid valve control

Valve use 02

PLC-controlled utility lines

Fluid solenoid valves open or close water, air, oil, steam, condensate, or utility lines from a PLC, relay, timer, or local switch.

Confirm control voltage
Check normal open or closed state
Plan service access

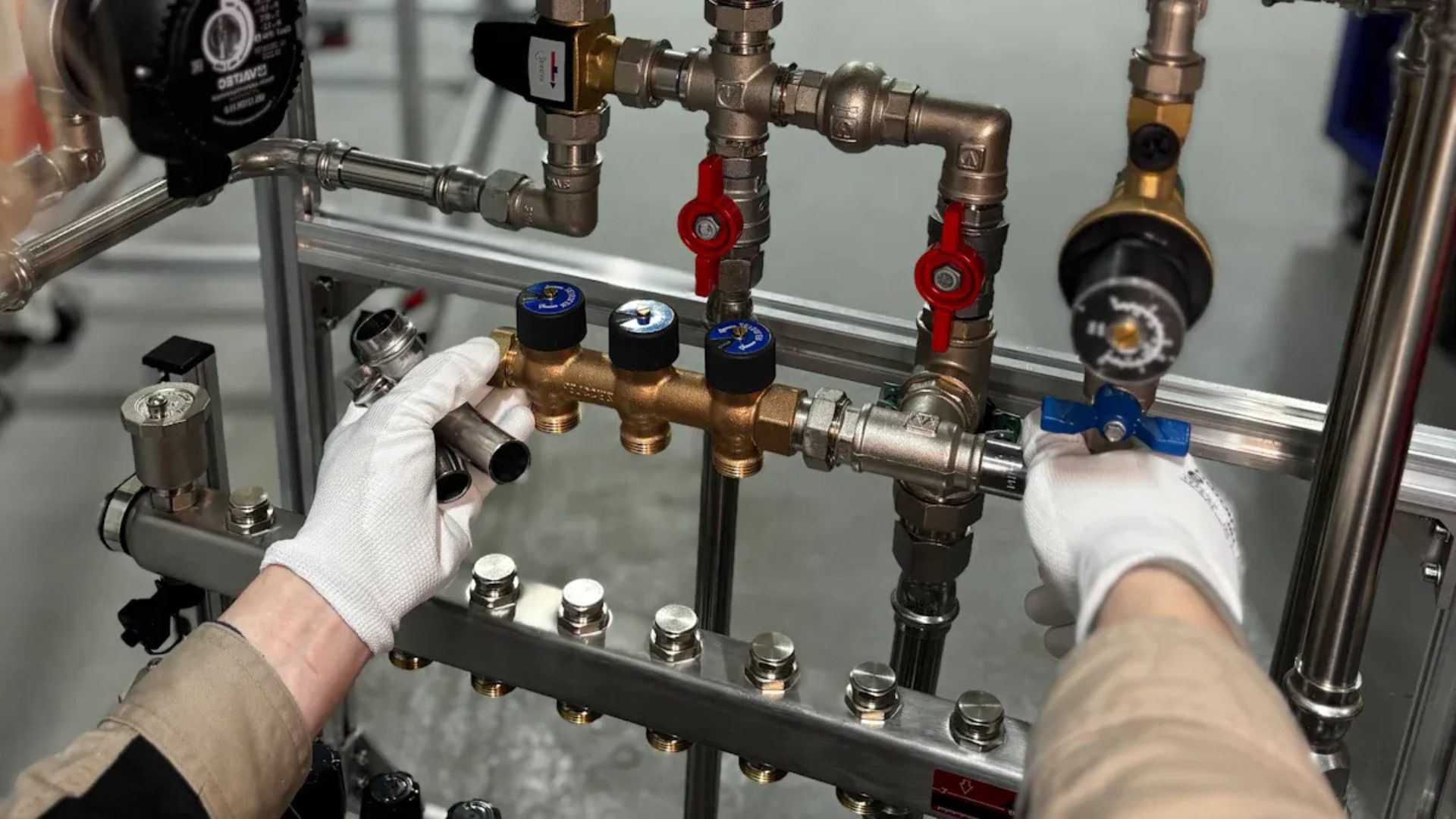

Bepto Pneumatic utility media shutoff line with fluid valves and pipe connections

Valve use 03

Dust pulse and condensate drain circuits

Pulse valves clean dust-collector bags with compressed-air bursts, while timed drain valves discharge condensate from filters, tanks, and dryers.

Confirm pulse or drain duty
Review pressure and interval
Check pipe or tank connection

Valve and flow tools

Check flow, Cv, velocity, and unit conversion before choosing valves.

Use these calculations when a pneumatic valve decision depends on flow capacity, pressure loss, port size, or catalog unit conversion.

Open Valves & flow tools

01Valves & flow

Cv Flow Calculator

Estimate valve Cv before selecting a solenoid, manual, or control valve.

Calculation modeCv valueFlow rateOpen calculator 02Valves & flow

Air Orifice Flow Calculator

Review approximate air flow through an orifice or restriction point.

Orifice diameterUpstream pressureDownstream pressureOpen calculator 03Valves & flow

Air Velocity Calculator

Check air velocity so port, tube, and valve choices stay practical.

Free-air flowFlow unitInternal diameterOpen calculator 04Unit conversion

Cv / Kv Converter

Convert Cv and Kv values when comparing international datasheets.

Coefficient valueSource coefficientOpen calculator

Request category support

Send the details that make this Fluid Solenoid Valves inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and tube size
Working medium, pressure, and temperature
Review function, size, pressure, mounting, and inquiry data for Fluid Solenoid Valves.

Fluid Solenoid Valves RFQ details

Fields marked with * help prepare the request.

Full name *Work email *Company *Phone / WhatsApp *Product familyQuantity / DemandRequirement details *

Category FAQ

Common questions before sending an inquiry.

01Fluid Solenoid ValvesWhat information is needed for a fluid solenoid valve quote?

Send medium, pressure, temperature, port size, voltage, normal state, body material preference, seal requirement, and any existing valve photo or code.

02Fluid Solenoid ValvesCan one valve be used for both air and water?

Only after checking the product table and seal compatibility. Medium, temperature, viscosity, and body material can change the correct valve choice.

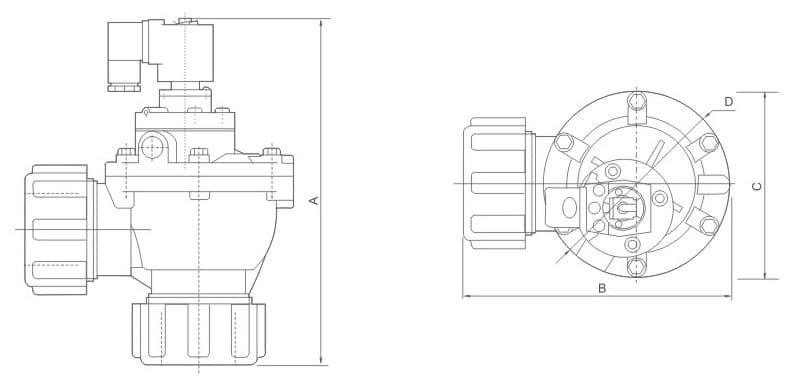

Model	A	B	C	D
XMF-Y-50S	189	131	82.5	-
XMF-Y-62S	237	179.5	-	φ126

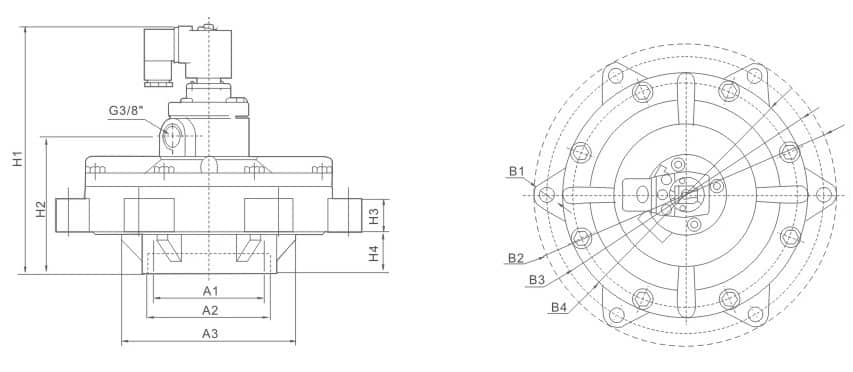

Model	A1	A2	A3	B1	B2	B3	B4	H1	H2	H3	H4
XMF-Y-50S	φ64.5	φ78.5	φ118	6-φ11.5	φ200	φ180	φ159	187	100	25	31
XMF-Y-62S	φ80	φ93.5	φ145	6-φ11	φ226	φ204	φ185	197	107	34.5	35
XMF-Y-76S	φ90	φ99	φ141	6-φ11	φ248	φ227	φ200	205	113	27	34

Model	XMF-Z-20A	XMF-Z-20P	XMF-Z-20	XMF-Z-25	XMF-Z-25P	XMF-Z-35P	XMF-Z-40S	XMF-Z-50S	XMF-Z-62S	XMF-Z-76S	XMF-Z-100S
A	173	124	110	110	124	142	166	202	222	245	356.5
B	145	105	90.5	90.5	105	121	132	210	210	230.5	286.5
C	-	82.5	75	75	82.5	-	-	-	-	-	-
D	φ90	-	-	-	-	φ112	φ137	φ185	φ185	φ200	φ221

Model	XPT, XPT-A, XPT-B
Various pressure can be provided	1.6 MPa、4.0 MPa、8.0 MPa
Various electric voltages can be provided	AC220V、AC110V、DC24V
Variety connects can be provided	G1/4″、G3/8″、G1/2″ female thread
Interval	(OFF)0.5-45 Min.utes
drain time	(ON) 0.5-10 Second
Manual test button	TEST
Protection grade	IP65
Insulate grade	H class（Max./temp: 180°C）

Model	Bore (mm)	Port	A	B	F	E	L	A/F

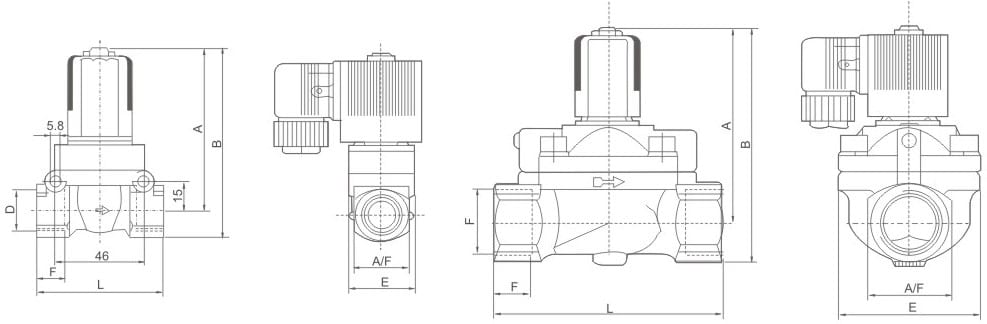

XC5404-04	12.0	G1/2″	83.0	98	14	32	65	27
XC5404-06	20.0	G3/4″	99.5	125	16	60	92	40
XC5404-08	25.0	G1″	99.5	125	16	70	92	40

Fluid Solenoid Valves

Select fluid valves from medium and sealing conditions first.

Fluid Solenoid Valves: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Valve function and port specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Coil and electrical specifications

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Coil and electrical specifications

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Guide load and moment ratings

Overall Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Coil and electrical specifications

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Overall Mounting dimensions

Numbered parts and materials

Order Symbol

Key Specs

Quote Checklist

Flow path and orifice specifications

Bore and Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Guide load and moment ratings

Overall Mounting dimensions

Numbered parts and materials

Order Symbol

Key Specs

Quote Checklist

Coil and electrical specifications

Overall Mounting dimensions

Order Symbol

Key Specs
