Thin and Compact Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Thin and Compact Pneumatic Cylinders.

View product specificationsBuild a thin cylinder RFQ
Short body lengthFixture-friendly mountsCompact replacementSensor options

Category buying guide

Use thin cylinders when axial space is the limiting factor.

Thin and compact cylinder selection should focus on available body length, lightweight structure, mounting face, compact profile, bore, stroke, port direction, guide options, magnetic piston needs, and replacement dimensions.

Pneumatic cylinder categories
01Rodless Cylinders02Standard Cylinders03Mini Cylinders04Thin and Compact Cylinders05Slide Table Cylinders06Compact Guide Cylinders07Pneumatic Grippers08Double Rod Cylinders09Rotary Actuators10Cylinder Accessories11Other Cylinders
Thin and Compact Pneumatic Cylinders • Product specifications

Thin and Compact Pneumatic Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

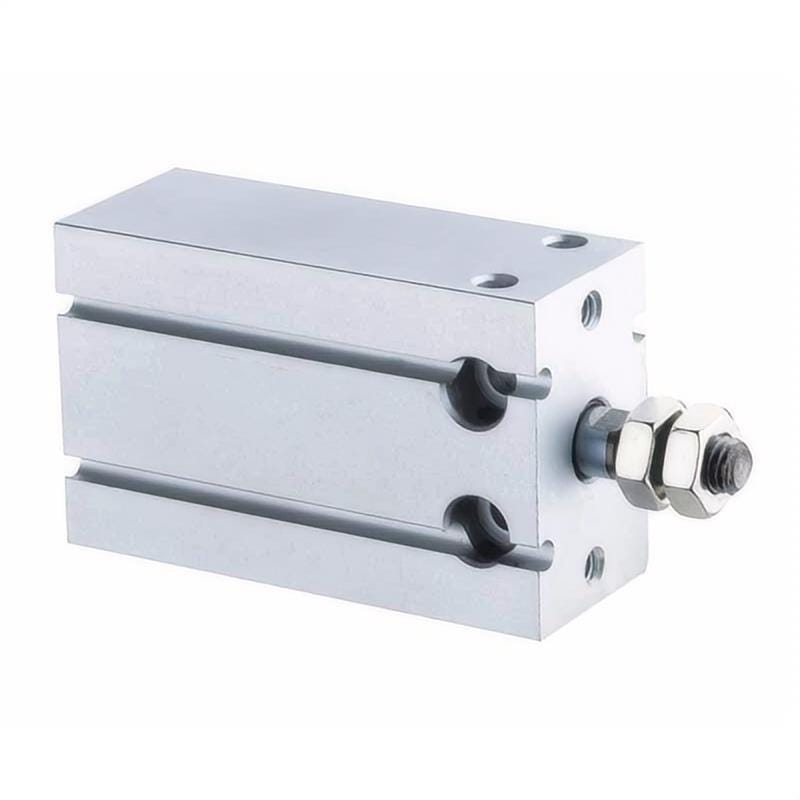

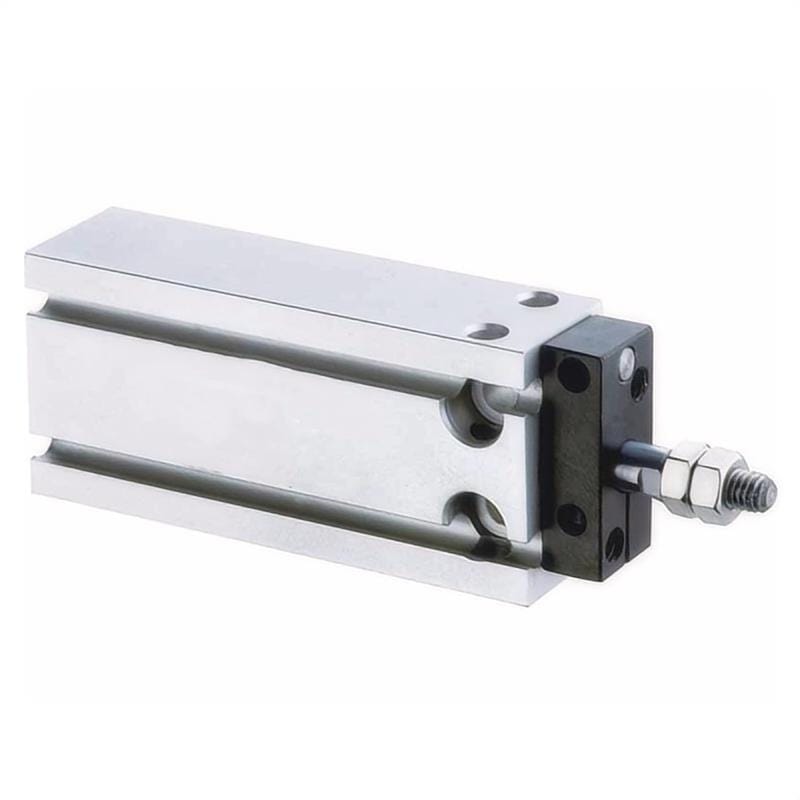

cu series free mount pneumatic cylinder product view 1

Order Symbol

Series 01
Series
CU Series Free Mount Pneumatic Cylinder

Key Specs

Selection focus
  • Bore size: 6, 10, 16, 20, 25, 32 mm
  • Pressure: Max. working pressure 0.7 MPa; proof pressure 1.0 MPa
  • Motion pattern: Double acting; single-action extension; single-action retraction
  • Speed: 50-500 mm/s
  • Port size: M5×0.8, G1/8

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
  • Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
  • Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
  • Working air: Confirm pressure range, air quality, cushion, and duty cycle.
  • Application: Send drawings, installation space, quantity, and target delivery timing.
Selection snapshot

Bore, stroke, and pressure specifications

19 rows
Bore (mm)6 mm10 mm16 mm20 mm25 mm32 mm
Working mediumAirAirAirAirAirAir
Motion patternDouble acting / single-action extension / single-action retractionDouble acting / single-action extension / single-action retractionDouble acting / single-action extension / single-action retractionDouble acting / single-action extension / single-action retractionDouble acting / single-action extension / single-action retractionDouble acting / single-action extension / single-action retraction
proof pressure1.0 MPa (10.5 kgf/cm²)1.0 MPa (10.5 kgf/cm²)1.0 MPa (10.5 kgf/cm²)1.0 MPa (10.5 kgf/cm²)1.0 MPa (10.5 kgf/cm²)1.0 MPa (10.5 kgf/cm²)
Min. operating pressureSingle0.2 MPa0.15 MPa0.15 MPa0.13 MPa0.13 MPa0.13 MPa
Min. operating pressureDouble0.12 MPa0.06 MPa0.06 MPa0.05 MPa0.05 MPa0.05 MPa
Max. working pressure0.7 MPa (7.1 kgf/cm²)0.7 MPa (7.1 kgf/cm²)0.7 MPa (7.1 kgf/cm²)0.7 MPa (7.1 kgf/cm²)0.7 MPa (7.1 kgf/cm²)0.7 MPa (7.1 kgf/cm²)
Ambient and medium temperatureWithout auto switch110-70 °C (No freezing)110-70 °C (No freezing)110-70 °C (No freezing)110-70 °C (No freezing)110-70 °C (No freezing)110-70 °C (No freezing)
Ambient and medium temperatureWith auto switch110-60 °C (No freezing)110-60 °C (No freezing)110-60 °C (No freezing)110-60 °C (No freezing)110-60 °C (No freezing)110-60 °C (No freezing)
LubricationNon-lubeNon-lubeNon-lubeNon-lubeNon-lubeNon-lube
piston speed50-500 mm/s50-500 mm/s50-500 mm/s50-500 mm/s50-500 mm/s50-500 mm/s
Cushionrubber bumperrubber bumperrubber bumperrubber bumperrubber bumperrubber bumper
Rod end threadMale threadMale threadMale threadMale threadMale threadMale thread
thread toleranceClass 2Class 2Class 2Class 2Class 2Class 2
CushionBoth ends bufferBoth ends bufferBoth ends bufferBoth ends bufferBoth ends bufferBoth ends buffer
Margin of stroke error (mm)Standard111111
Margin of stroke error (mm)Non-rotating0 mm0 mm0 mm0 mm0 mm0 mm
Precision of Piston rod with Non-rotating±0.8°±0.8°±0.8°±0.5°±0.5°±0.5°
Port sizeM5×0.8M5×0.8M5×0.8M5×0.8M5×0.8G1/8″
Additional table

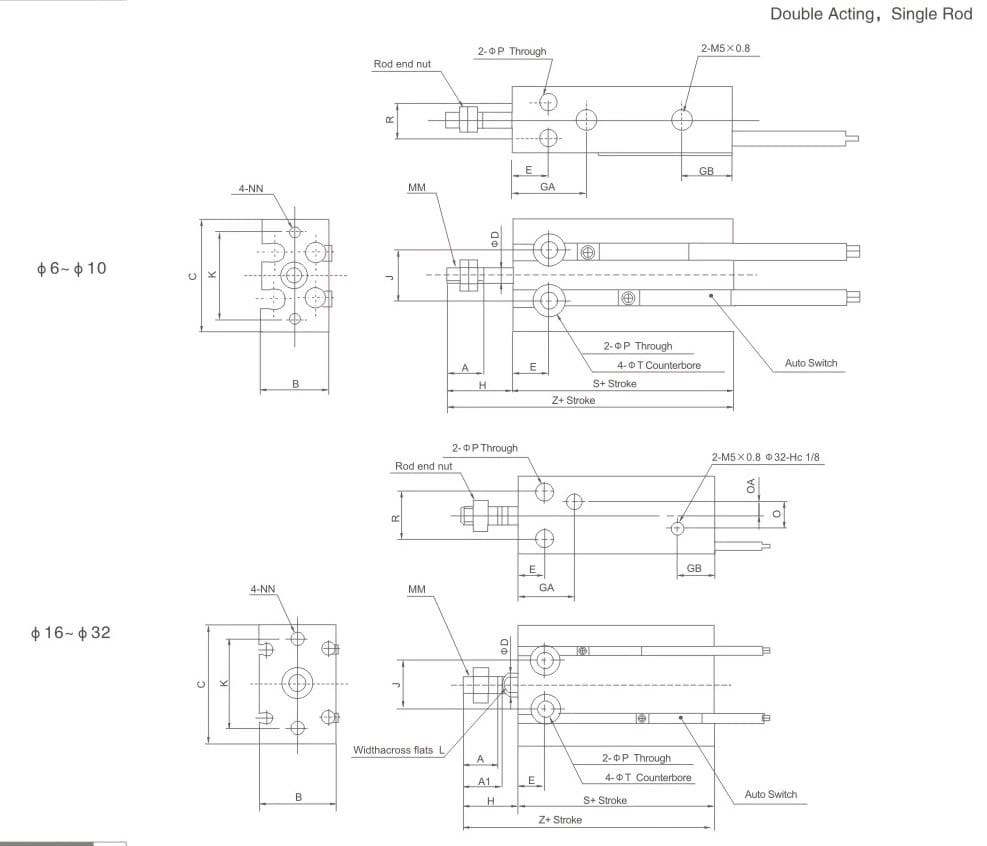

Double-acting mounting and switch dimensions

16 rows
bore size (mm)AA1BCDEGAGBHKJLMM
67-1322371510131710-M3×0.5
1010-15244716.510161811-M4×0.7
161112.520326716.5Note)11.51625145M5×0.8
2012142640891912.51930166M6×1.0
2515.5183250101021.5132338208M8×1.25
3219.522406212112312.527482410M10×1.25
Switch, port, and overall length dimensions
bore size | (mm)NNPQQARTWithout Auto SwitchWith Auto Switch
SZSZ
6M3×0.5(Depth) 53.2--76 (Depth) 4.833463346
10M3×0.5(Depth) 53.2--96 (Depth) 536523652
16M4×0.7 (Depth) 64.542127.6 (Depth) 6.530464056
20M5×0.8(Depth) 85.594.5169.3 (Depth) 836554665
25M5×0.8(Depth) 85.594.5209.3 (Depth) 940635073
32M6×1.0(Depth) 96.613.54.52411 (Depth) 11.542695279
Additional table

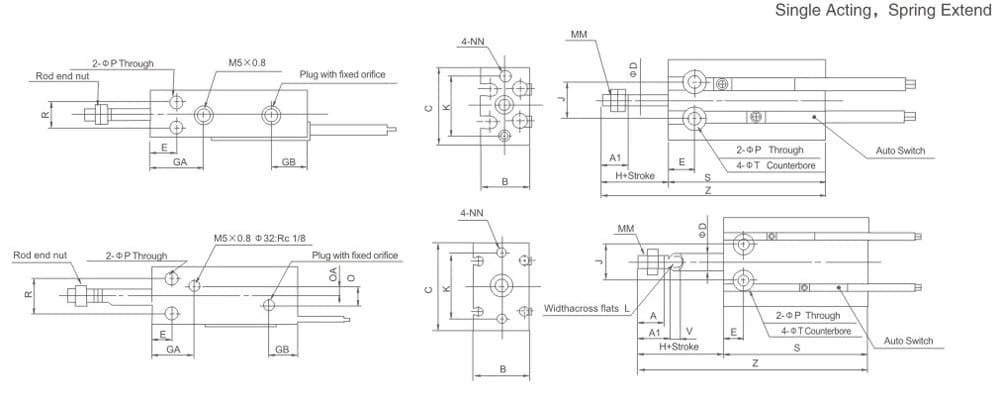

Single-acting extension Mounting dimensions

7 rows
bore size (mm)AA1BCDEGAGBHKJLMMNNP
67-1322371510131710-M3×0.5M3×0.5(Depth) 53.2
1010-15244716.510161811-M4×0.7M3×0.5(Depth) 53.2
161112.520326716.511.51625145M5×0.8M4×0.7(Depth) 64.5
2012142640891912.51930166M6×1.0M5×0.8(Depth) 85.5
2515.5183250101021.5132338208M8×1.25M5×0.8(Depth) 85.5
3219.522406212112312.527482410M10×1.25M6×1.0(Depth) 96.6
Additional table

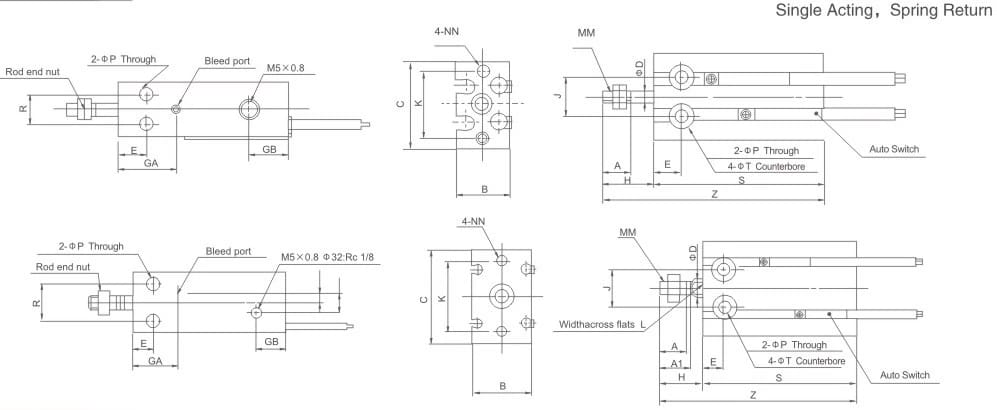

Single-acting retraction stroke and switch dimensions

9 rows
bore size | (mm)QQARTV (Note)Without Auto SwitchWith Auto Switch
SZSZ
5st10st15st5st10st15st5st10st15st5st10st15st
6--76(Depth) 4.8-384348566676384348566676
10--96(Depth) 5-414656627287414656627287
1642127.6(Depth) 6.53.5455060667691455060667691
2094.5169.3(Depth) 854146566575905156667585100
2594.5209.3(Depth) 954550607383985560708393108
3213.54.52411(Depth) 11.5547526279891045762728999114

Same-group comparison

Thin and Compact Pneumatic Cylinders series comparison

Compare related product series by function, size, pressure, and RFQ details.

5 related series
SeriesBore / sizeMotionPressure rangeStroke / angleSpeed / repeatabilityPort thread
CU Compact Cylinder6, 10, 16, 20, 25, 32 mmDouble acting; single-action extension; single-action retractionMax. working pressure 0.7 MPa; proof pressure 1.0 MPaStandard, 150-500 mm/sM5×0.8, G1/8

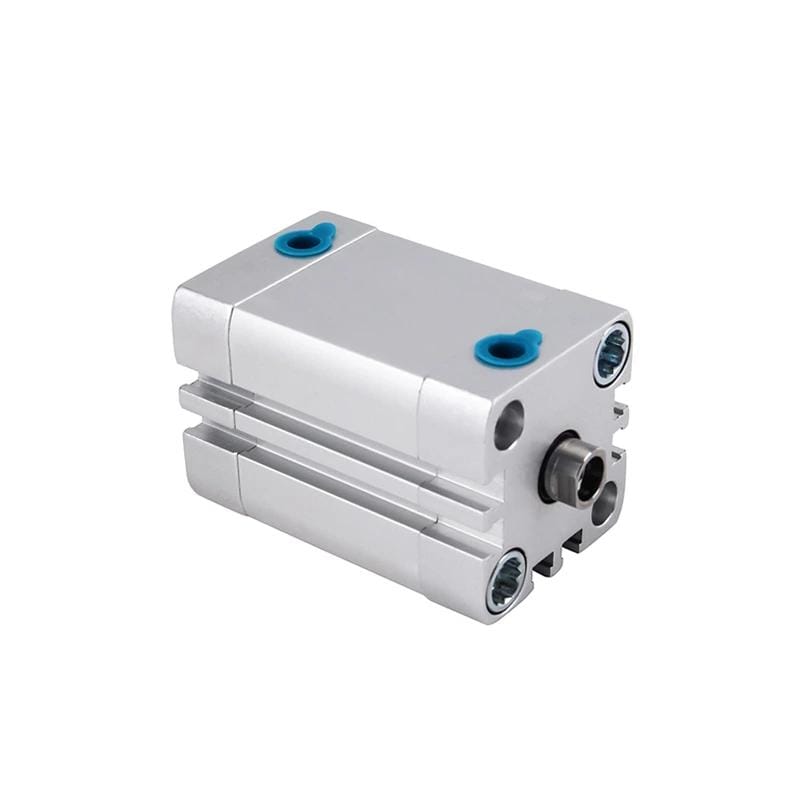

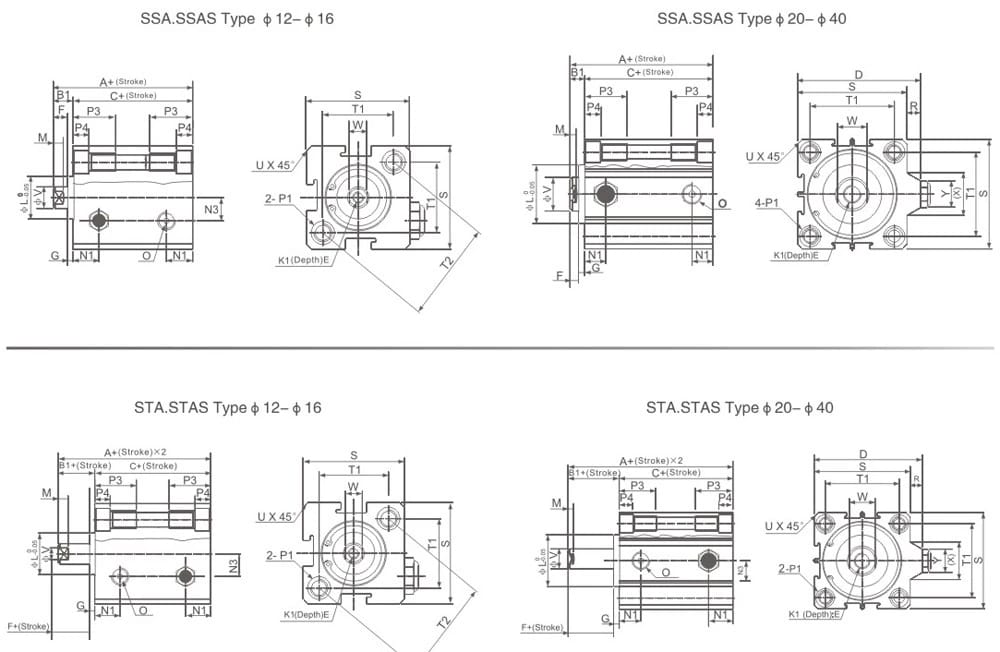

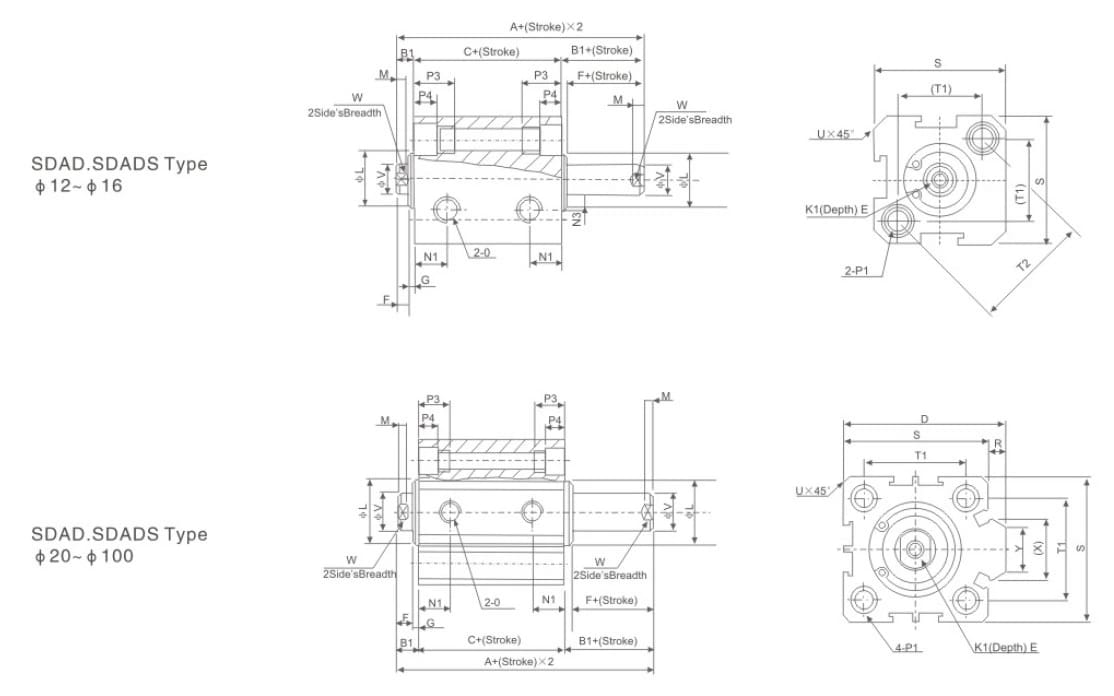

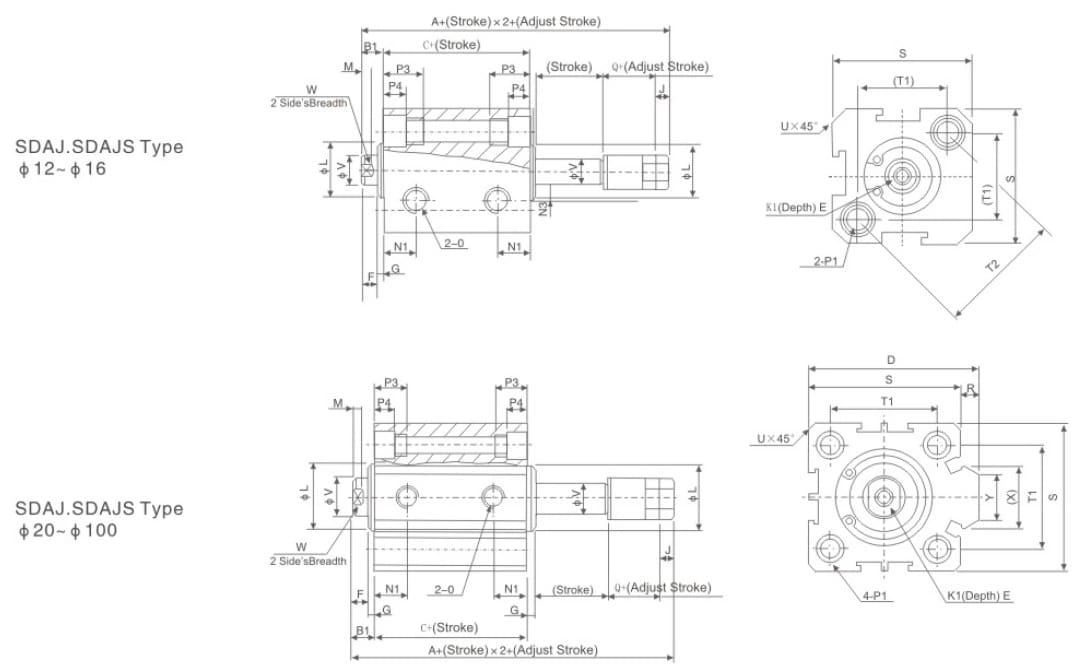

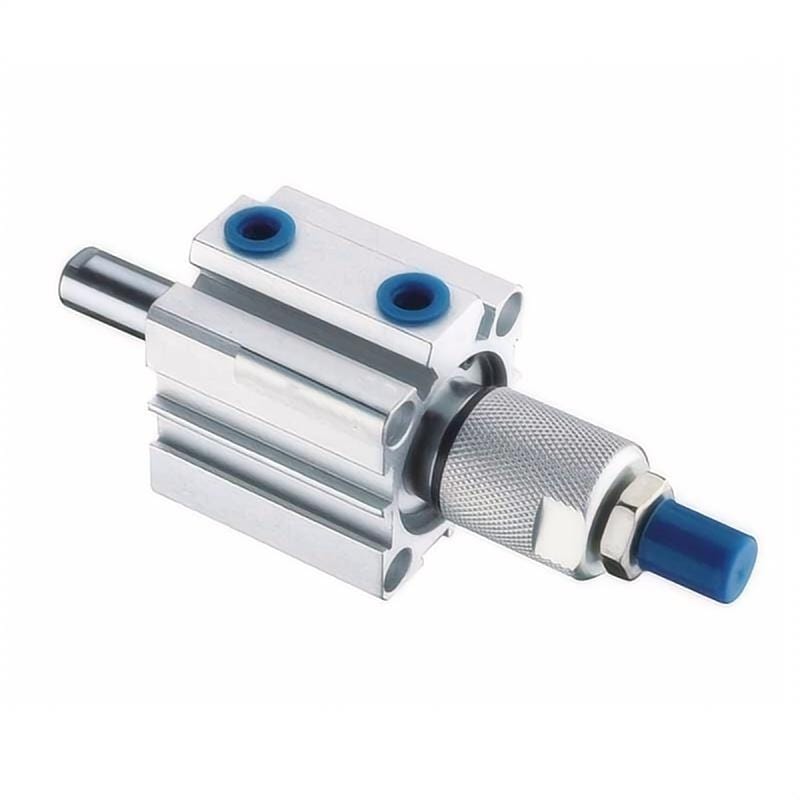

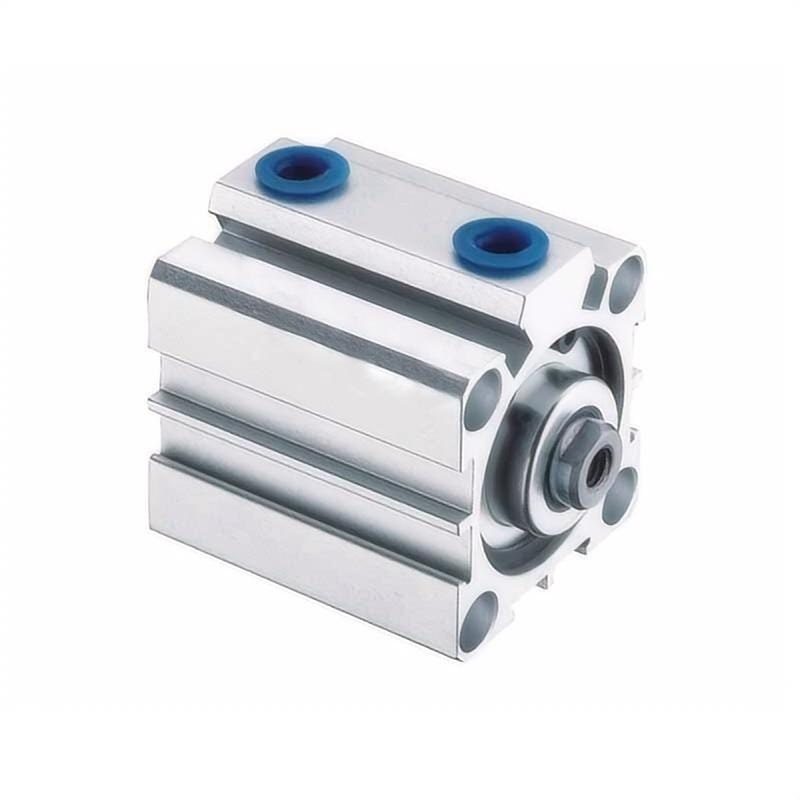

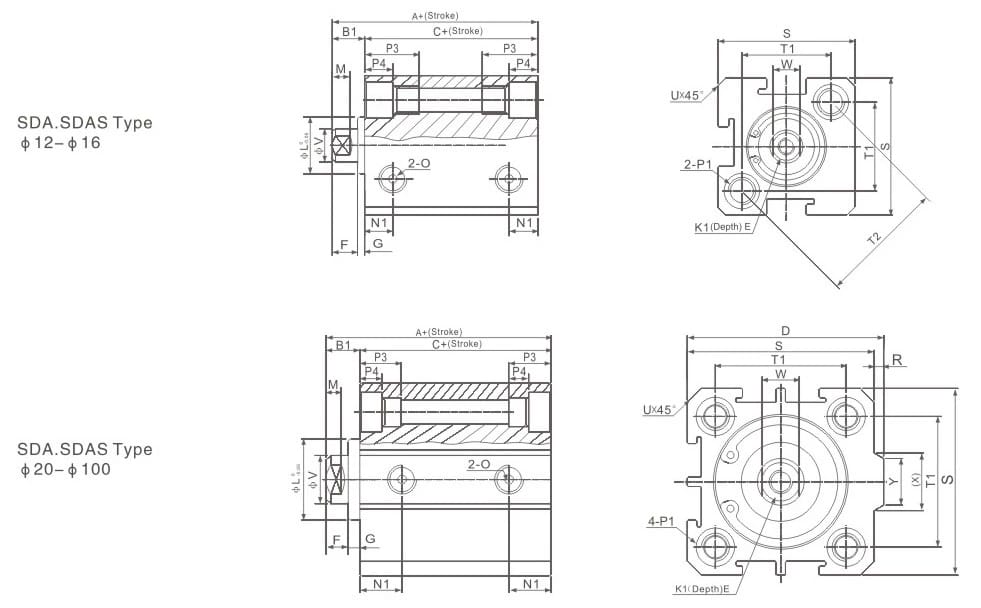

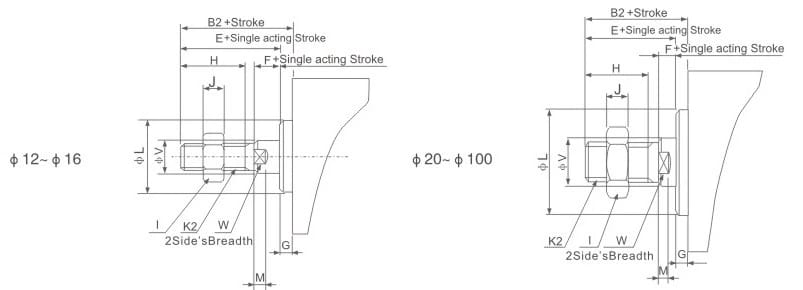

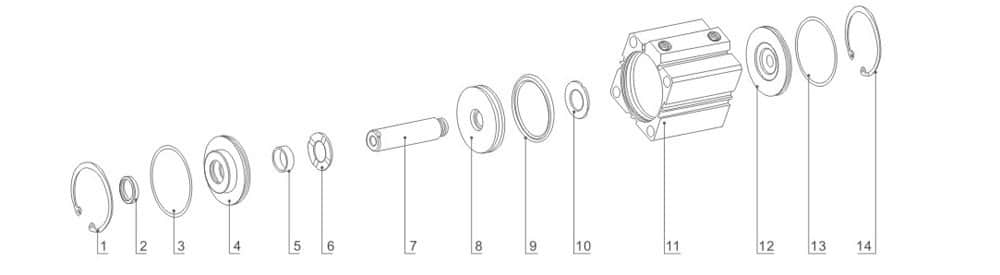

SDA Compact Cylinder12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mmDouble acting; single-action extension or return variants by tableDouble acting 0.1-0.9 MPa; single acting 0.2-0.9 MPaStroke≤10, 36, 42, 50, 58.5, 71.5, 84.5, 104, 12430-500 mm/s, 30-350 mm/s, or 30-250 mm/s by boreM5×0.8, G1/8, G1/4, G3/8

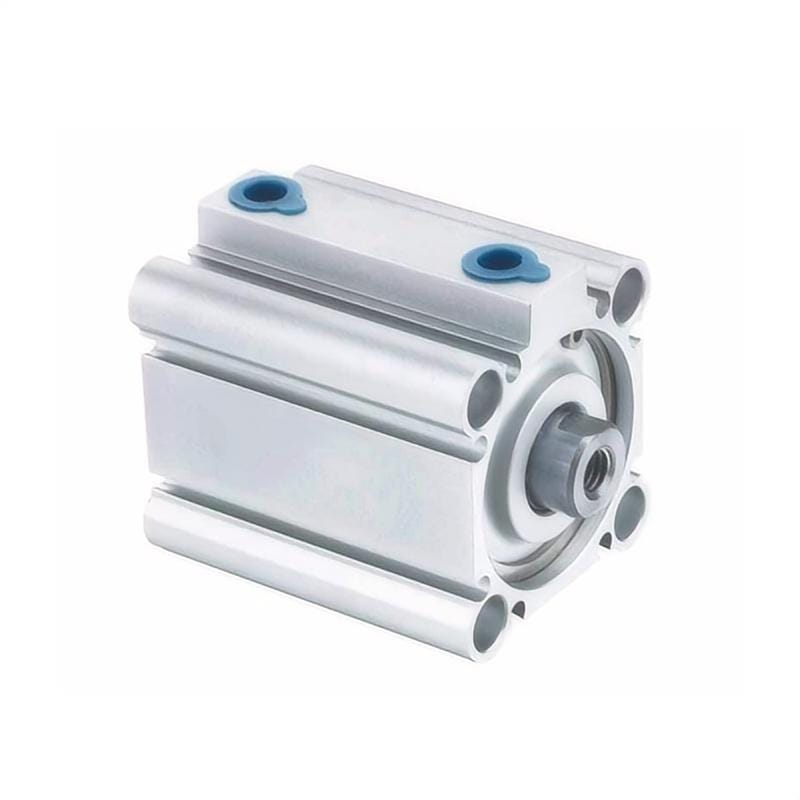

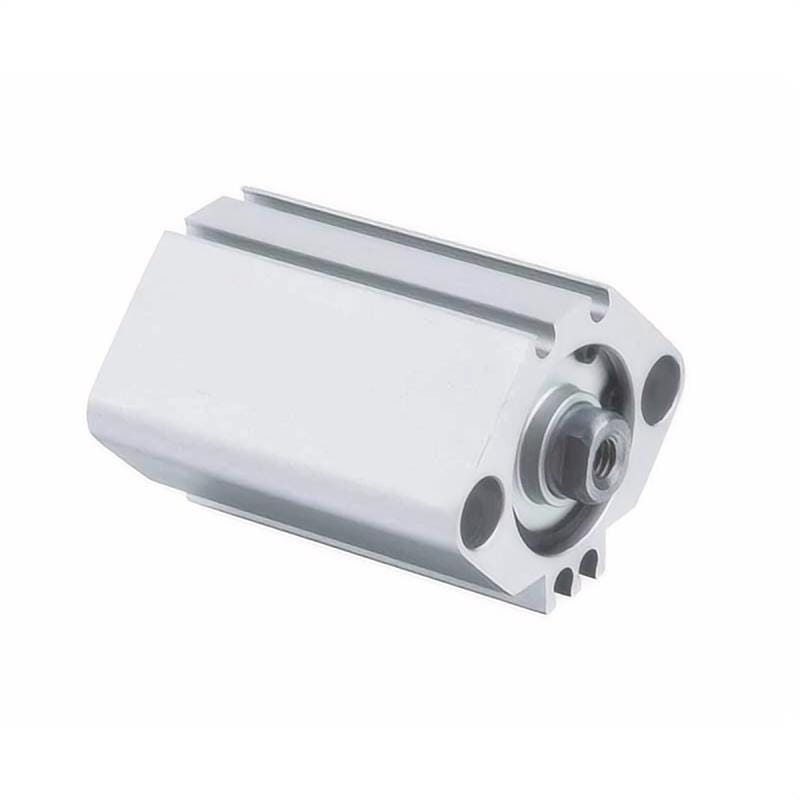

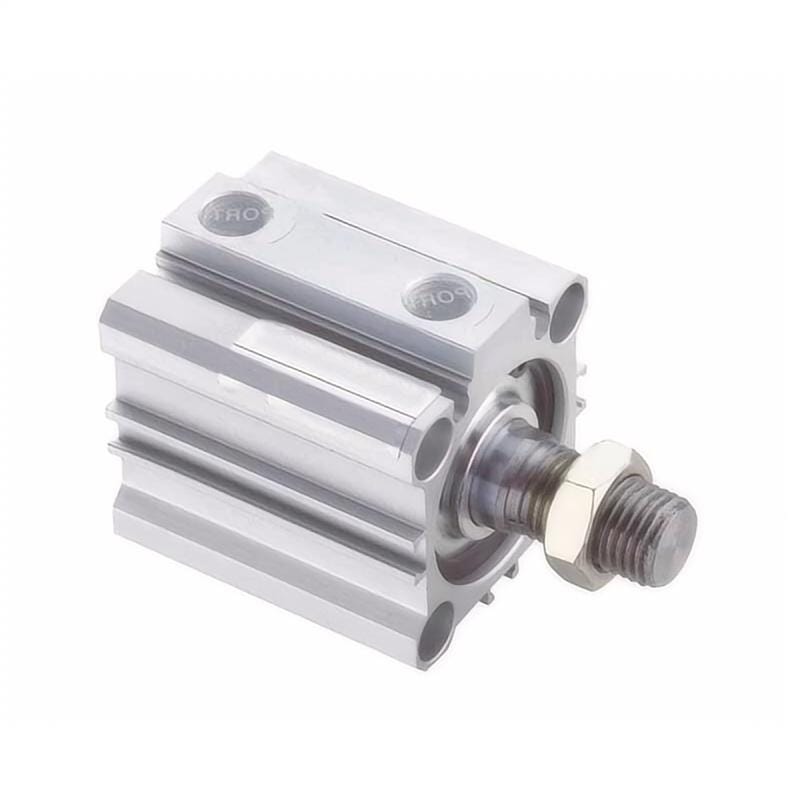

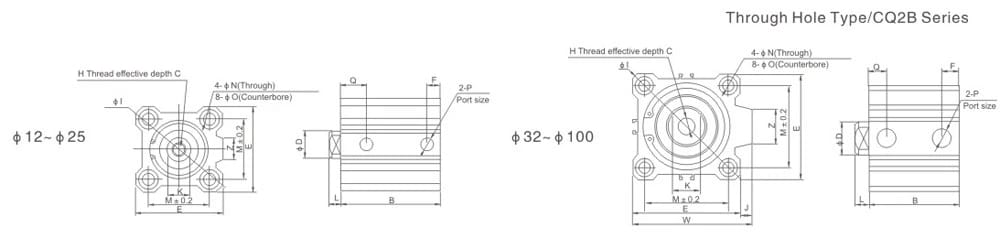

CQ2 Compact Cylinder12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mmDouble acting; single-action extension; single-action retractionCompact cylinder pressure ratings are listed in the specification table5-100 mm depending on bore and model typeConfirm by modelM5×0.8, G1/8, G1/4, G3/8 by bore

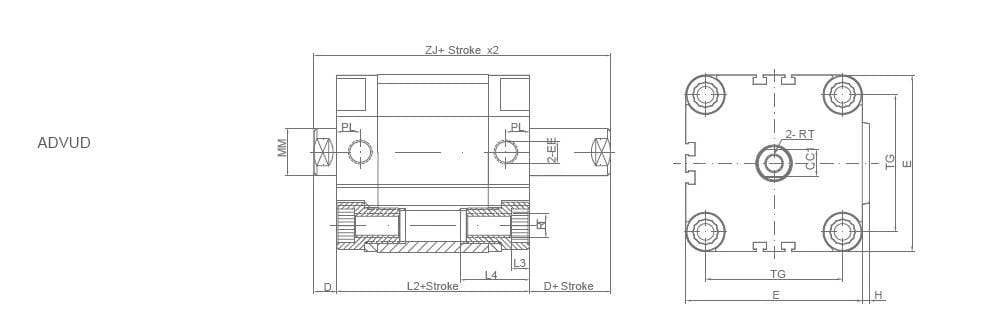

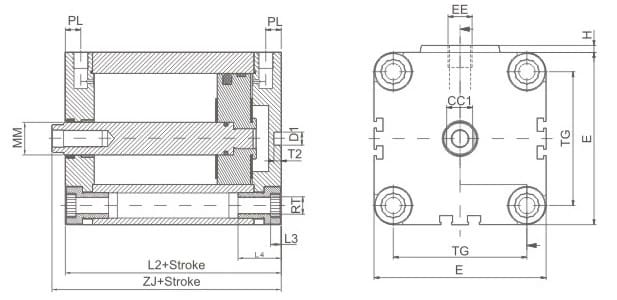

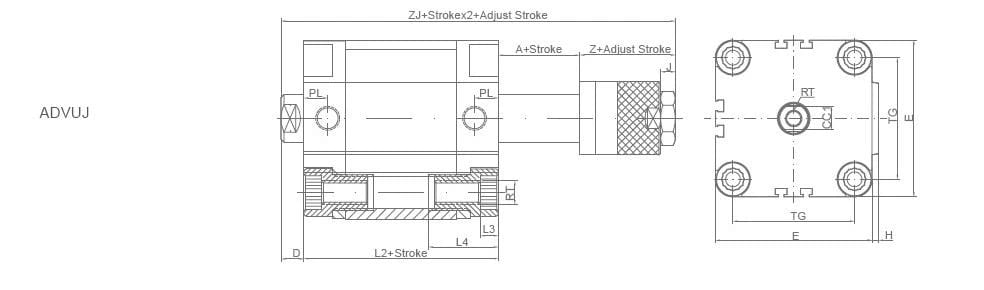

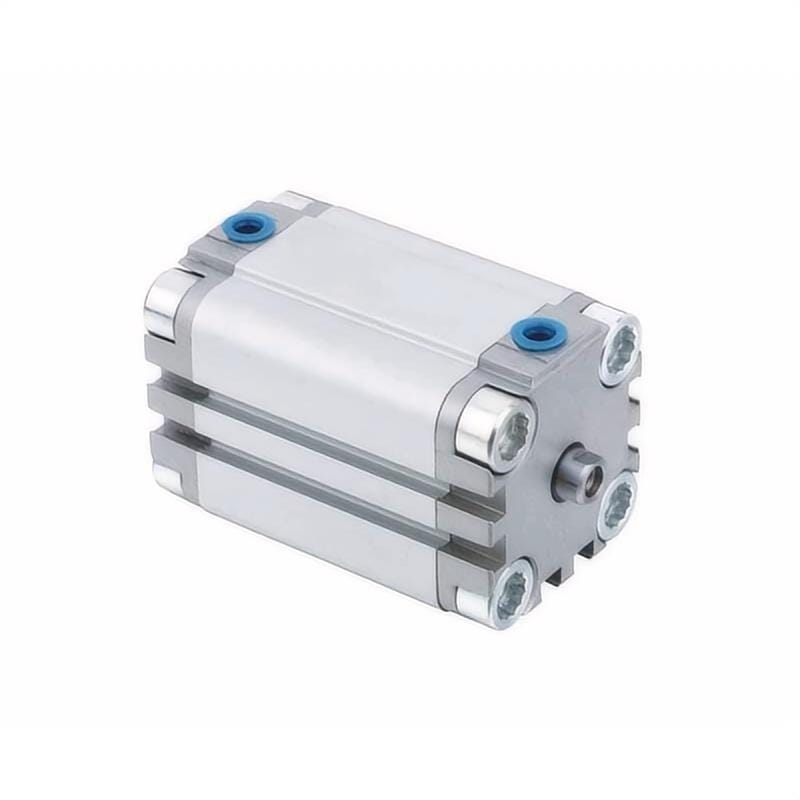

ADVU Compact Cylinder16, 20, 25, 32, 40, 50, 63, 80, 100 mmDouble acting; single rod or double rod1.5 MPaConfirm by modelConfirm by modelM5, G1/8, G1/4 by bore

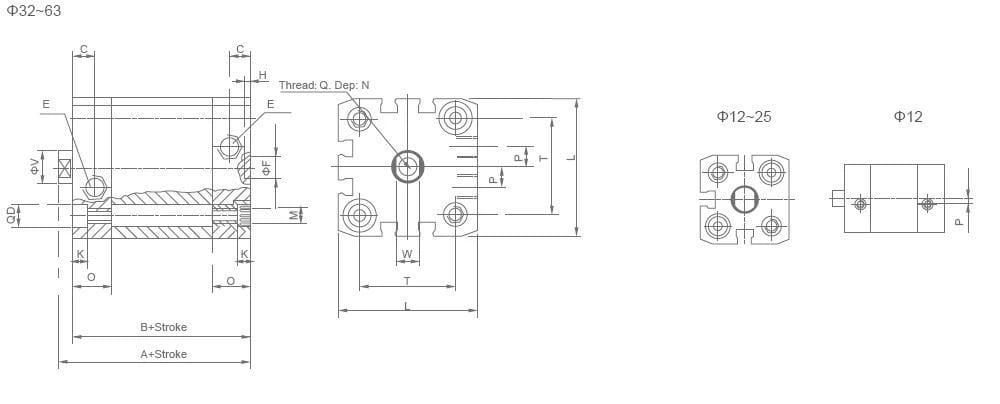

ADN Compact Cylinder12, 16, 20, 25, 32, 40, 50, 63 mmCompact Cylinder0.1-1.0 MPa; proof pressure 1.5 MPaConfirm by model30-500 mm/sM5×0.8, G1/8

Choose by motion job

Start with the motion the actuator must make.

Pick the closest actuator use case, then confirm bore, stroke, load, mounting, pressure, speed, and space constraints before RFQ.

Scenario 01

Review function, size, pressure, mounting, and inquiry data for Thin and Compact Pneumatic Cylinders.

Review function, size, pressure, mounting, and inquiry data for Thin and Compact Pneumatic Cylinders.

Recommended option

SDA, CQ2, CU, ADN, or ADVU-style compact route with envelope confirmation.

  • Available length
  • Bore and force
  • Stroke
  • Port clearance

Common actuator uses

Where pneumatic actuators do the machine work.

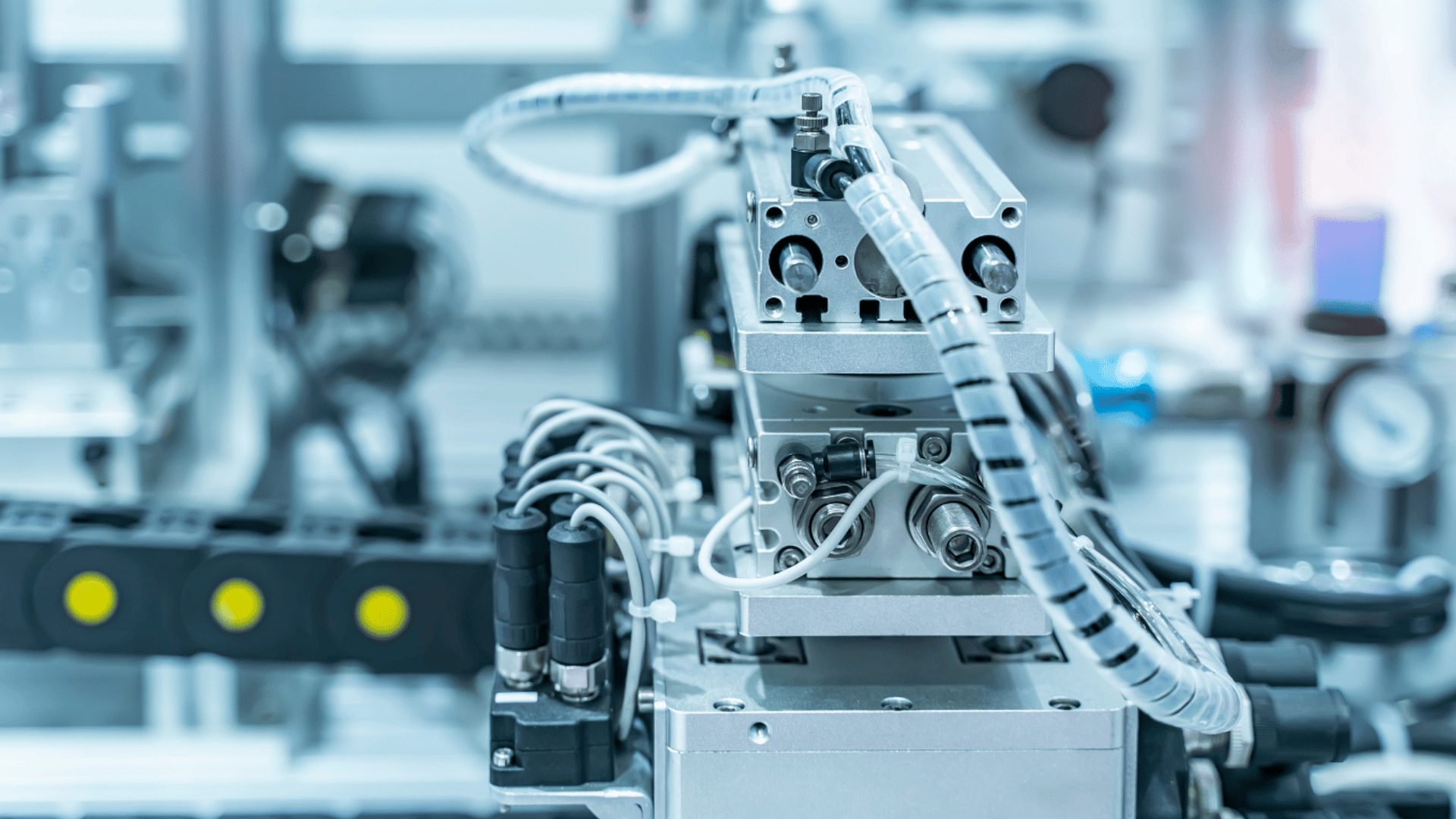

Thin pneumatic cylinder for electronics assembly and testing application
Actuator use 01

Electronics assembly and testing

Thin cylinders drive short presses, probes, stops, and compact clamps inside dense automation equipment.

  • Confirm body length
  • Review force
  • Check cleanliness

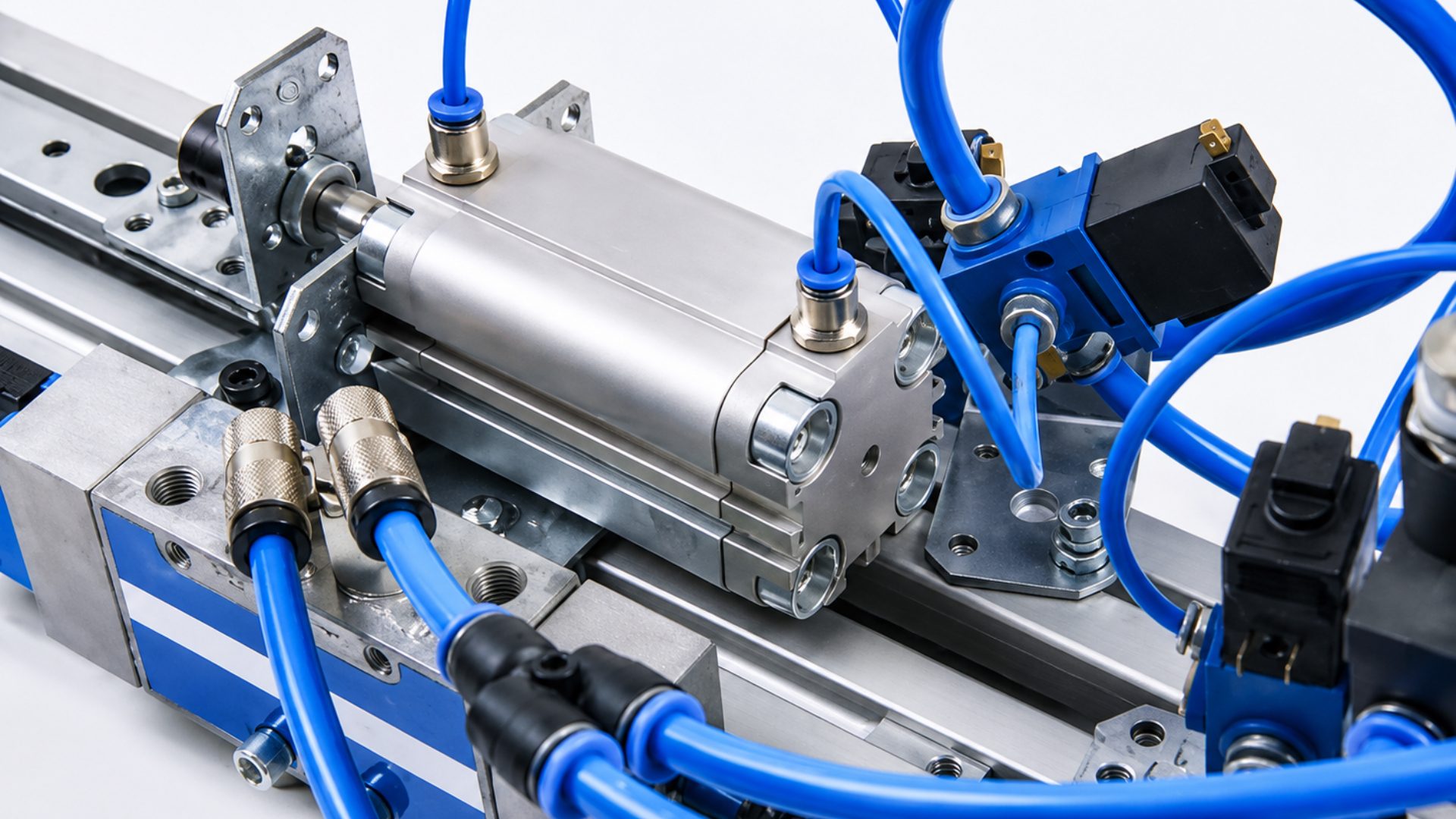

Thin pneumatic cylinder used in small fixtures and positioning devices
Actuator use 02

Small fixtures and positioning devices

Compact cylinders fit clamp and positioning tasks where standard cylinders would consume too much length.

  • Check side load
  • Review mount pattern
  • Send fixture photo

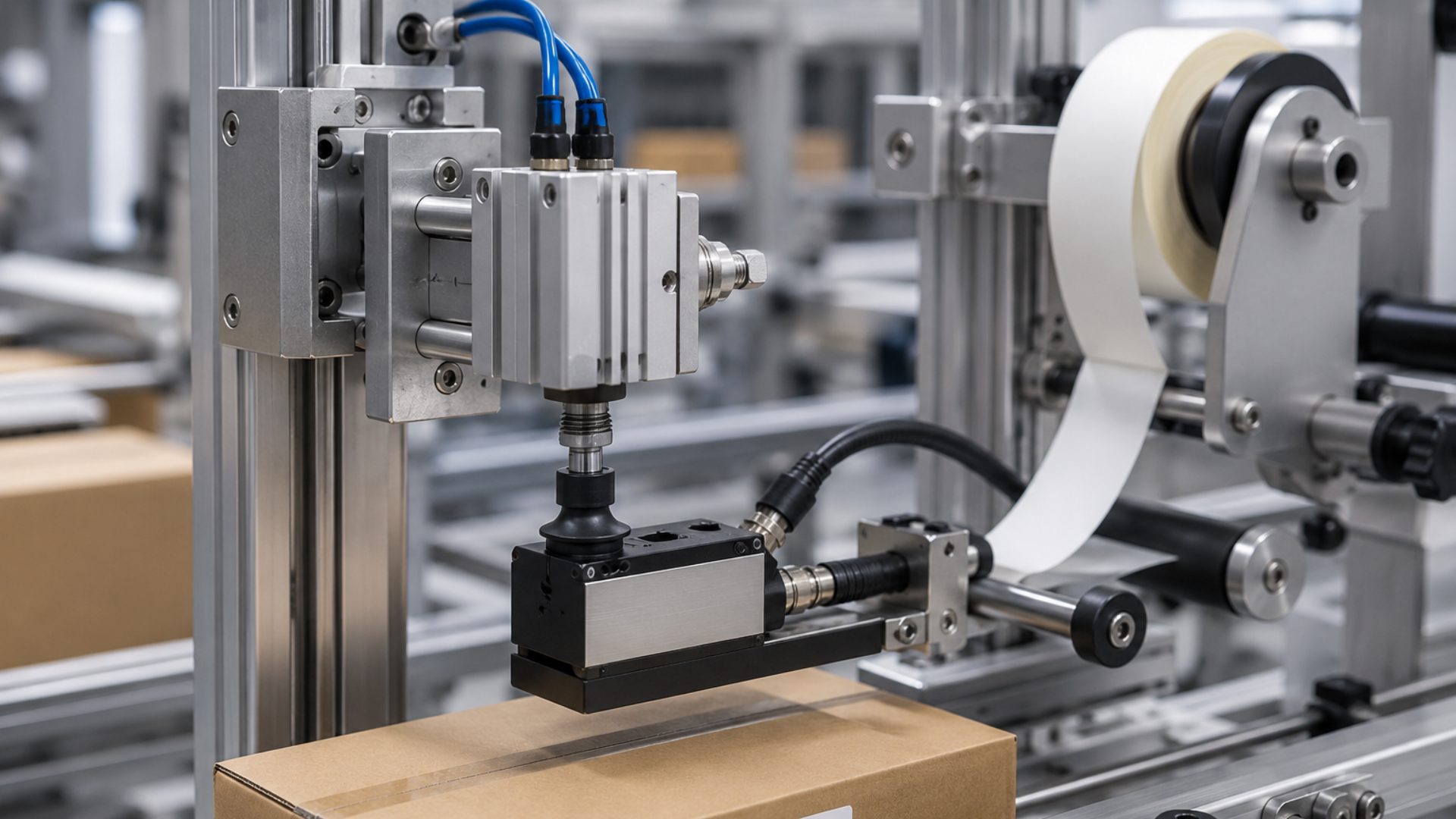

Thin pneumatic cylinder printing marking and packaging station application
Actuator use 03

Printing, marking, and packaging stations

Review function, size, pressure, mounting, and inquiry data for Thin and Compact Pneumatic Cylinders.

  • Confirm cycle speed
  • Review cushion
  • Check sensor need

Cylinder sizing tools

Calculate load, bore, buckling, and cushion energy before selecting a cylinder.

Use these calculators when a linear cylinder decision depends on force margin, rod stability, stroke speed, and end-of-stroke energy.

Open Cylinder sizing tools
01Cylinder sizing

Cylinder Force Calculator

Check push and pull force before choosing bore, pressure, and safety factor.

Bore diameterRod diameterWorking pressureOpen calculator02Cylinder sizing

Cylinder Bore Size Calculator

Convert a known load into a practical starting bore size.

Sizing input modeRequired load or moving massTravel orientationOpen calculator03Cylinder sizing

Cylinder Rod Buckling Calculator

Check long-stroke rod stability before confirming bore and mounting.

Rod diameterUnsupported lengthEnd condition factorOpen calculator04Cylinder sizing

Cylinder Cushion Energy Calculator

Review cushion energy when speed, mass, and stroke-end impact matter.

Moving massImpact velocityDrive forceOpen calculator

Request category support

Send the details that make this Thin and Compact Pneumatic Cylinders inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Bore, stroke, and body envelope
  • Mounting hole pattern and port direction
  • Action type and sensor need
  • Old model code or dimensional sketch
Rodless CylindersStandard CylindersMini CylindersSlide Table Cylinders

Thin and Compact Pneumatic Cylinders RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Thin and Compact Pneumatic CylindersAre thin cylinders the same as compact cylinders?

They are often used similarly. Thin or compact cylinders focus on shorter body length for tight installations, with series differences in body shape, mounting, and standard dimensions.

02Thin and Compact Pneumatic CylindersCan a thin cylinder handle side load?

A basic thin cylinder should avoid side load. If side load is present, consider a guided compact cylinder or external guide support.

03Thin and Compact Pneumatic CylindersWhat is important for replacing an SDA or CQ2-style cylinder?

Bore, stroke, body dimensions, mounting holes, port position, sensor groove, and rod-end details are the key details.
