Pneumatic cylinders / stable non-rotating motion

Double Rod Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Double Rod Pneumatic Cylinders.

View product specifications Build a double rod cylinder RFQ

Non-rotating motionBalanced supportSide-load resistanceFixture stability

Category buying guide

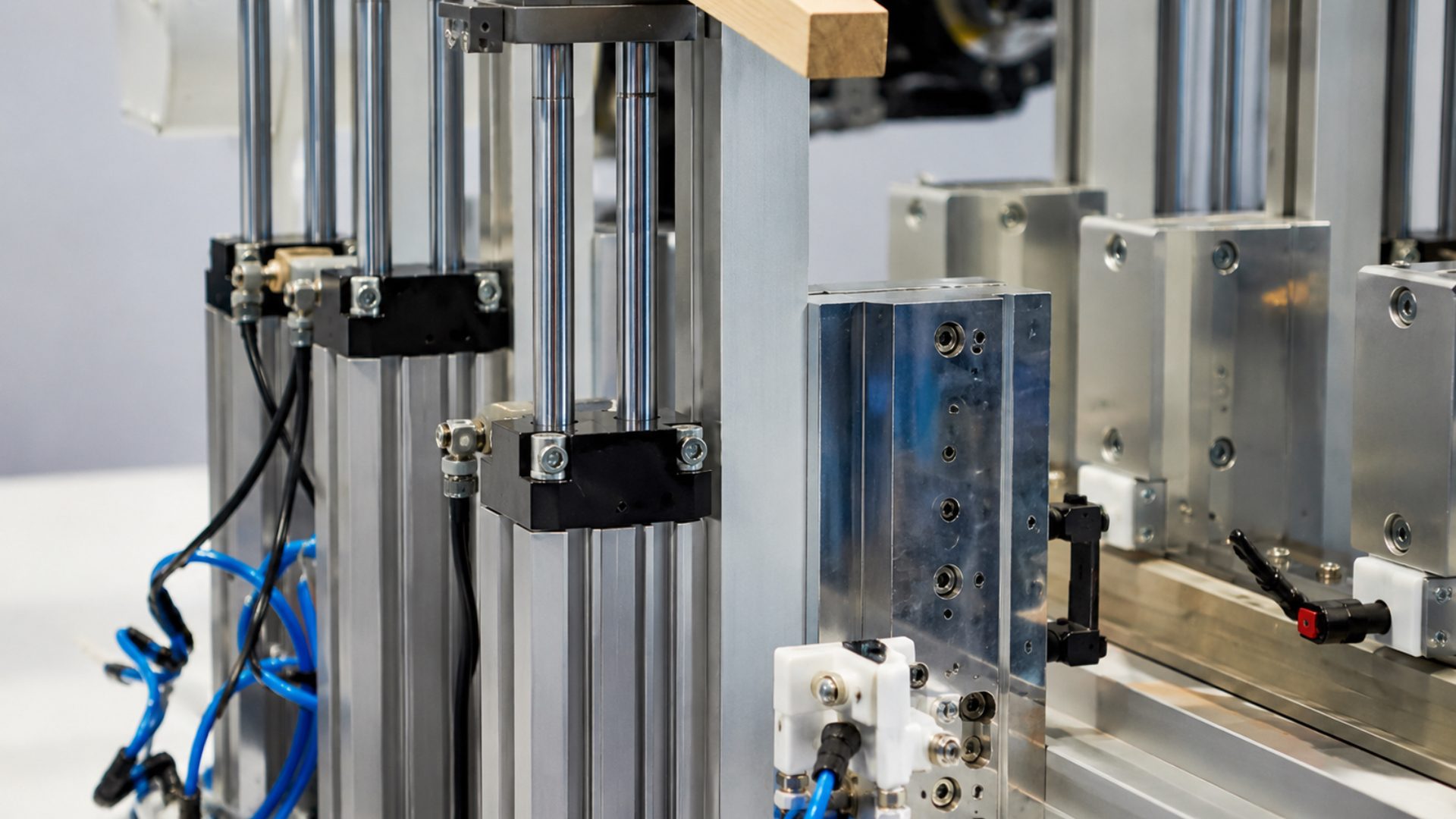

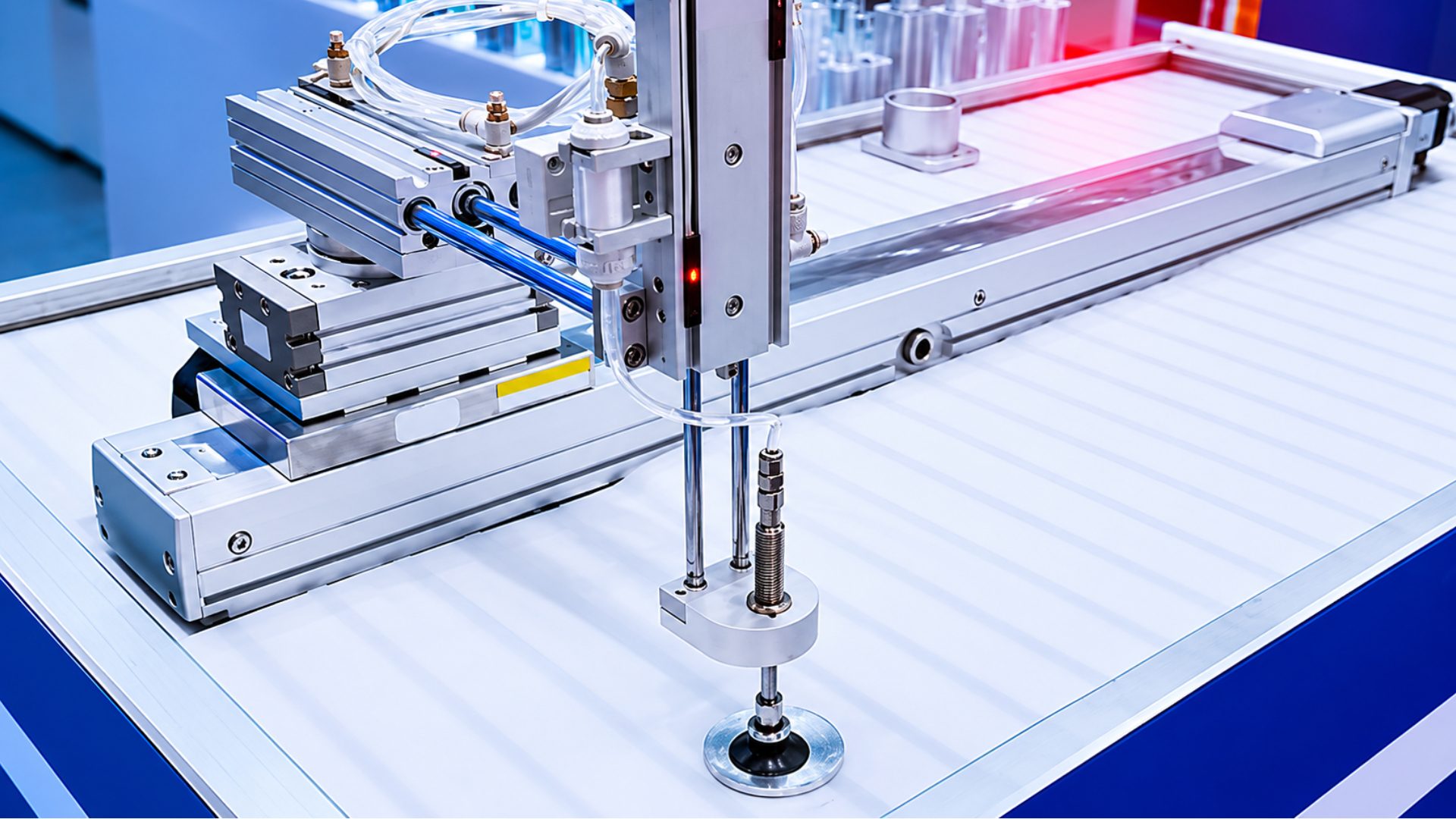

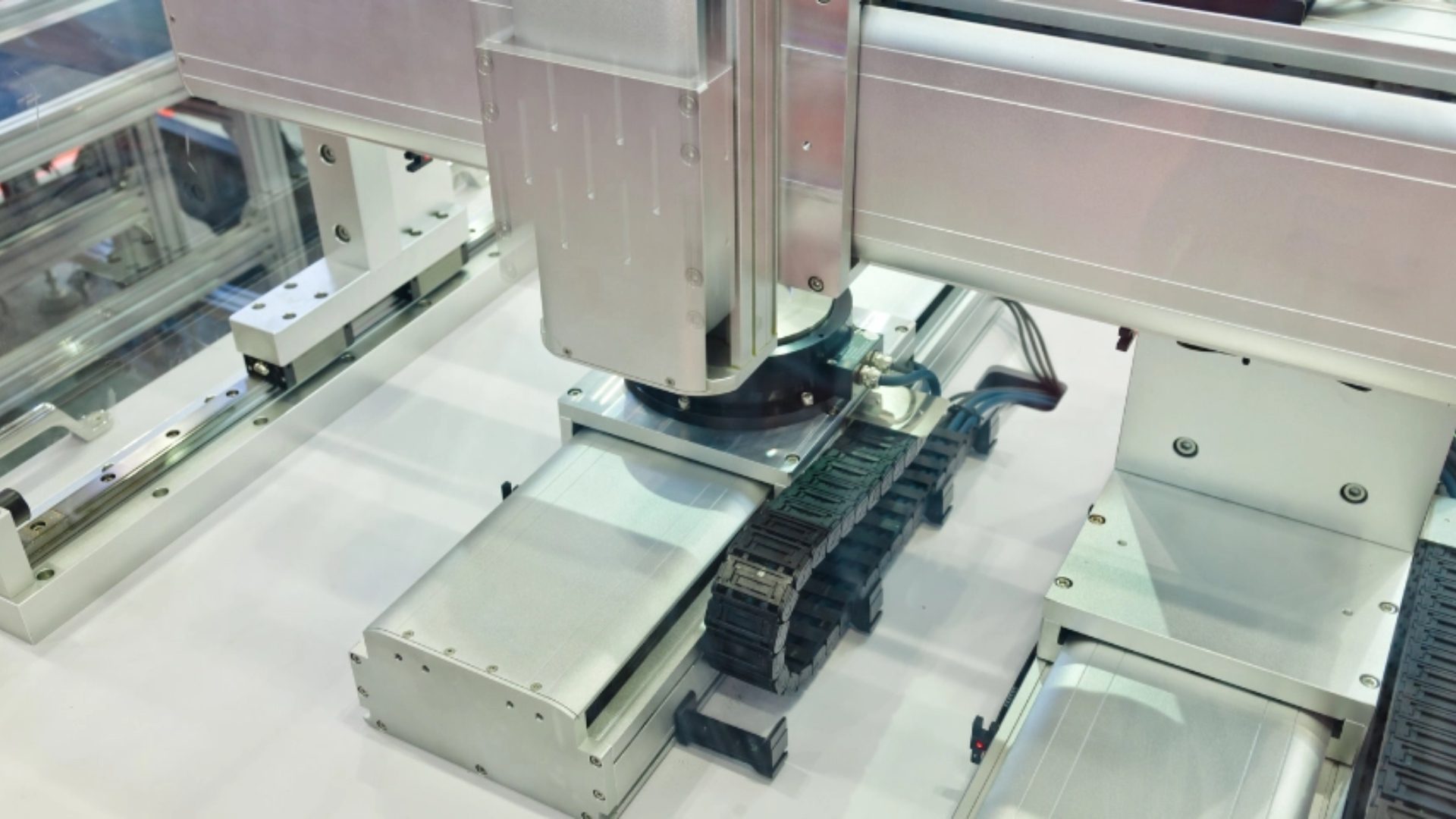

Use double rod construction when tooling orientation must stay stable.

Double rod cylinder selection should focus on balanced movement, non-rotating stability, rod spacing, side-load exposure, tooling orientation, seal life, mounting face, stroke, and sensor requirements.

Pneumatic cylinder categories

01Rodless Cylinders 02Standard Cylinders 03Mini Cylinders 04Thin and Compact Cylinders 05Slide Table Cylinders 06Compact Guide Cylinders 07Pneumatic Grippers 08Double Rod Cylinders 09Rotary Actuators 10Cylinder Accessories 11Other Cylinders

Double Rod Pneumatic Cylinders • Product specifications

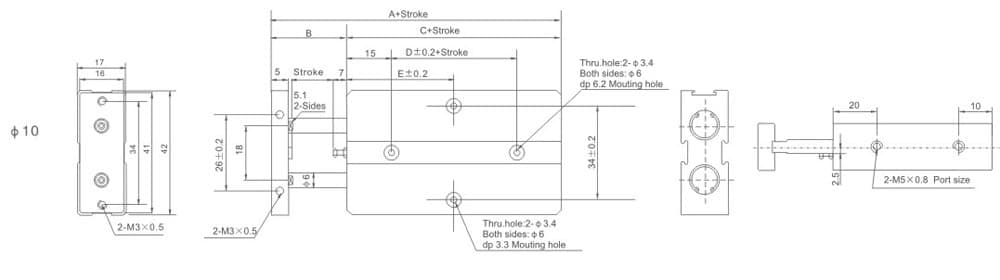

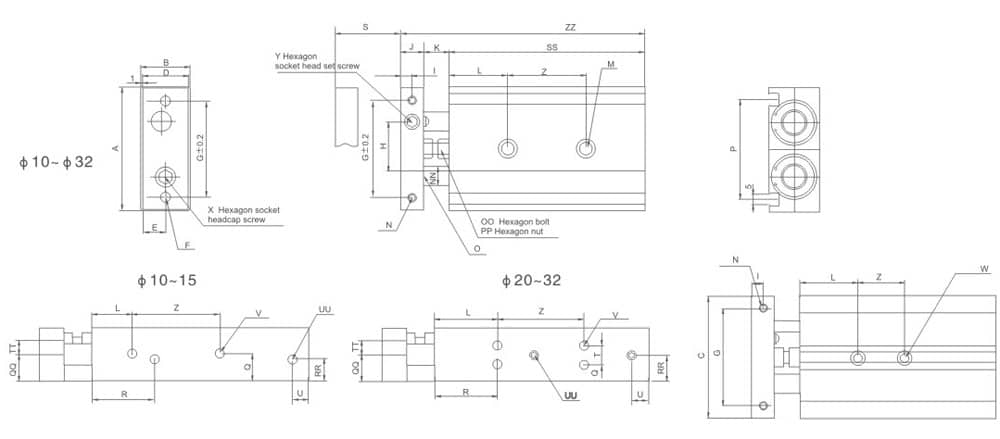

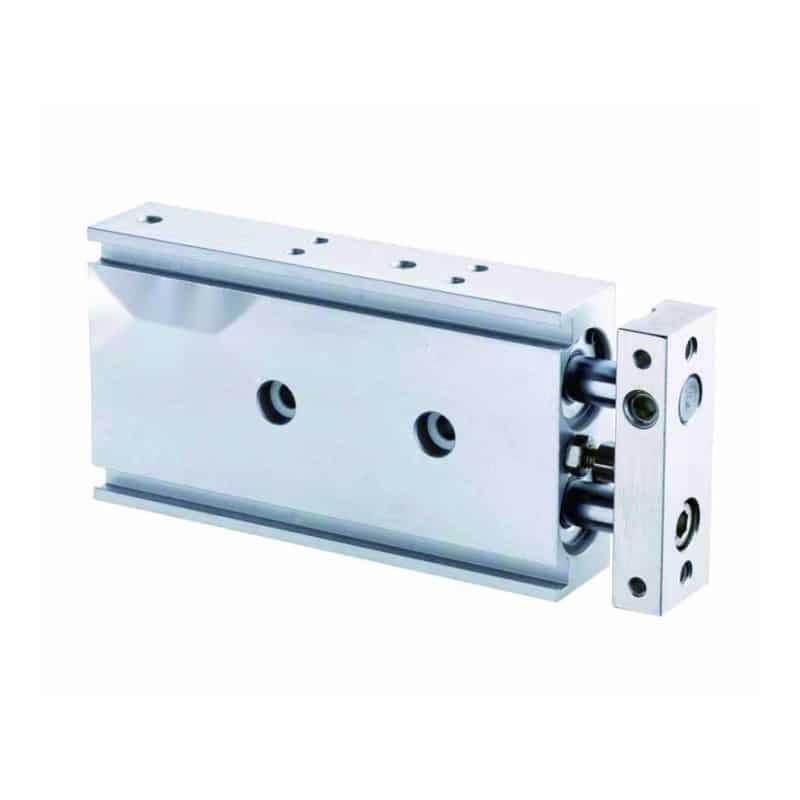

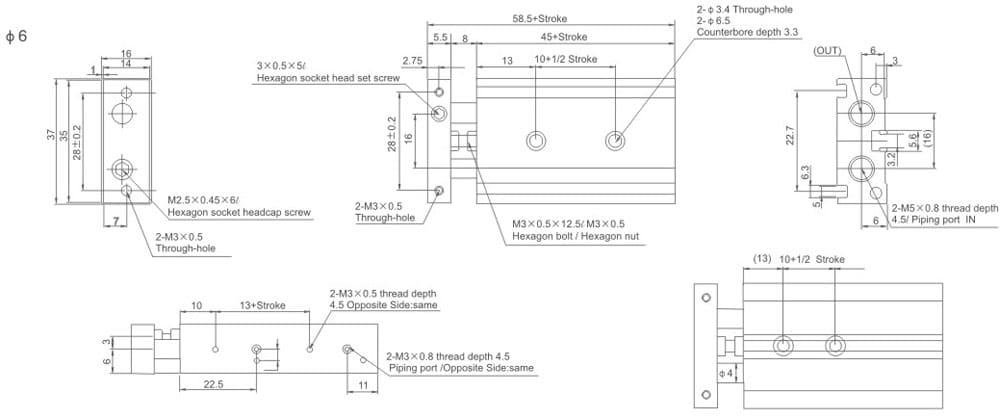

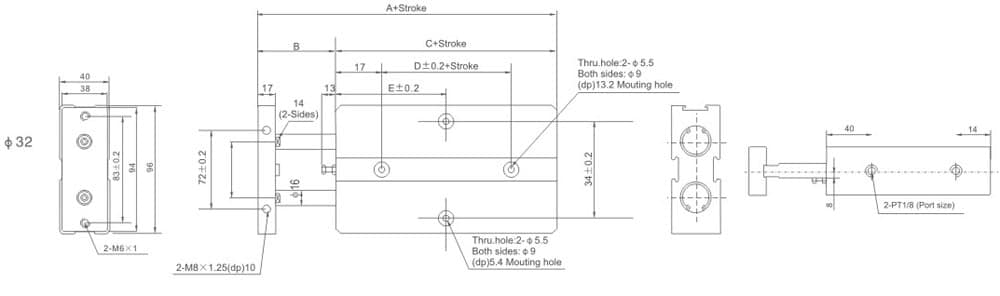

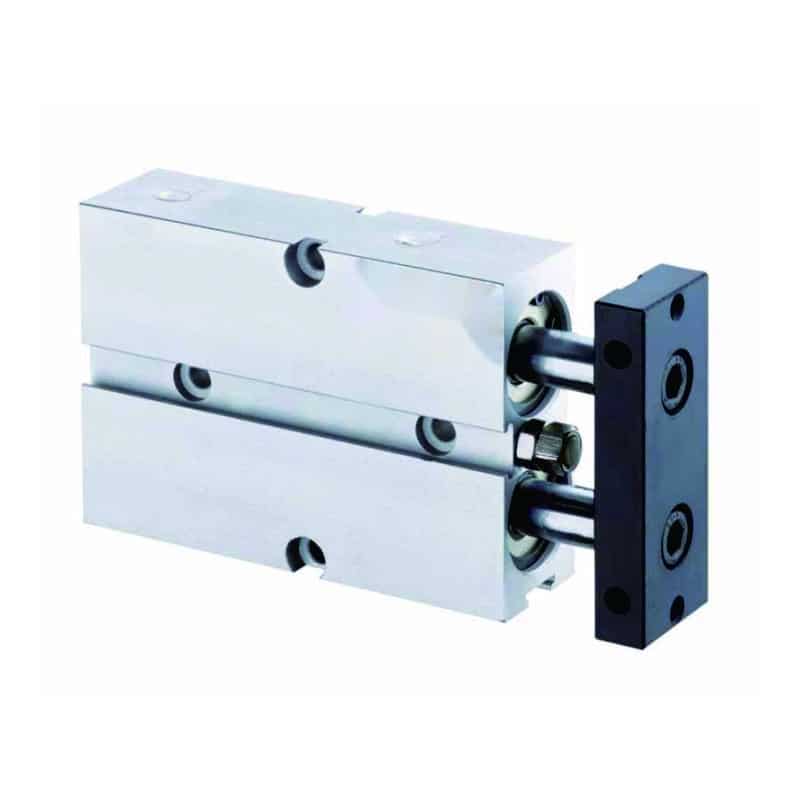

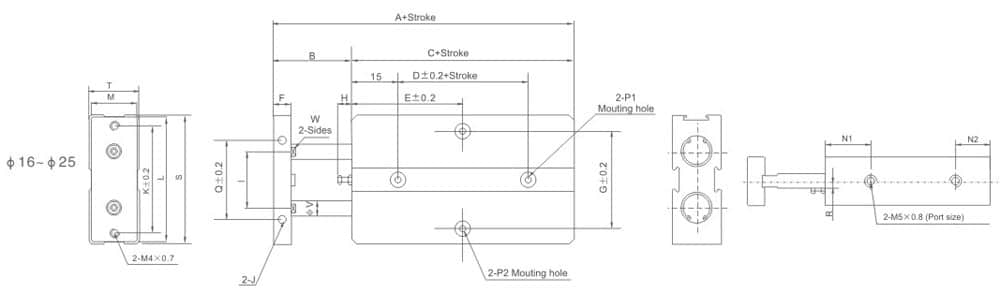

Double Rod Pneumatic Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

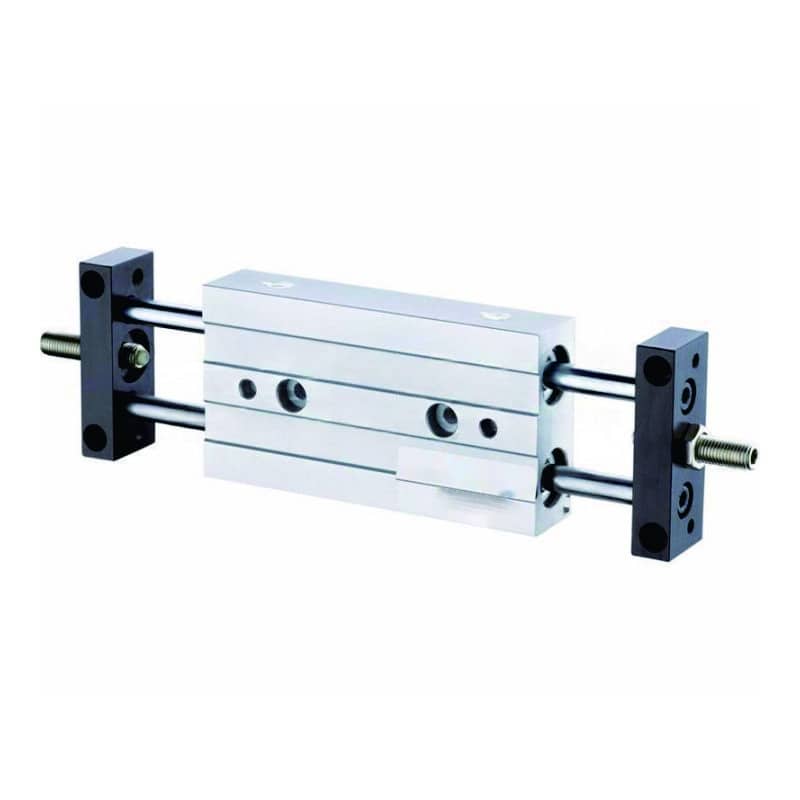

stm series dual rod pneumatic slide slide bearing product view 1

Order Symbol

Series 01

Series: STM Series Dual Rod Pneumatic Slide (Slide Bearing)

Key Specs

Selection focus

Bore (mm): 10, 16, 20, 25
Operating Pressure Range: 1.0-9.0 kgf/cm²
Motion Pattern: Double acting
Operating Speed Range: 50-200 mm/s
Port Size: M5×0.8, G1/8"

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

Bore, stroke, and pressure specifications

10 rows

Bore (mm)	10	16	20	25
Motion Pattern	Double acting	Double acting	Double acting	Double acting
Working medium	Air	Air	Air	Air
Operating temperature range °C	-5-+70 °C	-5-+70 °C	-5-+70 °C	-5-+70 °C
operating pressure range	1.0-9.0 kgf/cm²	1.0-9.0 kgf/cm²	1.0-9.0 kgf/cm²	1.0-9.0 kgf/cm²
proof pressure	13.5 kgf/cm²	13.5 kgf/cm²	13.5 kgf/cm²	13.5 kgf/cm²
Operating speed range	50-200 mm/s	50-200 mm/s	50-200 mm/s	50-200 mm/s
Buffering	None	Hydraulic Cushion (Optional)	Hydraulic Cushion (Optional)	Hydraulic Cushion (Optional)
Non-rotation Accuracy	±0.1°	±0.05°	±0.05°	±0.05°
Port size	M5×0.8	M5×0.8	M5×0.8	G1/8″

Additional table

STMB-10 stroke dimensions

7 rows

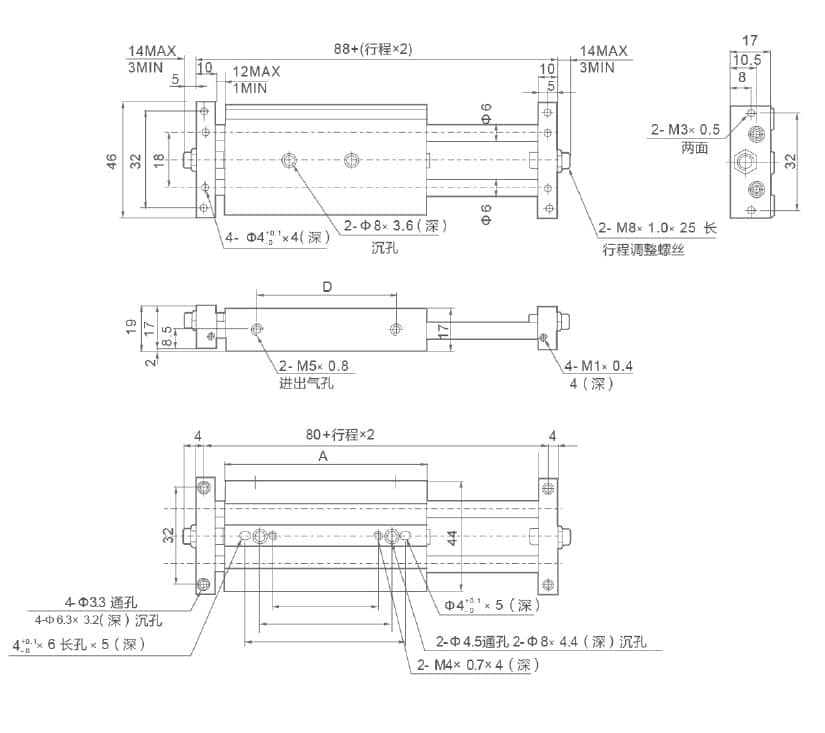

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 1

STMB-10	STMB-10	STMB-10	STMB-10	STMB-10
Symbol / Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	60
D	46	71	96	121
E	15	40	40	40

Additional table

STMB-16 stroke dimensions

6 rows

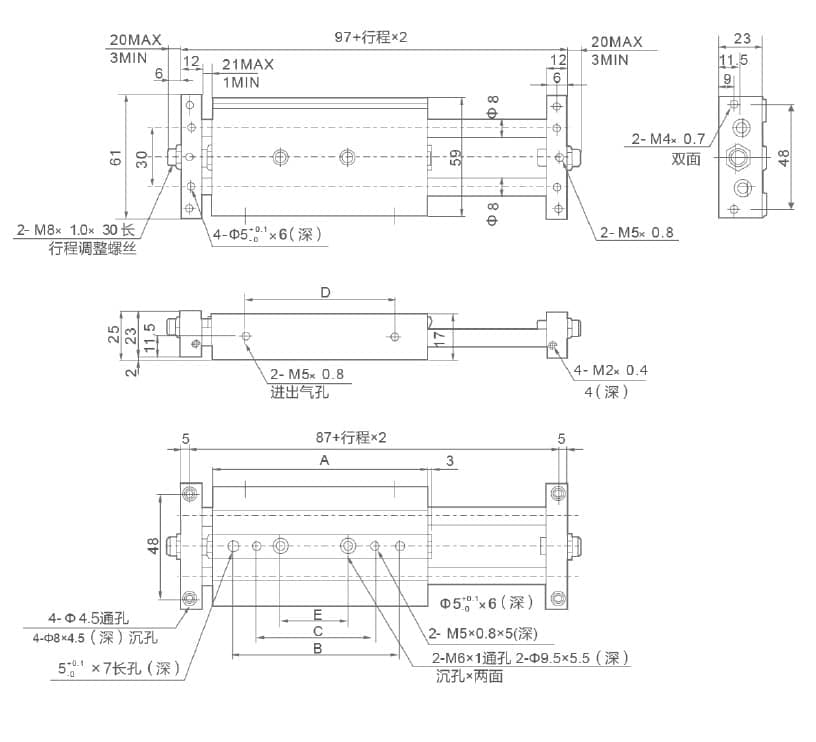

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 2

STMB-16	STMB-16	STMB-16	STMB-16	STMB-16	STMB-16	STMB-16	STMB-16	STMB-16
Symbol / Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
E	25	50	45	70	90	90	90	90

Additional table

STMB-20 stroke dimensions

7 rows

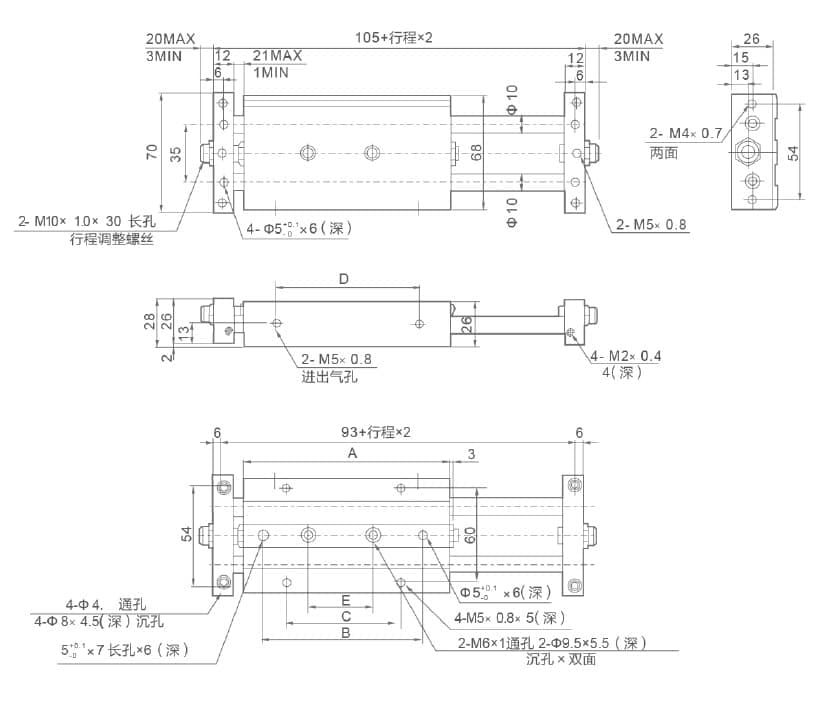

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 3

STMB-20	STMB-20	STMB-20	STMB-20	STMB-20	STMB-20	STMB-20	STMB-20	STMB-20	STMB-20
Symbol / Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
D	53	78	103	128	153	178	203	228	278
E	35	45	45	70	90	90	90	90	90

Additional table

STMB-25 stroke dimensions

7 rows

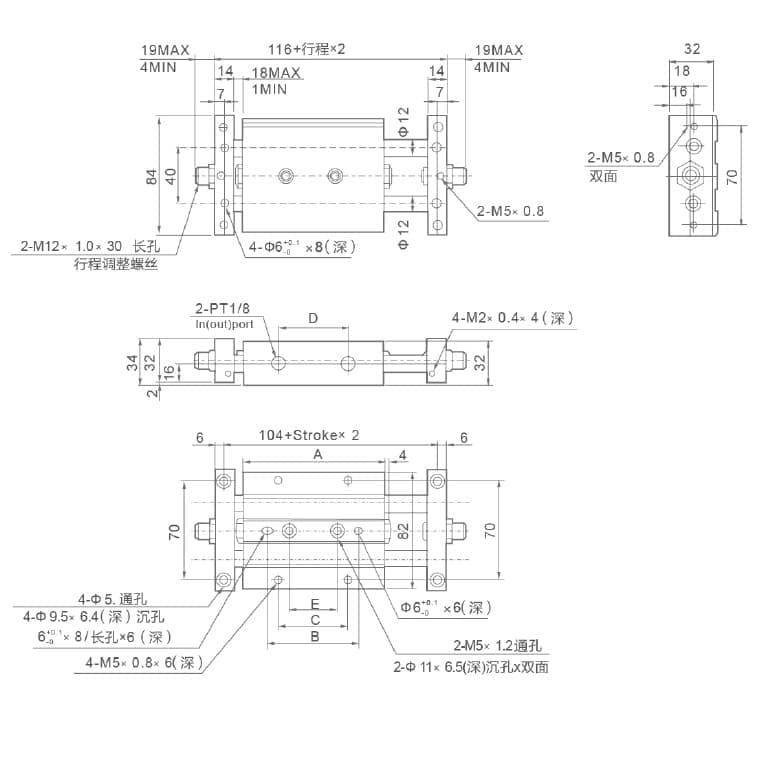

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 4

STMB-25	STMB-25	STMB-25	STMB-25	STMB-25	STMB-25	STMB-25	STMB-25	STMB-25	STMB-25
Symbol / Stroke	25	50	75	100	125	150	175	200	250
A	101	126	151	176	201	226	251	276	326
B	65	90	115	140	140	140	140	140	140
C	50	50	75	100	100	100	100	100	100
D	50	75	100	125	150	175	200	225	175
E	35	45	45	70	95	100	100	100	100

Additional table

STMS-10 stroke dimensions

6 rows

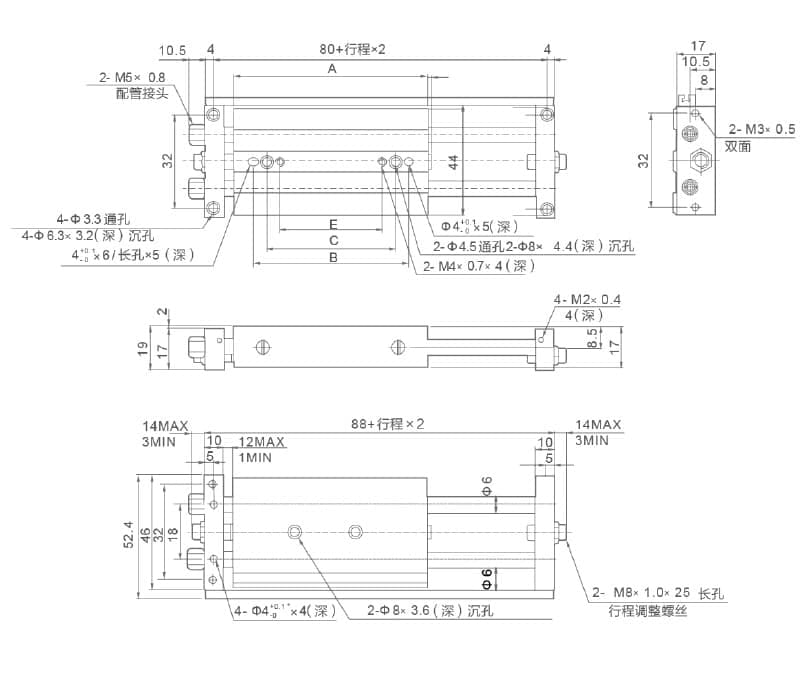

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 5

STMS-10	STMS-10	STMS-10	STMS-10	STMS-10
Symbol / Stroke	25	50	75	100
A	81	106	131	156
B	65	85	85	85
C	35	60	60	121
E	15	40	40	40

Additional table

STMS-16 stroke dimensions

6 rows

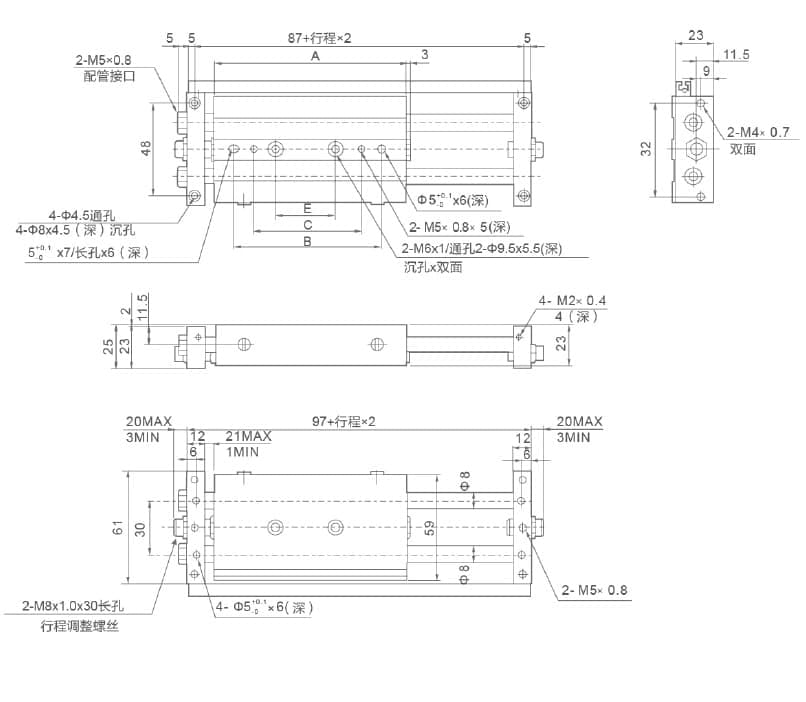

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 6

STMS-16	STMS-16	STMS-16	STMS-16	STMS-16	STMS-16	STMS-16	STMS-16	STMS-16
Symbol / Stroke	25	50	75	100	125	150	175	200
A	86	111	136	161	186	211	236	261
B	55	70	105	130	150	150	150	150
C	-	-	75	100	120	120	120	120
E	25	50	45	70	90	90	90	90

Additional table

STMS-20 stroke dimensions

6 rows

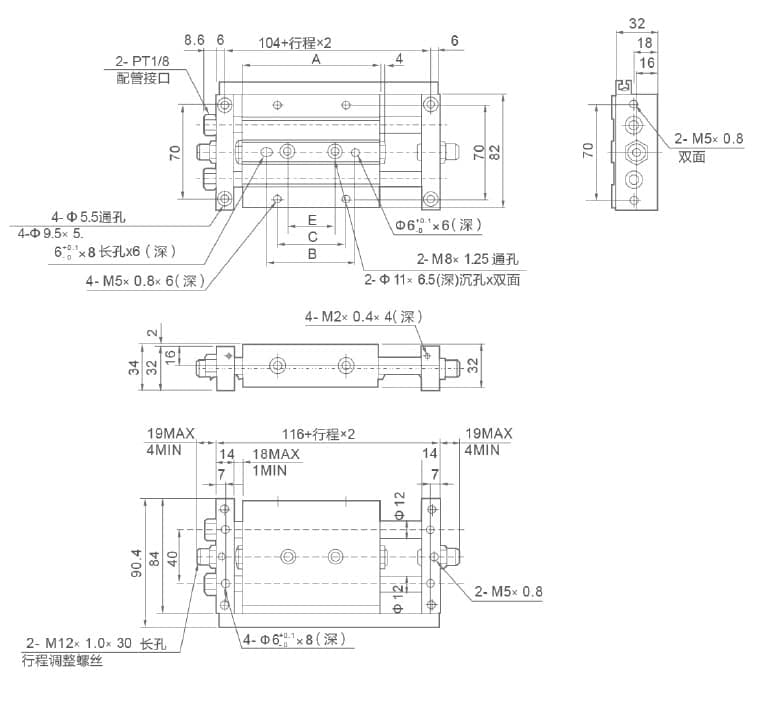

STM Series Dual Rod Pneumatic Slide (Slide Bearing) dimension reference drawing 7

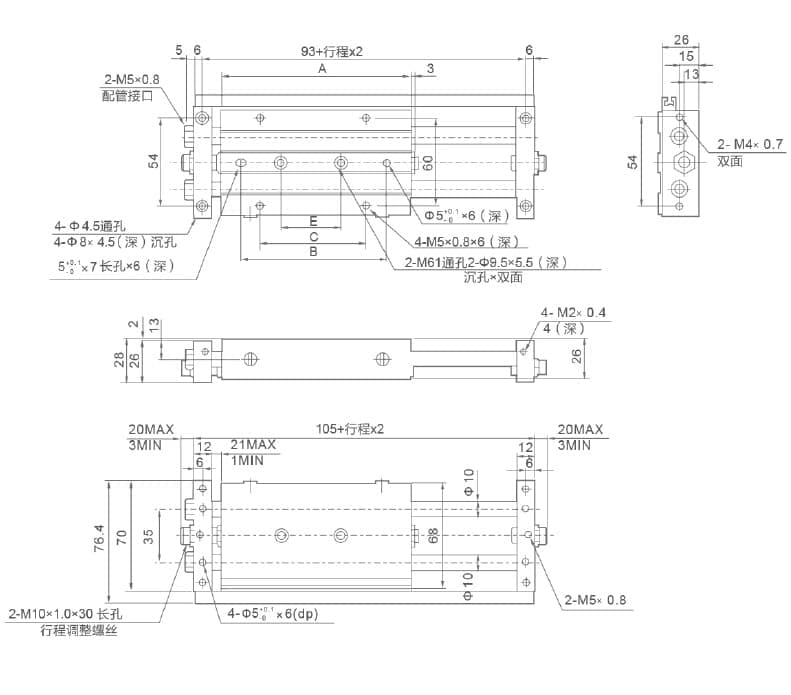

STMS-20	STMS-20	STMS-20	STMS-20	STMS-20	STMS-20	STMS-20	STMS-20	STMS-20	STMS-20
Symbol / Stroke	25	50	75	100	125	150	175	200	250
A	94	119	144	169	194	219	244	269	319
B	60	85	110	135	150	150	150	150	150
C	50	50	75	100	120	120	120	120	120
E	35	45	45	70	90	90	90	90	90
