Pneumatic fittings / push-in connection

Push-In Pneumatic Fittings

Review function, size, pressure, mounting, and inquiry data for Push-In Pneumatic Fittings.

View product specificationsCompare push-in fitting data
One-touch tube connectionStraight, elbow, tee, YReducer and bulkhead optionsTube OD first

Category buying guide

Start push-in fitting selection from tube outside diameter and body shape.

Push-in connectors look simple, but the quote depends on tube OD, thread size, straight or elbow direction, branch style, reducer route, panel pass-through need, and whether the installation calls for plastic, brass, or stainless body details.

Pneumatic fitting categories
01Push-In Fittings02Flow-Control Fittings03Hose Barb Fittings04Pneumatic Mufflers05Metal and Stainless Fittings
Push-In Pneumatic Fittings • Product specifications

Push-In Pneumatic Fittings: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

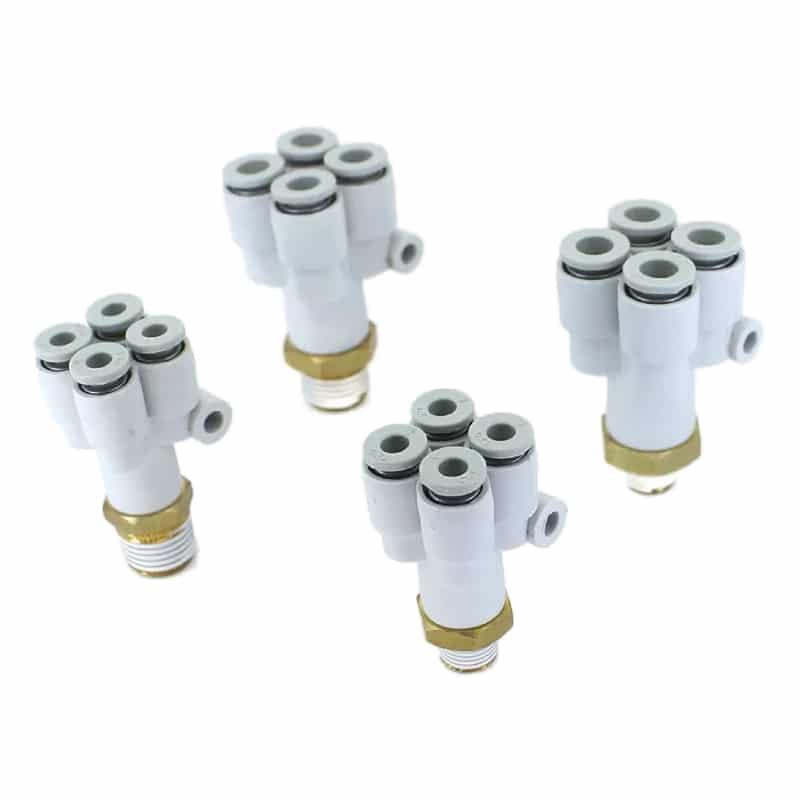

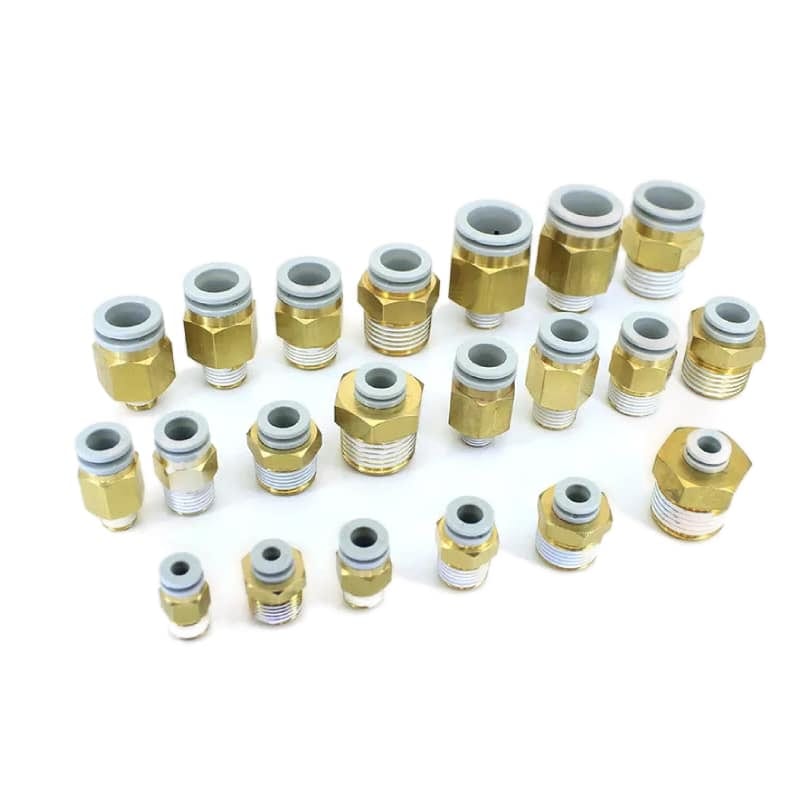

kq2 series pneumatic one touch fittings push to connect product view 1

Order Symbol

Series 01
Series

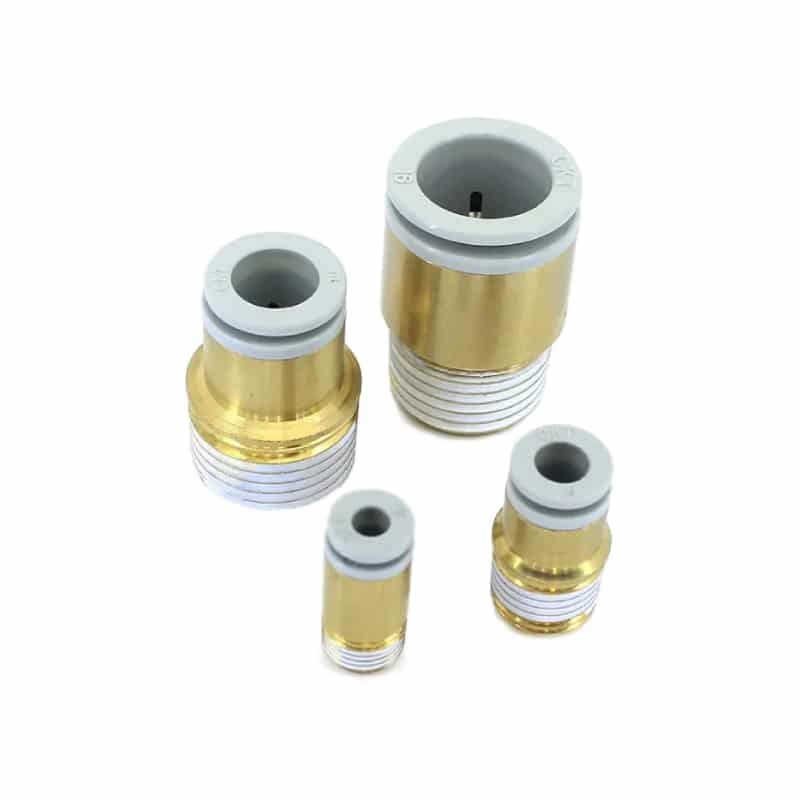

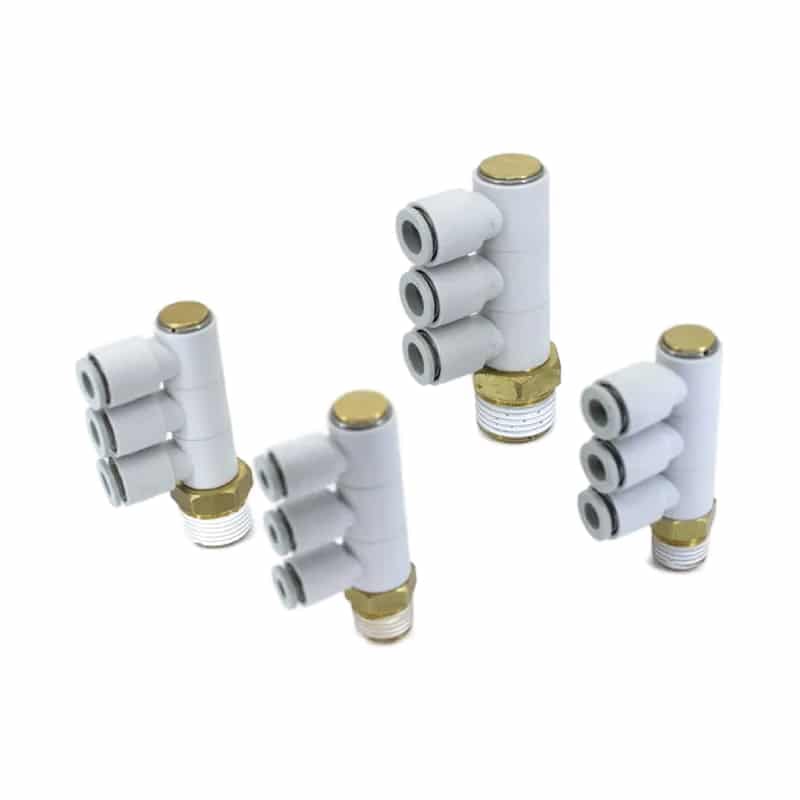

KQ2 Series Pneumatic One-Touch Fittings (Push-to-Connect)

Key Specs

Selection focus
  • Operating Pressure Range: -100 kPa to 1 MPa
  • Fluid: Air/Water (Note 1)
  • Ambient and Fluid temperature: -5 to 60 °C (Water: 0 to 40 °C)
  • Proof Pressure: 3 MPa

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the old fitting code, installed photo, or shape reference.
  • Tube / hose: Confirm tube outside diameter or hose inside diameter and material.
  • Thread / port: Share thread standard, thread size, and male/female direction.
  • Body function: Confirm straight, elbow, tee, Y, reducer, bulkhead, flow-control, muffler, or barb.
  • Environment: Share pressure, medium, temperature, vibration, corrosion, and quantity.
Selection snapshot

Working medium and pressure specifications

7 rows
ParameterSpecification
Applicable TubingFEP, PFA, Nylon, Soft nylon, Polyurethane
Tubing O.D.ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16
FluidAir/Water (Note 1)
operating pressure range-100 kPa to 1 MPa
proof pressure3 MPa
Ambient and Fluid temperature-5 to 60 °C (Water: 0 to 40 °C)

Same-group comparison

Push-In Pneumatic Fittings series comparison

Compare related product series by function, size, pressure, and RFQ details.

24 related series
SeriesfunctionTube sizeThread portPressure rangeMaterialTube media
KQ2 Push-In FittingPush-In FittingFEP, PFA, Nylon, Soft nylon, Polyurethane--100 kPa to 1 MPa-Air/Water (Note 1)

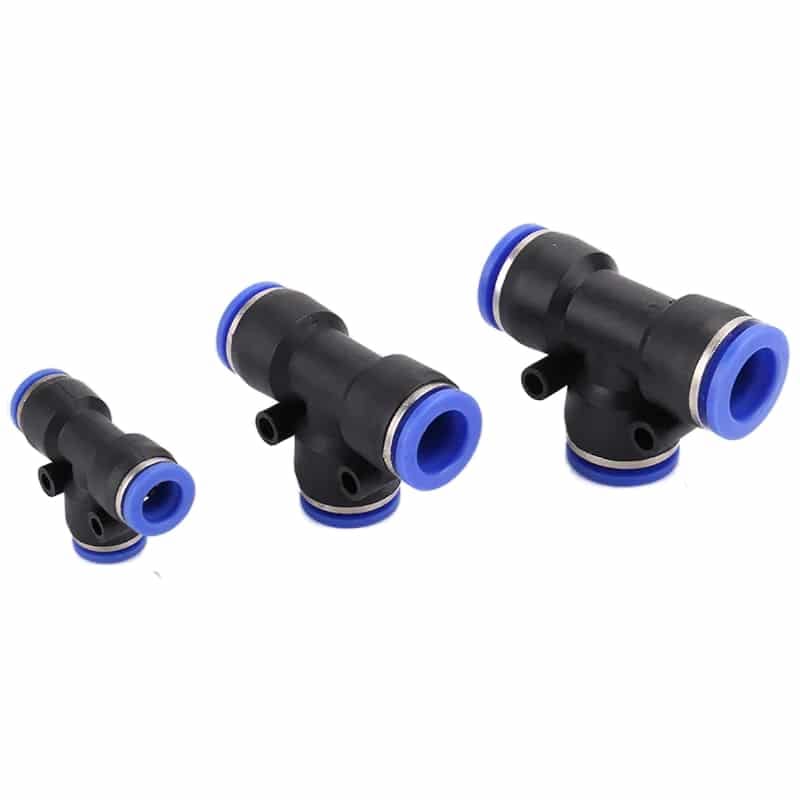

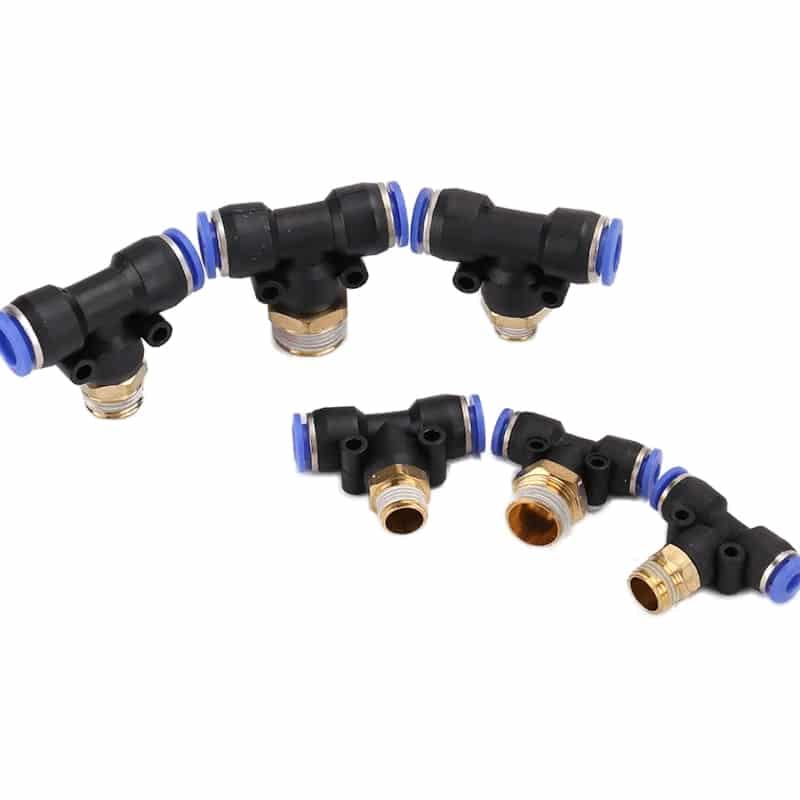

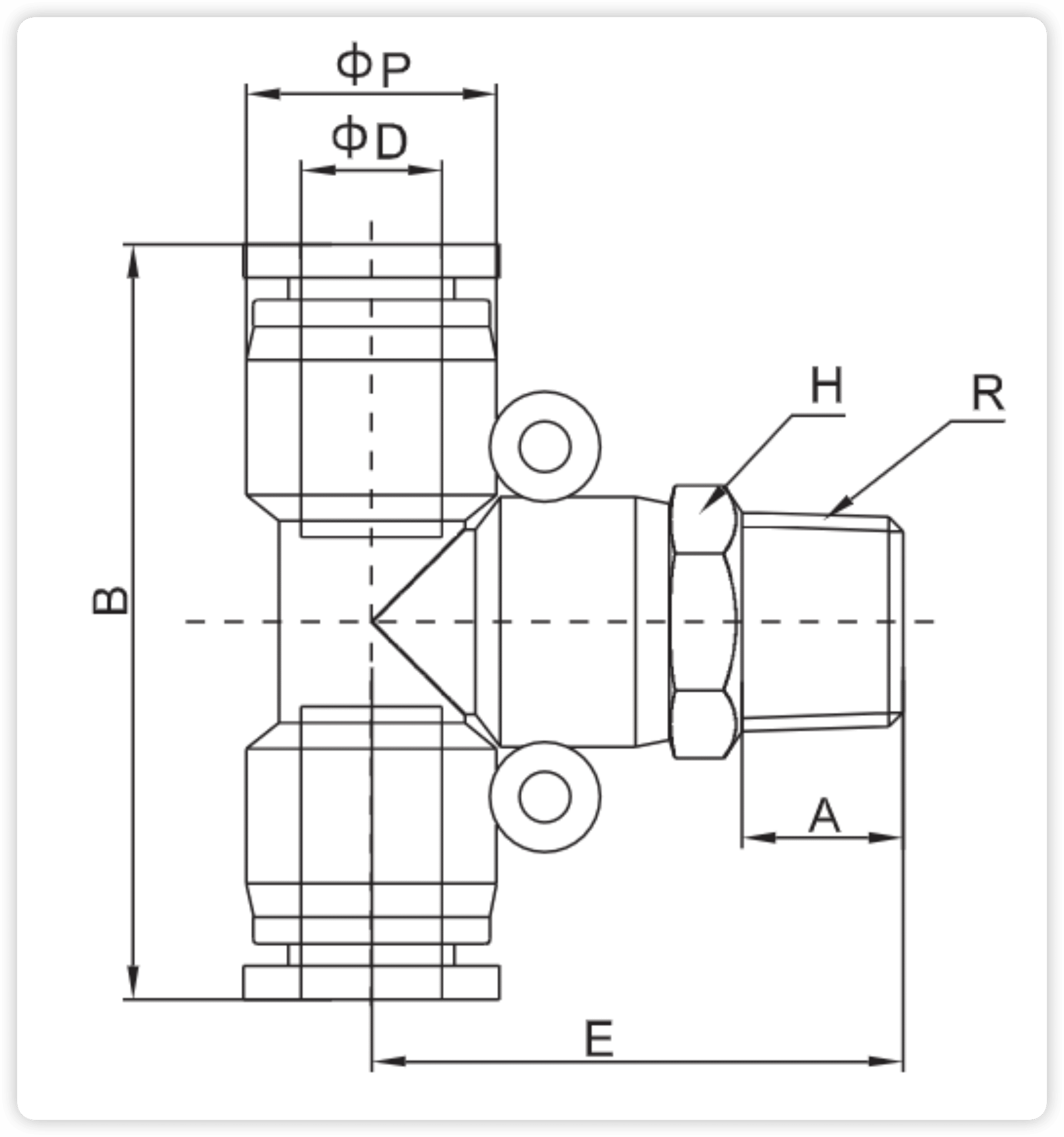

PB Tee FittingTee Fitting-1/8″, 1/4″, 3/8″, 1/2″ NPT1.32 MPa (13.5 kgf/cm²)Plastic and CopperAir, Water

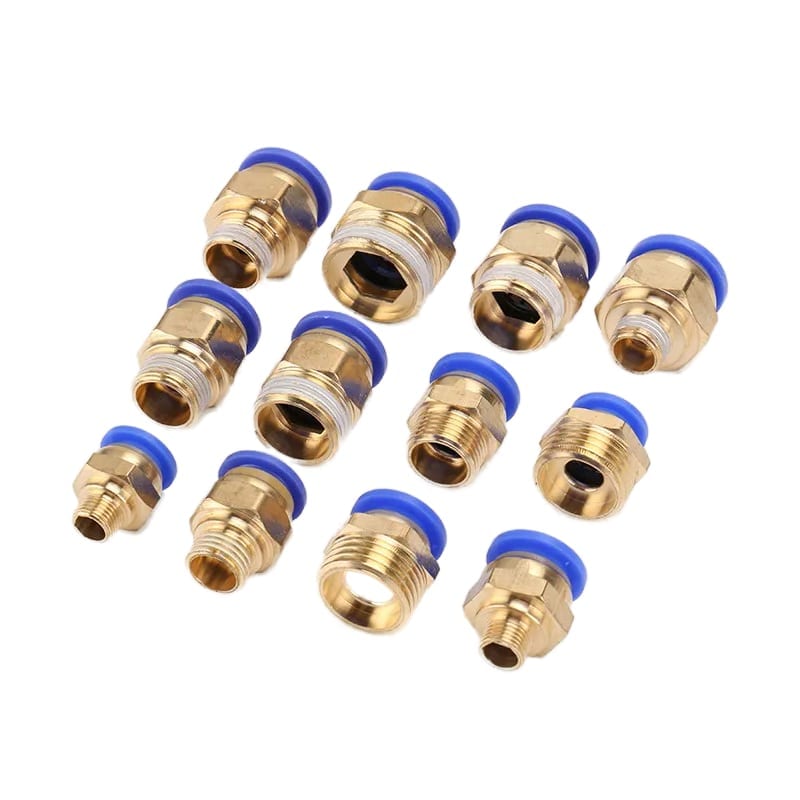

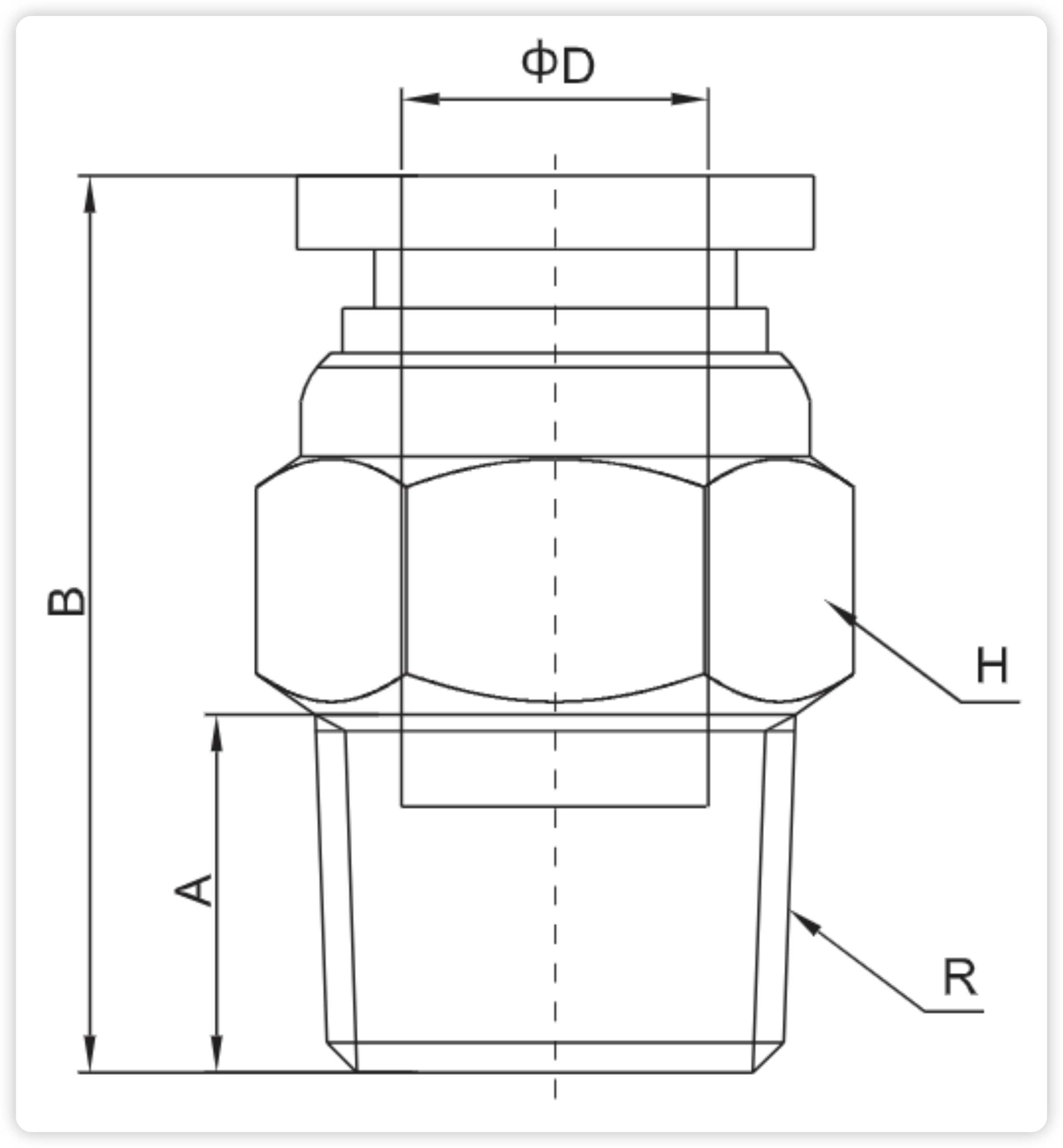

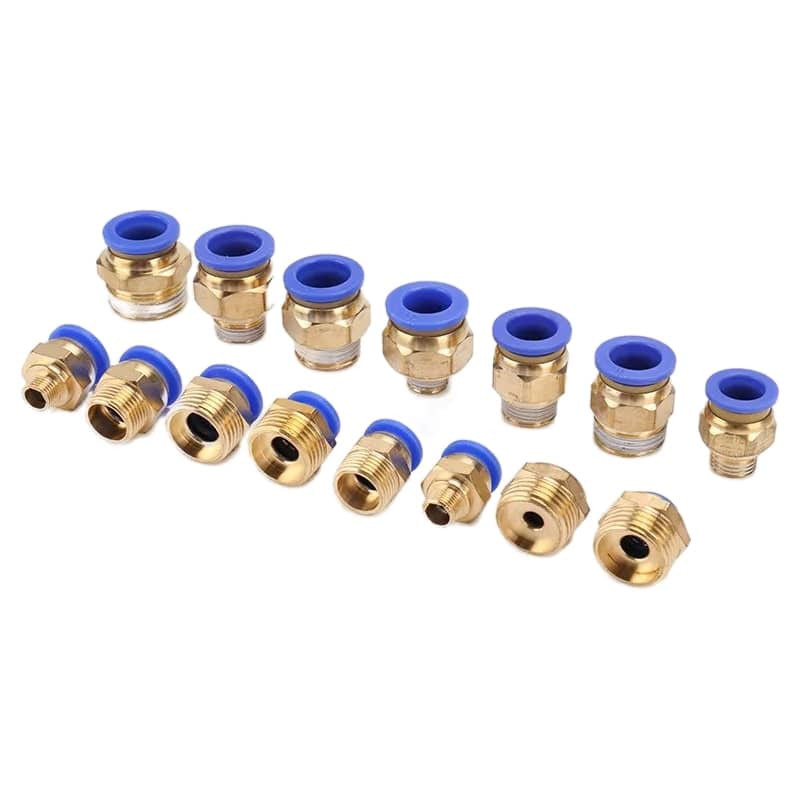

PC Straight FittingStraight Fitting--1.32 MPa (13.5 kgf/cm²)Brass body with nickel platingAir

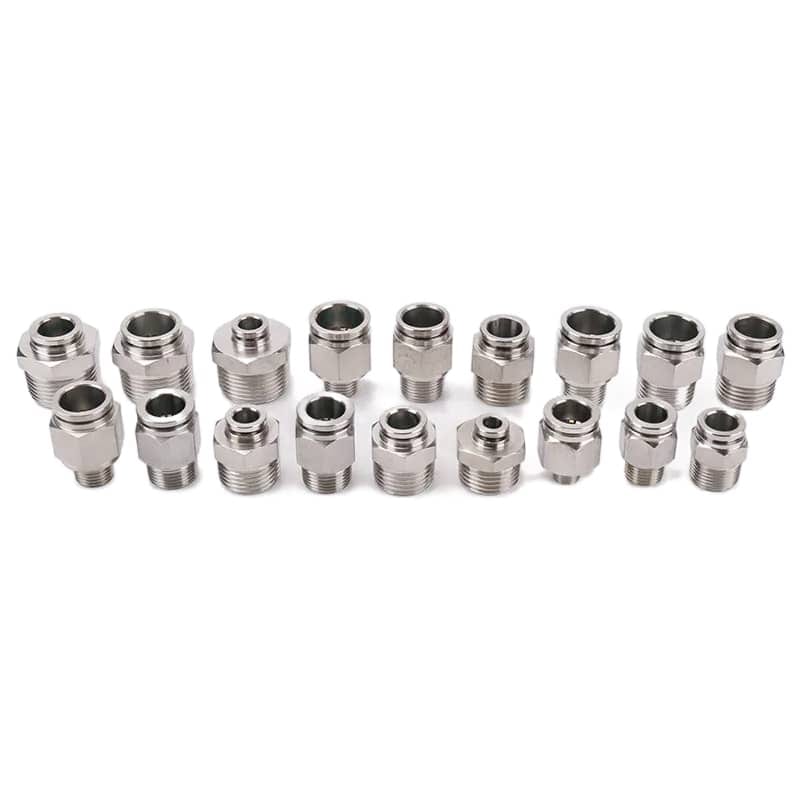

PC Tee FittingTee FittingPU tubing, Nylon tubing-132 MPa (13.5 kgf/cm²)stainless steelPU tubing, Nylon tubing

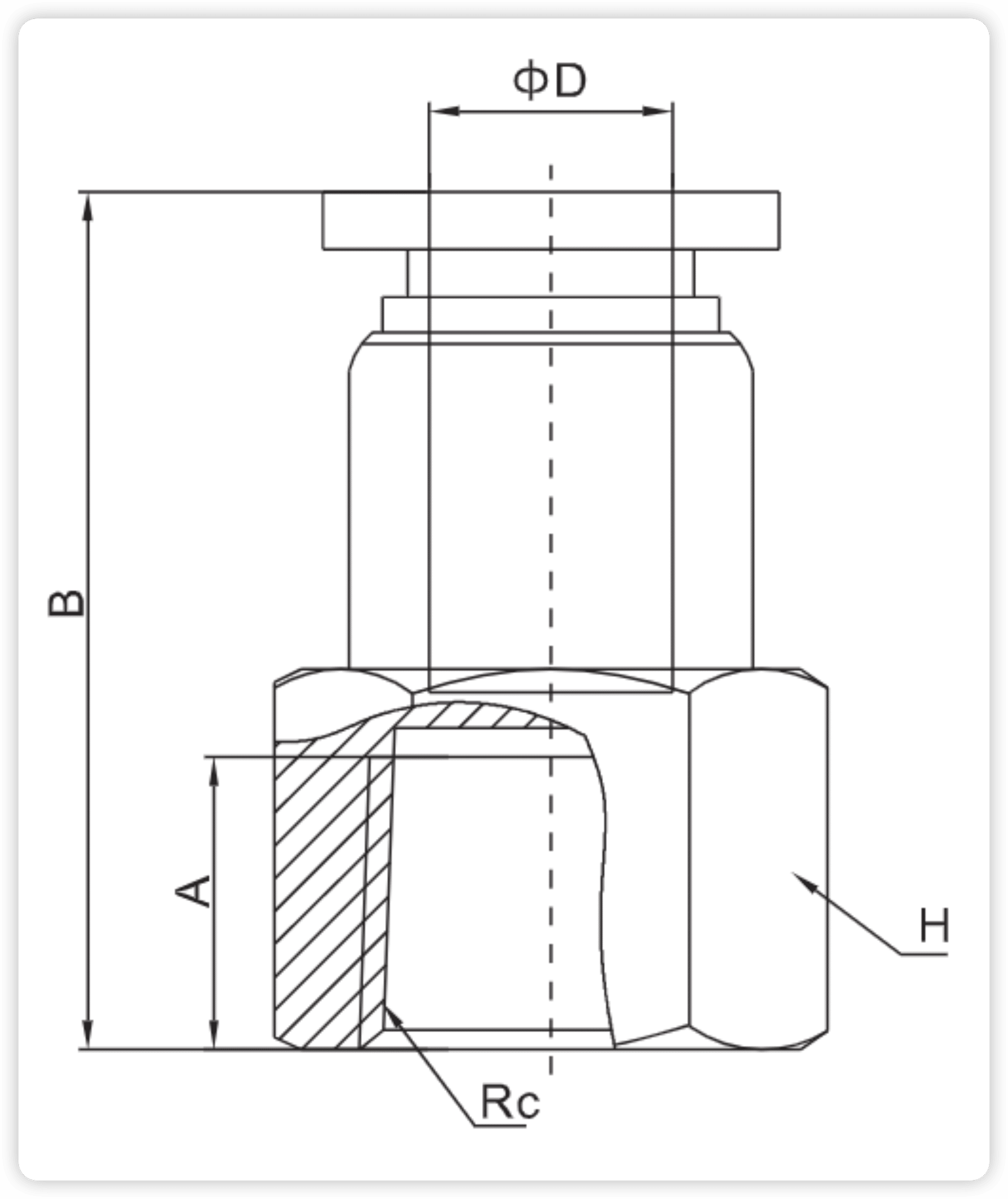

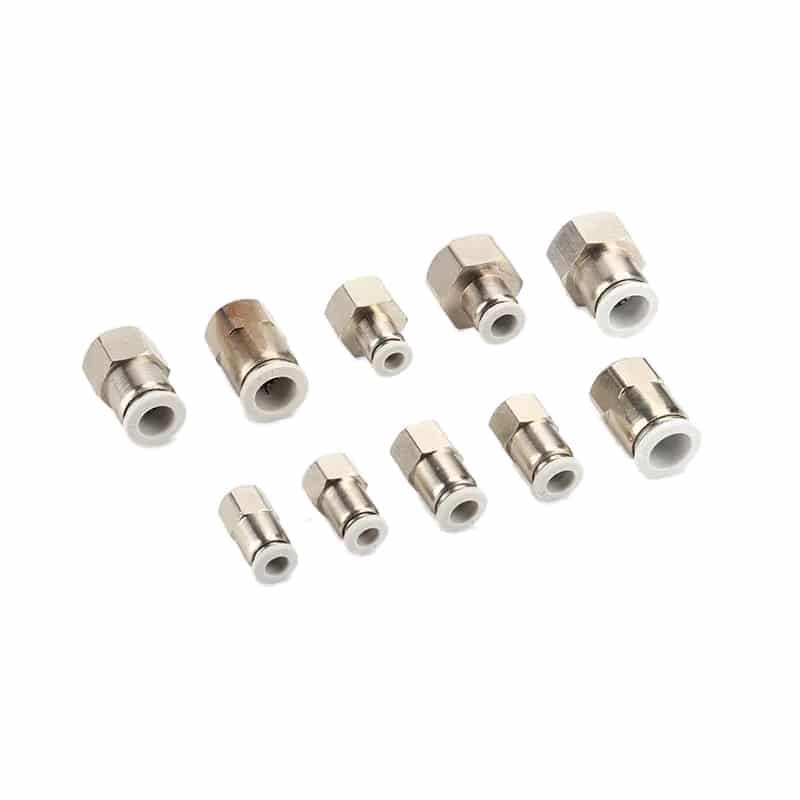

PCF Straight FittingStraight FittingM5, 1/8″, 1/4″, 3/8″, 1/2″M5, 1/8″, 1/4″, 3/8″, 1/2″1.32 MPa (13.5 kgf/cm²)-Air

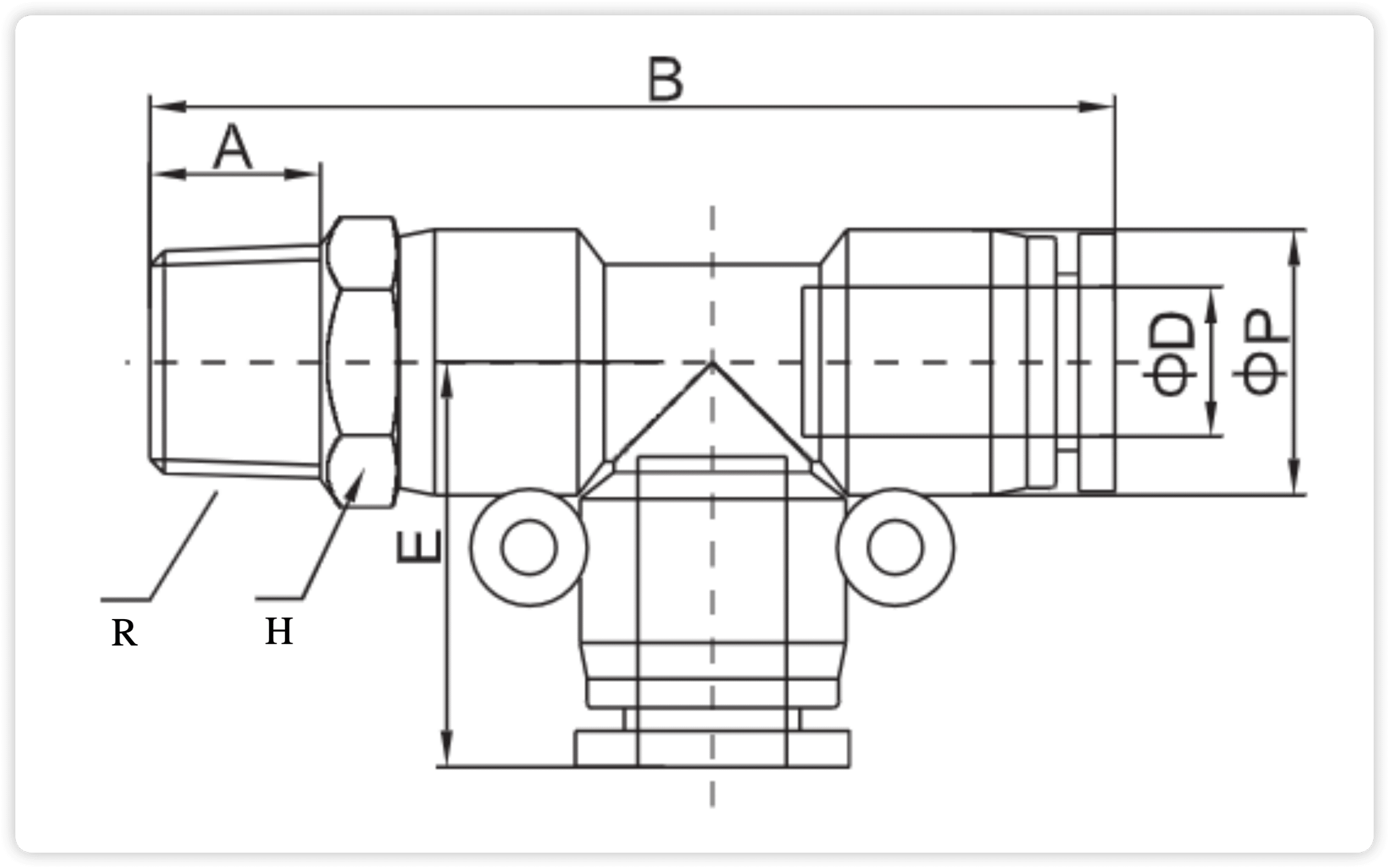

PD Tee FittingTee FittingM5, 1/8″, 1/4″, 3/8″, 1/2″M5, 1/8″, 1/4″, 3/8″, 1/2″1.32 MPa (13.5 kgf/cm²)-Air, Water

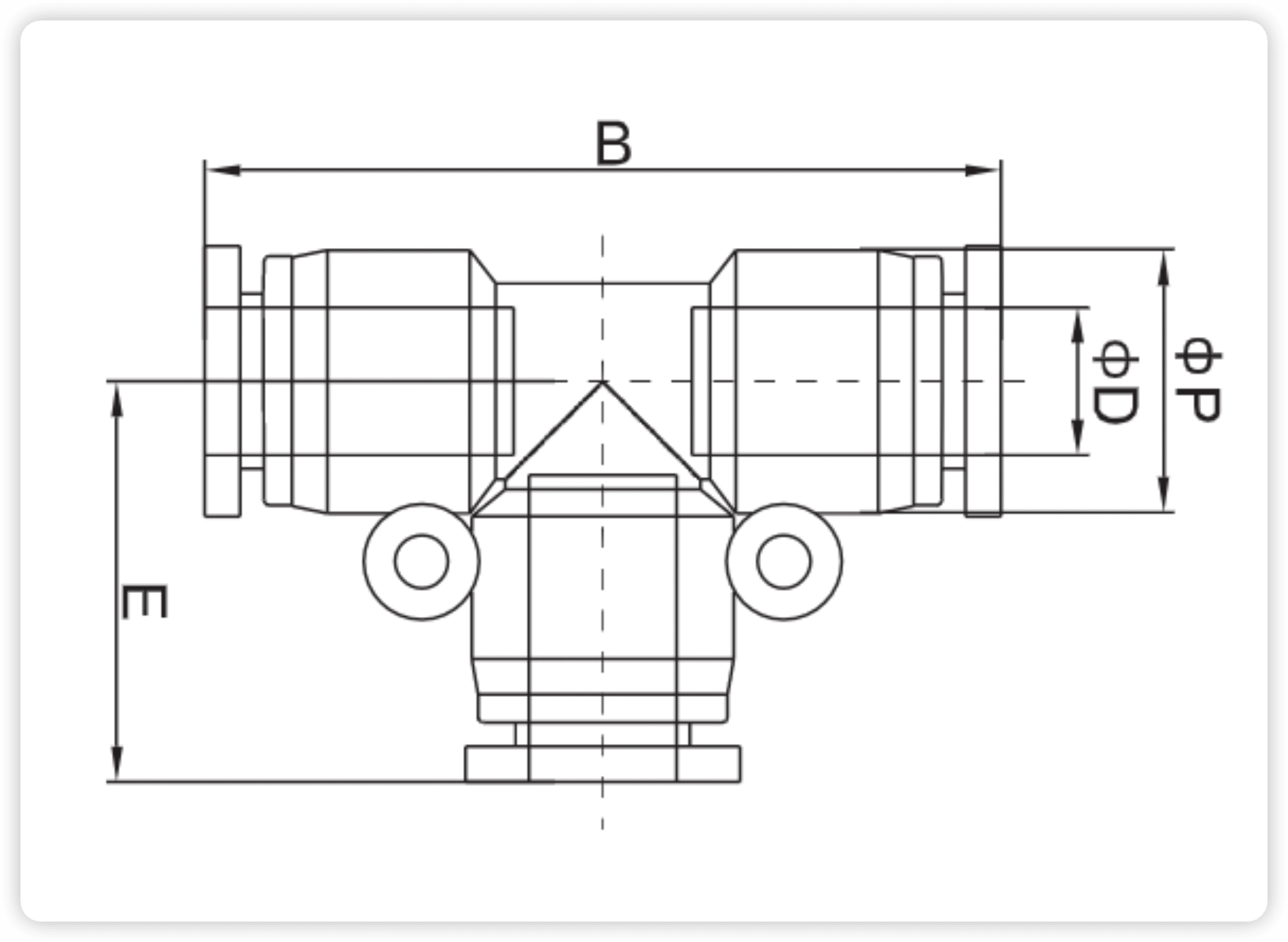

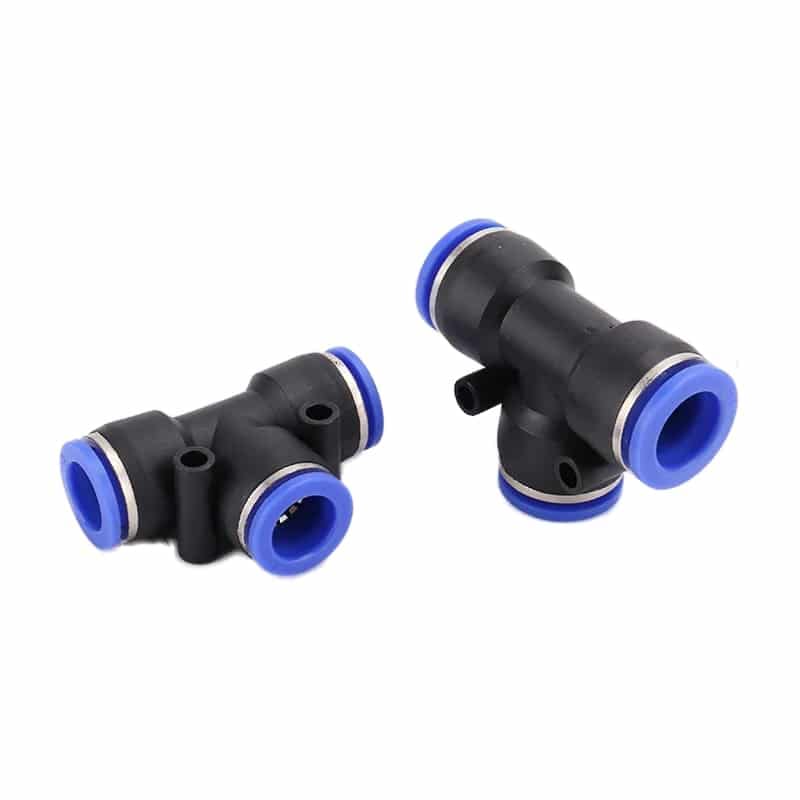

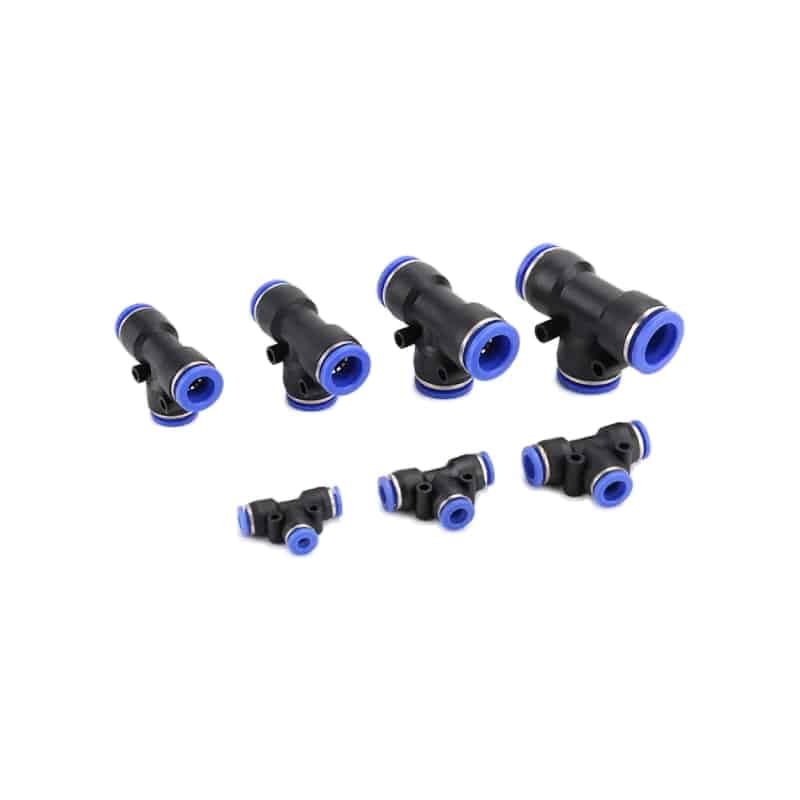

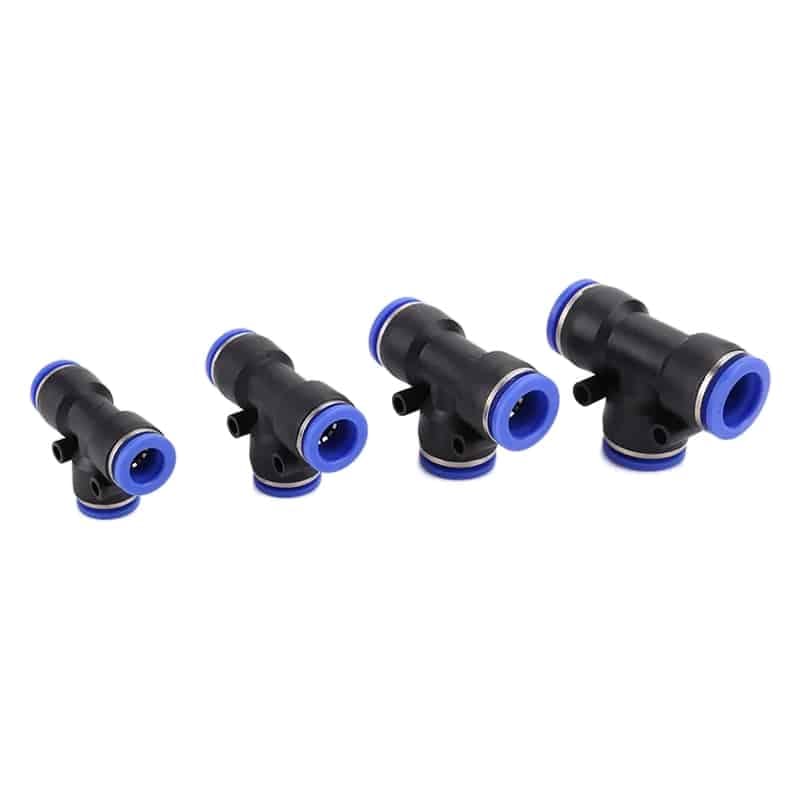

PE Tee FittingTee Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm-1.32 MPa (13.5 kgf/cm²)-Air, Vacuum

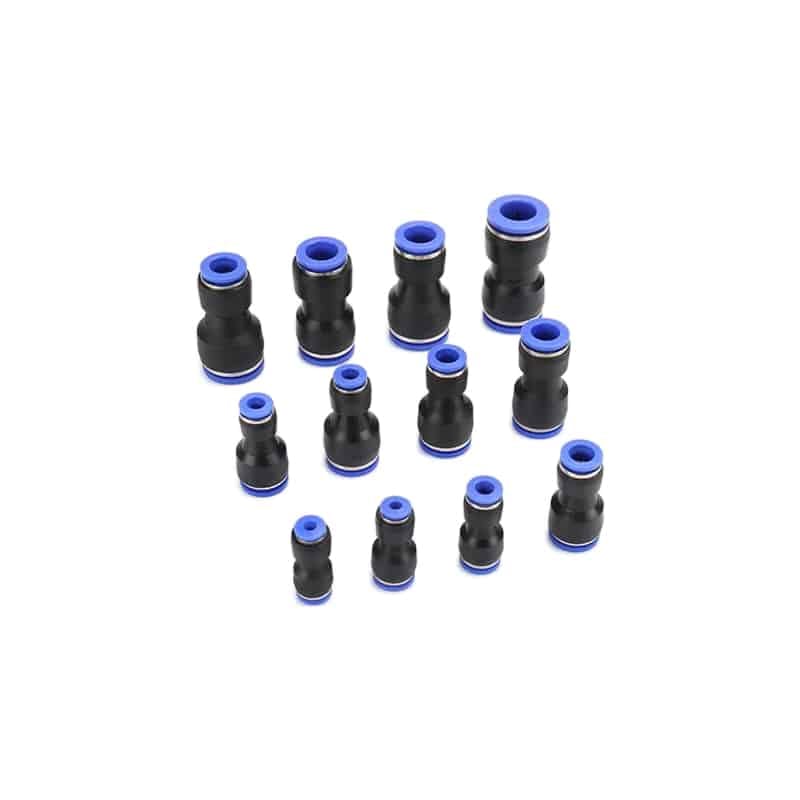

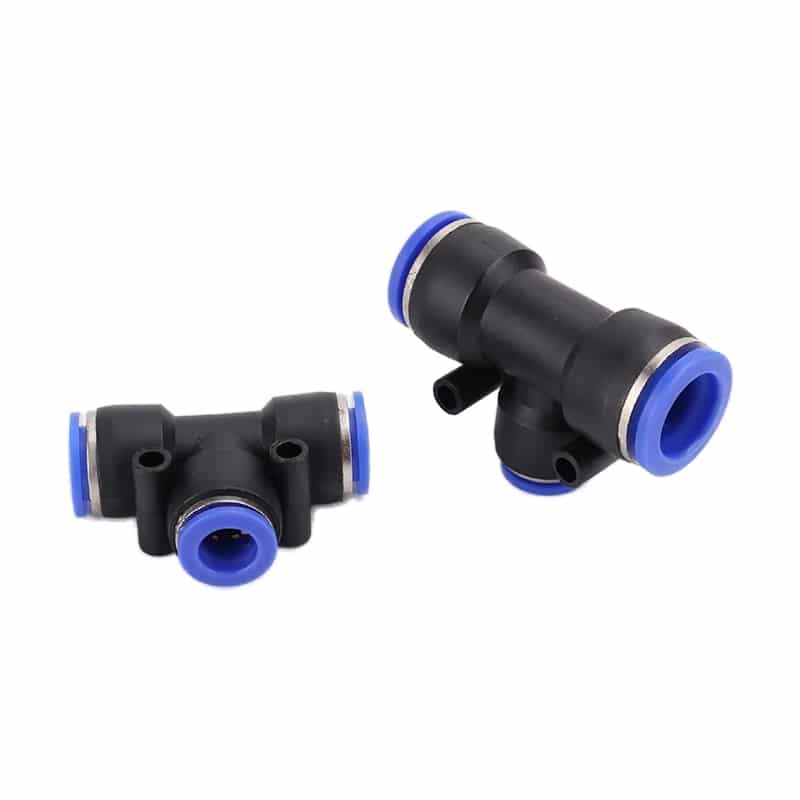

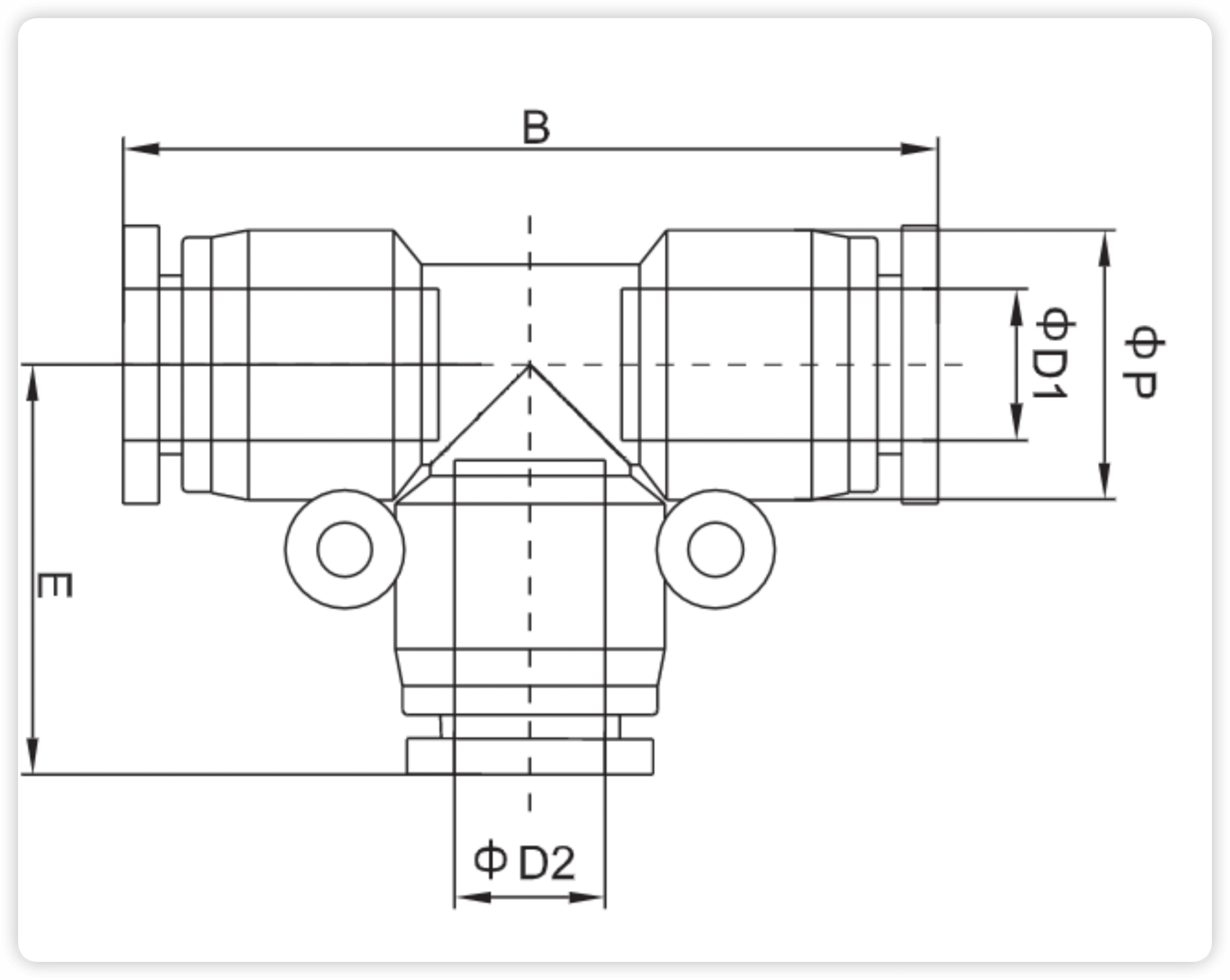

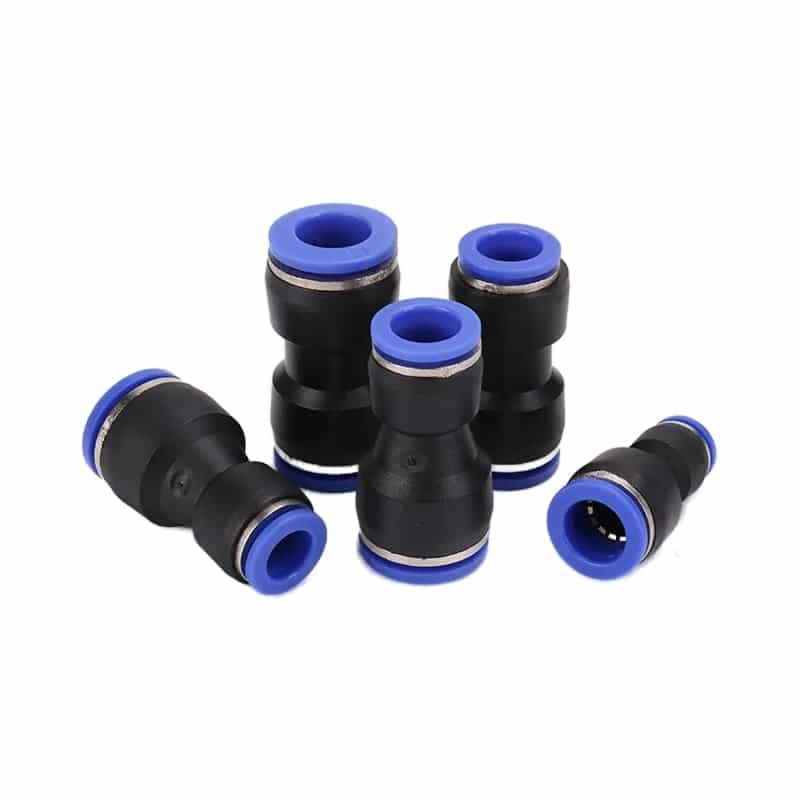

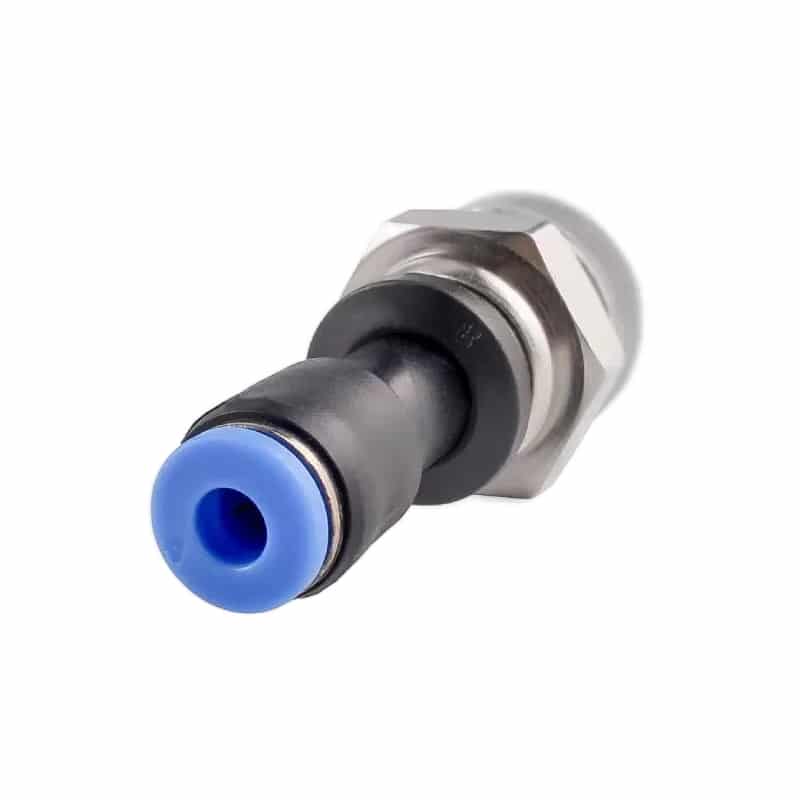

PEG Reducer FittingReducer Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 16 mm-0-1.0 MPa-Air
PG Reducer FittingReducer Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mmMetric Pipe, ΦD1, ΦD2, B0-1.0 MPa-Air

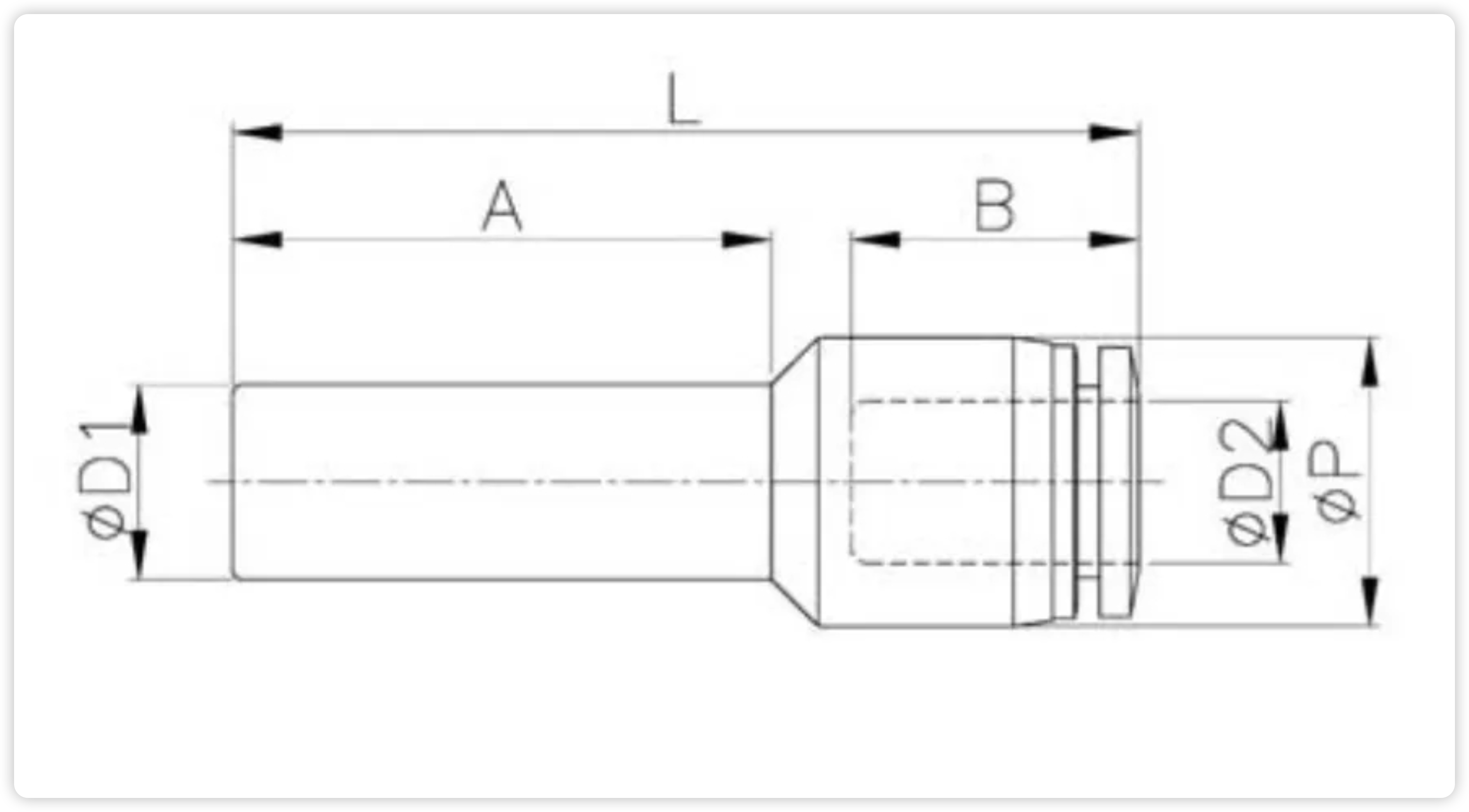

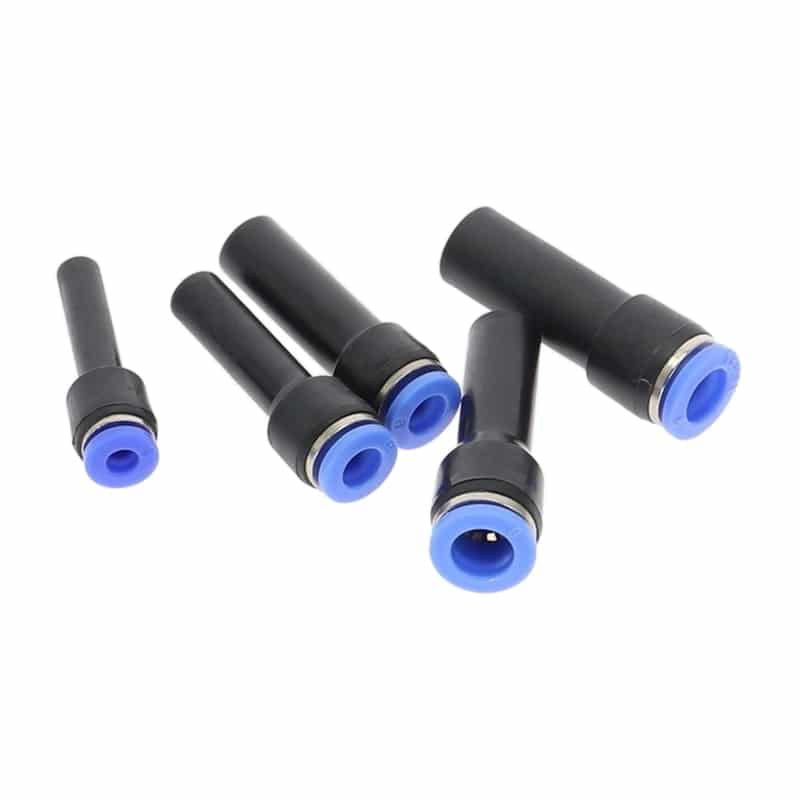

PGJ Reducer FittingReducer FittingPolyurethane and nylon-0 to 150 psiDurable compositeAir

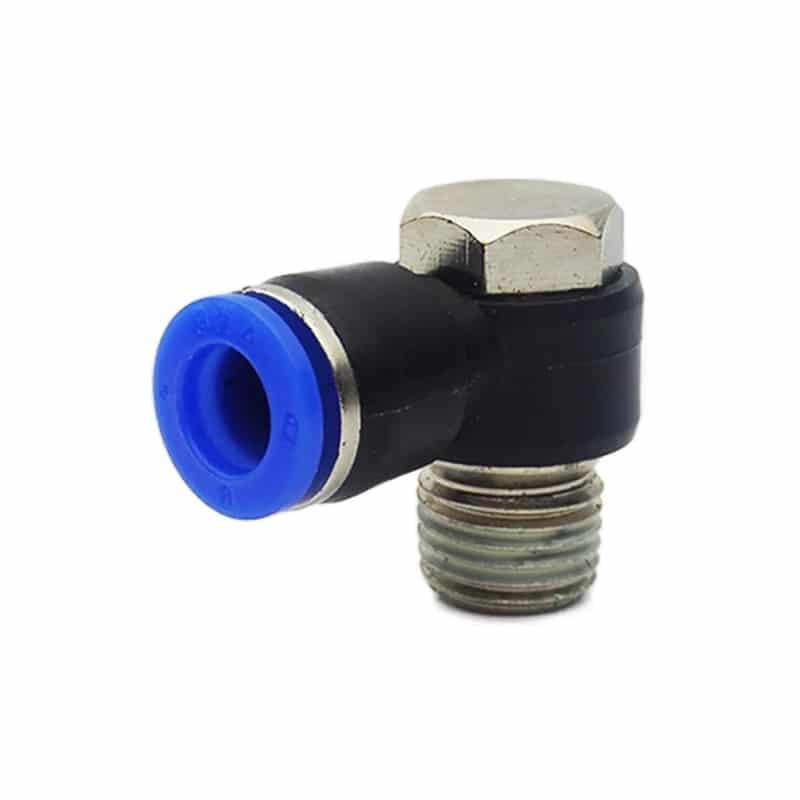

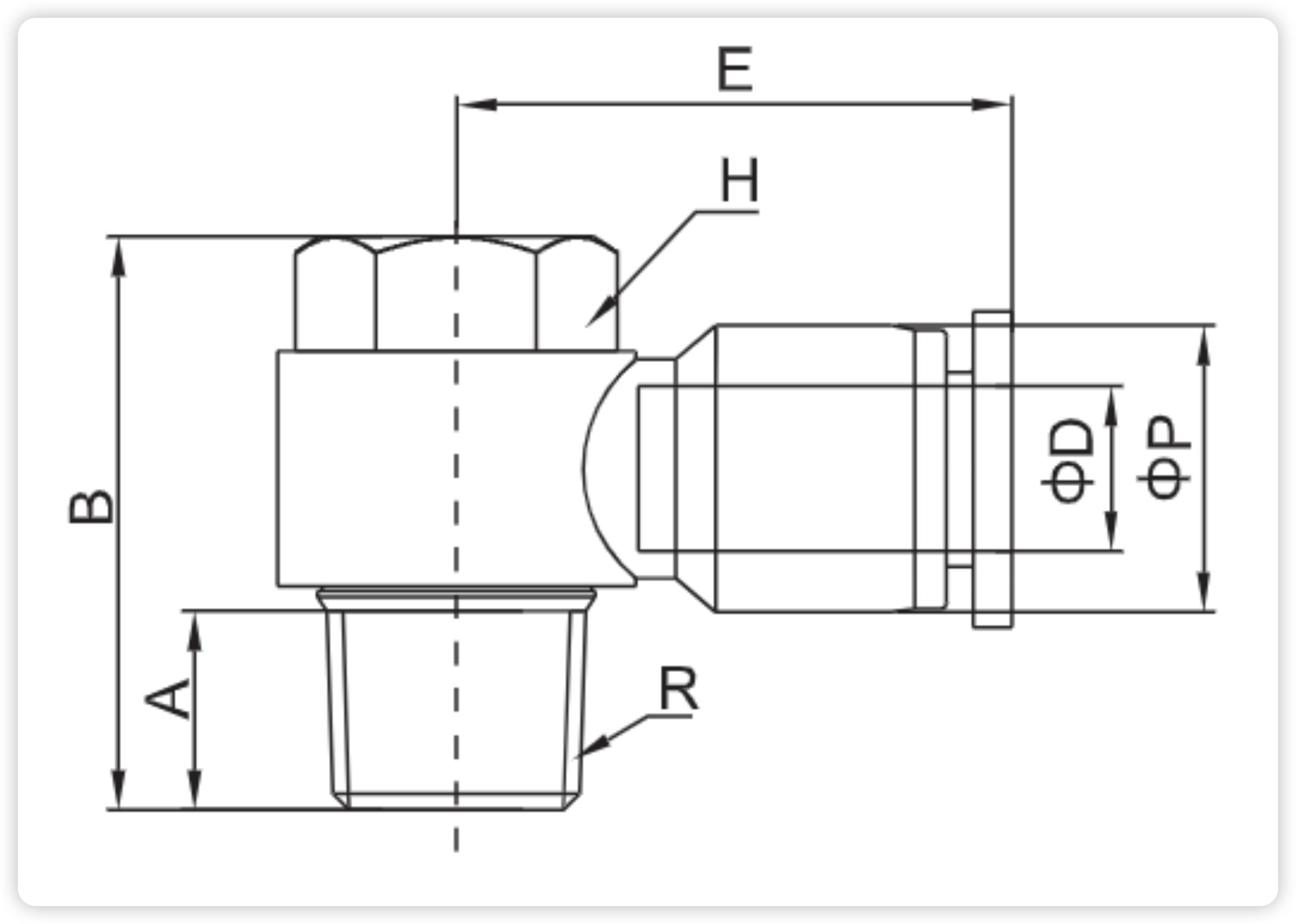

PH Elbow FittingElbow FittingM5, 1/8″, 1/4″, 3/8″, 1/2″M5, 1/8″, 1/4″, 3/8″, 1/2″1.32 MPa (13.5 kgf/cm²)-Air
PK Push-In FittingPush-In Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm-1.32 MPa (13.5 kgf/cm²)-Air

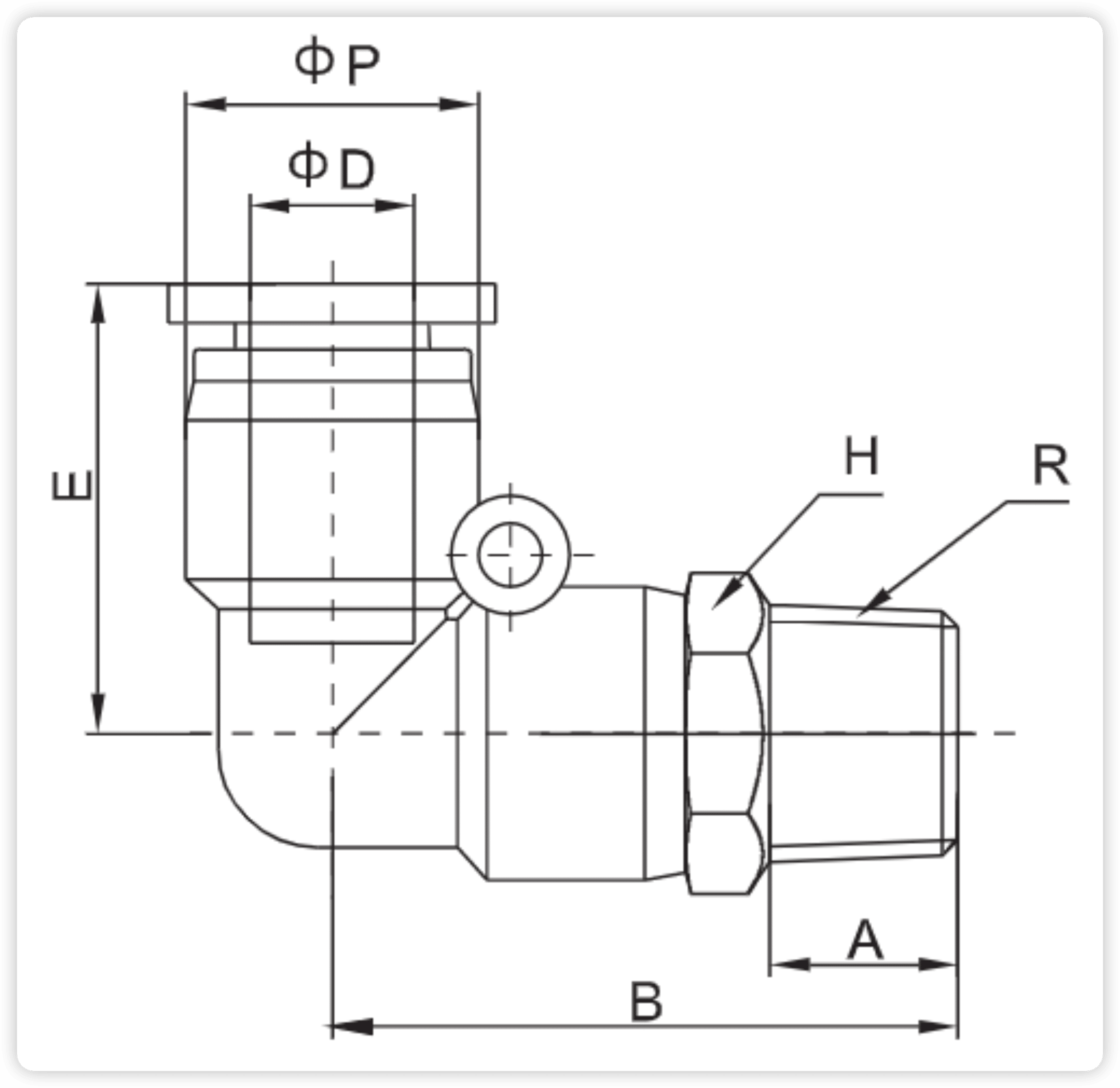

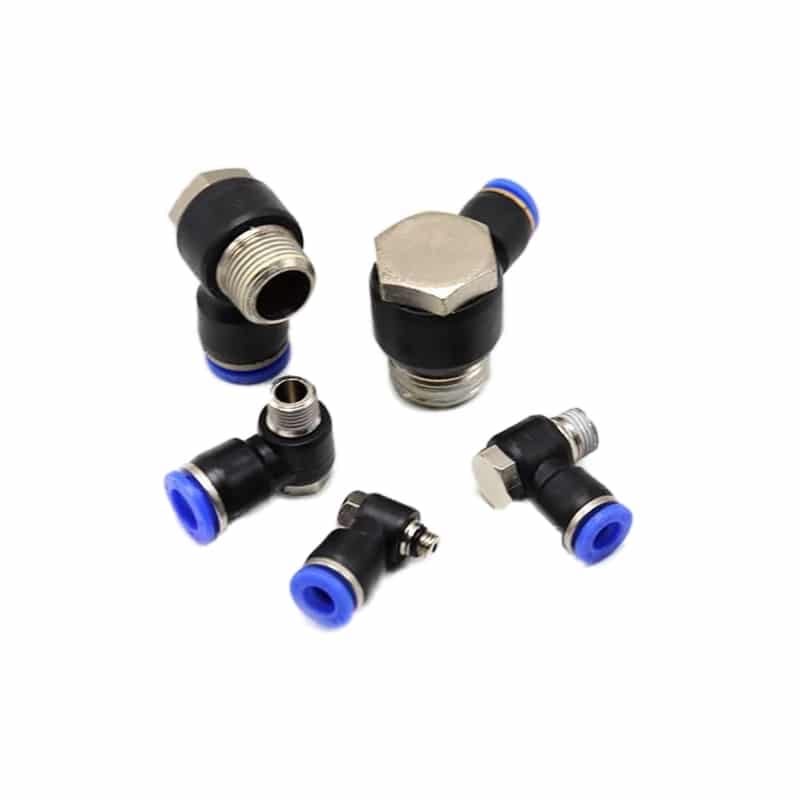

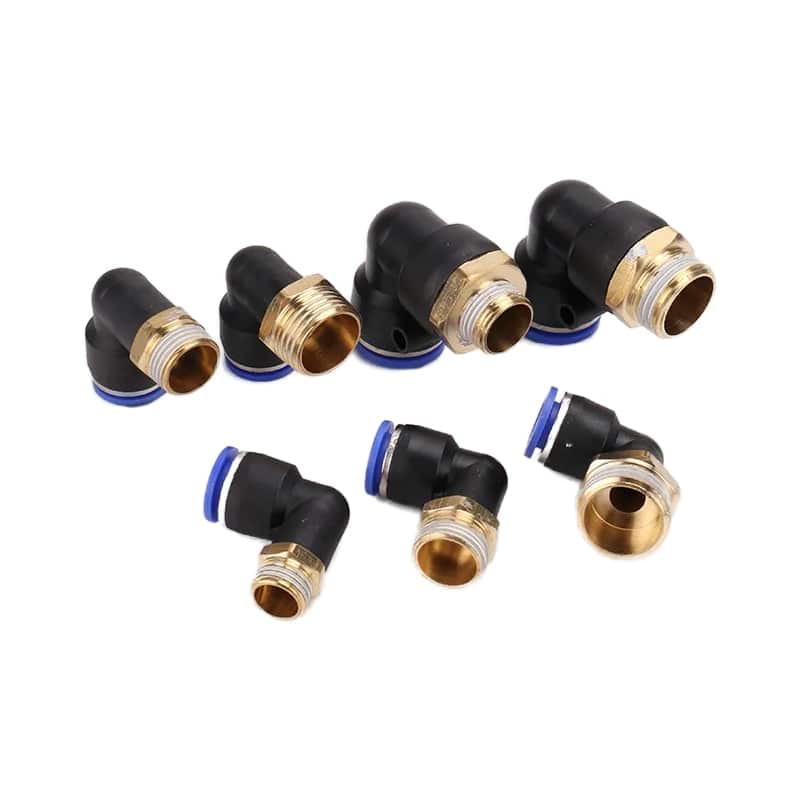

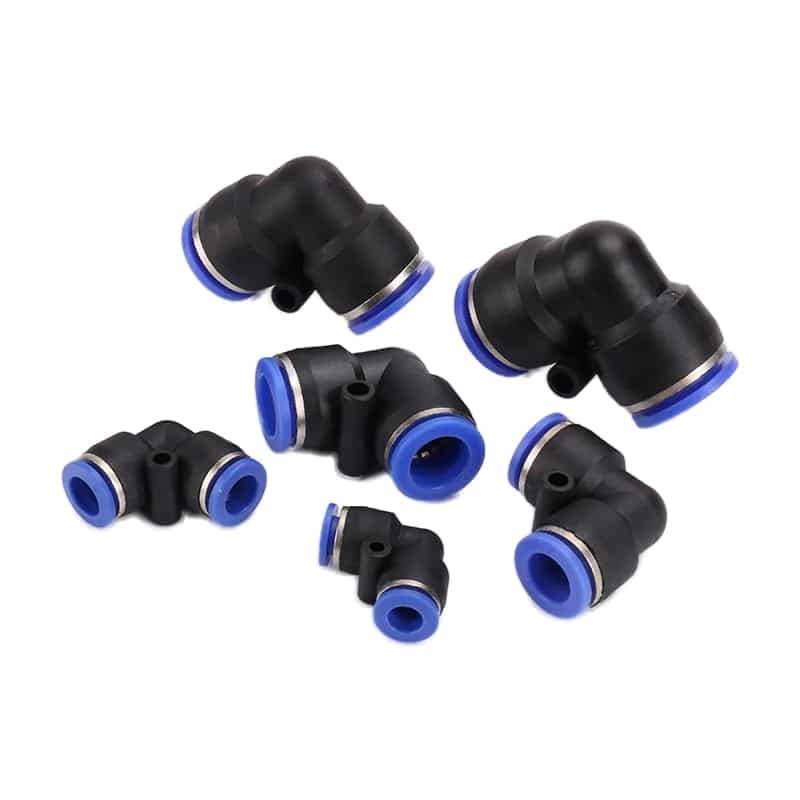

PL Elbow FittingElbow FittingPU tubing, nylon tubing-1.32 MPa (13.5 kgf/cm²)Durable BrassClean compressed air, vacuum

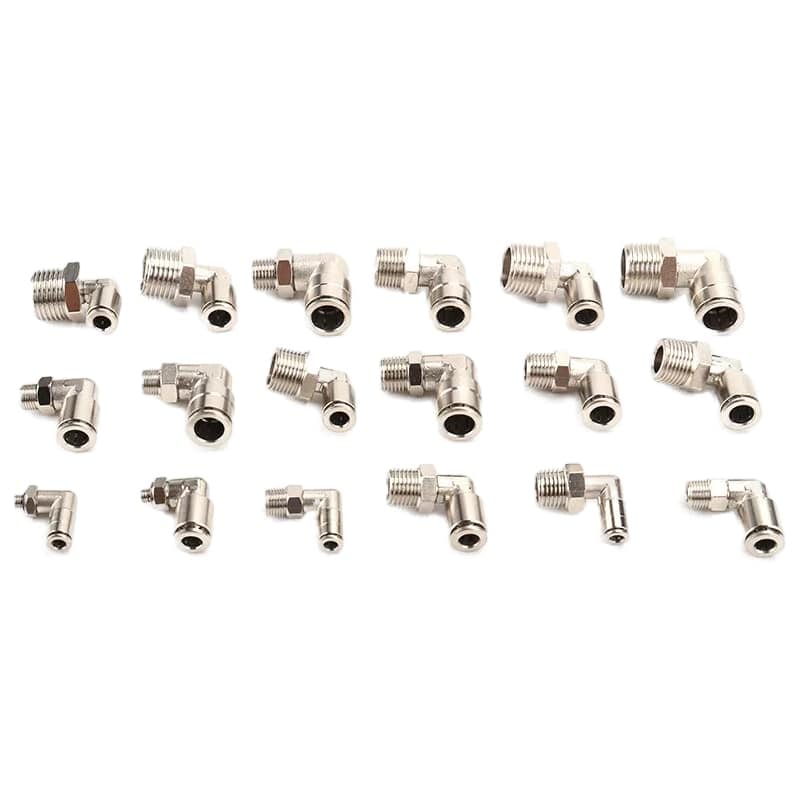

PL Elbow FittingElbow Fitting-1/8″, 1/4″, 3/8″, 1/2″1.32 MPa (13.5 kgf/cm²)Brass with nickel platingAir
PL Tee FittingTee FittingPU tubing, Nylon tubing-132 MPa (13.5 kgf/cm²)stainless steelPU tubing, Nylon tubing

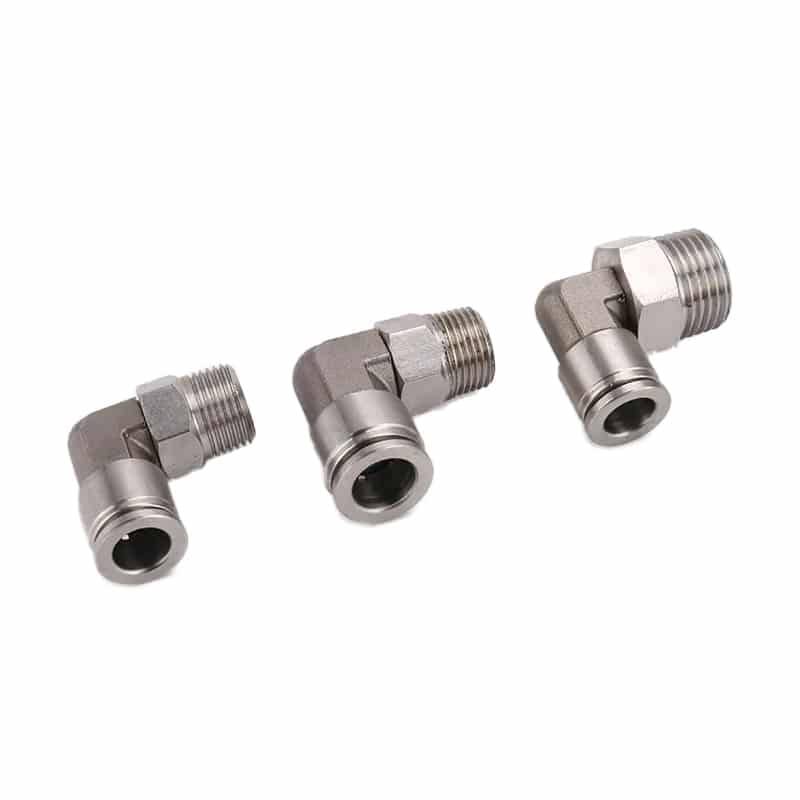

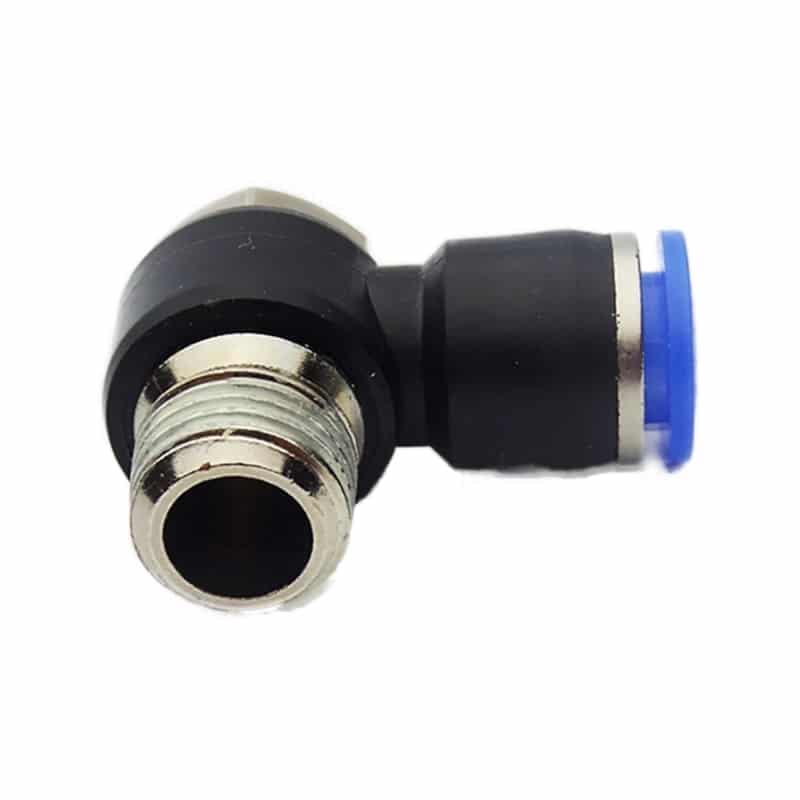

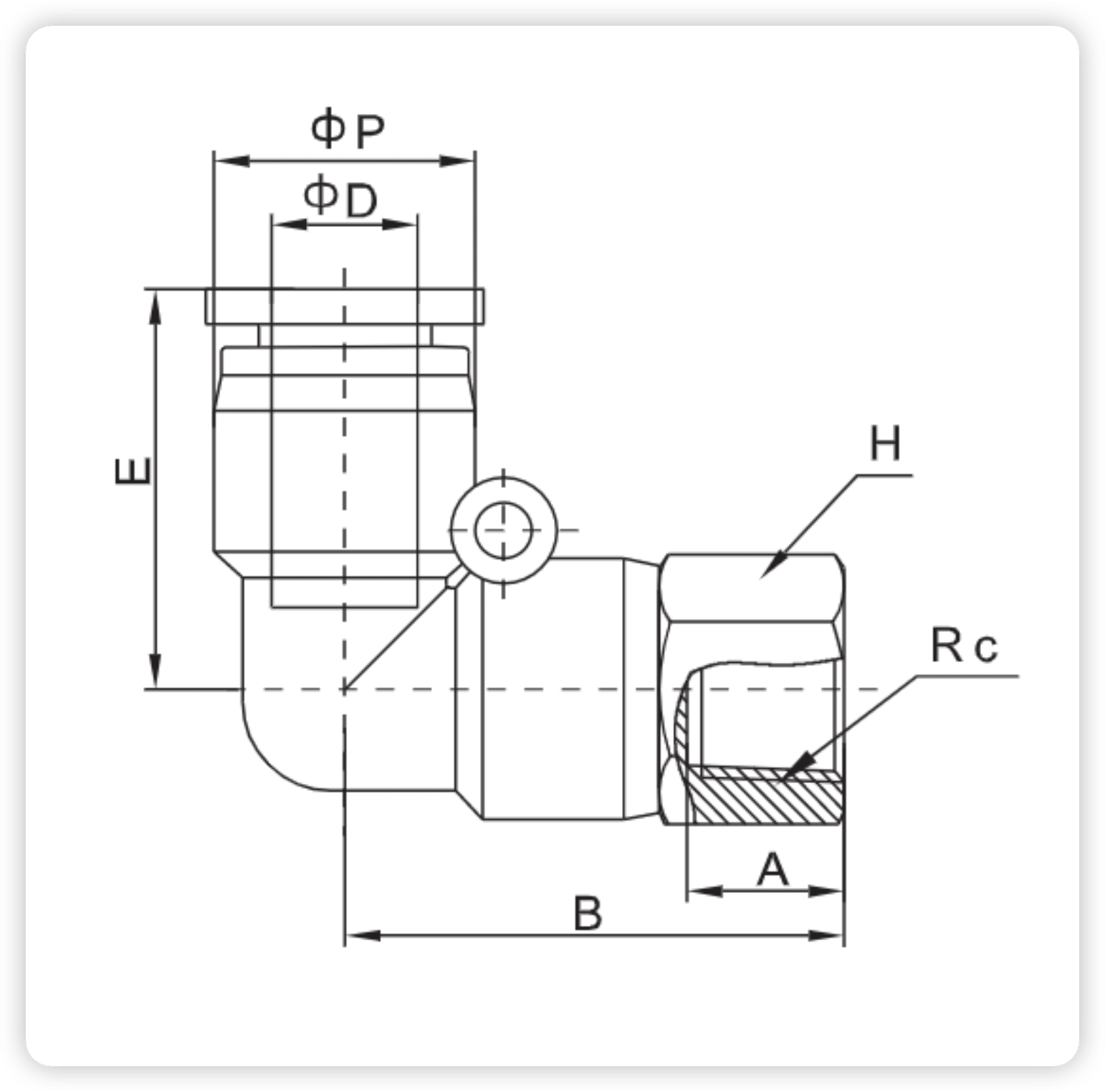

PLF Elbow FittingElbow Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mmM5, R1/8″, R1/4″, R3/8″, R1/2″0-1.0 MPa-Air

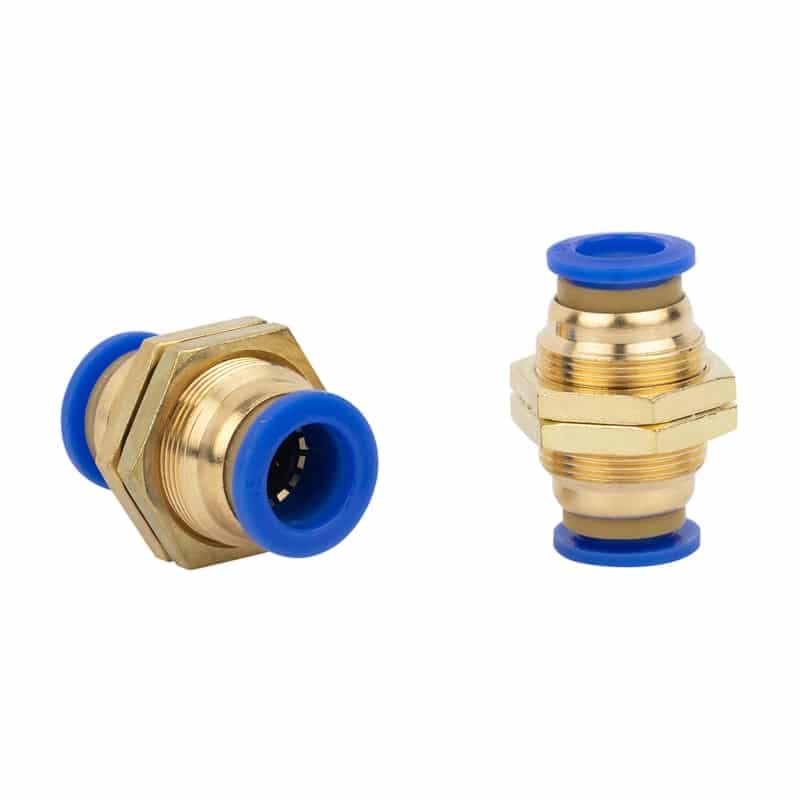

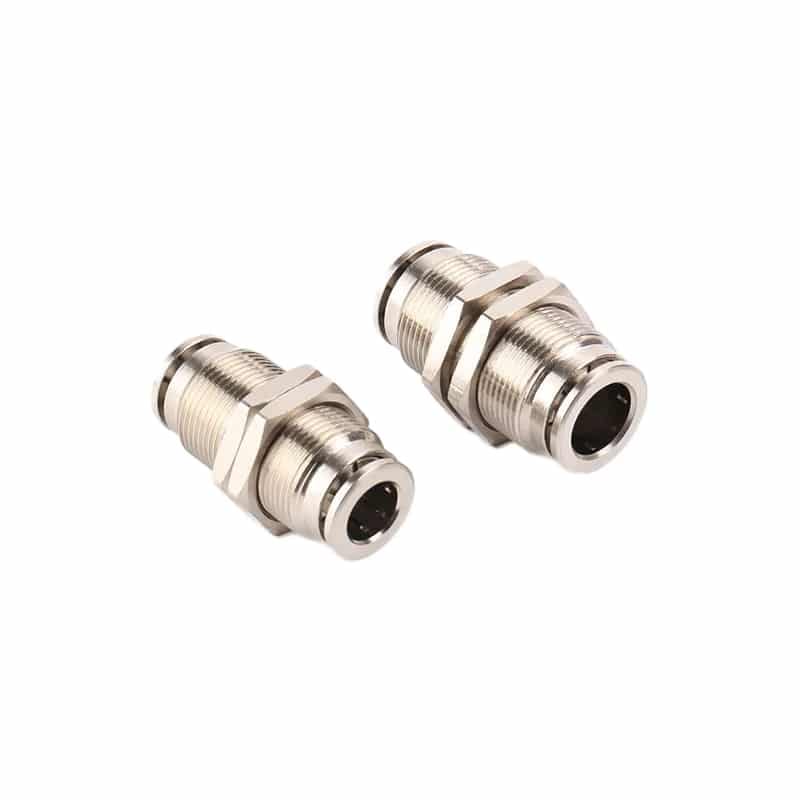

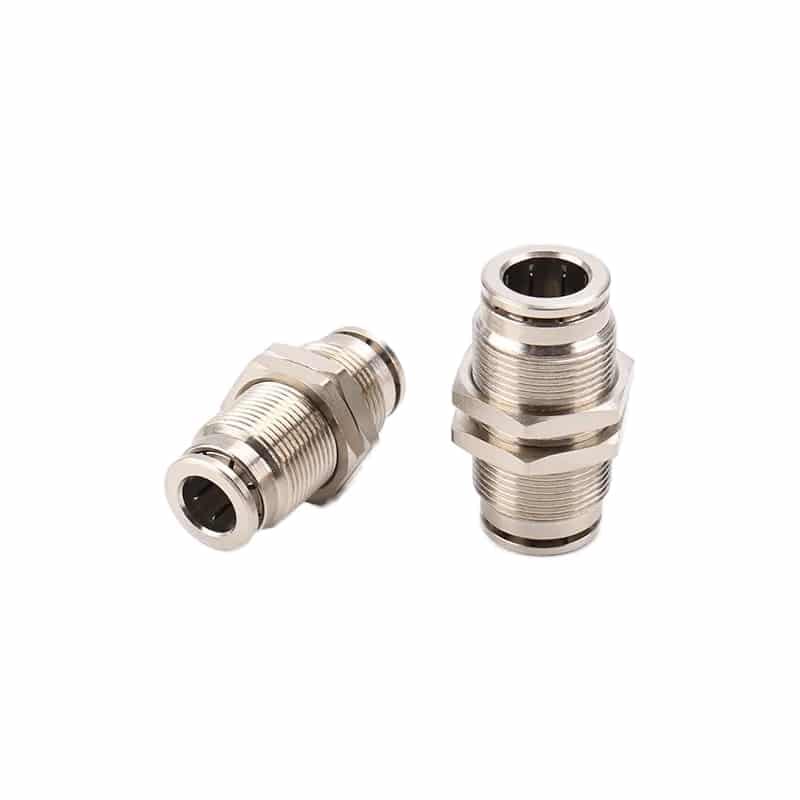

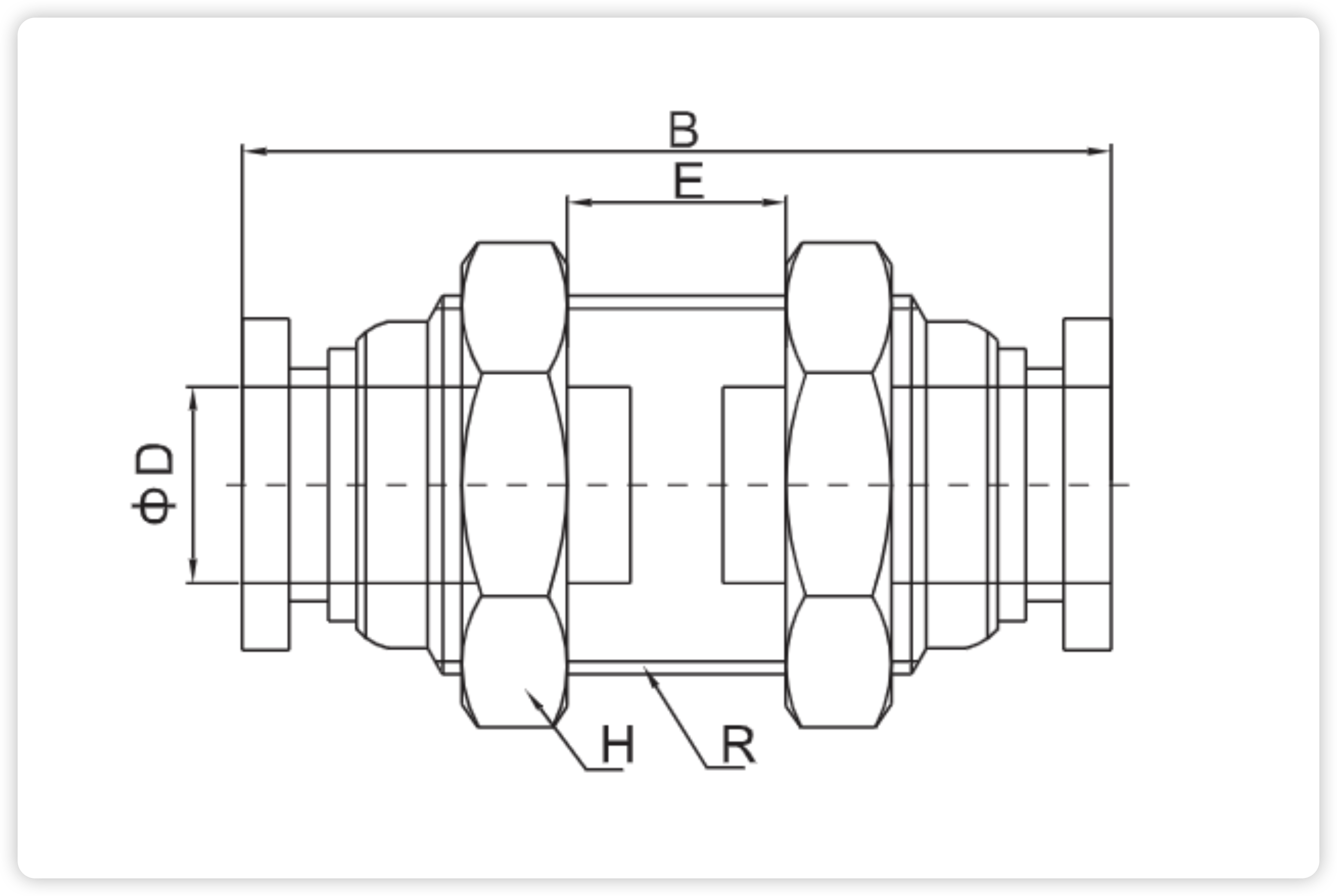

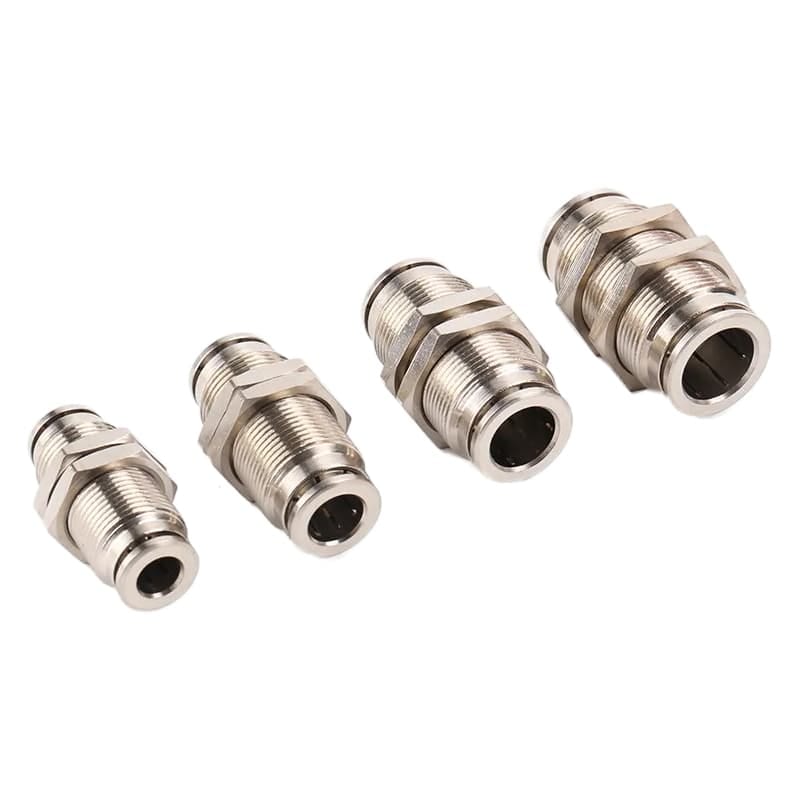

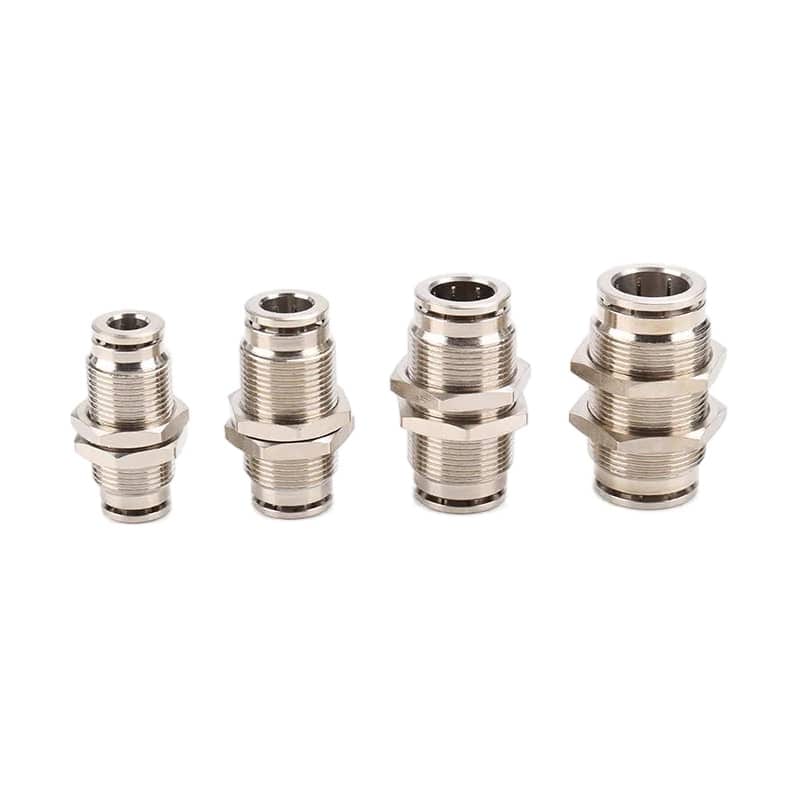

PM Bulkhead FittingBulkhead Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm-1.32 MPa (13.5 kgf/cm²)-Air, Vacuum

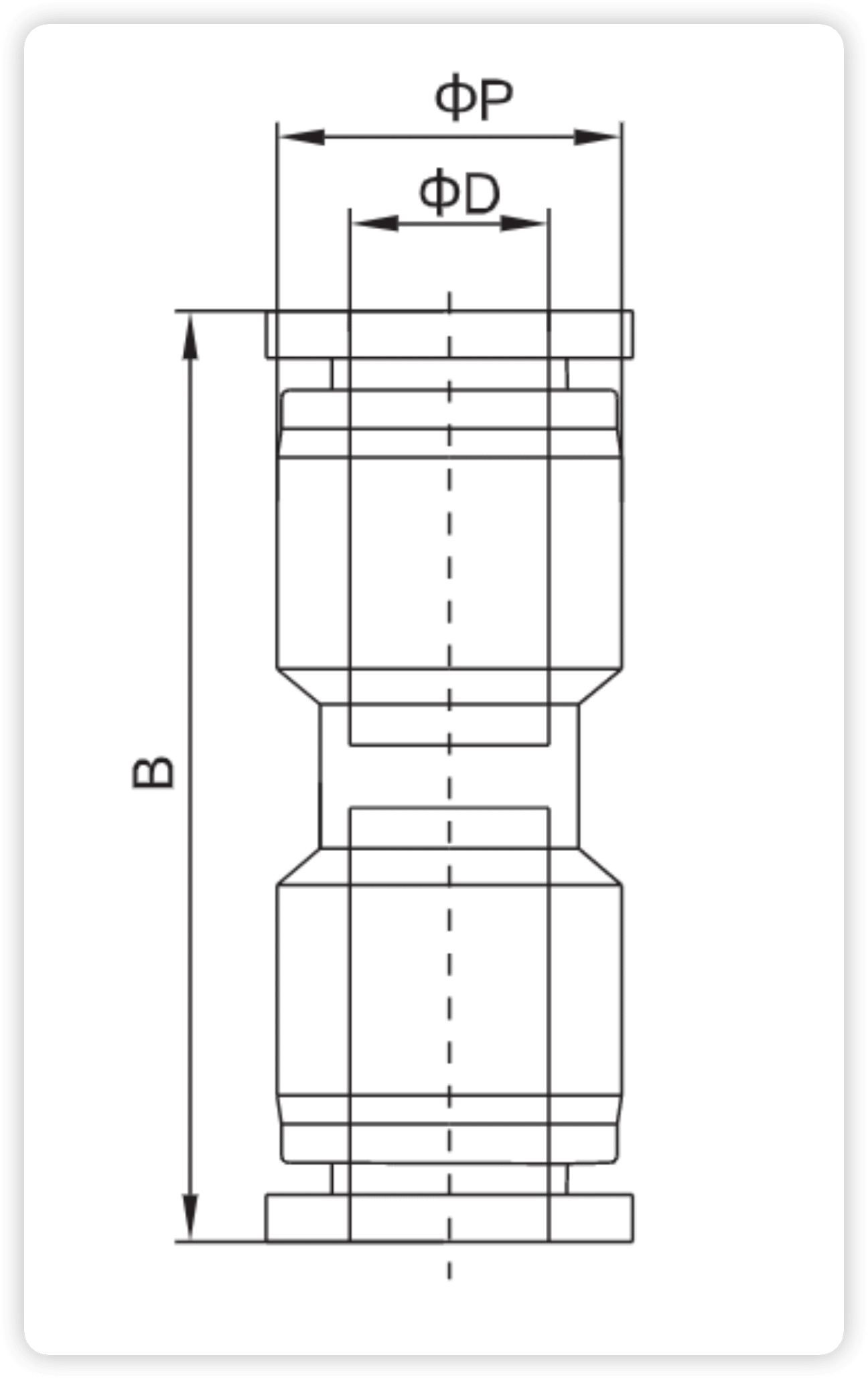

PU Straight FittingStraight Fitting--1.32 MPa (13.5 kgf/cm²)-Air

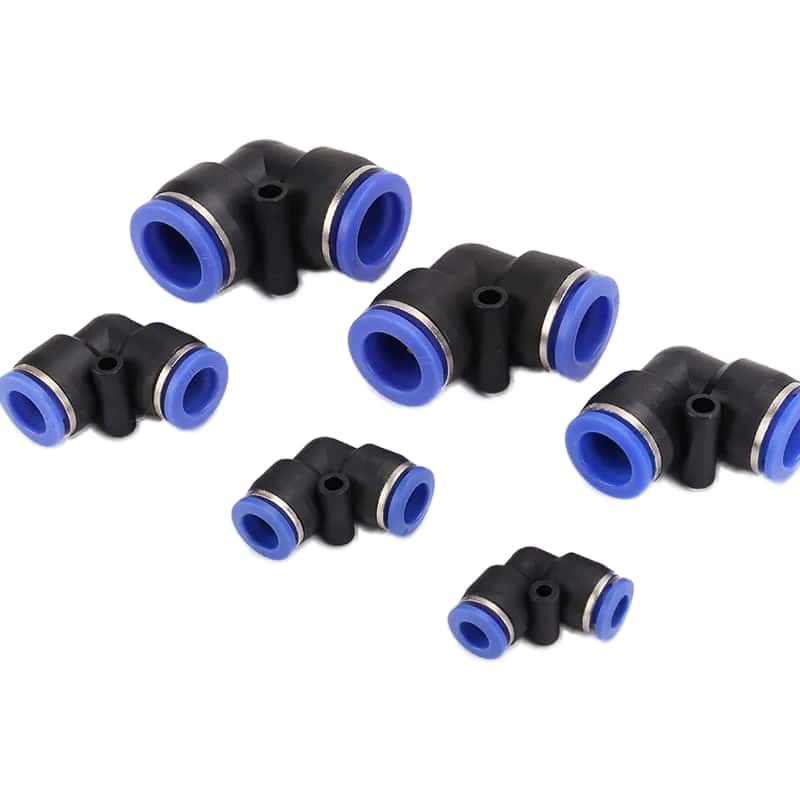

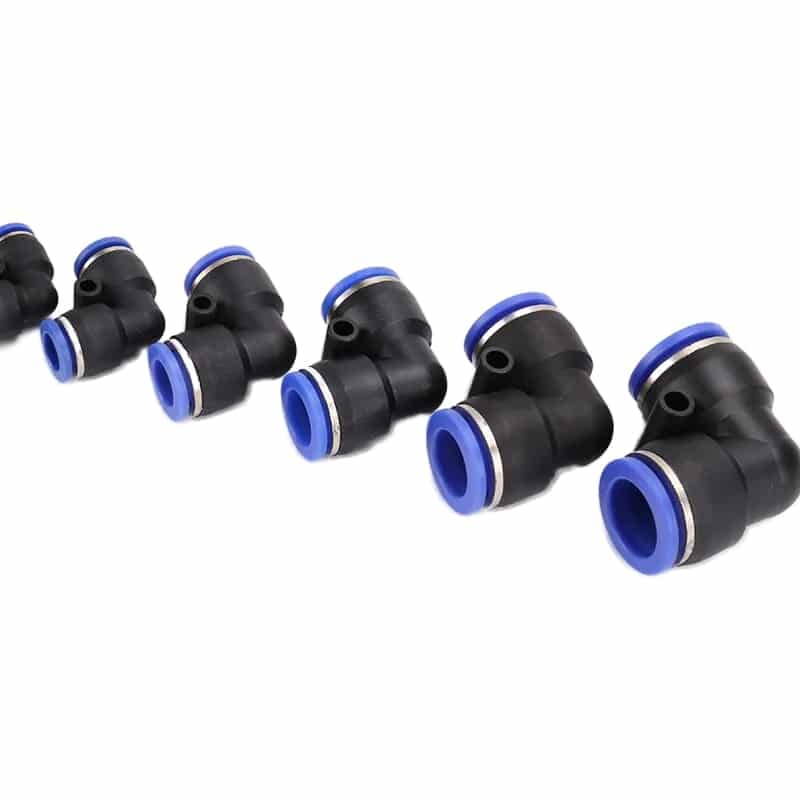

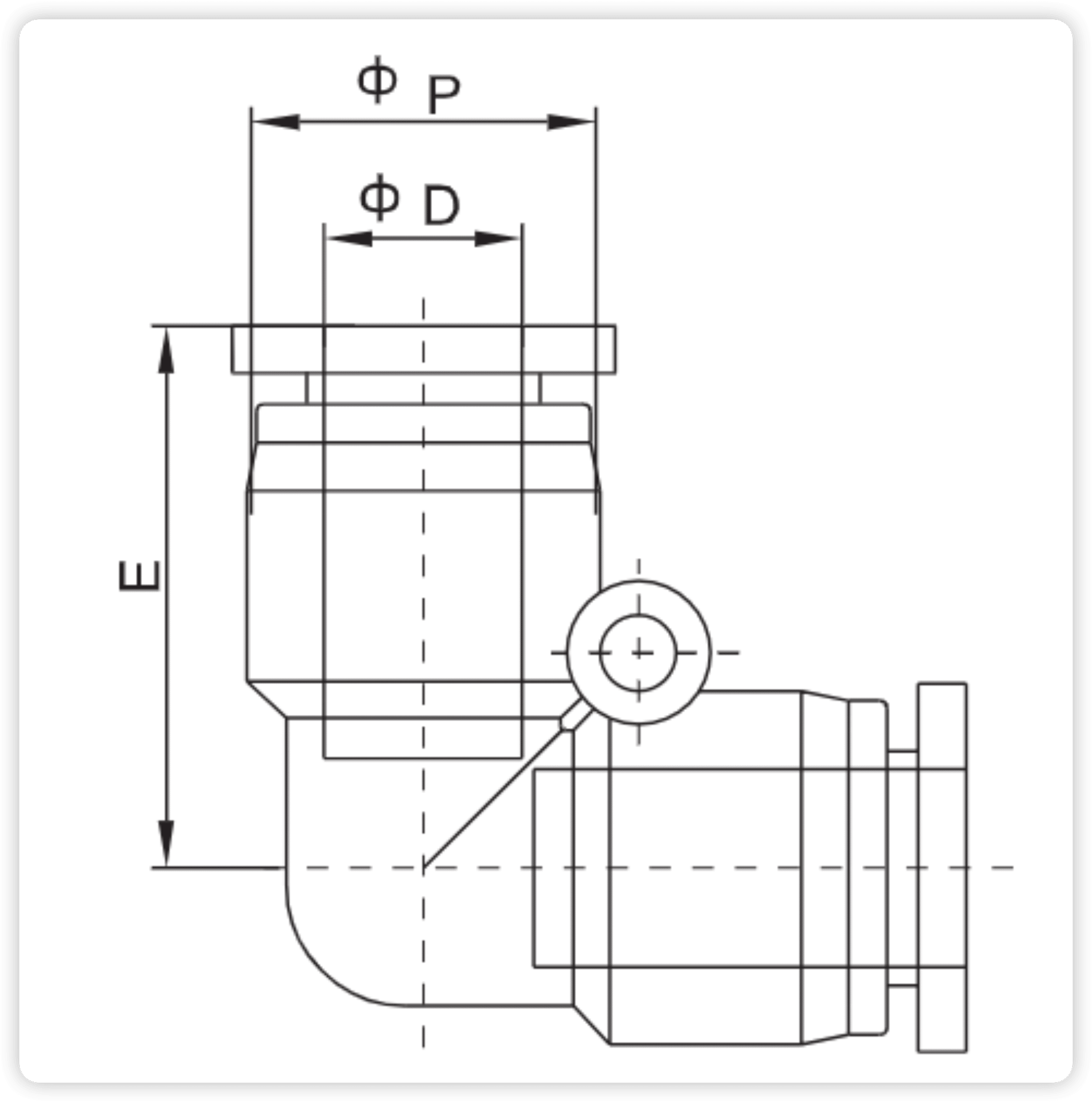

PV Elbow FittingElbow Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm-1.32 MPa (13.5 kgf/cm²)75 °CAir

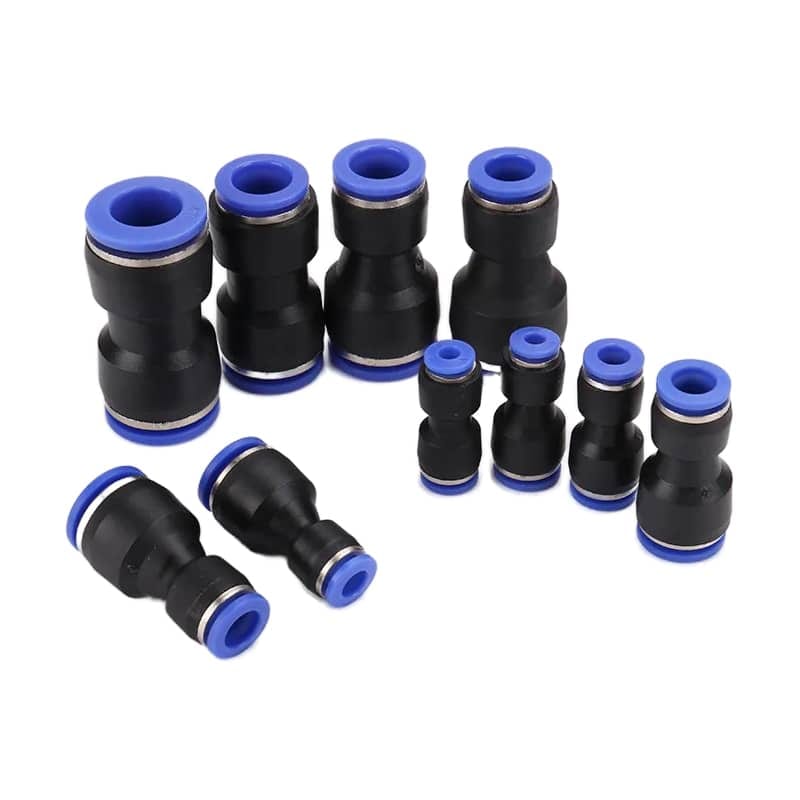

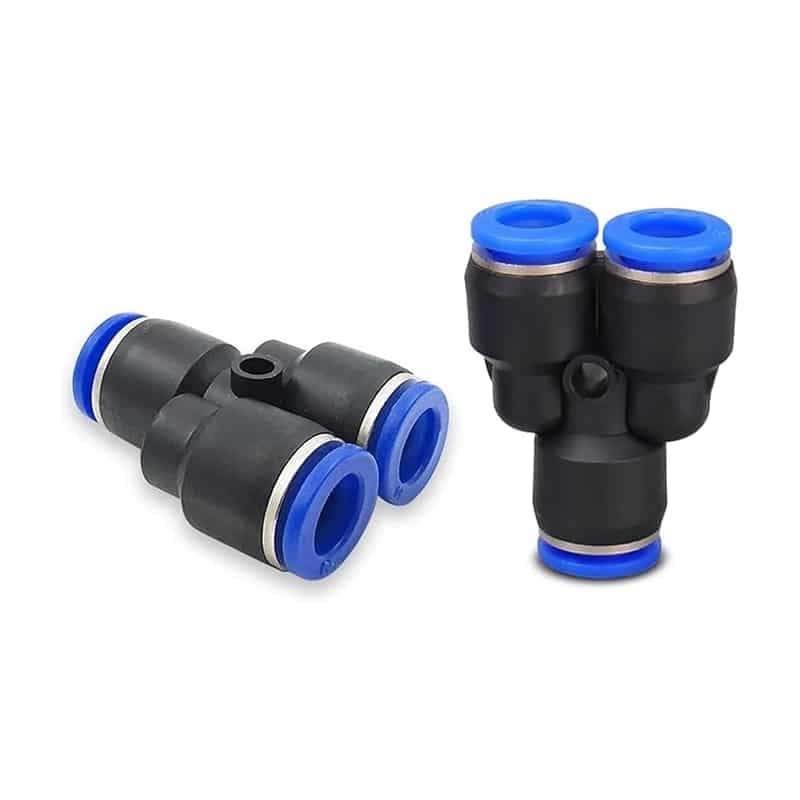

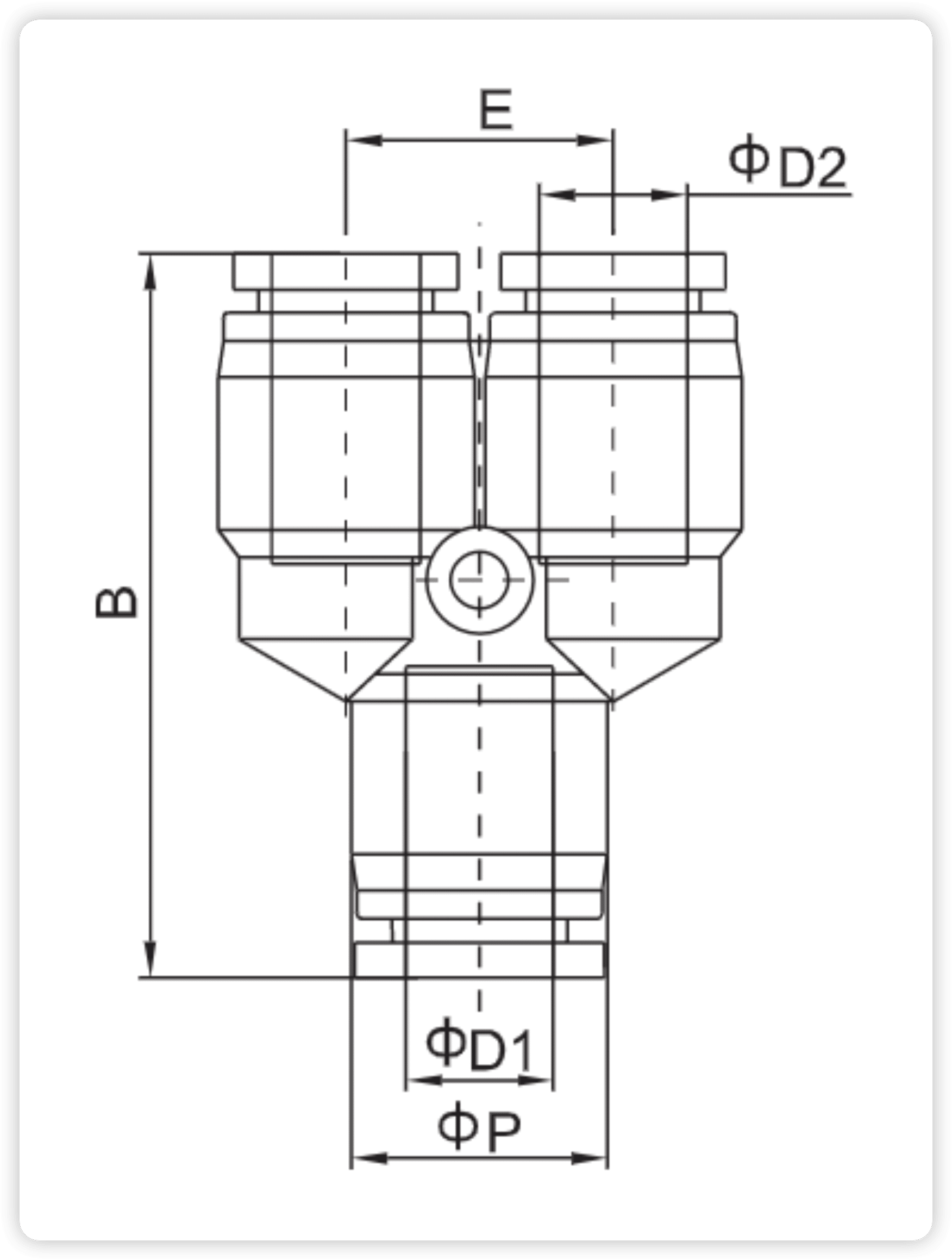

PW Reducer FittingReducer Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm-0-1.0 MPa-Air

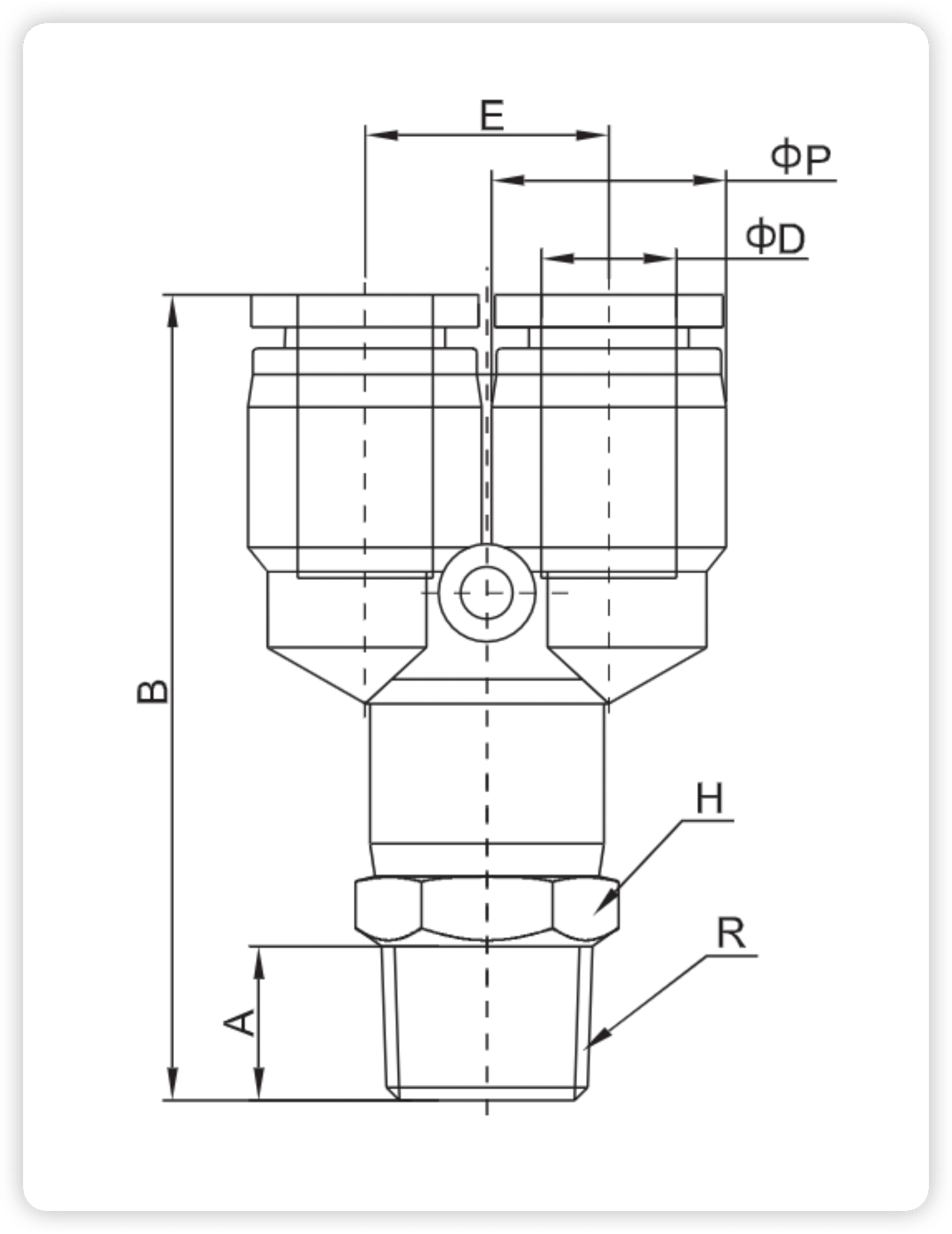

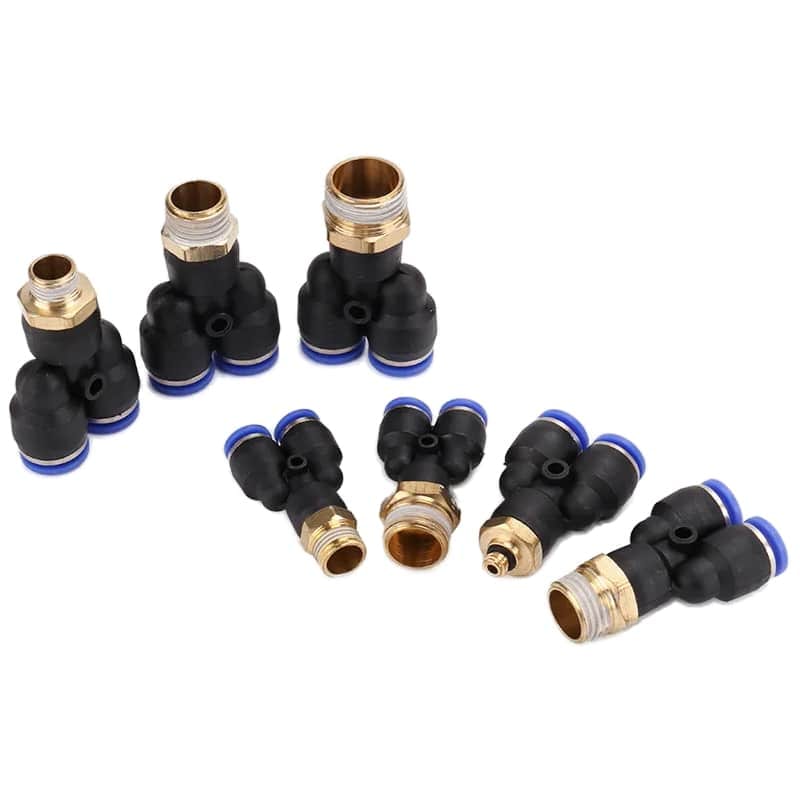

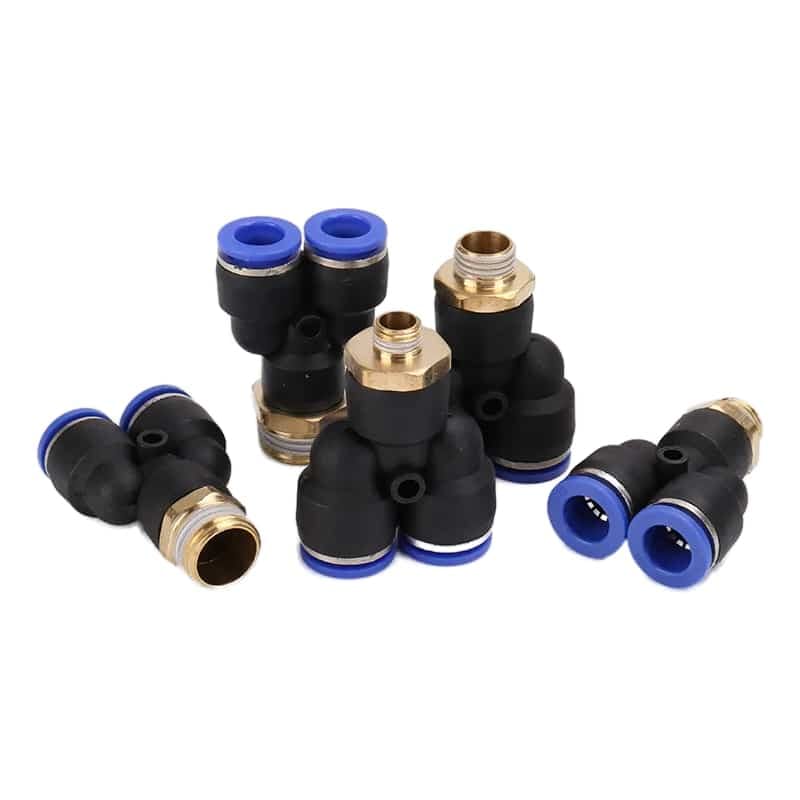

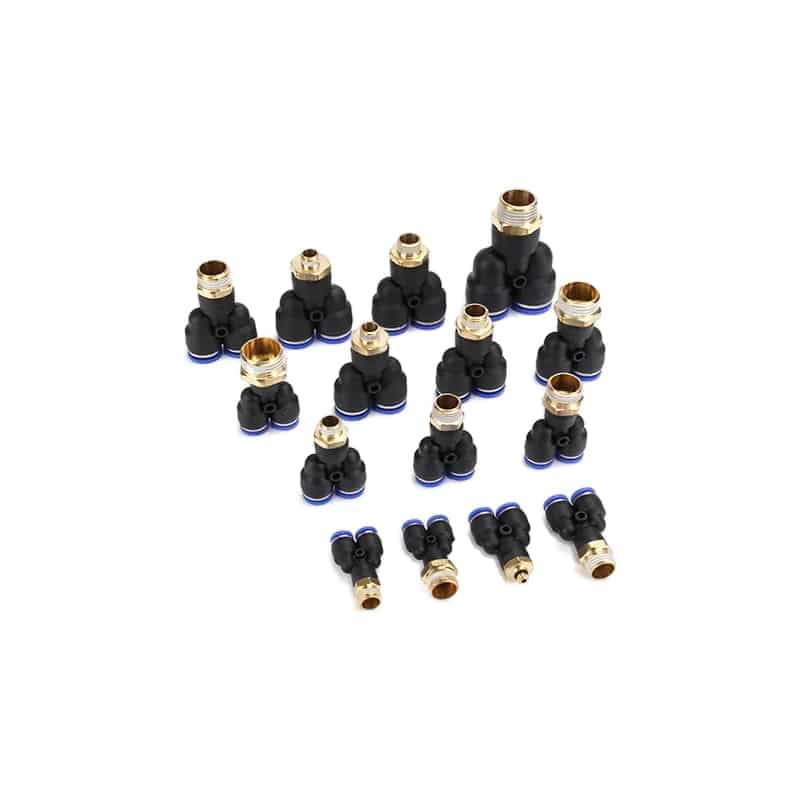

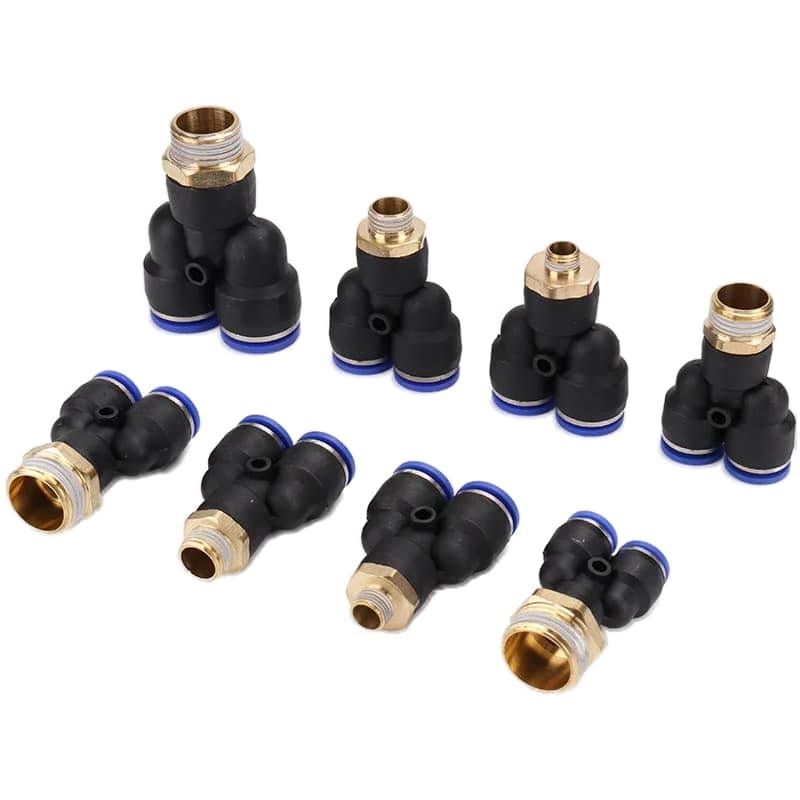

PX Y FittingY FittingM5, 1/8″, 1/4″, 3/8″, 1/2″M5, 1/8″, 1/4″, 3/8″, 1/2″1.32 MPa (13.5 kgf/cm²)-Air, Water

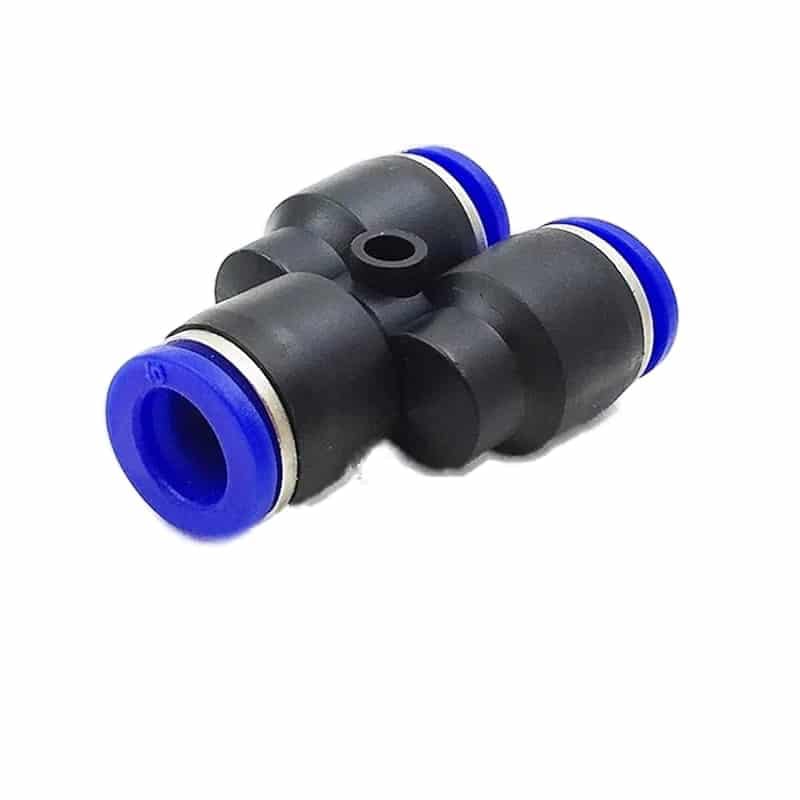

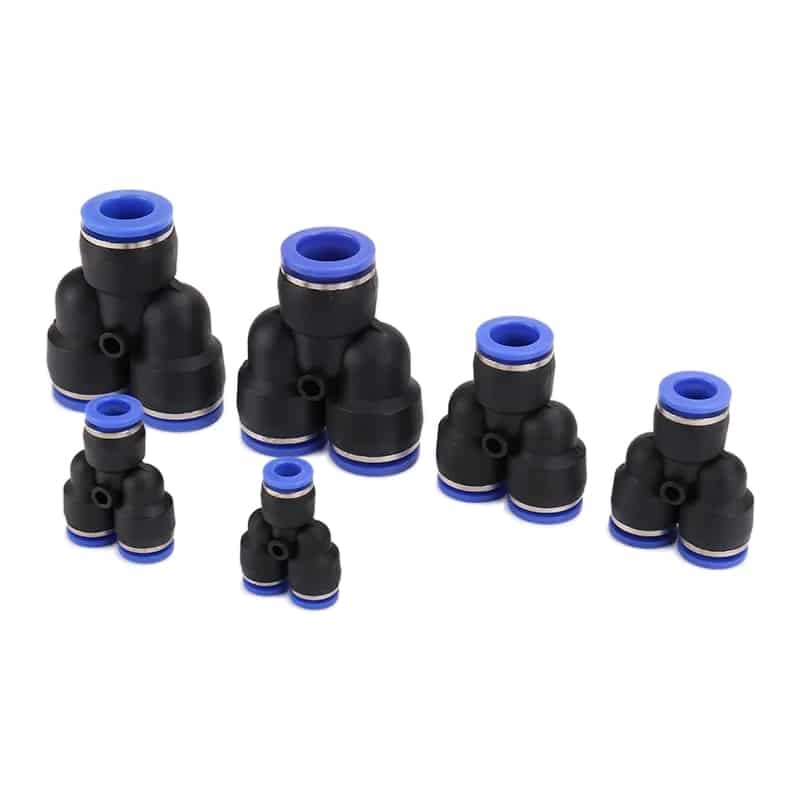

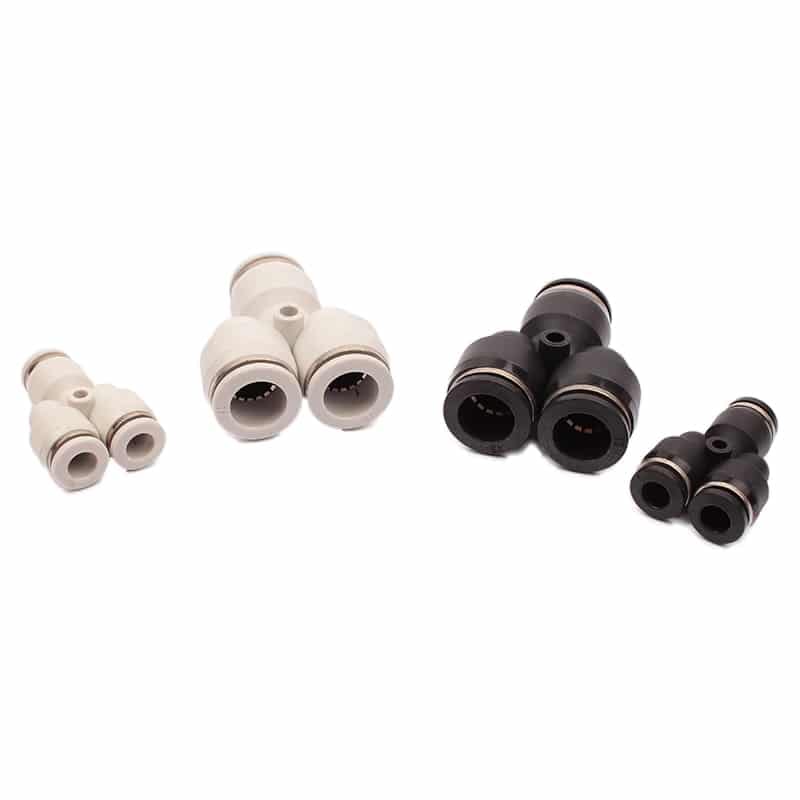

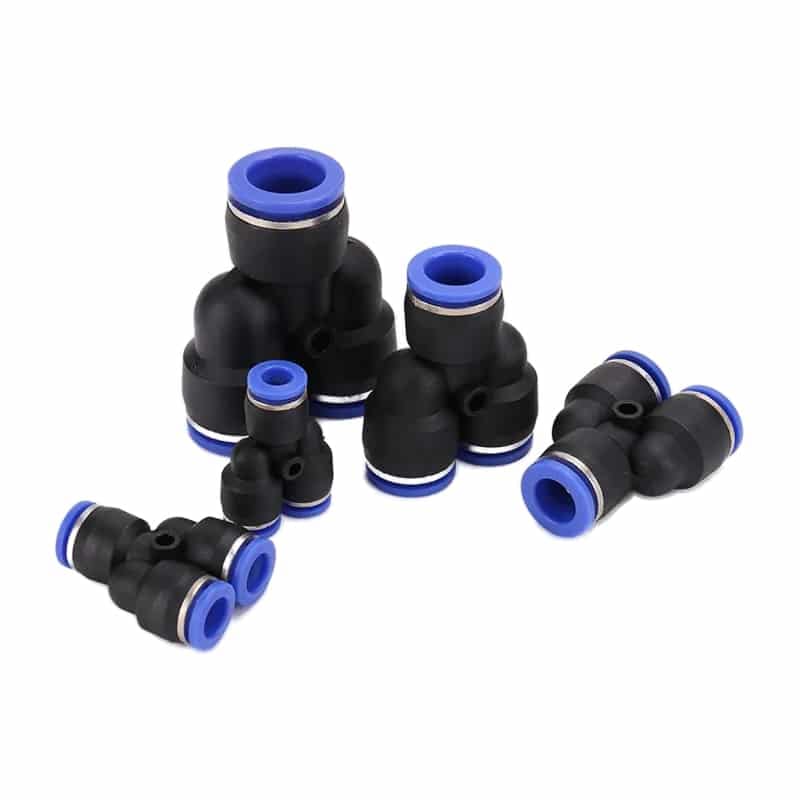

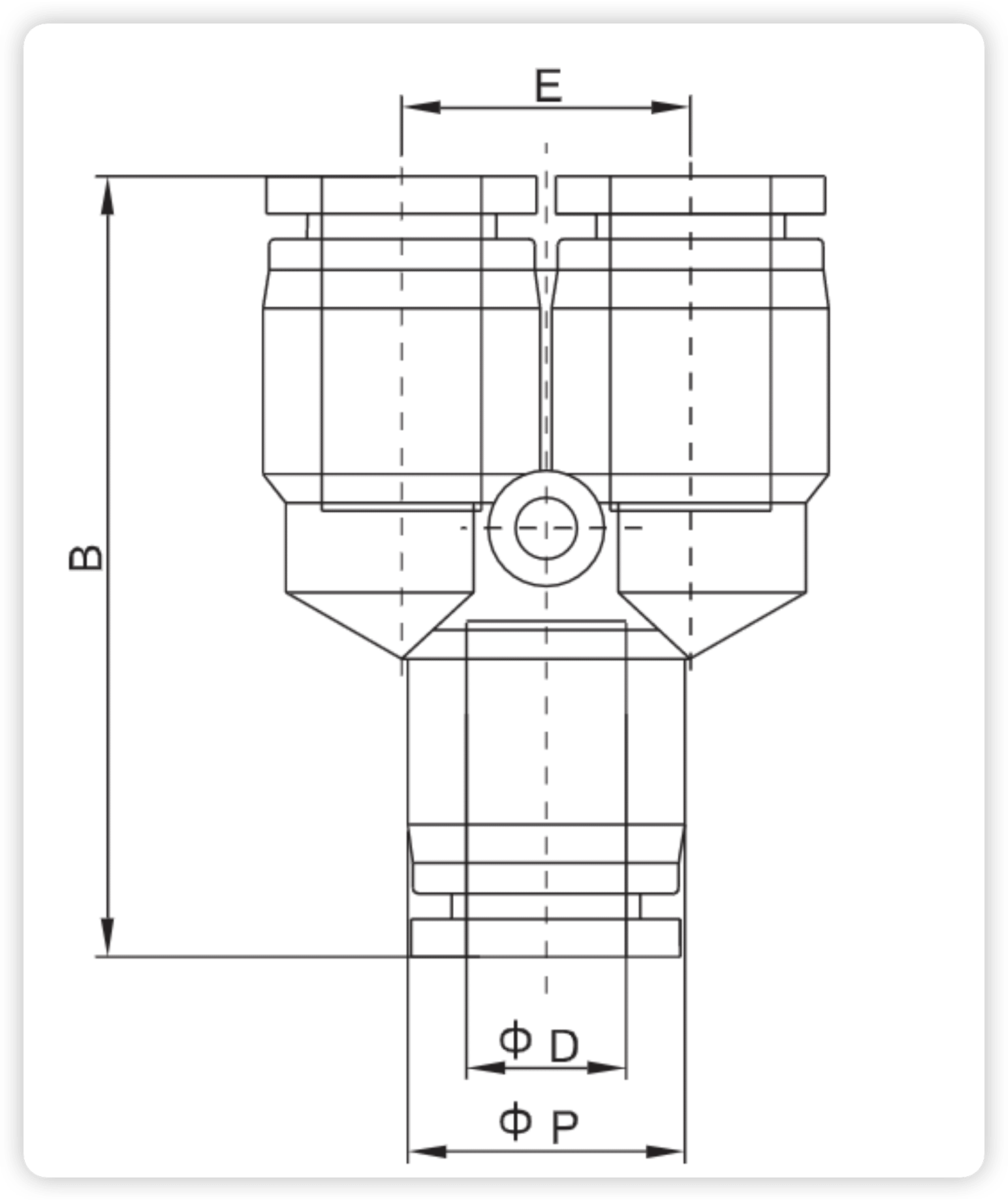

PY Y FittingY Fitting4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm-1.32 MPa (13.5 kgf/cm²)-Air

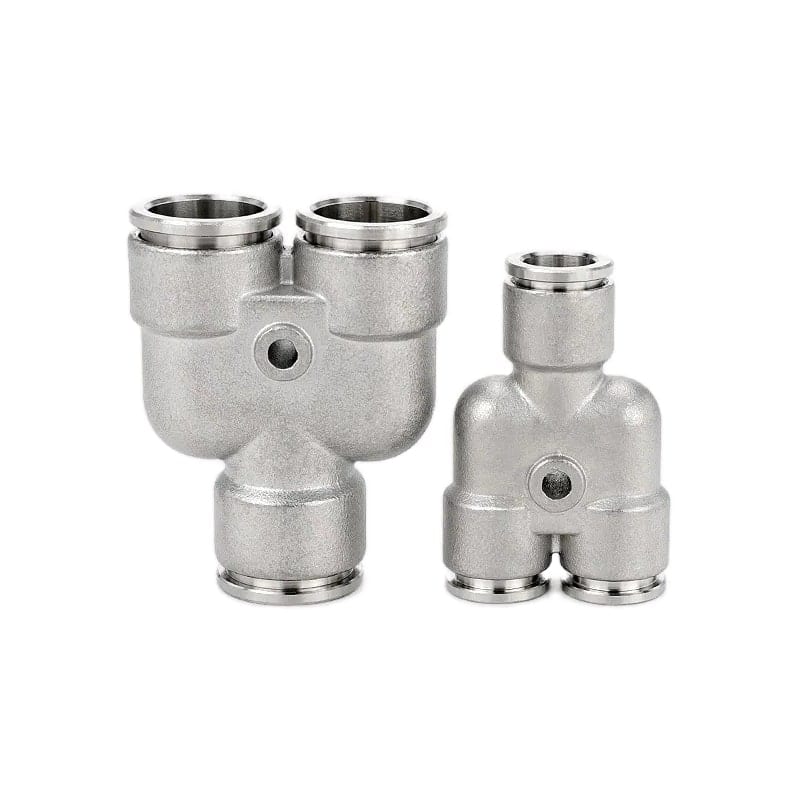

PY Y FittingY Fitting---0.99 to 10 Bar (-14 to 150 psi)AISI 316L stainless steel-

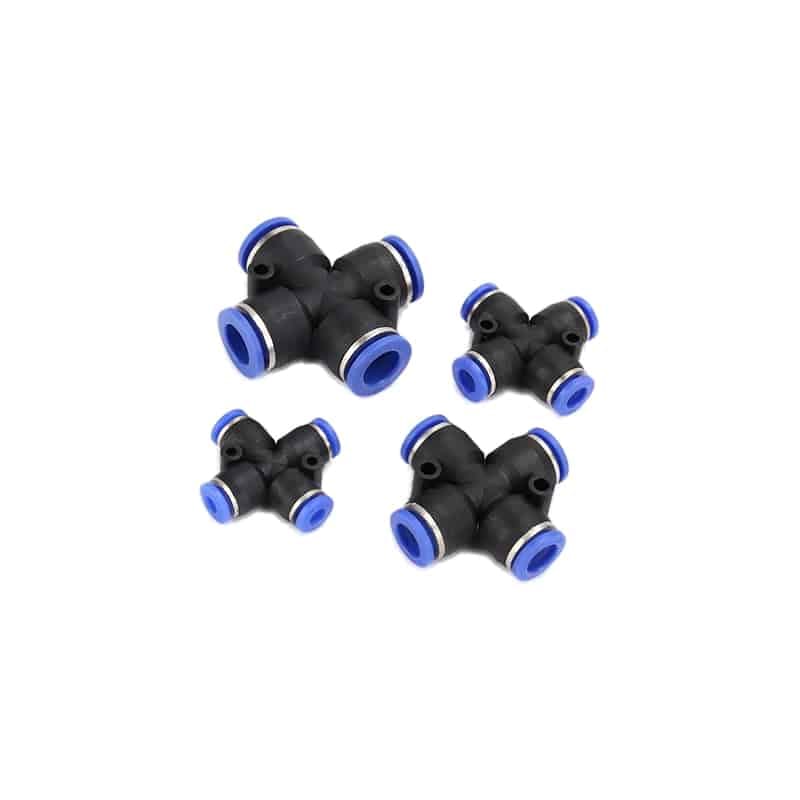

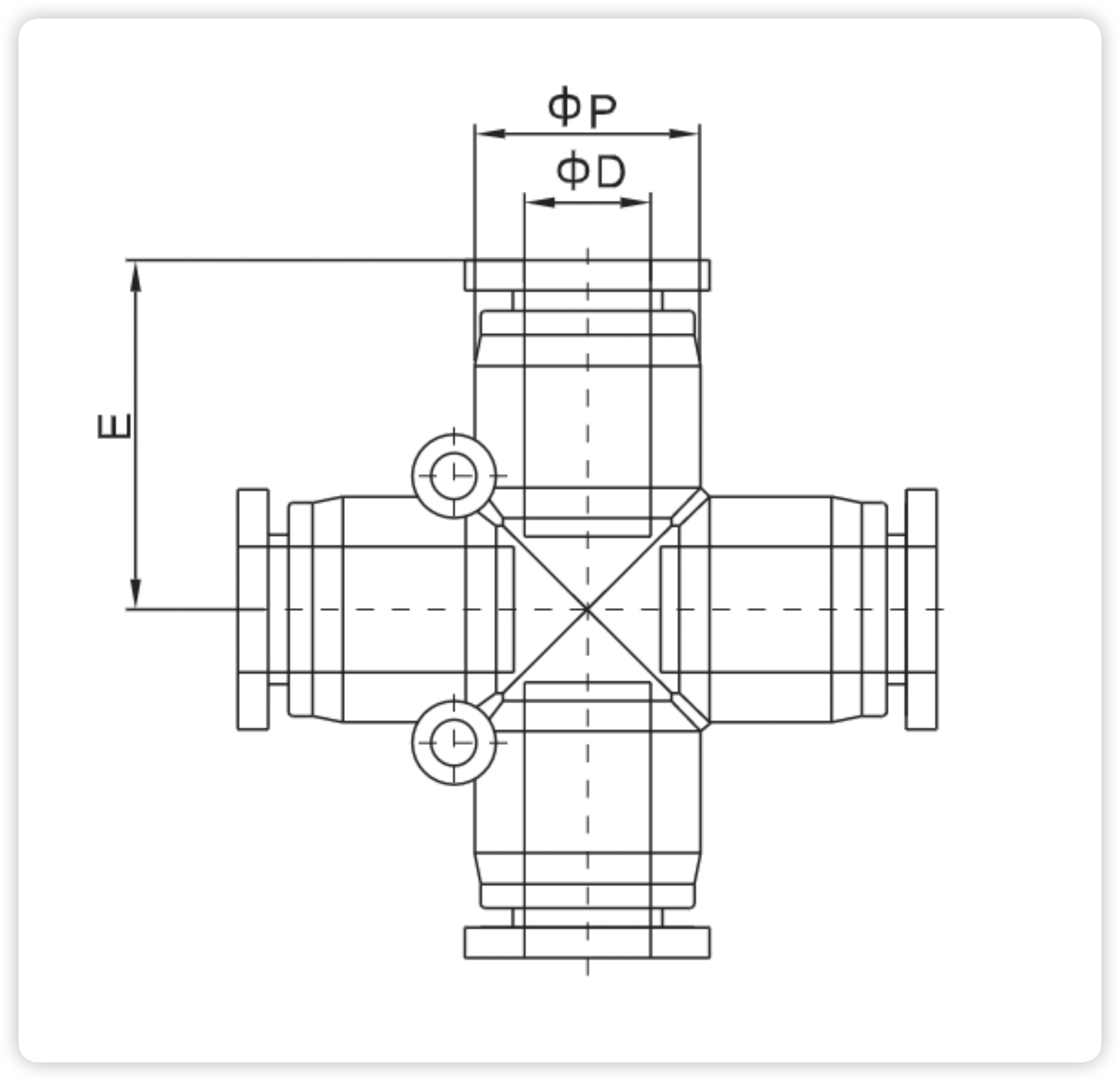

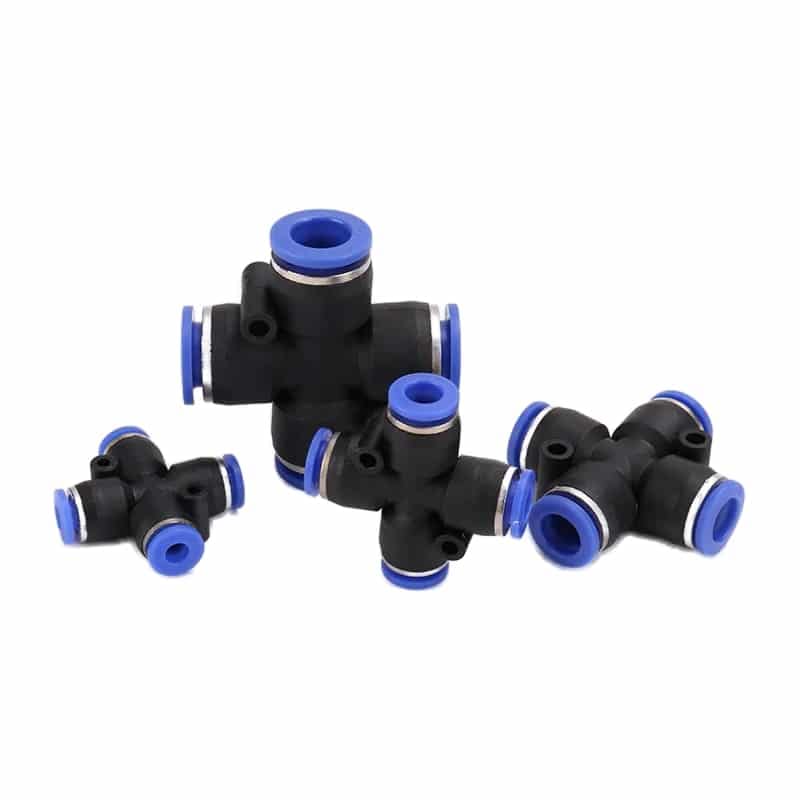

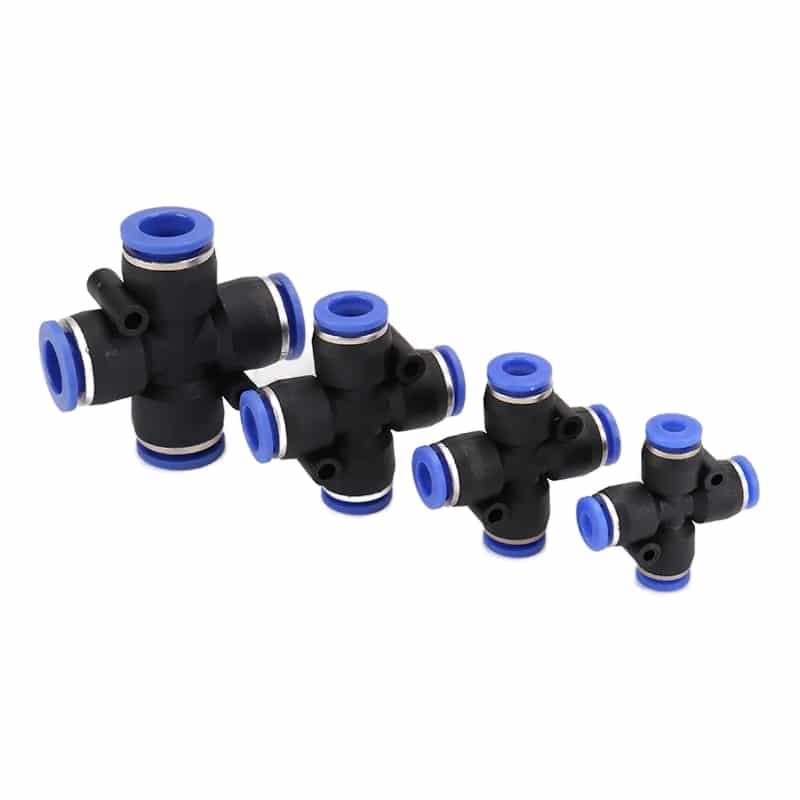

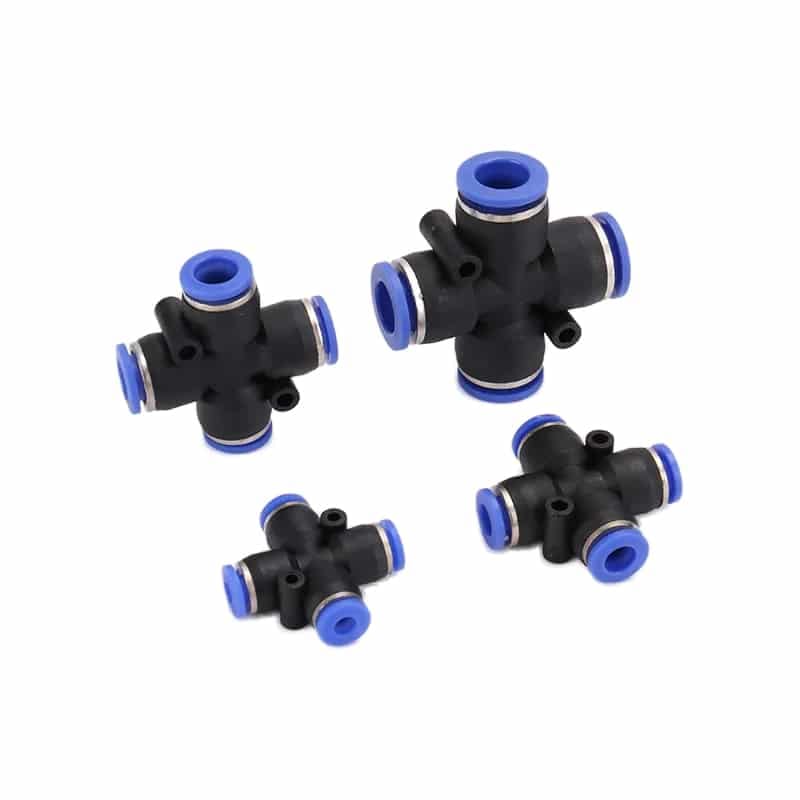

PZA Cross UnionCross Union4 mm, 6 mm, 8 mm, 10 mm, 12 mm-1.32 MPa (13.5 kgf/cm²)-Air

Choose by connection job

Start with how the air line connects.

Pick the closest fitting use case, then confirm tube OD, thread, body shape, material, pressure, and installation clearance before RFQ.

Scenario 01

Connect a pneumatic tube to a valve, cylinder, or manifold.

Confirm tube OD, male or female thread, and straight or elbow direction before quoting.

Recommended option

PC, PCF, PL, PLF, or related push-in threaded fitting route.

  • Tube OD
  • Thread standard
  • Body direction
  • Material

Common fitting uses

Where pneumatic fittings solve connection details.

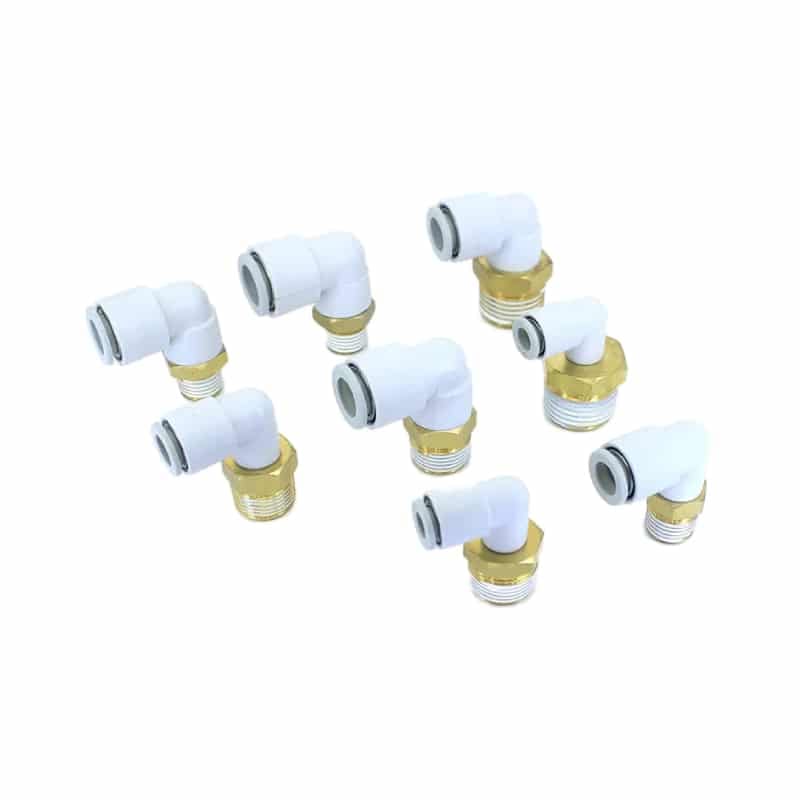

KQ2 Series Pneumatic One-Touch Fittings (Push-to-Connect) product image
Fitting use 01

Valve manifold tube connections

Use straight, elbow, tee, Y, reducer, and manifold fittings to connect valve outputs to cylinders, grippers, sensors, and branch circuits.

  • Standardize tube OD
  • Confirm port thread
  • Keep elbow direction clear

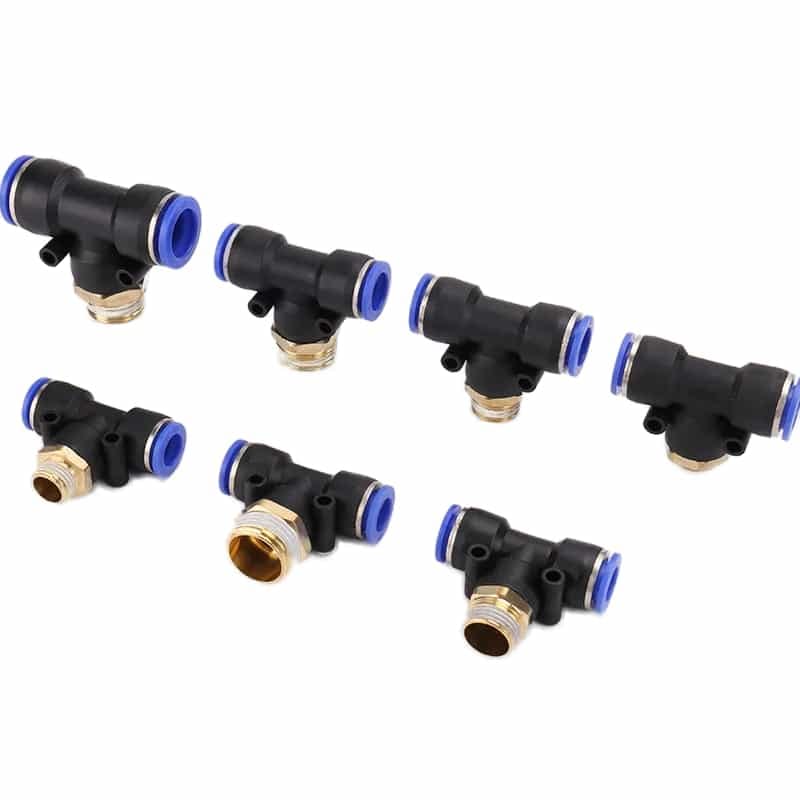

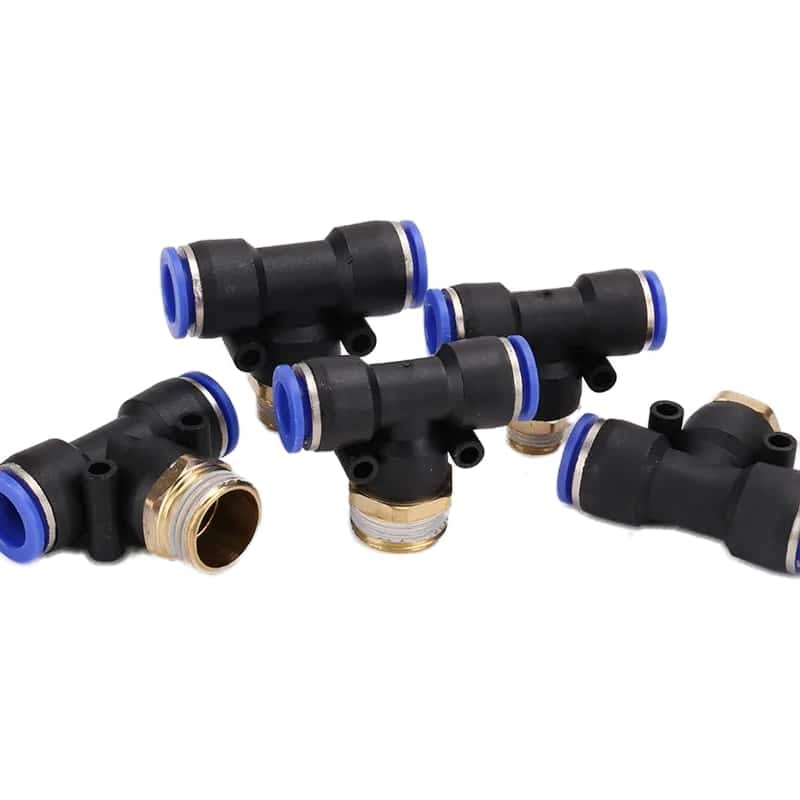

PB Series Pneumatic Push-in Tee Fittings (One-Touch Connectors) product image
Fitting use 02

Repeated machine build tubing

Use one fitting family across repeated machines so tube OD, thread, elbow direction, and spare fittings stay consistent from build to build.

  • Group by body shape
  • Share quantity by size
  • Confirm plastic, brass, or stainless body

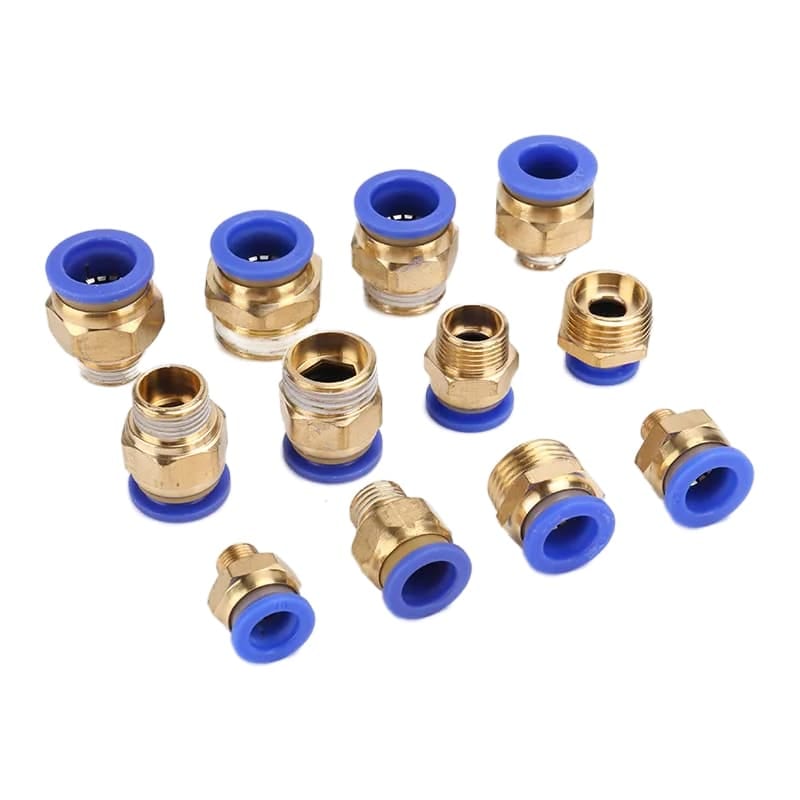

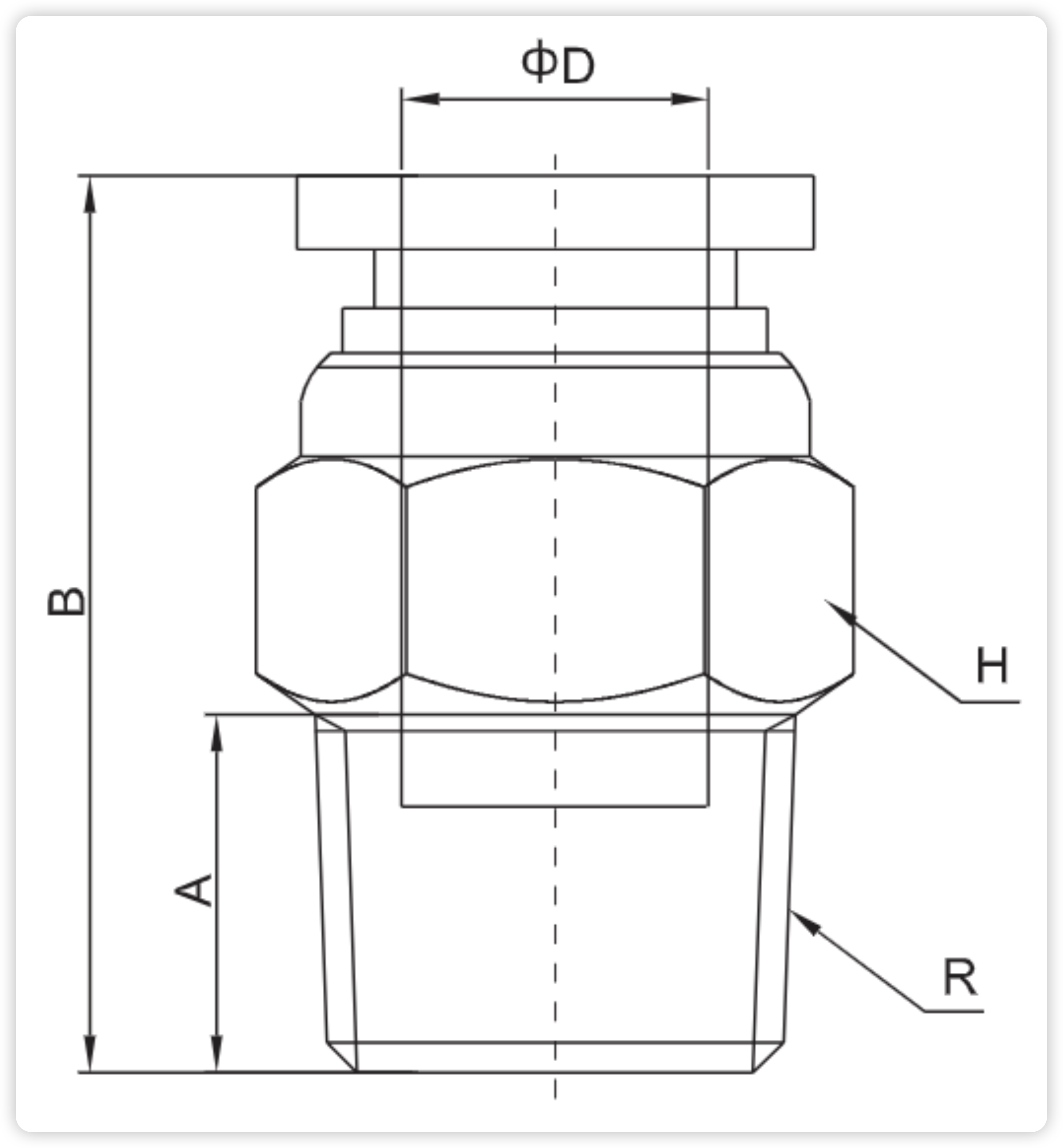

PC Series Male Straight Pneumatic Push-in Fittings (One-Touch) product image
Fitting use 03

Panel pass-throughs and branch points

Use bulkhead, tee, reducer, and elbow fittings where tubes cross panels, split branches, or turn inside tight machine spaces.

  • Measure tube OD
  • Check panel thickness
  • Confirm straight, elbow, tee, or reducer

Connection flow tools

Calculate tube ID, air velocity, and pressure drop before selecting fittings.

Use these tools when fitting selection depends on tube outside diameter, thread, line velocity, pressure loss, or flow-unit communication.

Open Valves & flow tools
01Valves & flow

Tube ID Calculator

Estimate tube inner diameter for the connection and flow requirement.

Free-air flowFlow unitWorking pressureOpen calculator02Valves & flow

Air Velocity Calculator

Check whether tube size keeps air velocity in a practical range.

Free-air flowFlow unitInternal diameterOpen calculator03Valves & flow

Pressure Drop Calculator

Compare expected pressure loss through tubing and connection runs.

FlowPipe lengthEquivalent fitting lengthOpen calculator04Unit conversion

Flow Converter

Convert flow units before sending fitting or tubing RFQ details.

Flow valueSource flow unitOpen calculator

Request category support

Send the details that make this Push-In Pneumatic Fittings inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Tube outside diameter
  • Thread type and size
  • Body shape
  • Material and quantity
Flow-Control FittingsHose Barb FittingsPneumatic MufflersMetal and Stainless FittingsAll Pneumatic Fittings

Push-In Pneumatic Fittings RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Push-In Pneumatic FittingsWhat information helps Bepto Pneumatic quote push-in pneumatic fittings?

Tube outside diameter or hose size, thread standard, body shape, pressure range, material preference, installed environment, and quantity are the most useful starting details.

02Push-In Pneumatic FittingsCan Bepto Pneumatic match an existing fitting from photos?

Yes. Send photos from the tube side, thread side, and installed position, plus a tube or thread measurement if available.

03Push-In Pneumatic FittingsWhy are fitting products grouped separately?

Each fitting function has different selection details. Grouping push-in, flow-control, metal, hose barb, and muffler products separately makes tube size, thread, pressure, material, and RFQ details easier to compare.
