Manual Control Valves

Review function, size, pressure, mounting, and inquiry data for Manual Control Valves.

View product specifications Build a valve RFQ

Hand operationService isolationLever controlInline shutoff

Category buying guide

Manual valves should match the operator task and service behavior.

Hand lever and shut-off valves look simple, but port function, handle position, return behavior, and exhaust requirements still decide whether a replacement is practical.

Pneumatic valve categories

01Solenoid Valves 02Air Control Valves 03Manual Control Valves 04Mechanical Valves 05Flow Control Valves 06Fluid Solenoid Valves 07Foot Operated Valves

Manual Control Valves • Product specifications

Manual Control Valves: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Order Symbol

Series 01

Series: SH Series Pneumatic Hand Lever Control Valve
Model: SH-402 | SH-402S | SH-403 | SH-403S

Key Specs

Selection focus

Model: SH-402 | SH-402S | SH-403 | SH-403S
Position number: two-position five-way
Working medium: Air
Working-pressure range: 0.15-0.9 MPa
Port size: G1/4″, G3/8″

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the valve label, old model code, or installed photo.
function: Review function, size, pressure, mounting, and inquiry data for Manual Control Valves.
Medium / pressure: Share working medium, pressure range, and temperature.
Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
Port / thread: Send port size, thread standard, and tube or pipe connection.

Selection snapshot

Valve function and port specifications

6 rows

Model	SH-402	SH-402S	SH-403	SH-403S
Working medium	Air	Air	Air	Air
Working-pressure range	0.15-0.9 MPa	0.15-0.9 MPa	0.15-0.9 MPa	0.15-0.9 MPa
Working-temperature range	0-70 °C	0-70 °C	0-70 °C	0-70 °C
Port size	G1/4″	G1/4″	G3/8″	G3/8″
Position number	two-position five-way	two-position five-way	two-position five-way	two-position five-way

Same-group comparison

Manual Control Valves series comparison

Compare related product series by function, size, pressure, and RFQ details.

4 related series

Series	Orifice size	function	Medium	Pressure range	Voltage coil	Port thread
SH Hand Lever Valve	G1/4″, G3/8″	Hand Lever Valve	Air	0.15-0.9 MPa	-	G1/4″, G3/8″

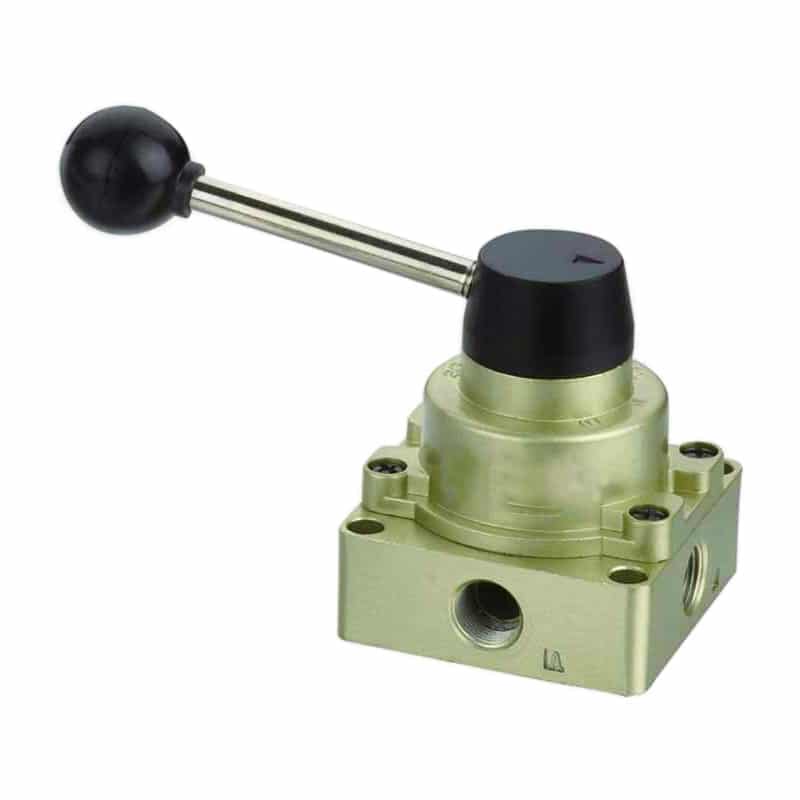

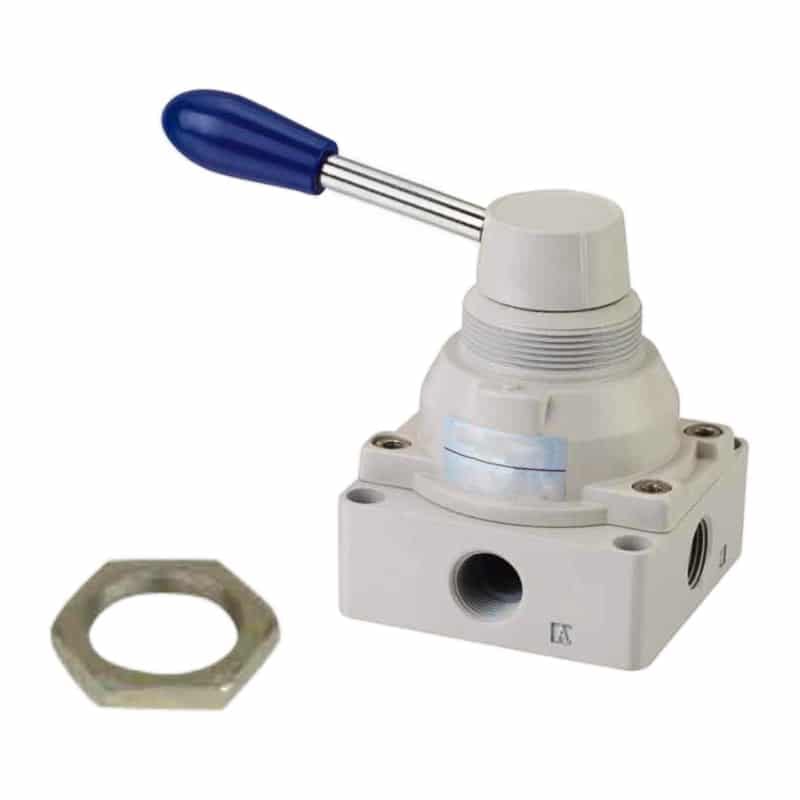

HV & K34 Manual Valve	G1/4″, G3/8″, G1/2″, G1/8″	Manual Valve	40 micron filtered air	0-0.8 MPa	-	G1/4″, G3/8″, G1/2″, G1/8″

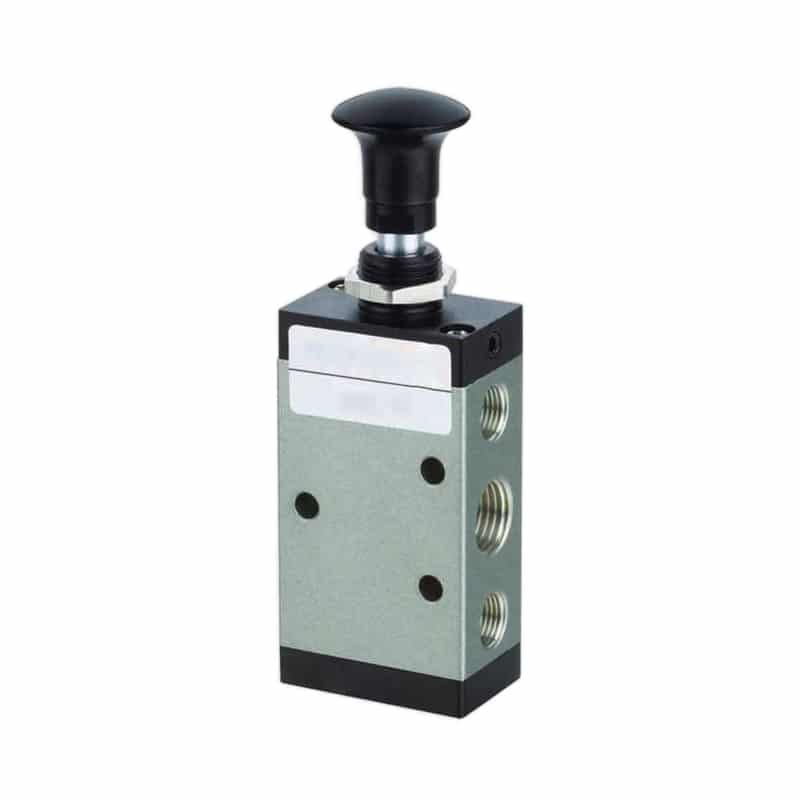

4R/3R Hand Lever Valve	-	4R: two-position five-way, 3R: two-position three-way	compressed air	0-1.0 MPa	-	Confirm by interface

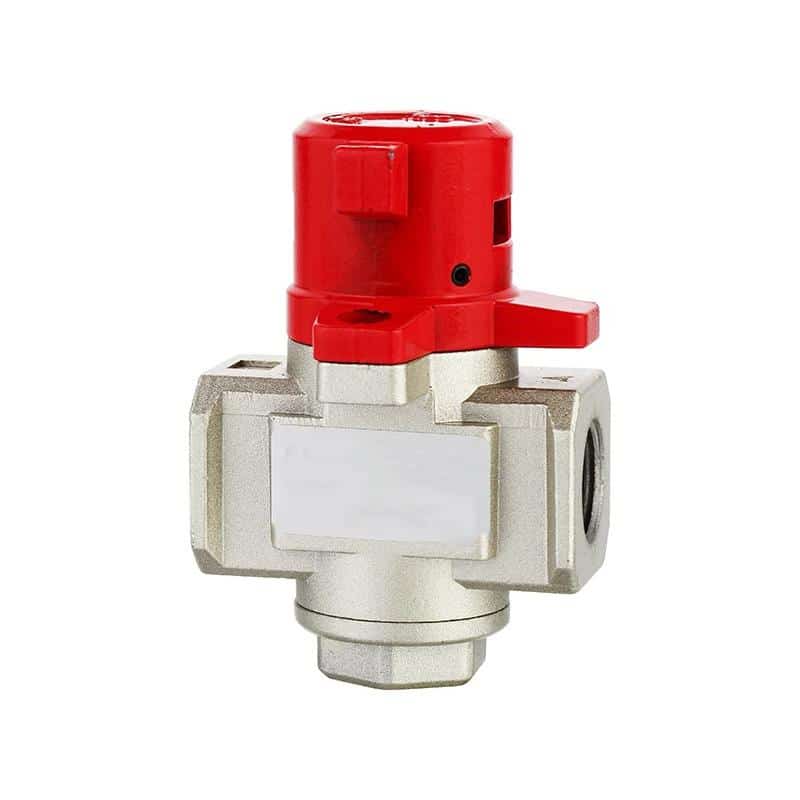

VHS Lockout Valve	G1/8, G14, G3/8, G1/2	Lockout Valve	-	-	-	Confirm by interface

Choose by valve task

Start with the control job the valve must do.

Pick the closest use case, then confirm valve function, port size, coil voltage, pressure, medium, mounting, and connector details before RFQ.

Scenario 01

Give an operator direct manual switching.

Hand lever valves fit simple functions where an electrical signal is not required.

Recommended option

Manual directional valve matched by positions, ports, thread, and handle style.

Positions
Port count
Thread size
Return behavior

Common valve uses

Where pneumatic control components are installed.

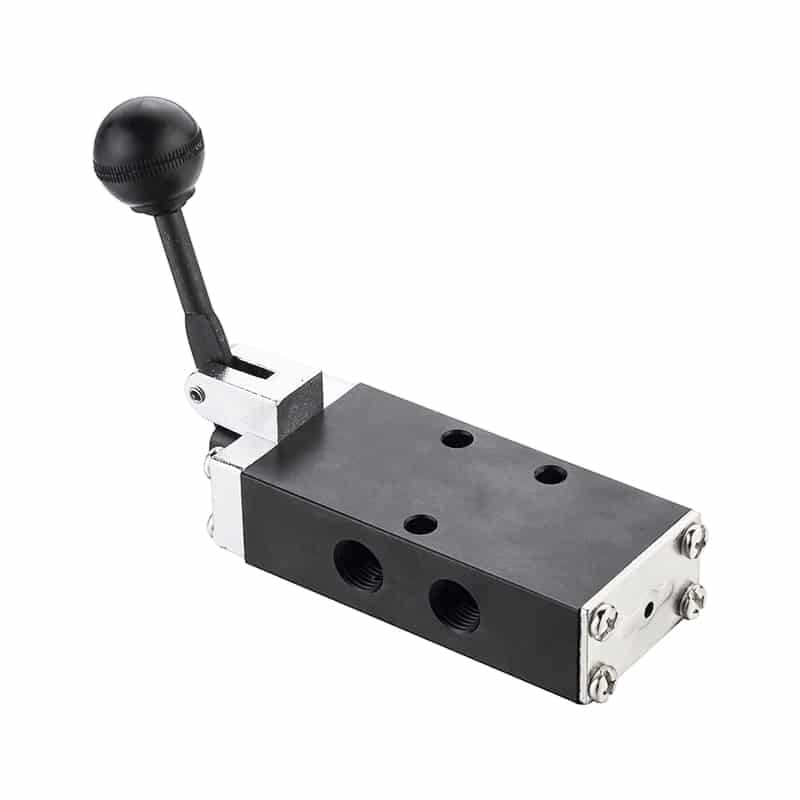

SH Series Pneumatic Hand Lever Control Valve product image

Valve use 01

Manual jog and setup control

Hand lever valves let technicians move cylinders, stoppers, slides, or clamps during setup without adding PLC wiring to a simple pneumatic station.

Confirm port count
Check handle direction
Match spring return or detent

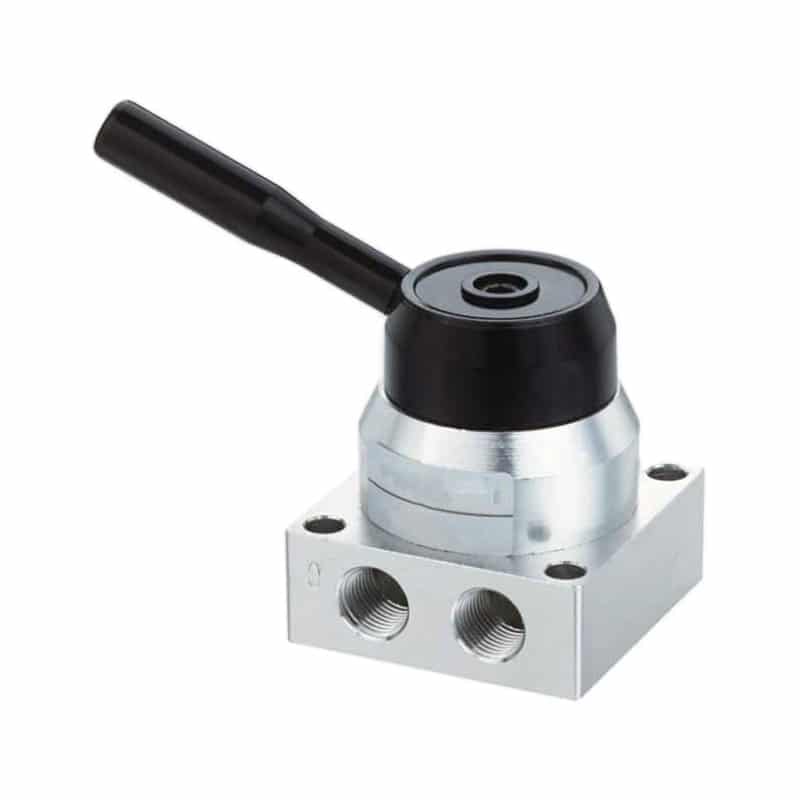

HV & K34 Series Pneumatic Manual Control Valves product image

Valve use 02

Service air isolation

Hand slide and shut-off valves isolate an air branch for tool changes, maintenance, or fixture adjustment while keeping the control point visible.

Confirm line size
Define downstream exhaust
Keep handle access clear

4R/3R Series Pneumatic Hand Lever Control Valves product image

Valve use 03

Non-electrical control stations

Manual pneumatic valves fit fixtures, jigs, and simple machines where the operator deliberately switches airflow by hand instead of an electrical signal.

Choose lever, slide, or knob
Check working pressure
Review panel or inline mounting

Valve and flow tools

Check flow, Cv, velocity, and unit conversion before choosing valves.

Use these calculations when a pneumatic valve decision depends on flow capacity, pressure loss, port size, or catalog unit conversion.

Open Valves & flow tools

01Valves & flow

Cv Flow Calculator

Estimate valve Cv before selecting a solenoid, manual, or control valve.

Calculation modeCv valueFlow rateOpen calculator 02Valves & flow

Air Orifice Flow Calculator

Review approximate air flow through an orifice or restriction point.

Orifice diameterUpstream pressureDownstream pressureOpen calculator 03Valves & flow

Air Velocity Calculator

Check air velocity so port, tube, and valve choices stay practical.

Free-air flowFlow unitInternal diameterOpen calculator 04Unit conversion

Cv / Kv Converter

Convert Cv and Kv values when comparing international datasheets.

Coefficient valueSource coefficientOpen calculator

Request category support

Send the details that make this Manual Control Valves inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and tube size
Working medium, pressure, and temperature
Review function, size, pressure, mounting, and inquiry data for Manual Control Valves.

Category FAQ

Common questions before sending an inquiry.

01Manual Control ValvesWhen should I choose a manual valve instead of a solenoid valve?

Choose a manual valve when the function is intentionally operator-controlled or used for service isolation. Choose a solenoid valve for electrical or PLC-controlled cycles.

02Manual Control ValvesWhat details matter for a hand lever valve?

Positions, port count, thread size, handle style, return behavior, pressure range, and mounting orientation are the main RFQ details.

Model	4R110-06	4R210-08	4R310-10	4R410-15	3R110-06	3R210-08	3R310-10	3R410-15
Working medium	compressed air	compressed air	compressed air	compressed air	compressed air	compressed air	compressed air	compressed air
Position and way number	two-position five-way	two-position five-way	two-position five-way	two-position five-way	two-position three-way	two-position three-way	two-position three-way	two-position three-way
Joint pipe bore	G1/8″	G1/4″	G3/8″	G1/2″	G1/8″	G1/4″	G3/8″	G1/2″
Working-pressure range	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa	0-1.0 MPa
Operating temperature range	-5-60 °C	-5-60 °C	-5-60 °C	-5-60 °C	-5-60 °C	-5-60 °C	-5-60 °C	-5-60 °C
Operating method	Direct action type	Direct action type	Direct action type	Direct action type	Direct action type	Direct action type	Direct action type	Direct action type
Lubrication	Not required	Not required	Not required	Not required	Not required	Not required	Not required	Not required

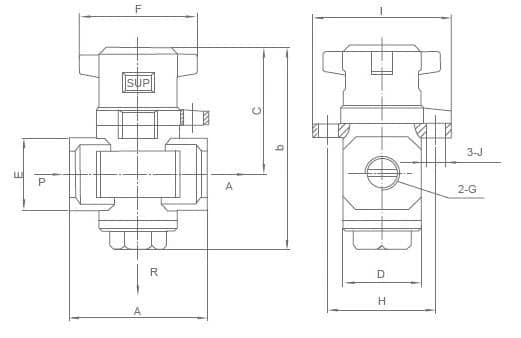

Model	G	Vent size	A	B	C	D	E	F	H	I	J
VHS2000-01	G1/8	G1/8	40	59	39	28	22	40	32	41	Ф6
VHS2000-02	G14	G1/8	40	59	39	28	22	40	32	41	Ф6
VHS3000-02	G14	G14	53	78	49	30	28	45	41.5	53	Ф7.5
VHS3000-03	G3/8	G14	53	78	49	30	28	45	41.5	53	Ф7.5
VHS4000-03	G3/8	G3/8	70	84	52	36	36	45	41.5	53	Ф7.5
VHS4000-04	G1/2	G3/8	70	84	52	36	36	45	41.5	53	Ф7.5
VHS5000-06	G3/4	G1/2	90	136	72	54	48	68	77	90	Ф8.5
VHS5000-10	G1	G1/2	90	136	72	54	48	68	77	90	Ф8.5
