Two-element air preparation category

Filter Lubricator Units

Review function, size, pressure, mounting, and inquiry data for Filter Lubricator Units.

View product specifications Build an FRL RFQ

Two-element prepAir filteringOil mist supportFlow review

Category buying guide

Use filter lubricator units when filtration and oil support belong together.

Review function, size, pressure, mounting, and inquiry data for Filter Lubricator Units.

Air preparation categories

01Air Filters 02Lubricators 03Filter Lubricators 04FRL Units 05Pressure Regulators 06Filter Regulators

Filter Lubricator Units • Product specifications

Filter Lubricator Units: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

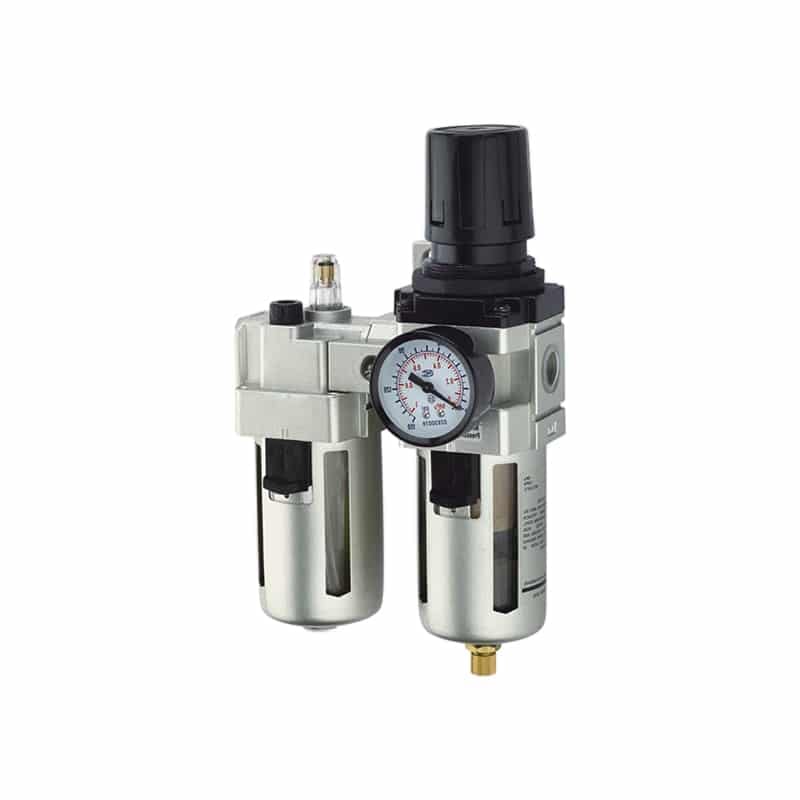

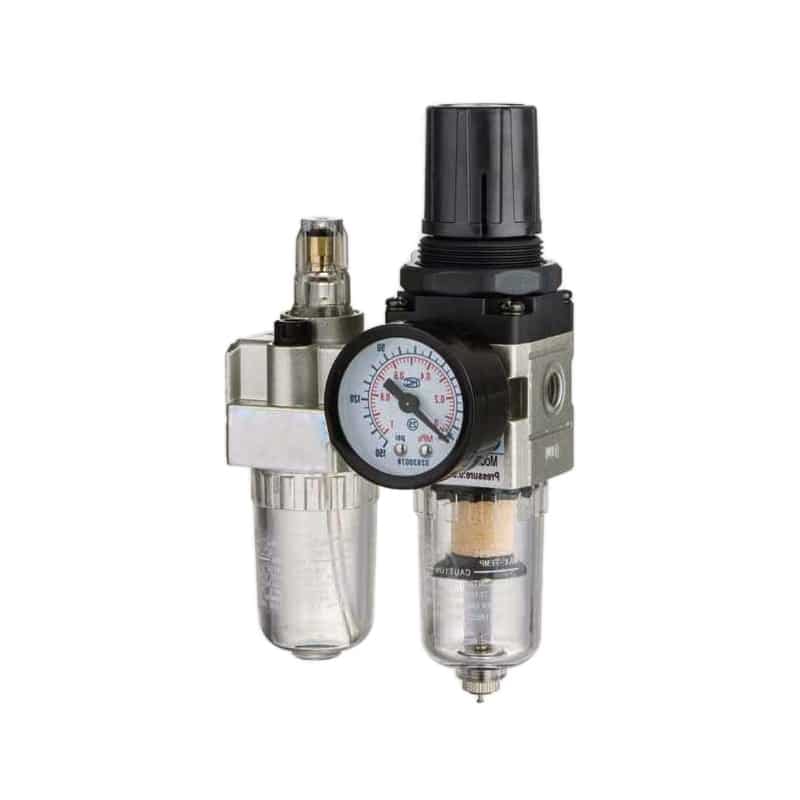

xac 1000 5000 series 2 element pneumatic air source treatment unit product view 1

Order Symbol

Series 01

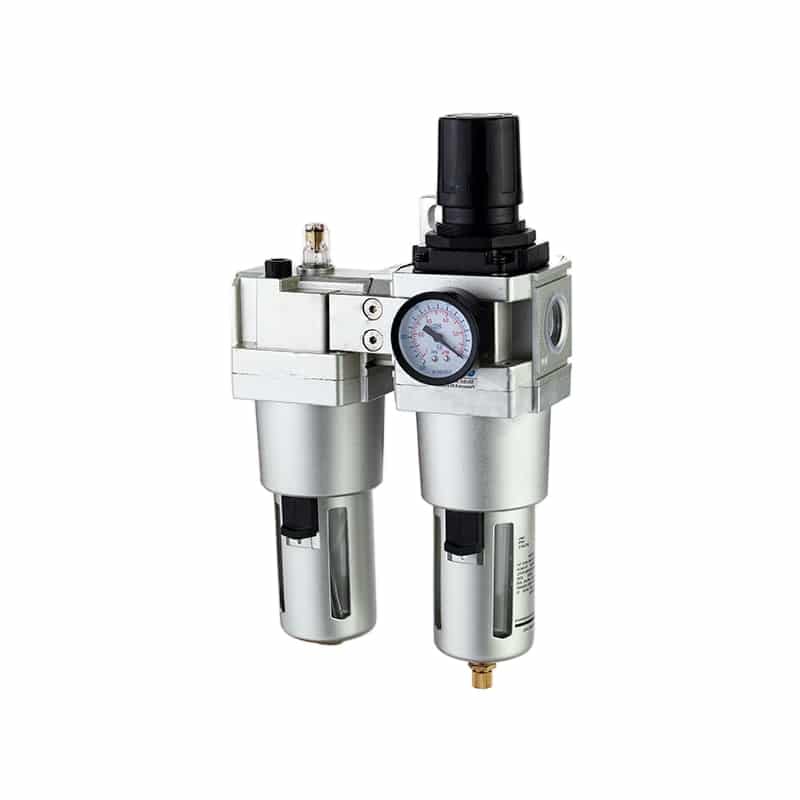

Series: XAC 1000-5000 Series 2-Element Pneumatic Air Source Treatment Unit
Model range: XAC1010-M5 to XAC5010-10

Key Specs

Selection focus

Model range: XAC1010-M5 to XAC5010-10
Rated flow: 90-4000 L/min
Port size: M5x0.8, G1/8, G1/4, G3/8, G1/2, G3/4, G1
Metal cup code: U: iron cup; L: aluminum cup for 2000 size and above
Drain code: Blank: Manual drain; D: auto drain for 2000 size and above

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Model code, port, drain, and bowl specifications

21 rows

Model	XAC1010-M5	XAC2010-01	XAC2010-02	XAC3010-02	XAC3010-03	XAC4010-03	XAC4010-04	XAC4010-06	XAC5010-06	XAC5010-10
Series code	XA	XA	XA	XA	XA	XA	XA	XA	XA	XA
function code	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)
body size code	1010	2010	2010	3010	3010	4010	4010	4010	5010	5010
Port size code	M5	01	02	02	03	03	04	06	06	10
Port size	M5x0.8	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
Rated flow (L/min)	90	500	500	1700	1700	3000	3000	3000	4000	4000
Filtration grade	25 μm	25 μm	25 μm	25 μm	25 μm	25 μm	25 μm	25 μm	25 μm	25 μm
Max. working pressure	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa	1.0 MPa
proof pressure	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Adjustable pressure range	0.05-0.7 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa
Recommended oil	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32	ISO VG 32
Bowl material	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Protective cover	Not Available	Available	Available	Available	Available	Available	Available	Available	Available	Available
drain type	Differential drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain	Differential or Automatic drain
drain ordering code	Blank: Manual drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain
Metal Cup ordering code	Not available	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup	U: iron cup; L: aluminum cup
Valve type	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow
Filter / Regulator element	XAW1000-M5	XAW2000-01	XAW2000-02	XAW3000-02	XAW3000-03	XAW4000-03	XAW4000-04	XAW4000-06	XAW5000-06	XAW5000-10
Lubricator element	XAL1000-M5	XAL2000-01	XAL2000-02	XAL3000-02	XAL3000-03	XAL4000-03	XAL4000-04	XAL4000-06	XAL5000-06	XAL5000-10

Additional table

Port size and Mounting dimensions

7 rows

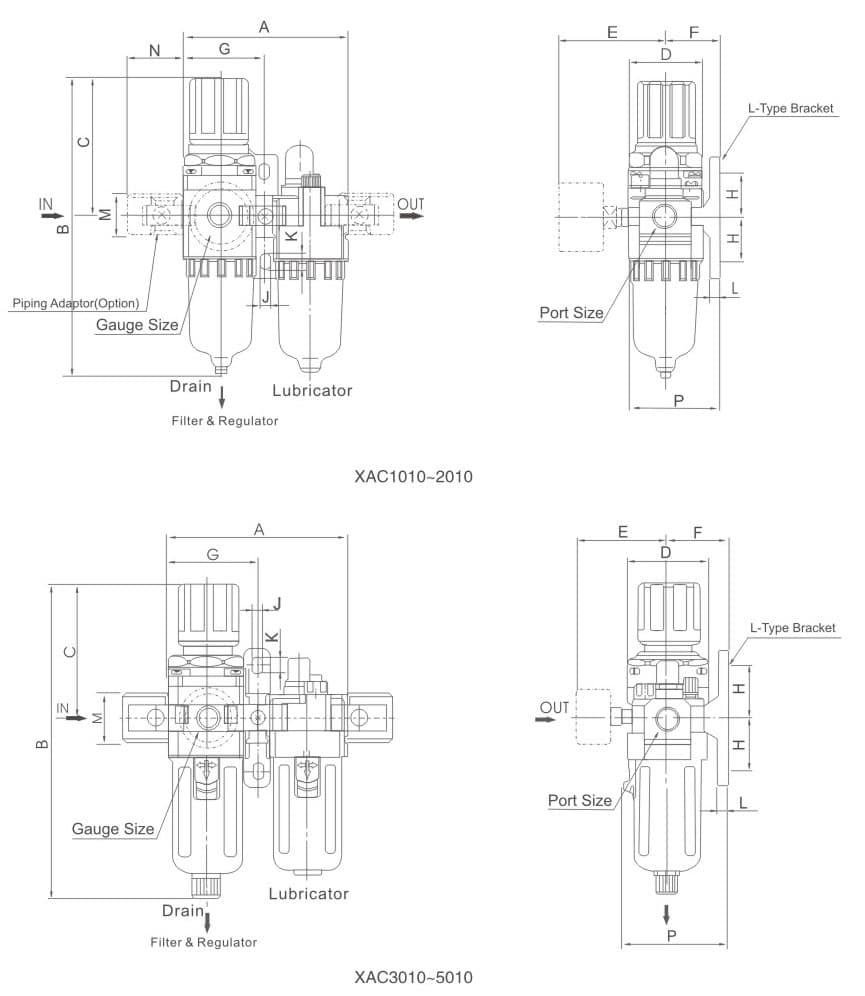

XAC-1000-5000 mounting dimension reference drawing for XAC 1000-5000 Series 2-Element Pneumatic Air Source Treatment Unit

Model	Port size (G)	A	B	C	D	E	F	G	H	J	K	L	M	N	P
XAC1010	M5	58	109.5	50.5	25	26	25	29	20	4.5	7.5	5	17.5	16	38.5
XAC2010	G1/8″-G1/4″	90	164.5	78	40	56.8	30	45	24	5.5	8.5	5	22	23	50
XAC3010	G1/4″-G3/8″	117	211	92.5	53	60.8	41	58.5	35	7	11	7	34.2	26	70.5
XAC4010	G3/8″-G1/2″	154	262	112	70	70.5	50	77	40	9	13	7	43.2	33	88
XAC4010-06	G3-G4″	164	267	114	70	70.5	50	82	40	9	13	7	46.2	36	88
XAC5010	G3/4″-G1″	195	388	116	90	75.5	69.8	97.5	50	12	16	10.5	55.5	40	115

Order Symbol

Series 02

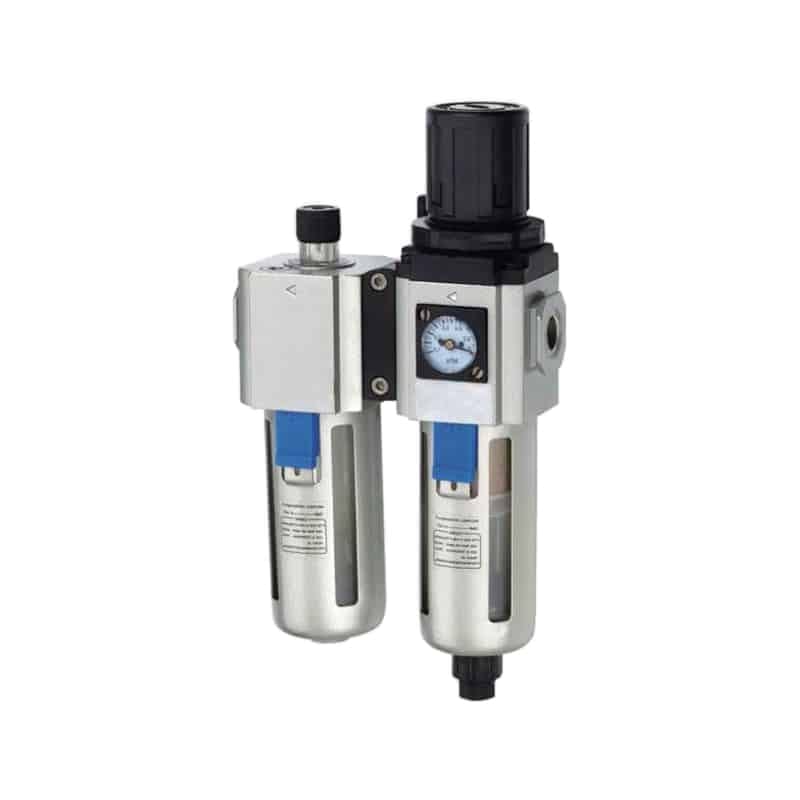

Series: XG Series XGWL 2-Element Pneumatic Air Preparation Unit
Model range: XGWL2-01 to XGWL3-04

Key Specs

Selection focus

Model range: XGWL2-01 to XGWL3-04
Pressure range code: Blank: standard; L: low-pressure type
Port size: G1/8, G1/4, G3/8, G1/2
Drain code: Blank: Differential drain; D: Automatic drain

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Model code, port, drain, and pressure range specifications

13 rows

Model	XGWL2-01	XGWL2-02	XGWL3-02	XGWL3-03	XGWL3-04
Series / body code	XGWL2	XGWL2	XGWL3	XGWL3	XGWL3
function	Filter / Regulator + Lubricator	Filter / Regulator + Lubricator	Filter / Regulator + Lubricator	Filter / Regulator + Lubricator	Filter / Regulator + Lubricator
body size code	2	2	3	3	3
Port size code	01	02	02	03	04
Port size	G1/8	G1/4	G1/4	G3/8	G1/2
drain type code	Blank: Differential drain; D: Automatic drain	Blank: Differential drain; D: Automatic drain	Blank: Differential drain; D: Automatic drain	Blank: Differential drain; D: Automatic drain	Blank: Differential drain; D: Automatic drain
Differential drain order code	XGWL2-01	XGWL2-02	XGWL3-02	XGWL3-03	XGWL3-04
Automatic drain order code	XGWL2-01D	XGWL2-02D	XGWL3-02D	XGWL3-03D	XGWL3-04D
Pressure range code	Blank: standard; L: low-pressure type	Blank: standard; L: low-pressure type	Blank: standard; L: low-pressure type	Blank: standard; L: low-pressure type	Blank: standard; L: low-pressure type
Standard-pressure order code	XGWL2-01	XGWL2-02	XGWL3-02	XGWL3-03	XGWL3-04
Low-pressure order code	XGWL2-01L	XGWL2-02L	XGWL3-02L	XGWL3-03L	XGWL3-04L
Auto drain + low-pressure order code	XGWL2-01DL	XGWL2-02DL	XGWL3-02DL	XGWL3-03DL	XGWL3-04DL

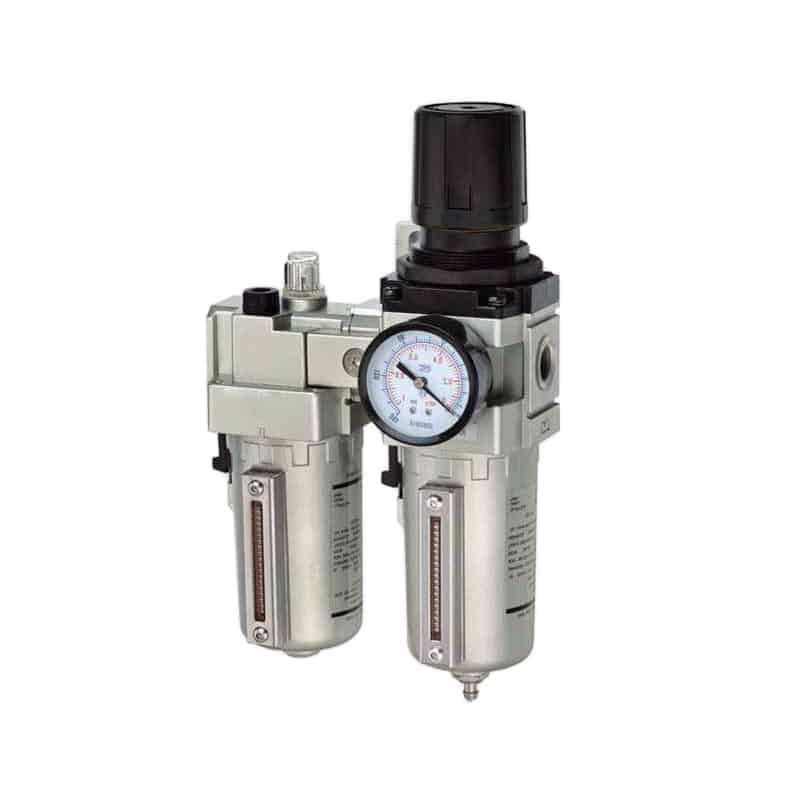

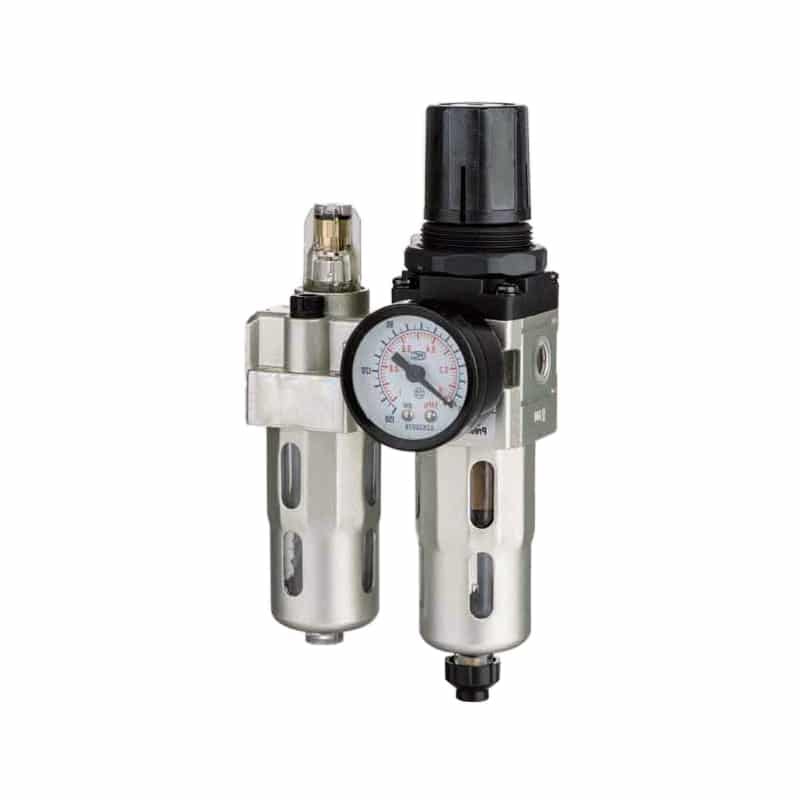

xma series metal cup pneumatic fr unit 2 element product view 1

Order Symbol

Series 03

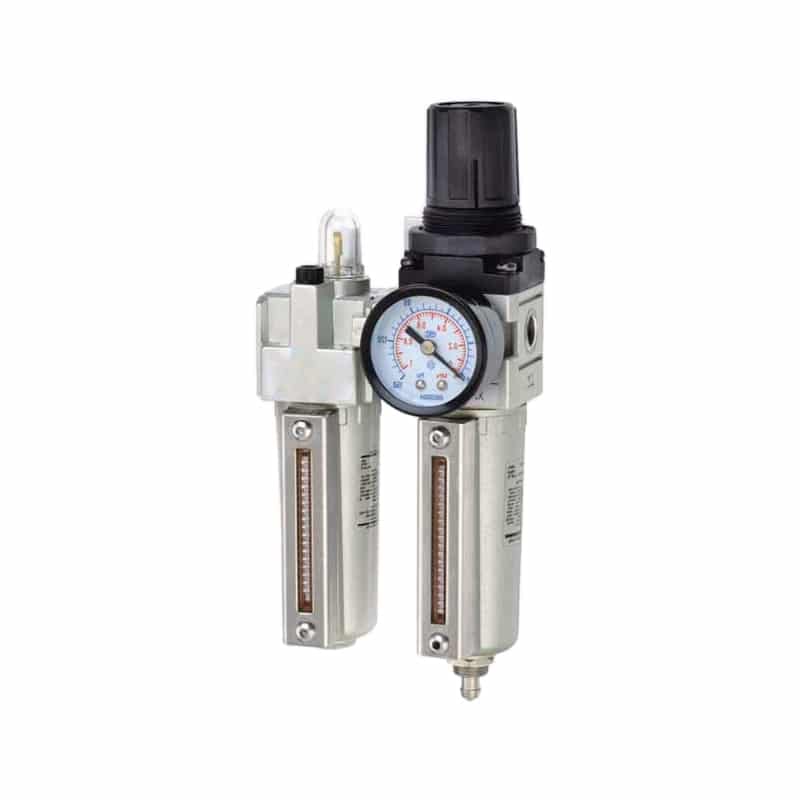

Series: XMA Series Metal Cup Pneumatic FR Unit (2-Element)
Model range: XMAC2010-01 to XMAC5010-10
Port size code: 01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1

Key Specs

Selection focus

Model range: XMAC2010-01 to XMAC5010-10
Port size code: 01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1
Pressure regulating range: 0.05-0.85 MPa
Filter precision: 25 μm / 5 μm / 50 μm
Drain code: Blank: Manual drain; D: auto drain for 3000 and above

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Model code, port, drain, and FRL specifications

20 rows

Model	XMAC2010-01	XMAC2010-02	XMAC3010-02	XMAC3010-03	XMAC4010-03	XMAC4010-04	XMAC4010-06	XMAC5010-06	XMAC5010-10
Series code	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA	XMA
function code	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)	C (F.R.L combination)
Specification code	2010	2010	3010	3010	4010	4010	4010	5010	5010
Port size code	01	02	02	03	03	04	06	06	10
Port size (G)	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G3/4	G3/4	G1
drain type code	Blank: Manual drain only	Blank: Manual drain only	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain	Blank: manual; D: auto drain
Manual drain order code	XMAC2010-01	XMAC2010-02	XMAC3010-02	XMAC3010-03	XMAC4010-03	XMAC4010-04	XMAC4010-06	XMAC5010-06	XMAC5010-10
Auto drain order code	Not available	Not available	XMAC3010-02D	XMAC3010-03D	XMAC4010-03D	XMAC4010-04D	XMAC4010-06D	XMAC5010-06D	XMAC5010-10D
proof pressure	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)	1.5 MPa (15 kgf/cm²)
Max. working pressure	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)	1.0 MPa (10 kgf/cm²)
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Filtration grade	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm	25 μm / 5 μm / 50 μm
Recommended oil	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32	Turbine No.1 Oil ISO VG32
Bowl material	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting	Aluminum die casting
Pressure regulating range	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa
Valve type	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow	With overflow
Filter Regulator element	XMAW2000	XMAW2000	XMAW3000	XMAW3000	XMAW4000	XMAW4000	XMAW4000-06	XMAW5000	XMAW5000
Lubricator element	XMAR2000	XMAR2000	XMAR3000	XMAR3000	XMAR4000	XMAR4000	XMAR4000-06	XMAR5000	XMAR5000
Rated flow (L/min)	500	500	1700	1700	3000	3000	3000	4000	4000

Additional table

Port size and Mounting dimensions

6 rows

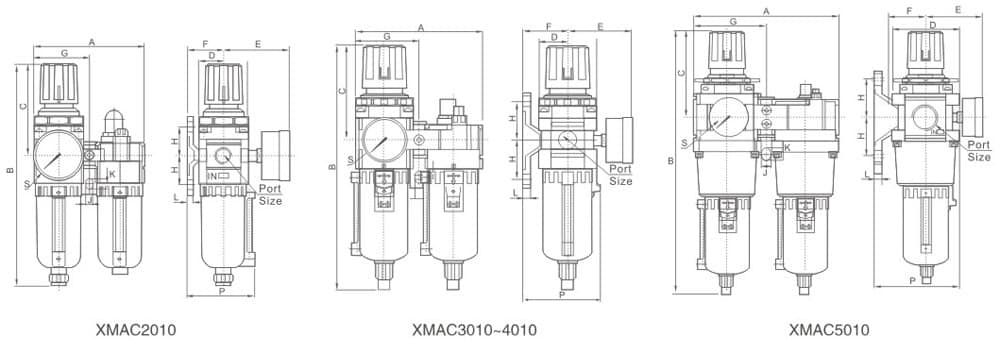

XMA Series Metal Cup Pneumatic FR Unit (2-Element) dimension reference drawing

Model	Port size (G)	A	B	C	D	E	F	G	H	J	K	L	P	S
XMAC2010	G1/8″-G1/4″	90	186.5	78	40	56.8	30	45	24	5.5	8.5	5	56	G1/8″
XMAC3010	G1/4″-G3/8″	117	232.5	92.5	53	60.8	41	58.5	35	7	11	7	70.5	G1/8″
XMAC4010	G1/2″	154	277	112	70	65.5	50	77	40	9	13	7	87.5	G1/4″
XMAC4010-06	G3/4″	164	282.5	114	70	69.5	50	82	40	9	13	7	87.5	G1/4″
XMAC5010	G3/4″-G1″	195	353.5	116	90	75.5	69.8	97.5	50	12	16	10.5	115	G1/4″

afc bfc series 2 element pneumatic air preparation units product view 1

Order Symbol

Series 04

Series: AFC / BFC Series 2-Element Pneumatic Air Preparation Units
Model range: AFC1500, AFC2000, BFC2000, BFC3000, BFC4000
Port size code: 1500: G1/8; 2000: G1/4; 3000: G3/8; 4000: G1/2

Key Specs

Selection focus

Model range: AFC1500, AFC2000, BFC2000, BFC3000, BFC4000
Port size code: 1500: G1/8; 2000: G1/4; 3000: G3/8; 4000: G1/2
Pressure regulating range: 0.05-0.85 MPa
Filtering element roughness: 40 μm
Drain code: Blank: Manual drain; D: auto drain

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old label, installed photo, or preferred product series.
Line size: Confirm port size, thread standard, and required flow.
Air condition: Share inlet pressure, target outlet pressure, and air quality requirement.
Service parts: Confirm filtration grade, drain type, bowl/cup material, gauge, and bracket.
Application: Tell us compressor line, machine position, environment, and quantity.

Selection snapshot

Model code, port, drain, and bowl specifications

23 rows

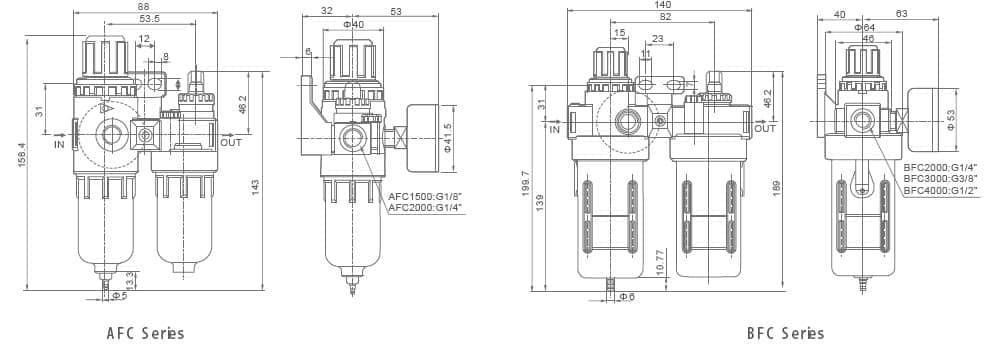

AFC & BFC Series 2-Element Pneumatic Air Preparation Units dimension reference drawing

Model	AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Series code	AFC	AFC	BFC	BFC	BFC
Series size	Small size	Small size	Middle size	Middle size	Middle size
Port size code	1500	2000	2000	3000	4000
Port size	G1/8	G1/4	G1/4	G3/8	G1/2
drain type code	Blank: Manual drain; D: auto drain	Blank: Manual drain; D: auto drain	Blank: Manual drain; D: auto drain	Blank: Manual drain; D: auto drain	Blank: Manual drain; D: auto drain
Manual drain order code	AFC1500	AFC2000	BFC2000	BFC3000	BFC4000
Auto drain order code	AFC1500D	AFC2000D	BFC2000D	BFC3000D	BFC4000D
Operating fluid	Air	Air	Air	Air	Air
Filtering element roughness	40 μm	40 μm	40 μm	40 μm	40 μm
Adjustable pressure range	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa	0.05-0.85 MPa
Max. adjustable pressure	0.95 MPa	0.95 MPa	0.95 MPa	0.95 MPa	0.95 MPa
proof pressure	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa	1.5 MPa
Operating temperature range	5-60 °C	5-60 °C	5-60 °C	5-60 °C	5-60 °C
Filter cup capacity	15 cc	15 cc	60 cc	60 cc	60 cc
Oil feed cup capacity	25 cc	25 cc	90 cc	90 cc	90 cc
Suggested lube	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil	ISO VG 32 or same grade oil
Weight	0.5 kg	0.5 kg	0.7 kg	0.7 kg	0.7 kg
Body material	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming	Aluminum die-casting forming
Container cup	PE	PE	PE	PE	PE
Protective cup cover	Not available	Not available	Iron	Iron	Iron
Filter Regulator element	AFR1500	AFR2000	BFR2000	BFR3000	BFR4000
Lubricator element	AL1500	AL2000	BL2000	BL3000	BL4000

Same-group comparison

Filter Lubricator Units series comparison

Compare related product series by function, size, pressure, and RFQ details.

5 related series

Series	Port size	function	Flow range	Pressure range	Filtration and drain	Bowl material
XAC Standard Filter Lubricator	M5x0.8, G1/8, G1/4, G3/8, G1/2, G3/4, G1	Filter Lubricator	90-4000 L/min	-	25 μm	Polycarbonate
XGWL Modular Filter Lubricator	G1/8, G1/4, G3/8, G1/2	FRL Unit	-	-	Automatic condensate drain	-
XMAC Metal-Cup Filter Lubricator	01: G1/8; 02: G1/4; 03: G3/8; 04: G1/2; 06: G3/4; 10: G1	Metal Cup Filter Regulator	500-4000 L/min	0.05-0.85 MPa	25 μm / 5 μm / 50 μm; Manual drain	Aluminum die-cast body
AFC/BFC Standard Filter Lubricator	1500: G1/8; 2000: G1/4; 3000: G3/8; 4000: G1/2	FRL Unit	-	0.05-0.85 MPa	Manual drain	Aluminum die-cast body

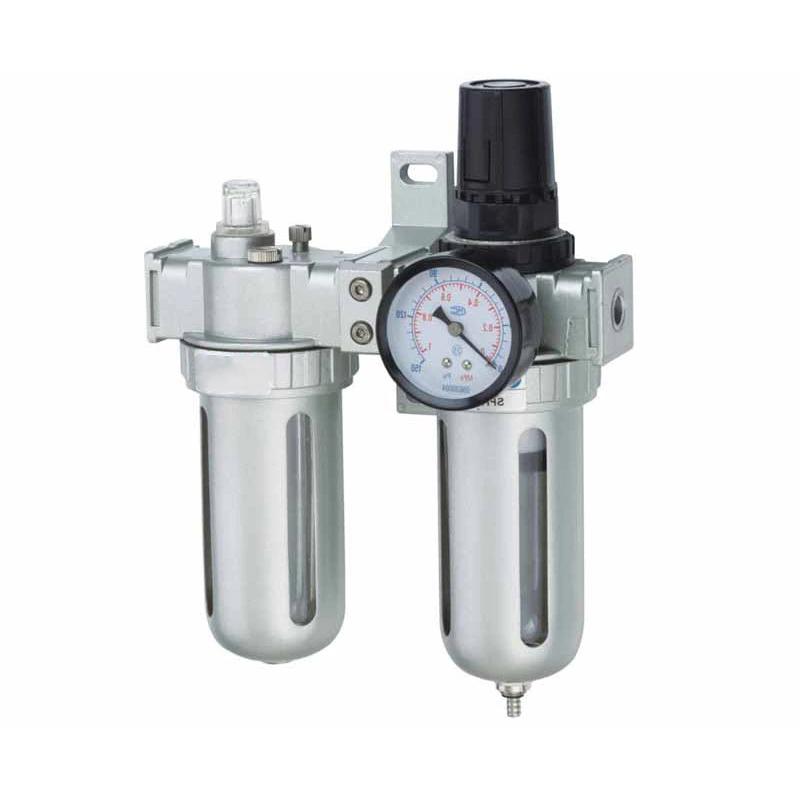

XS Compact Filter Lubricator	200: G1/4; 300: G3/8; 400: G1/2	FRL Unit	-	-	-	-

Choose by air-preparation job

Start with the air quality or pressure job.

Pick the closest FRL use case, then confirm port size, flow, pressure range, filtration, drain, bowl, gauge, and service access before RFQ.

Scenario 01

Prepare air for circuits that still require lubrication.

Confirm whether downstream devices allow or require oil mist before selecting a filter lubricator.

Recommended option

Filter lubricator unit selected by flow, pressure, bowl, drain, and oil-feed adjustment.

Lubrication requirement
Flow
Port thread
Bowl material

Common FRL uses

Where air preparation units protect the pneumatic line.

XAC 1000-5000 Series 2-Element Pneumatic Air Source Treatment Unit product image

FRL use 01

Lubricated actuator branches

Use filter-lubricator units where downstream cylinders, valves, or pneumatic tools require oil mist and pressure is already regulated upstream.

Confirm lubrication is allowed
Check oil-feed adjustment
Match port size and flow

XG Series XGWL 2-Element Pneumatic Air Preparation Unit product image

FRL use 02

Pneumatic tool air supply

Review function, size, pressure, mounting, and inquiry data for Filter Lubricator Units.

Confirm working pressure
Review oil type
Keep the bowl accessible

XMA Series Metal Cup Pneumatic FR Unit (2-Element) product image

FRL use 03

Compact two-element prep stations

Use filter-lubricator assemblies in compact panels when filtration and lubrication belong together but pressure regulation is handled elsewhere.

Check station width
Confirm drain position
Plan refill access

Compressed-air tools

Review pressure stability and air capacity before selecting FRL units.

Pair filters, regulators, lubricators, and complete FRL units with pressure-drop, compressor, receiver, and pressure-unit checks.

Open Compressed air tools

01Valves & flow

Pressure Drop Calculator

Estimate pressure loss across air lines before sizing FRL components.

FlowPipe lengthEquivalent fitting lengthOpen calculator 02Compressed air

Compressor CFM Calculator

Check compressor capacity against expected pneumatic demand.

Receiver volumeStart pressureEnd pressureOpen calculator 03Compressed air

Air Receiver Tank Sizing Calculator

Review receiver volume when pressure stability matters.

Demand flowCompressor support flowDurationOpen calculator 04Unit conversion

Pressure Converter

Convert pressure units for FRL, regulator, and filter specifications.

Pressure valueSource pressure unitOpen calculator

Request category support

Send the details that make this Filter Lubricator Units inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Model code or installed product photo
Port size, thread standard, and rated flow
Pressure range, filtration grade, and drain type
Bowl material, bracket, gauge, and environment requirements

Category FAQ

Common questions before sending an inquiry.

01Filter Lubricator UnitsWhat is the difference between a filter lubricator and a full FRL unit?

A filter lubricator combines filtration and lubrication. A full FRL unit adds pressure regulation as the third function.

02Filter Lubricator UnitsShould every pneumatic line use a lubricator?

No. Many modern pneumatic components run with dry air. Confirm downstream component requirements before adding lubrication.

Filter Lubricator Units

Use filter lubricator units when filtration and oil support belong together.

Filter Lubricator Units: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

Model code, port, drain, and bowl specifications

Port size and Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Model code, port, drain, and pressure range specifications

Order Symbol

Key Specs

Quote Checklist

Model code, port, drain, and FRL specifications

Port size and Mounting dimensions

Order Symbol

Key Specs

Quote Checklist

Model code, port, drain, and bowl specifications

Order Symbol

Key Specs

Quote Checklist

S series ordering code and pressure specifications

Filter Lubricator Units series comparison

Start with the air quality or pressure job.

Prepare air for circuits that still require lubrication.

Match the two-element air-prep station already installed.

Fit filtration and lubrication into a compact station.

Where air preparation units protect the pneumatic line.

Lubricated actuator branches

Pneumatic tool air supply

Compact two-element prep stations

Review pressure stability and air capacity before selecting FRL units.

Pressure Drop Calculator

Compressor CFM Calculator

Air Receiver Tank Sizing Calculator

Pressure Converter

Send the details that make this Filter Lubricator Units inquiry review-ready.

Filter Lubricator Units RFQ details

Common questions before sending an inquiry.
