Compact Guide Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Compact Guide Pneumatic Cylinders.

View product specifications Build a compact guide cylinder RFQ

Integrated guideSide-load supportCompact footprintPrecision positioning

Category buying guide

Review function, size, pressure, mounting, and inquiry data for Compact Guide Pneumatic Cylinders.

Compact guide cylinder selection should focus on space saving, load capacity, precision guidance, guide type, allowable side load, moment load, repeatability, sensor compatibility, and available machine envelope.

Pneumatic cylinder categories

01Rodless Cylinders 02Standard Cylinders 03Mini Cylinders 04Thin and Compact Cylinders 05Slide Table Cylinders 06Compact Guide Cylinders 07Pneumatic Grippers 08Double Rod Cylinders 09Rotary Actuators 10Cylinder Accessories 11Other Cylinders

Compact Guide Pneumatic Cylinders • Product specifications

Compact Guide Pneumatic Cylinders: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

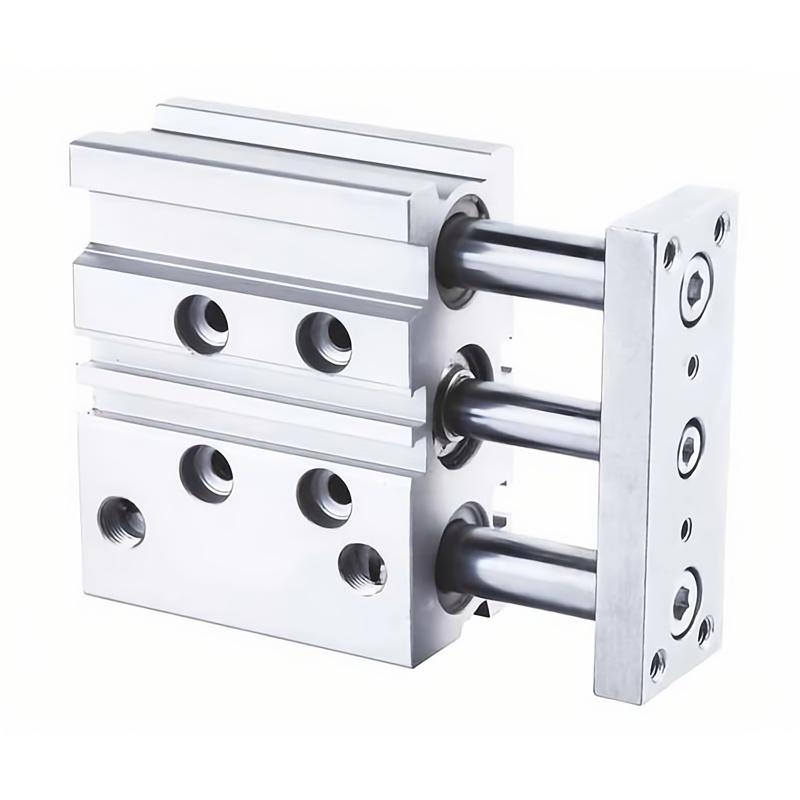

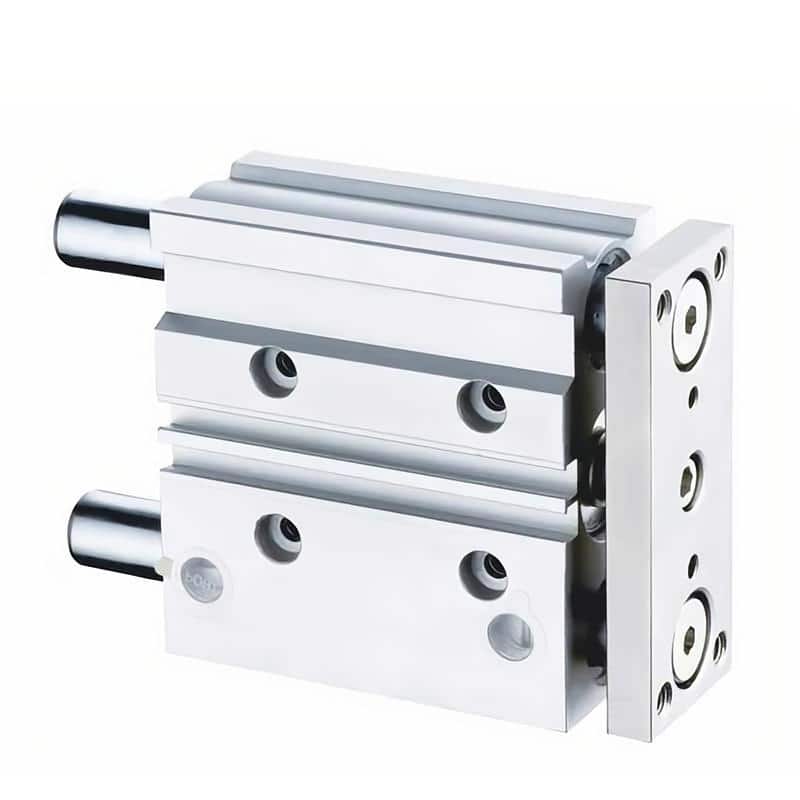

mgp series three rod guided pneumatic cylinder product view 1

Order Symbol

Series 01

Series: MGP Series Three-Rod Guided Pneumatic Cylinder

Key Specs

Selection focus

Bore(mm): 12, 16, 20, 25
Tolerance of Stroke: +1.5 0 mm
Ensured Pressure Resistance: 1.5 MPa (15.3 kgf/cm²)
Motion Pattern: Double-action
Piston Speed: 50-500 mm/s, 50-400 mm/s

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

Model / photo: Send the old model code, nameplate photo, or replacement sample photo.
Motion data: Confirm bore or size, stroke or angle, speed, and load direction.
Mounting: Share mounting style, thread, port size, sensors, and accessory needs.
Working air: Confirm pressure range, air quality, cushion, and duty cycle.
Application: Send drawings, installation space, quantity, and target delivery timing.

Selection snapshot

Bore, stroke, and pressure specifications

12 rows

Specification	12	16	20	25	32	40	50	63	80	100
Working medium	Air	Air	Air	Air	Air	Air	Air	Air	Air	Air
Motion pattern	Double-action	Double-action	Double-action	Double-action	Double-action	Double-action	Double-action	Double-action	Double-action	Double-action
proof pressure	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)	1.5 MPa (15.3 kgf/cm²)
Max. operating pressure	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)	1.0 MPa (10.2 kgf/cm²)
Min. operating pressure	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)	0.12 MPa (1.2 kgf/cm²)
Ambient and medium temperature	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C	-10-+60 °C
piston speed	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-500 mm/s	50-400 mm/s	50-400 mm/s
Buffer	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion	Rubber cushion
Tolerance of Stroke	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm	+1.5 / 0 mm
Bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing	Slide bearing / ball guide bearing
Port size	M5×0.8	M5×0.8	G1/8″	G1/8″	G1/8″	G1/8″	G1/4″	G1/4″	G3/8″	G3/8″

Additional table

Non-rotating precision by bearing type

3 rows

Bearing type	12	16	20	25	32	40	50	63	80	100
Slide bearing	±0.08°	±0.08°	±0.07°	±0.07°	±0.06°	±0.06°	±0.05°	±0.05°	±0.04°	±0.04°
Ball guide bearing	±0.10°	±0.10°	±0.09°	±0.09°	±0.08°	±0.08°	±0.06°	±0.06°	±0.05°	±0.05°

Additional table

Standard stroke options

4 rows

bore size (mm)	Standard stroke (mm)
12, 16	10 20 30 40 50 75 100 125 150 175 200 250
20, 25	20 30 40 50 75 100 125 150 175 200 250 300 350 400
32 to 100	25 50 75 100 125 150 175 200 250 300 350 400

Additional table

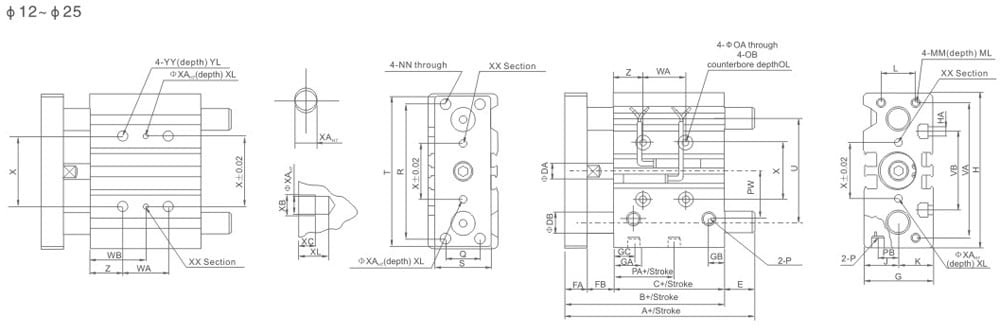

Mounting dimensions, bore 12-25: B through OA

5 rows

MGP Series Three-Rod Guided Pneumatic Cylinder bore 12-25 mounting dimension drawing

bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	H	HA	J	K	L	MM	mL	NN	OA
12	10 20 30 40 50 75 100	42	29	6	8	5	26	11	7.5	58	M4	13	13	18	M4×0.7	10	M4×0.7	4.3
16	10 20 30 40 50 75 100	46	33	8	8	5	30	11	8	64	M4	15	15	22	M5×0.8	12	M5×0.8	4.3
20	20 30 40 50 75 100 125 150 175 200	53	37	10	10	6	36	10.5	8.5	83	M5	18	18	24	M5×0.8	13	M5×0.8	5.6
25	20 30 40 50 75 100 125 150 175 200	53.5	37.5	12	10	6	42	11.5	9	93	M5	21	21	30	M6×1.0	15	M6×1.0	5.6

Additional table

Mounting dimensions, bore 12-25: OB through Z

5 rows

bore size	Standard stroke (mm)	OB	OL	P	PA	PB	PW	Q	R	S	T	U	VA	VB	X	XA	XB	XC	YL	Z
12	10 20 30 40 50 75 100	8	4.5	M5×0.8	13	8	18	14	48	22	56	41	50	37	23	3	3.5	3	10	5
16	10 20 30 40 50 75 100	8	4.5	M5×0.8	15	10	19	16	54	25	62	46	56	38	24	3	3.5	3	10	5
20	20 30 40 50 75 100 125 150 175 200	9.5	5.5	RC1/8	12.5	10.5	25	18	70	30	81	54	72	44	28	3	3.5	3	12	17
25	20 30 40 50 75 100 125 150 175 200	9.5	5.5	RC1/8	12.5	13.5	28.5	26	78	38	91	64	82	50	34	4	4.5	3	12	17

Additional table

Stroke-dependent WA/WB dimensions, bore 12-25

6 rows

bore size	Standard stroke (mm)	WA	WA	WA	WB	WB	WB	XL	YY
bore size	Standard stroke (mm)	30 st or less	Over 40 st to 100 st	125 st or less	30 st or less	Over 40 st to 100 st	125 st or less	XL	YY
12	10 20 30 40 50 75 100	20	40	-	15	25	-	6	M5×0.8
16	10 20 30 40 50 75 100	24	44	-	17	27	-	6	M5×0.8
20	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0
25	20 30 40 50 75 100 125 150 175 200	24	44	120	29	39	77	6	M6×1.0

Additional table

Bearing offset dimensions, bore 12-16

3 rows

bore size	A ≤50 st	A >50 to ≤100 st	A >100 st	DB	E ≤50 st	E >50 to ≤100 st	E >100 st
12	42	60.5	85	8	0	18.5	43
16	46	64.5	95	10	0	18.5	49

Additional table

Short-stroke offset dimensions, bore 12-16

3 rows

bore size	A ≤30 st	A >30 to ≤100 st	A >100 st	DB	E ≤30 st	E >30 to ≤100 st	E >100 st
12	43	55	85	6	1	13	43
16	49	65	95	8	3	19	49

Additional table

Bearing offset dimensions, bore 20-25

3 rows

bore size	A ≤50 st	A >50 to ≤200 st	A >200 st	DB	E ≤50 st	E >50 to ≤200 st	E >200 st
20	53	84.5	122	16	0	31.5	69
25	53.5	85	122	20	0	31.5	68.5

Additional table

Short-stroke offset dimensions, bore 20-25

3 rows

bore size	A ≤30 st	A >30 to ≤100 st	A >100 to ≤200 st	A >200 st	DB	E ≤30 st	E >30 to ≤100 st	E >100 to ≤200 st	E >200 st
20	63	80	104	122	10	16	27	51	69
25	69.5	80.5	104.5	122	13	16	32	51	68.5

Additional table

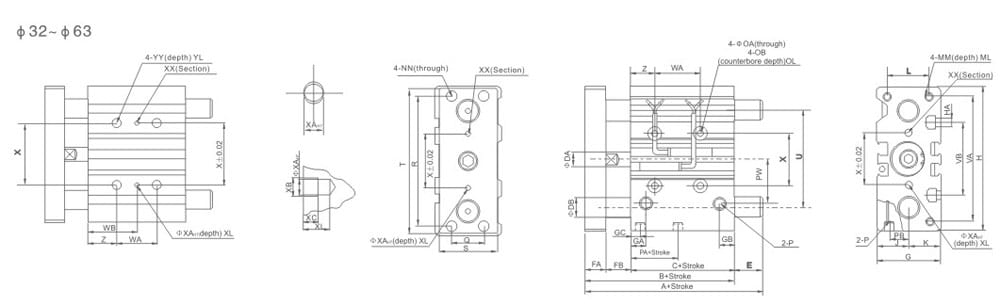

Mounting dimensions, bore 32-63: B through Q

5 rows

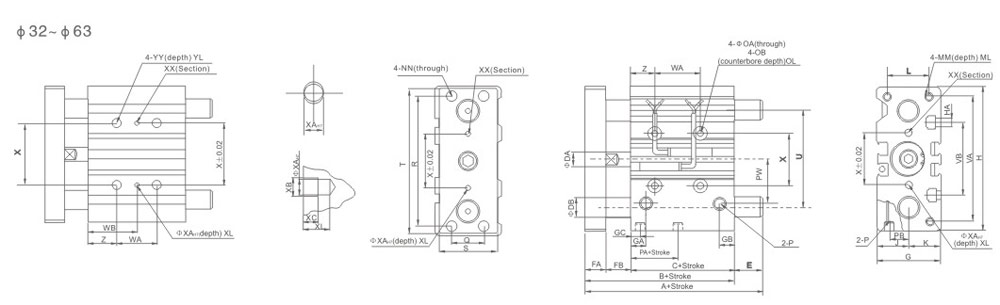

MGP Series Three-Rod Guided Pneumatic Cylinder bore 32-63 mounting dimension drawing

bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	K	L	MM	mL	NN	OA	OB	OL	P	PA	PB	PW	Q
32	25, 50, 70, 100, 125, 150, 175, 200	59.5	37.5	16	12	10	48	12.5	9	12.5	112	M6	24	24	34	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	7	15	34	30
40	25, 50, 70, 100, 125, 150, 175, 200	66	44	16	12	10	54	14	10	14	120	M6	27	27	40	M8×1.25	20	M8×1.25	6.6	11	7.5	RC1/8	13	18	38	30
50	25, 50, 70, 100, 125, 150, 175, 200	72	44	20	16	12	64	14	11	12	148	M8	32	32	46	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	9	21.5	47	40
63	25, 50, 70, 100, 125, 150, 175, 200	77	49	20	16	12	78	16.5	13.5	16.5	162	M10	39	39	58	M10×1.5	22	M10×1.5	8.6	14	9	RC1/4	14	28	55	50

Additional table

Mounting dimensions, bore 32-63: R through Z

5 rows

R	S	T	U	VA	VB	X	XA	XB	XC	XL	Z
96	44	110	78	98	63	42	4	4.5	3	6	21
104	44	118	85	106	72	50	4	4.5	3	6	22
130	60	146	110	130	92	66	5	6	4	8	24
130	70	158	124	142	110	80	5	6	4	8	24

Additional table

MGPM slide-bearing offset dimensions, bore 32-63

5 rows

bore size	A ≤50 st	A >50 to ≤200 st	A >200 st	DB	E ≤50 st	E >50 to ≤200 st	E >200 st
32	97	102	140	20	37.5	42.5	80.5
40	97	102	140	20	31	36	74
50	106.5	118	161	25	34.5	46	89
63	106.5	118	161	25	29.5	41	84

Additional table

MGPL ball-bushing offset dimensions, bore 32-63

5 rows

bore size	A ≤50 st	A >50 to ≤100 st	A >100 to ≤200 st	A >200 st	DB	E ≤50 st	E >50 to ≤100 st	E >100 to ≤200 st	E >200 st
32	81	98	118	140	16	21.5	38.5	58.5	80
40	81	98	118	140	16	15	32	52	74
50	93	114	134	161	20	21	42	62	89
63	93	114	134	161	20	16	37	57	84

Additional table

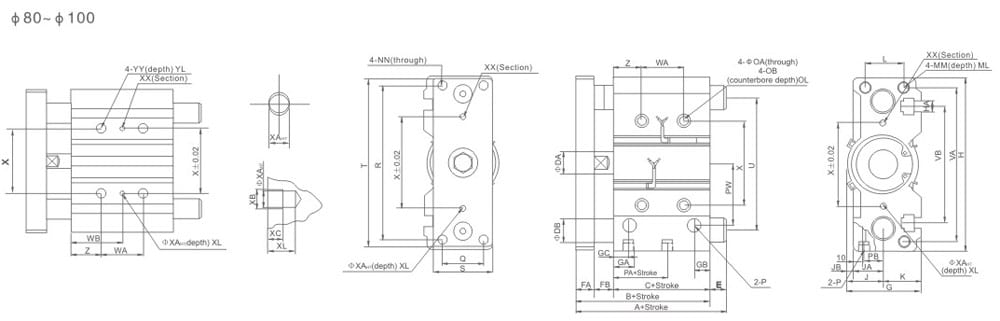

Mounting dimensions, bore 80-100: B through PB

3 rows

MGP Series Three-Rod Guided Pneumatic Cylinder bore 80-100 mounting dimension drawing

bore size	Standard stroke (mm)	B	C	DA	FA	FB	G	GA	GB	GC	H	HA	J	LA	LB	K	L	MM	mL	NN	OA	OB	OL	P	PA	PB
80	25, 50, 70, 100, 125, 150, 175, 200	95.5	56.5	25	22	18	91.5	19	15.5	14.5	202	M12	45.5	38	7.5	46	54	M12×1.75	30	M12×1.75	10.6	17.5	8	RC3/8	14.5	25.5
100	25, 50, 70, 100, 125, 150, 175, 200	116	66	30	25	111.5	23	23	19	18	240	M14	55.5	45	10.5	56	62	M14×2.0	32	M14×2.0	12.5	20	8	RC3/8	17.5	32.5

Additional table

Mounting dimensions, bore 80-100: PW through Z

4 rows

bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	WA	WA	WA	WB	WB	WB	X	XA	XB	XC	XL	YY	YL	Z
bore size	Standard stroke (mm)	PW	Q	R	S	T	U	VA	VB	25st	50, 75, 100st	100st or above	25st	50, 75, 100st	100st or above	X	XA	XB	XC	XL	YY	YL	Z
80	25, 50, 70, 100, 125, 150, 175, 200	74	52	174	75	198	156	180	140	28	52	128	42	54	92	100	6	7	5	10	M12×1.75	24	28
100	25, 50, 70, 100, 125, 150, 175, 200	89	64	210	90	236	188	210	166	48	72	148	35	47	85	124	6	7	5	10	M14×2.0	28	11

Additional table

MGPM slide-bearing offset dimensions, bore 80-100

3 rows

bore size	A ≤50 st	A >50 to ≤200 st	A >200 st	DB	E ≤50 st	E >50 to ≤200 st	E >200 st
80	115	142	193	30	18.5	45.5	96.5
100	137	162	203	36	21	46	87

Additional table

MGPL ball-bushing offset dimensions, bore 80-100

3 rows

bore size	A ≤50 st	A >25 to ≤50 st	A >50 to ≤200 st	A >200 st	DB	E ≤50 st	E >25 to ≤50 st	E >50 to ≤200 st	E >200 st
80	109.5	130	160	193	25	13	33.5	63.5	96.5
100	121	147	180	203	30	5	31	64	87

Same-group comparison

Compact Guide Pneumatic Cylinders series comparison

Compare related product series by function, size, pressure, and RFQ details.

1 related series

Series	Bore / size	Motion	Pressure range	Stroke / angle	Speed / repeatability	Port thread
MGP Guided Cylinder	12, 16, 20, 25, 32, 40, 50, 63, 80, 100	Guided Cylinder	1.5 MPa (15.3 kgf/cm²)	+1.5 0 mm	50-500 mm/s, 50-400 mm/s	M5×0.8, G1/8", G1/4", G3/8"

Choose by motion job

Start with the motion the actuator must make.

Pick the closest actuator use case, then confirm bore, stroke, load, mounting, pressure, speed, and space constraints before RFQ.

Scenario 01

Move a plate or tool with side load exposure.

The integrated guide should be reviewed against pitch, yaw, and roll moments, not only cylinder bore.

Recommended option

Compact guide cylinder with moment-load and mounting-face confirmation.

Load center
Moment direction
Stroke
Mounting surface

Common actuator uses

Where pneumatic actuators do the machine work.

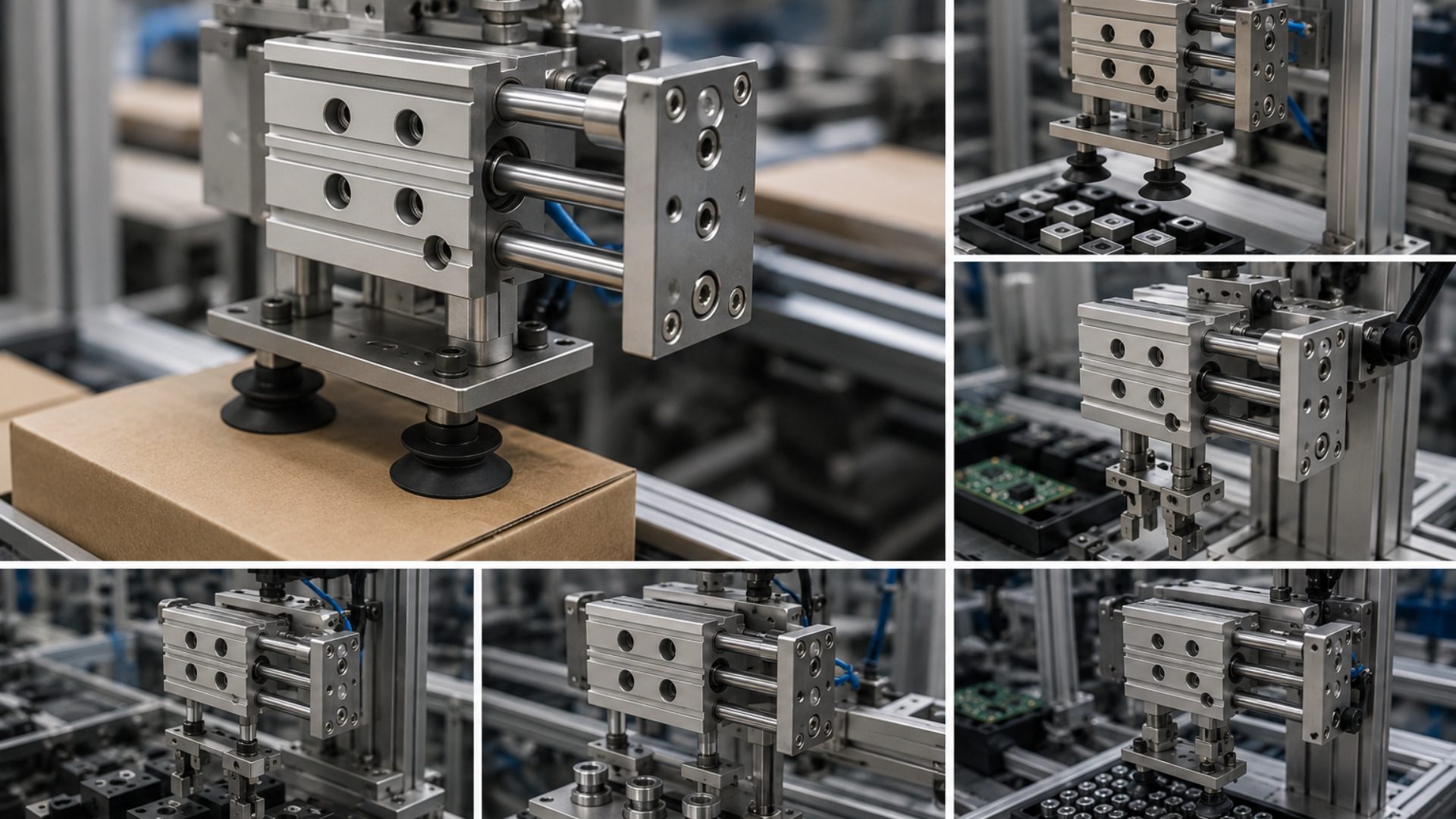

Compact guide pneumatic cylinder pick and place station application

Actuator use 01

Pick and place stations

Review function, size, pressure, mounting, and inquiry data for Compact Guide Pneumatic Cylinders.

Confirm moment load
Review plate size
Check stroke

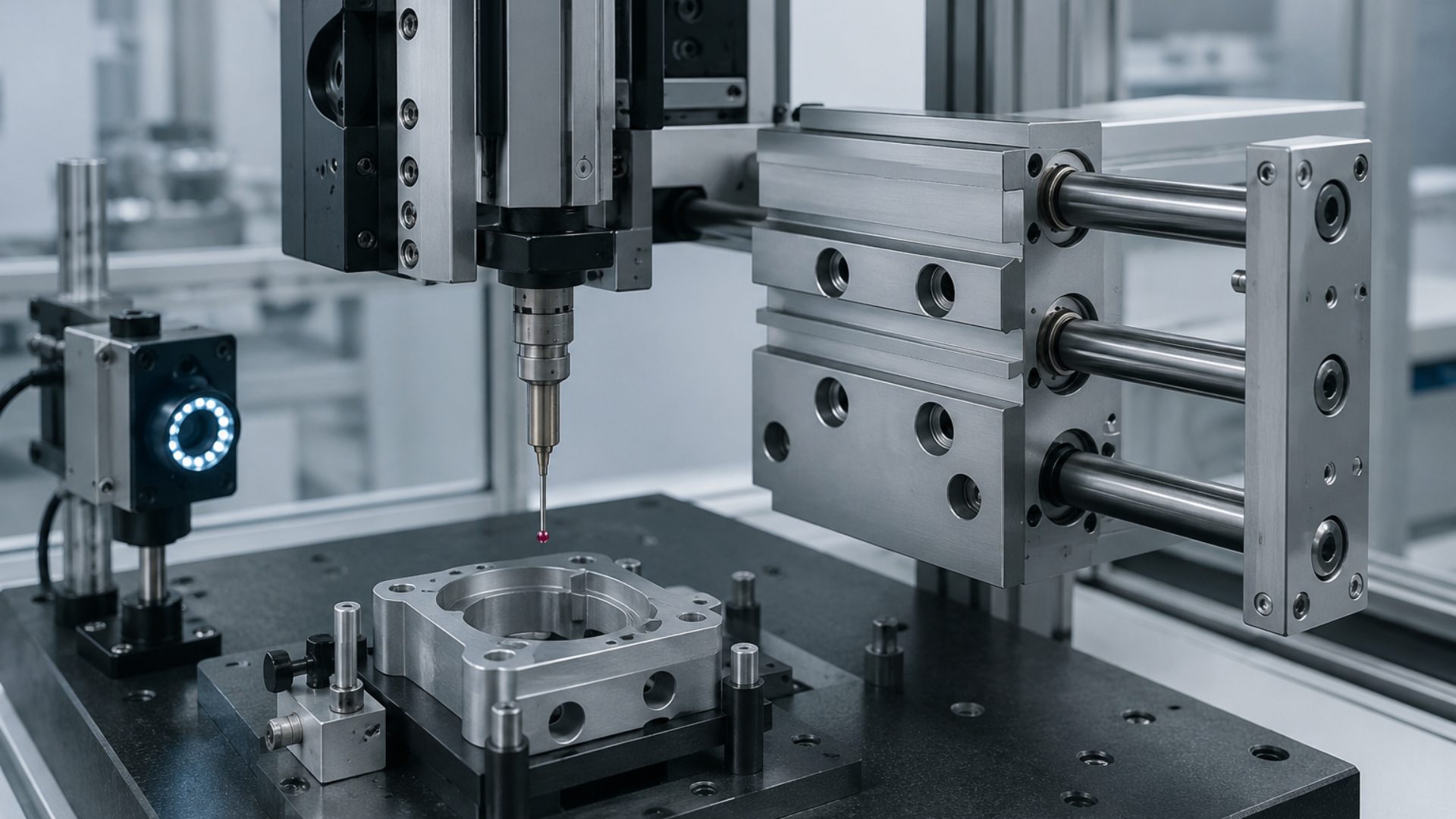

Actuator use 02

Inspection and testing equipment

Integrated guided actuators support probe motion, part locating, and short precision moves in compact machines.

Share repeatability need
Check mounting flatness
Review sensor feedback

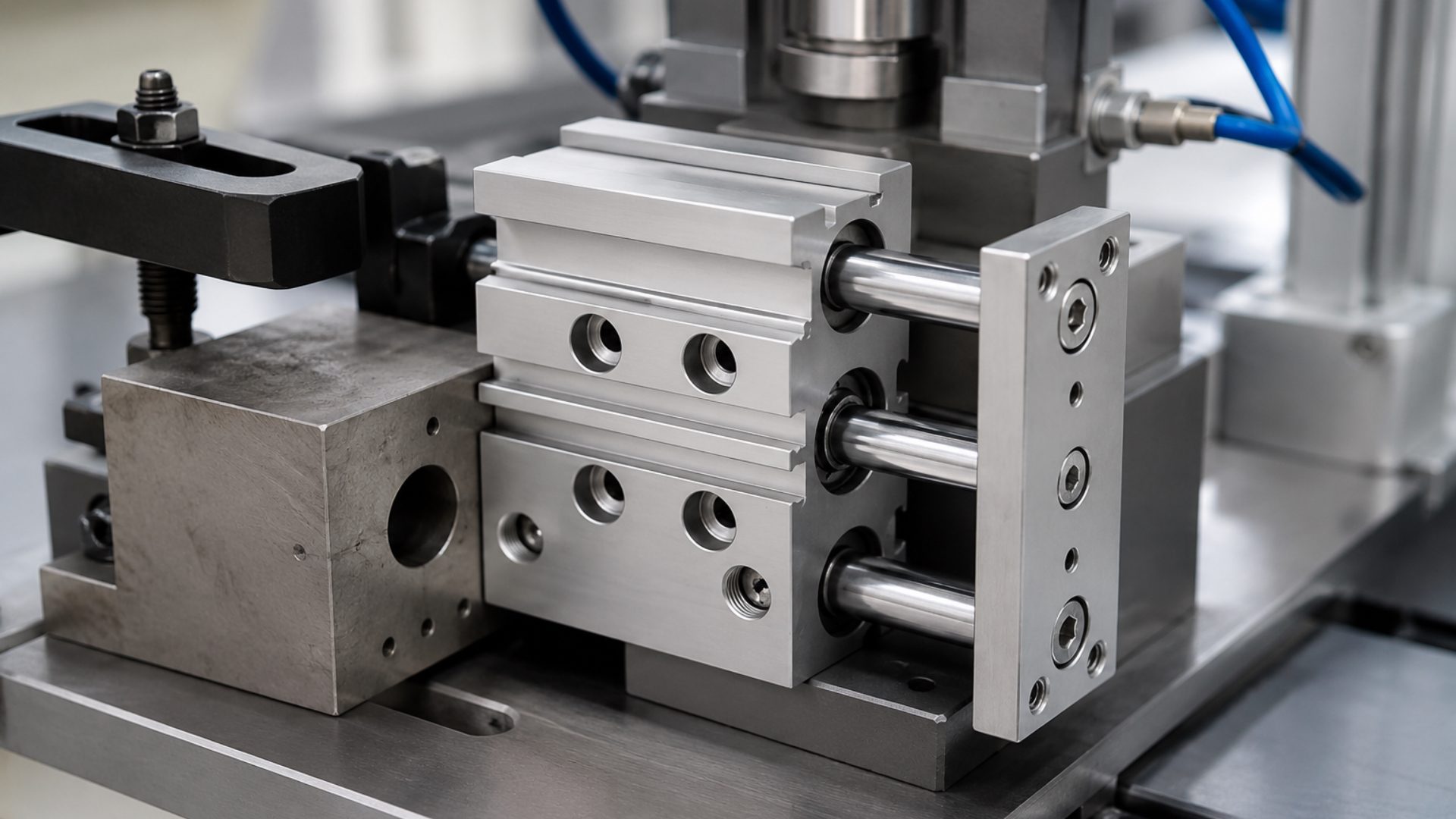

Compact guide pneumatic cylinder clamping and holding fixture application

Actuator use 03

Clamping and holding fixtures

Review function, size, pressure, mounting, and inquiry data for Compact Guide Pneumatic Cylinders.

Confirm side force
Review guide type
Send fixture drawing

Cylinder sizing tools

Calculate load, bore, buckling, and cushion energy before selecting a cylinder.

Use these calculators when a linear cylinder decision depends on force margin, rod stability, stroke speed, and end-of-stroke energy.

Open Cylinder sizing tools

01Cylinder sizing

Cylinder Force Calculator

Check push and pull force before choosing bore, pressure, and safety factor.

Bore diameterRod diameterWorking pressureOpen calculator 02Cylinder sizing

Cylinder Bore Size Calculator

Convert a known load into a practical starting bore size.

Sizing input modeRequired load or moving massTravel orientationOpen calculator 03Cylinder sizing

Cylinder Rod Buckling Calculator

Check long-stroke rod stability before confirming bore and mounting.

Rod diameterUnsupported lengthEnd condition factorOpen calculator 04Cylinder sizing

Cylinder Cushion Energy Calculator

Review cushion energy when speed, mass, and stroke-end impact matter.

Moving massImpact velocityDrive forceOpen calculator

Request category support

Send the details that make this Compact Guide Pneumatic Cylinders inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

Payload, stroke, and mounting orientation
Allowable side load and moment
Guide type and repeatability target
Sensor, port, and space constraints

Category FAQ

Common questions before sending an inquiry.

01Compact Guide Pneumatic CylindersWhat is the main benefit of a compact guide cylinder?

It combines cylinder force and linear guidance in one compact unit, reducing design work and helping control rotation, side load, and moment load.

02Compact Guide Pneumatic CylindersHow do I size a compact guide cylinder?

Review bore and stroke for force and travel, then check payload, load offset, moment load, guide type, speed, and mounting orientation.

03Compact Guide Pneumatic CylindersCan Bepto Pneumatic help replace a guided cylinder from photos?

Yes. Send photos, model code, stroke, bore, guide type, mounting holes, plate dimensions, and application notes for review.

Compact Guide Pneumatic Cylinders

Review function, size, pressure, mounting, and inquiry data for Compact Guide Pneumatic Cylinders.

Compact Guide Pneumatic Cylinders: key specs for fast selection

Order Symbol

Key Specs

Quote Checklist

Bore, stroke, and pressure specifications

Non-rotating precision by bearing type

Standard stroke options

Mounting dimensions, bore 12-25: B through OA

Mounting dimensions, bore 12-25: OB through Z

Stroke-dependent WA/WB dimensions, bore 12-25

Bearing offset dimensions, bore 12-16

Short-stroke offset dimensions, bore 12-16

Bearing offset dimensions, bore 20-25

Short-stroke offset dimensions, bore 20-25

Mounting dimensions, bore 32-63: B through Q

Mounting dimensions, bore 32-63: R through Z

MGPM slide-bearing offset dimensions, bore 32-63

MGPL ball-bushing offset dimensions, bore 32-63

Mounting dimensions, bore 80-100: B through PB

Mounting dimensions, bore 80-100: PW through Z

MGPM slide-bearing offset dimensions, bore 80-100

MGPL ball-bushing offset dimensions, bore 80-100

Compact Guide Pneumatic Cylinders series comparison

Start with the motion the actuator must make.

Move a plate or tool with side load exposure.

Fit a guided actuator into a crowded fixture.

Position a small part or probe repeatably.

Where pneumatic actuators do the machine work.

Pick and place stations

Inspection and testing equipment

Clamping and holding fixtures

Calculate load, bore, buckling, and cushion energy before selecting a cylinder.

Cylinder Force Calculator

Cylinder Bore Size Calculator

Cylinder Rod Buckling Calculator

Cylinder Cushion Energy Calculator

Send the details that make this Compact Guide Pneumatic Cylinders inquiry review-ready.

Compact Guide Pneumatic Cylinders RFQ details

Common questions before sending an inquiry.
