operator valve category

Foot Operated Directional Valves

Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.

View product specificationsBuild a valve RFQ
Pedal operationHands-free controlGuarded optionsDirectional switching

Category buying guide

Choose pedal valves by operator action and circuit function.

A foot valve inquiry should identify the valve function, pedal type, guard requirement, return method, port thread, and working pressure.

Pneumatic valve categories
01Solenoid Valves02Air Control Valves03Manual Control Valves04Mechanical Valves05Flow Control Valves06Fluid Solenoid Valves07Foot Operated Valves
Foot Operated Directional Valves • Product specifications

Foot Operated Directional Valves: key specs for fast selection

Each product series includes images, order cues, key specifications, and comparison tables for faster RFQ selection.

Product image

Order Symbol

Series 01
Series
SK Series Pneumatic Foot Pedal Valve
Model
SK23R 7-L6, SK25R 7-LB

Key Specs

Selection focus
  • Model: SK23R 7-L6, SK25R 7-LB
  • Working medium: compressed air
  • Working pressure: 0.05-0.8 MPa
  • Operating power: ≤80 N, ≤100 N
  • Medium temperature: -10-55 °C

Quote Checklist

RFQ-ready

Send these working details and Bepto Pneumatic can confirm the suitable configuration.

  • Model / photo: Send the valve label, old model code, or installed photo.
  • function: Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.
  • Medium / pressure: Share working medium, pressure range, and temperature.
  • Electrical details: Confirm voltage, frequency, coil type, and connector if applicable.
  • Port / thread: Send port size, thread standard, and tube or pipe connection.
Selection snapshot

Coil and electrical specifications

10 rows
ModelSK23R 7-L6SK25R 7-LB
Diameter6 mm8 mm
Working mediumcompressed air
Working pressure0.05-0.8 MPa
medium temperature-10-55 °C
Environment temperature-5-50 °C
Effective sectional area10 mm²20 mm²
Letting out amount≤50 cm³/min
Operating power≤80 N≤100 N
Life (ten thousand cycles)≥200

Same-group comparison

Foot Operated Directional Valves series comparison

Compare related product series by function, size, pressure, and RFQ details.

3 related series
SeriesOrifice sizefunctionMediumPressure rangeVoltage coilPort thread
SK Foot Valve6 mm, 8 mmFoot Valvecompressed air0.05-0.8 MPa≤80 N, ≤100 NConfirm by interface
ST Foot ValveG1/4″, G3/8″Foot ValveAir0.15-0.9 MPa-G1/4″, G3/8″

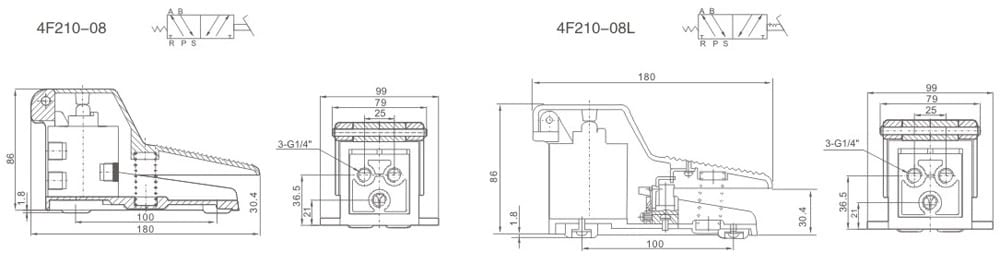

4F & FV Foot ValveG1/4″ main ports; FV exhaust G1/8″two-position five-way | Two-position four-way | two-position three-way40 micron filtered air0.15-0.9 MPa-G1/4″ main ports; FV exhaust G1/8″

Choose by valve task

Start with the control job the valve must do.

Pick the closest use case, then confirm valve function, port size, coil voltage, pressure, medium, mounting, and connector details before RFQ.

Scenario 01

Let an operator trigger a pneumatic clamp or press motion.

Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.

Recommended option

Foot operated directional valve with suitable guard and return behavior.

  • Valve function
  • Pedal guard
  • Return method
  • Port thread

Common valve uses

Where pneumatic control components are installed.

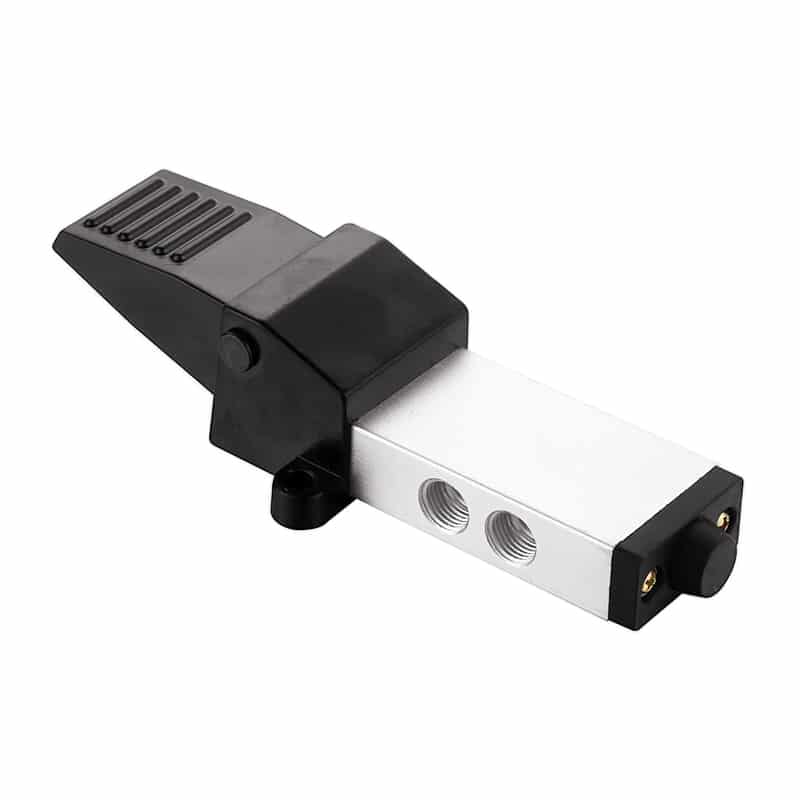

SK Series Pneumatic Foot Pedal Valve product image
Valve use 01

Hands-free clamping fixtures

Foot operated valves trigger pneumatic clamps, small presses, or part-holding fixtures while the operator keeps both hands on the workpiece or tooling.

  • Confirm 3/2 or 5/2 function
  • Choose guarded or open pedal
  • Check return style

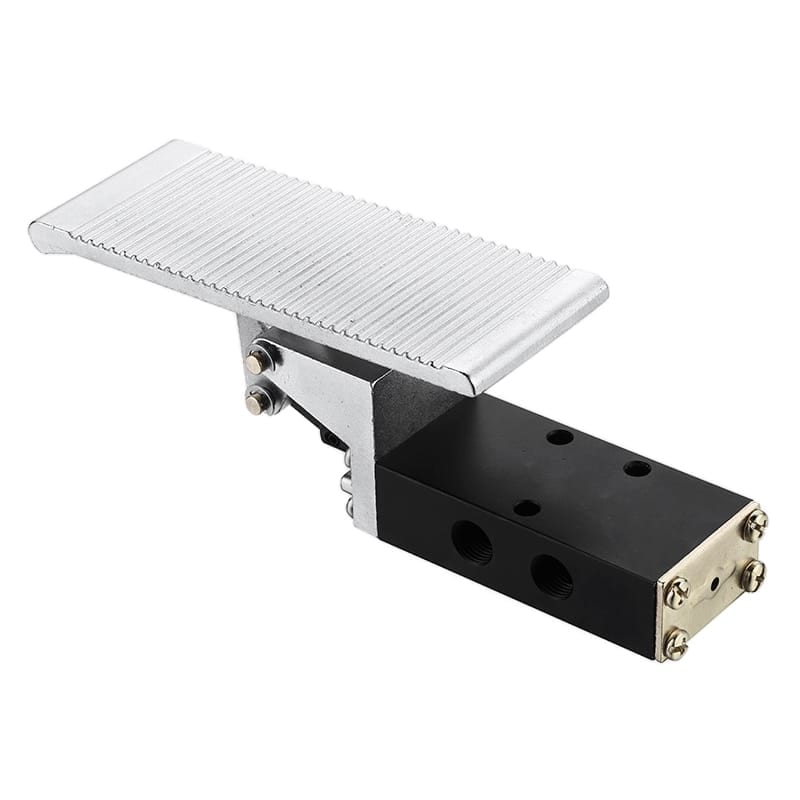

ST Series Foot Operated Pneumatic Control Valve product image
Valve use 02

Assembly and test stations

Pedal valves suit repeated manual stations where a pneumatic cylinder, slide, or clamp moves only after the operator intentionally presses the pedal.

  • Review cycle frequency
  • Check pedal position
  • Confirm mounting holes

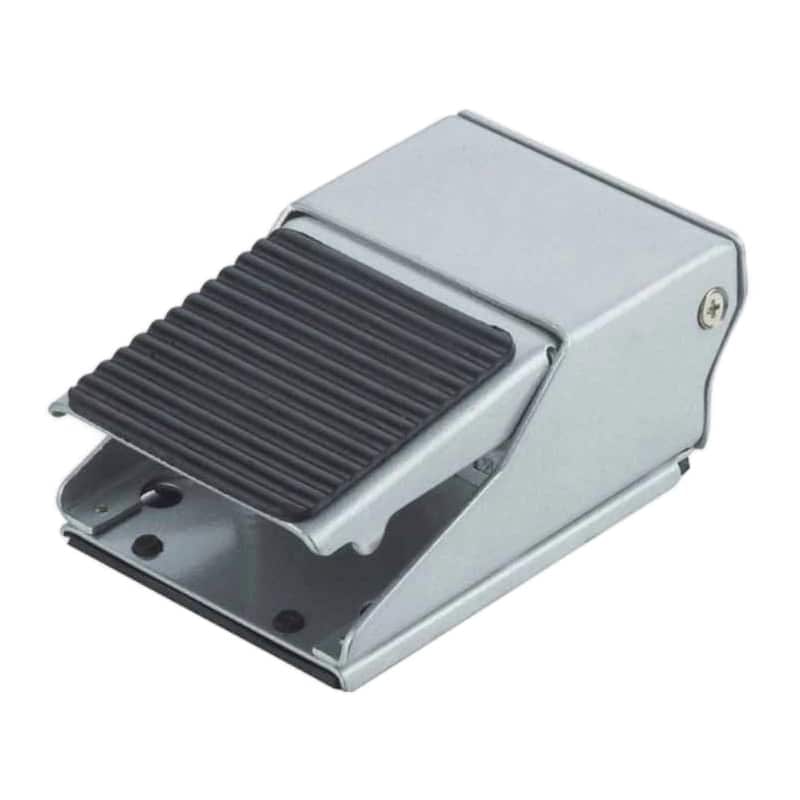

4F & FV Series Pneumatic Foot Pedal Valves product image
Valve use 03

operator safety zones

Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.

  • Choose guard style
  • Confirm pedal stroke
  • Keep exhaust and tubing protected

Valve and flow tools

Check flow, Cv, velocity, and unit conversion before choosing valves.

Use these calculations when a pneumatic valve decision depends on flow capacity, pressure loss, port size, or catalog unit conversion.

Open Valves & flow tools
01Valves & flow

Cv Flow Calculator

Estimate valve Cv before selecting a solenoid, manual, or control valve.

Calculation modeCv valueFlow rateOpen calculator02Valves & flow

Air Orifice Flow Calculator

Review approximate air flow through an orifice or restriction point.

Orifice diameterUpstream pressureDownstream pressureOpen calculator03Valves & flow

Air Velocity Calculator

Check air velocity so port, tube, and valve choices stay practical.

Free-air flowFlow unitInternal diameterOpen calculator04Unit conversion

Cv / Kv Converter

Convert Cv and Kv values when comparing international datasheets.

Coefficient valueSource coefficientOpen calculator

Request category support

Send the details that make this Foot Operated Directional Valves inquiry review-ready.

Bepto Pneumatic is the pneumatic product line of Bepto Industrial. Send model numbers, photos, drawings, or rough requirements and the team will route the request for sales or technical review.

  • Model code or installed product photo
  • Port size, thread standard, and tube size
  • Working medium, pressure, and temperature
  • Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.
Solenoid ValvesAir Control ValvesManual Control ValvesMechanical Valves

Foot Operated Directional Valves RFQ details

Fields marked with * help prepare the request.

Category FAQ

Common questions before sending an inquiry.

01Foot Operated Directional ValvesWhat should be confirmed for a foot valve replacement?

Confirm the port count, thread, return style, pedal or guard style, mounting layout, and the old valve photo or model code.

02Foot Operated Directional ValvesAre foot valves suitable for automated PLC control?

Review function, size, pressure, mounting, and inquiry data for Foot Operated Directional Valves.
